USER MANUAL T1000 HCL Eurolite

Technical line drawing of a mechanical device with mounting base and side supports (no text or symbols)

Inhaltsverzeichnis

Table of contents

Deutsch

EINFÜHRUNG....3

SAFETY INSTRUCTIONS 22

OPERATING DETERMINATIONS....23

DESCRIPTION OF THE DEVICE 25

Features 25

Overview 25

INSTALLATION 26

Attachment 26

Overhead rigging....26

DMX512 control 28

Master/Slave operation 28

Connection with the mains....29

Connection between devices 29

OPERATION 29

Stand-alone Mode 29

Control Board 30

DMX Mode 32

DMX Protocol....33

CLEANING AND MAINTENANCE 39

TECHNICAL SPECIFICATIONS.... 39

This user manual is valid for the article number 51914121

You can find the latest update of this user manual in the Internet under:

www.eurolite.de

BEDIENUNGSANLEITUNG

eurolite®

LED-Outdoor-Leiste

Technical diagram of a mechanical device with numbered components labeled 11 to 16

INSTALLATION

Befestigung

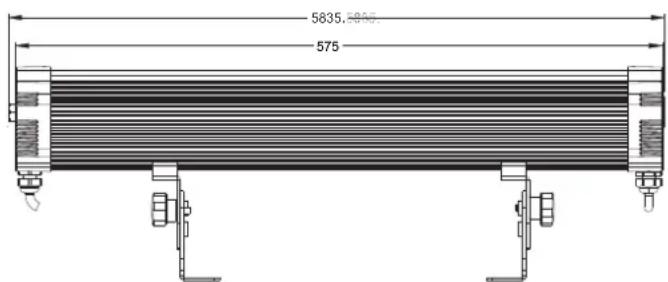

Technical drawing of a rectangular mechanical component with circular features and dimension lines (no text or symbols)

93.35 190.35

583.5 575

For your own safety, please read this user manual carefully before you initially start-up.

Every person involved with the installation, operation and maintenance of this device has to

• be qualified
• follow the instructions of this manual
• consider this manual to be part of the total product
• keep this manual for the entire service life of the product
• pass this manual on to every further owner or user of the product
• download the latest version of the user manual from the Internet

INTRODUCTION

Thank you for having chosen a EUROLITE LED IP T1000 HCL 9x12W. If you follow the instructions given in this manual, we are sure that you will enjoy this device for a long period of time.

Unpack your LED effect.

SAFETY INSTRUCTIONS

CAUTION!

Be careful with your operations. With a dangerous voltage you can suffer a dangerous electric shock when touching the wires!

This device has left our premises in absolutely perfect condition. In order to maintain this condition and to ensure a safe operation, it is absolutely necessary for the user to follow the safety instructions and warning notes written in this user manual.

Important:

Damages caused by the disregard of this user manual are not subject to warranty. The dealer will not accept liability for any resulting defects or problems.

If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not switch it on immediately. The arising condensation water might damage your device. Leave the device switched off until it has reached room temperature.

Please make sure that there are no obvious transport damages. Should you notice any damages on the A/C connection cable or on the casing, do not take the device into operation and immediately consult your local dealer.

This device falls under protection-class I. The power plug must only be plugged into a protection class I outlet. The voltage and frequency must exactly be the same as stated on the device. Wrong voltages or power outlets can lead to the destruction of the device and to mortal electrical shock.

English

Always plug in the power plug last. The power plug must always be inserted without force. Make sure that the plug is tightly connected with the outlet.

Never let the power-cord come into contact with other cables! Handle the power-cord and all connections with the mains with particular caution! Never touch them with wet hands, as this could lead to mortal electrical shock.

Never modify, bend, strain mechanically, put pressure on, pull or heat up the power cord. Never operate next to sources of heat or cold. Disregard can lead to power cord damages, fire or mortal electrical shock.

The cable insert or the female part in the device must never be strained. There must always be sufficient cable to the device. Otherwise, the cable may be damaged which may lead to mortal damage.

Make sure that the power-cord is never crimped or damaged by sharp edges. Check the device and the power-cord from time to time.

If extension cords are used, make sure that the core diameter is sufficient for the required power consumption of the device. All warnings concerning the power cords are also valid for possible extension cords.

Always disconnect from the mains, when the device is not in use or before cleaning it. Only handle the power-cord by the plug. Never pull out the plug by tugging the power-cord. Otherwise, the cable or plug can be damaged leading to mortal electrical shock. If the power plug or the power switch is not accessible, the device must be disconnected via the mains.

If the power plug or the device is dusty, the device must be taken out of operation, disconnected and then be cleaned with a dry cloth. Dust can reduce the insulation which may lead to mortal electrical shock. More severe dirt in and at the device should only be removed by a specialist.

There must never be any objects entering into the device. This is especially valid for metal parts. If any metal parts like staples or coarse metal chips enter into the device, the device must be taken out of operation and disconnected immediately. Malfunction or short-circuits caused by metal parts may cause mortal injuries.

HEALTH HAZARD!

Never look directly into the light source, as sensitive persons may suffer an epileptic shock (especially meant for epileptics)!

Keep away children and amateurs!

Never leave this device running unattended.

Never operate the device without protective shield! Replace any cracked protective shield.

OPERATING DETERMINATIONS

This device is an architectural spot for creating decorative effects. This product is only allowed to be operated with an alternating current of 100-240 V, 50/60 Hz.

This device is jet-proof (IP 65) and therefore qualified for indoor and outdoor use. In order to maintain this protection grade after opening the housing, any rubber sealings must be examined for damages and always be correctly installed.

For outdoor use, the installer must always make sure to connect a rubber cable H05RN-F or HO5RR-F. For installations in the ground, an underground power cable NYY must be used!

All valid instructions concerning the installation of cables outdoors or in the ground must be adhered!

The ambient temperature must always be between -5^ C and +45^ C. Keep away from direct insulation (particularly in cars) and heaters.

English

The maximum relative humidity is 100 % with an ambient temperature of 25°C.

This device must only be operated in an altitude between -20 and 2000 m over NN.

This device is designed for professional use.

Do not shake the device. Avoid brute force when installing or operating the device.

When choosing the installation-spot, please make sure that the device is not exposed to extreme heat, moisture or dust. There should not be any cables lying around. You endanger your own and the safety of others!

The maximum ambient temperature T_a = 45^ C must never be exceeded.

The F-symbol means: this device can be installed on normal inflammable surfaces.

Never use the device during thunderstorms. Over voltage could destroy the device. Always disconnect the device during thunderstorms.

The symbol ·s m determines the minimum distance from lighted objects. The minimum distance between light-output and the illuminated surface must be more than the given value.

This device is only allowed for an installation via the mounting bracket. In order to safeguard sufficient ventilation, leave 50 cm of free space around the device.

The housing must never touch surrounding surfaces or objects.

Make sure that the area below the installation place is blocked when rigging, derigging or servicing the fixture.

Always fix the fixture with an appropriate safety-rope.

Only operate the fixture after having checked that the housing is firmly closed and all screws are tightly fastened.

Operate the device only after having become familiarized with its functions. Do not permit operation by persons not qualified for operating the device. Most damages are the result of unprofessional operation!

Never use solvents or aggressive detergents in order to clean the device! Rather use a soft and damp cloth.

Please use the original packaging if the device is to be transported. Make sure that you pack the device in the original state.

Please consider that unauthorized modifications on the device are forbidden due to safety reasons!

Never remove the serial barcode from the device as this would make the guarantee void.

If this device will be operated in any way different to the one described in this manual, the product may suffer damages and the guarantee becomes void. Furthermore, any other operation may lead to dangers like short-circuit, burns, electric shock, crash etc.

DESCRIPTION OF THE DEVICE

Features

Ultra-flexible LED architectural spot with 12 W hexacolor LEDs

• Equipped with 9 x 6in1 HCL LED in the colors red, green, blue, amber, white and UV
• Flicker-free projection
  • 4, 5, 6, 7, 9 or 12 DMX channels selectable
  • For architectural lighting
• Suitable for external use, IP 65
  • Fully convection cooled, no fans
• Stepless RGBAW + UV color changing
• Dimmer
• Different dimmer curves and dimmer speed (step response) adjustable
• Strobe effect with adjustable speed
• Random strobe effect
• Preset colors and color temperatures
• Internal programs
• Programmable color change speed
• Programmed and programmable chaser
• DMX-controlled operation or stand-alone operation with Master/Slave function
• Addressing and setting via Control Board with LED display and four operating buttons
• Switch-mode power supply for operation between 100 and 240 volts
  • DMX control via every standard DMX controller
• Feed-through output allows to power up to 8 devices

Overview

123456 78910

(1) Housing
(2) DMX output
(3) Power output
(4) LED
(5) Cooling ribs
(6) Mounting bracket/foot
(7) Fixation screw
(8) Vent screw
(9) DMX input
(10) Power input

(11) Control Board (12) Enter button (13) Down button (14) Up button (15) Menu button (16) Display

INSTALLATION

Attachment

Before attaching the device, make sure that the installation area can hold a minimum point load of 10 times the device's weight.

The device must only be installed absolutely planar at a vibration-free, oscillation-free and fire-resistant location. Make sure that the device is installed absolutely planar by using a water-level.

The device must be installed out of the reach of people.

The device must always be installed via all fixation holes. Do only use appropriate screws and make sure that the screws are properly connected with the ground.

The durability of the installation depends very much on the material used at the installation area (building material) such as wood, concrete, gas concrete, brick etc. This is why the fixing material must be chosen to suit the wall material. Always ask a specialist for the correct plug/screw combination indicating the maximum load and the building material.

Procedure:

Step 1: On the mounting brackets of the device, there are the holes for the installation.
Step 2: Hold the mounting brackets with the device onto the location where it is to be installed.
Step 3: Mark the boreholes with a pen or a suitable tool.
Step 4: Drill the holes.
Step 5: Hold the mounting brackets in the desired position and tighten them.

The mounting brackets on the rear panel can be moved to the desired position.

Adjust the desired inclination-angle via the mounting brackets and tighten the fixation screws.

Attention: After mounting the LED effect in the desired location, be sure to tighten the screw on the bottom of the mounting brackets with a hexagonal key. This prevents a possible slipping of the device.

Overhead rigging

DANGER TO LIFE!

Please consider the EN 60598-2-17 and the respective national standards during the installation! llation must only be carried out by an authorized dealer!

The installation of the device has to be built and constructed in a way that it can hold 10 times the weight for 1 hour without any harming deformation.

The installation must always be secured with a secondary safety attachment, e.g. an appropriate catch net. This secondary safety attachment must be constructed in a way that no part of the installation can fall down if the main attachment fails.

When rigging, derigging or servicing the fixture staying in the area below the installation place, on bridges, under high working places and other endangered areas is forbidden.

The operator has to make sure that safety-relating and machine-technical installations are approved by an expert before taking into operation for the first time and after changes before taking into operation another time.

The operator has to make sure that safety-relating and machine-technical installations are approved by an expert after every four year in the course of an acceptance test.

English

The operator has to make sure that safety-relating and machine-technical installations are approved by a skilled person once a year.

Procedure:

The device should be installed outside areas where persons may walk by or be seated.

IMPORTANT! OVERHEAD RIGGING REQUIRES EXTENSIVE EXPERIENCE, including (but not limited to) calculating working load limits, installation material being used, and periodic safety inspection of all installation material and the device. If you lack these qualifications, do not attempt the installation yourself, but instead use a professional structural rigger. Improper installation can result in bodily injury and/or damage to property.

The device has to be installed out of the reach of people.

If the device shall be lowered from the ceiling or high joists, professional trussing systems have to be used. The device must never be fixed swinging freely in the room.

Caution: Devices may cause severe injuries when crashing down! If you have doubts concerning the safety of a possible installation, do NOT install the device!

Before rigging make sure that the installation area can hold a minimum point load of 10 times the device's weight.

DANGER OF FIRE!

When installing the device, make sure there is no highly-inflammable material (decoration articles, etc.) within a distance of min. 0.5 m.

Mount the device with mounting-brackets to your trussing system using appropriate clamps.

For overhead use, always install an appropriate safety bond.

You must only use safety bonds and quick links complying with DIN 56927, shackles complying with DIN EN 1677-1 and BGV C1 carbines. The safety bonds, quick links, shackles and the carbines must be sufficiently dimensioned and used correctly in accordance with the latest industrial safety regulations (e. g. BGV C1, BGI 810-3).

Please note: for overhead rigging in public or industrial areas, a series of safety instructions have to be followed that this manual can only give in part. The operator must therefore inform himself on the current safety instructions and consider them.

The manufacturer cannot be made liable for damages caused by incorrect installations or insufficient safety precautions!

Pull the safety bond through the hole in the mounting-bracket and over the trussing system or a safe fixation spot. Insert the end in the quick link and tighten the safety screw.

The maximum drop distance must never exceed 20 cm.

A safety bond which already held the strain of a crash or which is defective must not be used again.

Adjust the desired inclination-angle via the mounting-bracket and tighten the fixation screws.

DANGER TO LIFE!

Before taking into operation for the first time, the installation has to be approved by an expert!

DMX512 control

The wires must not come into contact with each other, otherwise the devices will not work at all, or will not work properly.

Please note, the starting address depends upon which controller is being used.

Only use a DMX cable and 3-pin XLR plugs and connectors in order to connect the controller with the fixture or one fixture with another.

Occupation of the XLR connection:

DMX-output
XLR mounting-socket:

1: Ground
2: Signal (−)
3: Signal (+)

DMX-input
XLR mounting-plug:

1: Ground
2: Signal (−)
3: Signal (+)

If you are using controllers with this occupation, you can connect the DMX output of the controller directly with the DMX input of the first device in the DMX chain. If you wish to connect DMX controllers with other XLR outputs, you need to use adapter cables.

Building a serial DMX chain:

Connect the DMX output of the first device in the DMX chain with the DMX input of the next device. Always connect one output with the input of the next device until all devices are connected.

Caution: At the last fixture, the DMX cable has to be terminated. Plug the terminator with a 120 Ω resistor between Signal (−) and Signal (+) in the DMX output of the last fixture.

The DMX connection can be made via DMX adapters or special DMX connection cables. The important thing about this is that the connection is always sufficiently isolated against humidity.

Master/Slave operation

The master/slave operation enables that several devices can be synchronized and controlled by one master device.

On the rear panel of the device you can find an XLR jack and an XLR plug, which can be used for connecting several devices.

Choose the device which is to control the effects. This device then works as master device and controls all other slave devices, which are to be connected to the master device via a DMX-cable. Connect the OUT jack with the IN plug of the next device.

Set the desired master mode for the master-device, as described in chapter Control Board. Set the DMX address 1 for all slave-devices.

Connection with the mains

Connect the device to the mains with the enclosed power supply cable.

The occupation of the connection-cables is as follows:

Cable	Pin	International
Brown	Live	L
Blue	Neutral	N
Yellow/Green	Earth

The earth has to be connected!

If the device will be directly connected with the local power supply network, a disconnection switch with a minimum opening of 3 mm at every pole has to be included in the permanent electrical installation.

The device must only be connected with an electric installation carried out in compliance with the IEC-standards. The electric installation must be equipped with a Residual Current Device (RCD) with a maximum fault current of 30 mA.

Lighting effects must not be connected to dimming-packs.

Connection between devices

On the rear panel, there is a socket (Power Out). Connect the output with the mains input of the next fixture until all fixtures are connected.

Please note: A maximum of 8 devices may be linked together. After every 8 devices, the fixtures must have a renewed connection with the power mains.

Please make sure that open contacts are closed with caps in order to avoid humidity and dirt in the device.

OPERATION

After you connected the effect to the mains, the LED IP T1000 HCL 9x12W starts running.

The LED display lights up and you can now choose the desired settings via the buttons MENU, UP, DOWN and ENTER.

The device has two operating modes. It can be operated in stand-alone mode or in DMX-controlled mode via any standard DMX controller.

Stand-alone Mode

In the stand-alone mode, the LED IP T1000 HCL 9x12W can be used without DMX-controller. Disconnect the LED IP T1000 HCL 9x12W from the DMX-controller.

Control Board

The Control Board offers several features: you can simply set the starting address or run the pre-programmed program.

The main menu is accessed by pressing Menu until the display is lit. Browse through the menu by pressing Up or Down. Press the Enter button twice in order to select the desired menu. You can change the selection by pressing Up or Down. Confirm every selection by pressing the Enter button. You can leave every mode by pressing the Menu button. The functions provided are described in the following sections.

Default settings shaded.

Main menu	Sub menu	Display Function
ADDR	001~XXX	DMX address setting
STAT	R	0-255			Dimmer intensity of LED colors (Master mode)
	G 0-255
	B 0-255
	A 0-255
	W 0-255
	UV 0-255
	SHUT 0-255 Strobe effect with increasing speed
	PRSC	None, R, G, B, A, W, UV, Yellow, Pink, Cyan, Orange, Violet, Golden, 2700 K, 3200 K, 4000 K, 5500 K, 6500 K, RGBW			Preset colors and color temperatures (Master mode)
SET	CAL	R	0-255		Max. output limitation of LED colors/ White balance
		G 0-255
		B 0-255
		A 0-255
		W	0-255
		UV	0-255
		USE	Yes/No
	CHMD	12CH			Setting DMX channel mode
		9CH
		7CH
		6CH
		5CH
		4CH
	DIM	LIN, SQR, ISQR, SCUR, LIN., SQR., ISQR., SCUR.			LIN - Linear dimmer curve, response characteristics of LED, SQR - Square dimmer curve, response characteristics of LED, ISQR - Inverse square dimmer curve, response characteristics of LED, SCUR - S-shaped dimmer curve, response characteristics of LED, LIN. - Linear dimmer curve, response characteristics of halogen lamp, SQR. Square dimmer curve, response characteristics of halogen lamp, ISQR. - Inverse square dimmer curve, response characteristics of halogen lamp, SCUR. - S-shaped dimmer curve, response characteristics of halogen lamp

English

	DISY	ON			Display shutoff ON - permanent on 2MIN - shut off the display after 2 minutes
		2MIN
CTST	CT01 - CT10	R	0-255		Individual customer color setting (CTST, custom color set)
		G	0-255
		B	0-255
		A	0-255
		W	0-255
		UV	0-255
AUTO	AT01	0-255			Internal programs with decreasing speed (Master mode)
	AT02	0-255
	AT03	0-255
	AT04	0-255
	AT05	0-255
	CHS1	RUN	..		User defined chaser 1-3 (Master mode)
	CHS2	RUN	..
	CHS3	RUN	..
PROG	CHS1 - CHS3	SC01-SC20			With this function, you can edit the user defined chaser (CHS1-CHS3), which can be called up under AUTO - CHS1-CHS3. With SC01-SC20, you can select the step to be edited. You can adjust the steps with R, G, B, .. ATSP. Set the duration of every scene with „Time“ and the duration between the scenes with “Wait”. You can define if they should be used with „Use“.
			R	0-255	Dimmer intensity of LED colors
			G	0-255
			B	0-255
			A	0-255
			W	0-255
			UV	0-255
			SHUT	0-255	Strobe effect
			AUTO	None, AT01-AT05	Internal programs
			ATSP	0-255 (S) Speed internal programs
			TIME	0-255 (S)	See above
			WAIT	0-25.5 (S)
			USE	YES/NO
Info	SOFT	Vx.x			Software version
	POW	100%			Service function
LOAD	STL	YES/NO			Restore factory settings
	PRL	YES/NO			Program (PROG) load
SEND	YES/NO				Service function

English

DMX Mode

The device has six different DMX channel modes. The Control Board allows you, as described below, to assign the DMX channel mode.

You can control the devices individually via your DMX-controller. Every DMX-channel has a different occupation with different features.

The Control Board allows you to assign the DMX fixture address, which is defined as the first channel from which the LED IP T1000 HCL 9x12W will respond to the controller.

Please, be sure that you don't have any overlapping channels in order to control each LED IP T1000 HCL 9x12W correctly and independently from any other fixture on the DMX-chain. If several LED IP T1000 HCL 9x12W are addressed similarly, they will work synchronically.

If you set, for example in the 12 channel mode, the address to channel 13, the device will use the channel 13 to 24 for control.

Controlling:

After having addressed the device, you may now start operating it via your lighting controller.

Note:

After switching on, the device will automatically detect whether DMX 512 data is received or not. If there is data received at the DMX-input, the dot behind the desired starting address will flash. If there is no data received, the dot will not flash.

This situation can occur if:

- the XLR plug (cable with DMX signal from controller) is not connected with the input of the device.

- the controller is switched off or defective, if the cable or connector is defective or the signal wires are swap in the input connector.

Addressing

Press the MENU button until the display shows ADDR.

Press the ENTER button and the display shows: 001.

Set the desired address via the UP or DOWN buttons.

Please press the ENTER button again to confirm and to exit the DMX Mode

DMX Channel Selection: Choosing a DMX Channel Mode

After having set the desired address and pressed ENTER, you can now choose a DMX Channel Mode (4 CH, 5 CH, 6 CH, 7 CH, 9 CH or 12 CH).

Press the MENU button until the display shows SET.

Press the ENTER button and the display shows: 4 CH, 5 CH, 6 CH, 7 CH, 9 CH or 12 CH.

Set the desired DMX channel mode via the UP or DOWN buttons.

Please press the ENTER button again to confirm and to exit the DMX Mode

Please see the following DMX protocol graphic for the respective channel values.

DMX Protocol

4-channel mode

Control-channel 1 - Red

Decimal		Hexad.		Percentage		S/F		Feature
0	255	00	FF	0%	100%	F	Red (0=off, 255=100% red)

Control-channel 2 - Green

Decimal		Hexad.		Percentage		S/F	Feature
0	255	00	FF	0%	100%	F	Green (0=off, 255=100% green)

Control-channel 3 - Blue

Decimal		Hexad.		Percentage		S/F	Feature
0	255	00	FF	0%	100%	F	Blue (0=off, 255=100% blue)

Control-channel 4 - White

Decimal		Hexad.		Percentage		S/F	Feature
0	255	00	FF	0%	100%	F	White (0=off, 255=100% white)

5-channel mode

Control-channel 1 - Dimmer

Decimal		Hexad.		Percentage		S/F		Feature
0	255	00	FF	0%	100%	F	Gradual	adjustment of the dimmer intensity from 0 to 100 %

Control-channel 2 - Amber

Decimal		Hexad.		Percentage		S/F		Feature
0	255	00	FF	0%	100%	F	Amber (0=off, 255=100% amber)

Control-channel 3 - White

Decimal		Hexad.		Percentage		S/F	Feature
0	255	00	FF	0%	100%	F	White (0=off, 255=100% white)

Control-channel 4 - UV

Decimal		Hexad.		Percentage		S/F		Feature
0	255	00	FF	0%	100%	F	UV (0=off, 255=100% UV)

Control-channel 5 - Color-change linear & Color Bounce

Decimal		Hexad.		Percentage		S/F	Feature
0	10	00	0A	0%	4% S	No	function
11	11	0B	0B	4%	4% $	Blue
12	50	0C	32	5%	20%	F	Red 0% / green increasing / blue 100% / white 0%
51	51	33	33	20%	20%	S	Light blue
52	90	34	5A	20%	35%	F	Red 0% / green 100% / blue decreasing / white 0%
91	91	5B	5B	36%	36%	S	Green
92	130	5C	82	36%	51%	F	Red increasing / green 100% / blue 0% / white 0%

English

131	131	83	83	51%	51%	S	Yellow
132	170	84	AA 5	2% 67	% F	Red 100	0% / green decreasing / blue 0% / white 0%
171	171	AB	AB	67%	67%	S	Red
172	210	AC	D2	67%	82%	F	Red 100% / green 0% / blue increasing / white 0%
211	211	D3	D3	83%	83%	S	Magenta
212	250	D4	FA 8	3% 98	% F	Red de	creasing / green 0% / blue 100% / white 0%
251	255	FB	FF	98%	100%	S	Blue

6-channel mode

Control-channel 1 - Red

Decimal		Hexad.		Percentage		S/F		Feature
0	255	00	FF	0%	100%	F	Red	(0=off, 255=100% red)

Control-channel 2 - Green

Decimal		Hexad.		Percentage		S/F	Feature
0	255	00	FF	0%	100%	F	Green (0=off, 255=100% green)

Control-channel 3 - Blue

Decimal		Hexad.		Percentage		S/F	Feature
0	255	00	FF	0%	100%	F	Blue (0=off, 255=100% blue)

Control-channel 4 - Amber

Decimal		Hexad.		Percentage		S/F		Feature
0	255	00	FF	0%	100%	F	Amber (0=off, 255=100% amber)

Control-channel 5 - White

Decimal		Hexad.		Percentage		S/F	Feature
0	255	00	FF	0%	100%	F	White (0=off, 255=100% white)

Control-channel 6 - UV

Decimal		Hexad.		Percentage		S/F		Feature
0	255	00	FF	0%	100%	F	UV (0=off, 255=100% UV)

7-channel mode

Control-channel 1 - Dimmer

Decimal		Hexad.		Percentage		S/F	Feature
0	255	00	FF	0%	100%	F	Gradual adjustment of the dimmer intensity from 0 to 100 %

Control-channel 2 - Red

Decimal		Hexad.		Percentage		S/F		Feature
0	255	00	FF	0%	100%	F	Red	(0=off, 255=100% red)

English

Control-channel 3 - Green

Decimal		Hexad.		Percentage		S/F	Feature
0	255	00	FF	0%	100%	F	Green (0=off, 255=100% green)

Control-channel 4 - Blue

Decimal		Hexad.		Percentage		S/F	Feature
0	255	00	FF	0%	100%	F	Blue (0=off, 255=100% blue)

Control-channel 5 - Amber

Decimal		Hexad.	Percentage	S/F	Feature
0	255	00	FF 0%	100% F Amber (0=off, 255=100% amber)

Control-channel 6 - White

Decimal		Hexad.		Percentage		S/F	Feature
0	255	00	FF	0%	100%	F	White (0=off, 255=100% white)

Control-channel 7 - UV

Decimal		Hexad.		Percentage		S/F	Feature
0	255	00	FF	0%	100%	F	UV (0=off, 255=100% UV)

9-channel mode

Control-channel 1 - Dimmer

Decimal		Hexad.		Percentage		S/F		Feature
0	255	00	FF	0%	100%	F	Gradual	adjustment of the dimmer intensity from 0 to 100 %

Control-channel 2 - Red

Decimal		Hexad.		Percentage		S/F		Feature
0	255	00	FF	0%	100%	F	Red (0=off, 255=100% red)

Control-channel 3 - Green

Decimal		Hexad.		Percentage		S/F	Feature
0	255	00	FF	0%	100%	F	Green (0=off, 255=100% green)

Control-channel 4 - Blue

Decimal		Hexad.		Percentage		S/F		Feature
0	255	00	FF	0%	100%	F	Blue (0=off, 255=100% blue)

Control-channel 5 - Amber

Decimal		Hexad.		Percentage		S/F		Feature
0	255	00	FF	0%	100%	F	Amber	(0=off, 255=100% amber)

Control-channel 6 - White

Decimal		Hexad.		Percentage		S/F	Feature
0	255	00	FF	0%	100%	F	White (0=off, 255=100% white)

Control-channel 7 - UV

Decimal		Hexad.		Percentage		S/F	Feature
0	255	00	FF	0%	100%	F	UV (0=off, 255=100% UV)

Control-channel 8 - Strobe

Decimal		Hexad.		Percentage		S/F		Feature
0	5	00	05	0%	2% S	No	function
6	20	06	14	2%	8% F	Strobe-effect (asynchron) with increasing speed
21	60	15	3C	8%	24%	F	Strobe-effect (synchron) with increasing speed
61	100	3D	64	24%	39%	F	Strobe-effect (sinus wave) with increasing speed
101	140	65	8C	40%	55%	F	Random strobe-effect with increasing speed
141	180	8D	B4	55%	71%	F	Opening pulse-effect with increasing speed
181	220	B5	DC	71%	86%	F	Closing pulse-effect with increasing speed
221	255	DD	FF	87%	100%	F	Strobe-effect (square wave) with increasing speed

Control-channel 9 - Dimmer curves

Decimal		Hexad.		Percentage		S/F	Feature
0	10	00	0A	0%	6%	S	Control Board setting dimmer curve
11	20	0B	14	6%	18%	S	Linear dimmer curve, response characteristics of LED
21	30	15	1E	18%	29%	S	Square dimmer curve, response characteristics of LED
31	40	1F	28	30%	41%	S	Inverse square dimmer curve, response characteristics of LED
41	50	29	32	42%	53%	S	S-shaped dimmer curve, response characteristics of halogen LED
51	60	33	3C	53%	65%	S	Linear dimmer curve, response characteristics of halogen lamp
61	70	3D	46	65%	76%	S	Square dimmer curve, response characteristics of halogen lamp
71	80	47	50	77%	88%	S	Inverse square dimmer curve, response characteristics of halogen lamp
81	90	51	5A	89%	100%	S	S-shaped dimmer curve, response characteristics of halogen lamp
91	255	5B	FF	89%	100%	S	Control Board setting dimmer curve

12-channel mode

Control-channel 1 - Dimmer

Decimal		Hexad.		Percentage		S/F	Feature
0	255	00	FF	0%	100%	F	Gradual adjustment of the dimmer intensity from 0 to 100 %

Control-channel 2 - Red

Decimal		Hexad.		Percentage		S/F	Feature
0	255	00	FF	0%	100%	F	Red (0=off, 255=100% red)

Control-channel 3 - Green

Decimal		Hexad.		Percentage		S/F	Feature
0	255	00	FF	0%	100%	F	Green (0=off, 255=100% green)

Control-channel 4 - Blue

Decimal		Hexad.		Percentage		S/F	Feature
0	255	00	FF	0%	100%	F	Blue (0=off, 255=100% blue)

Control-channel 5 - Amber

Decimal		Hexad.		Percentage		S/F		Feature
0	255	00	FF	0%	100%	F	Amber	(0=off, 255=100% amber)

Control-channel 6 - White

Decimal		Hexad.		Percentage		S/F	Feature
0	255	00	FF	0%	100%	F	White (0=off, 255=100% white)

Control-channel 7 - UV

Decimal		Hexad.		Percentage		S/F	Feature
0	255	00	FF	0%	100%	F	UV (0=off, 255=100% UV)

Control-channel 8 - Strobe

Decimal		Hexad.		Percentage		S/F	Feature
0	5	00	05	0%	2% S	No	function
6	20	06	14	2%	8% F	Strobe-effect (asynchron) with increasing speed
21	60	15	3C	8%	24%	F	Strobe-effect (synchron) with increasing speed
61	100	3D	64	24%	39%	F	Strobe-effect (sinus wave) with increasing speed
101	140	65	8C	40%	55%	F	Random strobe-effect with increasing speed
141	180	8D	B4	55%	71%	F	Opening pulse-effect with increasing speed
181	220	B5	DC	71%	86%	F	Closing pulse-effect with increasing speed
221	255	DD	FF	87%	100%	F	Strobe-effect (square wave) with increasing speed

Control-channel 9 - Color presets, internal programs

Decimal		Hexad.		Percentage		S/F	Feature
0	10	00	0A	0%	4%S	No	function
11	15	0B	0F	4%	6%	S	CT01 - Control Board setting color (CTST, custom color set)
16	20	10	14	6%	8%	S	CT02 - Control Board setting color (CTST, custom color set)
21	25	15	19	8%	10%	S	CT03 - Control Board setting color (CTST, custom color set)
26	30	1A	1E	10%	12%	S	CT04 - Control Board setting color (CTST, custom color set)
31	35	1F	23	12%	14%	S	CT05 - Control Board setting color (CTST, custom color set)
36	40	24	28	14%	16%	S	CT06 - Control Board setting color (CTST, custom color set)
41	45	29	2D	16%	18%	S	CT07 - Control Board setting color (CTST, custom color set)
46	50	2E	32	18%	20%	S	CT08 - Control Board setting color (CTST, custom color set)
51	55	33	37	20%	22%	S	CT09 - Control Board setting color (CTST, custom color set)
56	60	38	3C	22%	24%	S	CT10 - Control Board setting color (CTST, custom color set)
61	65	3D	41	24%	25%	S	AUTO 1 (R, G, B, A, W UV, RG, RB, GB, GB, AW, WUV, AUV)
66	70	42	46	26%	27%	S	AUTO 2 (R>, R<, G>, G<, B>, B<, A>, A<, W>, W<, UV>, UV<)
71	75	47	4B	28%	29%	S	AUTO 3 (R>G>, R,R,G>, B
76	80	4C	50	30%	31%	S	AUTO 4 (R>G>B>W>, R
81	85	51	55	32%	33%	S	AUTO 5 (Rainbow effect: B, BG>, BG,B<, G, G, GR>, GR, G<, R, R, RB>, RB,R
86	90	56	5A	34%	35%	S	CHASER 1
91	95	5B	5F	36%	37%	S	CHASER 2
96	100	60	64	38%	39%	S	CHASER 3
101	110	65	6E	40%	43%	S	No function
111	115	6F	73	44%	45%	S	Red
116	120	74	78	45%	47%	S	Green
121	125	79	7D	47%	49%	S	Blue
126	130	7E	82	49%	51%	S	Amber
131	135	83	87	51%	53%	S	White

English

136	140	88	8C	53%	55%	S	UV
141	145	8D	91	55%	57%	S	Yellow
146	150	92	96	57%	59%	S	Pink
151	155	97	9B	59%	61%	S	Cyan
156	160	9C	A0	61%	63%	S	Orange
161	165	A1	A5	63%	65%	S	Violet
166	170	A6	AA	65%	67%	S	Golden
171	175	AB	AF	67%	69%	WHITE	color temperature 2700 K
176	180	B0	B4	69%	71%	WHITE	color temperature 3200 K
181	185	B5	B9	71%	73%	WHITE	color temperature 4000 K
186	190	BA	BE	73%	75%	WHITE	color temperature 5500 K
191	195	BF	C3	75%	76%	WHITE	color temperature 6500 K
196	200	C4	C8	77%	78%	S	RGBW
201	255	C9	FF	79%	100%	S	No function

Control-channel 10 - Speed internal programs (AUTO 1 - 5)

Decimal		Hexad.		Percentage		S/F	Feature
0	255	00	FF	0%	100%	F	Decreasing speed

Control-channel 11 - Color-change linear & Color Bounce

Decimal		Hexad.		Percentage		S/F	Feature
0	10	00	0A	0%	4%	S	No function
11	11	0B	0B	4%	4%	S	Blue
12	50	0C	32	5%	20%	F	Red 0% / green increasing / blue 100% / white 0%
51	51	33	33	20%	20%	S	Light blue
52	90	34	5A	20%	35%	F	Red 0% / green 100% / blue decreasing / white 0%
91	91	5B	5B	36%	36%	S	Green
92	130	5C	82	36%	51%	F	Red increasing / green 100% / blue 0% / white 0%
131	131	83	83	51%	51%	S	Yellow
132	170	84	AA	52%	67%	F	Red 100% / green decreasing / blue 0% / white 0%
171	171	AB	AB	67%	67%	S	Red
172	210	AC	D2	67%	82%	F	Red 100% / green 0% / blue increasing / white 0%
211	211	D3	D3	83%	83%	S	Magenta
212	250	D4	FA 8	3% 98%	F	Red decreasing / green 0% / blue 100% / white 0%
251	255	FB	FF	98%	100%	S	Blue

Control-channel 12 - Dimmer curves

Decimal		Hexad.		Percentage		S/F	Feature
0	10	00	0A	0%	6%	S	Control Board setting dimmer curve
11	20	0B	14	6%	18%	S	Linear dimmer curve, response characteristics of LED
21	30	15	1E	18%	29%	S	Square dimmer curve, response characteristics of LED
31	40	1F	28	30%	41%	S	Inverse square dimmer curve, response characteristics of LED
41	50	29	32	42%	53%	S	S-shaped dimmer curve, response characteristics of halogen LED
51	60	33	3C	53%	65%	S	Linear dimmer curve, response characteristics of halogen lamp
61	70	3D	46	65%	76%	S	Square dimmer curve, response characteristics of halogen lamp
71	80	47	50	77%	88%	S	Inverse square dimmer curve, response characteristics of halogen lamp
81	90	51	5A	89%	100%	S	S-shaped dimmer curve, response characteristics of halogen lamp
91	255	5B	FF 89%	100%	S	Control Board setting dimmer curve

CLEANING AND MAINTENANCE

DANGER TO LIFE!

Disconnect from mains before starting maintenance operation!

We recommend a frequent cleaning of the device. Please use a soft lint-free and moistened cloth. Never use alcohol or solvents!

There are no serviceable parts inside the device. Maintenance and service operations are only to be carried out by authorized dealers.

Should you need any spare parts, please use genuine parts.

Should you have further questions, please contact your dealer.

TECHNICAL SPECIFICATIONS

Power supply: 100-240 V AC, 50/60 Hz
Power consumption: 75 W
Protection grade: IP 65
Beam angle: 30°
LED type: 12 W HCL
Number of LEDs: 9
DMX control channels: 4/5/6/7/9/12
DMX512 connection: 3-pin screw connector
Flash-rate:	18 Hz
Dimensions (LxWxH):	190 x 584 x 101 mm
Weight:	4 kg
Maximum ambient temperature T_a :	45°C
Maximum housing temperature T_c (steady state):	60°C
Min.distance from flammable surfaces:	0.5 m
Min.distance to lighted object:	0.1m
Accessory:
230V cable for LED IP PAR/IP Pad 5m	No. 51914149
DMX-cable for LED IP Par, 5m	No. 51914150
Power cable IP-Par, 1,8m, 230V	No. 51914151
DMX-adapter OUT LED IP-Par 1m	No. 51914152
DMX-adapter IN LED IP-Par, 1m	No. 51914153
End caps for LED IP-Par DMX terminator	No. 51914154

Technical line drawing of a rectangular mechanical component with circular holes and mounting brackets (no text or symbols)

9335 19035-19035

5835.5835 575

Please note: Every information is subject to change without prior notice. 02.03.2016 ©

Technical line drawing of a mechanical component with mounting brackets and internal slots (no text or symbols)

eurolite®

© EUROLITE 2016

00095253.DOC

Version 1.1
