| Product Type | Bookshelf Speaker |
| Dimensions (H x W x D) | 35.6 cm x 20.3 cm x 27.9 cm |
| Weight | 8.2 kg each |
| Power Handling (Recommended Amplifier Power) | 50 – 150 Watts RMS |
| Impedance | 8 Ohms (compatible with 4-8 Ohm amplifiers) |
| Sensitivity | 88 dB (2.83V/1m) |
| Frequency Response | 45 Hz – 25 kHz (±3 dB) |
| Driver Complement | 1" Aluminum Dome Tweeter, 6.5" Micro-Ceramic Composite Woofer |
| Crossover Frequency | 2.5 kHz |
| Cabinet Type | Bass Reflex with Front-Firing Port |
| Enclosure Material | MDF with High-Gloss Real Wood Veneer |
| Grille | Magnetically Attached, Acoustically Transparent |
| Binding Posts | Gold-Plated, Bi-Wire/Bi-Amp Capable |
| Recommended Placement | Bookshelf or Stand, 15-30 cm from rear wall |
| Warranty | 5 Years Limited (Parts & Labor) |
| Country of Origin | Designed in USA, Assembled in China |
| Accessories Included | User Manual, Rubber Feet, Grille, Warranty Card |
Frequently Asked Questions - Concerta2 S16 Revel
User questions about Concerta2 S16 Revel
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Loudspeaker in PDF format for free! Find your manual Concerta2 S16 - Revel and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. Concerta2 S16 by Revel.
USER MANUAL Concerta2 S16 Revel
About Revel Concerta2 Loudspeakers 2
Concerta2 Series Overview.... 3
Installation Considerations, Loudspeaker Placement.... 5
Making Connections 8
Caring for Your Loudspeakers 8
Specifications....9
ABOUT REVEL CONCERTA2 LOUDSPEAKERS SERIES
Thank you for purchasing Revel Concerta2 loudspeakers Series speakers. These true full-range loudspeakers feature small footprints and sleek designs, allowing them to blend-in easily with your existing décor. They deliver an impressive combination of wide frequency range, uncompressed dynamic range and low distortion across the entire audible spectrum.
Typical tweeter magnetic assemblies have a small space behind the dome that causes a high mechanical resonance. In designing the Concerta2 series, this challenge was met head on by Revel engineers. They created a tweeter mechanical resonance that is well below the operating band which would ensure linearity and consistency at the crossover frequency. To do so, a large cavity behind the magnetic assembly is vented around the perimeter. This, along with a compliant diaphragm surround, sets the mechanical resonance frequency to a low 800 Hz compared to a typical 1.5 kHz found in similarly priced speakers. These advances allowed the tweeter/midrange crossover to be set an octave lower thereby improving the system directivity.
By repositioning the voice coil in the woofer, Revel engineers discovered they could improve the symmetry of the woofer displacement and thereby lower distortion. Also, asymmetry attributed to spider nonlinearity can also lead to higher distortion. This was solved by adjusting the spider progression to greatly improve the symmetry and as a result, lowered distortion.
A novel technique of cabinet construction was used to create Concerta2 enclosures that were not only beautiful, but also have the rigid, curved side walls plus extensive bracing that results in a strong and inert enclosure. This ensures no cabinet coloration to the sound. The attractive designs are also painted a high gloss white or high gloss black finish, have magnetic grilles and show no visible fasteners, features not typically seen on speakers at this price point.
Revel Concerta2 crossover networks feature carefully-selected components that contribute to great performance and benchmark setting value. These high-order crossover networks dramatically reduce distortion and dynamic compression for clear sound that maintains the same quality over a very wide dynamic range. These precision networks optimize the speakers' timbral accuracy, enhancing musical enjoyment for listeners who are anywhere in the room, not only those seated on-axis to the loudspeakers.
During development, every Revel loudspeaker model is compared to competitive models in our unique position-independent double-blind listening lab. This process utilizes the latest psychoacoustic research to assure that these listening tests are valid, enabling us to verify that all Revel loudspeakers are superior to their competitors before they are allowed to go into production.
CONCERTA2 SERIES OVERVIEW
F35/F36 OVERVIEW

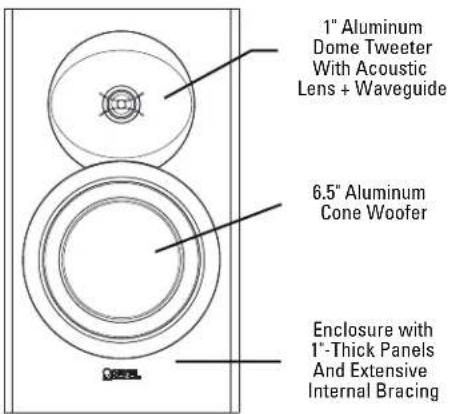

M16 OVERVIEW

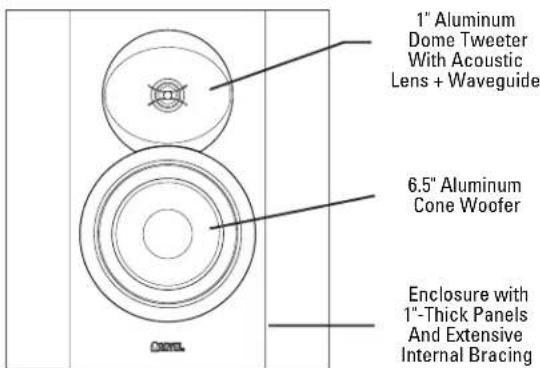

S16 OVERVIEW

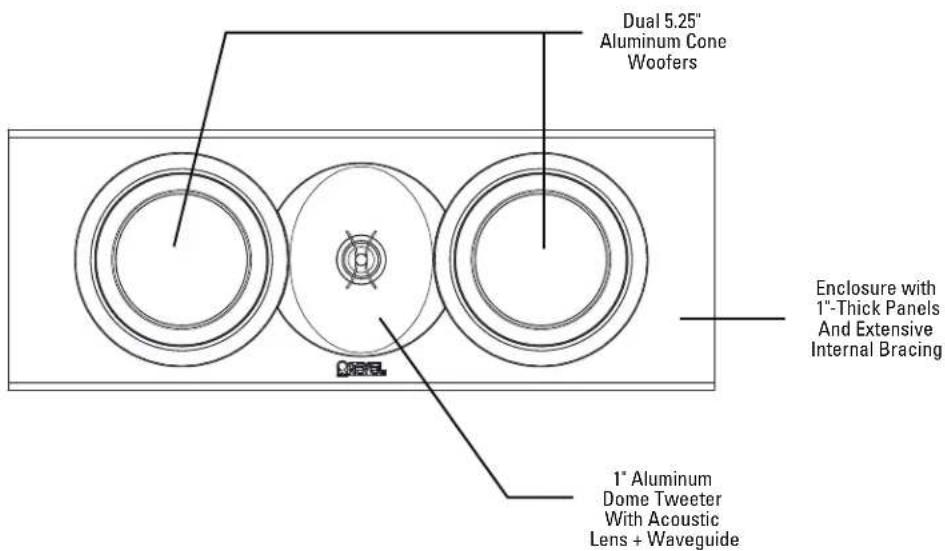

C25 OVERVIEW
INSTALLATION CONSIDERATIONS
Loudspeaker fidelity depends on the following three factors: loudspeaker accuracy, loudspeaker placement and listening room acoustics. Advanced Revel design features allow the Concerta2 to achieve exceptional acoustical precision. As a result, experimenting with loudspeaker placement and listening room acoustics will have the most significant impact on the loudspeakers' performance.

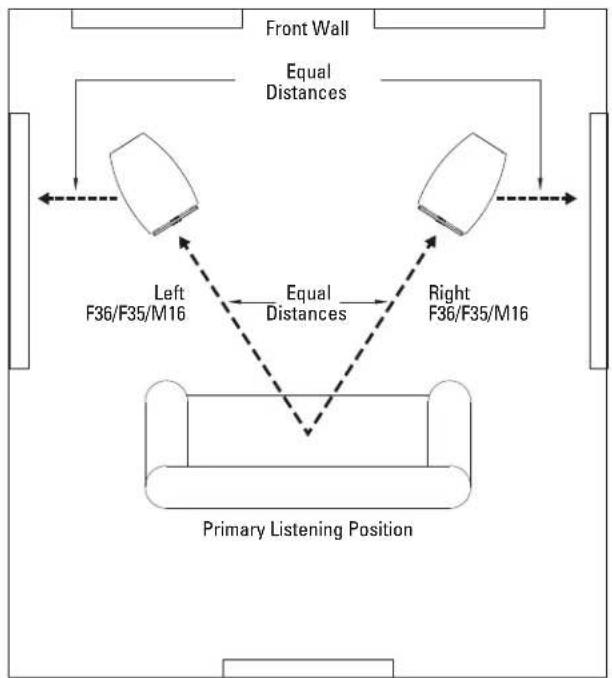

LOUDSPEAKER PLACEMENT FOR F35, F36, AND M16
- Remove all obstructions between the loudspeaker and the primary listening position. For instance, a coffee table between the loudspeaker and the primary listening position will create reflections that will degrade stereo imaging and timbre. Placing the loudspeakers near large objects may also cause unwanted reflections.
- For the best stereo imaging, place the loudspeakers so that they are both the same distance from the primary listening position and so they are both the same distance from the side walls, as shown in the illustration.
- For optimal stereo imaging and timbre, aim the loudspeakers directly toward the primary listening position as shown in the illustration above. If you wish to widen the stereo soundstage you can reduce this toe-in angle, even to the point at which the loudspeakers are pointing straight forward.
- Moving the loudspeakers farther from the front and side listening room walls will improve stereo imaging and the sense of spaciousness in the listening space.
- Moving the loudspeakers closer to the corners or walls of the listening room will increase bass level.
STAND-MOUNTING
Optional Concerta2 stands are available for the C25 and M16 that place the loudspeakers at the proper height for installation below a TV display. Refer to the assembly instructions that are included with the stands for additional information.
When flush-mounting the C25 or M16 inside of a cabinet or entertainment center:
- If necessary to aim the center channel directly at the listeners' ears, use the supplied feet to angle the loudspeaker at the listeners' ears, see the next page for additional information.

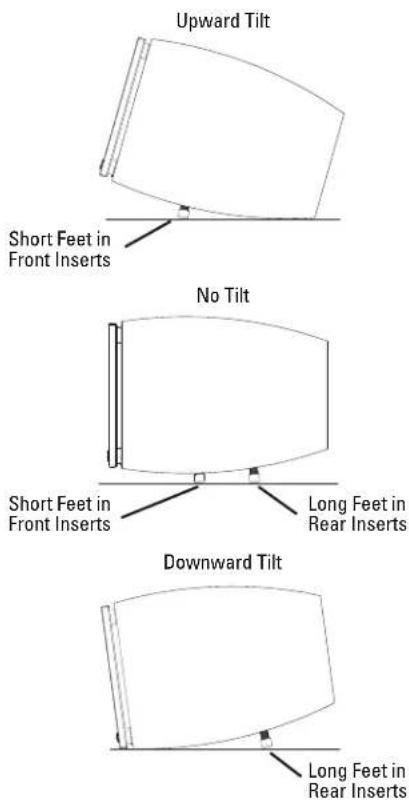

ADJUSTABLE FEET ON C25
C25 loudspeakers include two sets of adjustable feet, one short and one long that let you angle the loudspeaker up or down so it is aiming towards listeners' ears when it is installed above or below a TV display. The feet screw into the threaded inserts on the bottom of the speaker.
- To tilt the loudspeaker upward, install the set of short feet into the front threaded inserts on the bottom of the loudspeaker. Install the long feet on the back so that the loudspeaker achieves a level balance.
- To aim the loudspeaker straight forward (with no tilt), install the set of short feet into the front threaded inserts on the bottom of the loudspeaker and the long threaded feet on the back inserts. Adjust the feet so that the loudspeaker achieves a level balance.
- To tilt the loudspeaker downward, install the set of long feet into the rear threaded inserts on the bottom of the loudspeaker. Adjust the feet so that the loudspeaker achieves a level balance.
ADJUSTABLE SPIKES ON FLOOR STANDING SPEAKERS
Four adjustable spikes are included for each F35 and F36 loudspeakers. You can install these spikes in the bottoms of the loudspeaker cabinets to provide optimal stability, accommodating installations on tile, hardwood, and carpeted floors.
To install and adjust the spikes:
- Place the loudspeaker on its side on a soft towel or carpeted floor.
- Screw the spikes into the fittings on the bottom of the loudspeaker. The spikes can be installed with either the pointed end or round end protruding from the cabinet.
- If the loudspeakers are to be placed on a carpeted floor, install the spikes with the pointed ends protruding from the cabinet.
- If the loudspeakers are to be placed on wood, linoleum or tile floor, install the spikes with the round ends protruding from the cabinet. After determining the final locations for the speakers you can place coins under the spikes to protect the floor surface from damage.
- If you wish you can install the spikes with the pointed ends protruding from the cabinet for placement on wood, linoleum or tile floors. In this case you must place coins or similar items under the spikes to avoid damaging the floor surface.
LOUDSPEAKER PLACEMENT FOR S16
Loudspeaker fidelity depends on the following three factors: loudspeaker accuracy, loudspeaker placement and listening room acoustics. Advanced Revel design features allow the S16 to achieve exceptional acoustical precision, and the ability to seamlessly blend with other Revel Concerta2-series speakers in 5.1- and 7.1-channel systems.
PLACEMENT IN 5.1-CHANNEL SYSTEMS
The most common 5.1-channel home theater system configuration uses a pair of Concerta2 S16 surround loudspeakers, placed on the side walls above the listening area, as shown in the illustration below. The loudspeaker's radiation pattern is optimized for use at 90 degrees to the sides of the primary listening area. This occurs when the loudspeakers are placed along the side walls, directly to the sides of the prime listening position (90 degrees to the prime listeners' ears). The ideal height is located at 10 to 15 degrees above the prime listener's ears.
PLACEMENT IN A 7.1-CHANNEL SYSTEM
7.1-Channel surround-sound controllers can independently drive two pairs of surround loudspeakers: a pair of Surround Left/Right speakers and a pair of Surround Back Left/Right speakers.
- The recommended configuration is with the Surround Left and Surround Right S16 loudspeakers placed on the side walls as in a 5.1-channel system, and the Surround Back Left and Surround Back Right S16 loudspeakers placed on the rear wall, as shown in the illustration below.

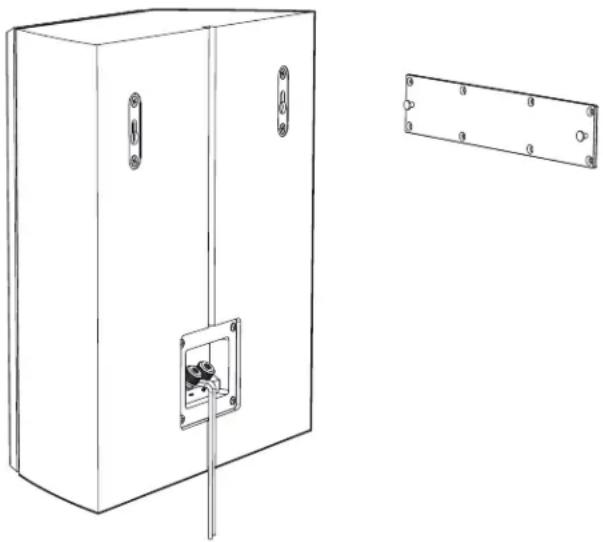

WALL-MOUNTING THE S16
The Concerta2 S16 loudspeakers come with an integral wall mounting system. Built-in mounting keyholes on the rear of the speaker are designed to be used with the supplied wall-mount bracket.
CAUTION: Revel does not supply hardware to mount the supplied bracket on a wall. It is the customer's responsibility to select wall-mounting hardware that is appropriate for their wall's materials and construction. Revel recommends that installation should only be done by qualified individuals who are experienced in affixing and installing wall-mounted electrical equipment, and who understand and observe all relevant safety precautions. HARMAN International Inc. disclaims any liability whatsoever for injury or damage to persons or property arising from installation of its products or use of hardware it provides.
After the bracket is mounted on the wall (check the level of the bracket) and make sure the speaker is connected to the amplifier (see Making Connections), slip the speaker's mounting keyholes over the bracket pegs, as shown in the illustration.
CAUTION: Never make or break connections unless all system components are powered off.
OBSERVE PROPER POLARITY
Connect the amplifier's positive (+) terminal to the positive (+) terminal on the loudspeaker; connect the amplifier's negative (−) terminal to the negative (−) terminal on the loudspeaker. Do not reverse polarities (that is, do not connect + to −, or − to +) when making connections. Doing so will cause diminished dialog intelligibility and diminished bass response.
CAUTION: Revel M16, C25, and S16 loudspeakers are designed to be used with an external crossover (high-pass filter), such as is found in surround processors and audio/video receivers. An 80Hz crossover frequency is ideal, and will minimize dynamic compression and distortion. If desired, the M16, C25, or S16 may be used with crossover frequencies as low as 50Hz. If the AVR/processor only offers "Large" and "Small" settings select the "Small" setting.
CONNECTIONS
The Concerta2 speakers feature gold-plated binding posts.
WIRED CONNECTION
Single-wired connections are the most common. These are made between one pair of input terminals and one power amplifier output channel as shown below.
To make single-wired connection, connect one loudspeaker cable to the desired set of input terminals. Then connect the other end of that loudspeaker cable to the desired power amplifier output channel.
CARING FOR YOUR LOUDSPEAKERS
GRILLES
Revel Concerta2 speakers feature grilles with a magnetic attachment method that eliminates unsightly attachment hardware from the speaker baffle, so if you decide to use your speakers with the grilles removed they will retain their elegant appearance.
CABINET FINISH
The cabinet's finish does not require routine maintenance. Cabinet surfaces that have been marked with dust, fingerprints, or other dirt can be cleaned using a soft cloth – preferably micro-fiber, and high quality auto wax. Take care not to come in contact with the transducers. Use caution to avoid contacting the rubberized trim on the sides of the loudspeaker with auto wax. If necessary, the rubberized trim can be cleaned with denatured alcohol on a microfiber cloth. To clean the grille, gently vacuum it using a soft-bristled brush vacuum attachment with the vacuum cleaner set to the lowest possible suction.
SPECIFICATIONS
| MODEL | F36 | F35 | M16 | C25 | S16 |
| DESCRIPTION | 2.5-way Triple6.5" Floorstanding Loudspeaker | 2.5-way Triple5.25" Floorstanding Loudspeaker | 2-way 6.5" Bookshelf Loudspeaker | 2-way Dual 5.25" Center Channel Loudspeaker | 2-way 6.5" On-Wall Loudspeaker |
| ENCLOSURE TYPE | Bass-Reflex via Rear-Firing Port | Bass-Reflex via Rear-Firing Port | Bass-Reflex via Rear-Firing Port | Sealed Sealed | |
| HF DRIVE COMPONENT | 1" Aluminum Tweeter with Acoustic Lens and Waveguide | 1" Aluminum Tweeter with Acoustic Lens and Waveguide | 1" Aluminum Tweeter with Acoustic Lens and Waveguide | 1" Aluminum Tweeter with Acoustic Lens and Waveguide | 1" Aluminum Tweeter with Acoustic Lens and Waveguide |
| LF/MF DRIVE COMPONENTS | 3 x 6.5" Aluminum Cone Woofers | 3 x 5.25" Aluminum Cone Woofers | 6.5" Aluminum Cone Woofer | Dual 5.25" Aluminum Cone Woofers | 6.5" Aluminum Cone Woofer |
| CROSSOVER FREQUENCY | 600Hz, 1.8kHz 575Hz, 1.8kHz 2.1kHz 2.1kHz 1.8kHz | ||||
| SENSITIVITY (2.83V @ 1M) | 91dB 90dB 86dB 89dB 90dB | ||||
| NOMINAL IMPEDANCE | 6 Ohms 6 Ohms 6 Ohms 6 Ohms 6 Ohms | ||||
| RECOMMENDED AMPLIFIER POWER | 30-200W 30-180W 50-120W 40-120W 30-120W | ||||
| LF EXTENSION-3 DB-6 DB-10 DB | 51Hz45Hz33Hz | 55Hz46Hz35Hz | 55Hz50Hz45Hz | 80Hz68Hz48Hz | 70Hz58Hz43Hz |
| DIMENSIONS (H X W X D) | 44.25" x 9.65" x 12" | 40.25" x 8.42" x 12.2" | 14.75" x 8.6" x 10.76" | 7.25" x 19.45" x 10.1" | 14.75" x 13.3" x 5.5" |
| WEIGHT | 50 lbs 41 lbs 16 lbs 20 lbs 14 lbs | ||||
HARMAN International, Incorporated
8500 Balboa Boulevard, Northridge, CA 91329 USA
© 2015 HARMAN International, Incorporated. All rights reserved.
Revel and the Revel logo are trademarks of HARMAN International, Incorporated, registered in the United States and/or other countries.
Features, specifications and appearance are subject to change without notice.
For questions, assistance or additional information concerning any of our products, call us at: (888) 691-4171. For technical support, submit your detailed inquiry
Part No.950-0516-001 Rev: B
REVEL HARMAN
www.revelspeakers.com
LIMITED WARRANTY
United States, US Territories – Effective January 1, 2017
This limited warranty (this "Limited Warranty") protects only the original end-user ("you" or "your"), and is not transferable. Any attempt to transfer this Limited Warranty shall immediately make this Limited Warranty void.
Harman International Industries, Incorporated ("Harman") warrants to you that your Revel product (the "Product") will be free from defects in workmanship and materials for the corresponding period set forth in the table below (the "Warranty Period").
| A-stock(purchased from authorized resellers) | B-stock(denoted with "-Z" at the end of the part number) | ||
| Product Category | Warranty Period | Product Category | Warranty Period |
| Passive Loudspeakers | 5 years | Passive Loudspeakers | 1 year |
| Powered Loudspeakers | 5 years | Powered Loudspeakers | 1 year |
| In-wall Loudspeakers | Lifetime | In-wall Loudspeakers | 1 year |
| In-ceiling Loudspeakers | Lifetime In-ceiling Loudspeakers | 1 year | |
This Limited Warranty does not cover defects which are a result of: (1) damage caused by accident, disaster, misuse, abuse or other unreasonable use or neglect (including the lack of reasonable and necessary maintenance); (2) damage occurring during shipment (claims must be presented to the carrier); (3) damage caused by improper installation or adjustment; (4) damage to, or deterioration of, any accessory or decorative surface; (5) damage resulting from failure to follow instructions contained in your owner's manual; or (6) damage resulting from the performance of repairs by someone other than an authorized Revel service center.
Furthermore, this Limited Warranty covers only actual defects within the Product itself, and does not cover the cost of installation or removal from a fixed installation, setup or adjustments, claims based on misrepresentation by the seller, performance variations resulting from installation-related circumstances such as program source quality or AC power or Product modifications, any Product on which the serial number has been effaced, modified or removed, or any Product sold on an "as-is" or final sale basis. This Limited Warranty is valid only for Products purchased from an authorized Revel dealer.
THIS LIMITED WARRANTY IS EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED. EXCEPT TO THE EXTENT EXPRESSLY PROHIBITED BY APPLICABLE LAW, HARMAN EXPRESSLY DISCLAIMS ALL SUCH OTHER WARRANTIES, INCLUDING BUT NOT LIMITED TO IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NON-INFRINGEMENT, WITH RESPECT TO THE PRODUCT. TO THE MAXIMUM EXTENT PERMITTED BY LAW, HARMAN SHALL NOT BE RESPONSIBLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES EXCEPT TO THE EXTENT EXPRESSLY PROVIDED (OR PROHIBITED) BY APPLICABLE LAW, EVEN IF HARMAN HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
Notwithstanding the above, if you qualify as a “consumer” under the Magnuson-Moss Warranty Act, or applicable state laws, then you may be entitled to any implied warranties allowed by law for the Warranty Period. Further, some states do not allow limitations on how long an implied warranty lasts or allow the exclusion or limitation of consequential damages, so such limitations may not apply to you. This Limited Warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
This Limited Warranty is applicable in the United States and its territories. Outside of the United States and its territories, please contact an authorized Revel dealer for warranty and service information.
When the Product needs service contact an authorized Revel dealer, or contact Revel customer support to request information about where the Product should be taken or sent. To validate your right to this Limited Warranty, you must provide the original dated sales receipt or other proof of ownership and date of purchase. Do not return your Product for service without prior authorization from an authorized service center. Warranty repair of the Product must be carried out by an authorized service center. Unauthorized warranty repair will void this Limited Warranty and is performed at your sole risk.
During the Warranty Period, Harman will at its sole option and expense, repair or replace any product found to be defective. In the event that the Product is no longer available and cannot be repaired effectively, Harman, at its sole option, may replace it with a reasonable equivalent, or refund the original purchase price paid. Harman will cover reasonable return shipping charges within the United States and its territories, only if the Product is found to be defective under this Limited Warranty.
You will be charged for the cost of examining any Product that is not in need of repair (including resulting shipping costs), or for necessary repairs not covered by this Limited Warranty.
We sincerely thank you for your expression of confidence in Revel. We wish you many years of listening pleasure.
REVEL®
HARMAN Luxury Audio Group
8500 Balboa Blvd, Northridge, CA 91329 USA
(Toll-Free) 1-888-691-4171
Harman International Industries, Incorporated
400 Atlantic Street, 15 ^th Floor, Stamford, CT 06901 USA
© 2017 Harman International Industries, Incorporated. All rights reserved.
P/N 950-0513-001, Artwork # 080-3681 Rev B
