53006 - Ventilateur domestique HONEYWELL - Free user manual and instructions

Product Type	Ceiling Fan
Brand	Honeywell
Model	53006
Number of Blades	5
Weight	15.32 lb
Light Kit Wattage	23 W (LED, non-replaceable)
Power Source	120 V AC (typical household)
Mounting Type	Flushmount (non-angle, non-closemount)
Remote Control	Included, battery-operated (A23, 12 V alkaline)
Speed Settings	3 (Low, Medium, High)
Reversible Motor	Yes (manual slide switch)
Light Dimming	Yes, via remote (press and hold)
Light Delay	Yes (1-minute timer via remote)
Location Rating	Indoor only
Minimum Ceiling Height	7 feet from floor to blades
Minimum Blade Clearance	30 inches from walls/obstructions
Warranty	Limited Lifetime (motor), 1 year (parts)
Care and Cleaning	Use soft brush or lint-free cloth; do not use water
Included Accessories	Remote pack, blade balancing kit, hardware bag
Estimated Assembly Time	2 hours

Frequently Asked Questions - 53006 HONEYWELL

What tools are needed for installation?

You will need a Phillips and flat-head screwdriver, safety glasses, a step ladder, wire cutter, and wire stripper (not included).

How do I sync the remote to the fan?

After restoring power, press and hold the LEARN button in the remote battery compartment for 5 seconds within 30 seconds. The fan will turn on at low speed and the light will turn off, confirming sync.

The fan wobbles excessively. What should I do?

Tighten all blade screws and blade arm screws. If wobble persists, swap one blade with a blade from the opposite side or use the included blade balancing kit. Also check that the mounting bracket is securely attached to the outlet box.

Can I use a dimmer switch to control the fan speed?

No. Using a full-range dimmer switch will cause a humming sound. Only use the remote control or pull chain (if available) to adjust speed.

The light does not work. What could be wrong?

Ensure the single-pin connectors from the light kit are properly secured. If they are, turn off power and check all wiring connections at the ceiling outlet box. The total fixture wattage is 23 W and is not replaceable.

How do I clean the fan?

Always turn off the power before cleaning. Use a soft brush or lint-free cloth to remove dust. Do not use water or damp cloth, as it may damage the finish.

What battery does the remote use?

The remote requires one A23, 12 V alkaline battery. Replace when the LED indicator flashes for one minute.

Is a secondary hanging system required?

In Canada, yes. The braided cable must be looped around a ceiling brace and secured. In the US, it is optional and the cable can be cut and removed.

Can the fan be installed on an angled ceiling?

No. The fan is designed for flushmount installation only. Standard, angle, and closemount installations are not available.

What is the warranty coverage?

The fan motor has a limited lifetime warranty. All other parts (excluding glass and finishes) are warranted for 1 year from the original purchase date. Defects must be reported within the first year.

USER MANUAL 53006 HONEYWELL

Graceshire Ceiling Fan

User Manual

Read and save these instructions before use

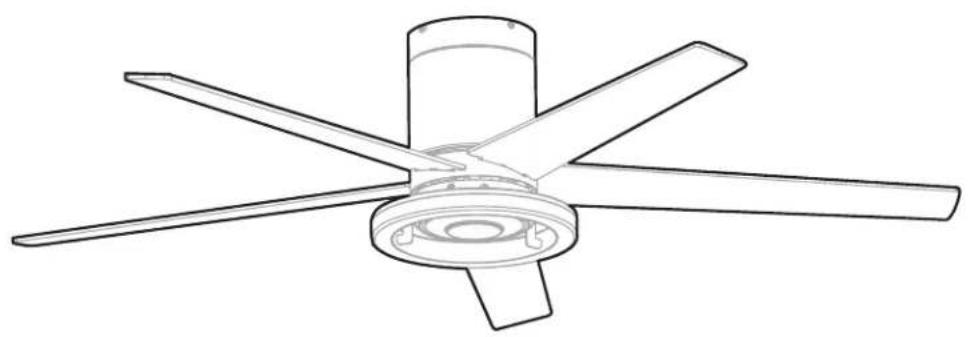

Line drawing of a six-bladed fan or propeller with a central hub and mounting base (no text or symbols)

Model #53006

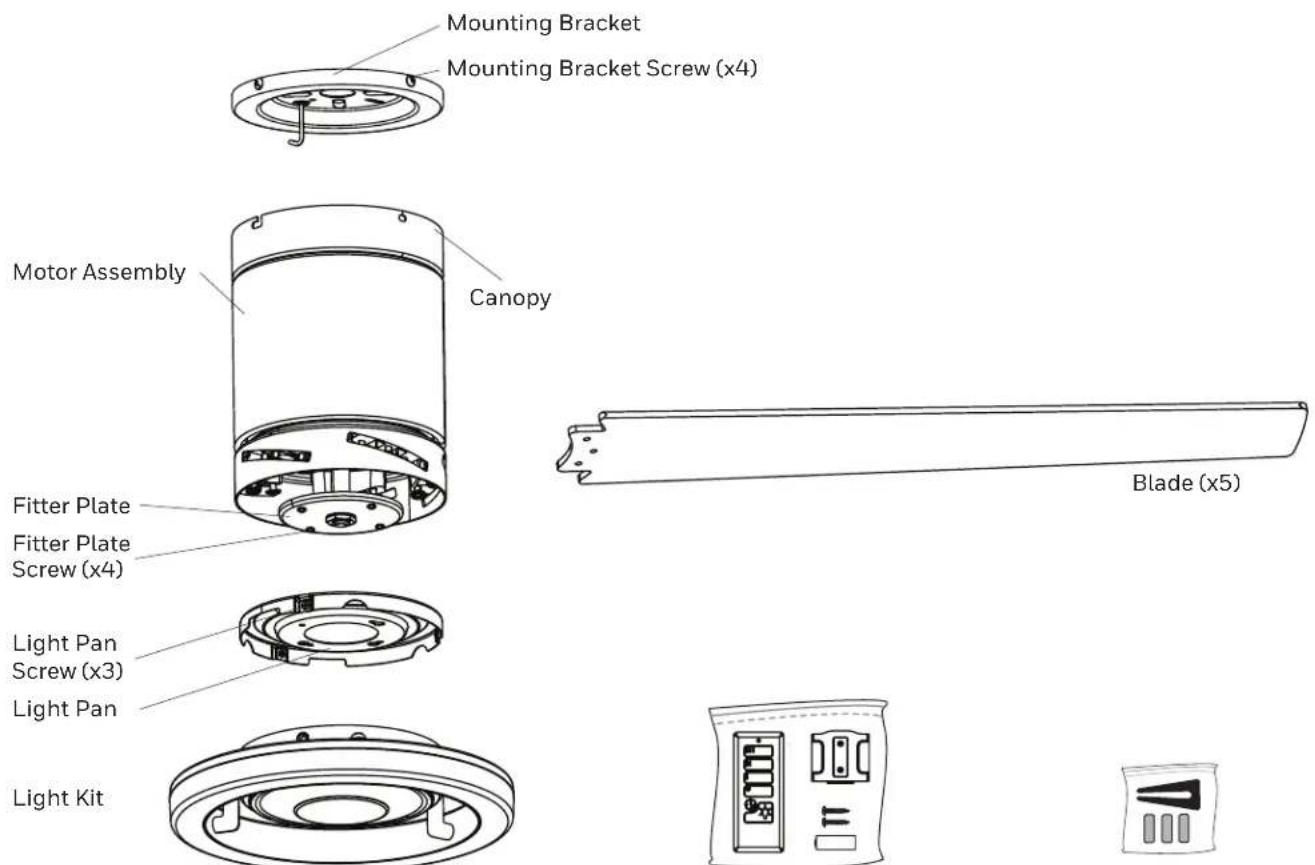

PACKAGE CONTENTS

Remote Pack Blade Balancing Kit

HARDWARE CONTENTS

Blade Screw (x15) Blade Washer (x15) Wire Connector (x3)

Line drawing of a screw with threaded shaft and flange (no text or symbols)

Secondary Spring Washer

Support WasherSecondary Support Scre
Note: Some extra hardware may be included. The quantity listed above is the number required for installation.

THANK YOU

Honeywell Ceiling Fans feature a collection of fans in various sizes and specifications to ensure your choice of indoor or outdoor fan delivers optimum performance for your room's size. You can trust the quality of Honeywell Ceiling Fans to deliver maximum airflow and stylish lighting options. Honeywell Ceiling Fans use high-quality materials that are long lasting and durable to deliver a great look and last for years to come.

SAFETY INFORMATION

Please read and understand this entire manual before attempting to assemble, operate or install the product.

• Before you begin installing the fan, disconnect the power by removing fuses or turning off the circuit breakers.
• Make sure all electrical connections comply with local codes, ordinances, the National Electrical Code and ANSI/NFPA 70-199. Hire an electrician or consult a do-it-yourself handbook if you are unfamiliar with installing electrical wiring.
• Make sure the installation site you choose allows a minimum of 7 feet from the blades to the floor and at least 30 inches from the tip of the blades to any obstruction.
• RATED FOR INDOOR LOCATIONS ONLY. The fan is not suitable for damp or outdoor locations.
  • The weight of the fan is 15.32 lb.

DANGER: When using an existing outlet box, make sure it is securely attached to the building structure and can support the full weight of the fan. Failure to this can result in serious injury or death. The stability of the outlet box is essential in minimizing wobble and noise in the fan after installation is complete.

WARNING: Using a full-range dimmer switch to control fan speed will cause a humming sound from the fan. To reduce the risk of fire or electric shock, do NOT use a full-range dimmer switch to control fan speed.

WARNING: To reduce the risk of fire, electric shock or personal injury, mount the fan to an outlet box marked "ACCEPTABLE FOR FAN SUPPORT" and use the mounting screws provided with the outlet box. Most outlet boxes commonly used for the support of lighting fixtures are not acceptable for fan support and may need to be replaced. Consult a qualified electrician if in doubt. Secure the outlet box directly to the building structure. The outlet box and its support must be able to support the moving weight of the fan (at least 35 lbs.).

WARNING: To reduce the risk of fire, electric shock or personal injury, wire connectors provided with this fan are designed to accept only one 12-gauge house wire and two lead wires from the fan. If your house wire is larger than 12-gauge and/or there is more than one house wire to connect to the two fan lead wires, consult an electrician for the proper size wire connectors to use.

WARNING: To reduce the risk of fire, electric shock or personal injury, do not bend the blade arms when installing them, balancing the blades or cleaning the fan. Do not insert objects between the rotating fan blades.

WARNING: To reduce the risk of personal injury, use only parts provided with this fan. The use of parts other than those provided with this fan will void the warranty.

CAUTION: Be sure the outlet box is properly grounded or a ground (green or bare) wire is present.

CAUTION: Carefully check all screws, bolts, and nuts on the fan assembly ensure they are secured.

SAFETY INFORMATION

CAUTION: This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device (if applicable).

CAN ICES-003 (B) / NMB-003 (B)

CAN ICES-005 (B) / NMB-005 (B)

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

--Reorient or relocate the receiving antenna.

--Increase the separation between the equipment and receiver

--Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

--Consult the dealer or an experienced radio/TV technician for help.

Please note changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

HKC-US

3350 Players Club Parkway #225

Memphis, TN 38125

1-877-361-3883

CARE AND MAINTENANCE

Important: Shut off the main power supply before you begin any maintenance task. Do NOT use water or a damp cloth to clean the fan.

At least twice each year, check and tighten all screws on the fan. Clean the motor housing and blades with a soft brush or lint-free cloth to avoid scratching the finish.

Total fixture wattage is 23 watts; do not attempt to replace.

Battery Replacement: Use A23, 12 V alkaline battery. WARNING: Keep batteries out of reach of children. May be fatal if swallowed. In the event that a battery is swallowed, immediately consult a doctor. Non-rechargeable batteries are not to be recharged. Batteries are to be inserted with the correct polarity. Exhausted batteries are to be removed from the product. Do not dispose of batteries in fire, as they may explode or leak.

PREPARATION

Before beginning the assembly of this product, ensure all parts are present. Compare all parts with the package contents list and hardware contents list. If any part is missing or damaged, do not attempt to assemble the product.

Estimated assembly time: 2 hours

Tools required (not included): Phillips and Flat-head Screwdrivers, Safety Glasses, Step Ladder, Wire Cutter, and Wire Stripper.

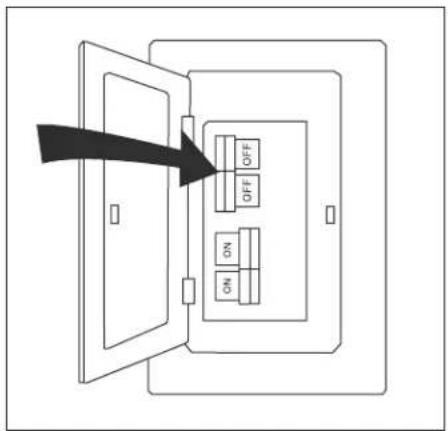

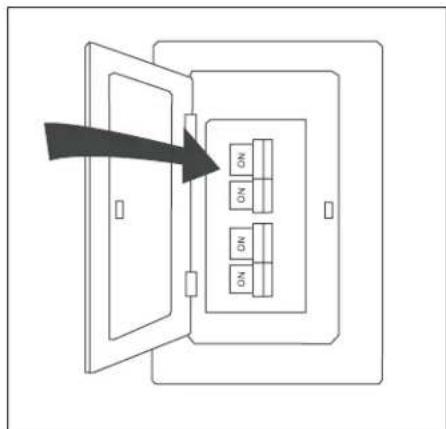

1. Turn off power to the fan at the breaker box and the wall switch (Figure 1.1). DANGER: Failure to disconnect the power supply prior to installation may result in serious injury or death.

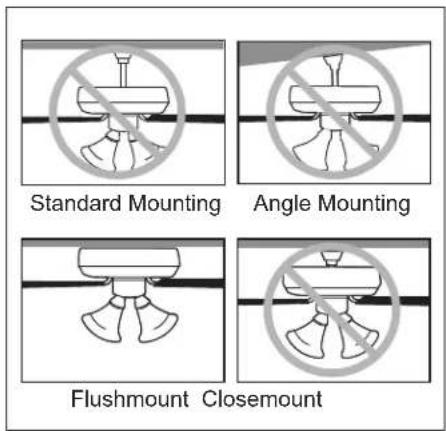

2. This fan is intended for Flushmount Installation. Standard Mounting, Angle Mounting, and Closemount installations are not available (Figure 1.2).

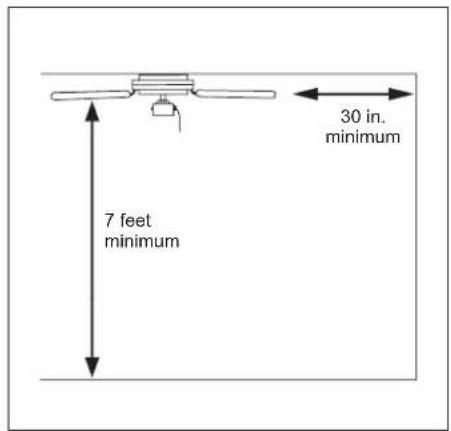

3. When selecting a location for installation, ensure the blades will be at least 30 inches from any wall or obstruction and at least 7 feet above the floor (Figure 1.3).

Figure 1.1 Figure 1.2 Figure 1.3

INITIAL INSTALLATION

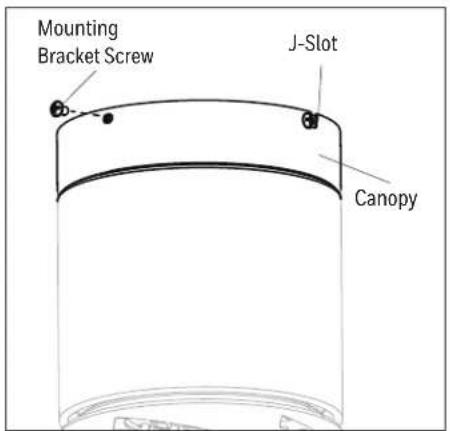

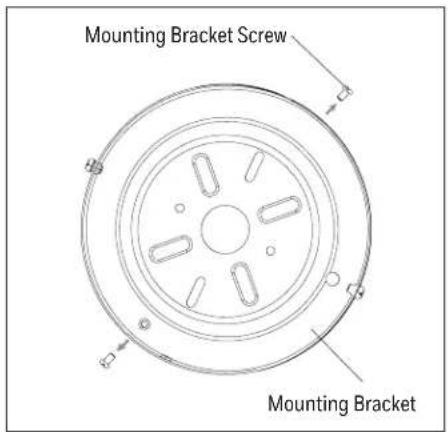

1. Loosen all four mounting bracket screws, then completely remove two mounting bracket screws from opposite sides of the mounting bracket (Figure 2.1).

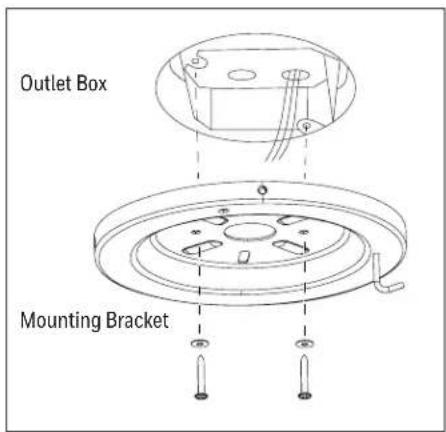

2. Install the mounting bracket to the outlet box (sold separately) using the screws and washers provided with the outlet box. WARNING: To reduce the risk of fire, electric shock, or personal injury, mount to the outlet box marked "acceptable for fan support" (Figure 2.2).

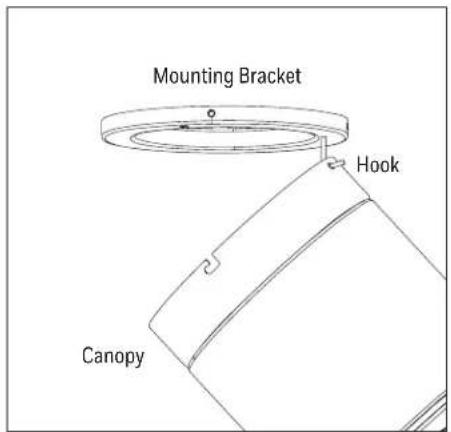

3. Lift the fan and place top of the canopy on the hook on the mounting bracket, temporarily leaving hands free for the wiring process (Figure 2.3).

Figure 2.1
Figure 2.2 Figure 2.3

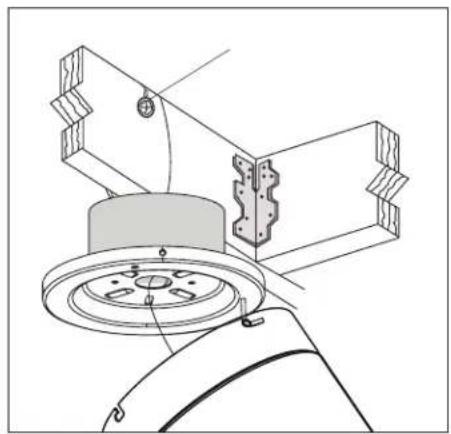

SECONDARY HANGING SYSTEM INSTRUCTIONS

For installation in the United States: Building codes in the U.S.A. do not require installation of a Secondary Hanging System. If desired, the braided cable can be cut and removed using wire cutters (sold separately). Skip to FINAL INSTALLATION. For installation in Canada: In compliance with building codes in Canada, installation of the Secondary Hanging System is required.

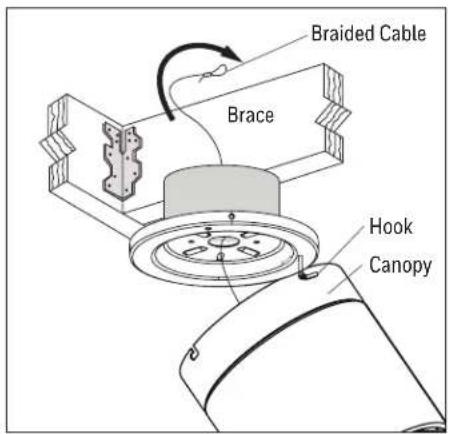

1. Raise the fan and place the hole in the canopy on the hook on the mounting bracket. Feed the loop of the braided cable, preassembled to the motor assembly, up through the outlet box mounted in the ceiling (Figure 3.1).
2. Install secondary support screw, spring washer and support washer partly into the side of the brace installed in the ceiling. Then loop the braided cable up and over the ceiling brace and place the open loop of the braided cable around the secondary support screw. Note: The ceiling support brace may not be accessible from below. If not, it must be accessed from above. Important: The braided cable must make a complete circle around the support brace to secure the fan (Figure 3.2).
3. Tighten the secondary support screw, securing the braided cable (Figure 3.3).

Technical line drawing of a mechanical assembly with mounting brackets and a central circular component (no text or symbols)

Figure 3.2 Figure 3.1 Figure 3.3

FINAL INSTALLATION

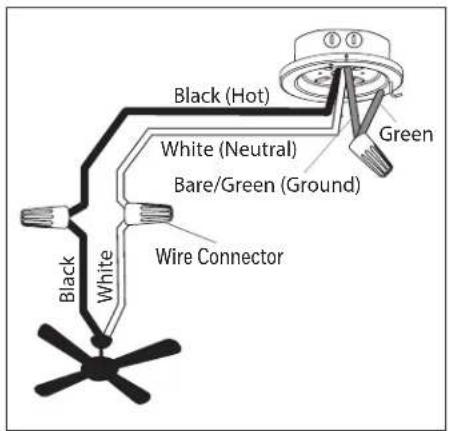

1. Use wire connectors to connect the fan wires to the power supply wires according to the wiring diagram and the following instructions (Figure 4.1):

2. Connect the Green wires from the mounting bracket to the Bare/Green (ground) supply wire.

3. Connect the White wire from the fan to the White (neutral) supply wire.
4. Connect the Black wire from the fan to the Black (hot) supply wire.

Important: After the connections have been made, the connected wires should be turned upward and pushed carefully up into the outlet box. Place the Black and White wire connections on opposite sides of the outlet box.

1. Raise the canopy, ensure the two mounting bracket screws are aligned with the J-shaped slots in the canopy. Then turn the canopy in a clockwise direction until the mounting bracket screws are completely engaged in the J-shaped slots. Install the two previously removed mounting bracket screws in the round holes. Securely tighten all mounting bracket screws (Figure 4.2).
2. Loosen the four fitter plate screws preassembled to the fitter plate. Then, turn the orange shipping block counterclockwise and remove. Discard the shipping block (Figure 4.3).

Figure 4.2 Figure 4.3 Figure 4.1

FINAL INSTALLATION

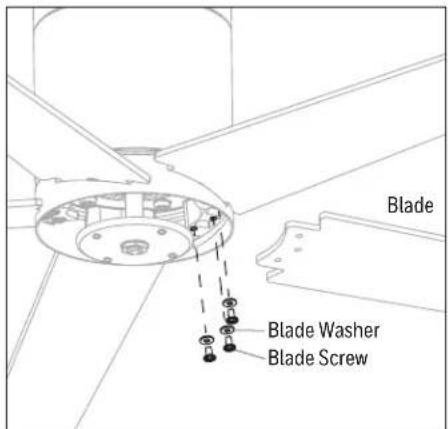

1. Insert blade through slot in the side of the motor assembly. Align the holes of one blade with three blade screw holes in underside of the motor assembly. Secure with the three blade screws and blade washers. Repeat this step for the remaining blades (Figure 4.4).

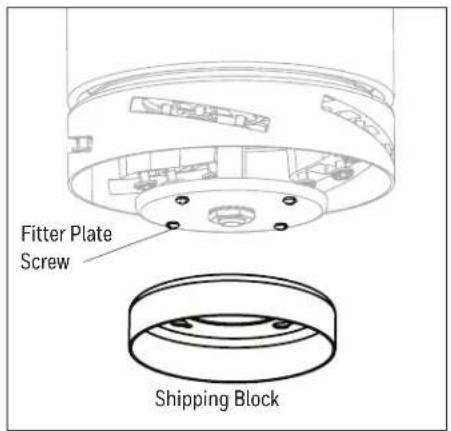

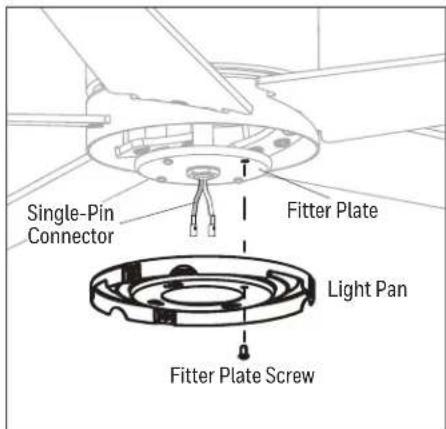

2. Remove one of the four fitter plate screws preassembled to the fitter plate and loosen the other three but do not remove. Feed the single-pin connectors through the center hole in the light pan. Align the keyhole slots in the light pan with the loosened screws in the fitter plate. Turn light pan clockwise and replace the previously removed fitter plate screw. Tighten all screws (Figure 4.5).

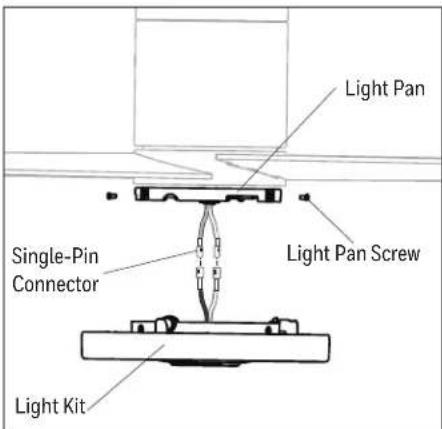

3. Remove the three light pan screws preassembled to the light pan. Connect the single-pin connectors from the fitter plate to the single-pin connectors from the light kit -- blue to blue and white to white. Secure the light kit with the previously removed light pan screws (Figure 4.6).

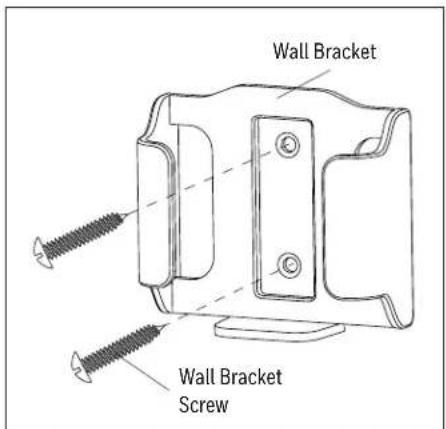

4. If desired, the wall bracket in remote pack can be installed to a wall using the provided mounting screws. The remote can be stored in the wall bracket for easy access. The remote can be stored in the wall bracket for easy access (Figure 4.7).
5. Turn on power to fan at breaker box and the wall switch. Assembly is complete (Figure 4.8).

Figure 4.5 Figure 4.4 Figure 4.6

Figure 4.7 Figure 4.8

OPERATING INSTRUCTIONS

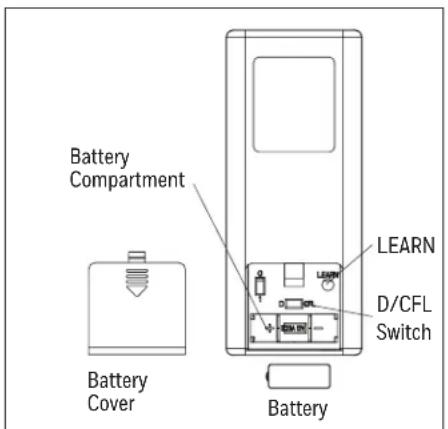

1. Use a flat-head screwdriver, if necessary, to remove the battery cover from the back of the remote found in remote pack. Insert the battery into the remote; ensure polarity of battery matches the polarity indicated in the battery compartment -- positive (+) to positive (+) and negative (-) to negative (-). Replace the battery cover and press the fan on/off button on the remote to ensure the LED indicator illuminates and the remote turns on the fan (Figure 5.1). Note: If remote doesn't turn on the fan, see TROUBLESHOOTING (page 9).

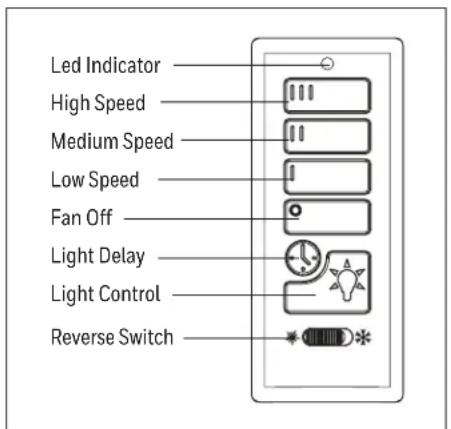

2. To operate the fan using the remote from remote pack, press and release the following buttons (Figure 5.2):

III - High speed
II - Medium speed
I - Low speed

Fan Off - Turns power to fan off.

Light Delay - Tap the light delay button, which will turn off the light after one minute. Tap the light control button to exit light delay mode.

Light Control - Tap the light control button to turn the light off and on. Press and hold light control button to dim or brighten the lights.

Reverse Switch - In warmer weather, push the reverse switch left toward sun icon, which will result in downward airflow creating a wind chill effect. In cooler weather, push the reverse switch right toward the snowflake icon, which will result in upward airflow that can help move hot air off the ceiling. Important: Wait for the fan to stop before moving the reverse switch.

Low Battery Indicator - LED Indicator will flash for one minute as a reminder to replace the 12-volt battery.

D/CFL Switch - set to "D" at the factory. The switch should remain in the "D" position to ensure the LED board is dimmable.

LEARN - Syncs remote to receiver (see TROUBLESHOOTING, page 9).

Figure 5.2 Figure 5.1

TROUBLESHOOTING

If you experience any faults, please check the Troubleshooting section below. If a problem cannot be remedied or you are experiencing difficulty in installation, please contact Customer Service: 1-877-361-3883, Monday-Friday, 8am - 5pm, Central Time.

WARNING: Shut off the power supply before you begin any maintenance task.

PROBLEM CORRECTIVE ACTION

The fan does not move.	1. Firmly push the reverse switch completely left or right.2. Make sure the wall switch is turned on.3. Turn the power on or check the fuse (breaker).4. Turn the power off and check all connections at the ceiling outlet box.
The fan is noisy.	1. Check and tighten all screws that hold the fan blades to the blade arms and the motor.2. Replace the cracked blade.3. Do not use a full range dimmer switch to control the fan speed.4. Ensure the outlet box is secured to the building structure.5. Ensure the mounting bracket is secured to the outlet box and that the screws are tight.
The fan wobbles excessively.	1. Check and tighten all screws that hold the fan blades to the blade arms and the blade arms to the motor.2. Switch one blade with a blade from the opposite side, or balance the fan using the blade balancing kit.3. Turn off the power. Loosen the canopy and verify that the mounting bracket is secure to the electrical outlet box. The bracket must be flush without movement against the outlet box. Verify the outlet box is secure.
The fan operates correctly but the lights are not working.	1. Ensure the single-pin connectors are properly secured.2. Turn the power off and check all connections at the ceiling outlet box.
Remote does not work.	1. After installation is complete, switch the power off and back on again. Within 30 seconds, press and hold the “LEARN” button, located in the battery compartment, for 5 seconds. Fan will turn on at low speed and light off. This confirms that the SMART SYNC is active.2. Insert new 12V battery in battery compartment of the remote control (see page 8).3. If there are several fans in close proximity, turn power off to other fans and re-sync the remote (see Corrective Action 1 above).

LIMITED LIFETIME WARRANTY

Set forth below, the manufacturer, Hong Kong China Electric Appliance Company (HKC) warrants the fan motor for this ceiling fan to be free from defects in workmanship and material for the life of the product. Also, subject to the limitations below, HKC warrants all ceiling fan parts (“ceiling fan parts” excludes the motor and parts made in whole or in part with glass) to be free from defects in workmanship and material for a period of one year after the date of purchase by the original purchaser at retail.

All claims must be made by the original purchaser, whether such purchaser purchased the product through a store or contractor. Ceiling fan part defects must be reported within the first year from the date of purchase. Parts made in whole or in part with glass and the finishes of metal and other surfaces are not warranted.

Purchasers are responsible for all costs of removing and reinstalling the product. Any damage to any part caused by ordinary wear and tear, accident, misuse, or improper installation, is not covered by this warranty. HKC assumes no responsibility whatsoever for fan installation. Any service performed by a non-licensed electrician will render the warranty invalid.

HKC's sole responsibility shall be to repair or replace the motor, parts, or product within the terms stated above. HKC shall not be liable for any loss or damage of any kind, including any incidental or consequential damages resulting directly or indirectly, from any breach of warranty, express or implied, or any other failure of this product. Some states do not allow the exclusion or limitation of incidental or consequential damages so this limitation may not apply to you.

If the original purchaser ceases to own the fan, this warranty is voided.

Should the purchaser encounter a problem with your fan related to defects in workmanship or materials within the warranty period associated with the defective part, HKC agrees to replace the defective part without charge, or at its option, to replace the ceiling fan with a comparable or superior model.

HKC's warranties are limited to the written warranties set out in this HKC ceiling fan limited lifetime warranty. All other express and implied warranties, including, without limitation, the implied warranty of fitness for a particular purpose and the implied warranty of merchantability are disclaimed. Some states do not allow the disclaimer of implied warranties, so this disclaimer may not apply to you.

REPLACEMENT PARTS LIST

For replacement parts, call our customer service department 1-877-361-3883, Monday-Friday, 8am - 5pm, Central Time.

A

B

©

HW

53006

A Light Kit	4A000029230
B Blade (x5)	4A086410005
C Remote Pack	4L000008750
HW Hardware Bag	4A000029240

The Honeywell Trademark is used under license from Honeywell International Inc.

Honeywell International Inc. makes no representations or warranties with respect to this product.

This product is manufactured for

Hong Kong China Electric Appliance, LTD.

3350 Players Club Parkway, Suite 225

Memphis, TN 38125

1 [phone]

10185·090324

EN | 10
