USER MANUAL Birnham 50192 HONEYWELL

Black and white photo of a classic office ceiling fan with five blades (no text or symbols visible)

Questions, problems, missing parts? Before returning to your retailer, call our customer service department at 1-877-361-3883, Monday - Thursday, 8 am - 6 pm, EST and Friday, 8 am - 5 pm, EST.

WELCOME

TABLE OF CONTENTS

Care and Maintenance 2

Package Contents .... 3

Safety Information 4

Mounting Options 5

Mounting Bracket Installation 6

Standard or Angle Mounting Instructions .....7

Closemount Instructions....10

Wiring 11

Canopy Installation....12

Blade Installation 13

Light Kit Installation 14

Operating Installation....16

Replacement Parts List 17

Troubleshooting 18

Limited Lifetime Warranty....19

ATTACH YOUR RECEIPT HERE

Serial Number

Purchase Date

PREPARATION

Before beginning the assembly of this product, ensure that all parts are present. Compare all parts with the package contents list and hardware contents list. If any part is missing or damaged, do not attempt to assemble the product.

After opening the top of the carton, remove the mounting hardware package from the foam inserts, then remove the motor from the packaging and place it on a soft surface, such as a carpet, to avoid damage to the finish.

Estimated Assembly Time: Under 60 minutes

Tools Required for Assembly (not included): Electrical Tape, Phillips Screwdriver, Pliers, Safety Glasses, Step Ladder, and Wire Strippers

Helpful Tools (not included): AC Tester Light, Tape Measure, Wiring Handbook, and Wire Cutters

CARE AND MAINTENANCE

At least twice each year, lower the canopy to check the downrod assembly, and then tighten all screws on the fan. Clean the motor housing with only a soft brush or lint-free cloth to avoid scratching the finish. Clean the blades with a lint-free cloth. You may occasionally apply a light coat of furniture polish to wood blades for added protection.

Important: Shut off the main power supply before you begin any maintenance tasks. Do not use water or a damp cloth to clean the ceiling fan.

FAN WEIGHT

The net weight of this fan is: 18.7 lbs. (8,48 kg).

PACKAGE CONTENTS

Unpack your fan and check the contents. You should have the following items:

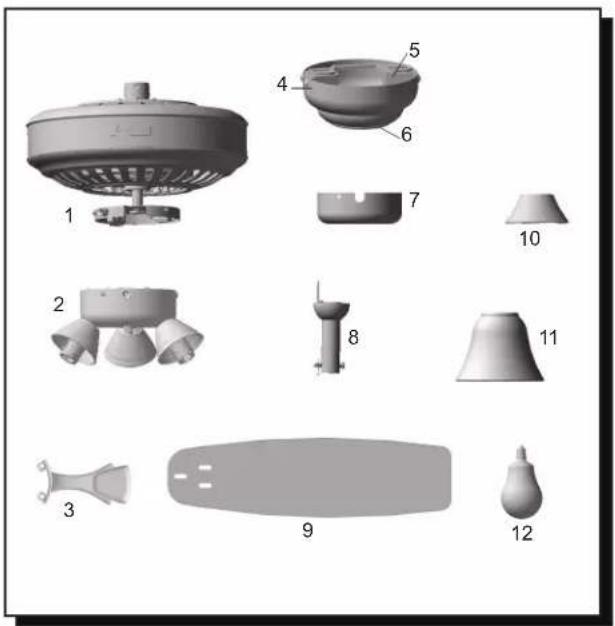

1. Motor Housing
2. Light Kit Fitter
3. Blade Arm (5)
4. Canopy
5. Mounting Bracket
6. Canopy Cover
7. Optional Cap
8. Downrod Assembly
9. Blade (5)
10. Yoke Cover
11. Glass Shade (4)
12. Bulb (4)
13. Loose parts bags containing (not shown): Mounting hardware, blade attachment hardware, electrical hardware, pull chains, wire connectors, etc.

Collection of 12 numbered 3D-printed objects including fans, bowls, and a bulb-like object (no text or symbols)

SAFETY INFORMATION

Please read and understand this entire manual before attempting to assemble, operate, or install the product.

• Before you begin installing the fan, disconnect the power by removing fuses or turning off the circuit breakers.
• Make sure that all electrical connections comply with local codes, ordinances, the National Electrical Code, and ANSI/NFPA 70-199. Hire a qualified electrician or consult a do-it-yourself wiring handbook if you are unfamiliar with installing electrical wiring.
• Make sure the installation site you choose allows a minimum clearance of 7 ft. (2,14 m) from the blades to the floor and at least 30 in. from the end of the blades to any obstruction.

DANGER

When using an existing outlet box, make sure the outlet box is securely attached to the building structure and can support the full weight of the fan. Failure to do this can result in serious injury or death. The stability of the outlet box is essential in minimizing wobble and noise in the fan after installation is complete.

WARNING

To reduce the risk of fire or electric shock, do not use the fan with any solid-state speed-control device or control the fan speed with a full-range dimmer switch.

WARNING

To reduce the risk of fire, electric shock, or personal injury, do not bend the blade arms when installing them, balancing the blades, or cleaning the fan. Do not insert objects between the rotating fan blades.

WARNING

To reduce the risk of fire, electric shock, or personal injury, mount the fan to an outlet box marked "ACCEPTABLE FOR FAN SUPPORT" and use the mounting screws provided with the outlet box. Most outlet boxes commonly used for the support of lighting fixtures are not acceptable for fan support and may need to be replaced. Consult a qualified electrician if in doubt. Secure the outlet box directly to the building structure. The outlet box and its support must be able to support the moving weight of the fan, at least 35 lbs. (15,88 kg).

CAUTION

Carefully check all screws, bolts, and nuts on the fan motor housing to ensure that they are secured.

CAUTION

Read all instructions and safety information before installing your new fan. Review the accompanying assembly diagrams.

MOUNTING OPTIONS

! DANGER !

Turn off the circuit breakers and the wall switch to the fan supply line leads. Failure to disconnect the power supply prior to installation may result in serious injury or death.

1. Your fan has 3 mounting options:

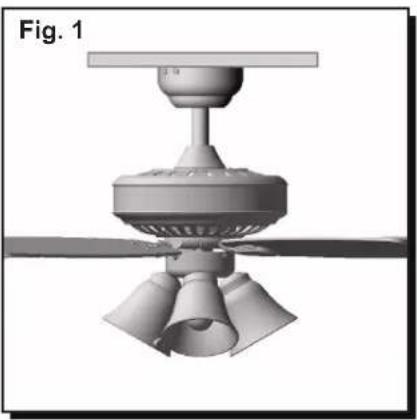

2. Standard (Fig. 1)

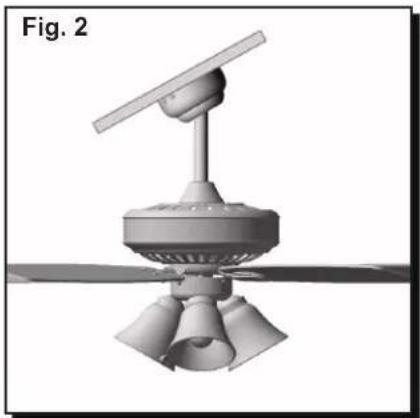

3. Angled (Fig. 2)

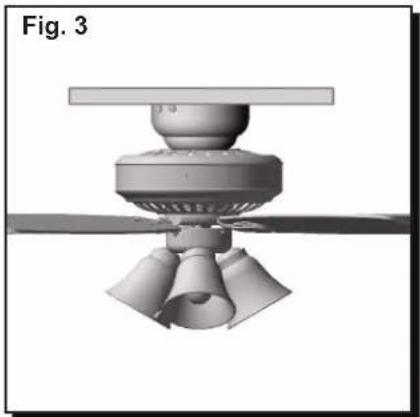

4. Closemount (Fig. 3)

Note: The fans in figures 1 through 3 are not the actual fan in your package, they are representation of the 3 different mounting options.

Important: If using the angle mount, check to ensure the ceiling angle is not steeper than 16^ .

Helpful Hint: Standard mounting is best suited for ceilings 8 ft. or higher. For taller ceilings you may want to use a longer downrod (sold separately). Angled mounting is best suited for angled or vaulted ceilings. A longer downrod is sometimes necessary to ensure proper blade clearance. Closemount-style mounting is more suitable for ceilings lower than 8 ft. (2,44 m) high.

1. Ensure that the blades of the fan are 30 in. (76 cm) from any obstruction.
2. Check the downrod length to ensure the blades will be at least 7 ft. (2,14 m) above your floor.

3D rendered diagram of a ceiling fan with three blades and a central hub, labeled 'Fig. 1' (no text or symbols on the diagram itself)

3D rendering of a turbine with propeller and fan assembly (no text or symbols)

3D rendered diagram of a ceiling fan with three blades and a central hub, labeled 'Fig. 3' (no text or symbols on the diagram itself)

MOUNTING BRACKET INSTALLATION

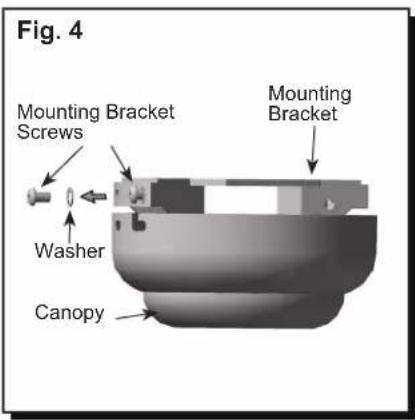

1. Loosen all four mounting bracket screws. Remove the two canopy screws and washers from the round holes of canopy. Set aside for later use. Detach mounting bracket from canopy (Fig. 4).

Mounting Bracket Screw

Washer

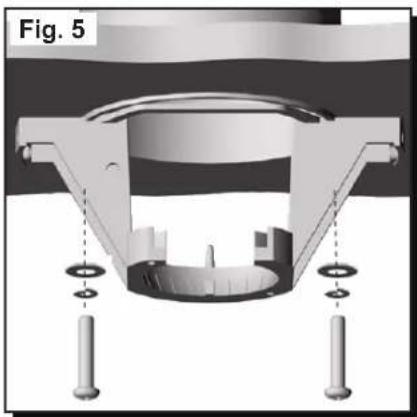

1. Secure the mounting bracket to the outlet box using screws and washers provided with the outlet box (not included) (Fig. 5).

Note: It is very important that you use proper hardware when installing the mounting bracket as it supports the fan.

Important: If using the angle mount, ensure that the open end of the mounting bracket is installed facing the peak of the ceiling.

Mechanical assembly diagram showing a central component with multiple supports and mounting holes, labeled Fig. 5 (no text or symbols on the diagram itself)

STANDARD OR ANGLE MOUNTING INSTRUCTIONS

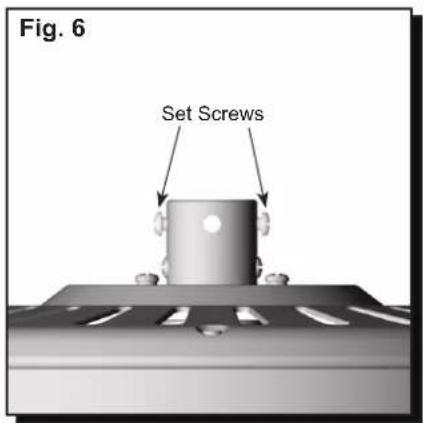

1. Partially loosen the two set screws in the yoke at the top of the motor housing (Fig. 6).

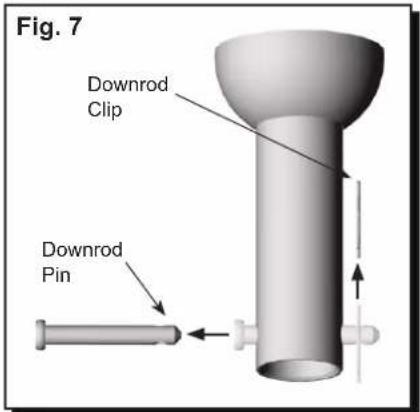

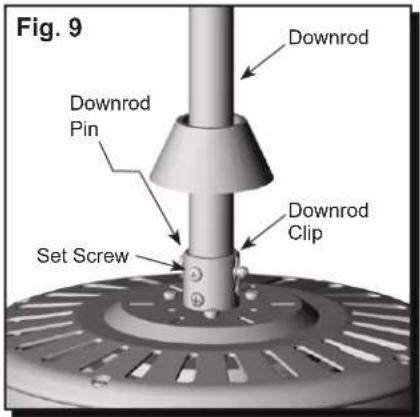

2. Remove the downrod pin and downrod clip from the downrod (Fig. 7).

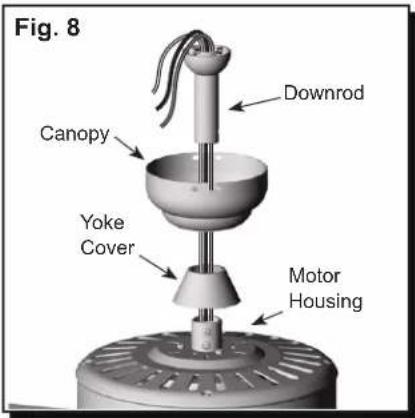

1. Thread the wires from the motor housing through the yoke cover, canopy and out through the top of the downrod (Fig. 8).

STANDARD OR ANGLE MOUNTING INSTRUCTIONS

1. Slide the downrod into the yoke of the motor housing, align the holes, and re-install the downrod pin and downrod clip. Then re-tighten the two set screws (Fig. 9).

Downrod Pin

Downrod Clip

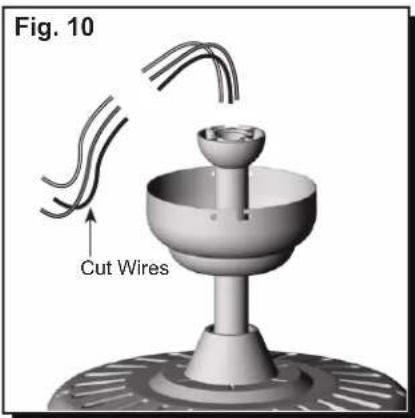

1. Depending on the length of downrod you use, you may need to cut the lead wires back to simplify the wiring. If you decide to cut back the lead wires, it is suggested that you do so in the following manner: Take the lead wires and make sure that you have pulled them all the way through the top of the downrod and measure 8 in. of lead wire, and then cut the excess wire off with wire cutters (not included) (Fig. 10).

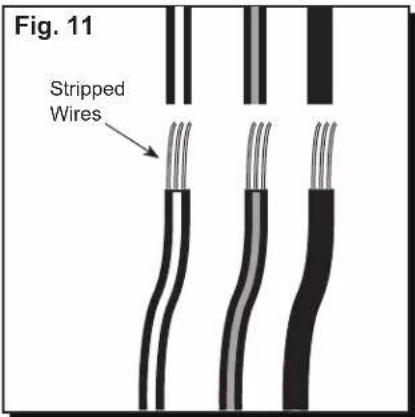

2. If you cut back the lead wire in Step 10, strip 1/2 in. of insulation from the end of each wire. Twist the stripped ends of each strand of wire clockwise with pliers (not included) (Fig. 11).

Note: If you did not cut back the lead wires in Step 10, Step 11 is not necessary and you may proceed to Step 12 instead.

STANDARD OR ANGLE MOUNTING INSTRUCTIONS

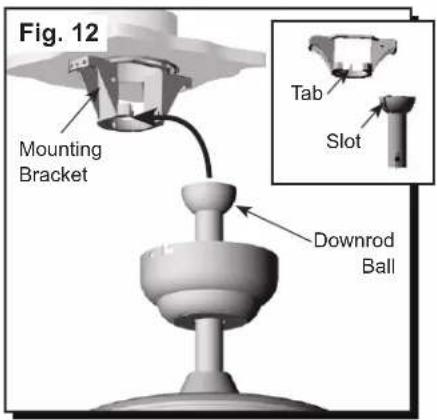

1. Install the downrod ball into the mounting bracket opening. Rotate the fan and/or downrod until the slot in the downrod ball engages the tab in the mounting bracket. The rod should not rotate if installed correctly (Fig. 12).

CLOSEMOUNT INSTRUCTIONS

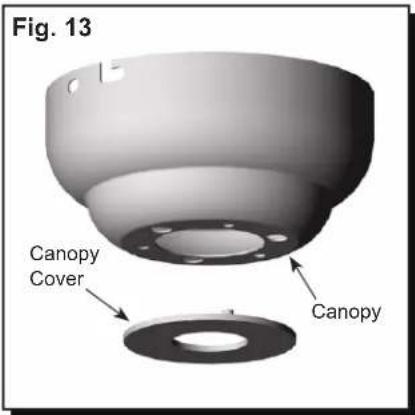

1. Remove the canopy cover from the bottom of the canopy (Fig. 13).

Helpful Hint: Closemount-style mounting is more suitable for ceilings lower than 8 ft. (2,44 m) high. The downrod and canopy cover are not used in this type of installation.

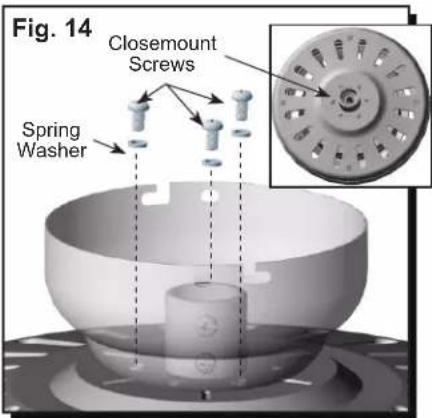

1. Align the canopy with the closemount screw holes in the top of the motor housing. Secure the canopy to the top of the motor housing by installing three closemount screws and spring washers (Fig. 14).

Closemount Screw

Spring Washer

1. Raise the fan and place the canopy on the hook located on the mounting bracket for wiring (Fig. 15).

WIRING

CAUTION

Be sure outlet box is properly grounded or that a ground (green or bare) wire is present.

WARNING

If house wires are different colors than referred to in the following step, stop immediately. A professional electrician is recommended to determine wiring. Incorrect wire connection can damage the receiver and could cause fire or injury.

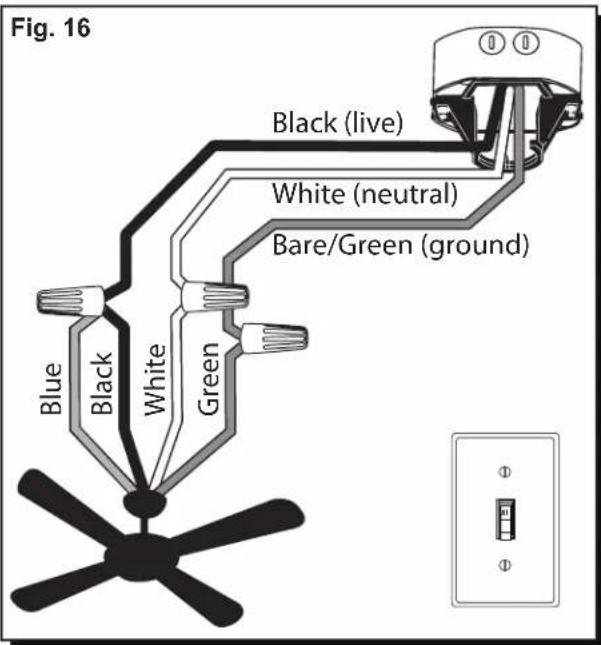

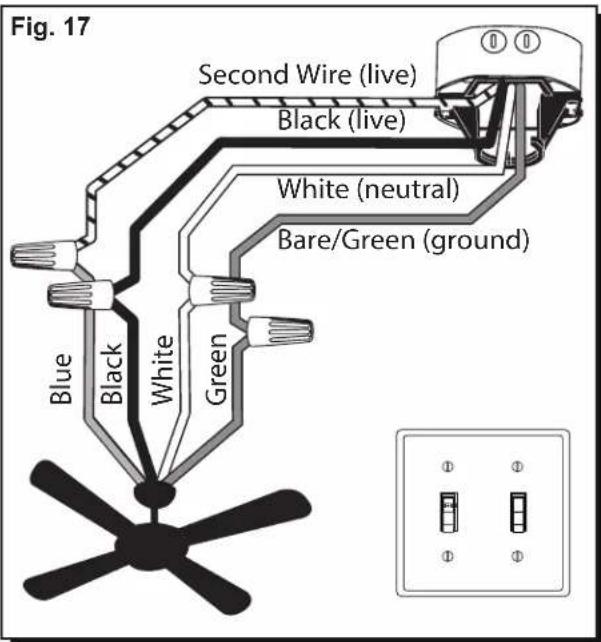

1. Connect supply and fan wires according to the diagram (Fig. 16) and these steps:

2. Connect the Green wires from the fan and mounting bracket to the Bare/Green (ground) supply wire.

3. Connect the Black and Blue wire from the fan to the Black (live) supply wire.
4. Connect the White wire from the fan to the White (neutral) supply wire.

Secure all wiring connections together with wire connectors and push all connected wires back into the outlet box.

1. (Optional) If a second hot power wire is available from outlet box, connect it to the blue (light power) wire from the fan for separate light and fan control (Fig.17).

Important: The black fan wire is power for fan. The blue fan wire is power for the light. The white wire from the fan is common/neutral. The green wires from the fan and mounting bracket are ground wires.

Wire Connector

CANOPY INSTALLATION

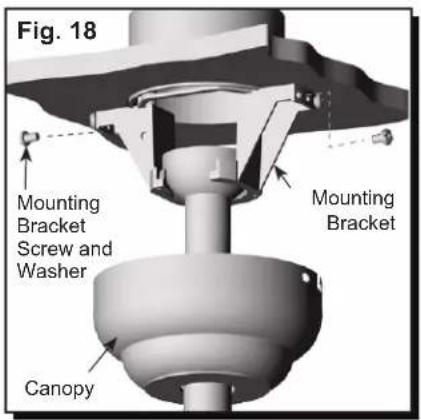

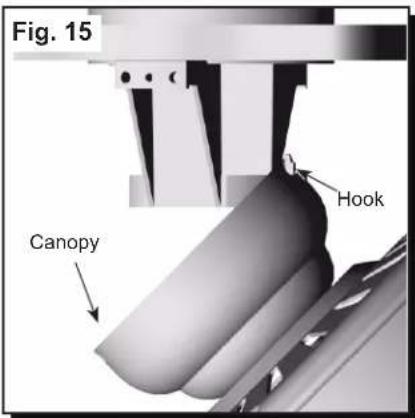

1. Lift the canopy up so the partially installed canopy screws are situated in the L-slots on each side of the canopy. Rotate the canopy clockwise and install the remaining canopy screws and washers from Step 4 (Fig.18).

Mounting Bracket Screw

Washer

BLADE INSTALLATION

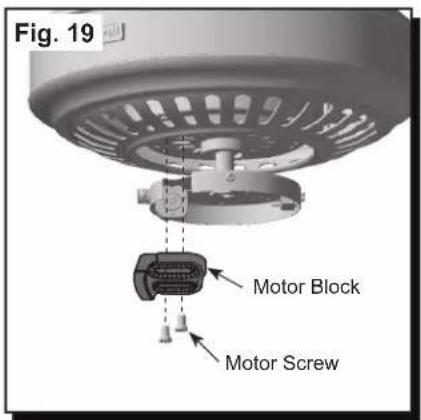

1. Remove the ten motor screws from underside of motor and save for blade arm attachment. Discard the five plastic motor blocks but keep the screws (Fig. 19).

Motor Screw

Simple black plastic component with two side slots and two top holes (no text or symbols)

Motor Block

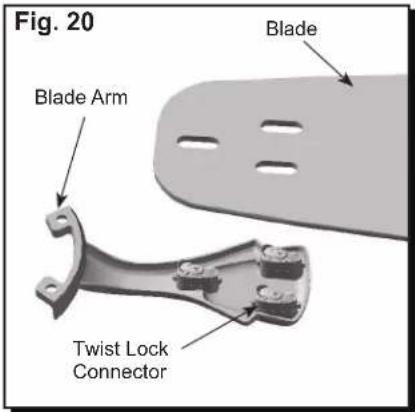

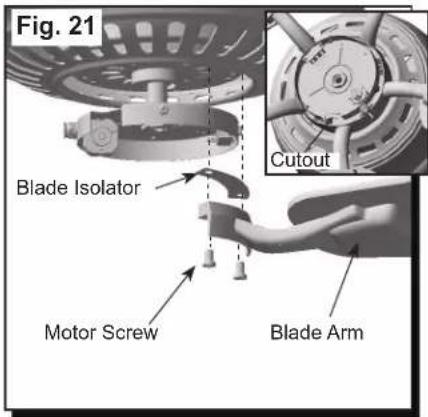

1. The blades attach to blade arms using the Fast Attach™ system. Align each twist lock connector in the direction of its corresponding hole in the blade. Place the blade over the twist lock connectors. Rotate each twist lock connector so that it is perpendicular to the hole in the blade. Repeat for the remaining blades (Fig. 20).

Note: A cutout in the upper switch housing allows easy access to the motor screw holes.

1. Insert two of the previously removed motor screws through the blade arm and blade isolator and into the motor. Tighten the motor screws securely. Repeat this step for the remaining blade arms. (Fig. 21).

Motor Screw

LIGHT KIT INSTALLATION

1. (Optional) To install the fan without a light kit:

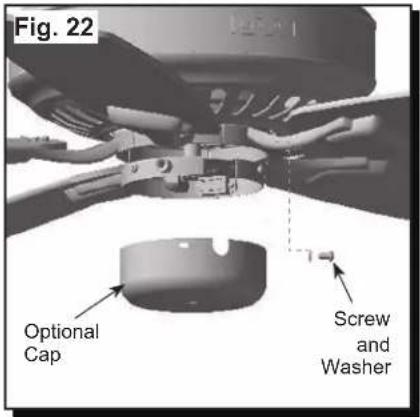

Remove the screws and washers from the upper switch housing. Align holes in optional cap with holes in upper switch housing. Re-insert screws and washers that were previously removed. Use a Phillips screwdriver (not included) to secure all screws (Fig. 22).

Proceed to step 27.

Screw

Washer

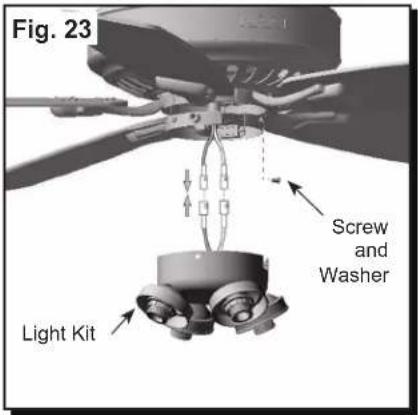

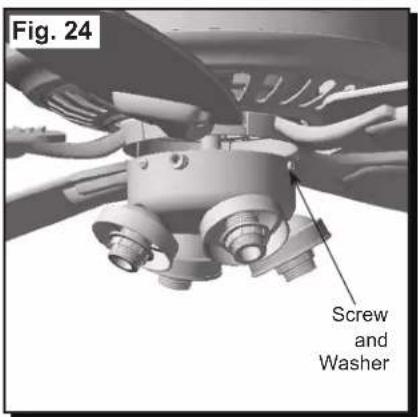

1. Remove three screws and washers from upper switch housing. Connect the white wire from the upper switch housing to the white wire from the light kit. Connect the blue wire from the upper switch housing to the black wire from the light kit. Make sure plugs connect tightly (Fig. 23).

Screw

Washer

1. Align holes in the light kit fitter with holes in upper switch housing. Re-insert screws and washers that were previously removed. Use a Phillips screwdriver (not included) to secure all screws (Fig. 24).

Screw

Washer

LIGHT KIT INSTALLATION

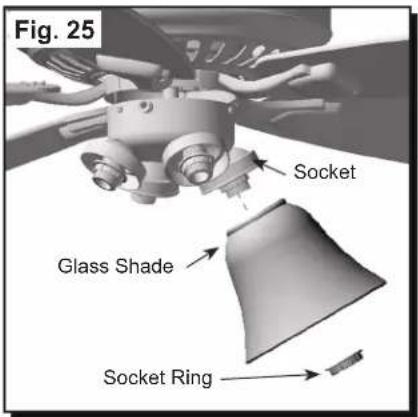

1. Remove the socket ring from the socket. Lift glass shade onto the light kit fitter and secure with socket ring (Fig. 25). Repeat for each socket.

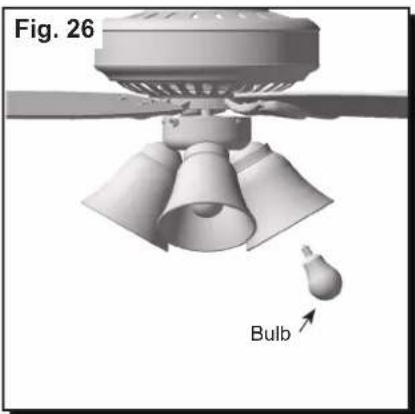

2. Install the bulbs (Fig. 26).

Important: When you need to replace the bulb, please allow bulb and light kit to cool down before touching the bulb or the light kit.

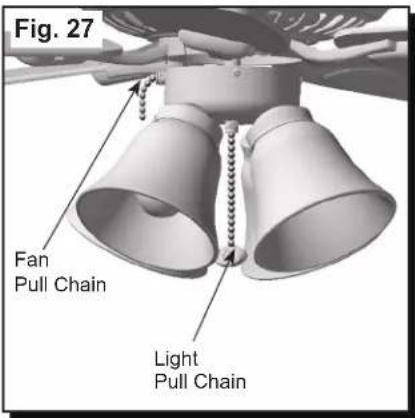

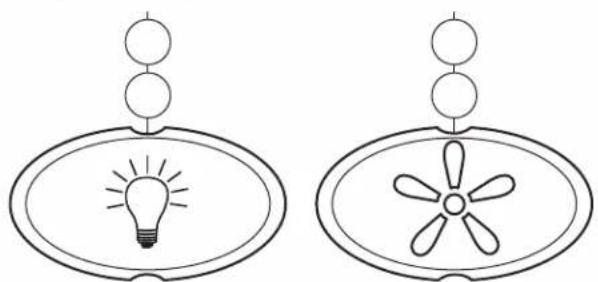

1. Attach the pull chain extensions or custom pull chains extensions (sold separately) to fan and light pull chains (Fig. 27).

Two identical diagrams showing a light bulb inside an oval frame and a four-petal fan inside a larger oval frame, both with circular tops (no text or symbols)

Light Pull Chain Fan Pull Chain

3D rendering of a ceiling fan with a bulb and an arrow indicating direction (no text or symbols on the diagram itself)

OPERATING INSTRUCTIONS

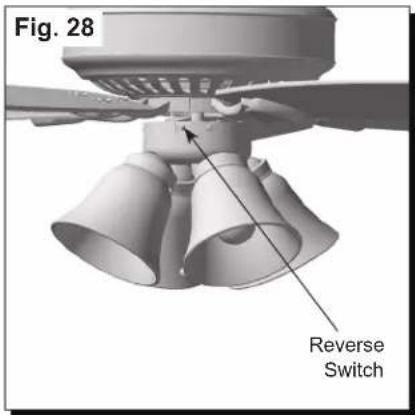

1. Use the fan reverse switch, located on the side of the light kit, to optimize your fan for seasonal performance (Fig. 28).

Using a ceiling fan will allow you to raise your thermostat in the summer and lower your thermostat in the winter without sacrificing comfort.

Note: The reverse switch must be set either completely left or right in order for the fan to function correctly. If the reverse switch is set in the middle position, the fan will not operate.

Important: Wait for the fan to stop before moving the reverse switch.

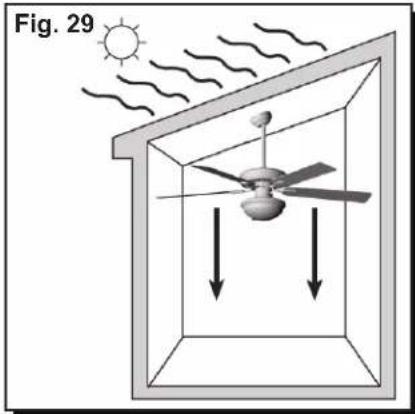

1. In warmer weather, push the reverse switch left, which will result in downward airflow creating a wind chill effect (Fig. 29).

Note: Energy savings are possible by turning on the ceiling fan and setting the thermostat a few degrees warmer. To maximize savings, turn ceiling fan off when no one is in the room.

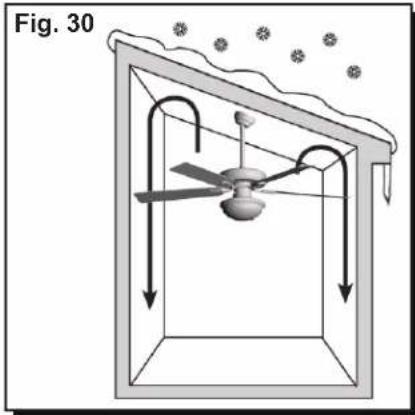

1. In cooler weather, push the reverse switch right and the fan to low, which will result in upward airflow that can help move hot air off the ceiling. By mixing the air, the furnace may not have to run as often and may yield energy savings (Fig. 30).

Diagram of a ceiling fan with airflow and sunlight, showing airflow direction and component placement (no text or symbols)

Diagram of a ceiling structure with a three-blade fan and airflow arrows, labeled Fig. 30 (no text or symbols on the diagram itself)

REPLACEMENT PARTS LIST

For replacement parts, call the customer service department at 1-877-361-3883, 8 a.m. - 6 p.m., EST, Monday - Thursday, 8 a.m. - 5 p.m., EST, Friday.

PIECE DESCRIPTION		Model 50191 PART#	Model 50192 PART#
A Blade Arm 50191-A 50192-A
B Blade 50191-B 50192-B
C Shade 50191-C 50192-C
D	Loose parts bags containing (not shown): Mounting hardware, blade attachment hardware, electrical hardware, pull chains, wire connectors, etc.	50191-D 50192-D

A

B

Simple gray rounded rectangle shape with three small white dots on the top and bottom (no text or symbols)

C

TROUBLESHOOTING

At least twice each year, lower the canopy to check the downrod assembly, and then tighten all screws on the fan. Clean the motor housing with only a soft brush or lint-free cloth to avoid scratching the finish. Clean the blades with a lint-free cloth. You may occasionally apply a light coat of furniture polish to wood blades for added protection.

Important: Shut off the main power supply before you begin any maintenance tasks. Do not use water or a damp cloth to clean the ceiling fan.

Problem: The fan does not move

1. Turn the power on or check the fuse.
2. Turn the power off. Loosen the canopy and check all connections.
3. Check that the connectors from the light kit fitter and fan are connected properly.
4. Disable the power supply to the fan motor and re-start the motor.
5. The blade is overweight. Do not install the unapproved blades.

Problem: The fan is noisy.

1. Check and tighten all screws that hold the fan blades to the blade arms and the motor.
2. Replace the cracked blade.

Problem: There is excessive wobbling

1. Check and tighten all screws that hold the fan blades to the blade arms and the blade arms to the motor.
2. Switch one blade with a blade from the opposite side. Or balance the fan using a balancing kit.
3. Turn off the power. Loosen the canopy and verify that the mounting bracket is secure to the electrical outlet box.
4. The bracket must be flush without movement against the outlet box.

Problem: The fan operates correctly, but the lights are not working.

1. Re-install the bulb(s).
2. Ensure that the male and female plugs in the light kit fitter are connected properly.
3. Turn the power off and check all connections at the ceiling outlet box.
4. Check to see if the light is over than 190W, since a limiter included.

LIMITED LIFETIME WARRANTY

Subject to the limitations set forth below, Hong Kong China Electric appliance Company (HKC) warrants the fan motor for this ceiling fan to be free from defects in workmanship and material for the life of the product. Also, subject to the limitations below, HKC warrants all ceiling fan parts (“ceiling fan parts” excludes the motor and parts made in whole or in part with glass) to be free from defects in workmanship and material for a period of one year after the date of purchase by the original purchaser at retail.

All claims must be made by the original purchaser, whether such purchaser purchased the product through a store or contractor. Ceiling fan part defects must be reported within the first year from the date of purchase. Parts made in whole or in part with glass and the finishes of metal and other surfaces are not warranted.

Purchasers are responsible for all costs of removing and reinstalling the product. Any damage to any part caused by ordinary wear and tear, accident, misuse, or improper installation, is not covered by this warranty. HKC assumes no responsibility whatsoever for fan installation. Any service performed by a non-licensed electrician will render the warranty invalid.

HKC's sole responsibility shall be to repair or replace the motor, parts, or product within the terms stated above. HKC SHALL NOT BE LIABLE FOR ANY LOSS OR DAMAGE OF ANY KIND, INCLUDING ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING DIRECTLY OR INDIRECTLY, FROM ANY BREACH OF WARRANTY, EXPRESS OR IMPLIED, OR ANY OTHER FAILURE OF THIS PRODUCT. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES SO THIS LIMITATION MAY NOT APPLY TO YOU.

IF THE ORIGINAL PURCHASER CEASES TO OWN THE FAN, THIS WARRANTY IS VOIDED.

Should the purchaser encounter a problem with your fan related to defects in workmanship or materials within the warranty period associated with the defective part, HKC agrees to replace the defective part without charge, or at its option, to replace the ceiling fan with a comparable or superior model.

HKC'S WARRANTIES ARE LIMITED TO THE WRITTEN WARRANTIES SET OUT IN THIS HKC CEILING FAN LIMITED LIFETIME WARRANTY. ALL OTHER EXPRESS AND IMPLIED WARRANTIES, INCLUDING, WITHOUT LIMITATION, THE IMPLIED WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE AND THE IMPLIED WARRANTY OF MERCHANTABILITY ARE DISCLAIMED. SOME STATES DO NOT ALLOW THE DISCLAIMER OF IMPLIED WARRANTIES, SO THIS DISCLAIMER MAY NOT APPLY TO YOU.

To obtain warranty service, please write down your model number and call Customer Service at 1-877-361-3883, Monday - Thursday, 8 am - 6 pm, EST and Friday, 8 am - 5 pm, EST. Please have a copy of the receipt as proof of purchase.

The Honeywell Trademark is used under license from Honeywell International Inc. Honeywell International Inc. makes no representations or warranties with respect to this product. This product is manufactured for:

Hong Kong China Electric Appliance Manufacture Co., Ltd.

3059 Forest Hill Irene Rd, Suite 103

Germantown, TN 38138

1-877-361-3883
