Product Type	Domestic Fan
Brand	Honeywell
Model	Blufton 10283
Dimensions (H x W x D)	Approx. 40 x 30 x 30 cm
Weight	Approx. 3.5 kg
Power Source	120V AC, 60 Hz
Power Consumption	50 Watts
Fan Speed Settings	3 speeds (Low, Medium, High)
Oscillation	Yes, wide-angle oscillation
Airflow	Up to 1500 CFM
Noise Level	Approx. 50 dB (max speed)
Control Type	Manual buttons on base
Adjustable Tilt	Yes, manual tilt adjustment
Blade Material	ABS plastic
Grille Material	Steel wire with protective coating
Safety Features	Overheat protection, tip-over switch
Cleaning	Wipe with damp cloth; ensure fan is unplugged
Maintenance	Lubricate motor annually (if applicable)
Spare Parts Availability	Contact Honeywell customer service for replacement parts
Repairability	Professional repair recommended; user-serviceable except for motor
Cord Length	Approx. 1.8 m
Warranty	1 year limited

Frequently Asked Questions - Blufton 10283 HONEYWELL

How do I clean the Honeywell Blufton 10283 fan?

Always unplug the fan before cleaning. Use a soft, damp cloth to wipe the grille and blades. Do not use abrasive cleaners or submerge in water. You can also use a vacuum with a brush attachment to remove dust from the grille.

Does this fan have a remote control?

No, the Honeywell Blufton 10283 is manually operated using buttons located on the base of the fan. It does not come with a remote control.

Can I use this fan outdoors?

This fan is designed for indoor use only. Using it outdoors may expose it to moisture and dust, which can damage the motor and pose a safety risk. Keep it in a dry, sheltered location.

What should I do if the fan wobbles or makes noise?

Ensure the fan is placed on a stable, level surface. Check that all screws and nuts are tight. If the noise persists, clean the blades and lubricate the motor bearings (refer to manual). Excessive wobble may indicate a bent blade; contact customer service.

How do I adjust the oscillation?

To activate oscillation, press the oscillation button on the fan base. To stop oscillation, press the button again. You cannot manually control the oscillation angle; it moves automatically back and forth.

Is the fan safe to use around children?

The fan has a tip-over switch that automatically turns it off if knocked over, reducing risk. However, always supervise children near the fan and keep fingers away from the grille. Place it out of reach if possible.

What is the power consumption of this fan?

The Honeywell Blufton 10283 consumes approximately 50 watts at maximum speed, making it an energy-efficient choice for personal cooling.

Can I replace the fan blades myself?

Replacement blades are available from Honeywell, but installation should be done carefully. The front grille is removable by unscrewing the retaining ring. Refer to the manual for detailed steps. If unsure, contact a professional.

Why is my fan not turning on?

First, check that the fan is plugged into a working outlet. Ensure the power cord is not damaged. Verify that the power button is pressed. If still not working, try resetting the fan by unplugging for 10 seconds. If the issue persists, contact Honeywell support.

How do I store the fan when not in use?

Clean the fan thoroughly and allow it to dry. Loosely wrap the power cord around the base or use a cable tie. Store in a cool, dry place away from direct sunlight. Cover with a cloth to protect from dust.

USER MANUAL Blufton 10283 HONEYWELL

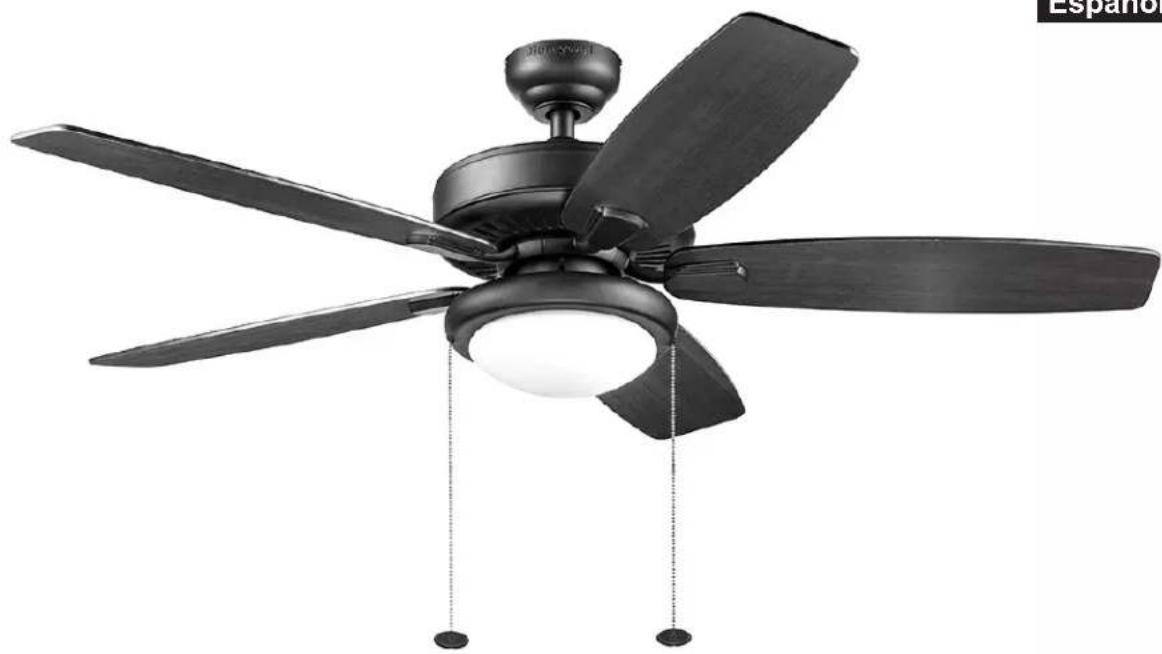

BLUFTON 52" CEILING FAN

MODEL #10282, 10283

Español p. 20

Black and white photo of a five-blade pendant tree fan with a recessed headlight (no text or symbols visible)

RATED FOR DAMP LOCATIONS

Questions, problems, missing parts? Before returning to your retailer, call our customer service department at 1-877-361-3883, Monday - Thursday, 8 am - 6 pm, EST and Friday, 8 am - 5 pm, EST.

WELCOME

TABLE OF CONTENTS

Care and Maintenance 2

Package Contents .... 3

Safety Information 4

Mounting Options 5

Mounting Bracket Installation 6

Standard or Angle Mounting Instructions .....7

Closemount Instructions....10

Wiring 11

Canopy Installation....12

Blade Installation 13

Light Kit Installation 14

Operating Instructions 16

Replacement Parts List 17

Troubleshooting 18

Limited Lifetime Warranty....19

ATTACH YOUR RECEIPT HERE

Serial Number

Purchase Date

PREPARATION

Before beginning the assembly of this product, ensure all parts are present. Compare all parts with the package contents list and hardware contents list. If any part is missing or damaged, do not attempt to assemble the product.

After opening the top of the carton, remove the mounting hardware package from the foam inserts, then remove the motor from the packaging and place it on a soft surface, such as a carpet, to avoid damage to the finish.

Estimated Assembly Time: Approximately 120 minutes

Tools Required for Assembly (not included): Electrical Tape, Phillips Screwdriver, Pliers, Safety Glasses, Step Ladder, and Wire Strippers

Helpful Tools (not included): AC Tester Light, Tape Measure, Wiring Handbook, and Wire Cutters

CARE AND MAINTENANCE

At least twice each year, lower the canopy to check the downrod assembly, and then tighten all screws on the fan. Clean the motor housing with only a soft brush or lint-free cloth to avoid scratching the finish. Clean the blades with a lint-free cloth.

Important: Shut off the main power supply before you begin any maintenance tasks. Do not use water or a damp cloth to clean the ceiling fan.

FAN WEIGHT

The net weight of this fan is: 15.97 lbs. (7,24 kg).

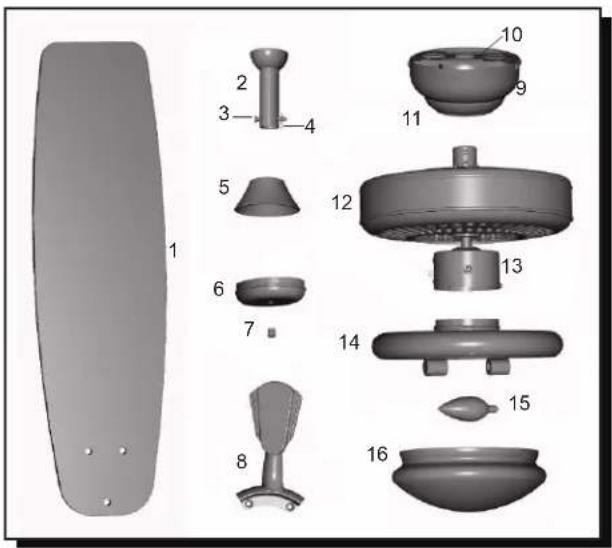

PACKAGE CONTENTS

Unpack your fan and check the contents. You should have the following items:

1. Blade (5)
2. Downrod
3. Downrod Pin
4. Downrod Clip
5. Yoke Cover
6. Switch Housing Cap
7. Plug Button
8. Blade Arm (5)
9. Canopy
10. Mounting Bracket
11. Canopy Cover
12. Motor Assembly
13. Switch Housing
14. Light Kit
15. Bulbs (2)

16. Glass Bowl

17. Loose parts bag (not shown) containing: Mounting hardware, blade attachment hardware, pull chain extensions, wire connectors, etc.

18. Owner's Manual (not shown)

SAFETY INFORMATION

Please read and understand this entire manual before attempting to assemble, operate, or install the product.

• Before you begin installing the fan, disconnect the power by removing fuses or turning off the circuit breakers.
• Make sure that all electrical connections comply with local codes, ordinances, the National Electrical Code, and ANSI/NFPA 70-199. Hire a qualified electrician or consult a do-it-yourself wiring handbook if you are unfamiliar with installing electrical wiring.
• Make sure the installation site you choose allows a minimum clearance of 7 ft. (2,14 m) from the blades to the floor and at least 30 in. (76 cm) from the end of the blades to any obstruction.

DANGER

When using an existing outlet box, make sure the outlet box is securely attached to the building structure and can support the full weight of the fan. Failure to do this can result in serious injury or death. The stability of the outlet box is essential in minimizing wobble and noise in the fan after installation is complete.

WARNING

To reduce the risk of fire or electric shock, do not use the fan with any solid-state speed-control device or control the fan speed with a full-range dimmer switch.

WARNING

To reduce the risk of fire, electric shock, or personal injury, do not bend the blade arms when installing them, balancing the blades, or cleaning the fan. Do not insert objects between the rotating fan blades.

WARNING

If using the fan in a damp location, the fan must be connected to a supply circuit that is protected by a Ground Fault Circuit Interrupter (GFCI) to reduce the risk of personal injury, electrical shock or death.

WARNING

To reduce the risk of fire, electric shock, or personal injury, mount the fan to an outlet box marked "ACCEPTABLE FOR FAN SUPPORT" and use the mounting screws provided with the outlet box. Most outlet boxes commonly used for the support of lighting fixtures are not acceptable for fan support and may need to be replaced. Consult a qualified electrician if in doubt. Secure the outlet box directly to the building structure. The outlet box and its support must be able to support the moving weight of the fan, at least 35 lbs. (15,88 kg).

CAUTION

Be sure the outlet box is properly grounded or that a ground (green or bare) wire is present.

CAUTION

Read all instructions and safety information before installing your new fan. Review the accompanying assembly diagrams.

MOUNTING OPTIONS

1. Your fan has 3 mounting options:

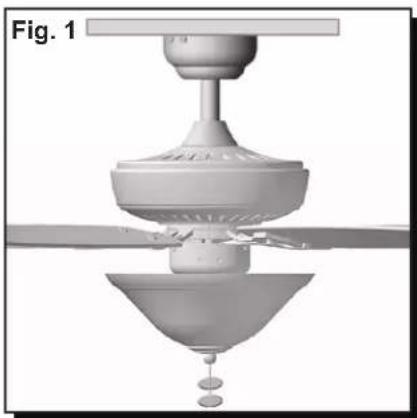

2. Standard (Fig. 1)

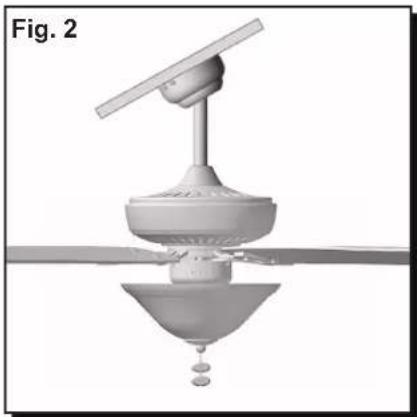

3. Angle (Fig. 2)

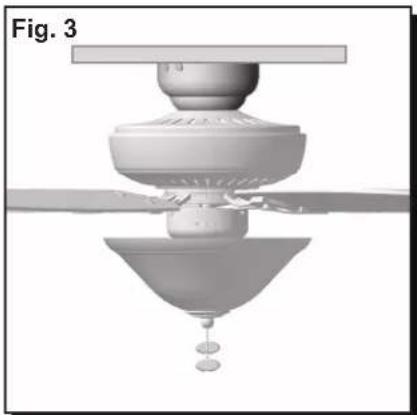

4. Closemount (Fig. 3)

Note: The fans in figures 1 through 3 are not the actual fan in your package, they are representation of the 3 different mounting options.

Important: If using the angle mount, check to ensure the ceiling angle is not steeper than 16^ .

Standard mounting is best suited for ceilings 8 ft. or higher. For taller ceilings you may want to use a longer downrod (sold separately).

Angle mounting is best suited for angled or vaulted ceilings. A longer downrod is sometimes necessary to ensure proper blade clearance.

Closemount is more suitable for ceilings lower than 8 ft. (2,44 m) high.

1. Ensure the blades of the fan are at least 30 in. (76 cm) from any obstruction.
2. Check the downrod length to ensure the blades will be at least 7 ft. (2,14 m) above your floor.

3D rendering of a ceiling fan assembly with a conical base and propeller (no text or symbols visible)

3D rendering of a ceiling fan with a conical base and propeller, labeled Fig. 2 (no text or symbols on the diagram itself)

3D rendering of a ceiling fan assembly with a conical base and propeller (no text or symbols visible)

MOUNTING BRACKET INSTALLATION

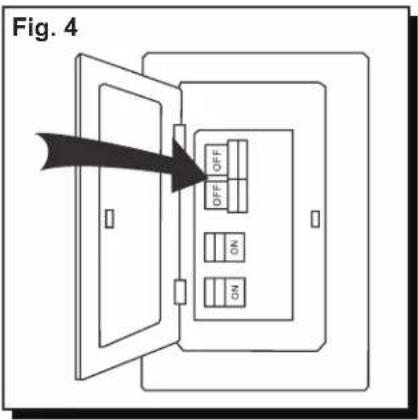

1. Turn off the circuit breakers and wall switch leading to the fan wire leads (Fig. 4).

WARNING

Failure to disconnect the power supply prior to installation may result in serious injury or death.

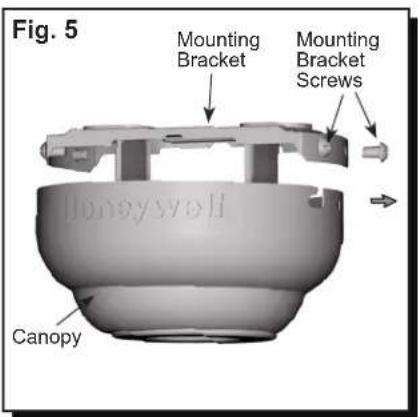

1. Loosen all four mounting bracket screws and completely remove the two mounting bracket screws from the round holes of canopy. Set aside for later use. Detach mounting bracket from canopy (Fig. 5).

Mounting Bracket Screw

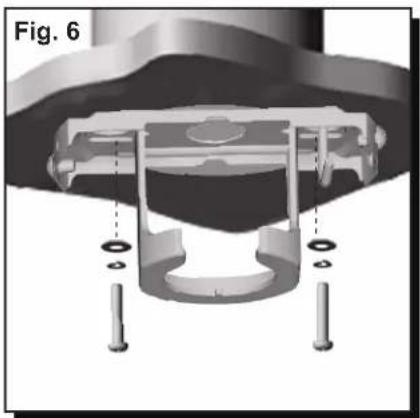

1. Secure the mounting bracket to the outlet box using screws, spring washers, and flat washers provided with the outlet box (not included) (Fig. 6).

Note: It is very important to use proper hardware when installing the mounting bracket as it supports the fan.

Important: If using the angle mount, ensure the open end of the mounting bracket is installed facing the peak of the ceiling.

Cross-sectional view of a mechanical assembly with bolted components and a central housing (no text or symbols visible)

STANDARD OR ANGLE MOUNTING INSTRUCTIONS

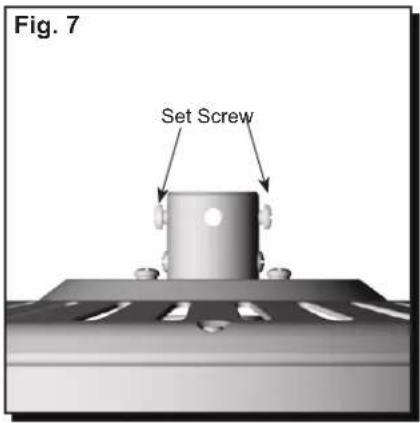

1. Partially loosen the two set screws in the yoke at the top of the motor housing (Fig. 7).

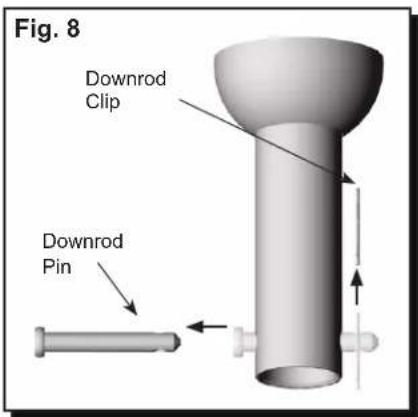

2. Remove the downrod clip and downrod pin from the downrod (Fig. 8).

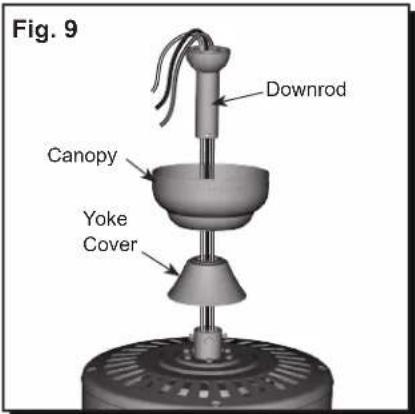

1. Insert the downrod through the canopy and yoke cover. Feed the wires from the fan through the downrod (Fig. 9).

STANDARD OR ANGLE MOUNTING INSTRUCTIONS

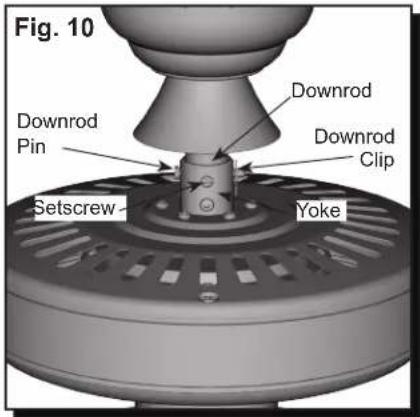

1. Slide the downrod into the yoke of the motor assembly, align the holes, and reinstall the downrod pin and downrod clip. Then retighten the two set screws (Fig. 10).

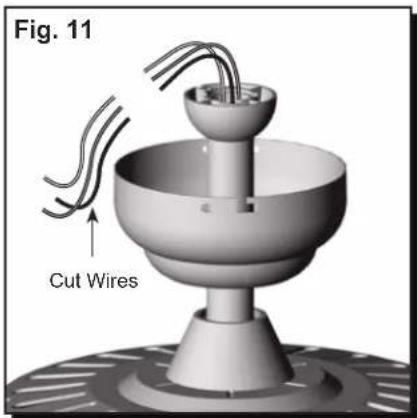

2. Depending on the length of downrod you use, you may need to cut the lead wires back to simplify the wiring. If you decide to cut back the lead wires, it is suggested that you do so in the following manner: Take the lead wires and make sure that you have pulled them all the way through the top of the downrod and measure 8 in. of lead wire, and then cut the excess wire off with wire cutters (not included) (Fig. 11).

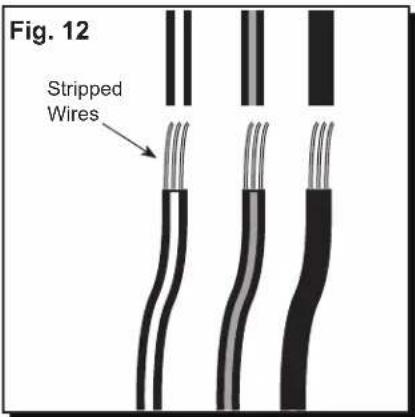

3. If you decided to cut back the lead wire in Step 11, strip 1/2 in. of insulation from the end of the white wire. Twist the stripped ends of each strand of wire within the insulation with pliers (not included) (Fig. 12).

Note: If you did not cut back the lead wires in Step 11, Step 12 is not necessary and you may proceed to Step 13 instead.

STANDARD OR ANGLE MOUNTING INSTRUCTIONS

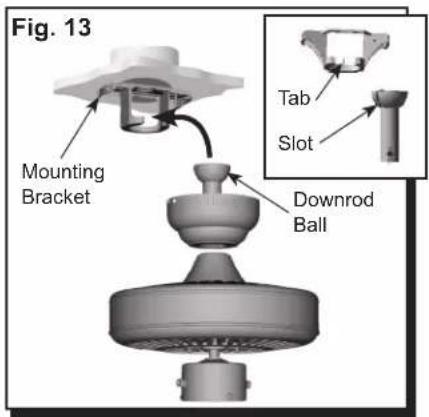

1. Install the ball end of the downrod into the mounting bracket opening. Align the slot in the ball with the tab in the mounting bracket. The downrod should not rotate if installed correctly (Fig. 13).

WARNING

Failure to align the slot in the downrod with the tab on the mounting bracket could cause the fan to fall, which could result in serious injury or death.

CLOSEMOUNT INSTRUCTIONS

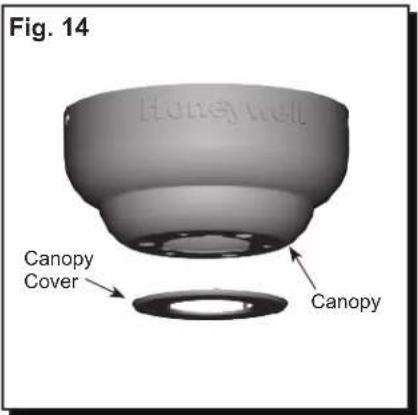

1. Remove the canopy cover from the bottom of the canopy (Fig. 14).

Helpful Hint: The downrod, canopy cover and yoke cover are not used in this type of installation.

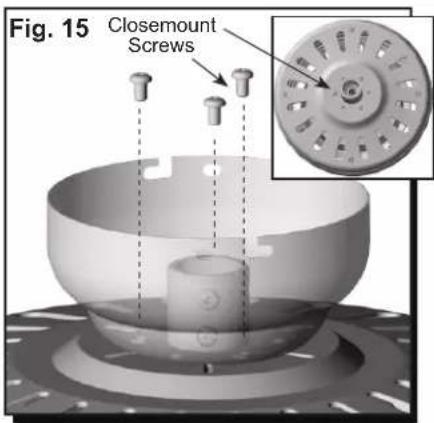

1. Align the canopy with the holes in the top of motor assembly. Then, secure the canopy to the top of the motor assembly using the three closemount screws from the hardware bag (Fig. 15).

Closemount Screw

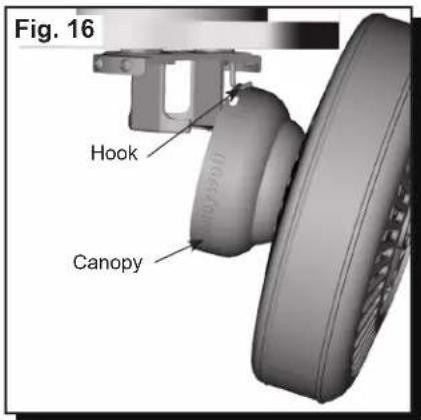

1. Lift the fan and place the hole in the canopy on the mounting bracket hook during the wiring process (Fig. 16).

WIRING

CAUTION

Be sure outlet box is properly grounded or that a ground (green or bare) wire is present.

WARNING

If house wires are different colors than referred to in the following steps, consult a professional electrician to determine wiring. Incorrect wire connection can damage the fan and could cause fire or injury.

WARNING

Ensure black and white wire connections are on opposite sides of the outlet box.

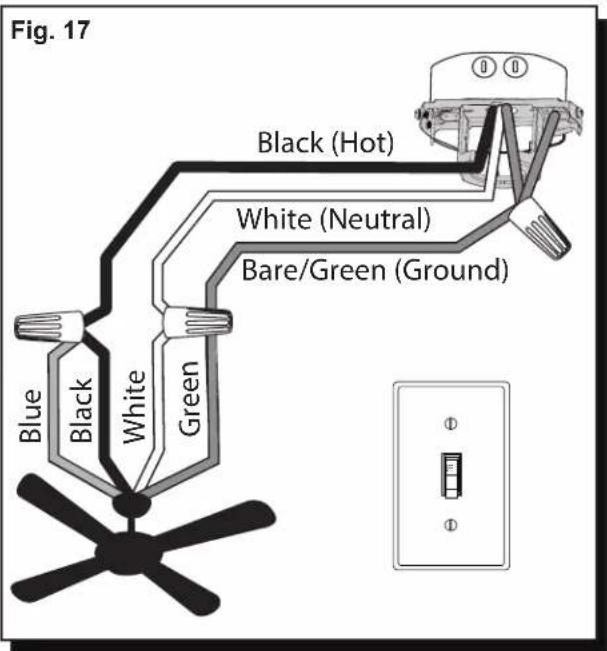

1. Connect supply and fan wires according to the diagram (Fig. 17) and these steps:

2. Connect the Green wires from the fan and mounting bracket to the Bare/Green (ground) supply wire.

3. Connect the Black and Blue wire from the fan to the Black (hot) supply wire.
4. Connect the White wire from the fan to the White (neutral) supply wire.

Secure all wiring connections with wire connectors and push all connected wires back into the outlet box. Important: Ensure black and white wire connections are on opposite sides of the outlet box.

Note: The black fan wire is power for fan. The blue fan wire is power for the light. The white wire from the fan is common/neutral. The green wires from the fan and mounting bracket are ground wires.

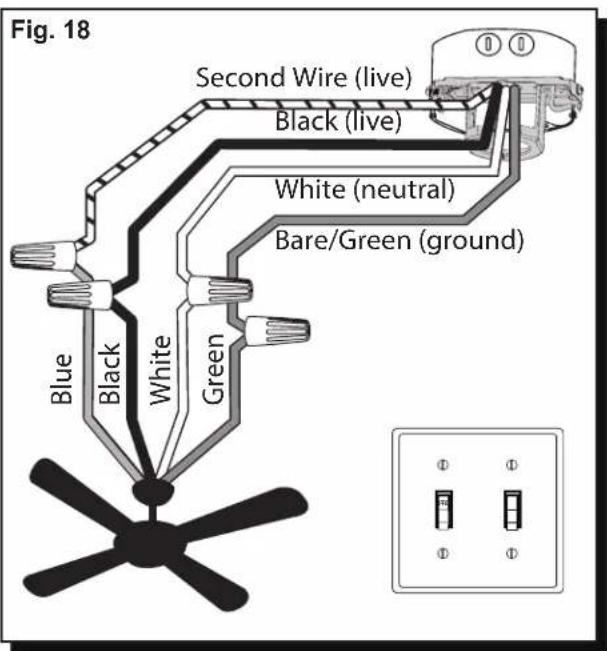

1. (Optional) If a second hot power wire is available from outlet box, connect it to the blue (light power) wire from the fan for separate light and fan control (Fig. 18).

Wire Connector

CANOPY INSTALLATION

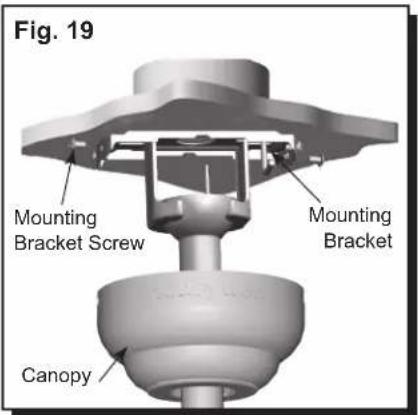

1. Lift the canopy up so the partially installed mounting bracket screws are engaged in the J-slots on each side of the canopy. Rotate the canopy clockwise and install the previously removed mounting bracket screws from Step 5. Tighten all mounting bracket screws. (Fig. 19).

Mounting Bracket Screw

BLADE INSTALLATION

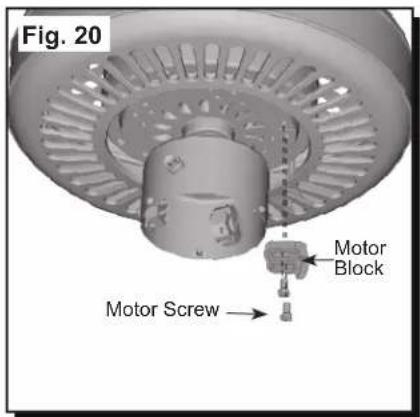

1. Remove motor screws and motor blocks from underside of the motor assembly. Discard the motor blocks but save the motor screws for blade arm attachment (Fig. 20).

Motor Screw

Black plastic mechanical component with two side holes (no text or symbols)

Motor Block

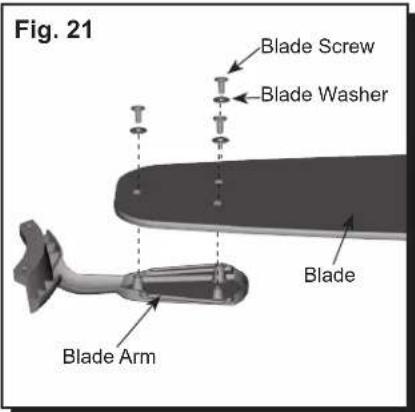

1. Partially insert the blade screws along with the blade washers through the blade and into the blade arm. Tighten each blade screw with a Phillips screwdriver (not included) starting with the one in the middle. Repeat this step for the remaining blades and blade arms (Fig. 21).

Blade Screw Blade Washer

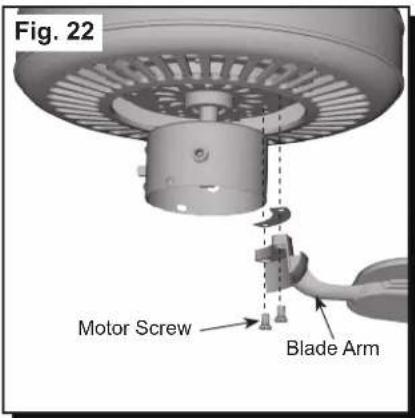

1. Insert two previously removed motor screws through one blade arm and blade isolator. Insert the motor screws into the underside of the motor assembly. Tighten motor screws securely. Repeat with remaining blade arms, secure each blade arm before proceeding with to the next (Fig. 22).

Motor Screw

LIGHT KIT INSTALLATION

23. To install the fan with a light kit:

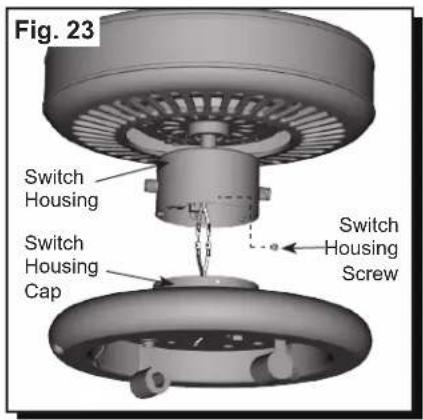

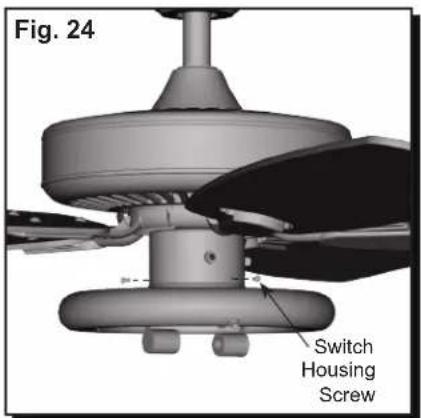

Remove the three switch housing screws from the switch housing cap. Then connect the single-pin connector from the switch housing to the single-pin connector from the light kit -- white to white and black to black (Fig. 23).

Switch Housing Screw

1. Secure the switch housing cap with light kit to the switch housing using the previously removed switch housing screws (Fig. 24).

Switch Housing Screw

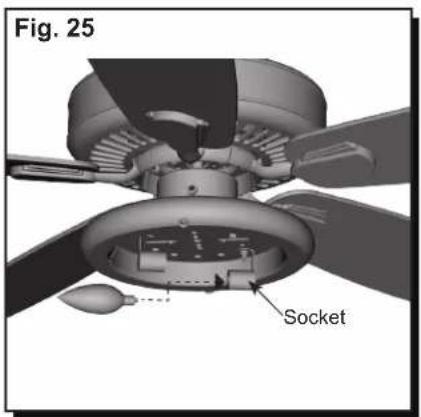

1. Install the bulbs (Fig. 25).

Important: When replacing the bulb, allow bulb and light kit to cool before touching.

LIGHT KIT INSTALLATION

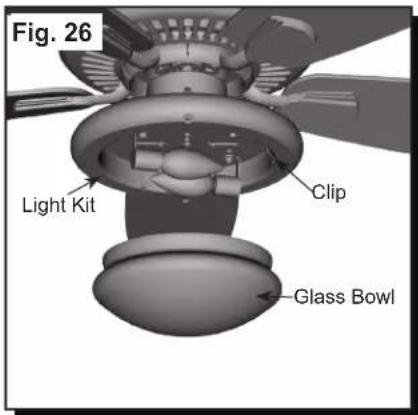

1. Lift glass bowl into the light kit. Ensure the clips on inner edge of the light kit slide inside the glass bowl. The glass bowl should snap into place (Fig 26).

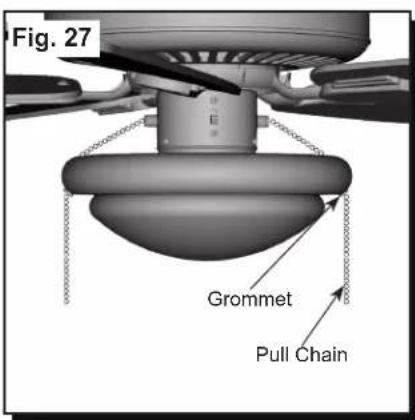

2. Feed pull chains through the grommets on each side of the light kit (Fig 27).

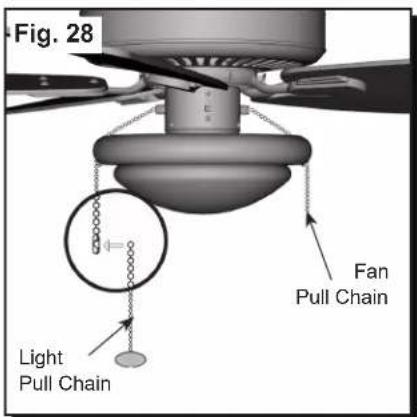

3. Attach the pull chain extensions to fan and light pull chains (Fig. 28).

Note: When facing the reverse switch, the light pull chain will be on the left and the fan pull chain will be on the right. When installing without a light kit, the pull chain for the light will not be installed.

Assembly is complete. Turn on the power supply to the fan.

OPERATING INSTRUCTIONS

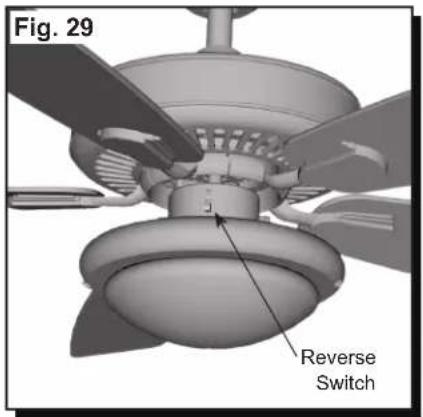

1. Use the reverse switch, located on the side of the fan, to optimize your fan for seasonal performance (Fig. 29).

Using a ceiling fan will allow you to raise your thermostat in the summer and lower your thermostat in the winter without sacrificing comfort.

Important: Wait for the fan to stop before moving the reverse switch. The reverse switch must be set either completely up or down in order for the fan to function correctly. If the reverse switch is set in the middle position, the fan will not operate.

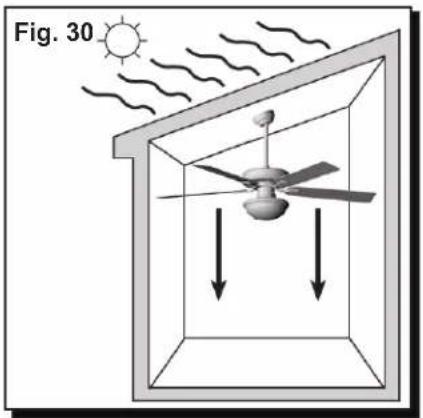

1. In warmer weather, push the reverse switch down, which will result in downward airflow creating a wind chill effect (Fig. 30).

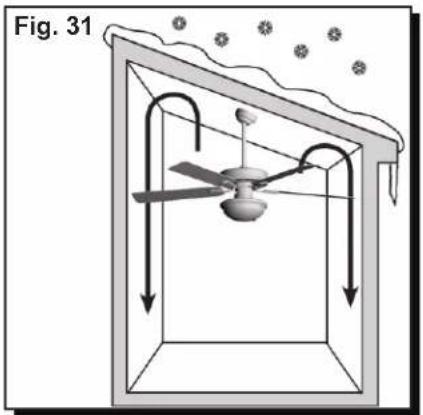

2. In cooler weather, push the reverse switch up and the fan speed to low, which will result in upward airflow that can help move stagnant, hot air off the ceiling area. By mixing the air, the heat may not have to run as often and may yield energy savings (Fig. 31).

Diagram of a ceiling fan with airflow and sunlight, showing airflow direction and airflow through the window (no text or symbols)

Diagram of a ceiling fan with airflow arrows indicating direction, no text or symbols present

REPLACEMENT PARTS LIST

For replacement parts, call the customer service department at 1-877-361-3883, 8 a.m. - 6 p.m., EST, Monday - Thursday, 8 a.m. - 5 p.m., EST, Friday.

PIECE DESCRIPTION		MODEL 10282PART #	MODEL 10283PART #
A Blade Arm 10282-A 10283-A
B Blade 10282-B 10283-B
C	Glass Bowl	10282-C	10283-C
D	Hardware bag (not shown)contains: Mounting hardware,blade attachment hardware,electrical hardware, pull chains,wire connectors, etc.	10282-D 10283-D

A

Gray elongated object with three small dots, no visible text or symbols

B

C

TROUBLESHOOTING

At least twice each year, lower the canopy to check the downrod assembly, and then tighten all screws on the fan. Clean the motor housing with only a soft brush or lint-free cloth to avoid scratching the finish. Clean the blades with a lint-free cloth.

Important: Shut off the main power supply before you begin any maintenance tasks. Do not use water or a damp cloth to clean the ceiling fan.

Problem: The fan does not move

1. Turn the power on or check the fuse.
2. Turn the power off. Loosen the canopy and check all connections.
3. Ensure the connectors from the light kit fitter and fan are connected properly.
4. Disable the power supply to the fan motor and re-start the motor.

Problem: The fan is noisy.

1. Check and tighten all screws that hold the fan blades to the blade arms and the motor.
2. Check for cracked blade. Replace the cracked blade, if necessary.

Problem: There is excessive wobbling

1. Check and tighten all screws that hold the fan blades to the blade arms and the blade arms to the motor.
2. Switch one blade with a blade from the opposite side. Or balance the fan using a balancing kit.
3. Turn off the power. Loosen the canopy and verify that the mounting bracket is secure to the electrical outlet box.
4. The bracket must be flush without movement against the outlet box.

Problem: The fan operates correctly, but the lights are not working (if applicable).

1. Re-install the bulb or replace with new bulbs.
2. Ensure that the single-pin connectors plugs in the light kit fitter are connected properly.
3. Turn the power off and check all connections at the ceiling outlet box.
4. The fan comes with a 190W limiter. When the total wattage of the lights is over 190W, the lights do not work. Replace with bulbs of lower wattage.

LIMITED LIFETIME WARRANTY

Subject to the limitations set forth below, Hong Kong China Electric appliance Company (HKC) warrants the fan motor for this ceiling fan to be free from defects in workmanship and material for the life of the product. Also, subject to the limitations below, HKC warrants all ceiling fan parts (“ceiling fan parts” excludes the motor and parts made in whole or in part with glass) to be free from defects in workmanship and material for a period of one year after the date of purchase by the original purchaser at retail.

All claims must be made by the original purchaser, whether such purchaser purchased the product through a store or contractor. Ceiling fan part defects must be reported within the first year from the date of purchase. Parts made in whole or in part with glass and the finishes of metal and other surfaces are not warranted.

Purchasers are responsible for all costs of removing and reinstalling the product. Any damage to any part caused by ordinary wear and tear, accident, misuse, or improper installation, is not covered by this warranty. HKC assumes no responsibility whatsoever for fan installation. Any service performed by a non-licensed electrician will render the warranty invalid.

HKC's sole responsibility shall be to repair or replace the motor, parts, or product within the terms stated above. HKC SHALL NOT BE LIABLE FOR ANY LOSS OR DAMAGE OF ANY KIND, INCLUDING ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING DIRECTLY OR INDIRECTLY, FROM ANY BREACH OF WARRANTY, EXPRESS OR IMPLIED, OR ANY OTHER FAILURE OF THIS PRODUCT. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES SO THIS LIMITATION MAY NOT APPLY TO YOU.

IF THE ORIGINAL PURCHASER CEASES TO OWN THE FAN, THIS WARRANTY IS VOIDED.

Should the purchaser encounter a problem with your fan related to defects in workmanship or materials within the warranty period associated with the defective part, HKC agrees to replace the defective part without charge, or at its option, to replace the ceiling fan with a comparable or superior model.

HKC'S WARRANTIES ARE LIMITED TO THE WRITTEN WARRANTIES SET OUT IN THIS HKC CEILING FAN LIMITED LIFETIME WARRANTY. ALL OTHER EXPRESS AND IMPLIED WARRANTIES, INCLUDING, WITHOUT LIMITATION, THE IMPLIED WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE AND THE IMPLIED WARRANTY OF MERCHANTABILITY ARE DISCLAIMED. SOME STATES DO NOT ALLOW THE DISCLAIMER OF IMPLIED WARRANTIES, SO THIS DISCLAIMER MAY NOT APPLY TO YOU.

To obtain warranty service, please write down your model number and call Customer Service at 1-877-361-3883 Monday - Thursday, 8 am - 6 pm, EST and Friday, 8 am - 5 pm, EST. Please have a copy of the receipt as proof of purchase.

The Honeywell Trademark is used under license from Honeywell International Inc. Honeywell International Inc. makes no representations or warranties with respect to this product. This product is manufactured for:

Hong Kong China Electric Appliance Manufacture Co., Ltd.

3350 Players Club Parkway, Suite 225

Memphis, TN 38125

1-877-361-3883
