ISM-325W - Waffle Maker Imarflex - Free user manual and instructions

Product Type	Waffle Maker
Brand	Imarflex
Model	ISM-325W
Power Consumption	850 W
Voltage	220-240 V
Frequency	50/60 Hz
Plate Material	Non-stick coating
Indicator Light	Yes, power and ready lights
Thermostat Control	Adjustable browning control
Dimensions (L x W x H)	Approx. 25 x 20 x 10 cm
Weight	Approx. 1.5 kg
Cord Length	0.8 m
Housing Material	Plastic with cool-touch handles
Color	White and silver
Safety Features	Automatic shut-off, overheat protection
Cleaning Instructions	Wipe with damp cloth; do not immerse
Spare Parts Availability	Contact Imarflex service center
Repairability	Limited user-serviceable parts; professional repair recommended

Frequently Asked Questions - ISM-325W Imarflex

How do I use the Imarflex ISM-325W Waffle Maker for the first time?

Before first use, wipe the plates with a damp cloth. Preheat the waffle maker with the lid closed for about 5 minutes. The indicator light will turn off when ready. Lightly grease the plates with cooking spray or oil, pour in batter, and close the lid. Cook until golden brown.

Can I use metal utensils on the non-stick plates?

No, avoid metal utensils as they can scratch the non-stick coating. Use silicone, wood, or plastic utensils to remove waffles.

What type of batter works best?

Standard waffle batter works well. Do not overfill; pour enough to just cover the lower grid. The batter will expand during cooking.

How do I clean the waffle maker?

Unplug and let it cool completely. Wipe the plates with a damp cloth or sponge. For stubborn residue, use a soft brush. Never immerse in water or use abrasive cleaners.

Why is the indicator light not turning on?

Check that the unit is plugged into a working outlet. The power indicator should light up when connected. If not, the fuse may be blown; contact customer service.

Can I store the waffle maker vertically?

Yes, the unit can be stored vertically to save space. Ensure it is completely cool and dry before storing. Wrap the cord around the base.

What is the warranty period for the ISM-325W?

Imarflex typically offers a 1-year warranty from date of purchase. Keep the receipt for warranty claims. For specific terms, refer to the manual or contact Imarflex.

How do I adjust the browning level?

The thermostat control knob allows you to select your preferred doneness. Turn clockwise for darker waffles, counterclockwise for lighter. The ready light indicates when the set temperature is reached.

What should I do if the waffles stick to the plates?

Ensure the plates are properly greased before each use. If sticking persists, the non-stick coating may be damaged. Avoid using spray oils with lecithin, which can build up and cause sticking.

Can I use this waffle maker for other foods?

It is designed for waffle batter only. Do not use for meats, vegetables, or other foods as they may damage the coating and create a fire hazard.

USER MANUAL ISM-325W Imarflex

650W

POWER

• Space Saver Design
  • 2-slice Non-stick Plate
  • Anti-slip Rubber Footing
  • Cool-touch Handle with Lock Clip

ISM-325W

SPECIFICATION

MODEL NO. : ISM-325W

RATED VOLTAGE : 230Va.c. 60Hz

POWER CONSUMPTION : 650 watts

BOX DIMENSION : 245*103*263mm

UNIT DIMENSION : 240*227*83.5mm

When using electrical appliances, basic safety precautions should always be followed, including the following:

1. Read all instructions carefully.

2. Do not use the appliance on any metal table.

3. Do not use the appliance next to devices, which react sensitively to magnet (e.g. radios, TV, cassette recorders, etc.).

4. Keep curtains, furniture, flammable materials, etc. away from the griller and from the convenience outlet where the appliance is plugged.

5. Before using the appliance, check if the voltage indicated corresponds with the convenience outlet (230Va.c.)

6. Do not use any appliance with a damaged cord or plug. If the cord is damaged it should be replaced with the same type and size or bring the appliance to the nearest Authorized Service Center.

7. Do not use a two-way socket with another appliance.

8. Do not place the unit near gas stove, an electric burner, in heated oven or near any hot surface.

9. Do not touch the appliance and the power plug with wet hands.

10. Do not allow the cord to touch the hot surface of the unit.

11. Do not place any metal kitchen utensils, knives or other metal objects on the appliance. These may heat up when the appliance is turned on.

12. Do not place any magnetic objects on the plate while the appliance is in use.

13. To protect against electric shock, do not immerse the unit in water or any other liquids.

14. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliances by person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

15. Extreme caution must be taken when moving an appliance after cooking.

16. Let the unit cool down before cleaning.

17. Do not touch the appliance while cooking is in progress.

18. Do not use the appliance for other than intended use.

19. Use of accessories or equipment not supplied by the manufacturer may cause damage or malfunctioning of your appliance or result in injuries.

20. CAUTION: Never leave the unit unattended while cooking.

21. CAUTION: In order to avoid a hazard due to inadvertent resetting of the thermal cutout, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.

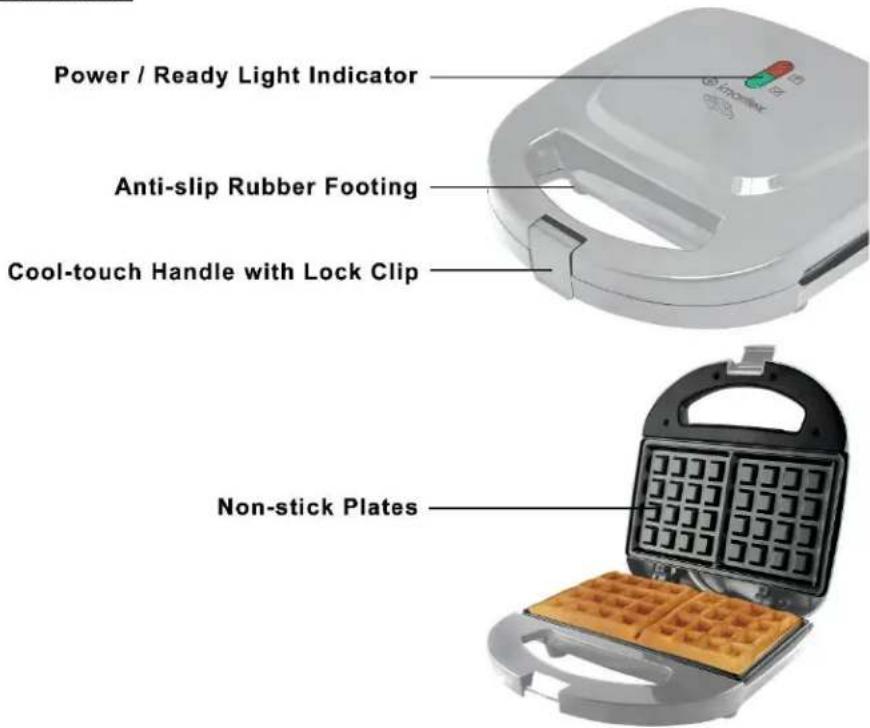

DESCRIPTION OF PARTS:

HOW TO USE:

1. For initial use wipe the non-stick plate of the unit with damp cloth.

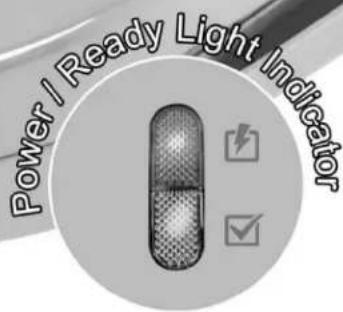

2. Plug the waffle maker into the convenience outlet. The red-light indicator will light up. (The red light indicates that the power is ON).
3. Close the cover and prepare the mixture while the unit is heating.
4. When the unit is ready the green light indicator will turn ON.
5. Fully open the waffle maker, pour the mixture up to the hole edge, close and lock the lid. For best result, you can wipe the non-stick plates with oil or butter, it can add aroma to the waffle.
6. Once the waffles are golden brown, remove the waffle in the unit.
7. Unplug the unit after every use.

CLEANING AND MAINTENANCE:

1. Unplug and wait for the unit to cool down before cleaning.
2. Wipe the non-stick coated plate with paper towels or soft cloth.
3. Wipe the body of the sandwich maker with damp cloth.
4. Do not use abrasive materials to avoid scratches.
   Note: Do not immerse the unit in water or any other liquid.

REMINDER: Please do not forget to fill up and send the warranty card with a copy of the receipt to our email address

[e-mail]

Distributed By: Sabretech Technology Inc.

103-113 Sen Gil Puyat Ave. Pasay

Made in China
