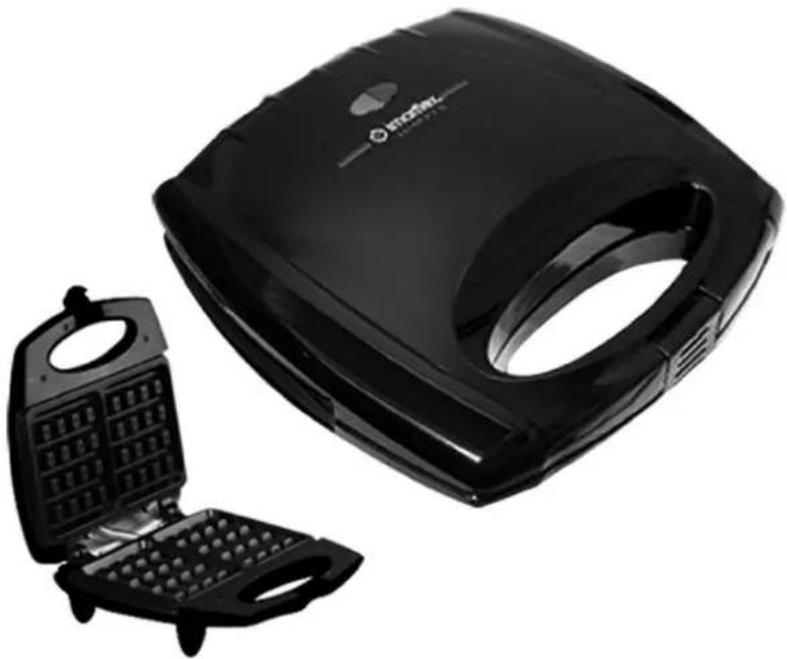

IM-9009 - Waffle Maker Imarflex - Free user manual and instructions

Product Type	Waffle Maker
Brand	Imarflex
Model	IM-9009
Dimensions (approx.)	25 x 20 x 10 cm
Weight	1.2 kg
Power	800-1000 W
Voltage / Frequency	220-240 V ~ 50/60 Hz
Plate Material	Non-stick coated metal
Housing Material	Heat-resistant plastic
Indicator Lights	Power and ready lights
Temperature Control	Adjustable thermostat
Number of Waffles	1 round or square waffle per batch
Cord Length	Approx. 0.8 m
Cleaning	Wipe with damp cloth; do not immerse
Safety Features	Cool-touch handle, non-slip feet
Warranty	1 year

Frequently Asked Questions - IM-9009 Imarflex

How do I use the Imarflex IM-9009 Waffle Maker?

Preheat the waffle maker until the ready light turns on. Pour batter onto the center of the lower plate, close the lid, and cook until golden brown. Unplug and let cool before cleaning.

Does the waffle maker have a non-stick coating?

Yes, the plates are coated with a non-stick surface for easy release and cleaning.

What is the power consumption of the IM-9009?

The waffle maker operates at 800-1000 watts (220-240V).

How do I clean the waffle maker?

Unplug and let it cool completely. Wipe the plates with a damp cloth. Do not use abrasive cleaners or immerse in water.

Can I use oil or spray on the plates?

It is usually not necessary due to the non-stick coating, but a light spray of cooking oil can be used for extra non-stick performance.

How long does it take to preheat?

Preheating typically takes about 3-5 minutes until the indicator light turns on.

What should I do if the waffle sticks?

Ensure the plates are properly preheated and lightly greased. Use a non-metal utensil to gently loosen the waffle if needed.

Can I use the waffle maker for other foods?

It is designed specifically for waffle batter. Using other foods may damage the non-stick coating or affect performance.

Is the handle cool to touch?

Yes, the handle is designed to stay cool during operation for safe handling.

What is the warranty period?

The Imarflex IM-9009 typically comes with a 1-year warranty against manufacturing defects.

USER MANUAL IM-9009 Imarflex

Black model of a portable food grater with open drawer and keyboard (no visible text or symbols)

SPECIFICATION

MODEL NO. : IM-9009

RATED VOLTAGE : 230Va.c. 60Hz

POWER CONSUMPTION : 750 watts

IMPORTANT SAFEGUARDS

1. Read all instructions carefully.
2. Before using the hotdog waffle maker check if the voltage indicated in this unit corresponds with the convenience outlet (230Va.c.).
3. Do not use any appliance with a damaged cord or plug. If the cord is damaged it should be replaced with the same type and size or bring the unit to the nearest Imarflex Authorized Service Center.
4. Do not allow cord to touch hot surface of the unit. Loop cord loosely after use.
5. Do not place on or near gas stove, electric burner or in a heated oven.
6. Avoid touching the non-stick plate while cooking is in progress.
7. To protect against electric shock, do not immerse the unit in water.
8. Children should be supervised to ensure that they do not play with the appliance.
9. This appliance is not intended to use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning the use of the appliances by a person responsible for their safety.
10. Do not immerse the unit in water.
11. Do not use this waffle maker other than its intended use.
12. For household use only, not intended for any business purposes.
13. In case of malfunctions, please bring the unit to the nearest lmarflex Authorized Service Center.
14. Save this instruction for future reference.

HOW TO USE

1. For initial use wipe the non-stick plate of the unit with damp cloth.
2. Plug the waffle maker into the convenience outlet. The red and the green light indicator will turn ON (the red light indicates that the power is ON).
3. Close the cover and prepare the mixture while the unit is heating.
4. When it is ready the green light indicator will turn OFF.
5. Fully open the waffle maker, pour the mixture up to the hole edge, close and lock the lid. For best result, you can wipe the non-stick plates with oil or butter, it can add aroma to the waffle.
6. The green light will turn ON when cooking is done.
7. Remove the waffle.
8. Unplug the unit after every use.

CLEANING AND MAINTENANCE

1. Unplug and wait for the unit to cool off before cleaning.
2. Wipe the non-stick coated plate with paper towels or soft cloth.
3. Wipe the body of the waffle maker with damp cloth.
4. Do not use abrasive materials to avoid scratches.
