| Product Type | Domestic Fan |
| Brand | Imarflex |
| Model | IF-222 |
| Rated Voltage | 230 V a.c. |
| Estimated Power Consumption | 50 W |
| Number of Fans | 2 (Upper and Lower) |
| Speed Settings per Fan | 3 (Low, Medium, High) |
| Control Type | Rotary switch per fan |
| Tilt Adjustment (Upper Fan) | Up, down, left, right |
| Tilt Adjustment (Lower Fan) | Up, down (at upper position) |
| Fan Guard | Removable front guard |
| Estimated Dimensions (H x W x D) | 120 x 40 x 40 cm |
| Estimated Weight | 3 kg |
| Cord Length (estimated) | 1.5 m |
| Body Material | Plastic |
| Blade Material | Plastic |
| Safety Features | No immersion; unplug before cleaning; do not use near water |
| Cleaning Method | Wash front guard with soap and water; wipe body with damp cloth |
| Intended Use | Room ventilation only; not for bathrooms |
| Included Accessories | Fan unit, instruction manual |
Frequently Asked Questions - IF-222 Imarflex
How do I adjust the fan speed?
Each fan has a control switch. Turn it to '1' for low speed, '2' for medium, '3' for high, and '0' to turn off.
Can I use this fan in a bathroom?
No, this fan is designed for room ventilation only and should not be used in bathrooms due to moisture risk.
How do I clean the fan?
Always unplug the unit before cleaning. Remove the front fan guard by unscrewing it, wash with soap and water. Brush dirt from the fan blade and back guard. Wipe the body with a damp cloth. Let parts dry before reassembly.
What voltage does the fan require?
The fan requires a 230 V a.c. power outlet.
Can I use an extension cord?
The manual does not recommend or forbid extension cords. For safety, use a cord rated for the fan's power (50 W) and avoid long runs to prevent overheating.
How do I tilt the fan?
The upper fan can be tilted up, down, left, or right. The lower fan can be tilted up or down when in the upward position. Adjust by gently moving the fan head.
What do the numbers on the switch mean?
'1' = low speed, '2' = medium speed, '3' = high speed, '0' = off.
Is the fan safe to use around children?
Close supervision is necessary when used near children. Do not insert objects into the fan guard.
How should I store the fan when not in use?
Unplug the fan, clean it, and store in a dry place away from dust. Keep the instruction manual for future reference.
What should I do if the power cord is damaged?
Do not use the fan. Have the cord replaced with the same type and size by an authorized service center.
User questions about IF-222 Imarflex
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
No questions yet. Be the first to ask one.
Download the instructions for your Household Fan in PDF format for free! Find your manual IF-222 - Imarflex and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. IF-222 by Imarflex.
USER MANUAL IF-222 Imarflex
- Read all instructions carefully.
- Check the condition of the unit after taking out from the box. Ensure that all parts are in good condition.
- Before using the unit, check if the voltage indicated corresponds with the convenience outlet (230Va.c.).
- Do not use any appliance with a damaged cord or plug. If the cord is damaged it should be replaced with the same type and size or bring the unit to the nearest authorized service center.
- Do not place the unit near gas stove or electric burner.
- Close supervision is necessary when any appliance is used by or near children.
- This unit must only be used for room ventilation. Do not use in bathrooms.
- Do not insert any object into the fan guard.
- Never touch the unit with wet hands.
- Do not use the plug to stop or start the operation of the unit, use the switch button.
- Always unplug the unit before cleaning.
- Keep this instruction for future reference.

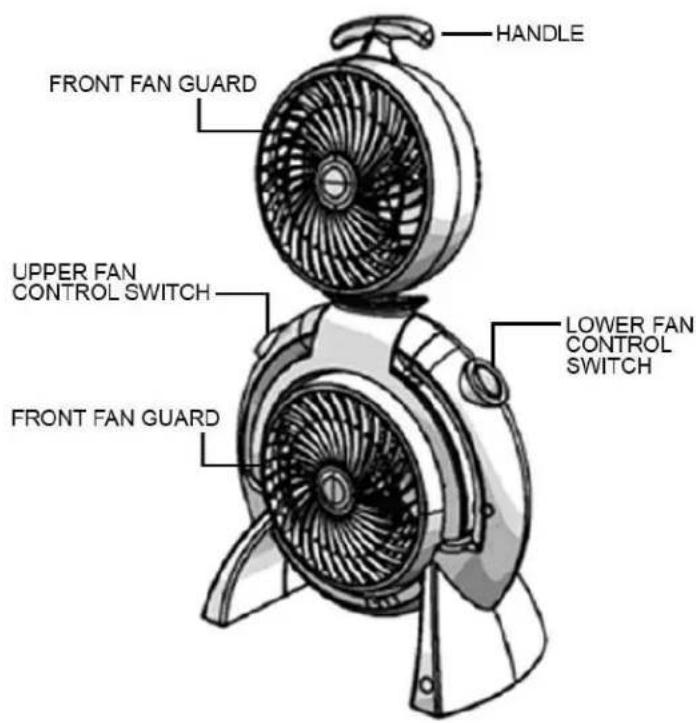

DESCRIPTION OF PARTS
HOW TO USE
- Plug the unit into the convenience outlet (230Va.c).
- FOR UPPER FAN: Turn the Control Switch to the desired air flow. "1" indicates LOW speed; "2" indicates MEDIUM speed; "3" indicates HIGH speed; and "0" to turn it OFF. FOR LOWER FAN: Turn the Control Switch to the desired air flow. "1" indicates LOW speed; "2" indicates MEDIUM speed; "3" indicates HIGH speed; and "0" to turn it OFF.
- The air flow can be adjusted:


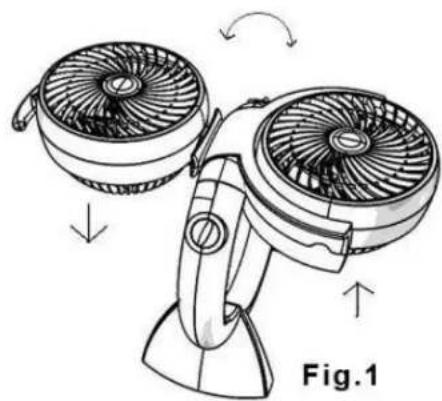

Technical line drawing of a two-blade fan with directional arrows indicating rotation (no text or symbols)a. The fans can be moved upward or downward by tilting up or down.
c. The Lower Fan can also be adjusted up or down at upward position.
CLEANING MAINTENANCE
- Always disconnect the unit from the convenience outlet before disassembling the unit.
- For Both Fans:
a. Unscrew and remove the Front Fan Guard, wash with soap and water.
b. Brush-out the dirt from the Fan Blade and Back Fan Guard.
- Wipe the Body with damp cloth.
- Do not immerse the unit in water or other liquids.
- Allow detachable parts to dry before assembling the unit.
