Product Type	Domestic Pedestal Fan
Brand	Imarflex
Model	IF-509X
Blade Size	16 inches (40 cm)
Height Adjustment	Yes, telescopic pole
Speed Settings	3 speeds (low, medium, high)
Oscillation	Yes, 90° wide angle
Power Source	AC 220-240V, 50Hz
Power Consumption	50 Watts
Net Weight	3.5 kg (approx.)
Dimensions (Height)	110-130 cm adjustable
Base Diameter	35 cm
Material	ABS plastic with metal stand
Grille Type	Removable front grille for cleaning
Control Type	Manual buttons on base
Safety Features	Overheat protection, tip-over switch
Noise Level	≤ 55 dB (max speed)
Airflow	65 m³/min (approx.)
Warranty	1 year
Included Accessories	Instruction manual, screws

Frequently Asked Questions - IF-509X Imarflex

How do I clean the fan blades?

Unplug the fan. Remove the front grille by unscrewing the retaining ring. Wipe the blades with a damp cloth. Avoid using harsh chemicals. Reattach the grille and tighten the ring.

Why is my fan making a rattling noise?

Check if the blade is properly tightened to the motor shaft. Also ensure the grille screws are secure. Loose parts can cause rattling.

Can I use the fan in a bathroom or outdoors?

No, this fan is designed for indoor domestic use only. Do not expose to moisture or water.

Does the fan have a remote control?

No, the IF-509X model is controlled manually via buttons on the base. It does not come with a remote.

How do I adjust the fan height?

Loosen the height adjustment collar on the pole, extend or retract the pole to the desired height, then tighten the collar securely.

What is the warranty period?

The fan comes with a 1-year limited warranty covering manufacturing defects. Contact Imarflex customer service for claims.

Can I replace the motor myself?

Motor replacement is not recommended for users. Contact an authorized service center for repairs to avoid electric shock.

Why does the fan stop oscillating?

Check if the oscillation knob is pulled out fully. If still not working, the gear may be jammed. Turn off and manually rotate the head to dislodge any obstruction.

Is the fan safe if it tips over?

Yes, the fan has a tip-over switch that automatically cuts power if the fan falls over, preventing accidents.

What should I do if the fan overheats?

If the fan stops suddenly due to overheating, unplug it and let it cool for 30 minutes. Check for obstructions in the motor vent. If it persists, contact service.

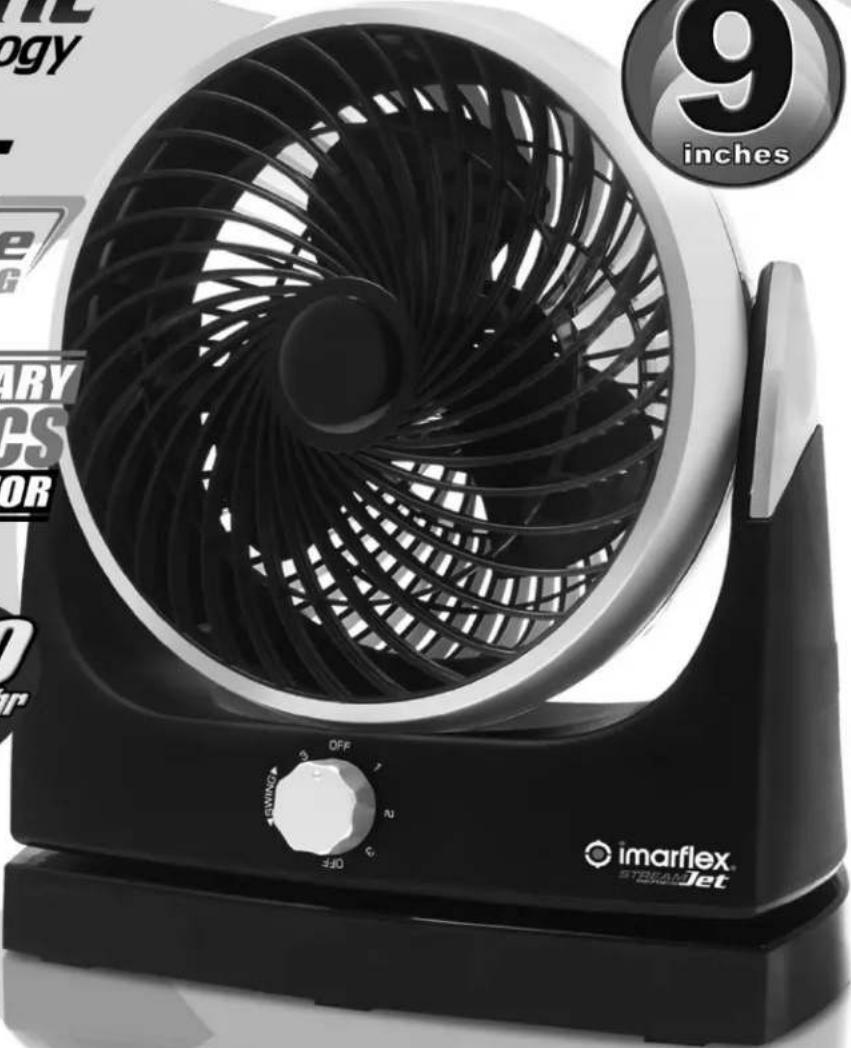

USER MANUAL IF-509X Imarflex

OSCILLATING TUR30 FAN

SHATTER RESISTANT MATERIAL

MULTI-DIRECTIONAL AIR-FLOW

ULTRA Silent technology

2 year warranty ON MOTOR

Jet turbine VECTORING

REVOLUTIONARY HD HIGH DENSITY CS CARBON STEEL INDUCTION MOTOR

20,000 ULTRA HIGH VELOCITY m/hr

Black IMARFLEX STIKKOLDJET air conditioner fan with 9-inch weight label (no text on fan or background)

SPECIFICATION

MODEL NO. : IF-509X

RATED VOLTAGE : 230Va.c. 60Hz

POWER CONSUMPTION : 30 watts

SAFETY GUIDELINES

1. Read all instructions carefully.
2. Check the condition of the unit after taking out from the box. Ensure that all parts are in good condition.
3. Before using the unit, check if the voltage indicated corresponds with the convenience outlet (230Va.c.).
4. Do not use any appliance with a damaged cord or plug. If the cord is damaged it should be replaced with the same type and size or bring the unit to the nearest authorized service center.
5. Do not place the unit near gas stove or electric burner.
6. Close supervision is necessary when any appliance is used by or near children.
7. This unit must only be used for room ventilation. Do not use in bathrooms.
8. Do not insert any object into the fan guard.
9. Never touch the unit with wet hands.
10. Do not use the plug to stop or start the operation of the unit, use the switch button.
11. Always unplug the unit before cleaning.
12. For household use only, not intended for any business purposes.
13. Save this instruction manual for future reference.

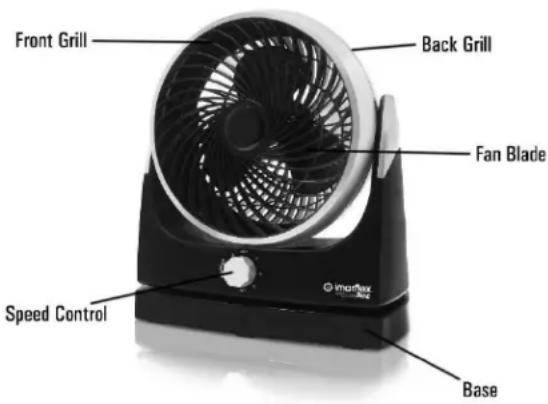

DESCRIPTION OF PARTS

HOW TO USE

1. Plug the unit into the convenience outlet (230Va.c).

2. FOR FIX AIR FLOW (RIGHTSIDE): Turn the Speed Control to the desired air flow. "1" indicates LOW speed; "2" indicates MEDIUM speed; "3" indicates HIGH speed; and "OFF" to turn it OFF.

3. FOR OSCILLATING WITH AIR FLOW (SWING): Turn the Speed Control to the desired air flow. "1" indicates LOW speed; "2" indicates MEDIUM speed; "3" indicates HIGH speed; and "OFF" to turn it OFF.

SPEED CONTROL

CLEANING MAINTENANCE

1. Always disconnect the unit from the convenience outlet before disassembling the unit.
2. Unscrew and remove the Front Grill Cover wash with soap and water. Let it dry.
3. Brush out the dirt from Back Grill and Fan Blade.
4. Return the Front Grill Cover.
5. Wipe the Base with damp cloth.
6. Do not immerse the unit in water or other liquids.
