ZDSV6C - Car Speaker PHOENIX GOLD - Free user manual and instructions

Type	Car Speaker
Brand	Phoenix Gold
Model	ZDSV6C
Category	Component Speaker System
Woofer Size	6.5 inches
Tweeter Size	1 inch
Power Handling (RMS)	60 Watts
Power Handling (Peak)	120 Watts
Impedance	4 Ohms
Sensitivity	90 dB
Frequency Response	50 Hz - 20 kHz
Mounting Depth	2.5 inches
Mounting Hole Diameter	5.6 inches
Crossover Type	External Passive Crossover
Cone Material	Polypropylene
Tweeter Dome Material	Silk
Magnet Type	Ferrite
Woofer Surround	Rubber
Grille Included	Yes
Wiring Harness Included	Yes
Mounting Hardware Included	Yes
Recommended Amplifier Power	25-80 Watts RMS per channel
Cleaning Instructions	Wipe with a dry, soft cloth. Avoid moisture and solvents.
Safety Warning	Disconnect car battery before installation. Ensure secure mounting to prevent injury.
Spare Parts Availability	Contact authorized Phoenix Gold dealer for replacement parts.

Frequently Asked Questions - ZDSV6C PHOENIX GOLD

What is the impedance of the Phoenix Gold ZDSV6C speaker?

The ZDSV6C has a nominal impedance of 4 Ohms, making it compatible with most car amplifiers.

Can I use the ZDSV6C with a factory head unit?

Yes, but for optimal performance, we recommend using an external amplifier. The speakers can be driven by a head unit, but they will not reach their full potential.

What is the mounting depth of the ZDSV6C woofer?

The mounting depth is approximately 2.5 inches. Ensure your door or panel has enough clearance before installation.

Does the ZDSV6C come with grilles?

Yes, the package includes grilles for both the woofer and tweeter to protect the speakers.

What size are the speakers in the ZDSV6C system?

The system includes a 6.5-inch woofer and a 1-inch tweeter, plus external crossovers.

How do I clean the ZDSV6C speakers?

Use a dry, soft cloth to gently wipe the speakers. Do not use water, cleaners, or solvents as they may damage the cone and surround.

Is the ZDSV6C suitable for marine use?

No, these speakers are designed for indoor automotive use. Exposure to moisture may cause damage.

What is the recommended amplifier power for the ZDSV6C?

We recommend an amplifier delivering 25-80 Watts RMS per channel to match the speaker's power handling.

How do I install the crossover?

Mount the crossover in a dry location near the speaker. Connect the amplifier output to the crossover input, then connect the woofer and tweeter outputs to their respective drivers. Follow the included wiring diagram.

Where can I find replacement parts for the ZDSV6C?

Contact an authorized Phoenix Gold dealer or visit the official website for spare parts availability.

USER MANUAL ZDSV6C PHOENIX GOLD

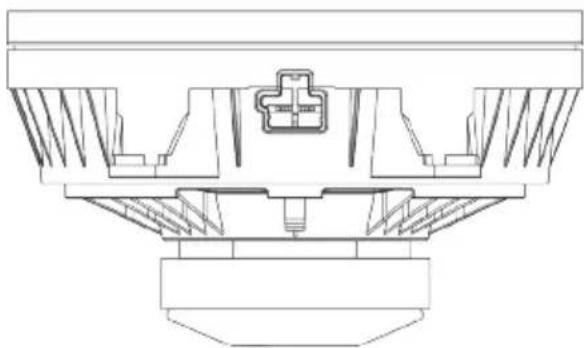

Technical line drawing of a speaker or fan with concentric rings and mounting feet (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

6.5"/165MM MIDBASS SPEAKER SUITABLE FOR SELECT VOLVO VEHICLES

Model: ZDSV6C

SPECIFICATIONS

• 6.5" Midbass Speaker
• 13Oz Ferrite Magnet
• 100W Max Power Output
- Rubber Surround
- Neodymium Motor
• Car Specific Connection
- Plug and Play

ZDSV6C - 6.5"/165mm Car Specific Midbass Speaker

SPECIFICATION ZDSV6C
Max Power (Watts) 100 Watts
RMS Power (Watts) 50 Watts
Nominal Impedance 3.4 Ohm
Basket Material Reinforced Plastic
Speaker Material Treated Paper Cone
Speaker Surround Rubber
Magnet Ferrite (Y35)

Installation

Remove the door cover of the preferred mounting site. Disconnect the original speaker and place in storage. Connect the new speaker and use pre-existing screws to fix firmly into place.

Make sure the enclosure is firmly fixed in your vehicle. Check before drilling or cutting holes. DO NOT work near fuel tanks, fuel lines hydraulic lines or electrical wiring.

DO NOT mount speaker in such a way as to pinch or damage the wires.

Compatibility

• S60 (2019+) • S90 (2017+) • V60 (2019+) • V60 XC (2019+)
- Polestar 1 (2019+) • V90 (2017+) • XC60 (2018+) • XC90 (2016+)

Disclaimer

Always ensure the enclosure is securely attached, to avoid movement. PHOENIX GOLD accepts no responsibility for damage or injury in relation to inappropriate securing of this product.

Phoenix Gold Product Warranty

LIMITED WARRANTY ON SPEAKERS

Phoenix Gold warrants this product to be free of defects in materials and workmanship for a period of one (1) years from the original date of purchase. This warranty is not transferable and applies only to the original purchaser from an authorized Phoenix Gold dealer in the United States of America only. Should service be necessary under this warranty for any reason due to manufacturing defect or malfunction, Phoenix Gold will (at its discretion) repair or replace the defective product with new or re-manufactured product at no charge. Damage caused by the following is not covered under warranty: accident, misuse, abuse, product modification or neglect, failure to follow installation instructions, unauthorized repair attempts, misrepresentations by the seller. This warranty does not cover incidental or consequential damages and does not cover the cost of removing or reinstalling the unit(s). Cosmetic damage due to accident or normal wear and tear is not covered under warranty.

INTERNATIONAL WARRANTIES:

Products purchased outside the United States of America are covered only by that country's Authorized Phoenix Gold reseller and not by Phoenix Gold. Consumers needing service or warranty information for these products must contact that country's reseller for information.
