Type	Meat Grinder (Household Use)
Brand	Panasonic
Model	MK-GM1700
Power Supply	220 - 240 V ~50 - 60 Hz
Power Consumption	240 - 290 W
Dimensions (W x D x H)	Approx. 170 mm x 340 mm x 398 mm
Weight	Approx. 4.0 kg
Cutting Plates	Coarse and Fine (included)
Attachments Included	Sausage Stuffing Attachment, Kubbe Attachment A and B
Functions	Grinding meat, making sausages, making kubbe
Safety Features	Circuit Breaker Protection, Reverse Function
Maximum Continuous Operation	15 minutes
Restricted Ingredients	Bones, nuts, frozen meat, hard fiber (e.g., ginger)
Blade Material	Stainless steel (assumed)
Feed Screw Material	Metal (assumed)
Housing Material	ABS plastic
Cleaning	Hand wash with mild detergent; not dishwasher safe
Storage Case Included	Yes
Food Pusher Included	Yes
Protective Coating on Cutting Plates	Petroleum jelly (remove before use)

Frequently Asked Questions - MK-GM1700 PANASONIC

Can I grind bones or frozen meat with this grinder?

No, the Panasonic MK-GM1700 is not designed for hard ingredients like bones, nuts, or frozen meat. Attempting to grind these may cause jamming or damage the appliance.

How do I clean the grinder after use?

Disassemble the parts and wash them with warm water and mild dish soap using a soft sponge or brush. Dry thoroughly. Do not use benzine, thinner, alcohol, bleach, or abrasive brushes. The parts are not dishwasher safe. To prevent rust, rub a little salad oil on the metal parts after drying.

Can I make sausages with this meat grinder?

Yes, the MK-GM1700 includes a Sausage Attachment. Follow the instructions: grind and season the meat, attach the sausage tube, slide the casing over the tube, and feed the meat through. Twist the casing to form links.

What are the cutting plates used for?

The grinder comes with Coarse and Fine cutting plates. The coarse plate is ideal for a chunkier grind (e.g., for sausages or kubbe outer shell), while the fine plate gives a smoother texture. Choose based on your recipe.

How does the reverse function work?

If the grinder jams, switch off and wait for the motor to stop. Then press and hold the Reverse position for a few seconds (no more than 5) to clear the jam. Switch back to '0', unplug, disassemble, and remove any lodged ingredients before resuming.

What should I do if the motor stops suddenly?

The Circuit Breaker Protection may have activated due to overloading. Switch off and unplug. Remove excess or hard ingredients from the head, then reassemble and restart. If the breaker resets, push meat slowly. If it does not reset, move the appliance to a cooler room (below 35°C) and wait for it to cool.

How long can I operate the grinder continuously?

Do not operate the grinder for more than 15 minutes at one time. Running it longer may cause overheating or malfunction. Allow the appliance to cool down between uses.

Is the meat grinder dishwasher safe?

No, the parts are not dishwasher safe. The high temperature and strong detergents can damage the components. Always hand wash with mild soap and water.

Where can I get spare parts or service?

Contact the Panasonic Service Centre or an authorized repair center. Do not attempt to disassemble or repair the motor housing yourself. Use only genuine Panasonic spare parts.

How do I make kubbe with this grinder?

Use the Kubbe Attachments (A and B). First grind the outer shell meat twice through the coarse plate, then mix with flour and spices. Replace the cutting blade with the kubbe attachments, feed the meat mixture through to form a hollow cylinder. Pinch off sections, fill with stuffing, seal, and deep fry.

USER MANUAL MK-GM1700 PANASONIC

Operating Instructions

Meat Grinder (Household Use)

Line drawing of a kitchen electrician with labeled components including a grater, filter, and tray (no text or symbols present)

TABLE OF CONTENTS

Safety Precautions EN2

Parts Identifi cation EN4

Before Use EN5

How to Use EN6

After Use EN8

Circuit Breaker Protection EN9

Troubleshooting EN9

Specifications EN9

مندرجات

PE2 نکات ايمنى

• Thank you for purchasing this Panasonic product.
• Please read this Operating Instructions carefully in order to use this product correctly and safely.
• Before using this product, please give your special attention to the Safety Precautions.
• Please keep this Operating Instructions for future use.
• Panasonic will not accept any liability if the appliance is subject to improper use, or failure to comply with these instructions.

Safety Precautions

Make sure to follow these instructions

In order to prevent accidents or injuries to the user, other people, and damage to property, please follow the instructions below.

■ The following indications indicate the degree of damage caused by incorrect operation.

WARNING

Indicates serious injury or death.

CAUTION

Indicates risk of injury or property damage.

■ The symbols are classified and explained as follows.

This symbol indicates prohibition.

This symbol indicates requirement that must be followed.

WARNING

To prevent electric shock, fi re caused by a short circuit, burning, injury or smoke.

● Do not damage the Cord or the Plug.

Following actions are strictly prohibited:

Modifying, touching on or placing near heating elements, bending, twisting, pulling, pulled over sharp edges, putting heavy objects on top, bundling the Cord and carrying the appliance by the Cord.

- Do not use the appliance if the Cord or the Plug is damaged or the Plug is loosely connected to the outlet.

- If the Cord is damaged, it must be replaced by the manufacturer, its Service Centre or similarly qualified persons in order to avoid a hazard.

● Do not plug or unplug with wet hands.

- Do not operate the appliance when the Cord is wound.

- Do not immerse the Motor Housing in water or splash water on it.

- Do not disassemble, repair or modify the appliance.

- Please contact your Service Centre for repairing.

- Do not insert any objects in the vent or the gap.

- Especially metal objects such as pins or wires.

- Do not feed food with hands. Use the Food Pusher.

- Do not disassemble the appliance or place anything (especially finger, spoon, fork, etc.) in the appliance during operation.

● Never remove or attach the Hopper Plate, Head or Cap when the motor is operating.

- Do not allow infants and children to play with packaging material.

● This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

● Make sure the voltage indicated on the label of the appliance is the same as your local supply. Also avoid plugging other devices into the same outlet to prevent electric over heating. However, if you are connecting a number of Plugs, make sure the total wattage does not exceed the rated wattage of the outlet.

- Insert the Plug firmly.

- Otherwise it may cause electric shock and fire caused by the heat that may generate around the Plug.

● Clean the Plug regularly.

- A soiled Plug may cause insufficient insulation due to the moisture, and may cause fire.

WARNING

- Discontinue using the appliance immediately and unplug in the unlikely event that this appliance stops working properly.

e.g. for abnormal or breaking down:

• The Plug or the Cord becomes abnormally hot.
• The Cord is damaged or there has been a power failure.
• The Motor Housing is deformed, has visible damage or is abnormally hot.
  → Please unplug the appliance immediately and contact the Service Centre for advice or a repair.

● Pay special attention to hands or fingers of children as they are so small and can be involved into the Head or holes of the Cutting Plate.

● Care shall be taken when handling the sharp Cutting Blade and Cutting Plates.

● Always keep infants and children away from the appliance including the Cord.

CAUTION

To prevent electric shock, fi re caused by a short circuit, burning, injury or smoke.

• Do not leave the appliance unattended when it is in operation.
• When leaving the appliance unattended, turn the power Off.
• Do not use the appliance on following places:
• The place where is uneven surface, on carpet or table cloth etc.
• The place where it may be splashed with water or near a heat source.

- Do not replace any parts of the appliance with non-genuine spare parts.

● Unplug the appliance when not in use.
● Make sure to hold the Plug when unplugging. Never pull on the Cord.

• When carrying the appliance, be sure to hold the Motor Housing with both hands; do not hold only the Hopper Plate.
• Switch off the appliance and disconnect from supply before changing Attachments or approaching parts that move in use.
  ● This product is intended for household use only.
  ● Ensure to clean the surfaces in contact with food after use. (See page EN8 "After Use")

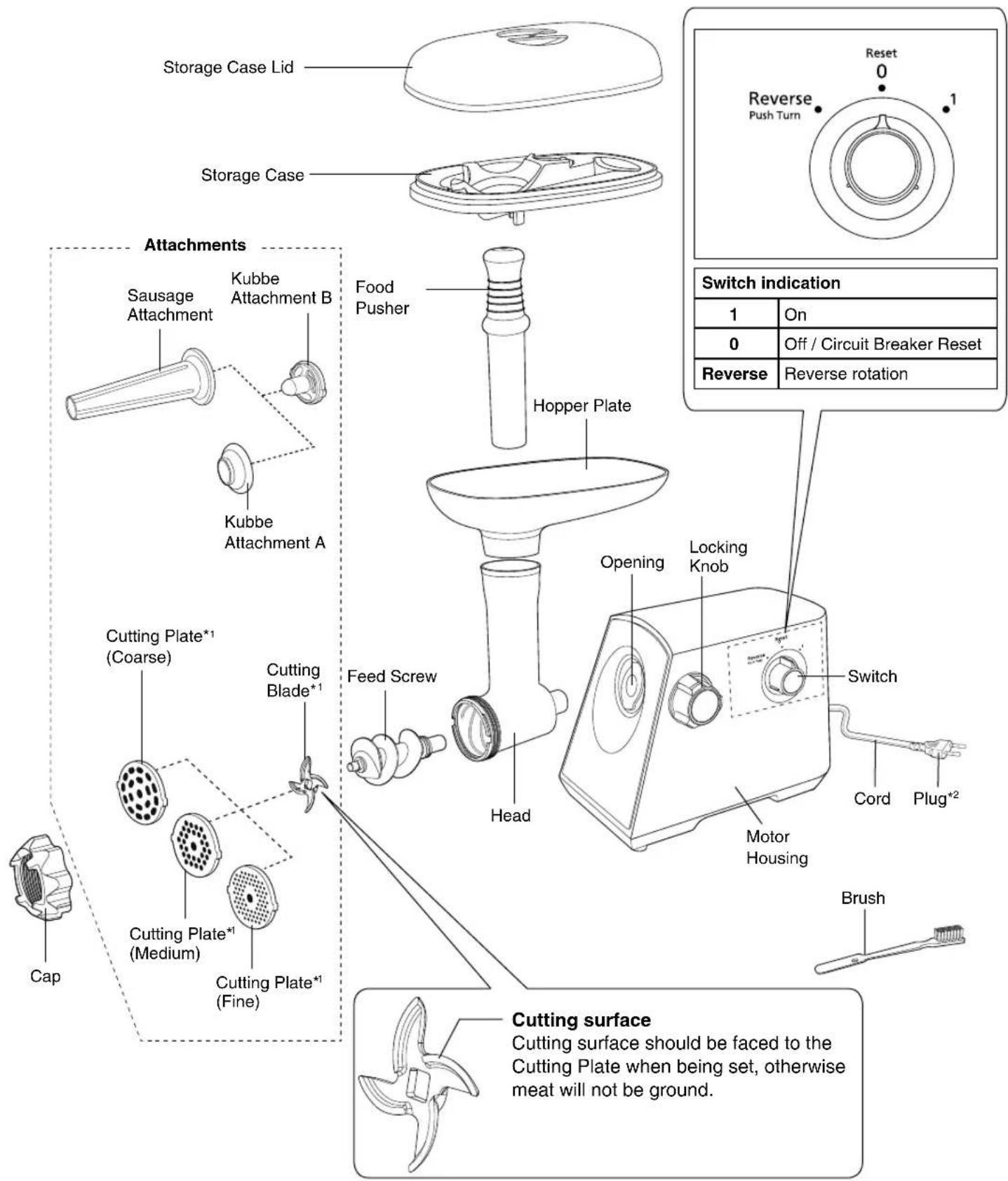

Parts Identifi cation

Wash all detachable parts before using the appliance for the first time and dry well. (Page EN8)

The Cutting Plates are coated with petroleum jelly to prevent from rusting.

If it is hard to remove it, please clean them with a nylon brush under running warm water.

*1 Cutter represents the Cutting Plates and Cutting Blade.
*2 The shape of the Plug may vary according to regions or countries.

Note:

• Do not grind hard ingredients such as bones, nuts and frozen meats. (They may cause jamming.)
• Do not grind ginger and other ingredients with hard fiber. (They will not be ground.)
• Do not operate more than 15 minutes at one time. (It may cause a malfunction.)
• When operating reverse function, do not operate more than 5 seconds. (It may cause a malfunction.)
  • To avoid jamming, do not force to feed ingredients with excessive pressure.
  If the appliance jammed due to hard ingredients lodged onto the Feed Screw or the Cutting Blade, switch off immediately and clean the appliance. When the Circuit Breaker activates, switch off.
  (See page EN6 "When meat jammed inside of the Head".)
• Do not fix the Cutting Blade and the Cutting Plate when using the Kubbe Attachments and Sausage Attachment.
• The Head may wobble slightly during use, but it is normal. Do not over tighten the Locking Knob to stop this wobbling. It may cause damage. If the Locking Knob gets loosened, tighten the Locking Knob again.
• The Circuit Breaker may be activated easily when grinding large or hard ingredients, but it is normal.

To Assemble

Unplug when assembling the unit. Before plugging in, ensure the Switch is off.

1 Place the Head onto the Opening of the Motor Housing.

• Align the Head vertically before pushing fully into the Opening.
• If the Head is not set properly, the Head is needed to turn right and left slightly to get the correct alignment before pushing in.
• Hold the Head with one hand and tighten the Locking Knob clockwise.

2 Place the Feed Screw into the Head, long end first, by turning the Feed Screw slightly until it is set into the slot of the Head.

- If the Feed Screw is not set properly, it does not turn.

Diagram showing a mechanical component with a rotating shaft and a ring, no text or symbols present

3 Place the Cutting Blade onto the Feed Screw shaft with the blade facing the front as illustrated.

- Cutting surface should be faced to the Cutting Plate when being set, otherwise meat will not be ground.

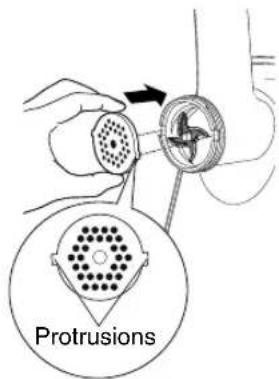

4 Place the desired Cutting Plate over the Cutting Blade by fi tting the Protrusions in the slots.

- If the Cutting Plate is not set properly, meat may leak out around the shaft in the Opening of the Motor Housing.

When meat leak out, clean around the shaft in the Opening of the Motor Housing. Wipe with a well-wrun cloth.

Shaft in the

Opening of the

Motor Housing

5 Screw the Cap into the Head firmly in clockwise direction.

Place the Hopper Plate on the Head and fi x it into position.

Set the unit on a firm surface.

- The air vents at the bottom and the side of the Motor Housing should be kept free and not blocked.

Illustration of a hand using a tool to press or adjust a mechanical component, no text or symbols present

How to Grind Meat

Cut all foods into pieces so that they fit easily into the Hopper Plate opening.

Plug in, then switch on.

Place foods on the Hopper Plate and feed foods into the Hopper Plate opening.

• Use the Food Pusher.
• Hold the Hopper Plate with one hand when using the Food Pusher.
  After use, switch off and unplug.

Illustration of a hand using a manual mixer to press or brush into a bowl (no text or symbols)

When meat does not come out from the Cutting Plate due to the jam of bones or other hard ingredients, follow the below steps to release it.

① Switch off and wait until the motor has stopped completely.
② Hold on to the Motor Housing then push in and turn the Switch to "Reverse" for a few seconds.
(Do not turn it more than 5 seconds.) Then turn the Switch back to "0".
③ Unplug and disassemble the parts by reversing steps on "To Assemble" from 3-5 of page EN5 to remove ingredients in the Head.
④ Assemble the parts again and continue grinding meat.

How to Use the Sausage Attachment

Meat should be ground and seasoned before making sausage links. (See page EN6 "How to Grind Meat".)

Attach the Coarse Cutting Plate to the grinder. For fi ner textured sausages, use the Fine Cutting Plate.

Disassemble by reversing steps on “To Assemble” from 3-5 of page EN5 to remove the Cutting Plate and the Cutting Blade.

1 Place the Kubbe Attachment B and the Sausage Attachment onto the Feed Screw shaft together, fi tting the Protrusions in the slots.

2 Screw the Cap into the Head firmly.

Place the Hopper Plate on the Head and fi x it into position.

Set the unit on a firm surface.

- The air vents at the bottom and the side of the Motor Housing should be kept free and not blocked.

Mechanical assembly diagram showing a lever mechanism with a handle and shaft (no text or symbols)

3 Cut the Casing into 60 or 90 cm lengths.

Put and gather all of the Casing over the Sausage Attachment except the last 10-15 cm as shown in the illustration.

Plug in, then switch on.

10-15 cm

4 Place seasoned meat into the Hopper Plate and press it through grinder with the Food Pusher.

Stuff the Casing naturally with little resistance as the sausage comes out of the spout.

To make a link, pinch at desired length and press the sausage meat back a little.

Then twist 3-4 times. Pinch the next sausage and twist the sausage in the opposite direction 3-4 times to secure the link.

When the Casing is filled, tie securely at the end with a string.

• Never push the food mixture into the grinder with your fingers. Always use the Food Pusher.
• When the meat is forced into the Casing too tightly, the sausage is likely to break immediately. If necessary, prick tiny holes at the end of the Casings to let air escape.

After use, switch off and unplug.

Line drawing of a hand using a manual electric shaver on a power strip (no text or symbols)

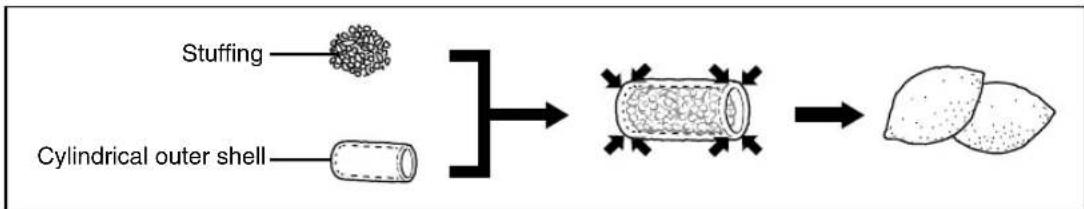

How to Make Kubbe

Recipe

(Stuffi ng)* (Outer shell)

Mutton 100 g Lean meat* 450 g

Olive oil 1 1/2 tablespoons Flour 150-200 g

Onion (cut finely) 1 1/2 tablespoons Allspice 1 teaspoon

Allspice 1/3 teaspoon Nutmeg 1 teaspoon

Salt 1/2 teaspoon Powdered red pepper a pinch

Flour 1 1/2 tablespoons Pepper | dash

① Grind mutton once or twice.
② Fry onion until brown and add minced mutton, allspice, salt and fl our.
③ Grind the mixture three times.

Grind meat three times and mix all ingredients together in a bowl.

- More meat and less flour for outer shell creates better consistency and taste.

* Stuffing and lean meat should be ground and seasoned. (See page EN6 "How to Grind Meat".) Attach the Coarse Cutting Plate to the grinder. For fi ner textured kubbe, use the Fine Cutting Plate.

For making the cylindrical outer shell, disassemble by reversing steps on "To Assemble" from 3-5 of page EN5 to remove the Cutting Plate and the Cutting Blade.

1 Place the Kubbe Attachments A and B onto the Feed Screw shaft together, fitting the Protrusions in the slots.

2 Screw the Cap into the Head firmly.

• Do not over tighten.
• The air vents at the bottom and the side of the Motor Housing should be kept free and not blocked.

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols present)

3 Place seasoned lean meat (already ground) into the Hopper Plate and press it through grinder with the Food Pusher.

Pinch at desired length to make a short cylindrical outer shell.

Line drawing of a hand using a kitchen electrician to press food into a bowl (no text or symbols)

4 Form kubbe as illustrated below and deep fry.

After Use

Before disassembling parts, make sure that the motor has stopped completely, then disconnect the Plug from the outlet.

Note:

• Do not use benzine, thinner, alcohol, bleach, polishing powder or metal brush otherwise the surface will be damaged.
• Do not put in the dishwasher.
• Make sure to clean the appliance after every use. (Otherwise, it may cause a malfunction.)

To Disassemble

Disassemble by reversing steps from 1-5 of page EN5 (To Assemble).

If it is hard to remove the Cap, place a screwdriver (not provided) between the protrusions and unscrew.

Illustration of a hand using a tool to press down a circular object, with an arrow indicating rotation (no text or symbols present)

If it is hard to remove the Cutting Plate, place a screwdriver (not provided) between the Cutting Plate and the Head as illustrated and lift up.

Hand holding a small object with arrows indicating direction (no text or symbols visible)

Cleaning

Remove meat and other foods before cleaning.

Wash with diluted dish soap (neutral) and a soft sponge or Brush, then dry well.

Illustration of various mechanical components including a pushpin, conical features, and a computer mouse (no text or symbols present)

Wipe with a well-wrung cloth.

Line drawing of a portable electronic device with two circular ports and a triangular front panel (no text or symbols)

Note:

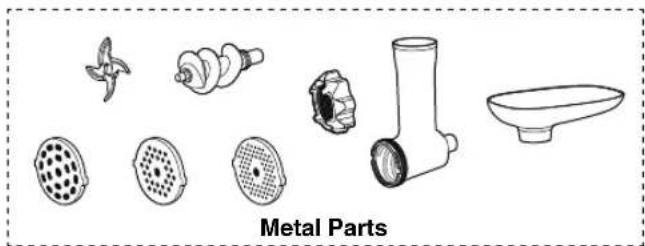

• Leaving the Metal Parts wet after cleaning may cause corrosion.
- Rubbing a little salad oil after washing and drying will help prevent the Cutter and Feed Screw from rusting and keep them lubricated.

Storing

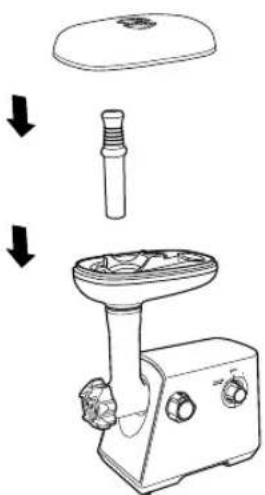

1 Place the Storage Case on the Hopper Plate.

2 Place the Attachments onto the Storage Case as illustrated.

3 Place the Food Pusher into the Hopper Plate opening and cover it with the Storage Case Lid.

Line drawing of a manual kitchen tool with a downward arrow indicating process (no text or symbols)

Cutting Plates

Kubbe Attachment A and Kubbe Attachment B Sausage Attachment

Circuit Breaker Protection

When the Circuit Breaker automatically stops the motor due to overloading, follow the below steps:

1 Switch off to reset the Circuit Breaker.
2 Unplug and disassemble the parts by reversing steps on "To Assemble" from 3-5 of page EN5 to remove ingredients in the Head.
3 Assemble the parts again and continue grinding meat by pushing the meat slowly.

Note:

- Circuit breaker may not reset over 40 °C room temperature. In that case please move appliance to the room temperature under 35 °C and wait until it is cooled down.

Troubleshooting

Please check following points before arranging for service.

Ensure to turn off the appliance and the power supply before taking the actions in the table below:

Problems Causes Actions

The appliance does not run after the Switch is turned on.	The Plug is not inserted to the root of the power source.	Insert the Plug down to the root.
The appliance stopped suddenly. The Circuit Breaker Protection is activated.Prohibited ingredients are used.The volume of ingredients is too large.The ingredients are too hard.		See "Circuit Breaker Protection".
The Switch does not turn. This is a malfunction. Please contact the Service Centre for repair.
The Feed Screw is not turning even the motor is on.

Specifications

Model No.	MK-GM1700
Power Supply	220 - 240 V ~50 - 60 Hz
Power Consumption	240 - 290 W
Dimension (Approx.)W × D × H	170 mm × 340 mm × 398 mm
Mass (Approx.)	4.0 kg

Diagram showing a mechanical component with a spiral and ring, no text or symbols present

Diagram showing a propeller being inserted into a mechanical component, with no visible text or symbols.

Hand operating a kitchen grater with a funnel and tool (no text or symbols visible)

Illustration of a hand using a manual presser to press a bowl (no text or symbols visible)

Diagram of a manual labor machine with a funnel and valve (no text or labels)

Line drawing of a hand using a sewing machine to press or feed into a bowl (no text or symbols)

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Illustration of a hand using a kitchen grater to press food into a bowl (no text or symbols visible)

Hand holding a tool interacting with a mechanical component (no text or symbols visible)

Illustration of a hand using a tool to cut a circular object on a tray (no text or symbols visible)

تميزکاری

Line drawing of a portable electronic device with two circular ports and a handle (no text or symbols)

Illustration of various mechanical components including a slide, conical features, and a plastic housing (no text or symbols present)

Diagram showing a mechanical component with a rotating shaft and a ring, no text or symbols present

Diagram showing a propeller being inserted into a mechanical component, with no visible text or symbols.

Hand operating a kitchen grater with a funnel and rotating knob (no text or symbols visible)

Illustration of a hand using a manual presser to press a bowl (no text or symbols visible)

Mechanical diagram of a manual pump or tool with a downward arrow indicating force or direction (no text or symbols present)

Line drawing of a hand using a sewing machine to press or feed into a bowl (no text or symbols)

2

3

4

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols present)

Illustration of a hand pouring liquid into a kitchen grater with a bowl of food (no text or symbols)

Illustration of a hand using a tool to adjust or install a component, no text or symbols present

Illustration of hands using a tool to adjust or install a circular component, no text or symbols present

التنظيف

Line drawing of a portable electronic device with two circular ports and a curved top (no text or symbols)

Illustration of various mechanical components including a plastic clip, conical features, and a computer mouse (no text or symbols)

    subgraph Input
        I["Input: Top Box, Top Cover, Top Lamp"]
        J["Input: Top Box, Top Cover, Top Lamp"]
        K["Input: Top Box, Top Cover, Top Lamp"]
        L["Input: Top Box, Top Cover, Top Lamp"]
    end

    subgraph Testing
        M["Prescribed Section: Prescribed Section of the Supervision"]
        N["Check: A, B, C for Test"]
        O["Check: A, B, C for Inspection"]
    end

    style Input fill:#f9f,stroke:#333
    style Testing fill:#ccf,stroke:#333
