K702E-DTSB - Thermostat KING - Free user manual and instructions

Product Type	Thermostat
Brand	King
Model	K702E-DTSB
Dimensions (approx.)	85 x 85 x 30 mm
Weight (approx.)	120 g
Power Supply	2 x AA alkaline batteries (not included)
Display Type	Digital LCD
Temperature Range	5°C to 35°C
Accuracy	±0.5°C
Control Type	Electronic, push-button
Programming	7-day programmable with up to 4 periods per day
Compatibility	Most heating/cooling systems (gas, electric, heat pump)
Backlight	Yes, blue LED
Battery Low Indicator	Yes
Mounting	Wall mount (screws provided)
Operating Humidity	20% to 90% RH non-condensing
Cleaning Instructions	Wipe with a dry, soft cloth. Do not use water or solvents.
Safety	Overheat protection, child lock
Spare Parts	Batteries standard; contact King for any other parts

Frequently Asked Questions - K702E-DTSB KING

What type of batteries does the K702E-DTSB thermostat use?

The thermostat uses two AA alkaline batteries. Batteries are not included.

How do I set the temperature on this thermostat?

Press the Up or Down buttons to adjust the desired temperature. The set temperature will flash on the display.

Can I program the thermostat for different times of day?

Yes, the K702E-DTSB supports 7-day programming with up to 4 time periods per day (Morning, Day, Evening, Night).

What does the low battery indicator look like?

When batteries are low, a battery icon will appear on the display. Replace batteries promptly.

Is the thermostat compatible with my heating system?

It works with most gas, electric, and heat pump systems. Check your system voltage (24V AC or battery only).

How do I clean the thermostat?

Use a dry, soft cloth to wipe the surface. Do not use water, cleaning fluids, or abrasive materials.

What is the temperature range of this thermostat?

The thermostat can control temperatures from 5°C to 35°C (41°F to 95°F).

Does the thermostat have a child lock?

Yes, you can enable the child lock to prevent accidental changes. Refer to the manual for activation.

What should I do if the display is blank?

First, check the batteries and replace them if needed. Ensure they are installed with correct polarity.

Where can I find the user manual for the K702E-DTSB?

You can download the manual in PDF format from notice-facile.com or contact King customer support.

USER MANUAL K702E-DTSB KING

INSTALLATION AND MAINTENANCE

king

Smart Heating Solutions

K701-1-DTSB AUTONOMOUS DUAL TIMED STAT

DANGER

ELECTRIC SHOCK OR FIRE HAZARD

READ ALL WIRE SIZING, VOLTAGE REQUIREMENTS AND SAFETY DATA TO AVOID PROPERTY DAMAGE AND PERSONAL INJURY

Specifications:

1 Pole 3 Wire

Power Supply: 120 VAC

Program Backup

Max Range: 1920 @ 120V (16A)

Manual Temperature Adjustment: 55-74°F (13-23°C)

Temperature Display Range: 32-122°F (0-50°C)

Differential: 1°F (.5°C)

Adjustable Display Offset: 1-18°F (1-5°C) Lower

Temperature Control Range: 40-74°F (4-23°C)

Tenant Temperature Range: 55-74°F (13-23°C)

Anti-Freeze Low setting: 40°F (4°C)

Set Back Timings: Minor, Hrs: 1,2,3,4,8,12,16

Major, Hrs:12,24,36,48,60

Setback Temperatures:

Minor, 66,62,58°F. (19,17,14°C)

Major, 55,52,40°F. (13,11,4°C)

Intertek

WARNING

READ CAREFULLY - These instructions will help prevent difficulties that might arise during thermostat installation. Studying the instructions first may save considerable time and money later. Observing the following procedures will keep installation time to a minimum. Save these instructions for future use.

Product Applications

K701-1-DTSB Autonomous Dual Timed Setback is designed to be used where an Automatic timed electric heat setback is needed and a second lower setback for longer away times. This is typically used in College Dormitory's, Motels, Temporary housing, anywhere the tenant is not finically responsible for the cost of heating and has an active life pattern. This guarantees and reinforces good energy saving habits and places the burden on the Tenant for the higher heating levels and their efforts to remain above a predefined reasonable and typically comfortable level.

Be safe and smart, electricity can cause severe injury or death. If you are uncomfortable hire an electrician for the project

This Autonomous Dual Timed Setback is for small fan electric heater, baseboards, radiant ceiling, wall panel heaters, cove heaters, or any 120 Line voltage resistance heating systems that do not have an electric motor over 1/3 hp. The thermostat will be warm to the touch on top. This is normal operation and also provides air currents across the face of the thermostat that better help it sense room temperature.

Features of Front Display and Controls

2) Up Temperature Button
4) Down Temperature Button
C) Heating ON LCD Indicator
D) Manual Setting Icon
E) Preset Temperature Display
F) ECO Setback Indicator

(Illuminates When Operating

with Set Temp Under 62°F/17°C)

G ) Room Temperature Display
H) Temperature Offset Display Compensation

H

FOR INDOOR USE ONLY

KING ELECTRICAL MFG. CO. · 9131 10TH AVENUE SOUTH · SEATTLE, WA 98108 · PH: 206.762.0400 · FAX: [phone] · www.king-electric.com

WIRING INSTRUCTIONS

Wiring Requires a Phillips Screwdriver

1. Disconnect power supply to prevent electrical shock or damage to the product.

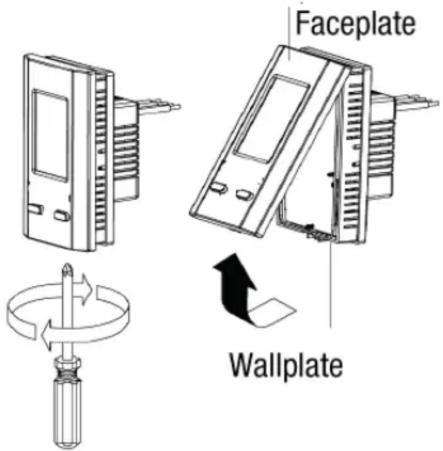

2. Loosen screw on the bottom of plastic housing.
3. Run line voltage wiring from the main panel to the j Box location for the thermostat and another set off to the Heater/s you are controlling.
4. Connect output terminals to heating system in accordance with instructions from the 240 volt electric heat system.
5. Make sure your wire nuts are very tight or they can melt. Mount Stat to the J box making sure it is COMPLETELY RECESSED into the junction without pinching wires and flat to the wall without gaps. NO WIRES SHOULD BE EXPOSED outside the metal or plastic junction box. Do not overtighten the J Box mounting screws. Display or circuit boat could be damaged. Carefully replace cover aligning the 3 pins that mate up to the front cover and screw the cover on with a phillips tip driver.

Operation Instructions

1. The Autonomous Dual Timed Setback series thermostat default is programmed to automatically set back to 66^ F/ 19^ C in 2 hrs. and 55^ F/ 13^ C in 48 hrs. See Chart for other options.

Manual Temperature Adjustment Range: 55°-74°F (13-23°C)

1. Press the "Up" and or "Down" arrow key and LCD will show a flashing temperature with "Set Temp" symbol.
2. Proceed by pressing the "Up" or "Down" arrow key to set the desired temperature. Every time you press the "Up" or "Down" arrow key, the temperature will change the temperature value by 1^ / 1^ .
3. When you've completed setting the desire temperature, wait 3 seconds until the LCD stops flashing and the thermostat will start operation and backlite will turn off. When the room temperature reaches the desired setting, the thermostat will cycle to maintain the set temperature for the time programmed.

Display Temperature Offset Compensation:

In unusual cases your Autonomous Dual Timed Setback may register “Room Temperature” higher than what the actual temperature is. You can adjust the registering value by using Temperature Compensation value.

1. Press and hold the "Up" and "Down" arrow keys at same time for 5 seconds.
2. The initial value is 0^ F/ 0^ C. Press the “Up” or “Down” arrow key to adjust the value.
3. After adjustment value has been completed, do not press any key, wait for 10 seconds until the display returns to normal operation.

NOTE: The TimerStat can only adjust the displayed temperature compensation downward by up to 18^ F/ 10^ C.

Reset Your Autonomous Dual Timed Setback:

In case your thermostat is not functioning correctly, (possibly due to a static charge) you can reset the unit back to the factory settings. Locate the RESET button on the right side of the unit, lightly press the button with a pointy object and the unit will reset.

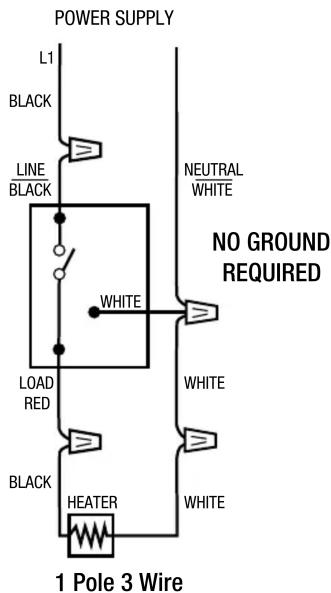

K701-1-DTSB Wiring Diagram

Thermostat Dimensions

DO NOT USE IN SHOWER AREAS WHERE WATER CAN SPLASH ON THERMOSTAT
NOT OUTDOOR RATED

KING ELECTRICAL MFG. CO. · 9131 10TH AVENUE SOUTH · SEATTLE, WA 98108 · PH: 206.762.0400 · FAX: [phone] · www.king-electric.com

K701-1-DTSB: Instructions for Timing and Temperature Settings

Autonomous Dual Timed Set Back

Timed comfort where the burden in on the tenant to maintain there set point. Where the Landlord is providing comfort heating and the tenant is responsible for maintaining the set point. Typical uses are Dormitory, Public or temporary housing applications. Public bathrooms, Motel and Hotel application or anywhere a guaranteed set back is required not based on time of day.

Manual Tempe 55°-74°F (13-23°C)

If no jumpers are added the Default temperatures and times are followed.

Minor Set Back (JP1)	□ □ JP1.1
	□ □ JP1.2

Default

Major Set Back (JP2)	□ □ JP2.1
	□ □ JP2.2

55°F/13°C	52°F/11°C	40°F/4°C

Time for Minor Set Back (JP3)

Default

Time for Major Set Back (JP4)

Default

Time and temperature selection printed on circuit board for future reference and adjustments.

Manual Programming of Jumpers JP1,2,3,4: 1. 2 time Jumpers: JP1 Minor, JP2 Major (set back)

1. 2 temperatures Jumpers: JP3 Minor, JP4 Major (set back)
2. Adjustable on site at time of installation.
3. Set back and Timings are Modifiable any time for special needs or if conditions change for a tenant.
4. Default set for: University Dormitory application. No jumpers required
