USER MANUAL ZU1700 OPTOMA

Technical line drawing of a rectangular electronic device with ventilation grilles and mounting feet (no text or symbols)

TABLE DES MATIÈRES

SÉCURITÉ .... 5

Menu Communication....71

ID Projecteur 71

Optoma Technology Inc. 47697 Westinghouse Drive, Fremont, CA 94539, USA

This product complies with performance standards for laser products under 21 CFR Part 1040 except with respect to those characteristics authorized by Variance Number FDA-2021-V-1350 [effective from 2022/10/02]

U.S.A. Only

Illustration of a projected projector device with labeled projection (no text or symbols on the device itself)

Technical diagram of a device casing with mounting holes and internal components (no text or symbols)

Technical illustration of a computer rack with two views: one showing internal components and the other showing external hardware (no text or symbols present)

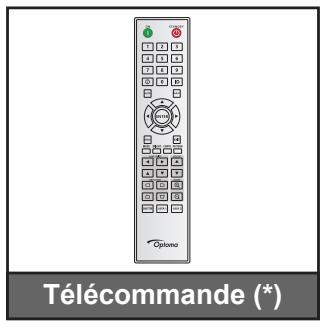

INTRODUCTION

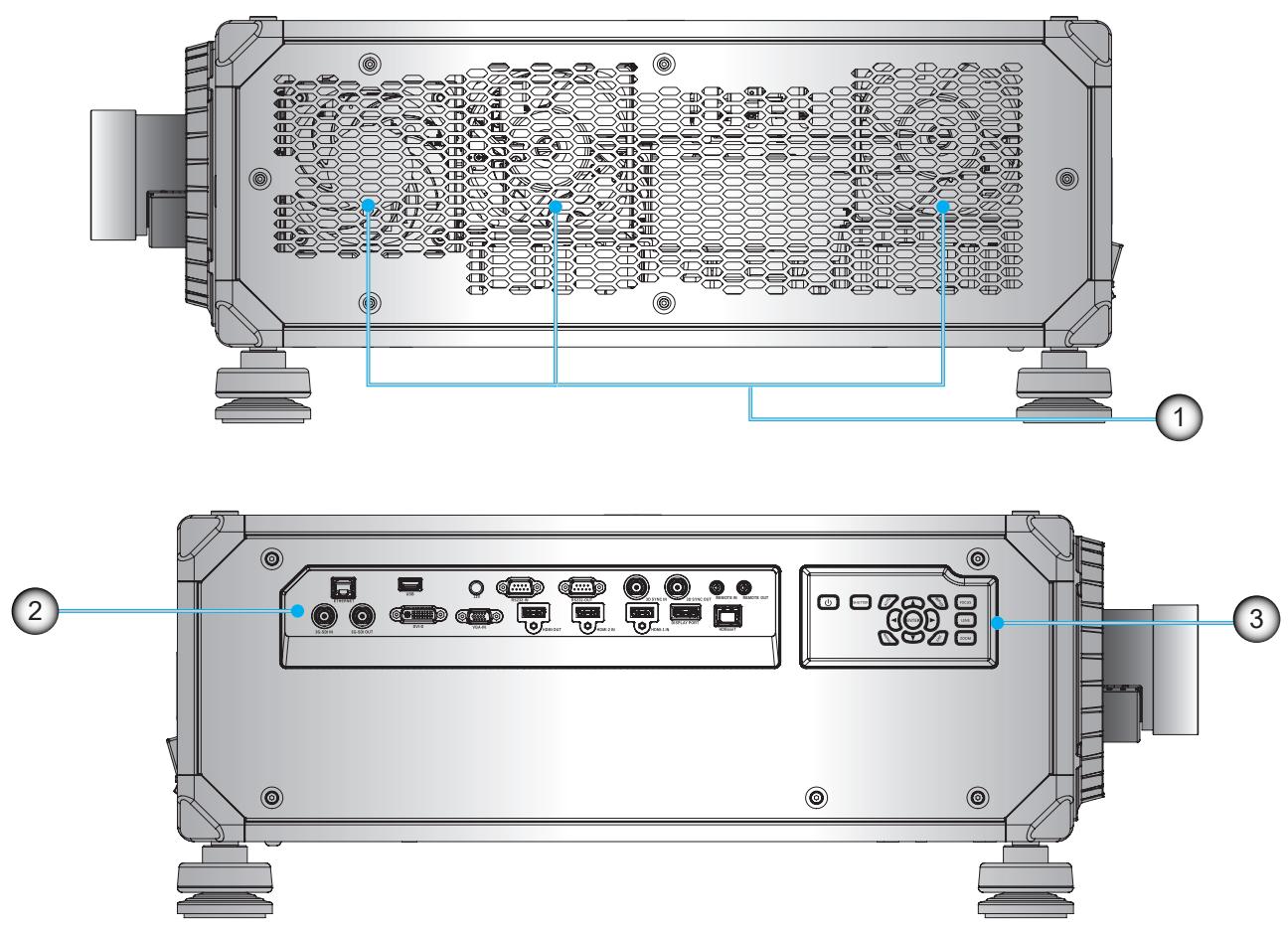

Vue de côté

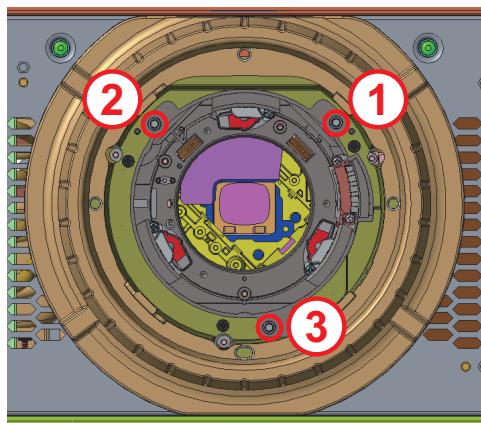

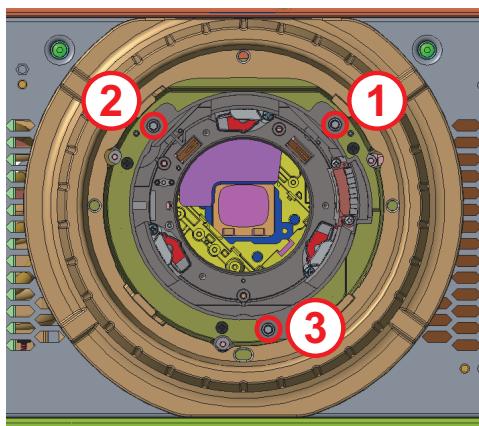

Before installing or replacing the lens, switch off the power to the projector.

Avoid using the remote control or projector keypad button to adjust the lens shift or zoom/focus while the lens attachment process is carried out.

IMPORTANT!

Technical line drawing of a mechanical device with labeled ports and a blue circular arrow indicating rotation (no text or symbols present)

Technical illustration of an electronic device with a rotating cable and labeled ports (no text or symbols present)

CONFIGURATION ET INSTALLATION

Technical illustration of a rectangular electronic device with ventilation grilles and mounting feet, no text or symbols present

CONFIGURATION ET INSTALLATION

3D cutaway view of a mechanical assembly showing internal components and mounting brackets (no text or symbols visible)

3D mechanical assembly diagram showing internal components and mounting brackets (no text or labels)

CONFIGURATION ET INSTALLATION

3D mechanical assembly diagram showing internal components and wiring (no text or symbols)

CONFIGURATION ET INSTALLATION

UTILISER LE PROJECTEUR

Pure geometric diagram with dashed and solid lines inside a rectangle, no text or symbols present

Pure geometric diagram with dashed lines and arrows, no text or symbols present

Pure geometric diagram with dashed lines forming a trapezoid and two blue arrows at the base (no text or symbols)

Pure geometric shape with dashed lines and arrows, no text or symbols present

Pure geometric diagram of a symmetrical shape with dashed vertical lines and arrows, no text or symbols present.

Pure geometric shape with dashed blue arrows indicating corners (no text or symbols)

Pure geometric diagram of a rectangle with curved sides and dashed boundaries (no text or symbols)

Pure geometric shape with rounded corners and dashed lines, no text or symbols present

UTILISER LE PROJECTEUR

Pure geometric diagram of a rectangle with dashed internal lines and four corner cells, no text or symbols present.

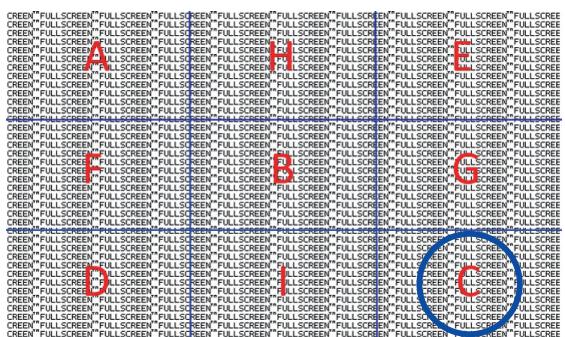

Déformation avancée

Emplacement PBP
PBP, Gauche Principale	PBP, Droite Principale
PBP, Haut Principal	PBP, Bas Principal

- Emplacement PIP

Emplacement PIP	Taille PIP
	Petit	Moyen	Large
PIP, Bas Droite
PIP, Bas Gauche
PIP, Haut Gauche
PIP, Haut Droite

UTILISER LE PROJECTEUR

Optoma Management Suite (OMS)

Green grid background with a diagonal pink line and a small pink dot at the top-left corner (no text or symbols)

(a) Gauche : 0 (0%) / 192 (10%) \~ 960 (50%)
(b) Droite : 0 (0%) / 192 (10%) \~ 960 (50%)
(c) Haut : 0 (0%) / 120 (10%) \~ 600 (50%)
(d) Bas : 0 (0%) / 120 (10%) \~ 600 (50%)

Two-panel grid transformation diagram showing color mapping from purple to green and gray to black (no text or symbols)

Pass:	O	k	n
			Variable

■ System Automatically Send

I	N	F	O	n
				Variable

Character to HEX table

Character	HEX
~	7E
0	30
1	31
2	32
3	33
4	34
5	35
6	36
7	37
8	38
9	39
Space	20
CR (Enter)	0D

e.g.

ASCII to HEX

RS232 Command	~	0	0	1	9	5		1	CR
HEX	7E	30	30	31	39	35	20	31	0D

Level 2	Level 3	Level 4	Option / Value	Step	User Data	Write Command
						Command		Response
						CMD	Set Para.	Fail	Pass
Auto Source			Off		●	~XX563	0	F	P
			On			~XX563	1	F	P
Quick Resync			Off		●	~XX315	0	F	P
			On			~XX315	1	F	P
Active Inputs			VGA		●	~XX408	5	F	P
			HDMI1			~XX408	1	F	P
			HDMI2			~XX408	15	F	P
			DVI-D			~XX408	2	F	P
			Display Port			~XX408	20	F	P
			3G-SDI			~XX408	22	F	P
			HDBaseT			~XX408	21	F	P
Latency Adjustment			Normal		●	~XX220	0	F	P
			2D Ultra			~XX220	1	F	P
Backup Input	Auto Switch		Off		●	~XX264	0	F	P
			On			~XX264	1	F	P
	Current Signal		(read only)		X
	First Input		HDMI1		●	~XX265	7	F	P
			HDMI2			~XX265	8	F	P
			HDBaseT			~XX265	16	F	P
			Display Port			~XX265	15	F	P
	Second Input		HDMI1		●	~XX266	7	F	P
			HDMI2			~XX266	8	F	P
			HDBaseT			~XX266	16	F	P
			Display Port			~XX266	15	F	P
	Backup Input Status		Active/Inactive (read only)		X
	Backup Input Change		Changed/No Change (read only)		X
	Backup Input Info.	Current Signal	(read only)		X
		Backup Input Status	Active/Inactive (read only)		X
		Backup Input Change	Changed/No Change (read only)		X

Read Command
Command		Response
CMD	Value	Fail	Pass
~XX133	1	F	O	k 0
~XX133	1	F	O	k 1
~XX274	1	F	O	k 0
~XX274	1	F	O	k 1
~XX275	1	F	O	k 7
~XX275	1	F	O	k 8
~XX275	1	F	O	k 16
~XX275	1	F	O	k 15
~XX276	1	F	O	k 7
~XX276	1	F	O	k 8
~XX276	1	F	O	k 16
~XX276	1	F	O	k 15
~XX277	1	F	O	k 0=Inactive1=Active
~XX278	1	F	O	k 0=No Change1=Changed
~XX279	1	F	O	k a=0 Nonea=1 DVia=2 VGaa=7 HDMI1a=8 HDMI2a=15 Display Porta=16 HDBaseTta=18 3G-SDI
~XX277	1	F	O	k 0=Inactive1=Active
~XX278	1	F	O	k 0=No Change1=Changed

Level 2	Level 3	Level 4	Option / Value	Step	User Data	Write Command
						Command		Response
						CMD	Set Para.	Fail	Pass
		First Input	By First Input (read only)		X
		Resolution	(read only)		X
		Horz Refresh	(read only)		X
		Color Space	(read only)		X
		HDR	Yes/No (read only)		X
		Second Input	By Second Input (read only)		X
		Resolution	(read only)		X
		Horz Refresh	(read only)		X
		Color Space	(read only)		X
		HDR	Yes/No (read only)		X
VGA	Phase		0-100	1	●	~XX74	0~100	F	P
	Resolution		(read only)		X
HDMI	Output		HDMI 1		●	~XX309	5	F	P
			HDMI 2			~XX309	6	F	P
	HDMI 1 EDID		1.4		●	~XX236	1	F	P
			2			~XX236	2	F	P
	HDMI 2 EDID		1.4		●	~XX237	1	F	P
			2			~XX237	2	F	P
HDBaseT	EDID		1.4		●	~XX238	1	F	P
			2			~XX238	2	F	P
Reset					X	~XX178	1	F	P

Read Command
Command		Response
CMD	Value	Fail	Pass
~XX275	1	F	O k a=7 HDMI1a=8 HDMI2a=16 HDBaseTa=15 Display Port
~XX276	1	F	O k a=7 HDMI1a=8 HDMI2a=16 HDBaseTa=15 Display Port

Level 1

Level 2

Level 3

Write Command

Read Command

Command

Response

Command

Response

CMD

space

Set Para.

Fail

CMD

space

CMD Value

Fail

Pass

When projector in standby, RS232 have to support

Power On

~XX00

1

F

~XX124

1

F

O

k 1

Power On with password

~XX00

1 ~nnnn

F

Information

Info String

~XX150

1

F

O

k abbbb bcc ddddee (Note*1)

Light Source Hours

~XX108

1

F

O

k nnnnn (hour digits)

Other Items

Power Off

~XX00

0

F

~XX124

1

F

O

k 0

Power On

~XX00

1

F

~XX124

1

F

O

k 1

Re-Sync

~XX01

1

F

AV Mute

Off

~XX02

0

F

~XX355

1

F

O

k 0

On

~XX02

1

F

~XX355

1

F

O

k 1

Freeze

Unfreeze

~XX04

0

F

Freeze

~XX04

1

F

3D Sync Out

To Emitter

~XX232

0

F

To Next Projector

~XX232

1

F

3D Frame Delay

1~200

~XX233

1~nnn

F

Output 3D state

2D

~XX130

1

F

O

k 0

3D

~XX130

1

F

O

k 1

System Auto Send

Standby Mode

I N F O 0

Warming up

I N F O 1

Cooling Down

I N F O 2

Out of Range

I N F O 3

lightsource Fail (LED Fail)

I N F O 4

Thermal Switch Error

I N F O 5

Fan Lock

I N F O 6

Over Temperature

I N F O 7

LightSource Hours Running Out

I N F O 8

Cover Open

I N F O 9

lightsource Ignite Fail

I N F O 10

Format Board Power On Fail

I N F O 11

Color Wheel Unexpected Stop

I N F O 12

Over Temperature

I N F O 13

FAN 1 Lock

I N F O 14

FAN 2 Lock

I N F O 15

FAN 3 Lock

I N F O 16

FAN 4 Lock

I N F O 17

FAN 5 Lock

I N F O 18

LAN fail then restart

I N F O 19

LD lower than 60%

I N F O 20

LD NTC (1) Over Temperature

I N F O 21

LD NTC (2) Over Temperature

I N F O 22

High Ambient Temperature

I N F O 23

System Ready

I N F O 24

I N F O 25

FAN 6 Lock

I N F O 26

FAN 7 Lock

I N F O 27

FAN 8 Lock

I N F O 28

FAN 9 Lock

I N F O 29

FAN 10 Lock

I N F O 30

FAN 11 Lock

I N F O 31

FAN 12 Lock

I N F O 32

FAN 13 Lock

I N F O 33
