Type de produit	Grill et presse à sandwich
Modèle	ZHC655
Marque	Zephir
Alimentation	230-240 V ~ 50/60 Hz
Thermostat	Variable, réglable de MIN à MAX
Plaques de cuisson	Revêtement antiadhésif, supérieure et inférieure
Voyants lumineux	Rouge (sous tension) / Vert (prêt)
Bac de récupération	Amovible pour les liquides
Système de verrouillage	Verrou pour l'ouverture des plaques
Poignée	Pour l'ouverture et la fermeture
Pieds antidérapants	Oui (non spécifié mais typique)
Dimensions (approx.)	35 x 25 x 12 cm (estimation)
Poids (approx.)	2,5 kg (estimation)
Utilisation prévue	Cuisson des aliments (grillades et sandwichs)
Nettoyage	Plaques essuyées avec un chiffon doux ; bac lavable à l'eau savonneuse
Entretien	Ne pas utiliser d'ustensiles métalliques pour préserver le revêtement
Sécurité	Arrêt automatique non mentionné, mais débrancher après usage
Certifications	Conforme aux normes européennes (non spécifié)

Frequently Asked Questions - ZHC655 Zephir

Comment utiliser l'appareil comme gril ?

Branchez l'appareil, tournez le thermostat sur MAX pour un préchauffage rapide. Attendez que le voyant vert s'allume, puis placez les aliments sur la plaque inférieure. Fermez le couvercle et laissez cuire selon le guide de cuisson. Utilisez une spatule en plastique pour retirer les aliments.

Comment faire des sandwichs toastés ?

Réglez le thermostat sur MIN. Préchauffez jusqu'au voyant vert. Placez le sandwich sur la plaque inférieure, fermez le couvercle. La cuisson dure 4 à 5 minutes. Retirez le sandwich avec une spatule en plastique.

Quelle est la différence entre les voyants rouge et vert ?

Le voyant rouge indique que l'appareil est sous tension. Le voyant vert s'allume lorsque la température de cuisson est atteinte.

Puis-je utiliser des ustensiles métalliques sur les plaques ?

Non, pour éviter d'endommager le revêtement antiadhésif, utilisez uniquement des spatules en plastique ou en bois.

Comment nettoyer le bac de récupération ?

Retirez le bac après chaque utilisation et lavez-le à l'eau chaude savonneuse. Séchez-le soigneusement avant de le remettre en place. Évitez les tampons à récurer.

L'appareil s'éteint-il automatiquement ?

Le manuel ne mentionne pas d'arrêt automatique. Veillez à débrancher l'appareil après usage et à ne pas le laisser sans surveillance.

Quels types de viande puis-je cuire ?

Bœuf (steak), porc (filet, côtes), agneau (côtelettes, steaks), poulet (filets, cuisses), saucisses. Consultez le guide de cuisson pour les temps recommandés.

Comment éviter que la viande ne colle ?

Assurez-vous que les plaques sont propres et légèrement huilées avant la cuisson. Ne salez pas la viande avant la cuisson et utilisez une spatule en plastique pour la retourner.

Puis utiliser l'appareil pour des légumes ?

Oui, coupez les légumes en tranches d'environ 1 cm d'épaisseur (aubergine, courgette, patate douce). Le temps de cuisson est de 3 à 5 minutes.

Où trouver des pièces de rechange ?

Contactez le service après-vente via www.uniorservice.com ou WESTIM S.p.A. à Rome. Conservez la preuve d'achat.

USER MANUAL ZHC655 Zephir

Modern kitchen grater with black and silver casing, featuring a handle and control panel (no visible text or symbols)

MANUALE D'ISTRUZIONI

Please read this instruction manual because inside there are important information about the safety, operation and maintenance of the appliance. Keep the manual for future reference.

SAFETY PRECAUTIONS

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. Keep the appliance and its cord out of reach of children less than 8 years.
2. Keep all packaging (plastic bags, foam, screws) out of the reach of children or persons with reduced physical or mental capabilities, as this could compromise their safety
3. It ' may not use this unit in the presence of children who may approach and enter into contact with the unit itself
4. Ensure that your domestic electrical installation complies with the electrical specifications given on the rating plate of the unit.
5. Do not touch hot surfaces. Use the handle.
6. To avoid any risk of electric shock, do not immerse the unit, cord or plug in water or other liquids.
7. It ' requires close supervision when the unit is used near children.
8. Unplug from the outlet when the unit is not in use or before embarking on a new round of cleaning. Allow to cool before putting on or taking off parts, and before cleaning the same.
9. Do not use the unit in case of damage and / or malfunction evident or after an accidental fall to the ground. To avoid unplug any risk of electric shock, do not groped to repair the unit yourself, but take it to a qualified service center for repair.
10. The use of accessories not recommended can result in serious risk of fire, electric shock or injury to persons.
11. Do not use outdoors or for commercial purposes.
12. Do not let the mains cord come into contact with sharp or blunt objects of furniture. Furthermore, avoid contact with hot surfaces.
13. Do not place next to other surfaces or appliances that provide heat, such as ovens, microwaves, stoves or gas stoves.
14. Do not use timed devices or external control systems.
15. Unplug from outlet when finished using.
16. Avoid moving the product from one surface to another when it is in operation.
17. Keep the instruction manual, proof of purchase and the packing box for any eventuality.
18. Turn the unit off and unplug the power cord from the wall outlet before each cleaning cycle.
19. Do not leave the unit turned on when not in use.
20. Occasionally check the status of the power cord. If the cord is damaged or defective, do not turn on the unit, but take it to a qualified service center.
21. Do not groped to repair the unit by yourself, but contact a qualified service center.
22. Never immerse the unit or power cord in water or other liquids. Do not use the unit with wet hands.
23. Never leave the unit unattended when in use. Make sure that the plates are free from oil or grease.
24. Clean the surface of the plate after each use.
25. Keep the unit and the power cord away from moisture, dust, sharp or blunt. Avoid direct exposure to the sun.
26. The unit should be used for the sole purpose of heating or cooking foods (through the pots) above the plates in stainless steel.
27. Do not use the unit near other appliances that provide heat.
28. Keep this manual for future reference.
29. At the end of its life cycle, the unit must be disposed of according to regulations in your country.
30. Do not place heavy objects on the cables or heat sources close to them. The cables may be damaged.

31. This product is intended solely for domestic use. Unplug the appliance when it is upside down or resting.

32. Before performing maintenance and cleaning, disconnect the appliance from.

33. Do not use aerosols sprays (eg . insecticides , hair spray , etc. ), it may cause damage to the housing
34. In case of abnormal situations immediately turn off the power and contact your dealer or service center.
35. Do not use this unit connected to programmers, external timer, separate remote control system, timer or any other device that can switch automatically
36. Do not use power sockets flying or damaged cables.
37. When you hold it firmly pulls the plug to avoid electric shock, short circuit or fire
38. Do not attach safety switches with tape, for fire hazard.
39. It is absolutely prohibited to disassemble or repair the unit by the danger of electric shock if necessary contact your dealer or service center.
40. Do not use the appliance near a bathtub, shower, swimming pool.
41. Do not use the machine near flammable objects
42. Do not insert metal objects into the slots of the unit
43. Before connecting to the mains supply, make sure the voltage is correct as reported on the label of the product and that the installation complies with current regulations
44. Do not touch the power connection with wet hands
45. Do not use the product for purposes other than those for which it was built.
46. This appliance is not intended for use by persons (including children) with reduced physical sensory or mental capabilities, or lack of experience and knowledge, unless they are supervised or instruction concerning use of the appliance by a person responsible for their security.
47. If the external flexible cable is damaged it must be replaced by a qualified technician in order to avoid accidents;
48. The temperature of accessible surfaces may be high when the appliance is in function.
49. Metallic objects such as knives, forks, spoons and lids should not be placed upon the electric plates, as they can become very hot.
50. This appliance is intended only for the cooking of food, domestic use (not professional), and in the manner specified in these instructions. Pay attention to cooking of foods oils and fats because, if overheated, are possible causes of fire.
51. Before connecting the appliance, check that the voltage printed on the nameplate correspond to those of the power grid, and that the outlet is effectively grounded. In event of any inconsistency between the socket and the plug of the appliance, have the socket replaced with other suitable type by a qualified professional, who finds that the section of the cord is suitable for the power absorbed by the device. Do not use adapters and/or extensions.
52. In the event of a fall or malfunction, immediately disconnect the power cord electric. Check that no parts are damaged (plate), and after these investigations turn it on: in case of doubt, consult a qualified professional.
53. WARNING THE BREAD CAN 'BURNS TO USE . THE TOASTER SHOULD NOT BE USED IN OR NEAR COMBUSTIBLE MATERIALS AS THE CURTAINS .

This symbol means: ATTENTION: hot surface.

54.

The temperature of accessible surfaces may be high when the appliance is operating.

1. To protect against risk of electric shock, do not immerse the cord, plug or cooking unit in water or any other liquid.

2. Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts, and before cleaning appliance.

3. Do not operate any appliance with a damaged has malfunctioned or has been damaged in any manner. In order to avoid the risk of an electric shock, never try to repair the Grill Toaster yourself. Take it to an authorized service station for examination and repair. An incorrect reassembly could present a risk of electric shock when the Grill Toaster is used.

4. The use of accessory attachments not recommended by the manufacturer may result in fire, electrical shock, or risk of injury to persons.

5. Do not let power cord hang over the edge of the table or counter, or touch hot surfaces.

6. Do not place on or near a hot gas or electric burner or heated oven.
7. Do not use appliance for other than intended use.
8. Extreme caution must be exercised when moving an appliance containing hot oil or other hot liquids.
9. WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, ONLY AUTHORIZED PERSONNEL SHOULD DO REPAIRS. SAVE THESE INSTRUCTIONS. FOR HOUSEHOLD USE ONLY

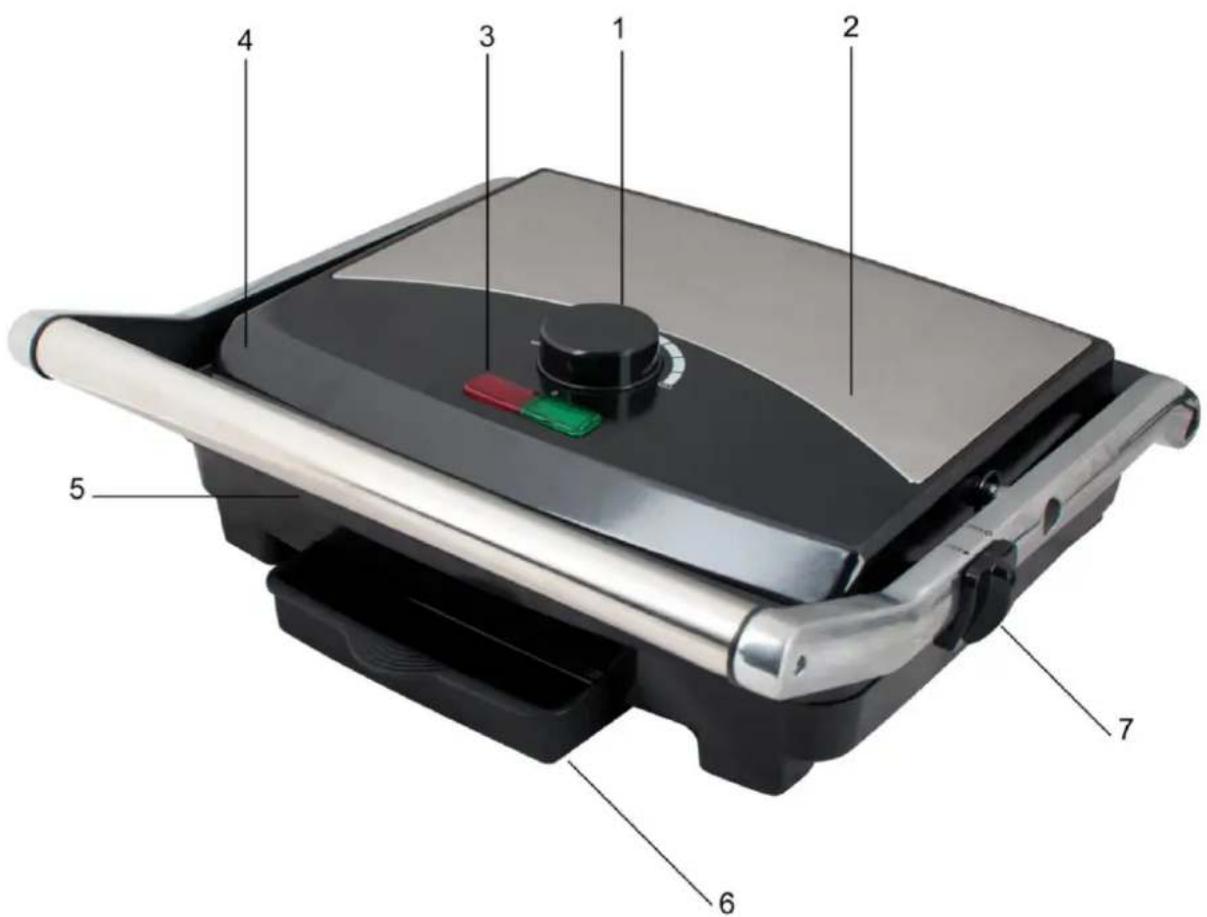

1. Adjustable thermostat
2. Upper metal cover
3. Red Light (product is turned ON) – Green (product ready to be used)
4. No stick upper plate (under metal cover)
5. No stick down plate
6. Tray for liquids
7. Lock for plates aperture

TO USE AS A GRILL

1. Insert the plug into a 230/240V power outlet and switch ON. The Red power "On" light will illuminate.
2. Turn the variable temperature control to "MAX" for fast heat up.
3. Allow the Grill & Sandwich press to preheat until the green "Ready" light illuminates.
4. Place meat or foods to be cooked on the bottom cooking plate. Refer to Grilling recipes or guide for cooking times.
5. Close the top cooking plate which has a floating hinge that is designed to evenly press down on the food. The top plate must be fully lowered to achieve Grill marks on the selected foods.
6. When the selected foods are grilled, open the lid. Remove the food with the help of a plastic spatula

TO USE AS A SANDWICH PRESS

1. Insert the plug into a 230/240V power outlet and turn the power on. The red power "On" light will illuminate

2. Turn the heat control dial to the "MIN" position.

3. Allow the Grill & Sandwich Press to preheat until the green "Ready" light illuminates.

4. During this time, prepare the sandwich and place it onto the bottom cooking plate. Always place sandwiches towards the rear of the bottom cooking plate.

5. Close the top cooking plate which has a floating hinge that is designed to evenly press down on the sandwich. The top plate must be fully lowered to cook sandwiches.

6. Toasting should take approximately 4-5 minutes. Exact toasting time will be a matter of taste. It will also depend on the type of bread and filling used.

7. When the sandwich is cooked use the handle to open the lid. Remove the sandwich with the help of a plastic spatula. Never use metal tongs or a knife as these can cause damage to the non-stick coating of the cook plates.

VARIABLE TEMPERATURE CONTROL DIAL

The Grill & Sandwich Press has a variable Temperature Control dial which allows a variety of foods to be cooked.

With the dial set on MIN the temperature is correctly suited to toasting.

With the dial set on MAX the temperature is correctly suited to grill meats or other foods.

The variable temperature control dial allows you to select a temperature suited to the foods which are being cooked.

Hints for best results grilling meat

For best grilling results use meat cuts which are thick enough to touch the top and base plate when the grill &sandwich press is closed

VARIABLE TEMPERATURE CONTROL DIAL

Beef: sirloin (New York), rump, rib eye (scotch fillet), fillet.

Lamb: trim lamb leg steaks, fillet, eye of loin, cutlets and diced lamb.

Pork: butterfly loin steaks, spare ribs, leg steaks, fillets, diced pork.

1. Tougher cuts such as beef blade, topside steak or lamb forequarter or neck chops can be used. To tenderize these cuts marinate them for a few hours or overnight in a marinade with wine or vinegar to help break down the connective tissue.
2. Do not salt meat before cooking. Salt will draw out the juices toughening the meat.
3. If using a marinade recipe or pre-marinated meats from your meat retailer, drain excess marinade off and dab with kitchen paper before placing on the grill & sandwich press. Some marinades contain high sugar levels which can scorch on the grill plate when cooked.
4. Do not overcook meat, even pork is better served pink and juicy.
5. Do not pierce meat with a fork or cut meat while cooking. This will let the juices escape, resulting in a tougher dry steak. Use tongs instead.
6. When removing fish pieces, use a flat heat resistant plastic spatula to support the food.
7. Parboiling sausages can alleviate the need to pierce sausages before cooking.

GRILLING GUIDE

Ingredient and type		Cooking time
Beef	>sirloin steak	3 minutes for medium rare
		5-6 minutes for well done
steak	>minute steak	1-2 minutes
	>hamburger patties	4-6 minutes
	>scotch fillet	4-6 minutes
Pork	>loin steaks
	>fillet
	>bacon	2-3 minutes
Lamb	>loin	3 minutes
	>cutlets	4 minutes
	>leg steaks	4 minutes
Chicken	>breast fillets	6 minutes or until cooked through
	>thigh fillets	4-5 minutes or until cooked through
Sausages	>thin	3-4 minutes
	>thick	6-7 minutes
Sandwich or focaccia		3-5 minutes or until golden brown
Vegetables sliced(1 cm thickness)	>eggplant	3-5 minutes
	>zucchini
	>sweet potato
Seafood	>fish fillets	2-4 minutes
	>fish cutlets	3-5 minutes
	>octopus(cleaned)	3 minutes
	>prawns	2 minutes
	>scallops	1 minute

CARE AND CLEANING

Before cleaning, turn the power off at the power outlet and then remove the plug. Allow your grill & sandwich press to cool before cleaning. The unit is easier to clean when slightly warm. Always clean when your grill & sandwich press after each use to prevent a build up of baked-on foods. Wipe cooking plates with a soft to remove food residue. For baked on food residue squeeze some warm water mixed with detergent over the food residue then clean with a non abrasive plastic scouring pad or place wet kitchen paper over the grill to moisten the food residue.

Cleaning the drip tray

Remove and empty the drip tray after each use and wash the tray in warm, soapy water. Avoid the use of scouring pads or harsh detergents as they may damage the surface.

Rinse and dry thoroughly with a clean, soft cloth and replace.

www.uniorservice.com

WESTIM S.p.A.

Via Roberto Bracco 42/E

00137, Roma

Tel. [phone]

Italiano

Disposal of old electrical & electronic equipment (Applicable in the European Union and other European countries with separate collection systems)

This symbol on the product or in its packaging indicates that this product shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The recycling of materials will help to conserve natural resources. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.
