INN-698 - Blender Innoliving - Free user manual and instructions

Product Type	Hand Blender Set 3 in 1
Brand	Innoliving
Model	INN-698
Power	700W
Power Supply	220-240V ~ 50/60Hz
Speed Settings	Variable speed I/II and variable speed selector
Blade Material	Stainless steel
Accessories Included	Hand blender, whisk, chopper, measuring cup
Max Cup Capacity	500g
Max Bowl Capacity (Chopper)	500g
Max Continuous Operation	60 seconds
Intended Use	Household only
Cleaning	Hand wash; not dishwasher safe
Motor Base Water Resistance	Do not immerse in water
Safety Features	Auto shut-off (after 60s), blade guard, non-slip handle
Certifications	CE, Class II, food contact
Country of Origin	Made in China

Frequently Asked Questions - INN-698 Innoliving

How do I assemble the hand blender?

Place the blender attachment into the power handle and turn clockwise until it locks. Ensure the device is unplugged before assembly.

What is the maximum fill level for the cup?

Do not fill the cup more than 2/3 of its maximum capacity (500g) to prevent leakage.

Can I blend ice cubes or coffee beans?

No, the hand blender is not designed for solid foods like ice cubes, coffee beans, nuts, or chocolate. Use only for soft foods.

How do I clean the appliance?

Unplug the device. Clean the power handle and chopper cover with a soft damp cloth. Wash blades and accessories immediately after use with hot water and dish soap. Never immerse the motor base in water.

Is the appliance dishwasher safe?

No, the parts are not dishwasher safe. Hand wash only.

What should I do if the power cord is damaged?

Do not use the appliance. Contact an authorized after-sales service for replacement to avoid risk of electric shock.

Can I use the blender with hot liquids?

Yes, but be cautious. Pour hot liquid into the bowl carefully to avoid expulsion due to sudden vaporization. Do not use with boiling oil or very fatty foods.

How long can I operate the blender continuously?

Do not use for more than 60 seconds at a time. Allow the product to cool completely before using again.

What is the warranty period?

The manual does not specify a warranty period. Contact Innoliving customer service for details.

Are replacement parts available?

The manual does not list spare parts. For replacement accessories, contact Innoliving or an authorized service center.

USER MANUAL INN-698 Innoliving

innoliving easy tech, easy life

FRULLATORE AD IMMERSIONE

SET 3 IN 1

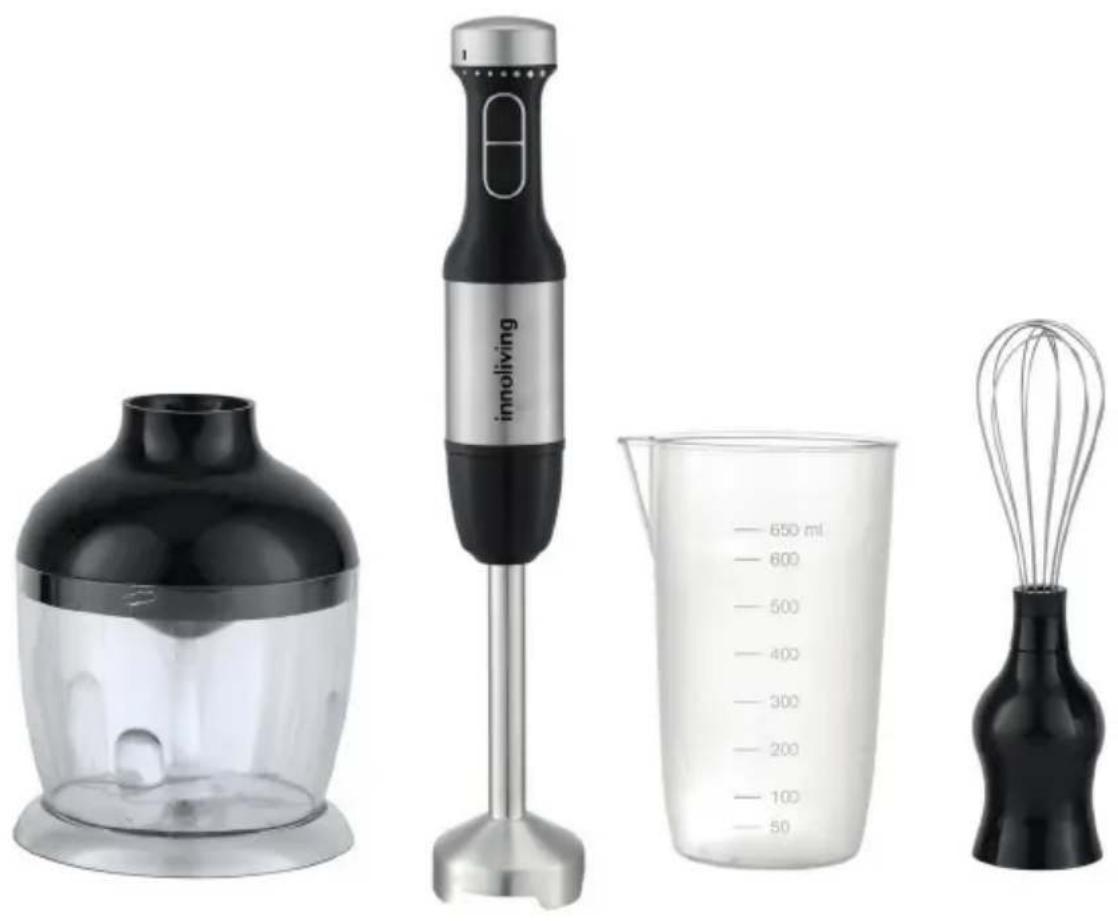

Product photo of kitchen utensils including a blender, mixing bowl, and whisk (no text or symbols visible)

INN-698

MANUALE D'USO

USER MANUAL

Simple line drawing of an open book with no text or symbols visible

Simple geometric diagram of two concentric squares (no text or symbols)

Thank you for purchasing INNOLIVING INN-698; a very useful instrument to prepare poured soups and sauces.

Before use:

-Read all the instructions and warnings carefully and keep this manual safe for future references.

-Wash the parts and accessories carefully: see "Cleaning and Maintenance".

-Remove all packaging materials.

SAFETY INSTRUCTIONS AND WARNINGS

• Read the instructions and safety norms before using the appliance and follow these at all times. Keep this manual safe for future references for all the product life. Failure to comply with the use and maintenance instructions provided in this user manual could lead to an accident and will void the warranty.
• This appliance must be used only for the purpose for which it was designed that is as HAND BLENDER for home use. Any other use is improper and potentially dangerous.
  • This appliance is for HOUSEHOLD use only, not professional or industrial use.
• Keep all packing material (plastic bags, cardboard, polystyrene, etc.) out of reach of children, since they are potential sources of danger and must be disposed of as provided by law.
  • After having removed the appliance from its packaging, verify its integrity based on the drawing and any presence of damage caused by transport. If in doubt, do not use the appliance and contact an authorized service centre.
• Do not use the appliance if the cable or plug is damaged.
• Ensure that the voltage indicated on the rating label matches the mains voltage before plugging in the appliance. The rating label is on the product.
  •The appliance's plug must fit into the mains socket properly. Do not alter the

plug. Do not use plug adaptors.

• Do not use or store the appliance outdoors.
• Do not use the appliance if it has fallen on the floor, if there are visible signs of damage or if it has a leak.
• Do not force the electrical connection wire. Never use the electric wire to lift up, carry or unplug the appliance.
• Ensure that the electric cable does not get trapped or tangled.
• Check the state of the electric cable. Damaged or knotted cables increase the risk of electric shock.
• DO NOT use the appliance with damp or wet hands or feet.
• If the power cable is damaged, it must be replaced by an authorized after sales service, so as to prevent all risks.
• In case of fault or malfunctioning of the appliance, switch it off and do not tamper with it. If the device needs to be repaired, contact an authorized after sales centre.
• This appliance is not intended for use by persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety and understand the hazards involved.
• Keep this product and its cable out of reach of children. Children must not use the product.
• This product is not a TOY. Children should be supervised to ensure that they do not play with the appliance. Keep this product out of reach of children.
• Never let the cord hang down where a child could grab it.
• Do not turn the appliance over while it is in use or connected to the mains.

• Always unplug 'the hand mixer from the power outlet before cleaning, removing or changing accessories. Always unplug the units from the power source when it is not in use, unattended.

• Never leave the product unattended when in use.

• Make sure the blades have completely stop before disassembling and storing the device after use.
• Do not use the device with boiling oil or particularly fat food.
• Store the appliance in a dry place, free from dust and out of direct sunlight, far from heating sources.
• NEVER immerse the motor base, the power cord or plug in water or other liquids and never put them under running water.
• Unplug the unit before assembly, disassembly or cleaning the device.
• Place the product on a flat, stable surface, so it can not fall to the floor, in the sink or other water containers.
  • DO NOT use in the vicinity of the kitchen hob and other heat sources.
• Do not allow the cord to come into contact with hot surfaces, flames, hot pots and other utensils.
• Do not touch moving parts. CAUTION: Never try to touch and / or remove the accessories while the unit is operating.
• Do not use accessories different from those supplied.
• Do not use the hand blender for more than 60 seconds at a time. Wait a few minutes for the product to cool completely before using it again.
• All parts that come into contact with food during the use of the appliance must be thoroughly washed before use.
• Make sure to unplug the unit after use and disassemble for cleaning. The parts are not dishwasher safe.
• Pay attention when handling the blade, when emptying the bowl and during cleaning operation.
• Be especially careful when pouring hot liquid into the bowl, since it may be expelled due to sudden vaporization.

FOOD PROCESSOR

1. Pay special attention when removing the blades from the unit and during cleaning. Do not touch the blades.
2. Remove the blades before removing the food from the bowl of the food processor.
3. Do not remove the lid of the food processor until the blades are not completely still.

CUP

Do not fill the cup more than 500g

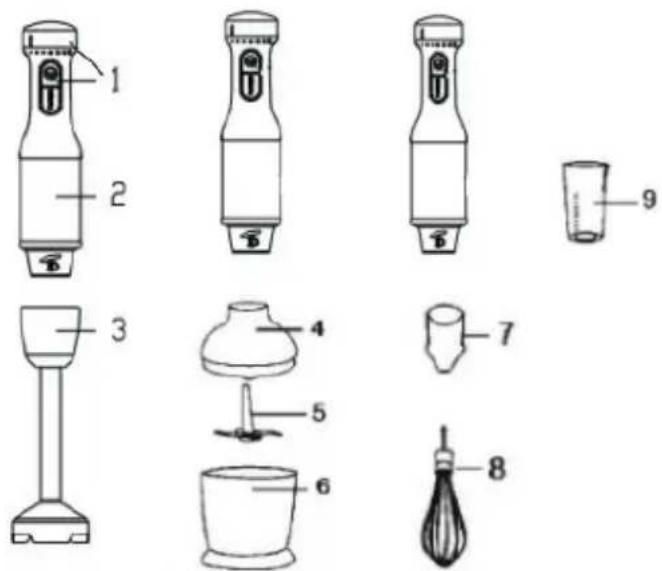

PRODUCT DESCRIPTION

1. Speed Buttons I/II and variable speed selector
2. Power handle
3. Hand Blender
4. Chopper Cover
5. Stainless Steel Blades
6. Bowl
7. Whisk collar
8. Whisk
9. Measuring Cup

ASSEMBLY AND USE OF THE HAND BLENDER

1. Place the blender into the power handle turning the accessory clockwise.

2. Connect the plug into the electrical outlet, immerse the bottom part of the product into the ingredients to be blended, select speed I at the beginning and then or select variable speed control II until when you get the desired consistency.

3. To prevent leakage, the cup must not be filled more than 2/3 of its maximum capacity.

4. Do not use the device for blending solid foods such as coffee beans, ice cubes, nuts, chocolate and so on.
5. Remove the plug from the electrical outlet before removing the blender from the power unit.

ASSEMBLY AND USE OF THE WHISK

1. Insert the whisk collar in the power handle by turning it clockwise. Insert the whisk in the collar and press to lock it.
2. Connect the plug to the power plug.
3. Remove the plug from the electrical outlet before removing the whisk from the power handle.

ASSEMBLY AND USE OF THE CHOPPER

1. Place the bowl on a flat, stable surface and insert the blades at the center.
2. Place the food in the bowl (eq: meat, cheese, onion, garlic, carrots and so on.)
3. Place the lid on the bowl by turning it slightly clockwise. Insert the power handle in the space provided on the cover and connect the device to the electrical outlet.
4. Press the speed buttons or select variable speed control to operate the product. During use, hold the power handle of the product with one hand and take with the other hand the chopper cover.
5. After use, disconnect the unit from the electrical outlet. Remove the power handle and the cover from the chopper.
6. Remove the blade from the bowl taking care not to touch the blades.
7. Remove the food from the bowl.

CAUTION: Do not fill the bowl more than 500gr.

CLEANING AND MAINTENANCE

• Unplug the machine from the electrical outlet
• Clean the power handle and the chopper cover with a soft, damp cloth. Do not immerse the main unit in water or other liquids.
• Clean the blades and accessories immediately after use with particular attention to the blades.
• The accessories and the blades can be cleaned with a cloth or a brush, using hot water and dish soap, but take care that the water does not come into contact with electrical parts.
  • Store the product in a cool, dry place.
  • Make sure the accessories are dry, before assembling them again on the product.

TECHNICAL SPECIFICATIONS

Power: 700W

Power Supply: 220-240V \~ 50/60Hz

RATING LABEL

Innoliving Spa

Via Merloni 2/B-60131 Ancona - Italy

INN-698 3 IN 1 SET

220-240V\~50/60Hz 700W

LOT n.

CE

MADE IN CHINA

Simple line drawing of an open book with no text or symbols visible

Simple geometric diagram of two concentric squares (no text or symbols)

The product is made conforming with all the applicable European regulations

Read carefully the user manual

Food contact

Class II insulated electrical appliance

INFORMATION TO USERS according to Legislative Decree No. 49 of March 14, 2014 “2012/19/UE Implementation of the Directive on Waste Electrical and Electronic Equipment (WEEE) ”

The crossed-out dustbin symbol indicates that the product at the end of its life must be collected separately from other waste. The user should, therefore, take the equipment with the essential components at the end of its useful life to the separate collection center of electronic and electrical waste, or return it to the retailer when purchasing new equipment of equivalent type, in ratio of one to one, or one to zero for devices with larger side less than 25 CM. The separate collection for the decommissioned equipment for recycling, treatment and environmentally compatible disposal contributes to avoid possible negative effects on the environment and human health and promotes recycling of the materials. Improper disposal of the product by the user entails the application of administrative sanctions according to Legislative Decree No. 49 of 14 March 2014

innoliving easy tech, easy life

Innoliving Spa Via Merloni, 2/B 60131 Ancona Italy Tel [phone] www.innoliving.it

MADE IN CHINA

CE
