Transit Fitness HX-EP400 - Headphones JAM - Free user manual and instructions

Product Type	Wireless Fitness Headphones
Brand	JAM
Model	Transit Fitness HX-EP400
Connectivity	Bluetooth 5.0
Driver Size	10 mm
Frequency Response	20 Hz – 20 kHz
Impedance	32 Ω
Battery Life	Up to 12 hours playtime
Charging Time	About 2 hours
Charging Port	Micro USB
Weight	35 g (1.2 oz)
Water Resistance	IPX4 (sweat and splash proof)
Controls	Integrated buttons: Power, Volume, Play/Pause, Track skip, Call management
Microphone	Built-in with noise cancellation
Compatibility	iOS and Android devices
Wireless Range	Up to 10 meters (33 feet)
Ear Cushions	Soft silicone ear hooks for secure fit
Maintenance	Wipe with dry cloth; do not immerse in water
Safety	Low volume levels recommended to prevent hearing damage

Frequently Asked Questions - Transit Fitness HX-EP400 JAM

How do I pair my JAM Transit Fitness HX-EP400 headphones with my phone?

Turn on the headphones by holding the power button for 2 seconds. The LED will flash blue and red, indicating pairing mode. Enable Bluetooth on your phone and select 'JAM Transit Fitness HX-EP400' from the list. If prompted, enter '0000' as the PIN.

How long does the battery last on a full charge?

The battery lasts up to 12 hours of continuous playtime. Charging time is approximately 2 hours via the included Micro USB cable.

Are these headphones water resistant?

Yes, they have an IPX4 rating, meaning they are resistant to sweat and light splashes, but not waterproof. Do not submerge them in water.

Can I use the headphones while charging?

No, the headphones cannot be used while charging. Always disconnect the charging cable before use.

How do I reset the headphones?

To reset, turn off the headphones. Then press and hold the power button for 10 seconds until the LED flashes red and blue twice. This clears paired devices and resets to factory settings.

What should I do if the headphones won't connect?

Ensure the headphones are in pairing mode (LED flashing red and blue). On your phone, forget the device from Bluetooth settings and try pairing again. Also, make sure the headphones are sufficiently charged.

How do I clean my JAM Transit Fitness headphones?

Wipe the headphones with a soft, dry cloth. For stubborn dirt, lightly dampen the cloth with water. Do not use harsh chemicals or immerse the headphones in water.

Can I use the headphones for phone calls?

Yes, the built-in microphone allows you to take hands-free calls. Press the multifunction button to answer or end a call.

What is the wireless range of these headphones?

The Bluetooth range is up to 10 meters (33 feet) in open space. Walls or obstacles may reduce the range.

Are replacement ear cushions available?

Yes, replacement ear cushions can be purchased from JAM's official website or authorized retailers. Contact customer support for compatible parts.

USER MANUAL Transit Fitness HX-EP400 JAM

USER GUIDE AND

WARRANTY INFORMATION

HEY THERE!

Thank you for purchasing the JAM TRANSIT FITNESS BUDS. Check out the sections below for all the important information about your new earbuds.

WE'RE HERE TO HELP. CONTACT US!

You've got questions? We've got answers.

Contact a Consumer Relations representative by phone or email to help answer any questions. Please be sure to have the model number of your product available. (Hint: It's HX-EP400)

Register your earbuds! Information about where you bought them and how you're using them is like gold for the people who make these earbuds.

To register, visit:

USA: www.jamaudio.com/customer-support/product-registration

CAN: canada.jamaudio.com/product-registration

USA

1.888.802.0040 8:30am-7:00pm EST M-F

CANADA

[e-mail]

1.888.225.7378 8:30am-5:00pm EST M-F

JUST CHARGE IT

Charging the earbuds is so easy you've probably figured it out by now, but just in case, you've got two options: you can charge them using your computer or a wall outlet. The Transit Fitness Buds need about 1 hour for up to 7 hours of party time.

1. The cord that came with the earbuds — the one with the USB on one end and the micro USB on the other — will work with your computer.
2. If you want to use the wall outlet, you'll need to pick up a power cord with a micro USB the next time you're at the store, or use any USB AC adapter, including the one for your cell phone.

AC adapter not included.

SHED SOME LIGHT

The LED light on your earbuds lets you know what they're doing.

Pairing Mode

Charging

Connected

Ready to Party

Low Battery

CONTROL YOUR DESTINY ... OR AT LEAST YOUR EARBUDS

1. Play/Pause, press and hold for 3 seconds to power on
2. Volume down/ Previous Track
3. Volume up/ Next Track
4. Power cord goes here
5. Shed some light on what your earbuds are doing (see chart to left for details)
6. Smart magnetic connection: disables power and keeps your earbuds together when not in use

BLUETOOTH® CONNECTION — IT'S A SETUP

Like any amazing couple, this one starts with a connection — one between your device and the earbuds' Bluetooth. Here's how it works:

1. Make sure the smartphone, tablet, or computer you're using with the earbuds has Bluetooth.
2. Turn on the earbuds (press and hold the power button for 3 seconds) and look for the little blinking light.
3. Do whatever your device needs you to do on its end.
4. Look for Jam Transit Fitness Buds in your device's Bluetooth list or click YES.
5. Now hit PLAY on your earbuds and crank it up — or down if you're lame.

The device and Bluetooth will find each other every time, as long as the earbuds are set to Bluetooth and your device's Bluetooth is, you know, on.

Illustration of a handheld device with a 3-second mark and a circular arrow pointing to it (no text or symbols on the device itself)

BLUETOOTH\* CONNECTION, CONTINUED

If you're connecting to a computer, you may have some extra steps on that end. You'll have to get that information from the computer company.

Depending on your device, you may be prompted to enter a pairing code. If prompted, enter "0000" as the code.

Note: If you turn on your Transit Fitness Buds but haven't started the party yet, they will automatically power off after 2 minutes of unpaired inactivity.

LOCK IT DOWN

Tired of your buds always falling out of your ears? Our SecurFit™ tips are here to save the day.

1. Place SecurFit ^™ tips in ear.
2. Turn until comfortably locked in place.

Diagram of two identical electric vehicle charging plugs with a blue arrow indicating rotation (no text or symbols)

Working out? Not a problem. These earbuds are totally sweat resistant! The smart folks who made these earbuds designed them to keep the party going through just about any activity (they call it IPX4). But those designers aren't miracle workers. Doing something like going for a swim while wearing your earbuds will eventually fill them with water. Remember to keep the top flap flush with the earbuds for the best protection.

LOOK MA, NO HANDS!

When friends call to interrupt your party of one — and you know they will — answer the phone without disconnecting from your JAM Transit Fitness Buds. Yes, that's right. Your earbuds have hands-free calling, too. How amazing is that? Here's how it works:

1. Make sure your phone and earbuds are connected through Bluetooth.
2. Answering and ending a call works the same way: simply click the PLAY/PAUSE button on your Transit Fitness Buds.
3. If you'd rather not talk, hold down the PLAY/PAUSE button on your Transit Fitness Buds for 3 seconds to ignore the call.
   THE COOLEST PART: The Transit Fitness Buds know when a call is coming in and pause the music before ringing. When you hang up, the music starts where it left off — and so does the party. If it's you making the call, just start dialing from your phone, and the Fitness Buds automatically do their hands-free thing. Isn't it refreshing to know your earbuds totally get you?

Check out the chart below for a complete guide on handling calls with your Transit Fitness Buds.

Situation	Short Press Play/Pause Button	Long Press Play/Pause Button
1^st Incoming call	Pick-Up call	Reject call
On call	End call	Move call from speaker to device
2^nd Incoming call	Call 1 on hold, Pick-Up call 2	Reject call 2
Both calls Active	Hang up call 1, Switch to call 2	Switch between 1^st & 2^nd call

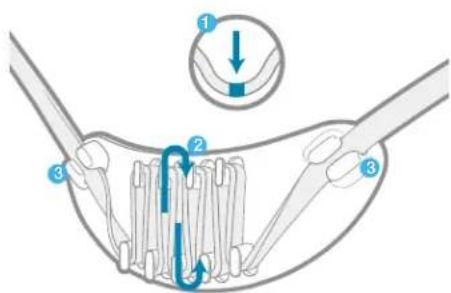

THE PERFECT FIT

Put the buds in your ears with the strap behind your neck (trust us, no one looks good with the strap in front) to see if the length is comfortable. If the fit is too loose or too firm, adjust it with the CustomFit" cord management system.

1. Find the middle of the cord (indicated by the colored square).
2. Wind cord around clips as many times as necessary until the length is comfortable.
3. Secure both ends of the cord through the locks.
4. Place behind your neck and you're good to go!

COMING CLEAN 1 YEAR LIMITED WARRANTY

A soft, dry towel is all you need to clean off your earbuds. Using water, harsh cleaners, or anything else only starts messing with the mechanics inside. So, yeah, don't do it. Remember to keep the top flap flush with the earbuds for the best protection.

For detailed warranty instructions and information visit:

USA: www.jamaudio.com/customer-support/warranty-1yr

CAN: canada.jamaudio.com/warranty-1yr

To obtain warranty service on your JAM product, contact a Consumer Relations representative by telephone or email for assistance (you can find their contact info on page 1). Please make sure to have the model number of the product available.

STUFF THE GOVERNMENT MAKES US SAY STUFF OUR LAWYERS MAKE US SAY

FCC Compliance:

Note: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help. Note: Changes or modifications not expressly approved by HMDX could void the user's authority to operate this equipment.

IC Caution: RSS-GEN Issue 4 December 2014

This device complies with Industry Canada's licence-exempt RSSs.

Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) This device must accept any interference, including interference that may cause undesired operation of the device.

IMPORTANT SAFEGUARDS:

When using an electrical product, basic precautions should always be followed, including the following:

READ ALL INSTRUCTIONS BEFORE USING

• WARNING: Listen responsibly. To avoid hearing damage, make sure the volume on your device is turned down before connecting headphones. After placing headphones on your ears, gradually turn up the volume until you reach a comfortable listening volume.
• Use this product only for its intended use as described in this manual. Do not use attachments not recommended by HMDX.
• HMDX is not liable for any damage caused to smartphones, iPod/MP3 players, or any other device.
• Do not place or store this product where it can fall or be dropped into a tub or sink.
• Do not place or drop into water or any other liquid.
  • Not for use by children. THIS IS NOT A TOY
• Never operate this product if it has a damaged cord, plug, cable, or housing.
• Keep away from heated surfaces.
• Only set on dry surfaces. Do not place on surface wet from water or cleaning solvents.

Attention California Residents:

WARNING: This product contains chemicals known to the State of California to cause cancer, birth defects, and other reproductive harm.

A MESSAGE FROM THE ENVIRONMENT

WARNING:

This product has an internal, non-replaceable lithium battery. Please dispose in accordance with your local, state, province, and country guidelines.

This product contains small parts that may present a choking hazard for young children.

CAUTION: All servicing of this product must be performed by authorized HMDX Service Personnel only.
