Product Type	Wireless Bluetooth Headphones
Model	Transit Lite HX-HP400
Brand	JAM
Connectivity	Bluetooth, Aux-in (3.5mm)
Battery Type	Internal rechargeable lithium-ion (non-replaceable)
Charging Time	Approximately 2 hours
Playtime	Up to 11 hours
Charge Port	Micro USB
Controls	Play/Pause, Volume +/-, Track Skip (previous/next)
Hands-free Calling	Yes (built-in microphone)
LED Indicators	Pairing, Charging, Connected, Low Battery
Automatic Shut-off	After 2 minutes if not paired
Cleaning	Soft dry cloth only
Warranty	1 year limited
Compliance	FCC Part 15, IC RSS-Gen
Safety	Not for children, listen responsibly, non-replaceable battery

Frequently Asked Questions - Transit Lite HX-HP400 JAM

How do I charge my JAM Transit Lite headphones?

Connect the included micro USB cable to the headphones and either a computer USB port or a USB wall adapter. Charging takes about 2 hours for up to 11 hours of playtime.

How do I pair the headphones via Bluetooth?

Turn on the headphones by pressing and holding the play/pause button for 6 seconds until the LED blinks. Then go to your device's Bluetooth settings and select 'JAM Transit Lite Headphones'. If prompted for a code, enter 0000.

How do I answer or end a call?

To answer an incoming call, briefly press the play/pause button. To end a call, press the same button again.

How can I reject a call?

Hold the play/pause button for about 1.5 seconds to reject an incoming call.

What do the LED lights mean?

The LED indicates different statuses: blinking blue = pairing mode, solid blue = connected, red = low battery, and solid red while charging = charging (turns off when full).

Can I use the headphones with an aux cable?

Yes, plug the aux cable into the headphones and your device, then turn on the headphones. Note that playback controls from the headphones won't work; use your device instead. Remove the aux cable to return to Bluetooth mode.

Why do my headphones turn off automatically?

The headphones have a power-saving feature that automatically shuts them off after 2 minutes if they are not paired with any device.

How should I clean my headphones?

Use a soft, dry cloth to wipe the headphones. Avoid water, harsh cleaners, or any liquids as they may damage internal components.

What is the battery life?

The battery provides up to 11 hours of playback time on a full charge. Charging takes about 2 hours.

Where can I get warranty service?

Contact JAM Consumer Relations at 1.888.802.0040 (USA) or 1.888.225.7378 (Canada), or visit the warranty registration page at www.jamaudio.com/customer-support/warranty-1yr. Have your model number (HX-HP400) ready.

USER MANUAL Transit Lite HX-HP400 JAM

Thank you for purchasing the JAM Transit Lite. Check out the sections below for all the important information about your new headphones.

WE'RE HERE TO HELP. CONTACT US!

You've got questions? We've got answers.

Contact a Consumer Relations representative by phone or email to help answer any questions. Please be sure to have the model number of your product available. (Hint: It's HX-HP400)

Register your headphones! Information about where you bought them and how you're using them is like gold for the people who make these headphones.

To register, visit:

USA: www.jamaudio.com/customer-support/product-registration

CAN: canada.jamaudio.com/product-registration

USA

1.888.802.0040 8:30am-7:00pm EST M-F

CANADA

[e-mail]

1.888.225.7378 8:30am–5:00pm EST M–F

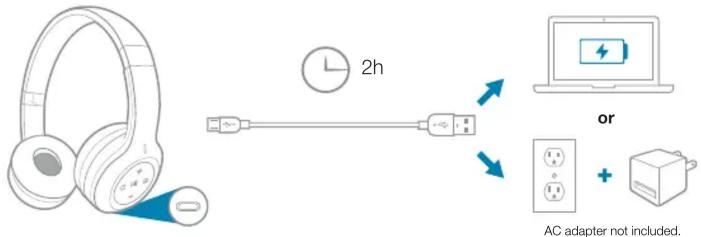

JUST CHARGE IT

Charging the headphones is so easy you've probably figured it out by now, but just in case, you've got two options: you can charge them using your computer or a wall outlet. The Transit Lite needs about 2 hours for up to 11 hours of party time.

1. The cord that came with the headphones — the one with the USB on one end and the micro USB on the other — will work with your computer.
2. If you want to use the wall outlet, you'll need to pick up a power cord with a micro USB the next time you're at the store, or use any USB AC adapter, including the one for your cell phone.

CONTROL YOUR DESTINY ... OR AT LEAST YOUR HEADPHONES SHED SOME LIGHT

1. Turn the music up
2. Turn the music down
3. Skip back a track
4. Push it to play, push it again to pause. Press and hold for 6 seconds to power on
5. Jam on to the next song
6. Shed some light on what your headphones are doing (see chart to the right for details)
7. The power cord goes here
8. Aux-in port to hook it up old-school

The LED light on your headphones lets you know what they're doing.

Pairing Mode

Charging

Connected

Ready to Party

Low Battery

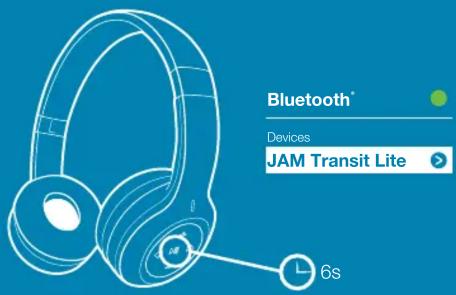

BLUETOOTH® CONNECTION — IT'S A SETUP

Like any amazing couple, this one starts with a connection — one between your device and the headphones' Bluetooth. Here's how it works:

1. Make sure the smartphone, tablet, or computer you're using with the headphones has Bluetooth.
2. Turn on the headphones (press and hold play/pause for 6 seconds) and look for the little blinking light.
3. Do whatever your device needs you to do on its end.
4. Look for Jam Transit Lite Headphones in your device's Bluetooth list or click YES.
5. Now hit PLAY on your headphones and crank it up — or down if you're lame.

Continued on page 2.

Bluetooth®

JAM Transit Lite

6s

BLUETOOTH® CONNECTION, CONTINUED

The device and Bluetooth will find each other every time, as long as the headphones are set to Bluetooth and your device's Bluetooth is, you know, on.

If you're connecting to a computer, you may have some extra steps on that end. You'll have to get that information from the computer company.

Depending on your device, you may be prompted to enter a pairing code. If prompted, enter "0000" as the code.

Note: If you turn on your Transit Lite Headphones but haven't started the party yet, they will automatically power off after 2 minutes of unpaired inactivity.

Line drawing of a blue and white wireless headphones on a solid blue background (no text or symbols)

2m

HOOKING UP OLD-SCHOOL AUDIO, JACK

1. Plug one end of the cord into the headphones and the other into the headphone jack on your device.
2. Turn on the headphones.
3. Hit PLAY on your device and crank it up — or down if you're lame.

You'll have to play and pause the music from your device, not your headphones. No problem. You're there anyway, right?

Note: If you want to return to Bluetooth mode, you will have to remove the aux cord and turn the headphones on again.

Illustration of headphones and a digital audio device with a USB cable (no text or symbols)

COMING CLEAN

A soft, dry towel is all you need to clean off your headphones. Using water, harsh cleaners, or anything else only starts messing with the mechanics inside. So, yeah, don't do it.

LOOK MA, NO HANDS!

When friends call to interrupt your party of one — and you know they will — answer the phone without disconnecting from your JAM Transit Lite Headphones. Yes, that's right. Your headphones have hands-free calling, too. How amazing is that? Here's how it works:

1. Make sure your phone and headphones are connected through Bluetooth.
2. Answering and ending a call works the same way: simply click the PLAY/PAUSE button on your Transit Lite.
3. If you'd rather not talk, hold down the PLAY/PAUSE button on your Transit Lite for 1.5 seconds to ignore the call.

THE COOLEST PART: The Transit Lite knows when a call is coming in and pauses the music before ringing. When you hang up, the music starts where it left off—and so does the party. If it's you making the call, just start dialing from your phone, and the Transit Lite automatically does its hands-free thing. Isn't it refreshing to know your headphones totally get you?

Check out the chart below for a complete guide on handling calls with your Transit Lite.

Situation	Short Press Play/Pause Button Long Press Play/Pause Button
1^st Incoming call	Pick up callReject call
On call	End callMove call from headphones to device
2^nd Incoming call	Call 1 on hold, pick up call 2Reject call 2
Both calls active	Hang up call 1, switch to call 2 Switch between call 1 and call 2

1 YEAR LIMITED WARRANTY

For detailed warranty instructions and information visit: USA: www.jamaudio.com/customer-support/warranty-1yr CAN: canada.jamaudio.com/warranty-1yr

To obtain warranty service on your JAM product, contact a Consumer Relations representative by telephone or email for assistance (you can find their contact info on page 1). Please make sure to have the model number of the product available.

STUFF THE GOVERNMENT MAKES US SAY STUFF OUR LAWYERS MAKE US SAY

FCC Compliance:

Note: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Note: Changes or modifications not expressly approved by HMDX could void the user's authority to operate this equipment.

IC Caution: RSS-GEN Issue 4 December 2014

This device complies with Industry Canada's licence-exempt RSSs.

Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) This device must accept any interference, including interference that may cause undesired operation of the device.

IMPORTANT SAFEGUARDS:

When using an electrical product, basic precautions should always be followed, including the following:

READ ALL INSTRUCTIONS BEFORE USING

• WARNING: Listen responsibly. To avoid hearing damage, make sure the volume on your device is turned down before connecting headphones. After placing headphones on your ears, gradually turn up the volume until you reach a comfortable listening volume.
• Use this product only for its intended use as described in this manual. Do not use attachments not recommended by HMDX.

- HMDX is not liable for any damage caused to smartphones, iPod/MP3 players, or any other device.

- Do not place or store this product where it can fall or be dropped into a tub or sink.

- Do not place or drop into water or any other liquid.

- Not for use by children. THIS IS NOT A TOY.

- Never operate this product if it has a damaged cord, plug, cable, or housing.

- Keep away from heated surfaces.

- Only set on dry surfaces. Do not place on surface wet from water or cleaning solvents.

Attention California Residents:

WARNING: This product contains chemicals known to the State of California to cause cancer, birth defects, and other reproductive harm.

A MESSAGE FROM THE ENVIRONMENT

WARNING:

This product has an internal, non-replaceable lithium battery. Please dispose in accordance with your local, state, province, and country guidelines.

This product contains small parts that may present a choking hazard for young children.

CAUTION: All servicing of this product must be performed by authorized HMDX Service Personnel only.
