SB4020M-A0 - Soundbar VIZIO - Free user manual and instructions

Product Type	Soundbar
Brand	VIZIO
Model	SB4020M-A0
Dimensions (W x H x D)	40.0 x 3.0 x 3.0 inches
Weight	5.5 lbs
Power Supply	AC 100-240V, 50/60Hz
Power Consumption	30W (standby <0.5W)
Audio Channels	2.0
Total Output Power	40W
Frequency Response	60Hz – 20kHz
Connectivity	Bluetooth 4.1, Optical, 3.5mm Aux, USB
Remote Control	Included (IR)
Sound Modes	Movie, Music, News, Night
Mounting	Wall-mountable (brackets included)
Speaker Drivers	2 x 2.75" full-range
Enclosure Type	Sealed
Input Voltage	100-240V AC
Warranty	1 year limited
Maintenance	Clean with soft dry cloth; do not use liquids
Safety	Avoid moisture, ensure ventilation, do not open
Spare Parts	Remote, power cable, mounting hardware available via VIZIO support
Repairability	Non-user serviceable; contact VIZIO for service
General Information	Designed for TV enhancement; compatible with most TVs

Frequently Asked Questions - SB4020M-A0 VIZIO

How do I connect my VIZIO SB4020M-A0 to my TV?

Use either the optical digital audio cable (recommended) or the 3.5mm auxiliary cable to connect the soundbar to your TV's audio output. Ensure the soundbar is set to the correct input source.

How do I pair my phone via Bluetooth?

Press the Bluetooth button on the remote or soundbar to enter pairing mode. On your phone, enable Bluetooth and select 'VIZIO SB4020M' from the list. The soundbar will confirm pairing.

Why is there no sound from the soundbar?

Check that the soundbar is powered on and the correct input is selected. Ensure the TV audio output is set to 'external speakers' or 'optical' in the TV settings. Also verify the volume is not muted.

Can I wall mount the soundbar?

Yes, the SB4020M-A0 includes wall-mount brackets. Attach the brackets to the soundbar, mark the screw positions on the wall, drill holes, and secure the brackets. Use appropriate anchors for your wall type.

How do I reset the soundbar to factory settings?

With the soundbar on, press and hold the Bluetooth and Volume Down buttons simultaneously for 5 seconds. The soundbar will power off and reset.

What do the sound modes do?

Movie mode enhances dialogue and effects; Music mode provides balanced sound; News mode clarifies voices; Night mode reduces loud noises for quiet listening.

How do I clean my soundbar?

Unplug the soundbar and use a soft, dry cloth to wipe the surface. Do not use any liquids or abrasive cleaners, as they may damage the finish.

Can I use a USB drive to play music?

Yes, insert a USB flash drive with MP3 files into the USB port on the soundbar. Use the remote to select USB input and navigate tracks.

What should I do if the remote control stops working?

First, replace the CR2025 battery in the remote. Ensure there are no obstructions between the remote and the soundbar. If still not working, contact VIZIO support for a replacement.

Is the VIZIO SB4020M-A0 compatible with Dolby Atmos?

No, the SB4020M-A0 is a 2.0 channel soundbar and does not support Dolby Atmos. It delivers standard stereo sound with simulated surround effects.

USER MANUAL SB4020M-A0 VIZIO

QUICK START GUIDE

Model: SB4020M-B0

IMPORTANT SAFETY INSTRUCTIONS

Your Sound Bar is designed and manufactured to operate within defined design limits, and misuse may result in electric shock or fire. To prevent your Sound Bar from being damaged, the following rules should be observed for its Installation, use, and maintenance. Please read the following safety instructions before operating your Sound Bar. Keep these instructions in a safe place for future reference.

• To reduce the risk of electric shock or component damage, switch off the power before connecting other components to your Sound Bar.
- Unplug the power cord before cleaning your Sound Bar. A damp cloth is sufficient for cleaning. Do not use a liquid or a spray cleaner on your Sound Bar. Do not use abrasive cleaners.
• Always use the accessories recommended by the manufacturer to insure compatibility.
- When moving your Sound Bar from an area of low temperature to an area of high temperature condensation may form in the housing. Wait before turning on your Sound Bar to avoid causing fire, electric shock, or component damage.
- A distance of at least 3 feet should be maintained between your Sound Bar and any heat source, such as a radiator, heater, oven, amplifier etc. Do not install your Sound Bar close to smoke. Operating your Sound Bar close to smoke or moisture may cause fire or electric shock.
- Slots and openings in the back and bottom of the cabinet are provided for ventilation. To ensure reliable operation of your Sound Bar and to protect it from overhealing, be sure these openings are not blocked or covered. Do not place your Sound Bar in a bookcase or cabinet unless proper ventilation is provided.
- Never push any object into the slots and openings on your Sound Bar enclosure. Do not place any objects on the top of your Sound Bar. Doing so could short circuit parts causing a fire or electric shock. Never spill liquids on your Sound Bar.
- Your Sound Bar should be operated only from the type of power source indicated on the label on the AC/DC Adapters. If you are not sure of the type of power supplied to your home, consult your dealer or local power company.
- Only power of the marked voltage can be used for your Sound Bar. Any other voltage than specified voltage may cause fire or electric shock
- The power cord must be replaced when using different voltage than the voltage specified. For more information, contact your dealer.
- Your Sound Bar AC/DC Adapters are equipped with a three-pronged grounded plug (a plug with a third grounding pin). This plug will fit only into a grounded power outlet. This is a safety feature. If your outlet does not accommodate the three-pronged, have an electrician install the correct outlet, or use an adapter to ground your Sound Bar safely.
- Do not defeat the safety purpose of the grounded plug.
- When connected to a power outlet, power is always flowing into your Sound Bar. To totally disconnect power, unplug the power cord.

- The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of unisolated, dangerous voltage within your Sound Bar that may be of sufficient magnitude to constitute a risk of electric shock to persons.

• The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and servicing instructions in the literature accompanying your Sound Bar.
• Do not overload power strips and extension cords. Overloading can result in fire or electric shock.
• The wall socket should be located near your Sound Bar and be easily accessible

• Do not touch the power cord during lightning. To avoid electric shock, avoid handling the power cord during electrical storms.
• Unplug your Sound Bar during a lightning storm or when it will not be used for long periods of time. This will protect your Sound Bar from damage due to power surges.
• Do not attempt to repair or service Sound Bar yourself. Opening or removing the front cover may expose you to high voltages, electric shock, and other hazards. If repair is required, contact your dealer and refer all servicing to qualified service personnel.
• Keep your Sound Bar away from moisture. Do not expose your Sound Bar to rain or moisture. If water penetrates into your Sound Bar, unplug the power cord and contact your dealer. Continuous use in this case may result in fire or electric shock.
• Do not use your Sound Bar if any abnormality occurs. If any smoke or odor becomes apparent, unplug the power cord and contact your dealer immediately. Do not try to repair your Sound Bar yourself.
• Avoid using dropped or damaged appliances. If your Sound Bar is dropped and the housing is damaged, the internal components may function abnormally. Unplug the power cord immediately and contact your dealer for repair. Continued use of your Sound Bar may cause fire or electric shock.
• Do not install your Sound Bar in an area with heavy dust or high humidity. Operating your Sound Bar in environments with heavy dust or high humidity may cause fire or electric shock.
• Ensure that the power cord and any other cables are unplugged before moving your Sound Bar.
• When unplugging your Sound Bar, hold the power plug, not the cord. Pulling on the power cord may damage the wires inside the cord and cause fire or electric shock. When your Sound Bar will not be used for an extended period of time, unplug the power cord.
  • To reduce risk of electric shock, do not touch the connector with wet hands.
• Insert the remote control battery in accordance with instructions. Incorrect polarity may cause the battery to leak which can damage the remote control or injure the operator.

• If any of the following occurs, contact the dealer:

• The power cord fails or frays
• Liquid sprays or any object drops into your Sound Bar
• Sound Bar is exposed to rain or other moisture
• Sound Bar is dropped or damaged in any way
• The performance of your Sound Bar changes

substantially

WARNING

DO NOT INGEST BATTERY, CHEMICAL BURN HAZARD

The remote control supplied with this product contains a coin/button cell battery. If the coin/button cell battery. If the coin/button cell battery is swallowed, it can cause severe internal burns in just two (2) hours and can lead to death.

Keep new and used batteries away from children. If the battery compartment does not close securely, stop using the product and keep it away from children.

If you think batteries might have been swallowed or placed inside any part of the body, seek Immediate medical attention.

A warning that batteries (battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, fire, or the like.

PACKAGE CONTENTS

High Definition Sound Bar

Power Adapter w/Cable

Optical Cable

This Quick Start Guide

Wall Mount Template

Remote Control with Battery

Wall Mount Brackets (2)

Stereo RCA to 3.5mm Audio Cable

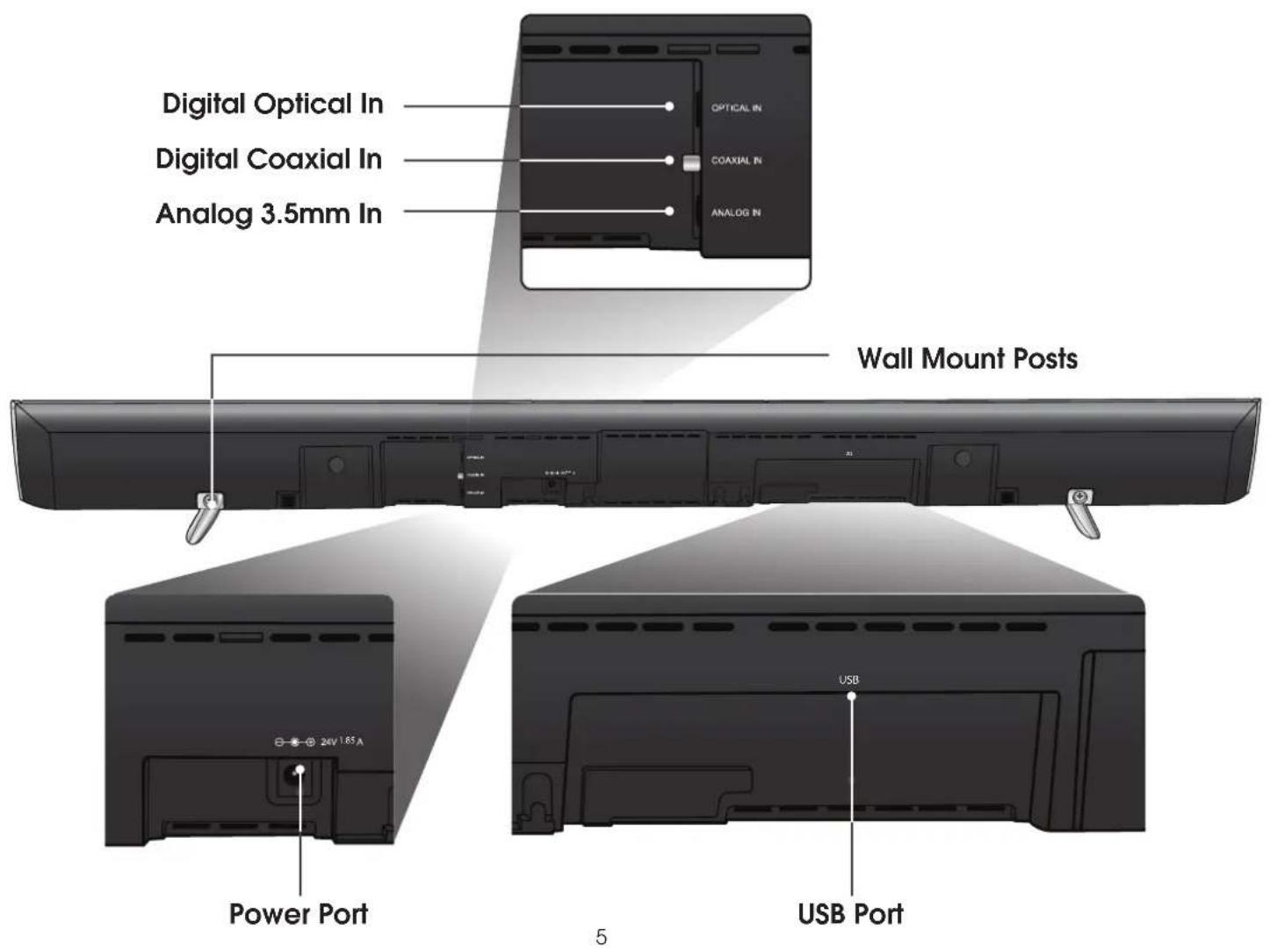

CONTROLS & CONNECTIONS

Connect the Sound Bar to your TV using one of the connection types to the left. Choose the best possible connection type.

Be sure the TV port is an audio output, not an audio input.

*Not Included

6

Gently pull the plastic tab from the back of the remote control. (The plastic tab can be thrown away)

7

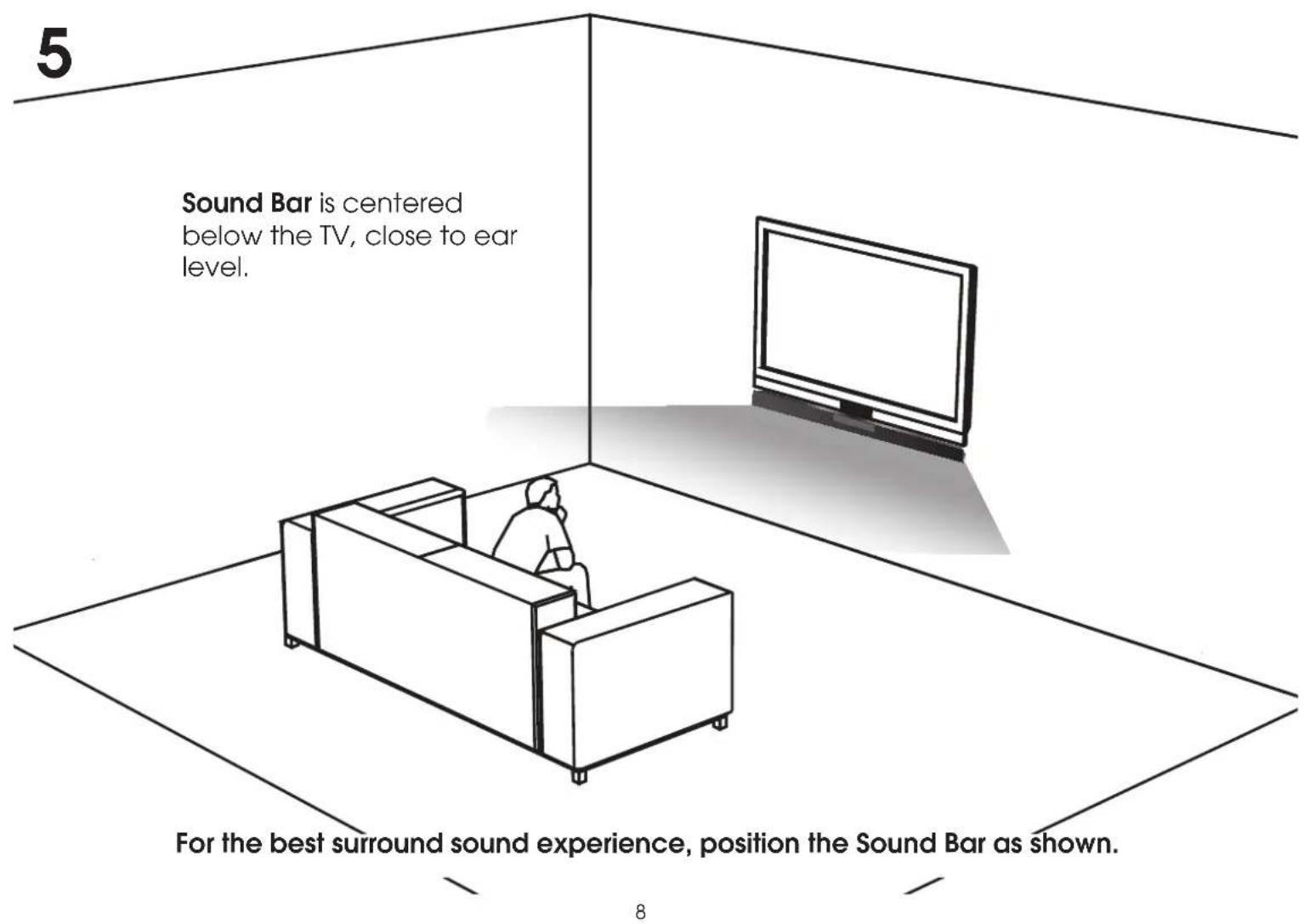

Turn your TV on, then press the Power button on the remote to turn the Sound Bar on.

Press the Input button to switch between audio sources. For example, if you connected your TV to Input 1, set the Sound Bar to Input 1.

Setup is complete.

USING THE REMOTE

Power

Press to turn on or off.

Volume Up

Press to increase overall system volume.

Rewind/Previous

Press and hold to rewind. Press to go to last track.

Volume Down

Press to decrease overall system volume.

Input

Press to output audio from the selected device port. Press repeatedly to cycle through available inputs.

Play/Pause

Press to play or pause track.

Fast Forward/Next

Press and hold to fast forward. Press to advance to next track.

Mute

Press to turn the sound on or off.

Menu

Press to display menu options.

SRS TruVolume

When on, SRS TruVolume intelligently normalizes volume fluctuations due to television commercials or channel changes.

SRS TruSurround HD

When on, SRS TruSurround HD delivers enveloping, immersive surround sound, making every seat in the room the "sweet spot".

EXTENDED FUNCTIONS USING BUTTON COMBINATIONS

Mute/Unmute = Volume Up + Volume Down

Press and hold both buttons for 1 second to mute/unmute your Sound Bar.

Factory Reset = Power + Volume Up + Volume Down

Press and hold all 3 buttons for 10 seconds to return your Sound Bar to its factory default settings.

THE SOUND BAR INFO DISPLAY

Volume - Increase or decrease volume

Bass Level - Increase or decrease bass level

Treble Level - Increase or decrease treble level

SRS TruVolume - Toggle SRS TruVolume on or off

SRS TruSurround - Toggle SRS TruSurround on or off

Brightness Level - Increase or decrease brightness level

To conserve energy, after displaying a message for several seconds, the Info Display automatically shuts off.

WALL MOUNTING THE SOUND BAR

1

Use a phillips-head screwdriver to remove the screws from the Sound Bar stands. Reinsert the screws for safekeeping. Save the stands for future use.

2

Place the included wall mounting template against the wall under your TV. Mark the locations of the 4 bracket holes using a pencil.

The screws and anchors depicted are not included. The appropriate screws and anchors will depend on the material of your wall. Be sure that the screws and/or anchors you use are securely fastened and can support the weight of the Sound Bar.

Attach the brackets to the wall as shown. Gently hang the Sound Bar on the brackets using the wall mount posts on the back of the Bar.

4 Use the cable management hooks to route your audio cables to your TV.

REPLACING THE REMOTE BATTERY

1

Insert a flat-head screwdriver into the slot as shown. Gently push down on the tab, then press and pull downward on the battery cover to open.

2

When replacing an old battery with a new CR2032, be sure that the + sign on the battery is facing up. Push the battery cover until it clicks back into place.

PROGRAMMING YOUR UNIVERSAL REMOTE

Many universal remote controls can be programmed to control your Sound Bar.

As each universal remote works differently, you should refer to your remote's user manual for instructions on programming.

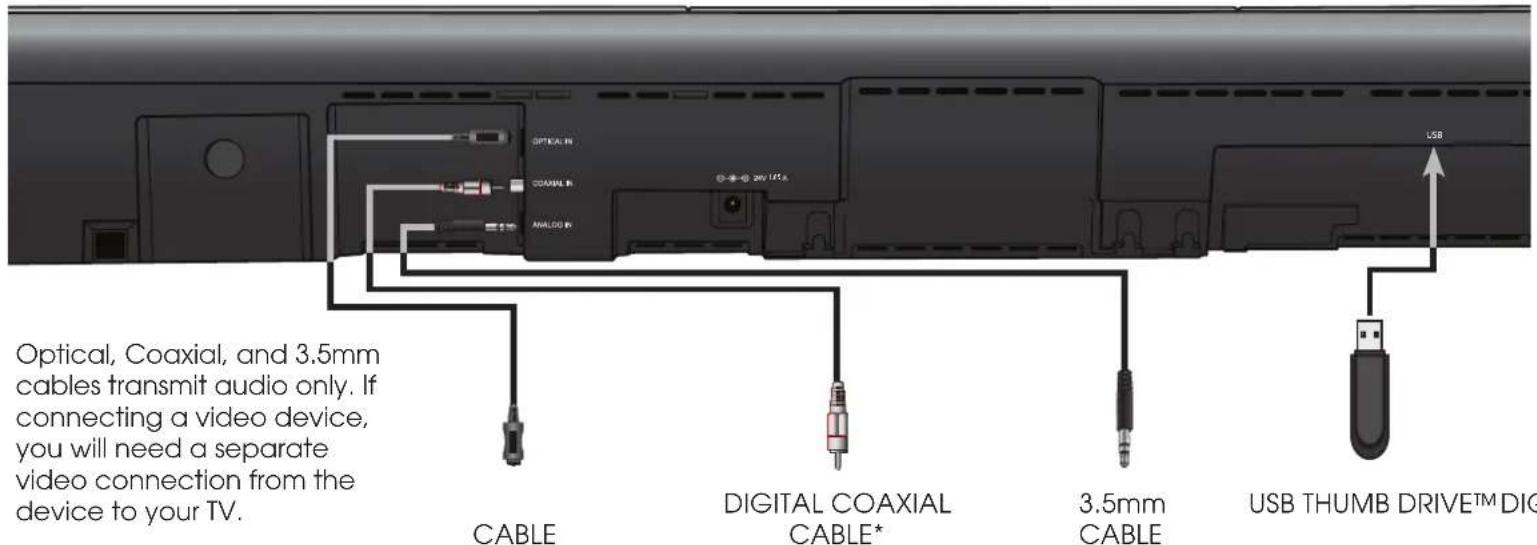

CONNECTING ADDITIONAL DEVICES

Connect up to four different devices to the Sound Bar (devices shown are examples-you can use any device). To listen to a device, change the input source on the Sound Bar.

Game Console Tablet/MP3 PlayNetApp Media Player

*Not Included

HELP & TROUBLESHOOTING

All VIZIO products include FREE lifetime technical support.

The VIZIO support team is highly trained and is based in the United States.

We can help with:

• Product Setup
  • Technical Problems
  • Warranty Questions
• And More

Hours of operation:

Monday - Friday: 5 AM TO 9 PM (PST)

Saturday - Sunday: 8 AM TO 4 PM (PST)

Phone: [phone] (TOLL-FREE)

Email: [e-mail]

Web: www.VIZIO.com/support

There is no power.

• Press the POWER button on the remote control or on the top of your Sound Bar.
• Ensure the power cord is securely connected.
• Ensure the light on the power adapter is glowing green.
• Plug a different device into the electrical outlet to verify that the outlet is working correctly.

There is no sound.

• Increase the volume. Press Volume Up on the remote control or on the top of your Sound Bar.
• Press MUTE on the remote to ensure the Sound Bar is not muted.
• Press INPUT on the remote or on the top of your Sound Bar to select a different input source.
• If you are using a SPDIF/Optical connection, make sure your TV is set to PCM audio output.
• Your TV may be set to variable audio output. Confirm that the audio output setting is set to FIXED or STANDARD, not VARIABLE. Consult your TV's user manual for more detailed information.
• If using Bluetooth, ensure that the volume on your source device is turned up and that the device is not muted.
• If using Bluetooth, ensure that your source device is paired with the Sound Bar.

I hear buzzing or humming.

• Ensure all cables and wires are securely connected.
• Connect a different source device (TV, Blu-ray player, etc) to see if the buzzing persists. If it does not, the problem may be with the original device.
• Connect your device to a different input on the Sound Bar.

The remote isn't working.	Make sure the plastic tab has been removed from the battery compartment.Replace the remote battery with a new one.Point the remote directly at the Sound Bar when pressing a button.If using a Bluetooth connection, some of the buttons on the remote may not be supported by the streaming application. (e.g., a music streaming app may not support the Back/Fast Rewind button.)
How do I listen to SRS TruSurround or Dolby Digital?	To activate SRS TSHD, press the Menu button on the remote and use the arrow keys to scroll to the TSHD screen to toggle between on and off.To listen to Dolby Digital, your device must be playing content in Dolby Digital format. Dolby Digital is only available over Digital Coaxial or Digital Optical.
When should I use Night Mode or SRS TruVolumeTM?	Night mode reduces bass output of the Sound Bar so that listening to the bar is less likely to disturb others. SRS TruVolumeTM reduces high volume content like commercials and increases low volume content, like dialog, so that you have a more uniform listening experience. Night Mode and SRS TruVolume can be turned on independently or together. To listen to Dolby Digital, your device must be playing content in Dolby Digital format. Dolby Digital is only available over Digital Coaxial or Digital Optical.
I would like to adjust the sound on the Sound Bar.	Adjust the bass and trebel levels using the remoteTry enabling/disabling SRS TruSurround.Disable Night Mode if bass level is too low by pressing the Menu button on the remote and adjusting the settings.
I want to return my Sound Bar to factory settings.	Press and hold the Power, Volume Up, and Volume Down buttons for 10 seconds to return your Sound Bar to its factory default settings.

ONE-YEAR LIMITED WARRANTY

ON PARTS AND LABOR

Covers units purchased as new in United States and Puerto Rico Only

VIZIO provides a warranty to the original purchaser of a new Product against defects in materials and workmanship for a period of one year of non-commercial usage and ninety (90) days of commercial use. If a Product covered by this warranty is determined to be defective within the warranty period, VIZIO will either repair or replace the Product at its sole option and discretion.

To obtain warranty service, contact VIZIO Technical Support via email: [e-mail] or via phone at 877 MY VIZIO (877.698.4946) from 5:00AM to 9:00PM Monday through Friday and 8:00AM to 4:00PM Saturday and Sunday. Pacific Time, or visit www.VIZIO.com. PRE-AUTHORIZATION MUST BE OBTAINED BEFORE SENDING ANY PRODUCT TO A VIZIO SERVICE CENTER. Proof of purchase in the form of a purchase receipt or copy thereof is required to show that a Product is within the warranty period.

Parts and Labor

There will be no charge for parts or labor during the warranty period. Replacement parts and Products may be new or recertified at VIZIO's option and sole discretion. Replacement parts and Products are warranted for the remaining portion of the original warranty or for ninety (90) days from warranty service or replacement, whichever is greater.

Type of Service

Defective Products must be sent to a VIZIO service center to obtain warranty service. VIZIO is not responsible for transportation costs to the service center, but VIZIO will cover return shipping to the customer. PRE-AUTHORIZATION IS REQUIRED BEFORE SENDING ANY PRODUCT TO A VIZIO SERVICE CENTER FOR WARRANTY SERVICE.

Product returns to VIZIO's service centers must utilize either the original carton box and shipping material or packaging that affords an equal degree of protection. VIZIO Technical Support will provide instructions for packing and shipping the covered Product to the VIZIO service center.

Limitations and Exclusions

VIZIO's one-year limited warranty only covers defects in materials and workmanship. This warranty does not cover, for example: cosmetic damage, normal wear and tear, improper operation, improper voltage supply or power surges, signal issues, damages from shipping, acts of God, any type of customer misuse, modifications or adjustments, as well as installation and set-up issues or any repairs attempted by anyone other than by a VIZIO authorized service center. Products with unreadable or removed serial numbers, or requiring routine maintenance are not covered. This one year limited warranty does not cover Products sold "AS IS", "FACTORY RECERTIFIED", or by a non-authorized reseller.

THERE ARE NO EXPRESS WARRANTIES OTHER THAN THOSE LISTED OR DESCRIBED ABOVE. ANY IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, SHALL BE LIMITED IN DURATION TO THE PERIOD OF TIME SET FORTH ABOVE. VIZIO'S TOTAL LIABILITY FOR ANY AND ALL LOSSES AND DAMAGES RESULTING FROM ANY CAUSE WHATSOEVER INCLUDING VIZIO'S NEGLIGENCE, ALLEGED DAMAGE, OR DEFECTIVE GOODS, WHETHER SUCH DEFECTS ARE DISCOVERABLE OR LATENT, SHALL IN NO EVENT EXCEED THE PURCHASE PRICE OF THE PRODUCT. VIZIO SHALL NOT BE RESPONSIBLE FOR LOSS OF USE, LOSS OF INFORMATION OR DATA, COMMERCIAL LOSS. LOST REVENUE OR LOST PROFITS, OR OTHER INCIDENTAL OR CONSEQUENTIAL DAMAGES. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS OR THE EXCLUSION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS, WHICH VARY FROM STATE TO STATE. THIS WARRANTY IS SUBJECT TO CHANGE WITHOUT NOTICE. CHECK www.VIZIO.com FOR THE MOST CURRENT VERSION.

SPECIFICATIONS

Sound Bar: Two 3" Drivers

Inputs: 1 x 3.5mm Stereo Audio

1 x RCA Stereo Audio

1 x Optical (Toslink)

1 x USB (for MP3 Playback)

1 x RCA Subwoofer Out

Sound Pressure Level: 95 dB

Frequency Response (Sound Bar): 90Hz-20kHz

Voltage: 100-240 VAC, 50-60 Hz

Compliances: FCC, NOM, cULus

Outputs: 1 x RCA Subwoofer Out

LEGAL & COMPLIANCE

FCC Class B Radio Interference Statement

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

1. Reorient or relocate the receiving antenna.
2. Increase the separation between the equipment and receiver.
3. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
4. Consult the dealer or an experienced radio/TV technician for help.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Notice:

1. The changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
2. Shielded interface cables and AC power cord, if any, must be used in order to comply with the emission limits.
3. The manufacturer is not responsible for any radio or TV interference caused by unauthorized modification to this equipment. It is the responsibilities of the user to correct such interference.

RF Exposure Information

This device meets the government's requirements for exposure to radio waves. This device is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission of the U.S. Government. This device complies with FCC radiation exposure limits set forth for an uncontrolled environment.

IC Statement

Operation is subject to the following two conditions:

1. This device may not cause interference, and
2. This device must accept any interference, including interference that may cause undesired operation of the device.

This Class B digital apparatus complies with Canadian ICES-003.

This equipment complies with IC RSS-102 radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.

Disposal and Recycling

You must dispose of this product properly, according to local laws and regulations. Because this product contains electronic components and a battery, it must be disposed of separately from household waste. Contact local authorities to learn about disposal and recycling options.

Other:

Image(s) used under license from Shutterstock.com

SRS and SRS are trademarks of SRS Labs, Inc. TruSurround HD and TruVolume technologies are incorporated under license from SRS Labs, Inc.

This product qualifies for ENERGY STAR in the "factory default" setting and this is the setting in which power savings will be achieved. Changing the factory default settings or enabling other features will increase power consumption that could exceed the limits necessary to qualify for ENERGY STAR rating.

© 2013 VIZIO INC. ALL RIGHTS RESERVED. 130205CH-NC
