002-368 - Vacuum Cleaner Meec Tools - Free user manual and instructions

Product Type	Canister Vacuum Cleaner
Model	002-368
Brand	Meec Tools
Dimensions (L x W x H)	30 x 25 x 25 cm (main unit)
Weight	4.5 kg
Power Supply	220-240 V, 50/60 Hz, 1200 W
Dust Capacity	2.0 L (bag)
Filtration System	Washable HEPA filter
Suction Power	250 AW (max)
Noise Level	75 dB(A)
Cord Length	7 m
Cleaning Radius	9 m
Included Accessories	Crevice nozzle, upholstery brush, floor brush
Bag Indicator	Yes, full bag indicator
Cord Rewind	Yes, automatic
Variable Power Control	Yes, electronic slide
Maintenance	Replace dust bag when full; clean HEPA filter every 3 months
Safety Features	Thermal overload protection, unplug before maintenance
Replacement Parts	Dust bags (type B-002), HEPA filter (F-368) available
Reparability	User-replaceable bag and filter; motor service by qualified technician
Warranty	2 years

Frequently Asked Questions - 002-368 Meec Tools

How do I change the dust bag?

Open the main compartment lid, remove the full bag by pulling the cardboard tab. Insert a new dust bag (type B-002) until it clicks. Close the lid securely.

What type of filter does the 002-368 use?

It uses a washable HEPA filter (model F-368). Rinse under water every 3 months and let dry completely before reinstalling.

Can I vacuum liquids with this vacuum?

No, this is a dry vacuum cleaner only. Using it on liquids can damage the motor and void the warranty.

How often should I clean or replace the filter?

Clean the HEPA filter every 3 months. Replace it every 12 months or if damaged. The dust bag should be replaced when the indicator turns red.

What is the power consumption of the vacuum?

The rated power is 1200 W at 220-240 V. Actual consumption varies with suction setting.

Where can I buy replacement dust bags and filters?

Replacement parts are available at Meec Tools retailers, online through the official website, or via third-party marketplaces. Search for B-002 dust bags and F-368 HEPA filters.

Is the Meec Tools 002-368 suitable for pet hair?

Yes, the included upholstery brush and strong suction work well on pet hair. However, hair may wrap around the brush; clean it regularly.

How do I unclog the hose?

First, disconnect the hose from the vacuum. Use a long object like a broom handle to dislodge the blockage gently. Avoid sharp tools that may puncture the hose.

Does the vacuum have an automatic cord rewind?

Yes, press the cord rewind button located on the top of the unit. Hold the plug while retracting to avoid whip.

How should I store the vacuum cleaner?

Wind the cord loosely around the hooks, attach the hose to the rear clip, and stand the unit upright in a dry, cool place away from direct sunlight.

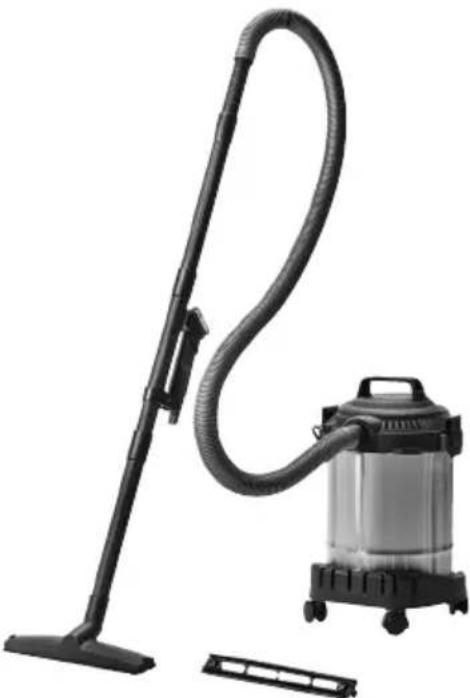

USER MANUAL 002-368 Meec Tools

002-368

Black vacuum cleaner with coiled hose and filter unit (no text or symbols visible)

SE GROVDAMMSUGARE

Operating instructions (Translation of the original instructions) Important! Read the user instructions carefully before use. Save them for future reference.

Värna om miljön!

Care for the environment!

Must not be discarded with household waste! This product contains electrical or electronic components that should be recycled. Leave the product for recycling at the designated station e.g. the local authority's recycling station.

Jula reserves the right to make changes. In the event of problems, please contact our service department.

www.jula.com

Tillverkare/ Produsent/ Produenci/ Manufacturer

Jula AB, Box 363, 532 24 SKARA

Distributör/ Distributør/ Dystrybutor/ Distributor

Jula Poland Sp. z o.o., ul.

2

Technical line drawing of a cylindrical mechanical component with mounting flange and directional arrows indicating movement (no text or symbols)

Line drawing of a vacuum cleaner with a stand and power cord (no text or symbols)

Technical line drawing of two mechanical components, one cylindrical and one flanged, with no visible text or symbols.

SÄKERHETSANVISNINGAR

• Always take basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock and/or personal injury.
• Do not use the appliance outdoors.
• Never leave the appliance unattended when the plug is plugged in. Unplug the plug before cleaning and/or maintenance, and when the appliance is not in use.
• The appliance must only be used as it is intended to be used and in accordance with these instructions. Only use accessories recommended by the manufacturer.
• Do not use the appliance if the power cord or plug are damaged.
• A damaged power cord or plug must be replaced by an authorised service centre or qualified person to ensure safe use.
• Do not carry or pull the appliance by the power cord.

Keep the power cord away from heat, oil and sharp edges. Do not run over the power cord.

• If using an extension cord, the conductor cross section must be dimensioned for the power supply to the device.
• Turn all controls to the off position before unplugging.
• Do not pull the power cord to unplug the plug.
• Do not touch the power cord, plug or appliance with wet hands. Do not use the appliance barefoot.
• Never insert any objects or body parts in the equipment's openings. Keep the ventilation openings clean.
• The appliance produces a suction effect and has a rotating brush. Keep hair, clothes, hands and the rest of your body away from the moving parts.

• Do not use the machine to vacuum up burning or glowing objects, such as cigarettes or hot ash.

• Do not use the appliance without the dust container and filter.

• Be careful when vacuum cleaning stairs.
• Do not use the appliance to clean up flammable liquids or use in the vicinity of such liquids.
  • Store in cool, dry place indoors.
• Always turn off the appliance for at least 1 minute after 15 minutes of use, to allow the motor to cool. Otherwise the motor can be damaged.
• Do not use the appliance for more than 4 hours, including breaks, during a day.
• The appliance can be used to suck up water from the floor and the like, however, do not attempt to suck large amounts of water and do not use the appliance in the bath, shower, sink or swimming pool.

• Unplug the plug before cleaning and/or maintenance, and when the appliance is not in use.

• The enclosure class IP24 is guaranteed only if a connector with IP24 is inserted in the connection for power tools, or if the cover above the connection is closed.

• This appliance can be used by children from eight years and upwards and by persons with physical, sensorial or mental disabilities, or persons who lack experience or knowledge, if they are supervised or receive instructions concerning the safe use of the appliance and understand the risks involved with its use. Do not allow children to play with the appliance. Cleaning and maintenance must not be carried out by children unless they are more than eight years old, and are kept under supervision.
• Keep the appliance and its power cord out of the reach of children under eight years of age.

TECHNICAL DATA

Voltage 230 V

Output 800 W

Volume 12 |

Noise level 85 dB

Cord length 5 m

DESCRIPTION

1. Floor nozzle

2. Extension tube

3. Handle

4. Hose

5. Power switch

6. Carry handle

7. Latch

8. Nozzle storage

9. Wheel

10. Dustbin

11. Hose connection

FIG. 1

ACCESSORIES

1. Radiator nozzle for vacuuming in corners and crevices

2. Brush nozzle - for vacuuming furniture, curtains, etc

3. Floor nozzle - for vacuuming mats

4. Floor nozzle - for vacuuming hard floors and for sucking up water

FIG. 2

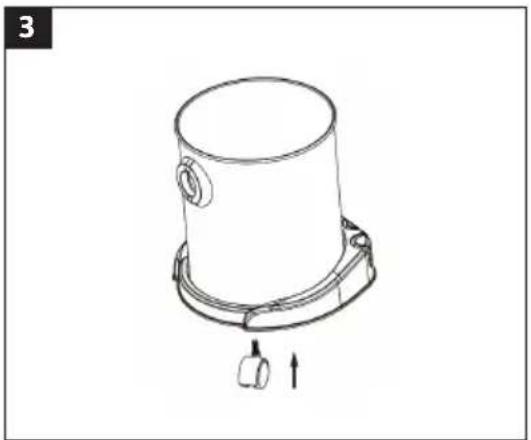

ASSEMBLY

1. Press out the top edge of the latches and lift off the container lid.

2. Insert the container's castors in each hole.

FIG. 3

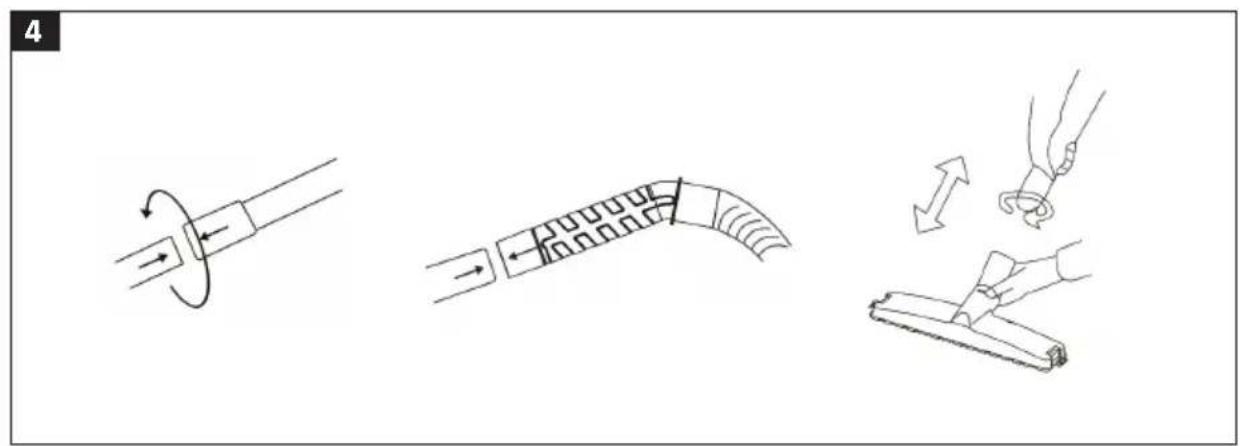

1. Insert and turn the handle in the extension tube.

2. Connect an appropriate nozzle.

FIG. 4

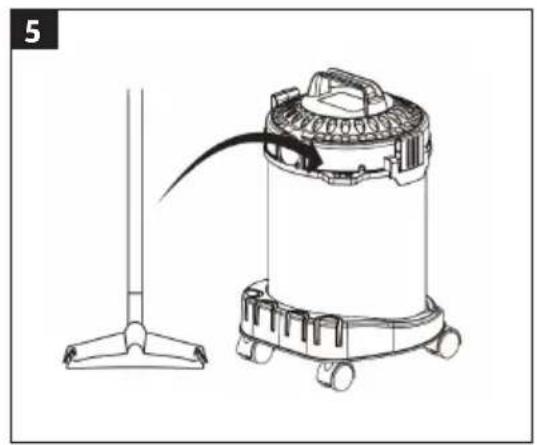

1. After use, store the accessories on the back of the vacuum cleaner.

FIG. 5

USE

NOTE:

Never use the vacuum cleaner without a HEPA filter.

1. Connect the vacuum cleaner plug to an earthed power outlet.

2. Press the power switch to I to start.

3. Press the power switch to 0 to switch off.

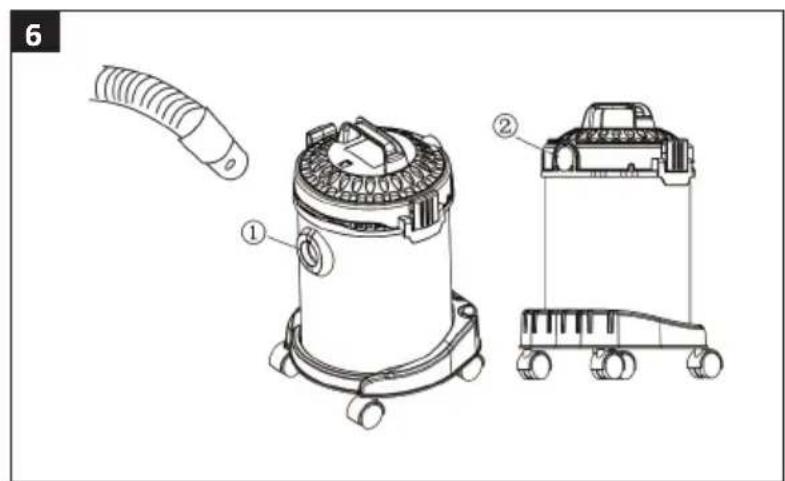

HOSE CONNECTION

1. Connect the hose to the outlet 1 for vacuuming.

2. Connect the hose to outlet 2 for blowing.

FIG. 6

MAINTENANCE

• Wipe off the vacuum cleaner with a slightly damp cloth.
• Clean the dust compartment with a dry duster/brush.

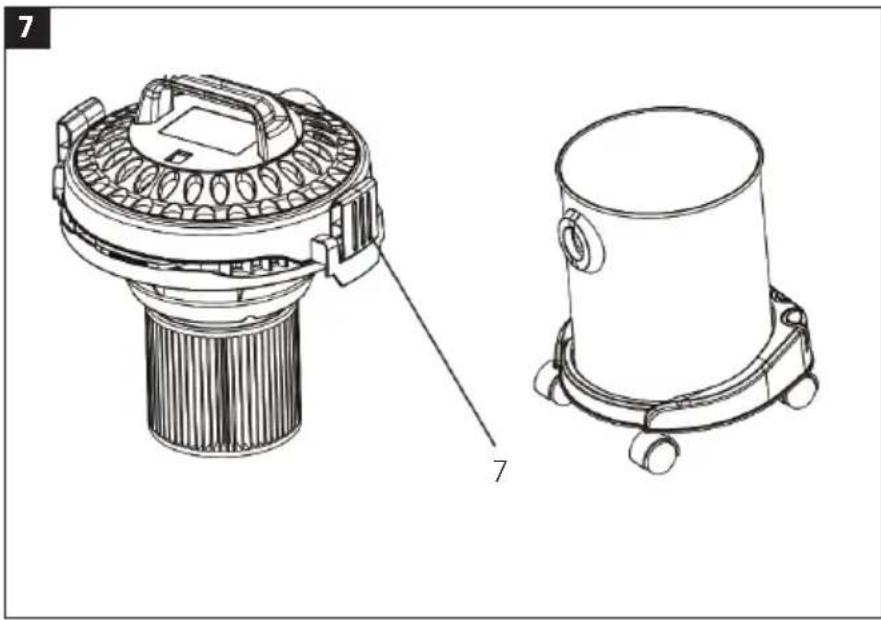

EMPTY THE DUST CONTAINER.

Empty the dust container when you have finished.

1. Press out the top edge of the latches and lift off the container lid.

2. Empty the container and refit the cover.

FIG. 7

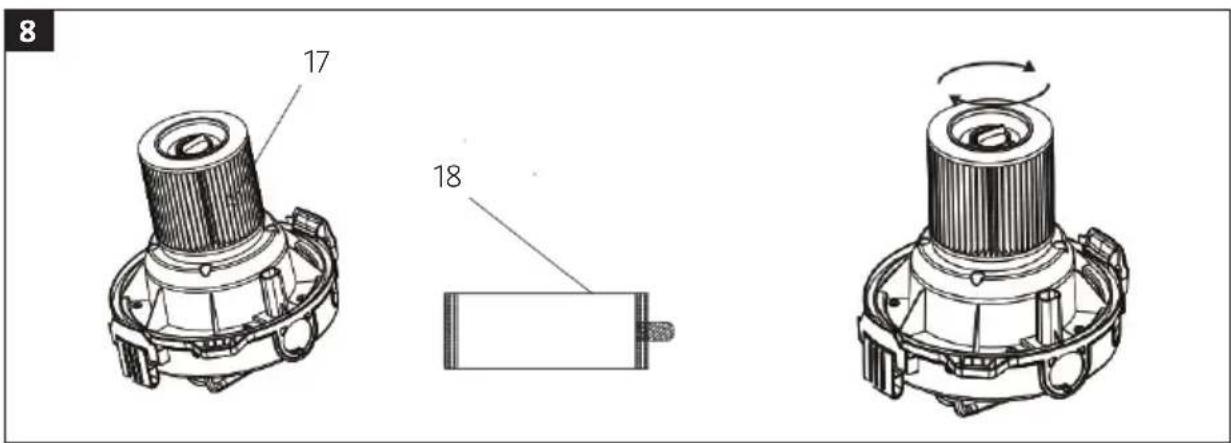

CLEANING THE FILTER

Clean the filter when it is covered with dust or when the suction performance deteriorates, it makes the vacuum cleaner work better and last longer.

1. Loosen and remove the net around the HEPA-filter.
2. Turn the locking screw anticlockwise and remove the filter.
3. Clean the filter carefully and allow to air dry.
4. Refit the filter and net.
5. Net
6. HEPA filter

FIG. 8
