Product Type	Wet and Dry Vacuum Cleaner
Brand	Meec Tools
Model	007-900
Power Consumption	1200 W
Rated Voltage	230 V
Container Volume	25 L
Dimensions (L x W x H)	34 x 54.5 x 32 cm
Weight	6.5 kg
Hose Length	1.8 m
Power Cord Length	5 m
Air Flow	2 m³/min
Noise Level	78 dB
Suction Type	Wet and dry
Blower Function	Yes
Filter Types	Cloth filter (nonwoven), foam rubber filter, washable HEPA filter
Accessories Included	Floor nozzle, brush nozzle, radiator nozzle, telescopic tube, handle
Mains Outlet	Yes (for external equipment)
Drain Opening	Yes
Automatic Shut-off on Tilt	Yes
Safety Certifications	Approved in accordance with relevant directives
Recommended Accessories	Filter 009649, HEPA filter 009647
Intended Use	Indoor use only
Material	Stainless steel container, plastic parts
Cleaning Instructions	Wipe with damp cloth; filters washable in water under 40°C

Frequently Asked Questions - 007-900 Meec Tools

What is the power consumption of the Meec Tools 007-900 vacuum cleaner?

The power consumption is 1200 W.

Can the vacuum cleaner be used for wet cleaning?

Yes, it is designed for wet and dry vacuum cleaning. For wet cleaning, move the hose to the intake opening, replace the blower connection with the cover, and use the floor nozzle. The motor runs at full speed when the water tank is full.

How do I clean the filters?

The cloth filter bag and HEPA filter can be washed by hand with warm water (max 40°C) and mild detergent. Allow them to dry completely before reinstalling. Do not use hot water.

What safety features does this vacuum cleaner have?

It has an automatic shut-off if tilted or tipped over, to prevent water from entering the motor. Also, it has a waterproof power switch and overload protection. Always unplug before cleaning or maintenance.

Can I use the blower function?

Yes, you can use the blower function by replacing the cover with the blower connection and moving the hose to the blower connection. Attach the radiator nozzle, telescopic tube, or handle as needed.

What is the noise level?

The noise level is 78 dB.

What is the container volume?

The stainless steel container has a volume of 25 L.

What accessories are included?

The vacuum cleaner includes a floor nozzle, brush nozzle, radiator nozzle, telescopic tube, and handle. Additional accessories like filter 009649 and HEPA filter 009647 are available separately.

How long is the power cord?

The power cord is 5 m long.

Can I use it outdoors?

No, the vacuum cleaner is intended for indoor use only.

USER MANUAL 007-900 Meec Tools

Exterior view of a black and silver vacuum cleaner with coiled hose (no text or symbols visible)

OPERATING INSTRUKTIONS

2400 W HEAVY-DUTY VACUUM CLEANER 2400 W GROVST∅VSUGER

▲ Important! Read the user instructions carefully before use. Save them for future reference. (Translation of the original instructions)

BRUKSANVISNING

Care for the environment!

Must not be discarded with household waste! This product contains electrical or electronic components that should be recycled. Leave the product for recycling at the designated station e.g. the local authority's recycling station.

Jula reserves the right to make changes. In the event of problems, please contact our customer service.

www.jula.com

Tillverkare/ Produsent/ Producenci/ Manufacturer

Jula AB, Box 363, 532 24 SKARA

Distributör/ Distributör/ Dystrybutor/ Distributor

Jula Poland Sp. z o.o., ul.

For latest version of operating instructions, see www.jula.com

2019-08-26

© Jula AB

1

Technical illustration of a mechanical component with a cylindrical part inserted, showing no text or symbols.

Line drawing of a mop and clothesdot on a surface next to a cabinet (no text or symbols)

4

Line drawing of a hand holding a tool over an armchair (no text or symbols)

Mechanical assembly diagram showing a motor with a tool inserted, no visible text or symbols

Simple line drawing of a cylindrical pipe with a curved arrow indicating rotation (no text or symbols)

Line drawing of a camera module with lens and frame (no text or symbols)

Line drawing of a camera module with lens and frame (no text or symbols)

7

Technical line drawing of a mechanical device with a hand connecting a pipe to a housing (no text or symbols)

Hand holding a small black plastic component next to a stainless steel appliance (no visible text or symbols)

SÄKERHETSANVISNINGAR

- Read these instructions carefully before use. Failure to follow all the instructions and safety instructions can result in fire, electric shock, death, personal injury and/or material damage. Only use parts and accessories recommended by the manufacturer. Always check before use that no parts are damaged, missing or worn, and that all the safety devices are working properly.

• Check that the mains voltage corresponds to the rated voltage on the type plate.
• Do not use the product in an explosive environment, e.g. near flammable liquids, gas or dust.
• Do not block the air inlet – risk of overheating and material damage.

• Do not vacuum burning or hot objects, such as matches, cigarettes or ash, or inflammable, corrosive or explosive substances, vapour or liquid.

• Do not vacuum hard or sharp objects (such as coins, pieces of glass, nails etc.).

• Do not vacuum objects or substances that can block the filter, such as toner powder, plaster dust or graphite, it reduces the ventilation and can result in overheating and material damage.
• Do not use the product without the dust container and filter.
• Do not tilt the product, this can cause water to get into the motor and cause material damage.
• Switch off the product and pull out the plug after use and before cleaning, or repairs.
• Do not expose the product to direct sunlight, or heat – risk of damaging the plastic casing.
• Be careful with the hose. Do not pull the hose to move the product.

EN

• Keep the power cord away from heat, oil and sharp edges.
• Do not immerse the motor unit in water or any other liquid – risk of electric shock.
• Clean the product with a damp cloth and wipe dry.
• A damaged cord or plug must be replaced by an authorised service centre or qualified personnel to ensure safe use.
• Never poke any objects or parts of your body in the openings on the product. Keep the ventilation openings clean.
• Turn all controls to the off position before unplugging.
• Do not pull the power cord to pull out the plug.
• Never leave the product unattended when plugged in. Pull out the plug before cleaning and/or maintenance, and when the product is not in use.
• The product must only be used for its intended purpose

and in accordance with these instructions. Only use accessories recommended by the manufacturer.

• Do not use the appliance outdoors.
• Be careful when vacuum cleaning stairs.
• The product can be used to suck up water from the floor, but do not attempt to suck large amounts of water or use the product in the bath, shower, sink or swimming pool.
• This product can be used by children from eight years and upwards and by persons with physical, sensorial or mental disabilities, or persons who lack experience or knowledge, if they are supervised or receive instructions concerning the safe use of the product and understand the risks involved with its use. Do not allow children to play with the product. Cleaning and maintenance must not be carried out by children unless

they are more than eight years old, and are kept under supervision.

- Keep the product and its power cord out of the reach of children under eight years of age.

WARNING!

Do not attempt to use the product to pump liquid – risk of damaging the motor.

SYMBOLS

	Read the instructions.
	Recycle discarded product in accordance with local regulations.
	Approved in accordance with the relevant directives.

TECHNICAL DATA

Rated voltage 230 V
Output	1200 W
Volume	25 L
Size	34 x 54.5 x 32 cm
Weight	6.5 kg
Hose length	1.8 m
Cord length	5 m
Air flow	2 m^3/min
Noise level	78 dB

Accessories available at Julia that fit this product: Filter 009649

HEPA filter 009647

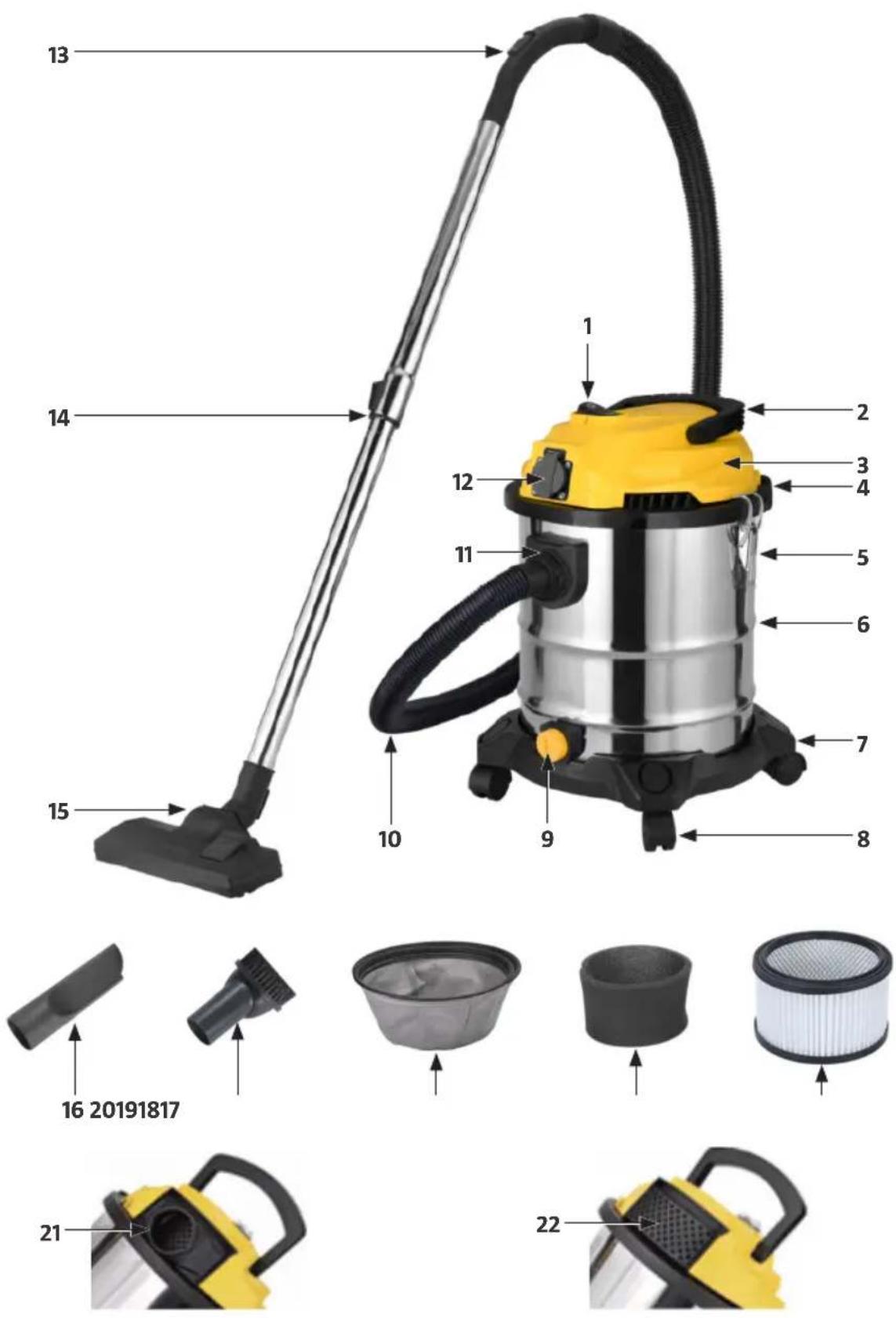

DESCRIPTION

1. Waterproof power switch

2. Handle

3. Top section

4. Motor unit

5. Lock device

6. Stainless steel container

7. Base

8. Universal wheel

9. Drain opening

10. Hose

11. Intake opening

12. Mains outlet

13. Moveable handle

14. Telescopic tube

15. Floor nozzle for wet and dry vacuum cleaning

16. Radiator nozzle

17. Round nozzle

18. Cloth filter (nonwoven)

19. Foam rubber filter

20. Washable HEPA filter

21. Blow connection

22. Cover for blower connection

FIG. 1
POWER SWITCH

ModeExplanation
1	Run mode, mains outlet supplied with voltage.
0	Switch off, mains outlet not supplied with voltage.
II The vacuum cleaner is switched off.

EN

The vacuum cleaner starts immediately when the external equipment has been started.

- The vacuum cleaner switched off in 3 seconds after the external equipment has been switched off.

NOZZLE

Use suitable accessories for the work to be done.

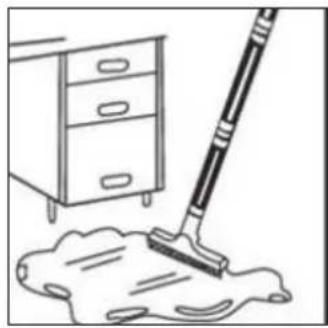

Floor nozzle

Use the floor nozzle for floors, carpets and tables etc.

FIG. 2

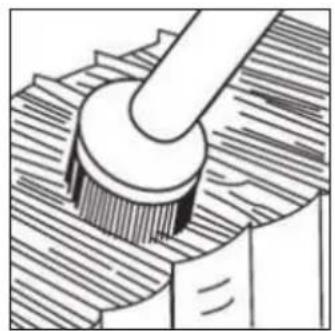

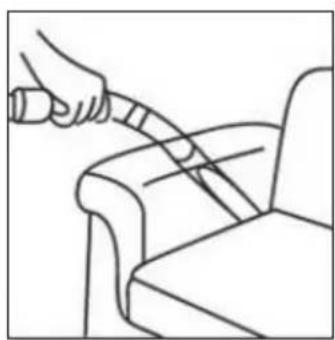

Brush nozzle

Use the brush nozzle for shelves and windows.

FIG. 3

Radiator nozzle

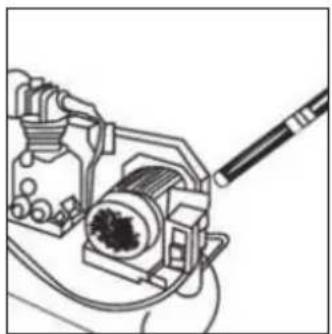

Use the radiator nozzle for slots and other narrow spaces and use the blower connection to blow off dust.

FIG. 4

ASSEMBLY

CONNECTION

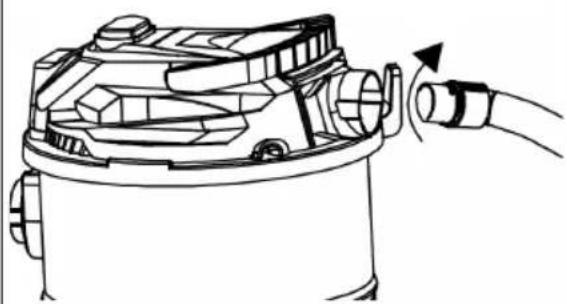

1. Put the hose connector firmly in the air inlet as shown in the diagram.

FIG. 5

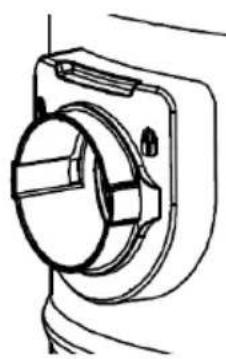

1. To release the hose, press in the catch as shown in the diagram and pull out.

FIG. 6

1. Connect the hose to the blower connection (21) to use the blower function.

FIG. 7

NOTE:

Use suitable accessories for the work to be done.

USE

HOW TO USE

1. Plug the plug into a suitable power point.
2. Press the power switch to run mode to start the vacuum cleaner.
3. Adjust the air flow with the slider on the handle.

Wet vacuum cleaning

1. Move the hose (10) from the blower connection (21) to the intake opening (11).
2. Replace the blower connection (21) with the cover (22).
3. Put the floor nozzle (15) on the telescopic tube (14).
4. Plug the plug into a suitable power point.
5. Press the power switch to run mode to start the vacuum cleaner.
6. Adjust the air flow with the slider on the handle.
7. The suction function is activated when the water tank is full and the motor runs at full speed.

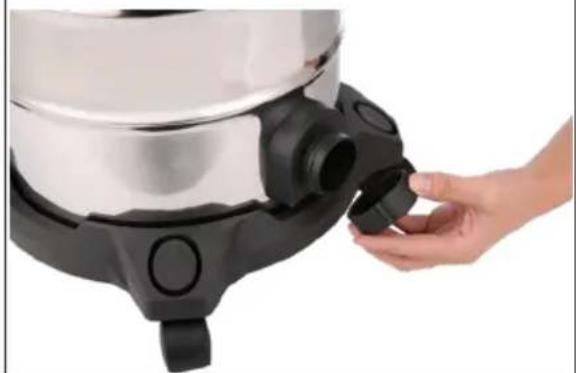

Switch off the vacuum cleaner, pull out the plug and empty the water tank via the drain opening (9) by unscrewing the cover. Reset the vacuum cleaner to run mode.

FIG. 8

WARNING!

- If the vacuum cleaner is tilted or tips over the motor switches off automatically. Switch off the vacuum cleaner, pull out the plug, lift up and start it again.

- Risk of fire, electric shock and/or material damage if water gets into the motor. Switch off the vacuum cleaner immediately, pull out the plug and remove the water before starting again.

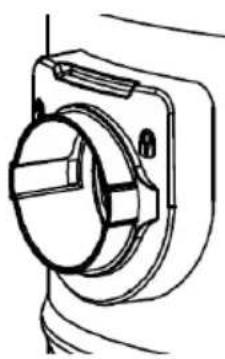

Blower function

1. Replace the cover (22) with the blower connection (21).
2. Move the hose (10) from the intake opening (11) to the blower connection (21).
3. Put on the radiator nozzle (16), telescopic tube (14) or just the handle (2).
4. Plug the plug into a suitable power point.
5. Press the power switch to run mode to start the vacuum cleaner.
6. Adjust the air flow with the slider on the handle.

MAINTENANCE

CLEANING THE CONTAINER

The suction power is reduced when the dust container is full. Switch off the vacuum cleaner, pull out the plug and empty the dust container.

1. Release the catch and lift off the cover.
2. Remove the cloth filter bag (18) and empty the dust container.
3. Replace the cloth filter bag (18) and replace the cover.

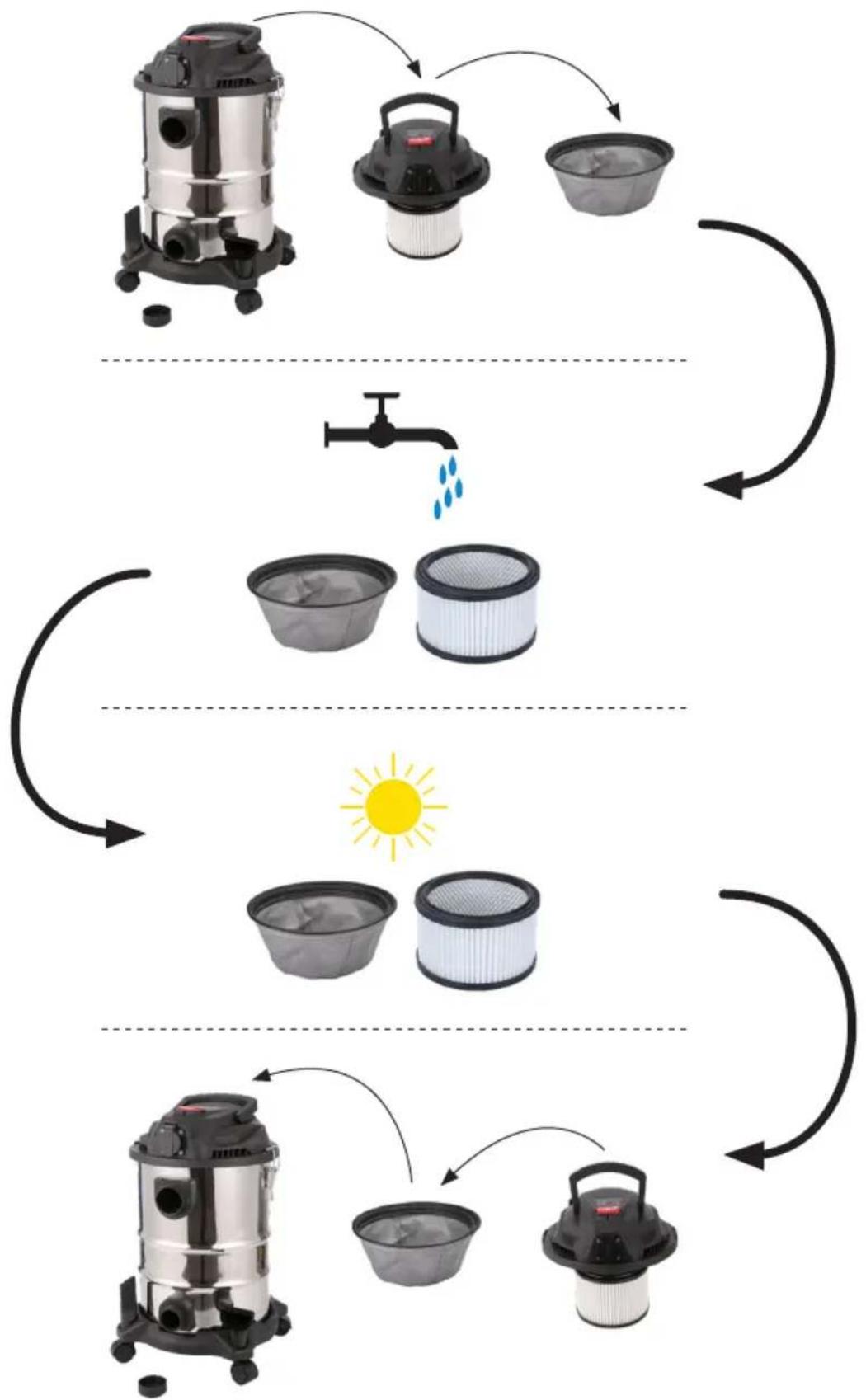

CLEANING THE FILTER

When necessary wash the cloth filter bag (18) and HEPA filter (20) with warm water and a mild detergent.

1. Take out the cloth filter bag (18) and HEPA filter (20).
2. Wash by hand.

3. Allow to dry.

4. Replace the cloth filter bag (18) and HEPA filter (20).

FIG. 9

WARNING!

Do not wash with water hotter than 40^ C.
