HNS2600WPF - Motherboard INTEL - Free user manual and instructions

Product Type	Server/Workstation Motherboard
Brand	Intel
Model	HNS2600WPF
Form Factor	CEB (12" x 10.5")
CPU Socket	LGA 3647 (Socket P)
Supported CPU Family	Intel Xeon Scalable Processors (1st Gen)
Chipset	Intel C620 Series (Lewisburg)
Memory Type	DDR4 ECC RDIMM/LRDIMM
Maximum Memory Capacity	768 GB (6 slots)
Expansion Slots	3x PCIe 3.0 x16, 2x PCIe 3.0 x8, 1x OCP (mezzanine)
Storage Interfaces	10x SATA III (6 Gbps), 2x M.2 (NVMe/SATA)
Network Controller	Dual Intel X557-AT2 10GbE
Management	Intel RMM4 remote management module support
Power Connectors	24-pin ATX, 2x 8-pin CPU power
Dimensions	12" x 10.5" (30.5 x 26.7 cm)
Weight	Approx. 560 g (1.23 lbs)
Operating Temperature	10°C to 35°C (50°F to 95°F)
Safety Certifications	FCC, CE, UL, RoHS
Maintenance	Replace CMOS battery (CR2032) every 5 years; clean with compressed air
Spare Parts	CMOS battery, I/O shield, screws, fan brackets available from Intel

Frequently Asked Questions - HNS2600WPF INTEL

What CPUs are compatible with the Intel HNS2600WPF motherboard?

The motherboard supports Intel Xeon Scalable Processors (1st Gen) in LGA 3647 socket. Check the Intel website for a complete list of supported SKUs.

What type of memory does the HNS2600WPF use?

It supports DDR4 ECC RDIMMs and LRDIMMs. Maximum capacity is 768 GB across 6 slots.

Does the board have integrated graphics?

No, the HNS2600WPF does not have onboard graphics. A discrete GPU is required for display output.

What is the maximum power supply requirement?

A minimum of 350W PSU is recommended, with dual 8-pin CPU power connectors. For high-end CPUs, use a 500W or higher PSU.

How many PCIe slots are available?

There are 3 PCIe 3.0 x16 slots and 2 PCIe 3.0 x8 slots, plus an OCP mezzanine connector for add-on cards.

Can I use M.2 drives for storage?

Yes, it has two M.2 slots supporting both NVMe and SATA drives (2242/2260/2280).

Does the motherboard support RAID?

It supports Intel VROC for NVMe RAID and Intel RSTe for SATA RAID (0,1,5,10).

What network interfaces does it have?

It features dual 10GbE ports via Intel X557-AT2 controllers. No 1GbE is included.

Is remote management supported?

Yes, it supports IPMI 2.0 and an optional Intel RMM4 module for remote KVM and management.

What operating systems are compatible?

It runs Windows Server 2016/2019, Linux (various distributions), and VMware ESXi. Drivers are available from Intel.

USER MANUAL HNS2600WPF INTEL

Intel® Server Board S2600WP Family Intel® Compute Module HNS2600WP Family Intel® Server Chassis H2000 Family Spares/Accessories List and Configuration Guide

A reference guide to assist customers in ordering the necessary components to configure the Intel® Server Board S2600WP and the appropriate 2U Intel® Rack Mount Server Systems

Revision 2.2

February 2014

Revision History

October 2011 – Rev 0.90 – Production Candidate

October 2011 – Rev 0.96 – Production Candidate 2

February 2012 – Rev 1.0 – Production Candidate 3

May 2012 – Rev 1.2 – Production Version

July 2012 – Rev 1.3 – Added note in section 2.4

October 2012 – Rev 1.4 – Added AXX10GBTWLHW and Intel ^® Server Continuity Suit SKUs

December 2012 – Rev 1.5 – Removed End of Life “on site repair” option, End of Life Symantec* options, End of Life VMware* options, and End of Life “Intel® Server Continuity Suite” options

April 2013 – Rev 1.6 – Added Intel ^® Manager and Distribution for Apache Hadoop ^*

July 2013 – Rev 1.7 – Updated the MM# for RMS25KB040

October 2013 – Rev 1.8 – Removed BIK SKUs, which have passed last order date

December 2013 – Rev 1.9 – Removed Hadoop logos

January 2014 – Rev 2.0 – Removed RMS25PB040 from the list

February 2014 – Rev 2.1 – Updated the description for RMS25LB

February 2014 – Rev 2.2 – Updated the descriptions for 6GB/s SAS options, dynamic key spares and accessories; added notes for HNS2600WP, HNS2600WPQ, HNS2600WPF, and AXXELVRAIL; added extended warranty for the Intel® Compute Module HNS2600 family

Disclaimers

INFORMATION IN THIS DOCUMENT IS PROVIDED IN CONNECTION WITH INTEL PRODUCTS. NO LICENSE, EXPRESS OR IMPLIED, BY ESTOPPEL OR OTHERWISE, TO ANY INTELLECTUAL PROPERTY RIGHTS IS GRANTED BY THIS DOCUMENT. EXCEPT AS PROVIDED IN INTEL'S TERMS AND CONDITIONS OF SALE FOR SUCH PRODUCTS, INTEL ASSUMES NO LIABILITY WHATSOEVER AND INTEL DISCLAIMS ANY EXPRESS OR IMPLIED WARRANTY, RELATING TO SALE AND/OR USE OF INTEL PRODUCTS INCLUDING LIABILITY OR WARRANTIES RELATING TO FITNESS FOR A PARTICULAR PURPOSE, MERCHANTABILITY, OR INFRINGEMENT OF ANY PATENT, COPYRIGHT OR OTHER INTELLECTUAL PROPERTY RIGHT.

A "Mission Critical Application" is any application in which failure of the Intel Product could result, directly or indirectly, in personal injury or death. SHOULD YOU PURCHASE OR USE INTEL'S PRODUCTS FOR ANY SUCH MISSION CRITICAL APPLICATION, YOU SHALL INDEMNIFY AND HOLD INTEL AND ITS SUBSIDIARIES, SUBCONTRACTORS AND AFFILIATES, AND THE DIRECTORS, OFFICERS, AND EMPLOYEES OF EACH, HARMLESS AGAINST ALL CLAIMS COSTS, DAMAGES, AND EXPENSES AND REASONABLE ATTORNEYS' FEES ARISING OUT OF, DIRECTLY OR INDIRECTLY, ANY CLAIM OF PRODUCT LIABILITY, PERSONAL INJURY, OR DEATH ARISING IN ANY WAY OUT OF SUCH MISSION CRITICAL APPLICATION, WHETHER OR NOT INTEL OR ITS SUBCONTRACTOR WAS NEGLIGENT IN THE DESIGN, MANUFACTURE, OR WARNING OF THE INTEL PRODUCT OR ANY OF ITS PARTS.

Intel may make changes to specifications and product descriptions at any time, without notice. Designers must not rely on the absence or characteristics of any features or instructions marked "reserved" or "undefined". Intel reserves these for future definition and shall have no responsibility whatsoever for conflicts or incompatibilities arising from future changes to them. The information here is subject to change without notice. Do not finalize a design with this information.

The products described in this document may contain design defects or errors known as errata which may cause the product to deviate from published specifications. Current characterized errata are available on request.

Contact your local Intel sales office or your distributor to obtain the latest specifications and before placing your product order.

Copies of documents which have an order number and are referenced in this document, or other Intel literature, may be obtained by calling 1-800-548-4725, or go to: http://www.intel.com/design/literature.

Intel and Xeon are trademarks of Intel Corporation in the U.S. and/or other countries.

*Other names and brands may be claimed as the property of others.

Copyright © 2014 Intel Corporation. All rights reserved.

Table of Contents

1. SYSTEM PRODUCT ORDER CODES....5

1.1 PRODUCT DESCRIPTION – OVERVIEW......5
1.2 SUMMARY CHART 5
1.3 AVAILABLE PRODUCTION BOARD ORDER CODES 6
1.4 AVAILABLE PRODUCTION SYSTEM ORDER CODES 6
1.5 AVAILABLE PRODUCTION CHASSIS ORDER CODES 7
1.6 AVAILABLE PRODUCTION COMPUTE MODULE ORDER CODES 8

2. SPARES AND ACCESSORIES ORDER CODES....9

2.1 GENERAL SPARES AND ACCESSORIES....9
2.2 DYNAMIC KEY SPARES AND ACCESSORIES....14
2.3 6GB/s SAS & HW RAID 15
2.4 EXPANSION MODULES: IO MODULE 17
2.5 INTEL ^® MANAGER AND DISTRIBUTION FOR APACHE HADOOP ^* 19
2.6 SERVICE: EXTENDED WARRANTY....19

1. System Product Order Codes

1.1 Product Description – Overview

Product based on the Intel ^® Server Board S2600WP will be offered in a variety of options to provide flexibility and facility for the customer.

• BIK SKUs are EOL after September 30 2013 as last order date.
• Board will be offered as a 10-pack at launch.
- Chassis will be offered as KDK at launch. It will include power supply, but Compute Module will be excluded.
• Compute Module can be ordered separately for both single-pack and 10-pack.

1.2 Summary chart

For a quick overview, all configuration options are summarized in the below chart. Refer to the details below in this document for MM numbers, configuration details, and product order codes.

Intel ^® Server Chassis and Systems shipped to the US and Canada will contain North American power cords. North American customers no longer need to order SKUs ending in “NA” to receive power cords on Romley products.

Knock Down Kit:

Pcode	FF	HDD	# of HDD		Power supply	Rails	Compute Module	Available Time
H2312XXKR	2U	3.5	12		2x1600W AC	Value	Not included	Shipping
H2216XXKR	2U	2.5		16	2x1600W AC	Value	Not included	Shipping

Compute Module:

Pcode	FF	Integrated InfiniBand*	Slot1 x16 PCIe Riser	rIOM riser / carrier	RMM4 Lite Key	Intel® RAID C600 Upgrade Key	Available Time
HNS2600WP	1U Compute Module	No	Included	Not included	Not included	Not included	Shipping
HNS2600WPQ	1U Compute Module	Yes (QDR 40Gb/s)	Included	Not included	Not included	Not included	Shipping
HNS2600WPF	1U Compute Module	Yes (FDR 56Gb/s)	Included	Not included	Not included	Not included	Shipping

Board:

Pcode	FF	Integrated InfiniBand*	Slot1 x16 PCIe Riser	rIOM riser / carrier	RMM4 Lite Key	Intel® RAID C600 Upgrade Key	Available Time
BBS2600WP	6.8" W x 18.9" L	No	Included	Not included	Not included	Not included	Shipping
BBS2600WPQ	6.8" W x 18.9" L	Yes (QDR 40Gb/s)	Included	Not included	Not included	Not included	Shipping
BBS2600WPF	6.8" W x 18.9" L	Yes (FDR 56Gb/s)	Included	Not included	Not included	Not included	Shipping

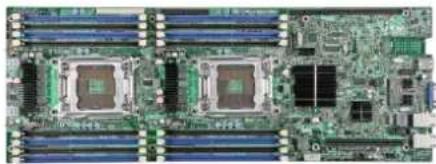

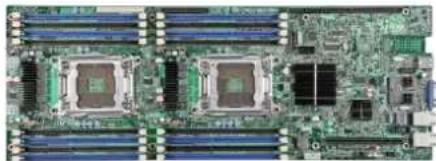

1.3 Available Production Board order codes

Image	Product CodeMMUPCEANMOQ	Description
	BBS2600WP919026735858243506503203703814010	Production Intel® Server Board S2600WP (OEM 10-pack version)- 6.8” W x 18.9” L.- 16x DIMMs support DDR3/DDR3L LR/U/R-DIMMs.- 4x 3Gb/s SATA/SAS ports from SCU, 2x 6Gb/s SATA DOM ports from AHCI.- 3 PCIe3 x16 capable slots and 1 PCIe3 x24 capable slot (not PCIe Sig compatible).- Dual 1GbE.- Compatible with Intel ^ Xeon ^ processor E5-2600 and E5-2600 v2 series.
*Depop board shown	BBS2600WPQ919027735858243513503203703815710	Production Intel® Server Board S2600WPQ (OEM 10-pack version)- 6.8” W x 18.9” L.- 16x DIMMs support DDR3/DDR3L LR/U/R-DIMMs.- 4x 3Gb/s SATA/SAS ports from SCU, 2x 6Gb/s SATA DOM ports from AHCI.- 4 PCIe3 x16 capable slots (not PCIe Sig compatible).- Dual 1GbE.- Single InfiniBand* QDR (QSFP port).- Compatible with Intel ^ Xeon ^ processor E5-2600 and E5-2600 v2 series.
*Depop board shown	BBS2600WPF921313735858246293503203704078510	Production Intel® Server Board S2600WPF (OEM 10-pack version)- 6.8” W x 18.9” L.- 16x DIMMs support DDR3/DDR3L LR/U/R-DIMMs.- 4x 3Gb/s SATA/SAS ports from SCU, 2x 6Gb/s SATA DOM ports from AHCI.- 4 PCIe3 x16 capable slots (not PCIe Sig compatible).- Dual 1GbE.- Single InfiniBanda* FDR (QSFP port).- Compatible with Intel ^ Xeon ^ processor E5-2600 and E5-2600 v2 series.

1.4 Available Production System order codes

N/A

1.5 Available Production Chassis order codes

Image	Product CodeMMUPCEANMOQ	Description
*Demo only	H2312XXKR91902273585824329250320370379381	The Production Intel ^ Server Chassis H2312XXKR- 2U H2000 Chassis (front panel FH2000FPANEL included, Power Distribution Board FXXCRPSPDB included).- 2x 1600W Platinum PSU (FXX1600PCRPS).- 12x 3.5” Hot-swap HDDs support (carriers FXX35HSADPB included, backplane FHW12X35HSBP).- 4x Blank Node Filler (FH2000BNF).- Basic rack rail (AXXELVRAIL).- Intel ^ Manager and Distribution for Apache Hadoop*
*Demo only	H2216XXKR91902373585824330850320370379451	The Production Intel ^ Server Chassis H2216XXKR- 2U H2000 Chassis (front panel FH2000FPANEL included, Power Distribution Board FXXCRPSPDB included).- 2x 1600W Platinum PSU (FXX1600PCRPS).- 16x 2.5” Hot-swap HDDs support (carriers FXX25HSCAR included, backplane FHW16X25HSBP).- 4x Blank Node Filler (FH2000BNF).- Basic rack rail (AXXELVRAIL).- Intel ^ Manager and Distribution for Apache Hadoop*

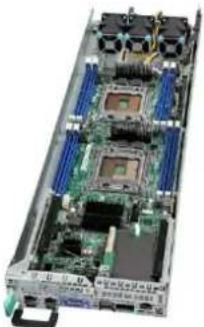

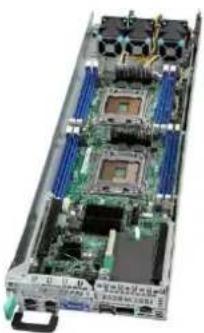

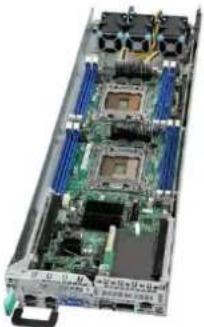

1.6 Available Production Compute Module order codes

Image	Product CodeMMUPCEANMOQ	Description
*Demo only	HNS2600WP91837873585824362950320370382631	The Production Intel ^ Compute Module HNS2600WP- Intel ^ Server Board S2600WP included.- Node Power Board FH2000NPB included.- Bridge Board FHWJFWPBGB included.- Slot1 riser card FHW1U16RISER included.- 3x 4056 dual rotor fans FXX4056DRFAN included.- 1U passive heatsinks (one FXXEA84X106HS for front, and one FXXCA84X106HS for rear) included-Airduct included.- 1U node tray included.- Intel ^ Manager and Distribution for Apache Hadoop*Note:PCIe Slot 2 riser kit is not included. Customers can chooseAXXRMM4IOMorAH2000WP6GKITfor purpose system build.
*Demo only	HNS2600WPQ91837773585824363650320370382701	The Production Intel ^ Compute Module HNS2600WPQ- Intel ^ Server Board S2600WPQ included (InfiniBand*QDR).- Node Power Board FH2000NPB included.- Bridge Board FHWJFWPBGB included.- Slot1 riser card FHW1U16RISER included.- 3x 4056 dual rotor fans FXX4056DRFAN included.- 1U passive heatsinks (one FXXEA84X106HS for front, and one FXXCA84X106HS for rear) included-Airdduct included.- 1U node tray included.- Intel ^ Manager and Distribution for Apache Hadoop*Note:PCIe Slot 2 riser kit is not included. Customers can chooseAXXRMM4IOMorAH2000WP6GKITfor purpose system build.
*Demo only	HNS2600WPF92131473585824794850320370428261	The Production Intel ^ Compute Module HNS2600WPF- Intel ^ Server Board S2600WPF included (InfiniBand*FDR).- Node Power Board FH2000NPB included.- Bridge Board FHWJFWPBGB included.- Slot1 riser card FHW1U16RISER included.- 3x 4056 dual rotor fans FXX4056DRFAN included.- 1U passive heatsinks (one FXXEA84X106HS for front, and one FXXCA84X106HS for rear)included-Airduct included.- 1U node tray included.- Intel ^ Manager and Distribution for Apache Hadoop*Note:PCIe Slot 2 riser kit is not included. Customers can chooseAXXRMM4IOMorAH2000WP6GKITfor purpose system build.

2. Spares and Accessories Order Codes

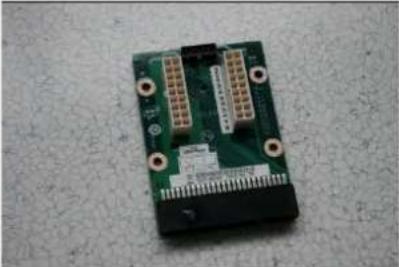

2.1 General spares and accessories

Image		Product CodeMMUPCEANMOQ	Description
*Demo only		AXXRMM4LITE9116600073585821929750320370149461	Activation key for advanced management features.
*Demo only		AXXRMM4IOMW91830473585824324750320370378841	PCI Express x24 (200 pin) rIOM riser and rIOM carrier board kit for supporting dedicate RMM4 NIC port and containing Intel® I/O module for HNS2600WP compute module family.Note:The AXXRMM4LITE is NOT included. It must be ordered separately for advanced management features. Intel® I/O modules MUST have AXXRMM4IOMW pre-installed. The production compute module and chassis configurations do not include AXXRMM4IOMW.
*Demo only		FHW1U16RISER916729735858223003503203701928610	1U PCI Express x16 riser card for supporting in-board low-profile PCIe adding card of Slot1 on HNS2600JF and HNS2600WP compute module family
*Demo only		FXX4056DRFAN918254735858243469503203703810210	40x56mm Dual Rotor Fan spare
*Demo only		FXX1200PCRPS91560573585822513750320370350711	1200W AC Common Redundant Power Supply FXX1200PCRPS 80Plus Platinum-Efficiency
*Demo only		FXX1600PCRPS91560673585824365050320370382941	1600W AC Common Redundant Power SupplyFXX1600PCRPS 80Plus Platinum-Efficiency
*Demo only		FXXCA84X106HS91831873585823667650320370314482	1U Standard Cu/Al 84mm x 106mm Heatsink (RearHeatsink)
*Demo only		FXXEA84X106HS91832173585823668350320370314552	1U Standard Ex-Al 84mm x 106mm Heatsink (FrontHeatsink)
*Demo only		FHW12X35HSBP92083073585824672950320370411881	Spare 12 x 3.5" backplane for H2000 Chassis family
*Demo only		FHW16X25HSBP92082973585824673650320370411951	Spare 16 x 2.5" backplane for H2000 Chassis family
	*Demo only	FH2000BNF920831735858246880503203704188110	Spare Blank Node Filler for H2000 Chassis family
	*Demo only	FH2000NPB920832735858246743503203704120110	Spare Node Power Board for HNS2600 serial Compute Module family
	*Demo only	FHWJFWPBGB920833735858246767503203704122510	Spare Bridge Board for HNS2600JF and HNS2600WPCompute Module family
	*Demo only	FXXCRPSPDB921250735858246750503203704121810	Spare Power Distribution Board for Common Redundant Power Supply 1200W and 1600W of H2000 Chassis
	*Demo only	FH2000FPANEL92083573585824687350320370418741	Spare front control panel kit for H2000 Chassis family
*Demo only		FH2000WPMKIT91903373585824364350320370382871	Chassis Maintenance Kit FH2000WPMKIT (for Intel®Server Chassis H2000 family) including (2) Node tray of HNS2600WP family, (2) Airduct of HNS2600WP, Cable kit and Screw kit.
*Demo only		FXX25HSCAR91880773585824118250320370359108	Spare 2.5" HDD hot swap carriers
*Demo only		FXX35HSADPB9127710073585821949550320370163918	Spare 3.5" HDD hot swap carriers
*Demo only		AXXELVRAIL9209700073585824436750320370389801	Value Rail Kit, half extension, extended inner slide memberNote: It supports only specific rack type with 3/8" square and 7.1mm round holes.
		FPWRCABLENA87928773585818112950320370157381	North American Power Cord Spare
*Demo only		A2UBEZEL91808673585824113750320370358801	2U locking bezel with two branding clip-on inserts

2.2 Dynamic Key spares and accessories

Image	Product CodeMMUPCEANMOQ	Description
*Demo only	RKSATA4R591634673585823886150320370336405	Intel ^ RAID C600 Upgrade Key RKSATA4R5 enables LSI SATA SW RAID 5, Black
	RKSAS491634973585823889250320370336715	Intel ^ RAID C600 Upgrade Key RKSAS4 activates 4 SAS ports and includes RSTe SW RAID 0/1/10 (no RAID 5) and LSI SW RAID 0/1/10, Green
	RKSAS4R591635073585823890850320370336885	Intel ^ RAID C600 Upgrade Key RKSAS4R5 activates 4 SAS ports and includes RSTe SW RAID 0/1/10 (no RAID 5) and LSI SW RAID 0/1/10/5 (enables LSI SWR5), Yellow

2.3 6Gb/s SAS & HW RAID

Image		Product CodeMMUPCEANMOQ	Description
*Demo only		AHWJFWP6GBGB92286273585825004750320370446221	6Gb/s SAS bridge board and cable accessories kit (not cable-free) for HNS2600JF and HNS2600WP Compute Module familyNote: 6Gb/s SAS module is NOT included. Customers must order 6Gb/s SAS moduleRMS25KB040orRS25FB044separately.
*Demo only		RMS25KB040924455 (Obsolete MM# 917090)73585823903550320370338175	SAS Module: 4 Port SAS-2.1 version, Entry-level HW RAID/straight SAS, PCIe form factor
*Demo only		RS25FB04492170073585824766550320370425435	The Intel®RAID Controller RS2FB044 is a SAS2 6Gb/s PCIe Gen3 x8, 4i & 4e Port SAS Controller with entry-level HW RAID 0/1/1E/10E and JBOD mode in a low profile, half-length MD2 compliant form factor.
*Demo only		AH2000WP6GKIT92286473585825006150320370446461	6Gb/s SAS accessories kit (cable-free) for HNS2600WP Compute Module familyNotes: The 6Gb/s SAS moduleRMS25LBis included, with special advisory in TA 1025-1.This module contains RMM4 dedicated NIC port. TheAXXRMM4LITEmust be ordered separately to enable advanced management features of BMC.
*Demo only		FH20006GBGBR92299873585825021450320370447761	Spare 6Gb/s SAS bridge board and riser package for AH2000WP6GKIT
*Demo only		RMS25LB92299773585825008550320370446601	Spare LSI 2308 based 6Gb/s SAS module for AH2000WP6GKIT.Note: This module contains RMM4 dedicated NIC port. The AXXRMM4LITE must be ordered separately to enable advanced management features of BMC.

2.4 Expansion modules: IO Module

IMPORTANT NOTICE:

All below I/O modules MUST have AXXRMM4IOMW (mm# 918304) pre-installed in the system.

Image	Product CodeMMUPCEANMOQ	Description
	AXX10GBNIAIOM91790573585824109050320370358421	Dual SFP+ port 10GbE IO module based on Intel® 82599 10 Gigabit Ethernet Controller.Supports direct connect or transceiver.Cables/transceivers not included.Includes three screws.It must have AXXRMM4IOMW pre-installed. The default production system and chassis configurations do not include AXXRMM4IOMW.
*Dual ports shown	AXX1FDRIBIOM91860773585824110650320370358591	Single port, FDR 56GT/S speed Intel® I/O Expansion Infiniband* module, with QSFP connector, based on Mellanox* CX3 MT27504A1-FCCR-FV chip.Includes three screws.*Dual port shown on picture.It must have AXXRMM4IOMW pre-installed. The default production system and chassis configurations do not include AXXRMM4IOMW.
	AXX2FDRIBIOM92062773585824572250320370402351	Dual port, FDR 56GT/S (per port capable) speed Infiniband* module, with QSFP connector, based on Mellanox* CX3 MT27508A1-FCCR-FV chip.Note: Due to PCIe3 x8 bandwidth limitation, both ports cannot function simultaneously at full speed.Includes three screws.It must have AXXRMM4IOMW pre-installed. The default production system and chassis configurations do not include AXXRMM4IOMW.
	AXX4P1GBPWLIOM91791173585824108350320370358351AXX10GBTWLHW92413673585825403850320370471421	Quad port 1GbE IO Module based on Intel® Ethernet Controller I350.It must have AXXRMM4IOMW pre-installed. The default production system and chassis configurations do not include AXXRMM4IOMW.Dual RJ-45 port 10GBASE-T IO Module based on Intel®Ethernet Controller X540.Includes three screws.It must have AXXRMM4IOMW pre-installed. The default production system and chassis configurations do not include AXXRMM4IOMW.

2.5 Intel ^® Manager and Distribution for Apache Hadoop\*

Product CodeMMMOQ	Description
HNS2600WPIDH9248281	Intel® Manager and Distribution for Apache Hadoop*,1-yearStandardSupport Subscription, 4 server node.** Must be purchased with an H2312XXKR or H2216XXKR chassis and 4 x HNS2600WPXX nodes.
HNS2600WPIDH9249061	Intel® Manager and Distribution for Apache Hadoop*,1-yearPremiumSupport Subscription, 4 server node** Must be purchased with an H2312XXKR or H2216XXKR chassis and 4 x HNS2600WPXX nodes.
DSDPS40HR9249291	Intel® Manager and Distribution for Apache Hadoop*, 40 hours of Professional Services

2.6 Service: Extended Warranty

Image	Product Code MMMOQ	Description
	SVCEWHWSY9231131	Intel®Server System H2000 two years Extended Warranty, Single
	SVCEWHWB9149051	Intel®Compute Module HNS2600 family Extended Warranty, Single
	SVCEWDPBD9112941	Intel®Server Board S2600WP family two years Extended Warranty, Single
