Product Type	Split System Air Conditioner
Model Number	AM168BXVGFR
Brand	Samsung
Indoor Unit Dimensions (WxHxD)	Approx. 840 x 290 x 210 mm
Outdoor Unit Dimensions (WxHxD)	Approx. 800 x 550 x 290 mm
Indoor Unit Weight	Approx. 10 kg
Outdoor Unit Weight	Approx. 28 kg
Power Supply	220-240 V, 50 Hz, Single Phase
Cooling Capacity	Approx. 5.0 kW (17,000 BTU/h)
Heating Capacity	Approx. 5.8 kW (19,800 BTU/h)
Energy Efficiency Rating	A++ (Cooling) / A+ (Heating)
Refrigerant Type	R32
Airflow Rate (High)	12-14 m³/min
Noise Level (Indoor)	22-45 dB(A)
Noise Level (Outdoor)	48-54 dB(A)
Key Functions	Cooling, Heating, Dehumidification, Fan, Auto Mode, Sleep Mode, Timer
Air Filter	Washable Pre-Filter, Optional Hi-Filter
Remote Control	Infrared (included)
Maintenance	Clean filter every 2 weeks; professional service recommended annually
Safety Features	Auto Restart, Overheat Protection, Child Lock (on remote)
Spare Parts Availability	Filters, remote control, fan motor, compressor (contact Samsung service)
Repair Index (Reparability)	Rating: 7.5/10 (estimated)
Warranty	Standard 2 years (parts and labor)

Frequently Asked Questions - AM168BXVGFR SAMSUNG

How do I clean the air filter?

Turn off the unit and open the front panel. Remove the filter and wash it with lukewarm water and mild detergent. Let it dry completely before reinstalling. Clean every 2 weeks for optimal performance.

What does the error code 'E1' mean?

Error code E1 typically indicates a communication error between the indoor and outdoor units. Check the wiring connections and ensure the units are properly powered. If the problem persists, contact Samsung support.

Can I use an extension cord for the power supply?

No, it is not recommended. The air conditioner should be plugged directly into a dedicated wall outlet. Using an extension cord may cause overheating or electrical hazards.

How often should I schedule professional maintenance?

It is recommended to have a professional technician inspect and service the unit at least once a year, ideally before the cooling season. This includes checking refrigerant levels, cleaning coils, and ensuring proper drainage.

Why is my air conditioner not cooling properly?

Possible causes include a dirty air filter, low refrigerant, blocked outdoor unit, or incorrect thermostat settings. Start by cleaning the filter and checking that the outdoor unit is free of debris. If the issue continues, contact a technician.

How do I use the timer function?

Press the Timer button on the remote control. Use the up/down arrows to set the desired time for the unit to turn on or off. Confirm by pressing the Set button. The timer indicator will display on the remote screen.

What is the recommended temperature setting for energy efficiency?

For cooling, set the thermostat to 24-26°C (75-78°F). For heating, set it to 20-22°C (68-72°F). Using the Eco or Sleep mode can also help reduce energy consumption.

How do I reset the air conditioner?

Unplug the unit from the power outlet, wait 5 minutes, and plug it back in. Alternatively, press the Reset button on the indoor unit (if available) or remove the batteries from the remote control for 30 seconds.

Can I install the outdoor unit on a balcony?

Yes, but ensure there is adequate airflow around the unit. Keep at least 30 cm clearance on all sides. Avoid direct sunlight and rain exposure if possible. The balcony must support the weight of the outdoor unit (approx. 28 kg).

Where can I find the serial number of my unit?

The serial number is located on a sticker on the side of the indoor unit (near the air outlet) and on the outdoor unit (near the service valve). It is required for warranty claims and support.

USER MANUAL AM168BXVGFR SAMSUNG

• Thank you for purchasing this Samsung air conditioner.
• Before operating this unit, please read this manual carefully and retain it for future reference.

Safety Information 3

Safety Information 3

Installation Procedure 5

Preparations for Outdoor Unit 5

Choosing the installation location 7

Preparing materials and tools 9

Outdoor unit installation 9

Refrigerant pipe installation 14

Electrical wiring work 37

Air tightness test and vacuum drying 45

Pipe insulation 47

Basic segment display 50

Setting outdoor unit option switch and key function 51

Optional: Setting the MCU and Pipe Addresses (for HR Only) 59

Performing final checks and trial operation 61

Appendix 63

Inspection and trial operation 63

Automatic refrigerant amount detection function 65

California Proposition 65 Warning (US)

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Please follow the following safety information for the safety of the installer and the user.

• DVM S2 air conditioner uses R-410A refrigerant.

- When using R-410A, moisture or foreign substances may affect the performance and reliability of the product. Safety precautions must be obeyed when installing the refrigerant pipe.

- The designed maximum pressure of the system is 4.1MPa (594.6psi) and therefore select appropriate material and thickness according to the regulations.

- R-410A is a quasi-azeotrope of two refrigerants and it has to be charged in liquid phase when filling the refrigerant. (If you charge vapor refrigerant, it may change the blend of the refrigerant and cause product malfunction.)

• You must connect the indoor units for R-410A refrigerant. Refer to product catalog to find out the models names for connectable indoor units. (If you connect the indoor units that are not designed for R-410A, it cannot operate normally.)
• After completing the installation and trial operation, explain to the user how to use and maintain the product. Also, hand over this installation manual so that it can be stored by the user.
• Manufacturer is not responsible for the incidents occurred by improper installation. Installer is responsible for any installation related claims from the user occurred by neglecting warnings and cautions stated in this manual. (Installer will be responsible for any service charges that may occur)
• Generally, system air conditioners should not be relocated after installation. However, if relocation is unavoidable, please contact Samsung's qualified dealers for system air conditioners.

WARNING

Hazards or unsafe practices that may result in severe personal injury or death.

CAUTION

Hazards or unsafe practices that may result in minor personal injury (to installer/user) or property damage.

General information

WARNING

Consult a qualified installer or dealer for installation.

If installation is done by an unqualified person, problems such as water leakage, electric shock, or fire may occur.

Installation work must be done properly according to this installation manual.

If installation is not done properly, it may cause water leakage, electric shock, or fire.

When installing the unit in a small room, take measures to keep the refrigerant concentration from exceeding allowable safety limits in case of refrigerant leakage. Consult the dealer for precautionary measures before installation.

If refrigerant leaks and exceeds dangerous concentration levels, it may cause suffocation accidents.

If any gas or impurities, except R-410A refrigerant, come into the refrigerant pipe, serious problems may occur and it may cause injury.

Use the supplied accessories, specified components, and tools for the installation.

• Do not use the pipe and installation products intended for refrigerants other than R-410A.
• Failure to use the specified components can cause the product to fall, water leakage, electrical shock, and fire. (Pipes and flare components intended for refrigerants other than R-410A must not be used.)

Install the outdoor unit on a hard, level surface that can support its weight.

If the surface cannot support the weight, the outdoor unit may fall and cause injury.

Check the following before installation and service work.

• Before welding, remove dangerous and flammable items that may cause explosion or fire around the work area.
• Before welding, remove the refrigerant from inside the pipe or the product.

If you perform welding while refrigerant is in the pipe, it may increase the pressure of the refrigerant and cause the pipe to burst. If the pipe bursts or explodes, it may cause severe injury to the installer.

When welding, use nitrogen gas to eliminate oxidation inside the pipe.

Do not modify the product on your own.

Potential risk of electric shock, fire, product failure, or injury.

Fix the outdoor unit securely on the foundation to resist strong wind or earthquake.

If the outdoor unit is not properly fixed, it may tip over and accidents may occur.

Electrical work must be done by qualified persons, complying with national wiring regulations and installed according to the instructions stated in the installation manual with a dedicated circuit.

Capacity shortage on the dedicated circuit and improper installation may cause electric shock or fire.

• Make sure to perform grounding work.

- Do not connect the ground wire to a gas pipe, water pipe, lightning rod or telephone grounding. Improper grounding could cause electric shock.

- Wiring must be connected with the designated wires and it must be fixed securely so that it does not apply any external force to the connection part of the terminals.

- If connection for fixation is not properly done, it may cause heat generation or fire.

- Neatly arrange the wires in the electrical parts to make sure that electrical cover is closed securely without any gaps.

- If the cover is not properly closed, heat may generate on the electrical terminal and cause electric shock or fire.

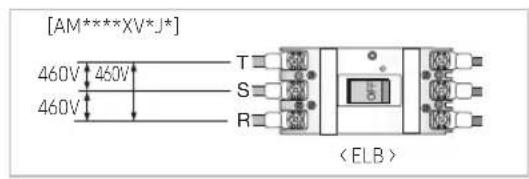

- Exclusive circuit breaker (MCCB, ELB) must be installed to the power supply.

• When overcurrent or current leakage occurs with no circuit breaker installed, power will not be cut-off and it may cause electric shock or fire.
• Do not use damaged parts. It may cause fire or electric shock.

- You must cut-off the power before you work on, or adjust any power supply part for product installation, maintenance, repair or any other services.

• There is risk of electric shock.
• Even when the power is off, it is dangerous when you come in contact with inverter PCB, fan PCB since high pressure DC voltage is charged to those parts.

- When replacing/repairing the PCB, cut-off the power and wait until the DC voltage is discharged before replacing/repairing them. (Wait for more than 15 minutes to allow it to discharge naturally.)

- If the refrigerant gas leaks during the installation, you should ventilate the room.

- When the refrigerant gas gets in contact with flammable substance, it may generate toxic gas.

• Gas leakage must be checked after installation is completed.

- When the refrigerant gas gets in contact with flammable substance, it may generate toxic gas.

- You can get frostbite if you get in contact with the leaked refrigerant gas.

- Supply power to the product during winter time since the product will operate in protection mode when the temperature decrease below 0°C (32°F).

- If power is removed, compressor protection mode cannot operate and may cause damage to the product.

- Wear protective equipment (such as safety gloves, goggles, and headgear) during installation and maintenance works. Installation/repair technicians may be injured if protective equipment is not properly equipped.

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

For use in Europe: This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

CAUTION

- Do not install the drain pipe directly to the bottom part of the outdoor unit and built a proper drainage so that water drains out smoothly. If not, pipe may freeze or bursts during winter time and cause damage to the product or water leakage.

- When the draining work is not done properly, water leak may occur and cause property damage.

- Install the power cable and communication cable of the indoor and outdoor unit at least 1.5m (4.92ft) away from the electric appliances and install it at least 2m (6.56ft) away from the lightning conductor.

– Noise may be generated from the electronic devices, depending on the status of the electric wave.

• Install the outdoor unit within the angle stated in the table, according to the height of the building.

- Do not leave the refrigerant container under the hot sunlight. (There is risk of explosion.)

- You must use the appropriate pipes according to the standard since the pressure of the refrigerant is high.

- Make sure that the pipes do not get weaker by welding them too much.

- Make sure to install the product away from children's reach. (Sharp parts of the heat exchanger may cause personal injury, and when parts of the product get damaged, it may decrease the product's performance.)

Height of the building Protection angle
20m(65.6 ft) or less 55°
40m(131.2 ft) or less 35°
60m(196.9 ft) or less 25°

- Install the indoor unit away from lighting apparatus that uses ballast stabilizers.

- If you use the wireless remote control, it may not operate normally due to ballast stabilizers.

- Do not install the product in the following places:

• Places where the outdoor unit's noise and warm air may disturb neighbors.
• Do not leave any obstacles around the inlet and outlet of the product. (It may cause damage or accidents.) – The place where there is mineral oil or arsenic acid.
• Those parts may get damaged due to burned resin and cause water leakage or the product may fall. – The efficiency of the heat exchanger may reduce or the product may break.

– The place where corrosive gas such as sulfurous acid gas generates from the vent pipe or air outlet.

- The copper pipe or connection pipe may corrode and refrigerant may leak.

• The place where there is a machine that generates electromagnetic waves. – The air conditioner may not operate normally due to problems in the control system. – The place where there is a danger of combustible gas leakage or a place where thinner or gasoline is handled. – (There is a risk of fire or explosion.) – The place with carbon fiber or flammable dust. – The place near seashore or hot spring where there is a risk of outdoor unit corrosion.

- Changes in DVM S2 (inverter) compared to conventional models that have to be noted when installing

• For optimal distribution of the refrigerant, you must use Y-joint as branch joint for connecting outdoor units. (Do not use T-joint)
• You cannot operate normally if you do not complete the trial operation through outdoor unit key mode. You must use KEY MODE to run trial operation.
• Check the compatibility of other products such as indoor unit, EEV kits etc. which will be connected to DVM S2.
• Make sure to note that outdoor unit combination is different from DVM PLUS III, IV and DVM S.
• The length of maximum piping, level difference, the quantity of connectable indoor units, the installation at the outdoor joints and the outdoor unit combinations are different from the conventional models.
• If the pipe length is over 2m (6.56ft) between outdoor units, make traps to prevent oil stagnation. Oil stagnation may occur when outdoor unit at the end of module stops while other outdoor units are still in operation.

Outdoor unit classification

Classification	DVM S2 Small type	DVM S2 Large type	DVM S2 X-Large type
Appearance

CAUTION

Packaging material disposition

• Safely store or dispose the packaging materials.
• Sharp metals such as nails or wooden material packaging that may break into pieces become a cause for personal injury.
• Make sure to store or dispose the vinyl type packaging material to keep it out of reach of children. Children may put them over their face, which is very dangerous since it may lead them to suffocation.

Moving the outdoor unit

• Select the moving path in advance.
• Be sure that moving path can support weight of the outdoor unit.
• Do not slant the product more than 30° when carrying it. (Do not lay the product down sideways.)
• The surface of the heat exchanger is sharp. Be careful not to get injured while moving the product.
• When transporting DVM S2 outdoor, be aware of the center of gravity of the outdoor unit. (Refer to the center of gravity label attached on the front panel, and remove it after installation.)

CAUTION

- You must use certain parts of the product when moving it.

When moving with a crane

• Fasten the wire rope as shown in the figure.
• To protect against damage or scratches, insert a piece of cloth between the outdoor unit and the wire rope.

When moving with a forklift

• Carefully insert the forklift forks into the forklift holes at the bottom of the outdoor unit.
• Be careful with the forklift to avoid damaging the product.

When moving the product without a wooden pallet and the crane is not available for use

• Connect a wire rope to the outdoor unit as you would when moving it with a crane.
• Hang the wire rope to the forklift fork to move the outdoor unit.

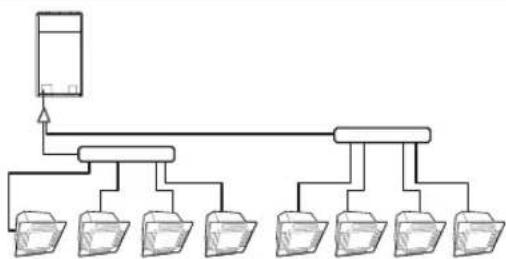

Outdoor unit combination

• Make sure to use an indoor unit that is compatible with DVM S2.
• Indoor units can be connected within the range indicated in the following table.
• If the total capacity of the connected indoor units exceeds the indicated maximum capacity, the cooling and heating capacity of the indoor unit may decrease.
• The total capacity of the connected indoor units can be allowed from 50% to 130% of the total outdoor unit capacity. 0.5 × (Outdoor unit capacity) ≤ Total capacity of the connected indoor units ≤ 1.3 × (Outdoor unit capacity)
• Please contact your local Samsung representative or refer to the Technical Data Book for further details if the project requires you to design the project with a connection ratio greater than 130%.
• You can connect a maximum of 64 indoor units to the outdoor unit. The maximum quantity of connectable indoor units is set to 64 since the outdoor unit only supports up to 64 communication addresses. Indoor unit addresses can be assigned from 0 to 63. If the indoor unit address is assigned from 64 to 79, an E201 error will occur.
• A maximum of 32 Wall-mount type indoor units with EEV (AM****NQD*, AM****NVD*) can be connected.
• Do not install 1st-generation MCU and 2nd-generation MCU together.
• 1st-generation MCU: MCU-S*NEE*N, MCU-S2NEK1N
• 2nd-generation MCU: MCU-S*NEK2N, MCU-S4NEK3N, MCU-S1NEK1N, MCU-S8NEK1N, MCU-S12NEK1N

CAUTION

- Use the following table to determine the size and number of outdoor units needed to achieve the capacity requirements.

Preparations for Outdoor Unit

Module combination for AM***BXVG** series

Model name for combination	Number of individual outdoor units	Nominal Capacity		Rated Capacity		Total cooling capacity of the connected indoor units		Maximum number of connectable indoor units	Combined outdoor units
									AM***BXVG**
		Cooling (Btu/h)	Heating (Btu/h)	Cooling (Btu/h)	Heating (Btu/h)	Minimum (Btu/h)	Maximum (Btu/h)		072 (6Ton)	096 (8Ton)	120 (10Ton)	144 (12Ton)	168 (14Ton)	192 (16Ton)	216 (18Ton)	240 (20Ton)
AM072BXVG**	72000 81	000 69000	77000 36000	00 93600	12 1
AM096BXVG**	1	96000	108000	92000	103000	48000	124800	16		1
AM120BXVG**	1	120000	135000	114000	129000	60000	156000	20			1
AM144BXVG**	1	144000	162000	138000	154000	72000	187200	25				1
AM168BXVG**	1	168000	189000	160000	180000	84000	218400	29					1
AM192BXVG**	1	192000	216000	184000	206000	96000	249600	33						1
AM2168XVG**	1	216000	243000	206000	232000	108000	280800	37							1
AM240BXVG**	1	240000	270000	228000	258000	120000	312000	41								1
AM264BXVG**	2	264000	297000	252000	282000	132000	343200	45		1			1
AM288BXVG**	2	288000	324000	274000	308000	144000	374400	49		1				1
AM312BXVG**	2	312000	351000	298000	334000	156000	405600	54		1					1
AM336BXVG**	2	336000	378000	320000	360000	168000	436800	58		1						1
AM360BXVG**	2	360000	405000	342000	386000	180000	468000	62			1					1
AM384BXVG**	2	384000	432000	366000	412000	192000	499200	64						2
AM408BXVG**	2	408000	459000	388000	438000	204000	530400	64						1	1
AM432BXVG**1	3	432000	486000	412000	462000	216000	561600	64		2			1
AM456BXVG**	3	456000	513000	436000	488000	228000	592800	64			1	1		1

Module combination for AM***BXVT** series

Model name for combination	Number of Individual outdoor units	Nominal Capacity		Rated Capacity		Total cooling capacity of the connected indoor units		Maximum number of connectable indoor units	Combined outdoor units
		Cooling (Btu/h)	Heating (Btu/h)	Cooling (Btu/h)	Heating (Btu/h)	Minimum (Btu/h)	Maximum (Btu/h)		AM***BXVT**
									072 (6Ton)	096 (8Ton)	120 (10Ton)
AM072BXVT**	1	72000	81000	69000	77000	36000	93600	12	1
AM096BXVT**	1	96000	108000	92000	103000	48000	124800	16		1
AM120BXVT**	1	120000	135000	114000	129000	60000	156000	20			1
AM144BXVT**	2	144000	162000	138000	154000	72000	187200	25	2
AM168BXVT**	2	168000	189000	161000	180000	84000	218400	29	1	1
AM192BXVT**1	2	192000	216000	184000	206000	96000	249600	33		2
AM216BXVT**1	3	216000	243000	206000	232000	108000	280800	37	3
AM240BXVT**1	3	240000	270000	228000	258000	120000	312000	41	2	1
AM264BXVT**	3	264000	297000	252000	283000	132000	343200	45	2		1
AM288BXVT**	3	288000	324000	275000	309000	144000	374400	49	1	1	1

Module combination for AM***DXVGQ* series

Model name for combination	Number of individual outdoor units	Nominal Capacity		Rated Capacity		Total cooling capacity of the connected indoor units		Maximum number of connectable indoorunits	Combined outdoorunits
									AM***DXVGQ*
		Cooling (Btu/h)	Heating (Btu/h)	Cooling (Btu/h)	Heating (Btu/h)	Minimum (Btu/h)	Maximum (Btu/h)		72 (6Ton)	96 (8Ton)	120 (10Ton)	144 (12Ton)	168 (14Ton)	192 (16Ton)	216 (18Ton)	240 (20Ton)
AM072DXVGQ*	1	72000	81000	69000	77000	36000	93600	12	1
AM096DXVGQ*	1	96000	108000	92000	103000	48000	124800	16		1
AM120DXVGQ*	1	120000	135000	114000	129000	60000	156000	20			1
AM144DXVGQ*	1	144000	162000	138000	154000	72000	187200	25				1
AM168DXVGQ*	1	168000	189000	160000	180000	84000	218400	29					1
AM192DXVGQ*	1	192000	216000	184000	206000	96000	249600	33						1
AM216DXVGQ*	1	216000	243000	206000	232000	108000	280800	37							1
AM240DXVGQ*	1	240000	270000	228000	258000	120000	312000	41								1
AM264DXVGQ*	2	264000	297000	252000	282000	132000	343200	45		1			1
AM288DXVGQ*	2	288000	324000	274000	308000	144000	374400	49		1				1
AM312DXVGQ*	2	312000	351000	298000	334000	156000	405600	54		1					1
AM336DXVGQ*	2	336000	378000	320000	360000	168000	436800	58		1						1
AM360DXVGQ*	2	360000	405000	342000	386000	180000	468000	62			1					1
AM384DXVGQ*	2	384000	432000	366000	412000	192000	499200	64						2
AM408DXVGQ*	2	408000	459000	388000	438000	204000	530400	64						1	1
AM432DXVGQ*	3	432000	486000	412000	462000	216000	561600	64		2			1
AM456DXVGQ*	3	456000	513000	436000	488000	228000	592800	64			1	1		1

Outdoor unit location requirements

Decide the installation location, with consideration of the following conditions, and obtain the user's approval.

• A place where hot discharge air or noise from the outdoor unit will not disturb the neighbors.
• A place where the structure can bear the weight and vibration of the outdoor unit.
• A place with a flat surface where rainwater does not settle or leak.
• A place that is not exposed to strong wind.
• A well-ventilated place with sufficient space for repairs and maintenance. A discharge duct may be required (field supplied).
• A place where you can connect the refrigerant pipes between indoor and outdoor units within the allowable distance.
• A place that allows easy waterproofing and draining of the condensation water generated from the outdoor unit during heating operation.
• A place with no risk of inflammable gas leakage.
• A place not directly exposed to snow or rain.
• A place where large amounts of water from the external environment do not directly affect the top of the outdoor unit.

Installation guide at the seashore

Make sure to follow the guidelines below when installing at the seashore.

1 Do not install the product in a place where it is directly exposed to sea water and sea breeze. - Make sure to install the product behind a structure (such as a building) that can block sea breeze. - Even when it is inevitable to install the product in seashore, make sure that the product is not directly exposed to sea breeze by installing a protection wall.

Protection wall should be constructed with a solid material that can block the sea breeze and the height and width of the wall should be 1.5 times larger than the size of the outdoor unit. (You must secure more than 700mm (28inch) of space between the protection wall and the outdoor unit for air circulation.)

2 Consider that the salinity particles clinging to the external panels should be sufficiently washed out. 3 Because the residual water at the bottom of the outdoor unit significantly promotes corrosion, make sure that the slope does not disturb drainage. - Keep the floor level so that rain does not accumulate. - Be careful not to block the drain hole due to foreign substance. 4 When product is installed in seashore, periodically clean it with water to remove attached salinity.

5 Make sure to install the product in a place that provides smooth water drainage. Especially, ensure that the base part has good drainage. 6 If the product is damaged during the installation or maintenance, make sure to repair it. 7 Check the condition of the product periodically.

- When the product is to be shut down for a long period of time, such as off-peak hours, take appropriate measures like covering the product.

8 If the product is installed within 500m (1640ft) of seashore, special anti-corrosion treatment is required.

※ Please contact your local SAMSUNG representative for further details.

If you cannot find a proper location to install the outdoor unit, consult with an expert or specialty store.

CAUTION

- System air conditioner may cause static noise when listening to AM stations. Therefore, select an installation location for indoor unit where electrical wiring can be done while keeping certain distance from a radio, computer and stereo equipment.

- Especially, keep the unit at least 3m (9.84ft) away from the electrical equipment in an area with weak electromagnetic waves and put the main power cable and communication cables in a separately installed protection tube. - Make sure that there is no equipment that generates electromagnetic waves. If not, electromagnetic waves may cause problems to the control systems which may lead to air conditioner malfunction. (Example: Remote control sensor of the indoor unit may not receive the signal very well, due to ballast stabilizer of the lighting equipment.)

• In regions with heavy snowfall, make sure to install the outdoor unit where there is no concern of direct snowfall on the outdoor unit. Also, build higher base support so that accumulated snow does not block the air inlet or the heat exchanger.
• R-410A refrigerant is a safe, nontoxic and nonflammable refrigerant. However, if the place holds any concerns for exceeding dangerous level of refrigerant concentration in case of refrigerant leakage, extra ventilation system is required.

Choosing the installation location

• When you install the outdoor unit in high places such as a roof, install fence or guardrail around it. When there is no fence or guardrail, service person could fall.
• Do not install the product in places where corrosive gases such as sulfur oxides, ammonia, and sulfurous gas are produced. (e.g. Toilet outlet, ventilation opening, sewage works, dyeing complex, cattle shed, sulfuric hot spring, nuclear power plant, ship etc.) When installing the product in those places, contact an installation specialty store as the copper pipe and brazing part will need additional corrosion proof or anti-rust additive to prevent corrosion.
• Make sure not to keep any inflammable materials (such as wooden materials, oil etc.) around the outdoor unit. When there's fire, those inflammable material will easily catch the fire and may pass it on to the product.
• Depending on the condition of power supply, unstable power or voltage any cause malfunction of the parts or control system. (At the ship or places using power supply from electric generator...etc)
• Heat Recovery systems require installation of MCU(s).
• During operation, MCUs may create noise. When selecting the MCU installation location, make sure to install in an area where potential noise will not be an issue.

Outdoor unit space requirements

• Space requirement was decided based on following conditions; Cooling mode, outdoor temperature of 35°C (95°F). Larger space is required if the outdoor temperature is higher than 35°C (95°F) or if the place is heated easily by quantity of solar radiation.
• When you secure installation space, consider path for people and the direction of the wind.
• Secure installation space as shown in the below illustration, considering ventilation and the service space.
• If the installation space is narrow, installer or other worker may get injured during work and may also cause problem to the product.
• If you install multiple number of outdoor units in one space, make sure to secure enough ventilation space if there's any walls around the product that may disturb the air flow. If enough ventilation space is not secured, product may malfunction.
• You may install the outdoor units with 20mm (0.78inch) of space between the product, but product's performance may decrease depending on the installation environment.

Single installation

Module installation

- For or

• Height of the wall on the front side should not be higher than 1500mm (60inch).
• Height of the wall on the air inlet side should not be higher than 500mm (20inch).
• Height of the wall on the side is not limited.
• If the height of the wall exceeds by certain value (h1, h2), additional clearance [(h1)/2, (h2)/2 : Half of the exceeded height] should be added to the service space (S1, S2).

Preparing materials and tools

• You must keep the installation manual until the installation is finished.
• Hand over the installation manual to the customer after finishing the installation.

Installation manual (1) Packing socket (1)

※ Certain models are supplied with a packing socket. The socket type may differ, depending on the model.

Optional accessories

- Following optional accessories are needed for connecting pipes between the indoor and outdoor units.

Classification Model Name		Specification
		MBH kW
Y-Joint	MXJ-YA1509M 51 and below 15.0 and below
	MXJ-YA2512M 52~136 15.1 ~40.0
	MXJ-YA2812M 137~154 40.1 ~45.0
	MXJ-YA2815M 165~240 45.1 ~70.3
	MXJ-YA3419M 241~336	70.4 ~98.4
	MXJ-YA4119M 337~461	98.5 ~135.2
	MXJ-YA4422M	Over 461	Over135.2

Classification Model Name		Specification
		MBH kW
Y-Joint(Only H/R)	MXJ-YA1500M 76 and below 22.4 and below
	MXJ-YA2500M	77~240	22.5 ~70.3
	MXJ-YA3100M 241~461	70.4 ~135.2
	MXJ-YA3800M	Over 461	Over135.2
Distribution header	MXJ-HA2512M	154 and below(for 4 rooms)	45.0 and below(for 4 rooms)
	MXJ-HA3115M	240 and below(for 8 rooms)	70.3 and below(for 8 rooms)
	MXJ-HA3819M	241 ~ 461(for 8 rooms)	70.4 ~ 135.2(for 8 rooms)
Y-Joint- Outdoor unit	MXJ-TA3819M	461 and below	135.2 andbelow
	MXJ-TA4422M	Over 461	Over135.2
Y-Joint(Only H/R)- Outdoor unit	MXJ-TA3100M	461 and below	135.2 andbelow
	MXJ-TA3800M	Over 461	Over135.2

※ If you use an indoor unit with no internal EEV (Electric Expansion Valve), you will need an EEV kit. ※ Only use the genuine accessories listed in the above table and do not use imitated accessories.

Outdoor unit installation

WARNING

• Make sure to remove the wooden pallet before installing the outdoor unit. If you do not remove the wooden pallet, there is risk of fire during welding the pipes. If the outdoor unit is installed with wooden pallet on, and it was used for long period time, wooden palette may break and cause electrical hazard or high pressure may damage the pipes. ※ Fix an outdoor unit firmly on the base ground with anchor bolts. ※ Manufacturer is not responsible for the damage occurred by not following the installation standards.

1 Make sure that the height of the base ground is 200mm (8inch) or higher to protect the outdoor unit from rain water or other external conditions. Also, install a draining pit around the base ground and connect the drain pipe to the drainage. 2 Considering the vibration and weight of the outdoor unit, strength of the base ground must be strong to prevent noise and the top surface of it should be flat. 3 Base ground should be 1.5 times larger than the bottom of the outdoor unit. 4 Outdoor unit must be fixed firmly so that it can withstand the wind speed of 30m/s. If you cannot fix the outdoor unit on the base ground, fix it by side or use extra structure.

5 In heating operation, defrost water may form so you must really care about the drainage and waterproofing the floor. To prevent defrost water from stagnating or freezing, construct a drainage with over 1/50 slope. (Ice may form on the floor in winter season.) 6 It is necessary to add wire mesh or steel bar during concrete construction for the base ground to prevent damages or cracks. 7 When installing multiple outdoor units at the same place, construct an H beam or an anti-vibration frame on the base ground to install the outdoor unit. 8 After installing an H beam or an anti-vibration frame, apply corrosion protection and other necessary coating. 9 When concrete construction for outdoor unit installation is completed, install an anti-vibration pad (t=20mm/0.78inch or more) or an anti-vibration frame to prevent vibration of the outdoor unit from transferring to the base ground. 10 Place the outdoor unit on an H beam or an anti-vibration frame and fix it with the bolt, nut and washer. (The bearing force has to be over 3.5kN)

Base ground construction

Outdoor unit installation

Outdoor unit base mount and anchor bolt position

Unit: inch

Classification	DVM S2 Small type	DVM S2 Large type	DVM S2 X-Large type
A 36.6 51	73.2
B 31.1 45.5	67.7
C -- 5.9

※ Refer to the blueprints in technical data book to make a holes for connecting the anti-vibration pad.

Examples of draining work

• Construct the drainage ditch with reinforced concretes and make sure that water-proofing work is done.
• For smooth draining of defrost water, make sure to apply 1/50 slope.
• Construct a drainage around the outdoor unit to prevent the defrost water (from the outdoor unit) from stagnating, overflowing or freezing near the installation space.
• When the outdoor unit is installed on the roof, check the strength and waterproof status of the roof.

Unit: inch

Classification	DVM S2 Small type	DVM S2 Large type	DVM S2 X-Large type
A	40.6	54.9	77.2
B 31.1 45.5	67.7

CAUTION

Cautions regarding connecting the anchor bolt

Tighten the rubber washer to prevent the bolt connection part of the outdoor unit from corroding.

Rubber washer

Anchor specification

Size	Diameter of drill bit (a)	Anchor length (b)	Sleeve length (c)	Insert depth	Fastening torque
∅10	14mm(1/2")	75mm(3")	40mm(1-1/2")	50mm(2")	30 N·m

Use anchor bolts and nuts that are zinc plated or made of STS material. Regular anchor bolts or nuts may get damaged by corrosion.

Cautions regarding connecting the pipe

• If you install the outdoor unit on the rooftop, check the strength and make sure to waterproof the rooftop.
• Construct a draining pit around the base construction and pay attention to the drainage around the outdoor unit. (Condensation or defrost water may form during outdoor unit operation.)
• If there is any possibility of small animals entering from the pipe outlet, block the outlet as shown in the illustration.

Cautions regarding anti-vibration frame installation

• During installation, make sure there is no gap between the base ground and the supporting structures such as anti-vibration frame or H beam.
• The base ground must be constructed strongly to support the bottom part of the anti-vibration mount.

After installing the anti-vibration frame, untighten the fixing part on the top and bottom part of the frame.

Caution for installing discharge duct

• Static pressure of the discharge duct should be within the standard specification when installing the duct.
• If you remove the fan guard to install the discharge duct, make sure to install a safety net on the duct outlet. Foreign substance may enter into the product and there could be a risk of personal injury.
• Wear protection equipment at all times when making galvanized sheet metal duct, since the worker may get injured by the sharp parts.
• When installing the outdoor unit under the tree or near forest, leaves may get into the product and cause problems on the product. Therefore, install a discharge duct to prevent foreign substance infiltration.

Installing the outdoor unit in various environments

Installing the outdoor unit around the obstacles

- It is necessary to install a discharge guide duct (field supply) to direct exhaust from the fan horizontally, when it is difficult to provide a minimum space of 2m (6.56ft) between the air outlet and a nearby obstacle.

WARNING

- Should adopt bar type louver. Don't use a type of rain resistance louver.

[Bar type louver] [Rain resistance louver]

- Louver specifications.

• Angle criteria: less than 20°
• Opening ratio criteria: greater than 80%

Installing the outdoor unit in cold region

• In cold regions with lots of snowfall, install a snow prevention duct, as a sufficient countermeasure, to prevent snow from accumulating on the outdoor unit. When the snow prevention duct is not installed, frost may accumulate on the heat exchanger and heating operation may not work normally. • Air outlet of the duct should not be directed to the enclosed space.

CAUTION

Cautions regarding installing the frame and selecting the base ground

• Height (h) of the frame and the base ground should be higher than the "heaviest expected snowfall". The area of the frame and the base ground should not be larger than the area of the outdoor unit. Snow may accumulate if the area of the frame or the base ground is larger.

Installing the outdoor unit in windy regions

• In windy regions such as near sea shores, a protection wall or wind protection duct must be installed for normal operation of the outdoor unit. (Refer to the illustration of the snow prevention duct for installing the wind protection duct.)
• Install the wind prevention duct with consideration of the major wind direction. If the direction of the discharge part is the same as the major direction of the wind, it could cause a decrease in product performance.

CAUTION

Cautions regarding installing the frame and selecting the base ground

• The base ground must be solid and the outdoor unit must be fixed with anchor bolts.
• Make sure to install the outdoor unit in a place strong enough to withstand its weight. If the place cannot withstand the weight of the outdoor unit, the outdoor unit may fall and cause personal injury.
• When installing on a rooftop subject to strong wind, countermeasures must be taken to prevent the unit from falling down.
• Use a frame that is resistant to corrosion.

Refrigerant pipe installation

WARNING

When installing, make sure there is no leakage. When collecting the refrigerant, stop the compressor first before removing the connection pipe. If the refrigerant pipe is not properly connected and the compressor works with the service valve open, the pipe inhales the air and it makes the pressure inside the refrigerant cycle abnormally high, which may lead to explosion and injury.

Refrigerant pipe work

• The length of refrigerant pipe should be as short as possible and the height difference between an indoor and outdoor unit should be minimized.
• Piping work must be done within allowable piping length, height difference, and the allowable length after branching.
• The pressure of the R-410A is high. Use only certified refrigerant pipe and follow the installation method.
• After installing the pipes, calculate the total length of the pipe to check if additional refrigerant is needed. When you need to charge the additional refrigerant, make sure to use R-410A refrigerant.
• Use clean refrigerant pipe and there shouldn't be any harmful ion, oxide, dust, iron content or moisture inside pipe.
• Use tools and accessories that fit on R-410A only.

Tool	Installation process/purpose		Compatibility with conventional tool
Pipe cutter	pe flaringRefrigerant pipe installation	Pipe cutting	Compatible
Flaring tool P
Refrigerant machine oil		Apply refrigerant oil on flared part	Exclusive ether oil, ester oil, alkali benzene oil or synthetic oil
Torque wrench		Connect flare nut with pipe	Compatible
Pipe bender		Pipe bending
Nitrogen gas	Air tightness test	Prevent oxidation within the pipe
Welder		Pipe welding
Manifold gage	Air tightness test ~ additional refrigerant charging	Vacuuming, charging refrigerant and checking operation	Compatible
Refrigerant charging hose			Need exclusive one since there is risk of refrigerant leakage or inflow of impurities

Tool	Installation process/purpose	Compatibility with conventional tool
Vacuum pump	Pipe drying	Compatible (Use products which contain the check valve to prevent the oil from flowing backward into the outdoor unit.) Use the one that can be vacuumed up to 0.5 Torr (500 microns).
Scale for refrigerant charging	Refrigerant charging Compatible
Gas leak detector	Gas leak test Need exclusive one
Flare nut Must use the flare nut equipped with the product.

Selecting refrigerant pipe

• Install the refrigerant pipe according to main pipe size of each outdoor unit capacity. - When the pipe length (including elbow) between an outdoor unit and the farthest indoor unit exceeds 90 m (295.3 ft), you must increase the size of the pipe (main pipe) by one grade which connects between the outdoor unit to the first branch joint. - For H/R model, When the pipe length (including elbow) between an outdoor unit and the farthest indoor unit exceeds 90 m (295.3 ft), you must increase the size of the liquid pipe by one grade among the pipes(main pipe) which connects between the outdoor unit to the first branch joint.

Size of the pipe connected to the outdoor unit (A) Branch joint (C+E)

Select the size of the main pipe according to the below table.

Outdoor unit capacity (MBH) (Cooling)	Outdoor unit capacity (kW) (Cooling)	*Maximum pipe length within 295ft (90m)				*Maximum pipe length over 295ft (90m)
		Liquid Gas		Liquid Gas
		inch	mm	inch	mm	inch	mm	inch	mm
Capacity ≤ 85	Capacity ≤ 25	∅3/8	∅9.52	∅3/4	∅19.05	∅1/2	∅12.70	∅7/8	∅22.22
85 < Capacity ≤ 99	25 < Capacity ≤ 29			∅7/8	∅22.22			∅1 note1	∅25.40 note1
99 < Capacity ≤ 120	29 < Capacity ≤ 35	∅1/2	∅12.70	∅11/8	∅28.58	∅5/8	∅15.88	∅11/8	∅28.58
120 < Capacity ≤ 140	35 < Capacity ≤ 41
140 < Capacity ≤ 160	41 < Capacity ≤ 47							∅11/4 note21	∅31.75 note21
160 < Capacity ≤ 181	47 < Capacity ≤ 53	∅5/8	∅15.88			∅3/4	∅19.05
181 < Capacity ≤ 222	53 < Capacity ≤ 65
222 < Capacity ≤ 240	65 < Capacity ≤ 70			∅13/8	∅34.92			∅13/8	∅34.92
240 < Capacity ≤ 336	70 < Capacity ≤ 98	∅3/4	∅19.05			∅7/8	∅22.22	∅11/2 note35	∅38.10 note31
336 < Capacity ≤ 467	98 < Capacity ≤ 137			∅15/8	∅41.28			∅15/8	∅41.28

*Maximum pipe length: The pipe length between an outdoor unit and the farthest indoor unit. Note1) If ∅1" (25.40mm) pipe is not available on site, use ∅1 1/8" (28.58mm) pipe. Note2) If ∅1 1/4" (31.75mm) pipe is not available on site, use ∅1 3/8" (34.92mm) pipe. Note3) If ∅1 1/2" (38.10mm) pipe is not available on site, use ∅1 5/8" (41.28mm) pipe For the case that the diameter of the default pipe of an outdoor unit does not match that of the pipe installed on the site, a socket is provided by default together with the outdoor unit.

Size of the pipe between branch joints (B)

Select the pipe size according to the sum of indoor unit capacity which will be connected after the branch. ※ However, if the size of the pipe between branch joints (B) is bigger than the size of the pipe connected to the outdoor unit (A), apply the pipe size (A).

Indoor unit capacity (MBH)	Indoor unit capacity (kW)	Branch pipe length within 148ft (45m)				Branch pipe length between 148ft~295ft (45~90m)
		Liquid Gas Liquid Gas
		inch	mm	inch	mm	inch	mm	inch	mm
Capacity < 19	Capacity < 5.7	∅1/4	∅6.35	∅1/2	∅12.70	∅3/8	∅9.52	∅5/8	∅15.88
19 ≤ Capacity < 55	5.7 ≤ Capacity < 16	∅3/8	∅9.52	∅5/8	∅15.88	∅1/2	∅12.70	∅3/4	∅19.05
55 ≤ Capacity < 79	16 ≤ Capacity < 23.2			∅3/4	∅19.05			∅7/8	∅22.22
79 ≤ Capacity < 115	23.2 ≤ Capacity < 33.6			∅7/8	∅22.22			∅1 roll	∅25.40 noncl
115 ≤ Capacity < 133	33.6 ≤ Capacity < 39	∅1/2	∅12.70	∅11/8	∅28.58	∅5/8	∅15.88	∅11/8	∅28.58
133 ≤ Capacity < 150	39 ≤ Capacity < 44
150 ≤ Capacity < 172	44 ≤ Capacity < 50.4							∅11/4 noncl	∅31.75 noncl
172 ≤ Capacity < 229	50.4 ≤ Capacity < 67.2	∅5/8	∅15.88			∅3/4	∅19.05
230 ≤ Capacity < 248	67.2 ≤ Capacity < 72.8			∅13/8	∅34.92			∅13/8	∅34.92
248 ≤ Capacity < 344	72.8 ≤ Capacity < 100.8	∅3/4	∅19.05			∅7/8	∅22.22	∅11/2 noncl	∅38.10 noncl
344 ≤ Capacity < 392	100.8 ≤ Capacity < 115			∅15/8	∅41.28			∅15/8	∅41.28
392 ≤ Capacity < 592	115 ≤ Capacity < 173.6							∅13/4 noncl	∅44.45 noncl
592 ≤ Capacity < 676	173.6 ≤ Capacity < 198	∅7/8	∅22.22	∅13/4 noncl	∅44.45 noncl	∅1 (noncl)	∅25.40 noncl	∅21/8	∅53.98
676 ≤ Capacity < 860	198 ≤ Capacity < 252			∅21/8	∅53.98
860 ≤ Capacity	252 ≤ Capacity	∅1 (noncl)	∅25.40 noncl			∅11/8	∅28.58

Note1) If ∅1" (25.40mm) pipe is not available on site, use ∅1 1/8" (28.58mm) pipe. Note2) If ∅1 1/4" (31.75mm) pipe is not available on site, use ∅1 3/8" (34.92mm) pipe. Note3) If ∅1 1/2" (38.10mm) pipe is not available on site, use ∅1 5/8" (41.28mm) pipe. Note4) If ∅1 3/4" (44.45mm) pipe is not available on site, use ∅2 1/8" (53.98mm) pipe.

Ex.) 34 Ton

Ton No.		Pipe size (O.D)
		Liquid pipe Gas pipe
		mm inch	mm inch
16 (1)	19.88 5/8 28.58	11/8
28 (2)	19.05 3/4 34.92	13/8
34 (3)	19.05 3/4 41.28	15/8

Branch joint between outdoor units (C) Select a branch joint according to the sum of the capacity of outdoor units connected to the branch joint.

Classification	Outdoor unit capacity		Model name
	MBH	kW
Y-joint for outdoor unit (C)	Capacity ≤ 467	Capacity ≤ 137	MXJ-TA3819M
	467 < Capacity	137 < Capacity MXJ-TA4422M

First branch joint (D)

Select according to the sum of the capacity of the outdoor unit.

Classification	Outdoor unit capacity		Model name
	MBH	kW
Y-joint (D)	Capacity ≤ 140 Capacity ≤ 41	MXJ-YA2512M
	Capacity ≤ 160 Capacity ≤ 47	MXJ-YA2812M
	Capacity ≤ 239	Capacity ≤ 70	MXJ-YA2815M
	Capacity ≤ 336	Capacity ≤ 98	MXJ-YA3419M
	Capacity ≤ 467	Capacity ≤ 137	MXJ-YA4119M
	467 < Capacity	137 < Capacity MXJ-YA4422M

Branch joint (E)

Select a branch joint according to the sum of indoor unit capacity which will be connected after the branch. * However, if the branch joint (E) is bigger than the first branch joint (D), apply the branch joint of the same size as the first branch joint (D).

Classification	Indoor unit capacity		Model name
	MBH	kW
Y-joint (E)	Capacity < 55	Capacity < 16	MXJ-YA1509M
	55 ≤ Capacity < 133 16 ≤	Capacity < 39 MXJ-YA2512M
	133 ≤ Capacity < 172	39 ≤ Capacity < 50.4	MXJ-YA2812M
	172 ≤ Capacity < 248	50.4 ≤ Capacity < 72.8	MXJ-YA2815M
	248 ≤ Capacity < 344	72.8 ≤ Capacity < 100.8	MXJ-YA3419M
	344 ≤ Capacity < 478	100.8 ≤ Capacity < 140	MXJ-YA4119M
	478 < Capacity	140 < Capacity	MXJ-YA4422M
Distribution header (E)	Capacity < 172 (for 4 rooms)	Capacity < 50.4 (for 4 rooms)	MXJ-HA2512M
	Capacity < 248 (for 8 rooms)	Capacity < 72.8 (for 8 rooms)	MXJ-HA3115M
	Capacity < 478 (for 8 rooms)	Capacity < 140 (for 8 rooms)	MXJ-HA3819M

Size of the pipe between the branch joint and the indoor unit (F)

Select according to the capacity of the indoor unit.

Indoor unit capacity		Liquid		Gas
MBH	kW	inch	mm	inch	mm
Capacity ≤ 20	Capacity ≤ 6	∅1/4	∅6.35	∅1/2	∅12.7
20 < Capacity ≤ 54	6 < Capacity ≤ 16	∅3/8	∅9.52	∅5/8	∅15.88
54 < Capacity ≤ 78	16 < Capacity ≤ 23	∅3/8	∅9.52	∅3/4	∅19.05
78 < Capacity	23 < Capacity	∅3/8	∅9.52	∅7/8	∅22.22

* If the criteria for selecting the branch in the outdoor installation manual and the branch installation manual are different, please select the branch in accordance with the outdoor installation manual.

H/P

When all the following conditions are met, install the main liquid pipe that is one step smaller to reduce piping load and the amount of refrigerant.

Note that the refrigerant for the main liquid pipe must be added by the specified amount upon reduction.

Condition 1: The vertical piping length is less than 131 ft (40 m)

Condition 2: For BG units, allowable length A (ft) ≥ max. piping length (ft) / {1 - (vertical piping length (ft) * 0.0046)}

※ Max. piping length: The equivalent length (ft) of piping from the outdoor unit to the farthest indoor unit For SI units, allowable length A (m) ≥ max. piping length (m) / {1 - (vertical piping length (m) * 0.015)} ※ Max. piping length: The equivalent length (m) of piping from the outdoor unit to the farthest indoor unit

If the conditions above are satisfied and one-size smaller piping has been installed, set the "liquid pipe (main pipe) size reduction" option.

- Length allowed to reduce the diameter of liquid pipe, A (equivalent length)

Outdoor unit capacity (Ton)	Maximum pipe length within 90m (295.3ft) Maximum				pipe length over 90m (295.3ft)
	Pipe diameter Allowable length Pipe diameter Allowable length
	mm inch m ft mm inch m ft
6	This capacity is not supported.
8 This capacity is not supported.
10	9.52	3/8	50	164	12.7	1/2	200	656
12	9.52	3/8	30	98	12.7	1/2	160	525
14	12.7	1/2	90	295	15.88	5/8	200	656
16	12.7	1/2	90	295	15.88	5/8	200	656
18	12.7	1/2	80	262	15.88	5/8	200	656
20	12.7	1/2	60	197	15.88	5/8	190	623
22	15.88	5/8	90	295	19.05	3/4	200	656
24	15.88	5/8	90	295	19.05	3/4	200	656
26	15.88	5/8	90	295	19.05	3/4	200	656
28	15.88	5/8	90	295	19.05	3/4	200	656
30	15.88	5/8	90	295	19.05	3/4	200	656
32	15.88	5/8	80	262	19.05	3/4	200	656
34	15.88	5/8	70	230	19.05	3/4	200	656
36	15.88	5/8	60	197	19.05	3/4	190	623
38	15.88	5/8	60	197	19.05	3/4	170	558
40	15.88	5/8	50	164	19.05	3/4	150	492

E.g. 1: For a site with 18 tons (BG units), max. piping length of 460 ft (395 ft-long horizontal piping and 65 ft-long vertical piping) condition, allowable length A ≥ max. piping length / {1 - (vertical piping length * 0.0046)}

656ft ≥ 460ft / {1 - (65 * 0.0046)} = 460ft / 0.701 = 656ft

Accordingly, the max. piping length of 460 ft (395 ft-long horizontal piping and 65 ft-long vertical piping) is allowable.

E.g. 2: For a site with 18 tons (SI units), max. piping length of 140 m (120 m-long horizontal piping and 20 m-long vertical piping) condition, allowable length A ≥ max. piping length / {1 - (vertical piping length * 0.015)}

200m ≥ 140m / {1 - (20 * 0.015)} = 140m / 0.7 = 200m

Accordingly, the max. piping length of 140m (120m-long horizontal piping and 20m-long vertical piping) is allowable.

Size of the pipe connected to the outdoor unit (A) Branch joint (C+E)

Select the size of the main pipe according to the below table.

Outdoor unit capacity (MBH) (Cooling)

Outdoor unit capacity (MW) (Cooling)

*Maximum pipe length within 295ft (90m) *Maximum pipe length over 295ft (90m)

Liquid

Low pressure gas

High pressure gas

Liquid

Low pressure gas

High pressure gas

inch

mm

inch

mm

inch

mm

inch

mm

inch

mm

inch

mm

Capacity ≤ 85

Capacity ≤ 25

∅5/8

∅9.52

∅3/4

∅19.05

∅5/8

∅15.89

∅1/2

∅12.70

∅5/4

∅79.05

∅5/8

∅15.66

85 < Capacity ≤ 99

25 < Capacity ≤ 29

∅9/8

∅67.27

∅5/4

∅15.05

∅6/8

∅97.27

∅5/4

∅19.05

99 < Capacity ≤ 120

29 < Capacity ≤ 35

∅1/7

∅12.20

∅11/8

∅98.58

∅5/8

∅15.89

∅77/8

∅79.58

∅7/8

∅97.27

120 < Capacity ≤ 140

35 < Capacity ≤ 41

∅7/8

∅77.27

140 < Capacity ≤ 160

41 < Capacity ≤ 47

160 < Capacity ≤ 181

47 < Capacity ≤ 53

∅5/8

∅10.88

∅5/4

∅79.05

181 < Capacity ≤ 222

53 < Capacity ≤ 65

∅11/8

∅28.58

∅11/8

∅28.58

222 < Capacity ≤ 240

65 < Capacity ≤ 70

∅15/8

∅54.92

∅15/8

∅54.92

240 < Capacity ≤ 336

70 < Capacity ≤ 98

∅5/4

∅19.05

∅7/8

∅22.22

336 < Capacity ≤ 457

98 < Capacity ≤ 137

∅15/8

∅41.28

∅15/8

∅54.92

∅15/8

∅41.28

∅15/8

∅54.92

457 < Capacity ≤ 583

137 < Capacity ≤ 171

*Maximum pipe length: The pipe length between an outdoor unit and the farthest indoor unit.

For HR model, only increase the size of the liquid pipe if pipe length exceeds 295ft (90m).

For the case that the diameter of the default pipe of an outdoor unit does not match that of the pipe installed on the site, a socket is provided by default together with the outdoor unit.

Size of the pipe between branch joints (B) Select the pipe size according to the sum of indoor unit capacity which will be connected after the branch. However, if the size of the pipe between branch joints (B) is bigger than the size of the pipe connected to the outdoor unit (A), apply the pipe size (A).

Indoor unit capacity (MBH)

Indoor unit capacity (kW)

Branch pipe length within 148ft (45m)

Branch pipe length between 148ft-295ft (45~90m)

Liquid

Low pressure gas

High pressure gas

Liquid

Low pressure gas

High pressure gas

inch

mm

inch

mm

inch

mm

inch

mm

inch

mm

inch

mm

Capacity<19

Capacity<5.7

∅1/4

∅6.35

∅1/2

∅12.70

∅3/9

∅9.52

∅3/9

∅9.52

∅1/2

∅12.70

∅3/8

∅9.52

19 ≤ Capacity <55

5.7 ≤ Capacity <16

∅5/8

∅9.57

∅5/8

∅15.88

∅1/2

∅12.70

∅5/8

∅15.88

∅1/7

∅12.70

55 ≤ Capacity <79

16 ≤ Capacity <23.2

∅5/8

∅19.05

∅5/8

∅15.88

∅7/7

∅12.70

∅5/8

∅15.88

79 ≤ Capacity <115

23.2 ≤ Capacity <33.6

∅9/8

∅17.22

∅5/4

∅19.05

∅9/8

∅17.22

∅5/4

∅19.05

115 ≤ Capacity <133

33.6 ≤ Capacity <39

∅7/2

∅72.40

∅11/8

∅26.58

∅5/8

∅15.88

∅11/8

∅26.58

133 ≤ Capacity <150

39 ≤ Capacity <44

∅7/8

∅22.22

∅7/8

∅22.22

150 ≤ Capacity <172

44 ≤ Capacity <50.4

172 ≤ Capacity <229

50.4 ≤ Capacity <67.2

∅5/8

∅10.88

∅7/8

∅26.58

∅5/4

∅19.05

∅11/8

∅26.58

230 ≤ Capacity <248

67.2 ≤ Capacity <72.8

∅13/8

∅34.92

∅13/8

∅34.92

248 ≤ Capacity <344

72.8 ≤ Capacity <100.8

∅5/4

∅19.05

∅7/8

∅22.22

344 ≤ Capacity <392

100.8 ≤ Capacity <115

∅15/8

∅41.28

∅13/8

∅34.52

∅13/8

∅41.28

∅7/8

∅34.92

392 ≤ Capacity <592

115 ≤ Capacity <173.6

592 ≤ Capacity <676

173.6 ≤ Capacity <198

∅7/6

∅22.22

∅13/4 mm-1

∅34.75 mm-1

∅15/8

∅41.29

∅1 mm-1

∅75.40 mm-1

∅75/4 mm-1

∅30.45 mm-1

∅15/8

∅41.28

676 ≤ Capacity <860

198 ≤ Capacity <252

∅21/8

∅53.98

∅21/8

∅53.98

860 ≤ Capacity

252 ≤ Capacity

∅1 mm-1

∅6.40 mm-1

∅13/4 mm-1

∅24.45 mm-1

∅11/8

∅26.58

∅13/4 mm-1

∅44.55 mm-1

Note1) If Ø1" (25.40mm) pipe is not available on site, use Ø1 1/8" (28.58mm) pipe. Note2) If Ø1 1/4" (31.75mm) pipe is not available on site, use Ø1 3/8" (34.92mm) pipe. Note3) If Ø1 1/2" (38.10mm) pipe is not available on site, use Ø1 5/8" (41.28mm) pipe. Note4) If Ø1 3/4" (44.45mm) pipe is not available on site, use Ø2 1/8" (53.98mm) pipe.

Ex.) 34 Ton

Ton No.		Pipe size (O.D)
		Liquid Gas High pressure Gas
		mm inch	mm inch mm inch
10	(1)	15.88	5/8	28.58	11/8	28.58	11/8
28	(2)	19.05	3/4	34.92	13/8	28.58	11/8
34	(3)	19.05	3/4	41.28	15/8	34.92	13/8

Branch joint between outdoor units (C) Select a branch joint according to the sum of the capacity of outdoor units connected to the branch joint.

Classification	Outdoor unit capacity		Model name
	MBH	kW
Y-joint for liquid/low pressure gas pipe (C)	Capacity ≤ 467	Capacity ≤ 137	MXJ-TA3419M
	467 < Capacity	137 < Capacity	MXJ-TA4122M
Y-joint for high pressure gas pipe (C)	Capacity ≤ 467	Capacity ≤ 137	MXJ-TA3100M
	467 < Capacity	137 < Capacity	MXJ-TA3800M

First branch joint (D)

Select according to the sum of the capacity of the outdoor unit.

Classification	Outdoor unit capacity		Model name
	MBH	kW
Y-joint for liquid/low pressure gas pipe (D)	Capacity ≤ 140	Capacity ≤ 41	MXJ-YA2512M
	Capacity ≤ 160	Capacity ≤ 47	MXJ-YA2812M
	Capacity ≤ 239	Capacity ≤ 70	MXJ-YA2815M
	Capacity ≤ 336	Capacity ≤ 98	MXJ-YA3419M
	Capacity ≤ 467	Capacity ≤ 137	MXJ-YA4119M
	467 < Capacity	137 < Capacity	MXJ-YA4422M
Y-joint for high pressure gas pipe (D)	Capacity ≤ 85	Capacity ≤ 25	MXJ-YA1500M
	Capacity ≤ 239	Capacity ≤ 70	MXJ-YA2500M
	Capacity ≤ 467	Capacity ≤ 137	MXJ-YA3100M
	467 < Capacity	137 < Capacity	MXJ-YA3800M

Branch joint (E) Select a branch joint according to the sum of indoor unit capacity which will be connected after the branch.

※ However, if the branch joint (E) is bigger than the first branch joint (D), apply the branch joint of the same size as the first branch joint (D).

Classification	Indoor unit capacity		Model name
	MBH	kW
Y-joint for liquid/low pressure gas pipe (E)	Capacity < 55	Capacity < 16	MXJ-YA1509M
	55 ≤ Capacity < 133 16	≤ Capacity < 39 MXJ	YA2512M
	133 ≤ Capacity < 172 39	≤ Capacity < 50.4 MXJ	YA2812M
	172 ≤ Capacity < 248	50.4 ≤ Capacity < 72.8	MXJ-YA2815M
	248 ≤ Capacity < 344	72.8 ≤ Capacity < 100.8	MXJ-YA3419M
	344 ≤ Capacity < 478	100.8 ≤ Capacity < 140	MXJ-YA4119M
	478 < Capacity	140 < Capacity	MXJ-YA4422M
Y-joint for high pressure gas pipe (E)	Capacity < 79	Capacity < 23.2	MXJ-YA1500M
	79 ≤ Capacity < 248 23	2 ≤ Capacity < 72.8 MXJ	-YA2500M
	248 ≤ Capacity < 478	72.8 ≤ Capacity < 140	MXJ-YA3100M
	478 < Capacity	140 ≤ Capacity	MXJ-YA3800M

Size of the pipe between the branch joint and the indoor unit (F)

Select according to the capacity of the indoor unit.

Indoor unit capacity		Liquid		Gas
MBH	kW	inch	mm	inch	mm
Capacity ≤ 20	Capacity ≤ 6	∅1/4	∅6.35	∅1/2	∅12.7
20 < Capacity ≤ 54	6 < Capacity ≤ 16	∅3/8	∅9.52	∅5/8	∅15.88
54 < Capacity ≤ 78	16 < Capacity ≤ 23	∅3/8	∅9.52	∅3/4	∅19.05
78 < Capacity	23 < Capacity	∅3/8	∅9.52	∅7/8	∅22.22

* If the criteria for selecting the branch in the outdoor installation manual and the branch installation manual are different, please select the branch in accordance with the outdoor installation manual.

H/R

When all the following conditions are met, install the main liquid pipe that is one step smaller to reduce piping load and the amount of refrigerant.

Note that the refrigerant for the main liquid pipe must be added by the specified amount upon reduction.

Condition 1: The vertical piping length is less than 131 ft (40 m)

Condition 2: For Imperial units, allowable length A (ft) ≥ max. piping length (ft) / {1 - (vertical piping length (ft) * 0.0046)}

※ Max. piping length: The equivalent length (ft) of piping from the outdoor unit to the farthest indoor unit For SI units, allowable length A (m) ≥ max. piping length (m) / {1 - (vertical piping length (m) * 0.015)}

※ Max. piping length: The equivalent length (m) of piping from the outdoor unit to the farthest indoor unit

※ If the conditions above are satisfied and one-size smaller piping has been installed, set the "liquid pipe (main pipe) size reduction" option.

• Length allowed to reduce the diameter of liquid pipe, A (equivalent length)

Outdoor unit capacity (Ton)	Maximum pipe length within 90m (295.3ft) Maximum pipe length over 90m (295.3ft)
	Pipe diameter Allowable length Pipe diameter Allowable length
	mm inch m ft mm inch m ft
6	This capacity is not supported.
8 This capacity is not supported.
10	9.52	3/8	50	164	12.7	1/2	200	656
12	9.52	3/8	30	98	12.7	1/2	160	525
14	12.7	1/2	90	295	15.88	5/8	200	656
16	12.7	1/2	90	295	15.88	5/8	200	656
18	12.7	1/2	80	262	15.88	5/8	200	656
20	12.7	1/2	60	197	15.88	5/8	190	623
22	15.88	5/8	90	295	19.05	3/4	200	656
24	15.88	5/8	90	295	19.05	3/4	200	656
26	15.88	5/8	90	295	19.05	3/4	200	656
28	15.88	5/8	90	295	19.05	3/4	200	656
30	15.88	5/8	90	295	19.05	3/4	200	656
32	15.88	5/8	80	262	19.05	3/4	200	656
34	15.88	5/8	70	230	19.05	3/4	200	656
36	15.88	5/8	60	197	19.05	3/4	190	623
38	15.88	5/8	60	197	19.05	3/4	170	558
40	15.88	5/8	50	164	19.05	3/4	150	492

E.g. 1: For a site with 18 tons (BG units), max. piping length of 460 ft (395 ft-long horizontal piping and 65 ft-long vertical piping) condition, allowable length A ≥ max. piping length / {1 - (vertical piping length * 0.0046)}

656ft ≥ 460ft / {1 - (65 * 0.0046)} = 460ft / 0.701 = 656ft

Accordingly, the max. piping length of 460 ft (395 ft-long horizontal piping and 65 ft-long vertical piping) is allowable.

E.g. 2: For a site with 18 tons (SI units), max. piping length of 140 m (120 m-long horizontal piping and 20 m-long vertical piping) condition, allowable length A ≥ max. piping length / {1 - (vertical piping length * 0.015)}

Accordingly, the max. piping length of 140m (120m-long horizontal piping and 20m-long vertical piping) is allowable.

Additional refrigerant

H/PH/R

Refrigerant pipe installation

- Basic amount of refrigerant within the outdoor unit [lb(kg)]

- Amount of additional refrigerant has to be calculated based on the sum of all liquid pipe length.

Classification AM072*XVG** AM096*XVG** AM120*XVG** AM144*XVG**
Basic amount [lb(kg)] 13.7 (6.2) 17.6 (8) 17.6 (8) 23.1 (10.5)
Classification AM168*XVG** AM192*XVG** AM216*XVG** AM240*XVG**
Basic amount [lb(kg)]	23.1 (10.5)	27.6 (12.5)	34.2 (15.5)	34.2 (15.5)
Classification AM072BXVT** AM096BXVT** AM120BXVT**
Basic amount [lb(kg)] 17.6 (8) 23.1 (10.5)		23.1 (10.5)

- Amount of additional refrigerant depending on the pipe size (a)

- Amount of additional refrigerant has to be calculated based on the sum of all liquid pipe length.

Size of liquid pipe[mm (inch)]	1/4 ( 6.35 )	3/8 ( 9.52 )	1/2 ( 12.7 )	5/8 ( 15.88 )	3/4 ( 19.05 )	7/8 ( 22.22 )	1 ( 25.4 )	1\ 1/8 ( 28.58 )
Additional amount[lb/ft (kg/m)]	0.013(0.02)	0.04(0.06)	0.084(0.125)	0.121(0.18)	0.181(0.27)	0.235(0.35)	0.356(0.53)	0.437(0.65)
Amount ofrefrigerant addedwhen the diameterof liquid pipe isreduced[lb/ft(kg/m)]	-	0.054(0.08)	0087(0.13)	0.131(0.195)	0.188(0.28)	0.282(0.42)	0.356(0.53)	-

- For the indoor unit already connected to EEV kit, the additional refrigerant charging is 0.0067 lb/ft (0.01 kg/m) regardless of the pipe size.

Refrigerant pipe installation

- Amount of additional refrigerant for each indoor unit ( ) ^b

Unit: lb (kg)

Capacity Index (MBH)	5	6	7	9	12	15	18	20	24	27	28	30	32	36	42	48	54	60	72	76	96	144
1way cassette (AM****N1DCH/**)			0.55(0.25)	0.55(0.25)	0.55(0.25)
1way cassette (AM****N1PCH/**)	0.33(0.15)		0.33(0.15)	0.55(0.25)	0.55(0.25)	0.71(0.32)	0.71(0.32)		0.71(0.32)
4way cassette S (600x600) (AM****NNDCH/**)	0.64(0.29)		0.64(0.29)	0.64(0.29)	0.64(0.29)		0.82(0.37)	0.82(0.37)
4way cassette S (AM***RN4DCH/**)		0.99(0.45)		0.99(0.45)	0.99(0.45)		1.26(0.57)		1.26(0.57)			2.20(1.00)		2.20(1.00)		2.20(1.00)
4way cassette S (AM***BN4PCH/**)		1.61(0.73)		1.61(0.73)	1.61(0.73)		1.61(0.73)		1.61(0.73)			1.94(0.88)		1.94(0.88)		1.94(0.88)
360 cassette (AM***KN4DCH/**)				0.99(0.45)	0.99(0.45)		0.99(0.45)		0.99(0.45)			1.52(0.69)		1.52(0.69)		1.52(0.69)
LSP duct (AM****NLDCH/**)			0.77(0.35)	0.77(0.35)	0.77(0.35)		0.99(0.45)		0.99(0.45)			0.93(0.42)		0.93(0.42)		1.37(0.62)
MSP duct (AM***ANMDCH/**)		0.99(0.45)	0.99(0.45)	0.99(0.45)	0.99(0.45)	0.99(0.45)	1.50(0.68)
HSP duct (AM***ANHDCH/**)									1.50(0.68)	1.50(0.68)		1.50(0.68)		1.85(0.84)		1.85(0.84)
HSP duct (AM***FNHDCH/**) (AM***JNHDCH/**)																	2.01(0.91)			2.60(1.18)	2.60(1.18)
OAP duct (AM****NE*CH/**)																			2.60(1.18)		2.60(1.18)
Floor Standing (AM****NFDCH/**) (AM****NGDCH/**)		0.26(0.12)		0.49(0.22)	0.49(0.22)		0.71(0.32)		0.71(0.32)
Ceiling (AM****NCDCH/**)							0.86(0.39)		0.86(0.39)					1.23(0.56)		2.09(0.95)
MPAHU(V-AHU) (AM****NZDCH/**)					0.73(0.33)		1.10(0.50)		1.10(0.50)			1.83(0.83)		1.94(0.88)		2.60(1.18)	2.80(1.27)	3.73(1.69)	3.73(1.69)
Wall mounted (with EEV) (AM****NVDCH/**) (AM****NQDCH/**)	0.51(0.23)		0.51(0.23)	0.71(0.32)	0.71(0.32)	1.06(0.48)	1.06(0.48)		1.06(0.48)		1.41(0.64)		1.50(0.68)
Hydro unit HE Note1 (AM****NBDCH/**)														1.32(0.6)		1.32(0.6)			1.54(0.7)			2.65(1.2)
Hydro unit HT Note1 (AM****NBFCB/**)																1.32(0.6)			1.32(0.6)
MCU (MCU-S*NE*N)	1.10(0.50)

※ If there is no additional refrigerant value for the indoor unit in the above table, refer to the indoor unit installation manual. • If AHU kit is included among the indoor units, you must add 0.018 kg (0.04 lb) of refrigerant for every 1 MBH of AHU capacity increase. Note 1) In case the capacity conjunction of the Hydro Unit HT/HE exceeds 50 % among the total indoor unit, please don't put the additional refrigerant. • Method to calculate total amount of additional refrigerant

- Amount of additional refrigerant depending on the pipe length (a)

- Amount of additional refrigerant for each indoor unit (b) = (Amount of additional refrigerant for each connected indoor unit) ※ Refer to the table

- Total amount of additional refrigerant = ⓐ + ⓑ

※ Sum of total amount of additional refrigerant and the basic amount of refrigerant should not exceed 100 kg (220 lb). If the refrigerant exceeds 100 kg (220 lb), separate the module so that weight of the refrigerant doesn't exceed 100 kg (220 lb).

Ex> If the outdoor unit's basic refrigerant amount is 8.7 kg (19.1 lb), the total amount of additional refrigerant (a+b) should not exceed 91.3 kg (200.9 lb).

• Example of refrigerant calculation for HP models

Classification	Size of liquid pipe[mm (inch)]	Length [m (ft)]	Unit amount ofrefrigerant [kg/m (lb/ft)]	Amount of additionalrefrigerant [kg (lb)]	Total amount of additionalrefrigerant [kg (lb)]
		1	2	1 × 2	(1 × 2)
Liquid pipe (a)	∅6.35 (∅1/4) 35 (114.8) 0.02 (0.013) 0.7 (1.54)				a 5.575 (12.23)
	∅9.52 (∅3/8) 50 (164.0) 0.06 (0.040) 3.0 (6.56)
	∅12.70 (∅1/2) 15 (49.2) 0.125 (0.084) 1.875 (4.13)

Classification	Model name of indoor unit	Number of indoorunits	Unit amount of refrigerant [kg/EA (lb/EA)]	Amount of additional refrigerant [kg (lb)]	Total amount of additional refrigerant [kg (lb)]
		1	2	1 × 2	(1 × 2)
Indoor unit (b)	4way cassette (AM018RN4DCH)	40.	57 (1.26) 2.28 (5.02)		b 3.78 (8.32)
	LSP duct (AM024FNLDCH)	20.	45 (0.99) 0.90 (1.98)
	LSP duct (AM012FNLDCH)	10.	35 (0.77) 0.35 (0.77)
	1way cassette (AM012AN1PCH)	10.	25 (0.55) 0.25 (0.55)

• Total amount of refrigerant (a+b) = 5.575 + 3.78 = 9.355 (kg) = 12.23 + 8.32 = 20.55 (lb)

• Example of refrigerant calculation for HR models

Classification	Size of liquid pipe [mm (inch)]	Length [m (ft)]	Unit amount of refrigerant [kg/m (lb/ft)]	Amount of additional refrigerant [kg (lb)]	Total amount of additional refrigerant [kg (lb)]
		1	2	1×2	Σ(1×2)
Liquid pipe (a)	∅6.35 (∅1/4) 15 (49.2)	0.02 (0.013)	0.3 (0.66)		a 11.965 (26.37)
	∅9.52 (∅3/8) 112 (36.75)	0.06 (0.040)	6.72 (14.81)
	∅12.70 (∅1/2) 25 (82.0)	0.125 (0.084)	3.125 (6.89)
	∅15.88 (∅ 5/8)	10 (32.8)	0.18 (0.121)	1.8 (3.97)
	∅ 6.35 (∅ 1/4) (EEV Kit ~ indoor unit)	2 (6.6)	0.01 (0.0067)	0.02 (0.04)

Classification	Model name of indoor unit	Number of indoorunits	Unit amount of refrigerant [kg/EA (lb/EA)]	Amount of additional refrigerant [kg (lb)]	Total amount of additional refrigerant [kg (lb)]
		1	2	1 × 2	(1 × 2
Indoor unit (b)	4way cassette (AM024RN4DCH)	4	0.73 (1.61)	2.92 (6.54)	b5.88 (13.07)
	4way cassette (AM036RN4DCH)	30	.88 (1.94) 2.64 (5.82)
	Wall mounted (AM012TNVDCH)	10.	32 (0.71) 0.32 (0.71)
	MCU	2	0.50 (1.10)	1 (2.20)

• Total amount of refrigerant (a+b) = 11.965 + 5.88 = 17.845 (kg) = 26.37 + 13.07 = 39.44 (lb)

Temper grade and minimum thickness of the refrigerant pipe

Outer diameter Minimum thickness				Temper grade
mm inch	mm inch
6.35 1/4 0	70 0.028			Annealed
9.52 3/8 0	70 0.028
12.70 1/2 0	80 0.031
15.88 5/8 1	00 0.039
19.05 3/4 0	90 0.035			Drawn
22.22 7/8 0	90 0.035
25.40 1 1.00 0	0.039
28.58	11/8	1.10	0.043
31.75	11/4	1.10	0.043
34.92 1 3/8	1.21	0.048
38.10 11/2	1.35 0.053
41.28 1 5/8	1.43 0.056
44.45	1 3/4 1.60	0.063
50.80	2	2.00	0.079
53.98	21/8	2.10	0.083

CAUTION

- For pipes larger than ∅ 3/4" (∅ 19.05 mm), drawn type (C1220T-1/2H or C1220T-H) copper pipe must be used. If an annealed type (C1220T-O) copper pipe is used, the pipe may break due to its low pressure resistance and cause personal injury.

Keeping refrigerant pipe

To prevent foreign materials or water from entering the pipe, storing and sealing methods (especially during installation) are very important. Apply the correct sealing method depending on the environment.

Exposure place	Exposure time	Sealing type
Outdoor	Longer than one month	Pipe pinch
	Shorter than one month	Taping
Indoor	-	Taping

Refrigerant pipe welding and safety information

CAUTION

• Important information for refrigerant pipe work.

– Make sure there is no moisture inside the pipe. - Make sure there are no foreign substances or impurities in the pipe. – Make sure there is no leakage. - Make sure to follow the instructions when welding or storing the pipe.

Nitrogen flushing welding

• When welding the refrigerant pipes, flush them with nitrogen gas as shown in the picture.
• If you do not perform nitrogen flushing when welding the pipes, oxide may form inside the pipe. This can cause damage to important parts such as the compressor and valves.
• Adjust the flow rate of the nitrogen flushing with a pressure regulator to maintain 0.05 m³/h (0.54 ft³/h) or less.

Direction of the pipe when welding

• The direction of the pipe should be headed downward or sideways when welding.
• Avoid welding the pipe with the pipe direction heading upward.

CAUTION

When testing for gas leaks after welding the pipes, use a designated solution for gas leak detection. If you use a detection solution containing sulfuric ingredients, it may cause corrosion to the pipes.

Cutting or flaring the pipes

1. Make sure you have prepared the required tools: pipe cutter, deburring tool, flaring tool, pipe holder, etc.

2. If you need to shorten the pipe, cut it with a pipe cutter, ensuring that the cut edge remains at a 90° angle to the side of the pipe.

Refer to the illustrations below for correct and incorrect examples of cut edges.

3. To prevent gas leaks, remove all burrs from the cut edge of the pipe using a deburring tool. 4. Perform flaring work using a flaring tool as shown below.

[Flaring tools]

	Pipe diameter [D, mm (inch)]	Depth of flaring part [A, mm (inch)]
		Using flaring tool for R-410A	Using conventional flaring tool
			Clutch type	Wing nut type
	ø6.35(ø1/4)	0~0.5(0~0.02)	1.0~1.5(0.04~0.06)	1.5~2.0(0.06~0.08)
	ø9.52(ø3/8)
	ø12.70(ø1/2)
	ø15.88(ø5/8)

5. Check that you have flared the pipe correctly.

Refer to the illustrations below for correct and incorrect examples of flared pipes.

CAUTION

• If foreign matter or burrs are not removed after cutting the pipe, refrigerant gas may leak.
• If foreign matter enters the pipe, important internal parts of the unit may be damaged or product efficiency may be reduced. Therefore, keep the pipe opening facing downward during pipe cutting or flaring.

Connecting the flared pipes

• Check that the flaring is properly done according to the standard size.
• Align the center of the piping and tighten the flare nut with your hands. Then, tighten the flare nut with a torque wrench in the direction of the arrow shown in the illustration below.
• Make sure to use ester oil to coat the flare connection section.

Outer diameter (D)		Torque		Flare dimension (L)		Flare shape (mm)
mm inch N·m		lbf·ft mm inch				R0.4~0.8(0.016~0.032)
6.35 1/4		14 ~ 18	10.3 ~ 13.3	8.7 ~ 9.1	0.34 ~ 0.36
9.52 3/8		34 ~ 42	25.1 ~ 31.0	12.8 ~ 13.2	0.50 ~ 0.52
12.7	1/2	49 ~ 61	36.1 ~ 45.0	16.2 ~ 16.6	0.64 ~ 0.65
15.88 5/8		68 ~ 82	50.2 ~ 60.5	19.3 ~ 19.7	0.76 ~ 0.78

CAUTION

• Blow nitrogen gas when welding the pipe. Make sure to use the provided flare nut.
• Make sure that there are no cracks or twisted parts when bending the pipe.
• Do not fasten the flare nut with excessive force.
• R-410A is a high-pressure refrigerant, and there is a risk of refrigerant leakage if the flare connection is not coated with ester oil. Therefore, apply ester oil to coat the flare connection area.

Refrigerant pipe installation

Pipe installation for an outdoor unit

1. Direction of the pipe

Refrigerant pipe can be withdrawn from the front, left, and right sides. Take the necessary method to install the pipes according to the conditions of the installation site.

CAUTION

- Caution for using knock-out hole

• Make sure to prevent any damage to the exterior of the outdoor unit.
• Remove all burrs around the knock-out hole and apply varnish on the cross-section and edges of the knock-out hole to prevent rust.
• Use a cable protection tube and bushing to prevent a cable from being damaged when passing through a knock-out hole.

2 Connecting refrigerant pipe for outdoor unit

Classification Front side connection Right/left (and bottom) side connection
Working process	First, remove the piping cover from the outdoor unit.Separate the knock-out hole that you are going to use. Ifyou separate the knock-out hole that is going to be unused,small animals such as squirrels and rats may get into the unitthrough the hole.Fix the bottom side of the piping cover first and then fix thetop part of it.	Separate the knock-out hole at the bottom side of the unitand install the pipe.After installing and insulating the pipe, close up the remainingholes. If not, small animals such as rats and squirrels may getinside the unit.
H/P	—— Liquid side pipe Gas side pipe	—— Liquid side pipe Gas side pipe
H/R	—— High pressuregas pipe—— Liquid side pipe	—— High pressuregas pipeLow pressure——— Liquid side pipe

CAUTION

- Caution for welding the pipe to an outdoor unit

• When welding the pipe, the unit may get damaged by the heat and flame from welding. Use a flame proofing cloth to protect the unit from a welding fire or flame. Sensor for detecting outside temperature is located on the left side of the welding part so be extra careful not to damage the sensor when welding.
• The O-ring and Teflon packing inside service valve may get damaged by the heat from welding. Wrap the bottom side of the service valve with a wet cloth and weld it as shown in the illustration. Also, water dripping from the wet cloth may interrupt the welding. Make sure the water does not drip from the wet cloth.
• Make sure that connected pipes does not interrupt each other or make contact with the product. (Vibration may cause damage to the pipes.)
• When removing the sealed pipe on the bottom side of the service valve, cut it with a pipe cutter first and then start the welding. When the sealed pipe is welded without cutting, you may get injured by the refrigerant within the pipe.

3 Pipe installation between the outdoor units

• You will need branch joints, which is an optional accessory, for connecting in between outdoor units in order to combine outdoor units in module. ※ For optimal distribution of the refrigerant, you must use Y-joint as branch joint for connecting outdoor units. (Do not use T-joint)
• When you install the outdoor units in module, there is no restriction of installation order among outdoor units. • Height of the connection pipe should be same or lower than the ones connected to the outdoor units.
• Check the changes in comparison with the DVM II, III and IV.

Caution Correct installation Incorrect installation
Refrigerant pipes should be connected at the same or lower level than the ones connected to the outdoor unit.
Refrigerant pipes must be connected by the side of the product.	(12inch) or more
Branch joint between outdoor units must be installed horizontally.
Install a vertical trap in following cases as shown in the figure :Case1. Pipe length between out door unit branches exceeds 2.5m(8.20ft).Case2. Pipe length between outdoor unit and its branch exceeds 2.5m(8.20ft).	[IMAGE]

Refrigerant pipe installation

Examples of refrigerant pipe installation

H/P

1 Using Y-joint

2 Using distribution header

H/R

Using Y-joint

Note 1) Direct-connected indoor unit without MCU (for HR only) - This indoor unit can only be used for cooling operation. (Heating operation is not possible.) - Connect indoor unit to liquid and low pressure gas pipe. - Change the installation option for direct-connected indoor unit without MCU. (refer to the indoor unit installation manual)

Allowable length of the refrigerant pipe and the installation examples

H/P

Classification Single Installation Module installation
Installing only with Y-joint	Outdoor unit	Outdoor unit
Installing with Y-joint and distribution header	Outdoor unit	Outdoor unit
Installing only with distribution header	Outdoor unit	Outdoor unit

Classification				Example		Remarks
Maximum allowable length of pipe	Outdoor unit ~ Indoor unit	Actual length (Equivalent length)	200 m(656') and below [220 m(722') and below]	Installing only with Y-joint	a+b+c+d+e+f+g+p ≤ 200 m(220 m)/656'(722')	Equivalent length Y-joint: 0.5 m (1.64'), Distribution header: 1 m(3.28')
				Installing with Y-joint and distribution header	a+b+h ≤ 200m (220m), a+i+k ≤ 200 m(220 m)/656'(722')
				Installing only with distribution header	a+i ≤ 200 m(220 m)/656(722')
		Total length of pipe (m)	1000 m(3281') or less	Installing only with Y-joint	a+b+c+d+e+f+g+h+i+j+k+l+m+n+p ≤ 1000 m (3281')	-
				Installing with Y-joint and distribution header	a+b+c+d+e+f+g+h+i+j+k ≤ 1000 m (3281')	-
				Installing only with distribution header	a+b+c+d+e+f+g+h+i ≤ 1000 m (3281')	-
	Outdoor unit ~ Outdoor unit (Module installation)	Pipe length	10 m (33') or less	x ≤ 10 m (33'), y ≤ 10 m (33'), z ≤ 10 m (33')
		Equivalent length	13 m (43') or less	x ≤ 13 m (43'), y ≤ 13 m (43'), z ≤ 13 m (43')
Maximum allowable height difference of pipe	Outdoor unit ~ Indoor unit	110/110 m(361'/361')Note 2)		H1 ≤ 110/110 m(361/361')
	Indoor unit ~ Indoor unit	50 m (164') or less		H2 ≤ 50 m (164')
		But, when wall-mount type indoor units with EEV(AM****NQD* / AM****NVD*) is installed, H2 is 15 m(49') or less.

Refrigerant pipe installation

Classification Example Remarks
Maximum allowable length after branch joint	First branch joint ~ Farthest Indoor unit	Pipe length	45 m (148') or less	Installing only with Y-joint	b+c+d+e+f+g+p ≤ 45 m (148')	-
				Installing with Y-joint and distribution header	i+k ≤ 45 m (148')
				Installing only with distribu-tion header	i ≤ 45 m (148')
			45 m~90 m (148'~295') Note1)	Required conditions must be satisfied		-

EEV kit Model name Remarks
EEV kit - Indoor unit Actual pipe length	Actual pipe length	2 m (6.6')	MEV-E245A	1 indoor	Apply to products without EEV (Wall mount & ceiling)
			MEV-E325A
		20 m (66') or less	MXD-E24K132A	2 indoorMXD-E24K200A
			MXD-E32K200A
			MXD-E24K232A	3 indoor
			MXD-E24K300A
			MXD-E32K224A
			MXD-E32K300A

※ Please refer to the EEV Kit manual. Note 1) Required condition

Classification Condition Example
First branch joint ~ Farthest Indoor unit	45m(148') ≤ b+c+d+e+f+g+p ≤ 90m (295'): branch pipes (b, c, d, e, f, g) size must be increased by 1 grade
Total length of extended pipe	If the size of pipe (main pipe), between the first branch joint and the outdoor unit, is not increased by 1 grade, a+(b+c+d+e+f+g)×2 +h+i+j+k+l+m+n+p ≤ 1000 m (3281')
	If the size of pipe (main pipe), between the first branch joint and the outdoor unit, is increased by 1 grade, (a+b+c+d+e+f+g)×2 +h+i+j+k+l+m+n+p ≤ 1000 m (3281')
Each Y-joint ~ Each indoor unit	h, i, j, ... p ≤ 45 m (148')
Difference between the distance of the outdoor unit to the farthest indoor unit and nearest
indoor unit ≤ 45m(148'), (a+b+c+d+e+f+g+p)-(a+h) ≤ 45m (148')

Note 2) When indoor unit is located at higher level than outdoor unit, allowable height difference is 110m(361'), (If the height difference is over 40m(131'), contact your local dealer for more information.) but when the indoor unit is located at lower level than outdoor unit, allowable height difference is 110m(361') (If the height difference is over 50m(164'), need to decide whether to install PDM kit or not.) Model name of the PDM kit : MXD-A38K2A, MXD-A12K2A, MXD-A58K2A

H/R

Classification Installation with Y-joint
Installing with MCU only
Installing with MCU and Y-joint	Direct-connected indoor unit without MCU (Cooling only) (Connecting Only Low Pressure Gas Pipe / Liquid Pipe note3)

Classification Example Remarks
Maximum allowable pipe length	Outdoor unit ~ Indoor unit	Actual pipe length (Equivalent length)	200 m or less (220 m or less)/656'(722')	Installing only with MCU	a+g+j ≤ 200 m (220 m)/656'(722')	Equivalent length Y-joint: 0.5 m(1.64') Distribution header: 1 m(3.28') MCU: 1 m(3.28')
				Installing with MCU and Y-joint	a+b+h+k ≤ 200 m (220 m)/656'(722')
		Total length of pipe	1000 m (3281') or less	Installing only with MCU	a+b+c+d+e+f+g+h+i+j ≤ 1000 m(3281')
				Installing with MCU and Y-joint	a+b+c+...+r ≤ 1000 m(3281')
	Outdoor unit	Pipe length	10 m(33') or less	x ≤ 10 m (33'), y ≤ 10 m (33'), z ≤ 10 m (33')
	~ Outdoor unit (Module installation)	Equivalent length	13 m(43') or less	x ≤ 13 m (43'), y ≤ 13 m (43'), z ≤ 13 m (43')
	MCU ~ Indoor unit	Pipe length	45 m(148') or less	Installing only with MCU	b+c ≤ 45 m(148'), b+d ≤ 45 m(148'), b+e ≤ 45 m(148'), f≤ 45 m(148'), g+h ≤ 45 m(148'), g+i ≤ 45 m(148'), g+j ≤ 45 m(148')
				Installing with MCU and Y-joint	c+d, c+e, c+f, g, h+i, h+j, h+k, n, o, p, q, r ≤ 45 m(148')
Maximum allowable height difference	Outdoor unit ~ Indoor unit	Pipe length	110 m / 110 m(361'/361') Note1	H1 ≤ 110 m / 110 m(361'/361')
	Indoor unit ~ Indoor unit		40 m(131') or less	H2 ≤ 40 m(131')
			But, when AM****NQD* / AM****NVD* is installed, H2 is 15 m(49') or less.
	Indoor unit ~ Indoor unit (in one MCU)		15 m(49') or less	H3 ≤ 15 m(49')
	MCU ~ MCU		30 m(98') or less	H4 ≤ 30 m(98')
Maximum allowable length after branch joint	First branch joint ~ Farthest Indoor unit	Pipe length	45 m(148') or less	Installing only with MCU	g+j ≤ 45 m(148')
				Installing with MCU and Y-joint	b+h+k ≤ 45 m(148') l+m+q ≤ 45 m(148') l+r ≤ 45 m(148')
			45 ~ 90 m (148'~295') Note2	Required conditions must be satisfied

Refrigerant pipe installation

EEV Kit Model name Remarkers
EEV kit - Indoor unit Actual pipe length	Actual pipe length	2 m (6.6')	MEV-E24SA	1 indoor	Apply to products without EEV (Wall mount & ceiling)
			MEV-E32SA
		20 m (66') or less	MXD-E24K132A	2 indoorMXD-E24K200A
			MXD-E32K200A
			MXD-E24K232A	3 indoor
			MXD-E24K300A
			MXD-E32K224A
			MXD-E32K300A

※ Please refer to the EEV Kit manual. Note 1) When indoor unit is located at higher level than outdoor unit, allowable height difference is 110m(361'), (If the height difference is over 40m(131'), contact your local dealer for more information.) but when the indoor unit is located at lower level than outdoor unit, allowable height difference is 110m(361') (If the height difference is over 50m(164'), need to decide whether to install PDM kit or not.) Model name of the PDM kit : MXD-A38K2A, MXD-A12K2A, MXD-A58K2A Note 2) Required condition

Classification Condition Example
First branch joint ~ Farthest Indoor unit	45m(148') ≤ b+h+k, l+m+q, l+r ≤ 90m(295') : Size of the branch liquid and low pressure gas pipes (b, l, m) must be increased by 1 grade.
Total length of extended pipe	If the size of pipe (main pipe), between the first branch joint and the outdoor unit, is not increased by 1 grade, a+(b+l+m) x2+c+d+e+f+g+h+l+j+k+n+o+p+q+r ≤ 1000m(3281')
	If the size of pipe (main pipe), between the first branch joint and the outdoor unit, is increased by 1 grade, (a+b+l+m) x2+c+d+e+f+g+h+i+j+k+n+o+p+q+r ≤ 1000m(3281')
MCU ~ Each indoor unit	c+d, c+e, c+f, g, h+i, h+j, h+k, n, o, p, q, r ≤ 45 m(148')
Difference between the distance of the outdoor unit to the farthest indoor unit and nearest indoor unit ≤ 45m(148') (a+b+h+k) - (a+b+c+d) ≤ 45m(148')

Note 3) For indoor units to which no MCU is connected, be sure to set their options to "Cooling only indoor unit," and then connect them to a low pressure gas pipe and a liquid pipe. Be sure to combine the cooling only indoor units so that their total capacity becomes 50% or less of the total capacity of all indoor units. Note 4) In case of connecting more than one indoor unit in one MCU Port, the below indoor units cannot be combined. ERV plus(AM****NK*C**), OAP duct (AM****NE*C*), Hydro Unit HE (AM****NBDC*), Hydro Unit HT (AM****NBFC*), AHU kit (MXD-K***AN, MCM-D***N) Note 5) In case of connecting two MCU ports with Y-joint, the indoor units cannot be combined to more than one.

Installing the branch joints

Branch joints must be installed 'horizontally' or 'vertically'.

Horizontal installation

Vertical installation

NOTE

• For A~J type branch joints: Connect the branch joint to the connection pipe with the provided reducer.
• For K~Z type branch joints: Cut the connection part of the branch joint or the provided socket, according to the diameter of the connection pipe, before connecting them.

CAUTION

• Install the branch joint within ±15° of the horizon or vertical line. - Make sure that the pipe is not bent at where it is connected to the branch joint. - Keep a minimum straight line distance of 500mm (20inch) or more before connecting branch joint.

※ Install within ±15° of the horizon or vertical line.

Installing the distribution header

1 Select the reducer that fits the diameter of the pipe.

※ Pipe : Separately purchased item 2 If the number of connected indoor unit is fewer than ports on the distribution header, block the unused ports with caps.

NOTE

• For A~J type distribution header: Connect the distribution header to the connection pipe with the provided reducer.
• For K~Z type distribution headers: Cut the provided socket, according to the diameter of the connection pipe, before connecting it.

Refrigerant pipe installation

CAUTION

• Connect the indoor units in order, while respecting the direction of the arrow shown in the illustration.
• When indoor units are connected to the same distribution head, indoor units must be connected in order of their capacity, from largest to smallest.
• Keep unused port from ① to avoid oil trap.

3 Install the distribution header horizontally.

- Install the distribution header horizontally so that its ports do not face down.

Installing the branch joint between outdoor units

Installation of outdoor joints

※ High pressure gas pipe only applies to the H/R product.

※ Use the attached reducer according to the selected pipe size.

NOTE

- Connect the Outdoor joint to the pipe by cutting the outlet of the Outdoor joint or provided reducer properly.

Installing the MCU

MCU specification

Model MCU-S12NEK1N MCU-S8NEK1N MCU-S6NEK2N
Exterior of MCU
Number of connectable indoor units at one port Up to 8 units Up to 8 units Up to 8 units
Maximum number of indoor units (Total)	64 64 32
The maximum capacity of the connectable indoor units at one port	16 kW(54MBH)	16 kW(54MBH)	16 kW(54MBH)
The maximum capacity of the connectable indoor units at one port (with Y-JOINT)	32.0 kW(108 MBH)	320 kW(108 MBH)	32.0 kw(108 MBH)
The maximum capacity of the connectable indoor units	85.0 kW(290MBH)	850 kW(290MBH)	61.6 kW(216MBH)
Internal EEV	Not includedCannot connect indoor unit without internal EEV

Model MCU-S4NEK3N MCU-S2NEK2N MCU-S1NEK1N
Exterior of MCU
Number of connectable indoor units at one port Up to 8 units Up to 8 units Up to 8 units
Maximum number of indoor units (Total) 32 16 8
The maximum capacity of the connectable indoor units at one port	16 kW(54MBH)	16 kW(54MBH)	16 kW(54MBH)
The maximum capacity of the connectable indoor units at one port (with Y-JOINT)	32.0 kw(108 MBH)	32.0 kw(108 MBH)	-
The maximum capacity of the connectable indoor units	61.6 kW(216MBH)	32.0 kW(108MBH)	16 kW(54MBH)
Internal EEV	Not includedCannot connect indoor unit without internal EEV

CAUTION

• Indoor units without internal EEV (AM0**FNCDCCH**) cannot be connected directly to the MCU. Please connect these indoor units using the EEV kit (MEV-E**SA, MXD-E**K***A).
• If the sum of the connected indoor unit capacity connected to the MCU is greater than 67.2 kW (228 MBH), performance may vary depending on operating conditions.
• The incoming pipe diameters supplying refrigerant to the MCU are determined based on the sum of the connected indoor units. If these pipe diameters are different from the MCU pipe diameters, use the provided reducers to connect to the MCU. If the provided reducers are not the correct size, field-supplied reducers must be used.

Refrigerant pipe installation

Installing the indoor units

Model MCU-S12NEK1N MCU-S8NEK1N MCU-S6NEK2N
Example installing (Each port connection)
	MCU-S4NEK3N MCU-S2NEK2N MCU-S1NEK1N
Example installing (MCU series connection)	MCU series connection
Installing indoor units	Under 16.0 kW (54 MBH) indoor unit: Don't use Y-connector16.0 ~ 32.0 kW (54 ~ 108 MBH) indoor unit: Use Y-connector at the Gas & Liquid lineIf you want to continuous cooling operation under -5 °C (23 °F), set outdoor 'Expand operational temperature range for cooling operation (HR only)', and use Y-connector on 5.0 ~ 16.0 kW (17 ~ 54 MBH) indoor unitIn case of MCU connection in series, the maximum capacity of indoor units in MCU series connection is the larger value of MCU which are connected in series.(Example> MCU-S12NEK1N + MCU-S6NEK2N → 85.0 kW (290 MBH))
Using Y-connector	[MCU-S6*, MCU-S4*, MCU-S2*, MCU-S1*]In case of using Y-connector, it is only connectable for port combination at below connectable port combination for Y-connector : A + B port, C + D port, E + F portNon-connectable port combination for Y-connector : B + C port, D + E port, non-continuous portSet Dip Switch option for using Y-connectorS/W Option S/W Option S/W Option S/W Option Default Combination of A+B port Combination of C+D port Combination of E+F port

Refrigerant pipe installation

How to connect the pipes

※ When installing the MCU, use the pattern sheet for installation that is provided with the product. ※ When welding the gas pipes, protect the product with the flame-proof sheet. ※ When connecting the MCU with outdoor units, the default direction is set in the MCU. If installing in the opposite direction, weld the enclosed copper cap in each high-pressure, low-pressure, and liquid pipe.

Electric Characteristics

1 [AM***BXVGF* series] Heat Pump / Heat Recovery (208~230V)

Nom. Ton	Model	Units		Module #1 Module #2 Module #3
				RLA		FLA		Power Supply		RLA		FLA		Power Supply		RLA		FLA		Power Supply
		Hz	Volts	Comp1	Comp2	FAN1	FAN2	MCA	MOP	Comp1	Comp2	FAN1	FAN2	MCA	MOP	Comp1	Comp2	FAN1	FAN2	MCA	MOP
6Ton	AM072BXVGF*	60	208~230	18.7	-	4.6	-	28.0	35.0	-	-	-	-	-	-	-	-	-	-	-	-
8Ton	AM096BXVGF*	60	208~230	12.2	12.2	4.2	4.2	36.0	40.0	-	-	-	-	-	-	-	-	-	-	-	-
10Ton	AM120BXVGF*	60	208~230	14.4	14.4	4.2	4.2	40.8	45.0	-	-	-	-	-	-	-	-	-	-	-	-
12Ton	AM144BXVGF*	60	208~230	19.6	19.6	4.2	4.2	52.6	60.0	-	-	-	-	-	-	-	-	-	-	-	-
14Ton	AM168BXVGF*	60	208~230	20.4	20.4	4.2	4.2	54.4	60.0	-	-	-	-	-	-	-	-	-	-	-	-
16Ton	AM192BXVGF*	60	208~230	22.5	22.5	4.6	4.6	60.0	70.0	-	-	-	-	-	-	-	-	-	-	-	-
18Ton	AM216BXVGF*	60	208~230	24.3	24.3	4.6	4.6	64.0	80.0	-	-	-	-	-	-	-	-	-	-	-	-
20Ton	AM240BXVGF*	60	208~230	26.1	26.1	4.6	4.6	68.0	80.0	-	-	-	-	-	-	-	-	-	-	-	-
22Ton	AM264BXVGF*	60	208~230	12.2	12.2	4.2	4.2	36.0	40.0	20.4	20.4	4.2	4.2	54.4	60.0	-	-	-	-	-	-
24Ton	AM288BXVGF*	60	208~230	12.2	12.2	4.2	4.2	36.0	40.0	22.5	22.5	4.6	4.6	60.0	70.0	-	-	-	-	-	-
26Ton	AM312BXVGF*	60	208~230	12.2	12.2	4.2	4.2	36.0	40.0	24.3	24.3	4.6	4.6	64.0	80.0	-	-	-	-	-	-
28Ton	AM336BXVGF*	60	208~230	12.2	12.2	4.2	4.2	36.0	40.0	26.1	26.1	4.6	4.6	68.0	80.0	-	-	-	-	-	-
30Ton	AM360BXVGF*	60	208~230	14.4	14.4	4.2	4.2	40.8	45.0	26.1	26.1	4.6	4.6	68.0	80.0	-	-	-	-	-	-
32Ton	AM384BXVGF*	60	208~230	22.5	22.5	4.6	4.6	60.0	70.0	22.5	22.5	4.6	4.6	60.0	70.0	-	-	-	-	-	-
34Ton	AM408BXVGF*	60	208~230	22.5	22.5	4.6	4.6	60.0	70.0	24.3	24.3	4.6	4.6	64.0	80.0	-	-	-	-	-	-
36Ton	AM432BXVGF*1	60	208~230	14.4	14.4	4.2	4.2	40.8	45.0	14.4	14.4	4.2	4.2	40.8	45.0	22.5	22.5	4.6	4.6	60.0	70.0
38Ton	AM456BXVGF*	60	208~230	14.4	14.4	4.2	4.2	40.8	45.0	19.6	19.6	4.2	4.2	52.6	60.0	22.5	22.5	4.6	4.6	60.0	70.0

2 [AM***BXVGJ* series] Heat Pump / Heat Recovery (460V)

Nom.Ton	Model	Units		Module #1						Module #2						Module #3
				RLA		FLA		PowerSupply		RLA		FLA		PowerSupply		RLA		FLA		PowerSupply
		Hz	Volts	Comp1	Comp2	FAN1	FAN2	MCA	MOP	Comp1	Comp2	FAN1	FAN2 MCA	MOP		Comp1	Comp2	FAN1	FAN2	MCA	MOP
6Ton	AM072BXVGJ*	60	460	10.0	-	2.3	-	15.0	20.0	-	-	-	-	-	-	-	-	-	-	-	-
8Ton	AM096BXVGJ*	60	460	6.0	6.0	2.1	2.1	18.0	20.0	-	-	-	-	-	-	-	-	-	-	-	-
10Ton	AM120BXVGJ*	60	460	6.6	6.6	2.1	2.1	19.4	25.0	-	-	-	-	-	-	-	-	-	-	-	-
12Ton	AM144BXVGJ*	60	460	9.6	9.6	2.1	2.1	26.2	35.0	-	-	-	-	-	-	-	-	-	-	-	-
14Ton	AM168BXVGJ*	60	460	11.0	11.0	2.1	2.1	29.0	35.0	-	-	-	-	-	-	-	-	-	-	-	-
16Ton	AM192BXVGJ*	60	460	13.0	13.0	2.3	2.3	34.0	40.0	-	-	-	-	-	-	-	-	-	-	-	-
18Ton	AM216BXVGJ*	60	460	14.8	14.8	2.3	2.3	38.0	50.0	-	-	-	-	-	-	-	-	-	-	-	-
20Ton	AM240BXVGJ*	60	460	15.6	15.6	2.3	2.3	40.0	50.0	-	-	-	-	-	-	-	-	-	-	-	-
22Ton	AM264BXVGJ*	60	460	6.0	6.0	2.1	2.1	18.0	20.0	11.0	11.0	2.1	2.1	29.0	35.0	-	-	-	-	-	-
24Ton	AM288BXVGJ*	60	460	6.0	6.0	2.1	2.1	18.0	20.0	13.0	13.0	2.3	2.3	34.0	40.0	-	-	-	-	-	-
26Ton	AM312BXVGJ*	60	460	6.0	6.0	2.1	2.1	18.0	20.0	14.8	14.8	2.3	2.3	38.0	50.0	-	-	-	-	-	-
28Ton	AM336BXVGJ*	60	460	6.0	6.0	2.1	2.1	18.0	20.0	15.6	15.6	2.3	2.3	40.0	50.0	-	-	-	-	-	-
30Ton	AM360BXVGJ*	60	460	6.6	6.6	2.1	2.1	19.4	25.0	15.6	15.6	2.3	2.3	40.0	50.0	-	-	-	-	-	-
32Ton	AM384BXVGJ*	60	460	13.0	13.0	2.3	2.3	34.0	40.0	13.0	13.0	2.3	2.3	34.0	40.0	-	-	-	-	-	-
34Ton	AM408BXVGJ*	60	460	13.0	13.0	2.3	2.3	34.0	40.0	14.8	14.8	2.3	2.3	38.0	50.0	-	-	-	-	-	-
36Ton	AM432BXVGJ*1	60	460	6.6	6.6	2.1	2.1	19.4	25.0	6.6	6.6	2.1	2.1	19.4	25.0	13.0	13.0	2.3	2.3	34.0	40.0
38Ton	AM456BXVGJ*	60	460	6.6	6.6	2.1	2.1	19.4	25.0	9.6	9.6	2.1	2.1	26.2	35.0	13.0	13.0	2.3	2.3	34.0	40.0

3 [AM***DXVGQ* series] Heat Pump / Heat Recovery (575V)

Non. Ton	Model	Units		Module #1 Module #2 Module #3
				RLA		FLA		Power Supply		RLA		FLA		Power Supply		RLA		FLA		Power Supply
		Hz	Volts	Comp1	Comp2	FAN1	FAN2	MCA	MOP	Comp1	Comp2	FAN1	FAN2	MCA	MOP	Comp1	Comp2	FAN1	FAN2	MCA	MOP
6Ton	AM072DXVGQ*	60	575	8.5	-	2.3	-	13.4	20	-	-	-	-	-	-	-	-	-	-	-	-
8Ton	AM096DXVGQ*	60	575	5.0	5.0	2.3	2.3	16.1	20	-	-	-	-	-	-	-	-	-	-	-	-
10Ton	AM120DXVGQ*	60	575	5.5	5.5	2.3	2.3	17.4	20	-	-	-	-	-	-	-	-	-	-	-	-
12Ton	AM144DXVGQ*	60	575	7.6	7.6	2.3	2.3	22.2	25	-	-	-	-	-	-	-	-	-	-	-	-
14Ton	AM168DXVGQ*	60	575	8.8	8.8	2.3	2.3	24.8	30	-	-	-	-	-	-	-	-	-	-	-	-
16Ton	AM192DXVGQ*	60	575	11.2	11.2	2.3	2.3	30.5	40	-	-	-	-	-	-	-	-	-	-	-	-
18Ton	AM216DXVGQ*	60	575	12.8	12.8	2.3	2.3	34.0	45	-	-	-	-	-	-	-	-	-	-	-	-
20Ton	AM240DXVGQ*	60	575	13.5	13.5	2.3	2.3	35.8	45	-	-	-	-	-	-	-	-	-	-	-	-
22Ton	AM264DXVGQ*	60	575	5.0	5.0	2.3	2.3	16.1	20	8.8	8.8	2.3	2.3	24.8	30	-	-	-	-	-	-
24Ton	AM288DXVGQ*	60	575	5.0	5.0	2.3	2.3	16.1	20	11.2	11.2	2.3	2.3	30.5	40	-	-	-	-	-	-
26Ton	AM312DXVGQ*	60	575	5.0	5.0	2.3	2.3	16.1	20	12.8	12.8	2.3	2.3	34.0	45	-	-	-	-	-	-
28Ton	AM336DXVGQ*	60	575	5.0	5.0	2.3	2.3	16.1	20	13.5	13.5	2.3	2.3	35.8	45	-	-	-	-	-	-
30Ton	AM360DXVGQ*	60	575	5.5	5.5	2.3	2.3	17.4	20	13.5	13.5	2.3	2.3	35.8	45	-	-	-	-	-	-
32Ton	AM384DXVGQ*	60	575	11.2	11.2	2.3	2.3	30.5	40	11.2	11.2	2.3	2.3	30.5	40	-	-	-	-	-	-
34Ton	AM408DXVGQ*	60	575	11.2	11.2	2.3	2.3	30.5	40	12.8	12.8	2.3	2.3	34.0	45	-	-	-	-	-	-
36Ton	AM432DXVGQ*	60	575	5.5	5.5	2.3	2.3	17.4	20	5.5	5.5	2.3	2.3	17.4	20	11.2	11.2	2.3	2.3	30.5	40
38Ton	AM456DXVGQ*	60	575	5.5	5.5	2.3	2.3	17.4	20	7.6	7.6	2.3	2.3	22.2	25	11.2	11.2	2.3	2.3	30.5	40

4 [AM***BXVTF* series] Heat Pump / Heat Recovery (208~230V)

Nom. Ton	Model	Units		Module #1						Module #2						Module #3
				RLA		FLA		Power Supply		RLA		FLA		Power Supply		RLA		FLA		Power Supply
		Hz	Volts	Comp1	Comp2	FAN1	FAN2	MCA	MOP	Comp1	Comp2	FAN1	FAN2	MCA	MOP	Comp1	Comp2	FAN1	FAN2	MCA	MOP
6Ton	AM072BXVTF*	60	208~230	18	18	4.2	4.2	50	60	-	-	-	-	-	-	-	-	-	-	-	-
8Ton	AM096BXVTF* 60	60	208~230	22	22	4.2	4.2	62	70	-	-	-	-	-	-	-	-	-	-	-	-
10Ton	AM120BXVTF*	60	208~230	28	28	4.2	4.2	76	90	-	-	-	-	-	-	-	-	-	-	-	-
12Ton	AM144BXVTF*	60	208~230	18	18	4.2	4.2	50	60	18	18	4.2	4.2	50	60	-	-	-	-	-	-
14Ton	AM168BXVTF*	60	208~230	18	18	4.2	4.2	50	60	22	22	4.2	4.2	62	70	-	-	-	-	-	-
16Ton	AM192BXVTF*1	60	208~230	22	22	4.2	4.2	62	70	22	22	4.2	4.2	62	70	-	-	-	-	-	-
18Ton	AM216BXVTF*1	60	208~230	18	18	4.2	4.2	50	60	18	18	4.2	4.2	50	60	18	18	4.2	4.2	50	60
20Ton	AM240BXVTF*1	60	208~230	18	18	4.2	4.2	50	60	18	18	4.2	4.2	50	60	22	22	4.2	4.2	62	70
22Ton	AM264BXVTF*	60	208~230	18	18	4.2	4.2	50	60	18	18	4.2	4.2	50	60	28	28	4.2	4.2	76	90
24Ton	AM288BXVTF* 60	60	208~230	18	18	4.2	4.2	50	60	22	22	4.2	4.2	62	70	28	28	4.2	4.2	76	90

5 [AM***BXVTJ* series] Heat Pump / Heat Recovery (460V)

Nom. Ton	Model	Units		Module #1						Module #2						Module #3
				RLA		FLA		Power Supply		RLA		FLA		Power Supply		RLA		FLA		Power Supply
		Hz	Volts	Comp1	Comp2	FAN1	FAN2	MCA	MOP	Comp1	Comp2	FAN1	FAN2	MCA	MOP	Comp1	Comp2	FAN1	FAN2	MCA	MOP
6Ton	AM072BXVTJ*	60	460	9.2	9.2	2.1	2.1	25	30	-	-	-	-	-	-	-	-	-	-	-	-
8Ton	AM096BXVTJ*	60	460	11	11	2.1	2.1	31	35	-	-	-	-	-	-	-	-	-	-	-	-
10Ton	AM120BXVTJ*	60	460	14	14	2.1	2.1	38	45	-	-	-	-	-	-	-	-	-	-	-	-
12Ton	AM144BXVTJ*	60	460	9.2	9.2	2.1	2.1	25	30	9.2	9.2	2.1	2.1	25	30	-	-	-	-	-	-
14Ton	AM168BXVTJ*	60	460	9.2	9.2	2.1	2.1	25	30	11	11	2.1	2.1	31	35	-	-	-	-	-	-
16Ton	AM192BXVTJ*1	60	460	11	11	2.1	2.1	31	35	11	11	2.1	2.1	31	35	-	-	-	-	-	-
18Ton	AM216BXVTJ*1	60	460	9.2	9.2	2.1	2.1	25	30	9.2	9.2	2.1	2.1	25	30	9.2	9.2	2.1	2.1	25	30
20Ton	AM240BXVTJ*1	60	460	9.2	9.2	2.1	2.1	25	30	9.2	9.2	2.1	2.1	25	30	11	11	2.1	2.1	31	35
22Ton	AM264BXVTJ*	60	460	9.2	9.2	2.1	2.1	25	30	9.2	9.2	2.1	2.1	25	30	14	14	2.1	2.1	38	45
24Ton	AM288BXVTJ*	60	460	9.2	9.2	2.1	2.1	25	30	11	11	2.1	2.1	31	35	14	14	2.1	2.1	38	45

NOTE

• RLA is based on AHRI1230 Cooling Standard Condition (Indoor Temp: 26.7°C/80°F(DB) / 19.46°C/67°F(WB), Outdoor Temp: 35°C/95°F(DB)). Voltage tolerance is ±10%. Maximum allowable voltage between phases is 2%. Refer to module combination table for independent units information. Symbols:
• RLA: Rated Load Ampere
• FLA: Full Load Ampere
• MCA: Minimum Circuit Ampere (A)
• MOP: Maximum Overcurrent Protective Device (A)

CAUTION

Caution for electrical work

You must install ELCB or MCCB + ELB

ELCB: Earth leakage breaker

MCCB: Molded case circuit breaker

ELB: Earth leakage breaker

• Do not operate the outdoor unit before completing the refrigerant pipe work.
• Do not disconnect or change the cable inside the product. It may cause damage to the product.
• The specification of the power cable is selected based on the following installation conditions: culvert installation, ambient temperature 30°C (86°F), single multi-conductor cables. If the conditions differ from those stated, please consult an electrical installation expert and re-select the power cable.

If the length of the power cable exceeds 50 m (164.04 ft), re-select the power cable considering the voltage drop.

• Use a power cable made of incombustible material for the insulator (inner cover) and the sheath (outer cover).
• Do not use the power cable with the core wire exposed due to insulator damage that occurred during removal of the sheath. When the core wire is exposed, it may cause fire.

(Example of exposed core wire)

Power and communication cable configuration

• The main power and ground cables must be routed through the knock-out hole on the bottom-right or right side of the cabinet.
• Route the communication cable from the designated knock-out hole on the bottom-right side of the front part. Install the power and communication cables using separate cable protection tubes.
• Fix a protection tube to the knock-out hole on the outdoor unit using a CD connector or bushing. Make sure to use an insulating bushing.

Specification of the protection tube

Name Temper grade Applicable conditions
Flexible PVC conduit	PVC	When the protection tube is installed indoor and not exposed to outside, because it is embedded in concrete structure
Class 1 flexible conduit	Galvanized steel sheet	When the protection tube is installed indoor but exposed to outside so there are risk of damage to the protection tube
Class 1 PVC coated flexible conduit	Galvanized steel sheet and Soft PVC compound	When the protection tube is installed outdoor and exposed to outside so there are risk of damage to the protection tube and extra waterproof is needed

CAUTION

• Caution for perforating the knock-out hole: Perforate a knock-out hole by punching it with a hammer.

After perforating the knock-out hole, apply rust-resistant paint around the hole. When you need to pass cables through the knock-out hole, remove burrs on the hole and protect the cable with a protection tape or bushing, etc. Caution for installing communication cable: When you connect the cable, it may sag and be pressed by other parts. Therefore, cables should be fixed to a clamp highlighted with a box in the illustration.

Path for arranging external communication cable. Fixing location of the external communication cable.

Power wiring diagram

• Connect a power cable of the outdoor unit after checking that R-S-T (3 phase 3 wire) is properly connected.
• Malfunction may occur if one or more of the wires among R-S-T phases (3 Phases-3 Wires) are not connected properly. (*Malfunction: Turning on/off, occurrence of error, consecutive reset) • Communication cable between indoor and outdoor units and communication cable between outdoor units has no polarity.
• Arrange the cables with a cable tie. ※ ELCB and ELB must be installed since there is risk of electric shock or fire when they are not installed.

Selecting solderless ring terminal

• Select a solderless ring terminal for a power cable according to the nominal dimensions for cable.
• Apply insulation coating to the connection part of the solderless ring terminal and the power cable.

Nominal dimensions for cable [mm2 (inch2)]

4/6 (0.006/0.009) 10

(0.01) 16 (0)

02) 25 (0.03)

35 (0.05) 50 (0.07) 70 (0.10)

Nominal dimensions for screw [mm (inch)]

4 (3/8) 8

3/16) 8 (3/16)

8 (3/16) 8

3/16) 8 (3/16)

8 (3/16) 8

3/16) 8 (3/16)

8 (3/16)

16) 8 (3/16)

B

Standard dimension [mm (inch)]

9.5 (3/8)

15 (9/16) 15 (9/16)

16 (10/16)

12 (1/2)

16.5 (10/16)

16 (10/16)

22 (7/8) 22 (7/8)

24 (1)

Allowance [mm (inch)]

±0.2 (±0.007)

±0.2 (±0.007)

±0.2 (±0.007)

±0.3 (±0.011) ±0.3

(±0.011)

±0.3 (±0.011)

±0.4 (±0.015)

D

Standard dimension [mm (inch)]

5.6 (1/4)

7.1 (1/4)

9 (3/8)

11.5 (7/16)

13.3 (1/2)

13.5 (1/2)

17.5 (1/2)

Allowance [mm (inch)]

+0.3 (+0.011) -0.2 (-0.007)

+0.3 (+0.011) -0.2 (-0.007)

+0.3 (+0.011) -0.2 (-0.007)

+0.5 (+0.019) -0.2 (-0.007)

+0.5 (+0.019) -0.2 (-0.007)

+0.5 (+0.019) -0.2 (-0.007)

+0.5 (+0.019) -0.4 (-0.015)

d1

Standard dimension [mm (inch)]

3.4 (1/8)

4.5 (3/16)

5.8 (1/4)

7.7 (5/16)

9.4 (3/8)

11.4 (7/16)

13.3 (1/2)

Allowance [mm (inch)]

±0.2 (±0.007)

±0.2 (±0.007)

±0.2 (±0.007)

±0.2 (±0.007)

±0.2 (±0.007)

±0.3 (±0.011)

±0.4 (±0.015)

E

Min. [mm (inch)]

6 (1/4)

7.9 (5/16)

9.5 (5/16)

11 (3/8)

12.5 (1/2)

17.5 (11/16)

18.5 (3/4)

F

Min. [mm (inch)]

5 (3/16)

9 (3/8)

9 (3/8)

13 (1/2)

15 (5/8)

13 (1/2)

13 (1/2)

13 (1/2)

14 (9/16)

20 (3/4)

L

Max. [mm (inch)]

20 (3/4)

28.5 (1-1/8)

30 (1-3/16)

33 (1-5/16)

34 (1-3/8)

38 (1-1/2)

43 (1-11/16)

50 (2)

51 (2)

d2

Standard dimension [mm (inch)]

4.3 (3/16)

8.4 (1-3/16)

8.4 (1-3/16)

8.4 (1-3/16)

8.4 (1-3/16)

8.4 (1-3/16)

8.4 (1-3/16)

8.4 (1-3/16)

8.4 (1-3/16)

8.4 (1-3/15)

Allowance [mm (inch)]

+0.2 (+0.007) 0 (0)

+0.4 (+0.015) 0 (0)

+0.4 (+0.015) 0 (0)

+0.4 (+0.015) 0 (0)

+0.4 (+0.015) 0 (0)

+0.4 (+0.015) 0 (0)

+0.4 (+0.015) 0 (0)

+0.4 (+0.015) 0 (0)

t

Min. [mm (inch)]

0.9 (0.03)

1.15 (0.04)

1.45 (0.05)

1.7 (0.06)

1.8 (0.07)

1.8 (0.07)

2.0 (0.078)

Connecting the power terminal

• Connect the cables to the terminal board with solderless ring terminals.
• Properly connect the cables by using certified and rated cables and make sure to fix them properly so that external force is not applied to the terminal.
• Use a driver and wrench that can apply the rated torque when tightening the screws on the terminal board.
• Tighten the terminal screws by complying rated torque value. If the terminal is loose, fire can occur due to arc heat generation and if the terminal is too tight, terminal board could get damaged.

1 Front connection

2 Closing the cover

Screw	Tightening torque for terminal		Remarks
	N·m lbf ft
M3.5 0.78~1.18 0.6~0.9 communication cable
M4 1.2~1.8 0.9~1.3 Single phase 208~230V power cable
M8 5.5~7.3 4.1~5.4			3 phase 208~230V/460V/575V power cable

CAUTION

• When removing the outer sheath of the power supply cable, be careful not to scratch the inner sheath of the cable.
• Make sure that more than 20mm (0.79 inch) of the outer sheath of the indoor unit power and communication cable are inside the electrical component box. • Install the communication cable separately from power cable and other communication cables.
• There is a risk of electric shock when power is applied. Close the cover of the control box before proceeding to work.
• To inspect the compressor or PBA, first make sure to turn off the system. Electricity may flow even in a compressor that has not been used recently. Exercise caution to protect yourself from an electric shock.

Examples of how to use the cable stripper

1 Adjust the blade position by coin. (Controller is at the bottom side of the tool.) Fix the blade position according to the outer sheath thickness of the power cable.

2 Fix the power cable and tool by using the hook at the top side of the tool.

3 Cut out the outer sheath of the power cable by revolving the tool in the direction of the arrow, two or three times.

4 At this situation, cut out the outer sheath of the power cable by moving the tool toward the direction of the arrow.

5 Slightly bend the wire and pull out the cut part of the outer sheath.

Fixing the power cable

3 phase 3 wires 208-230V [AM*****XV*F*]

3 phase 3 wires 460V [AM****XV*J*]

3 phase 3 wires 575V [AM****XV*Q*]

CAUTION

• Do not let the power cable come into contact with the pipes inside the outdoor unit. If the power supply cable touches the pipes, the vibration of the compressor is transferred to the pipes and can damage the power supply cables or pipes, creating the danger of fire or explosion.
• Make sure that the place where the sheath of the power supply cable is removed is inside the power supply box. If it is impossible, you should connect the protection tube for the power cable to the power supply box. After arranging the power cable into the power supply box, tighten the cover.

Connect the ring terminal of the 3-phase cable.

1. Cut the power cable to an appropriate length and connect it with the solderless terminal. 2. After connecting the power cable to the terminal as seen in the illustration, fix it with a cable tie. 3. Fix the housing, which has an insulator, to the terminal board.

Fixing the ground cable

- Connect the ground cable to the grounding hole inside the power supply box.

Withdrawing the power cable

• Withdrawing from the front side
• Connect the power cable protection tube into the power supply box as shown in the picture.
• Be sure that the power supply cable is not damaged by burrs on the knock-out hole.

Connecting Central Controls

- When the number of indoor units installed with the outdoor unit is 16 or less

F1 F2 OF1 OF2 R1	R2
Terminal block with indoor unit	Terminal block with outdoor unit sub module		Terminal block with central control device

Where to install the interface module

- Install the interface module in location (A), considering the installation conditions. - For details on how to install, refer to the interface module installation manual.

Connecting the MCU (MCU-S6NEK2N, MCU-S4NEK3N, MCU-S2NEK2N, MCU-S1NEK1N, MCU-S8NEK1N, MCU-S12NEK1N)

• (A) Power must be supplied to the MCU separately from the outdoor unit. • (B) Connect the communication cable of the outdoor unit (F1, F2) to the communication cable of the MCU (F1, F2)

CAUTION

- Power cable connection should be done with the solderless ring terminal.

- When installing the MCU, communication cable can be connected as shown above.

Grounding work

Grounding must be done by a qualified installer for your safety.

Grounding the power cable

• The standard of grounding may vary according to the rated voltage and installation place of the air conditioner. - Ground the power cable according to the following table.

Installation place\Power condition	Voltage to ground is lower than 150V Voltage	to ground is over 150V
High humidity Must perform the grounding work 3. Note1)(Including the case where earth leakage breaker is installed)
Average humidity Perform grounding work 3. Note1)	Must perform the grounding work 3. Note1)(Including the case where earth leakage breaker is installed)
Low humidity	Perform grounding work 3, if possible, for your safety. Note2)

Note 1) About grounding work 3.

• Grounding work must be done by an expert (with qualification).
• Check if the grounding resistance is lower than 100Ω. When installing an earth leakage breaker (that can cut the electric circuit within 0.5 second in case of a short circuit), allowable grounding resistance should be 30~500Ω. Note 2) Grounding at dry place • The grounding resistance should be lower than 100Ω. Even in worst case, grounding resistance should be lower than 250Ω.

Performing the grounding work

• Use a rated grounding cable by referring to the specification of the electric cable for the outdoor unit.

※ When using the exclusive grounding terminal (When the grounding terminal is already built on the house)

※ When using grounding of the switch board

Air tightness test and vacuum drying

Air tightness test

• Use tools for R-410A to prevent the inflow of foreign substances and resist against the internal pressure. - Do not remove the core of filling port. - Use dry nitrogen gas for air tightness test as shown in the illustration.

H/PH/R

CAUTION

• Perform a Nitrogen gas leak test with the service valve of the outdoor unit closed.
• When charging the nitrogen gas, charge it from the both (high-low pressure) sides.
• If the pipe is filled in a short time with a highly excessive pressure of Nitrogen gas, the pipes may get damaged. Make sure to use a regulator to prevent the high pressure Nitrogen gas, over 4.1MPa (594.6psi), from entering into the pipe.

Air tightness test and vacuum drying

Vacuum drying pipes and indoor units

• Use tools for R-410A to prevent the inflow of foreign substances and resist against the internal pressure. - Use vacuum pump that allows vacuuming under 0.5 Torr (500 microns). - Use the vacuum pump with the check valve to prevent pump oil from flowing backward while the vacuum pump is stopped. - Completely close the liquid gas side service valve of the outdoor unit.

※ If the pressure rises in an hour, either water is remaining inside the pipe or there is a leakage.

When the ambient temperature of vacuuming pipe is low (less than 0°C (32°F)), moisture might remain within the pipe. Therefore, pay special attention to the pipe sealing in the winter.

Insulating the refrigerant pipes and branch joints

• Check for gas leakage before completing (the hose and pipe insulation) and if there is no sign of leakage, make sure to insulate the pipes and hoses.
• Use EPDM material insulator that meets the following conditions.

Test item Unit Standard
Density g/cm	3	0.048~0.096
Dimensional change rate by heat	% Below -5
Absorption rate g/cm	3	Below 0.005
Thermal conduction rate W/m·K Below 0.037
Moisture transpiration factor	ng/(m2·s·Pa) Below 15
Moisture transpiration grade	g/(m2·24h) Below 15
Formaldehyde dispersion mg/L		There should be none
Oxygen rate % Over 25

Selecting the refrigerant pipe insulator

• Insulate the gas pipe and liquid pipe by referring to the thickness of insulator for each pipe size. - The standard condition is; temperature at 30°C (89.6°F), humidity less than 85%. If the humidity is higher, you must increase the size by one grade as stated in the table below.

Pipe	Diameter of refrigerant pipe		Insulator (Cooling·Heating)				Remarks
			General 1) [30 °C, 85 %]		High humidity 2) [30 °C, over 85 %]
			EPDM, NBR
	mm inch mm inch mm inch
Liquid	6.35~9.52	1/4~3/8	9	3/8	9	3/8	Heat resisting temperature over 120°C
	12.7~50.8	1/2~2	13	1/2	13	1/2
Gas	6.35	1/4	13	1/2	19	3/4
	9.52~25.4	3/8~1	19	3/4	25	1
	28.58~44.45	11/8~13/4	19	3/4	32	11/4
	50.8	2	25	1	38	11/2

To install in any of the following places or environments, use the same insulating material used in general conditions.

• An air-conditioned place where humidity is high inside the ceiling tiles
• A space where temperature/humidity difference is large between the upper and lower air due to a high ceiling (e.g., a large chapel/church, cinema, split-level open lobby, lecture hall with theatre seating)
• A corridor or passageway with no air conditioning system
• An old building with poor insulation

[Under the following conditions, a gas pipe of ∅9.52 to ∅25.40 mm (3/8 inch to 1 inch) and plumbing of thickness 13 mm (1/2) can be used]

• A general town centre building (e.g., an apartment building, dwelling house, lecture hall, educational institute building, office, shopping complex) – A structure with an exposed ceiling
• A structure with ceiling tiles and a ventilation system
• A structure where there is no inflow of air from the outside due to plumbing laid inside a wall

※ Even in the above conditions, if humidity is very high or condensation is expected to occur, change the installation thickness for high humidity.

2) To install in any of the following places or environments, use the same insulating material used in a place with high humidity.

• A location with high humidity, such as a seaside area, a hot spring area, an area near a pond/river or a ridge (a building that is partially covered in earth and sand)
• A location where morning dew occurs frequently (e.g., once every three days)

- Sauna, swimming pool or restaurant

• Installation inside a ceiling that is not air-conditioned where there is inflow of a large amount of moisture (plumbing installed along a corridor or near the entrance of a hall of residence or studio flat)
• A place where humidity is high due to an insufficient ventilation system in the space where plumbing is installed
• A room on a semi-basement floor

- If you are not sure which insulating material to use, choose material used in a place with high humidity.

• If the purpose of the room is subject to change, reconsider the thickness of insulating material.
• Use the specified insulating material only.

Insulate the refrigerant pipe

• Make sure to insulate the refrigerant pipe, branch joint, distribution header, and the connection part of the pipes. • If you insulate the pipes, condensed water will not fall from the pipes.
• Check if there are any cracks on the insulation at the bent part of the pipe.

Insulating pipes

• The insulation of the gas and liquid pipes can be in contact with each other but they should not press excessively against each other.
• When the gas side and liquid side pipes are contacting each other, increase the thickness of the insulation by one grade.

Insulating pipes connected behind the EEV kit

• When installing the gas side and liquid side pipes, leave at least 10mm (0.4 inch) of space.
• When the gas side and liquid side pipes are contacting each other, increase the thickness of the insulation by one grade.

10mm (0.4inch)10mm (0.4inch) 10mm (0.4inch)

CAUTION

• Install the insulation without any gaps or cracks and use adhesive on the connection part of it to prevent moisture from entering. - Bind the refrigerant pipe with insulation tape if it is exposed to outside sunlight. (When binding the pipe with finishing tape, be careful not to reduce the thickness of the insulation.) • Install the refrigerant pipe respecting that the insulation does not get thinner on the bent part or hanger of pipe. - When the thickness of insulation is reduced, reinforce the reduced thickness with additional insulation.

Insulate the distribution header

• Fix the distribution header with a cable tie and cover the connected part.
• Insulate the distribution header and the welded part and wrap the connected part with an adhesive insulation tape to prevent dew formation.

• Fix the distribution header with a hanger after insulating it.

Insulating the branch joint

• Tightly attach the insulator, provided with the branch joint, to the separately purchased insulator. Wrap the connected part with an insulator (separately purchased item) that has thickness of at least 10mm (0.4inch).
• Use an insulator that resist heat up to 120°C (248°F). Wrap the branch joint with an insulation that has thickness of at least 10mm (0.4inch).

Insulation tape (Separately purchased item)

Pipe insulator (Separately purchased item) ※ Attach the adhesive insulation tape to the pipe, as shown in the picture, after insulating the pipe.

Insulating the pipe located inside of the outdoor unit

• With a pipe insulator, insulate the pipe up to the entire service valve located inside of the outdoor unit.
• Seal the gap between the outdoor unit pipe and the insulator. Rainwater and dewdrops may soak through the gap between the pipe and the insulation of the outdoor unit installed on the outside.
• Separate the cover of the pipe and close it after insulation work. Only remove a knock-out hole cover where the pipe will be installed. If the knock-out hole is open unnecessarily, it must be closed. If not, small animals such as squirrels and rats may get into the unit through the hole and the unit may be damaged.

H/P

H/R

CAUTION

• The filled-out label must be adhered in the proximity of the product charging port. (ex. onto the inside of the stop valve cover.)

Single installation

• Open the manifold gauge valve connected to the liquid side service valve and add the liquid refrigerant.
• If you cannot add the whole quantity of the refrigerant while the outdoor unit is stopped, open the gas side and liquid side service valve. Then, add remaining refrigerant by pressing the refrigerant adding button of the outdoor PCB.

Module installation

• Open the manifold gauge valve connected to the liquid side service valve and add the liquid refrigerant.
• If you cannot add the whole quantity of the refrigerant while the outdoor unit is stopped, open the gas side and liquid side service valve. Then, add remaining refrigerant by pressing the refrigerant adding button of the outdoor PCB.
• If you use the refrigerant charging function from the PCB, outdoor unit will operate and charge the refrigerant. At this time, you must use gas side manifold gauge for cooling operation and use charging port for heating at the manifold gauge for heating operation.

CAUTION

• Open the gas side and liquid side service valve completely after charging the refrigerant. (If you operate the air conditioner with the service valve closed, the important parts may be damaged.)
• Put on safety equipment when charging refrigerant.
• Do not charge the refrigerant when you adjust or control other product such as indoor units or EEV kits.
• If you charge the refrigerant with the front cabinet open, be very careful with the fan on the top of the product to prevent personal injury.
• When the ambient temperature is low in winter time, do not heat the refrigerant container to speed up the charging process. There is risk of explosion.
• Beware for possibility of refrigerant leakage when you connect the manifold gauge to the charging port for heating.
• Close the valve of the refrigerant container immediately after charging the refrigerant. If not, there might be a change in entire amount of refrigerant.

Using service valve for gas

• After charging the refrigerant, close all caps as shown in the illustration. - Tightening torque for the cap of refrigerant charging port 10~12N·m (7.4 ~ 8.9 lbf·ft) - Tightening torque for the cap of control part 20~25N·m (14.8 ~ 18.4 lbf·ft) - Opening/closing torque for the valve - ∅19.05mm (∅3/4inch) : 10 N·m (7.4 lbf·ft)

Basic segment display

Step Display content Display
At initial power input Checking segment display	SEG 1 SEG 2	SEG 3 SEG 4
	"8" "8" "8" "8"
While setting communication between indoor and outdoor unit (Addressing)	Number of connected indoor units	SEG 1 SEG 2	SEG 3 SEG 4
		"A" "d"		Number of communicated unitsRefer to "View Mode" for communication address
After communication setting (usual occasion)	MCU, Indoor unit address	SEG 1 SEG 2	SEG 3 SEG 4
		I/U: "A"MCU: "C"	I/U: "0"MCU: "1"	Reception address (in decimal number)

※ I/U : Indoor unit

Setting outdoor unit option switch and key function

Setting outdoor unit option switches

- Setting outdoor install option

Step Button Display Description		Note
Outdoor unit address
Step1 Outdoor unit display		od nd	Setting required -
Step2	Press (K1+K2) for 2 seconds	od 00	Unit address for module combination	00: Main unit
	K4 x 1 time	od 01		01: Sub1 unit
	K4 x 2 times	od 02		02: Sub2 unit
	K4 x 3 times	od 03		03: Sub3 unit
Step3	If it is main unit, go to step4. Otherwise, press K2 button for 2 seconds to save & exit (system will be reset)
Quantity of indoor units
Step4 Press K1		-td 00	Ready to set -
Step5	K2 x n times	-td x0	Tens digit (0 ~ 6)	Ex) 03: 3 units64: 64 units
	K4 x n times	-td0x	Ones digit (0 ~ 9)
	* K4: Press for 2 seconds - automatic detection of indoor units' quantity
Step6	If it is heat recovery model, go to step 7. Otherwise, press K2 button for 2 seconds to save & exit (system will be reset)
Quantity of MCUs * Heat recovery model only
Step7 Press K1		NC 00	Ready to set -
Step8	K2 x n times	NC x0	Tens digit (0 ~ 1)	Ex) 03: 3 units16: 16 units
	K4 x n times	NC0x	Ones digit (0 ~ 9)
	* K4: Press for 2 seconds - automatic detection of MCUs' quantity
Step9 K2: long		Aa 00	Save Restart
* Press K1 for 2 seconds to exit without save regardless of setting step.

When counting the quantity of MCUs, one MCU is one.

However, in the case of MCU-S12NEK1N and MCU-S8NEK1N, even one MCU must be counted as two MCUs.

- Example 1: MCU-S6* + MCU-S12* → 3 units

- Example 2: MCU-S6* + MCU-S12* + MCU-S8* → 5 units

Setting outdoor unit option switch and key function

Installing and setting the option with tact switch and explanation of the functions

Setting the option

1. Press and hold K2 to enter the option setting. (Only available when the operation is stopped)

- If you enter the option setting, the display will show the following. (If you have set the 'Emergency operation for compressor malfunction', 1 or 2 will be displayed on Seg 4.)

• Seg 1 and Seg 2 will display the number for the selected option.
• Seg 3 and Seg 4 will display the number for the set value of the selected option.

2. If you have entered option setting, you can shortly press the K1 switch to adjust the value of Seg 1 and Seg 2 and select the desired option.

Example)

3. If you have selected the desired option, you can shortly press the K2 switch to adjust the value of Seg 3 and Seg 4 and change the function for the selected option.

Example)

4 After selecting the function for options, press and hold the K2 switch for 2 seconds. The edited value of the option will be saved when the entire segments blink and tracking mode begins.

CAUTION

• The edited option will not be saved if you do not end the option setting as explained in the above instruction. ※ While you are setting the option, you may press and hold the K1 button to reset the value to the previous setting. ※ If you want to restore the setting to factory default, press and hold the K4 button while you are in the option setting mode.

- If you press and hold the K4 button, the setting will be restored to factory default, but it doesn't mean that the restored setting is saved. Press and hold the K2 button. When the segments show that tracking mode is in progress, the setting will be saved.

Optional item	Input unit	SEG1	SEG2	SEG3	SEG4	Function of the option	Remarks
Emergency operation for compressor malfunction	Individual 0 0			0 0 Disabled (Factory default)			E560 will occur when all the compressors are set as malfunction state.
				0	1	Set compressor 1 as malfunction state
				0	2	Set compressor 2 as malfunction state
Capacity correction for cooling	Main 0 1			0 0 7 9			Targeted evaporation temperature [°C].(When low temperature value is set, discharged air temperature of the indoor unit will decrease)
				0 1 5-7 (Factory default)
				0 2		9-11
				0 3		10-12
				0 4		11-13
				0 5		12-14
				0 6		13-15
Capacity correction for heating	Main 0 2			0 0		3.0 (Factory default)	Targeted high pressure [MPa].(When low pressure value is set, discharged air temperature of the indoor unit will decrease)
				0 1		2.5
				0 2		2.6
				0 3		2.7
				0 4		2.8
				0 5		2.9
				0 6		3.1
				0 7		3.2
				0 8		3.3
Current restriction rate	Individual 0 3			0 0		100% (Factory default)	When restriction option is set, cooling and heating performance may decrease.
				0 1		95 %
				0 2		90 %
				0 3		85 %
				0 4		80 %
				0 5		75 %
				0 6		70 %
				0 7		65 %
				0 8		60 %
				0 9		55 %
				1 0		50 %
				1 1		No restriction
Oil collection interval	Main 0 4			0 0		Factory default
				0 1	Shorten the Interval by 1/2
Temperature to trigger defrost operation	Main 0 5			0 0		Factory default
				0	1	Apply setting when the product is being installed in humid area such as near river or lake
Fan speed correction for outdoor unit	Individual 0 6			0 0		Factory default
				0 1		Increase fan speed	Increase the outdoor unit's fan speed to maximum value

Setting outdoor unit option switch and key function

Optional item	Input unit	SEG1	SEG2	SEG3	SEG4	Function of the option	Remarks
Silent mode Main 07				00 Disabled (Factory default)			Enables the silent mode for night-time in cooling mode (It operates automatically depending on the temperature.)However, if the external contact interface module (MIM-B14U) is used, entering the silent mode is available with contact signal in cooling and heating mode.
				01 LEVEL 1 / Auto
				02		LEVEL 2 / Auto
				03		LEVEL 3 / Auto
				04 LEVEL 1 / External contact
				05		LEVEL 2 / External contact
				06		LEVEL 3 / External contact
				07		LEVEL 1
				08		LEVEL 2
				09		LEVEL 3
High-head condition setting	Main 08			00 Disabled (Factory default)
				0	1	Level 1 of height difference type 1 (Indoor unit is lower than outdoor unit)	When outdoor unit is located 40~80m(131.2~262.5ft) above the indoor unit
				0	2	Level 2 of height difference type 1 (Indoor unit is lower than outdoor unit)	When outdoor unit is located over 80m(262.5ft) above the indoor unit
				0	3	Height difference type 2 (Outdoor unit is lower than indoor unit)	When indoor unit is over 30m(98.4ft) above the outdoor unit
Long-piping condition setting	Main 09			00 Disabled (Factory default)
				01		LEVEL 1	When equivalent length of farthest indoor unit from the outdoor unit is between 100~170m(328.1~557.7ft)
				02		LEVEL 2	When equivalent length of farthest indoor unit from the outdoor unit is over 170m(557.7ft)
Energy control operation	Main	10		00		Basic (Factory default)	Energy control option of designated operation sequenceOperating in energy saving mode, capacity might decrease compared to normal operation mode
				01		Energy saving
				02		Power
Rotation defrost (HR only)	Main	11		00 Dis		abled (Factory default)
				01		Enabled	When enabled, continuous heating operation is possible but heating performance will decrease during rotation defrost operation
Expand operational temperature range for cooling operation (HR only)	Main	1	2	00 Disabled (Factory default)
				01		Enabled	When enabled, continuous cooling operation is possible even in low temperature condition up to -15°C, but noise of the MCU will increase
Channel address	Main	1	3	A	U	Automatic setting (Factory default)	Address for classifying the product from upper level controller (DMS, S-NET 3, etc.)
				0~15		Manual setting for channel 0~15
Snow accumulation prevention control	Main	1	4	00		Enabled (Factory default)	During snow accumulation, the fan may spin even when the unit is not in operation
				01		Disabled
Unused option	Main	1	5	0	0	Unused option	Unused option by this model
Unused option	Main	1	6	0	0	Unused option	Unused option by this model
Speed operation Main 17				0 0 Disabled (Factory default)			Enabling this setting will command the air conditioner to cool/heat faster at initial start-up.However, this function will not work when High-head condition setting or Long-piping condition setting is enabled.
				0 1 Enabled
Max. capacity restriction	Main 18			0 0 Enabled (Factory default) Restrict excessive capacity			city increasewhen operating indoor units with small capacity
				0 1		Disabled
Unused option	Main	1	9	0	0	Unused option	Unused option by this model
Unused option	Main	2	0	0	0	Unused option	Unused option by this model
Low ambient cooling kit (LA Kit) option	Main	2 1		0 0 Disabled (Factory default) Set when LA KIT is installed.			In case of using LA KIT option, Al High Pressure Control is restricted.
				0 1 Enabled
Emergency operation for indoor unit communication error	Main	2 2		0 0 Disabled (Factory default)			When set, emergency operation is possible even if an indoor communication error occurs.
				0	1	Indoor high humidity condition (operating for up to 12hours)
				0	2	Indoor low humidity condition (operating for up to 24hours)
Base Heater	Main 2 3			0 0 Disabled (Factory default)			Set when Base Heater is installed.
				0 1 Enabled
Inverter Carrier Frequency	Main	2 4		0 0		Disabled (default)	Set inverter carrier frequency
				0 1		8kHz
Aux Heater's interworking control for cycle heating (cooling priority control)	Main	2 5		0 0		Not applied	When using the Aux Heating, set the delay time for Switching from cooling to heating.※ Unused by the cooling only models
				0 1	Switching delay to heating (30 mins.)
				0 2	Switching delay to heating (15 mins.)
				0 3	Switching delay to heating (10 mins.)
				0 4	Switching delay to heating (5 mins.)
				0 5		Not switching delay
Auto Change Over	Main	2	6	0 0		Not applied	When Thermo off for all running indoor units, change the operation mode.※ Unused by the cooling only models
				0 1		Applied
Emergency defrost operation	Main	2 7		0 0		Disable (default)	You can enable this fuction, if the ice on the outdoor Heat exchanger is not removed even after continuous defrost operation, emergency defrosting operation is performed, but defrost operation can take a long time.
				0 1		Enable
Reduction of the diameter of liquid pipe	Main	2 8		0 0		Disable (default)	Set when piping is installed with Reduction of the diameter of liquid pipe.
				0 1		Enable
View Mode Unit Option	Main	2 9		0	0	Temperature: °CPressure: MPa	Converts the temperature, pressure units in the view mode(K4 switch)
				0	1	Temperature: °FPressure: psi

※ There is a risk of water leakage during emergency operation for indoor unit communication error. Please be careful when using it.

Setting outdoor unit option switch and key function

Setting key operation and checking the view mode with tact switch

K1 control KEY operation Display on segment
Press and hold 1 time Auto trial operation	"K" "K" "BLANK" "BLANK"Display can be changed into "K" "9" "X" "X"(Last two digits display the progress.)

K1 (Number of press) KEY operation Display on segment
1 time	Refrigerant charging in Heating mode	“K”“1”“BLANK”“BLANK”
2 times Trial operation in Heating mode "K" “2” "BLANK" "BLANK"
3 times	Pump out in Heating mode (Outdoor unit address 1)	“K”“3”“BLANK”“1”
4 times	Pump out in Heating mode (Outdoor unit address 2)	“K”“3”“BLANK”“2”
5 times	Pump out in Heating mode (Outdoor unit address 3)	“K”“3”“BLANK”“3”
6 times	Pump out in Heating mode (Outdoor unit address 4)	“K”“3”“BLANK”“4”
7 times	Vacuuming (Outdoor unit address 1)	“K”“4”“BLANK”“1”
8 times	Vacuuming (Outdoor unit address 2)	“K”“4”“BLANK”“2”
9 times	Vacuuming (Outdoor unit address 3)	“K”“4”“BLANK”“3”
10 times	Vacuuming (Outdoor unit address 4)	“K”“4”“BLANK”“4”
11 times	Vacuuming (All outdoor units)	“K”“4”“BLANK”“A”
12 times	Inverter Fault Detection (Comp#1)	“K”“5”“1”“1”
13 times	Inverter Fault Detection (Comp#2)	“K”“5”“1”“2”
14 times	Inverter Fault Detection (Fan#1)	“K”“5”“F”“1”
15 times	Inverter Fault Detection (Fan#2)	“K”“5”“F”“2”
16 times	End Key operation	-

WARNING

- After installing the product, be sure to perform leak tests on the piping connections. After pumping down refrigerant to inspect or relocate the outdoor unit, be sure to stop the compressor and then remove the connected pipes.

- Do not operate the compressor while a valve is open due to refrigerant leakage from a pipe or an unconnected or incorrectly connected pipe. Failure to do so may cause air to flow into the compressor and too high a pressure to develop inside the refrigerant circuit, leading to an explosion or product malfunction.

K2 (Number of press) KEY operation Display on segment
1 time	Refrigerant charging in Cooling mode	"K" "5" "BLANK" "BLANK"
2 times Trial operation in Cooling mode "K" "6" "BLANK" "BLANK"
3 times	Pump down all units in Cooling mode	"K" "7" "BLANK" "BLANK"
4 times	H/R: Checking the pipe connectionH/P: Automatic setting of operation mode (Cooling/Heating) for trial operation	"K" "8" "BLANK" "BLANK"
5 times Checking the amount of refrigerant		"K" "9" X X (Display of last two digits may differ depending on the progress)
6 times Discharge mode of DC link voltage "K" "A" "BLANK" "BLANK"
7 times Forced defrost operation "K" "B" "BLANK" "BLANK"
8 times	Forced oil collection	"K" "C" "BLANK" "BLANK"
9 times	Inverter compressor 1 check	"K" "D" "BLANK" "BLANK"
10 times	Inverter compressor 2 check	"K" "E" "BLANK" "BLANK"
11 times	Fan 1 check	"K" "F" "BLANK" "BLANK"
12 times	Fan 2 check	"K" "G" "BLANK" "BLANK"
13 times	H/R : Auto pipe pairingH/P : Unused	"K" "H" X X (Display of last two digits may differ depending on the progress)
14 times	Baseheater testing mode	"K" "I" "BLANK" "BLANK"
15 times	Unused	"K" "J" X X (Display of last two digits may differ depending on the progress)
16 times	End Key operation	-

※ Even when the outdoor unit power is off, it is dangerous when you come in contact with inverter PCB and fan PCB since they are charged with high DC voltage. ※ When replacing/repairing the PCB, cut-off the power and wait until the DC voltage is discharged before replacing/repairing them. (Wait for more than 15 minutes to allow it to discharge naturally.) When there were error, 'Discharge mode of DC link voltage' may not have been effective. Especially if error E464 and E364 have been occurred, power element might be damaged by fire and therefore, do not use the 'Discharge mode of DC link voltage'. During "Discharge mode of DC link voltage", voltage of INV1 and INV2 will be displayed alternately. After discharging of DC link voltage, "K" "A" "o" "k" is displayed. If "K" "A" "n" "A" is displayed or the voltage does not drop during "Discharge mode of DC link voltage", please cut-off the power and wait for 15 minutes until voltage discharges naturally. Due to the characteristics of the inverter PCB, "Discharge mode of DC link voltage" may not be supported. ※ When pressing K2 key 9 to 12 times without inverter checker, error code can be displayed on segment even though the outdoor unit is normal. ※ If error have been occurred, do not use the key operation. ※ If the 1st-generation MCU is installed, the Auto pipe pairing operation can not be used. If the 2nd-generation MCU is installed, the Checking the pipe connection can not be used. - 1st-generation MCU : MCU-S*NEE*N, MCU-S2NEK1N - 2nd-generation MCU : MCU-S*NEK2N, MCU-S4NEK3N, MCU-S1NEK1N, MCU-S8NEK1N, MCU-S12NEK1N ※ KEY operation of K2 15 times(Automatic refrigerant charging function) is an unused function. It can be available with Automatic refrigerant charging option KIT.

K3 (Number of press) K	KEY operation Display on segment
1 time	Initialize (Reset) setting	Same as initial state

K4 (Number of press) KEY operation		Display on segment
		SEG1	SEG2, 3, 4
1 time	Capacity of Outdoor unit Model	1	(a) Capacity → Off, 1, 6
2 times	Order frequency of the compressor1	2	120 Hz → 1, 2, 0
3 times	Order frequency of the compressor 2	3	120 Hz → 1, 2, 0
4 times	High pressure (MPa)	4	1.52 MPa → 1, 5, 2
5 times	Low pressure (MPa)	5	0.43 MPa → 0, 4, 3
6 times	Discharge temperature (Compressor 1)	6	87 °C → 0, 8, 7
7 times	Discharge temperature (Compressor 2)	7	87 °C → 0, 8, 7
8 times	IPM temperature (Compressor 1)	8	87 °C → 0, 8, 7
9 times	IPM temperature (Compressor 2)	9	87 °C → 0, 8, 7
10 times	CT sensor value (Compressor 1)	A	2 A → 0, 2, 0
11 times	CT sensor value (Compressor 2)	B	2 A → 0, 2, 0

Setting outdoor unit option switch and key function

K4 (Number of press) KEY operation		Display on segment
		SEG1SE	G2, 3, 4
12 times	Suction temperature	C	-42 °C → -, 4, 2
13 times	COND OUT temperature	D	-42 °C → -, 4, 2
14 times	Temperature of liquid pipe	E	-42 °C → -, 4, 2
15 times	TOP temperature (Compressor 1)	F	-42 °C → -, 4, 2
16 times	TOP temperature (Compressor 2)	G	-42 °C → -, 4, 2
17 times	Outdoor temperature	H	-42 °C → -, 4, 2
18 times	EVI inlet temperature	I	-42 °C → -, 4, 2
19 times	EVI outlet temperature	J	-42 °C → -, 4, 2
20 times	Main EEV1 step	K	2000 steps → 2, 0, 0
21 times	Main EEV2 step	L	2000 steps → 2, 0, 0
22 times	EVI EEV step	M	300 steps → 3, 0, 0
23 times	HR EEV step	N	300 steps → 3, 0, 0
24 times	Fan step (SSR or BLDC)	O	13 steps → 0, 1, 3
25 times	Current frequency (Compressor 1)	P	120 Hz → 1, 2, 0
26 times	Current frequency (Compressor 2)	Q	120 Hz → 1, 2, 0
27 times	Suction 2 temperature	R	-42 °C → -, 4, 2
28 times	Main indoor unit address S		Main indoor unit not selected → BLANK, N, DIf indoor unit No.1 is selected as the main unit → 0, 0, 1
29 times	unused	T	-
30 times	Suction 3 temperature	U	-42°C → -, 4, 2
31 times	COND OUT 2 temperature	V	-42°C → -, 4, 2
32 times	End key operation

※ Suction2 temperature is displayed on Heat Recovery or X-Large models. ※ Suction3 temperature & Cond out2 temperature are displayed on X-Large models. (a) When pressing K4 key 1 time, below number is displayed on segment depending on model.

Model Display on segment
AM072*** Off, 0, 8
AM096*** Off,1,0
AM120***	Off, 1,2
AM144***	Off, 1,4
AM168***	Off, 1,8
AM192*** Off, 2,0
AM216***	Off, 2,2
AM240***	Off, 2,4

K4 (Number of press)Press and hold the K4 to enter the setting	Displayed content	Display on segment
		page1	page2
1 time	Main version	MAIN	Version (ex. 1412)
2 times	Hub version	HUB	Version (ex. 1412)
3 times	Inverter1 version	INV1	Version (ex. 1412)
4 times	Inverter 2 version	INV2	Version (ex. 1412)
5 times	Fan 1 version	FAN1	Version (ex. 1412)
6 times	Fan 2 version	FAN2	Version (ex. 1412)
7 times	EEP version	EEP	Version (ex. 1412)
8 times	Automatically assigned address of the units	AUTO	SEG1	SEG2	SEG3, 4
			Indoor unit: "A"MCU: "C"	Indoor unit: "0"MCU: "1"	Address(ex: 07)
9 times	Manually assigned address of the units	MANU	SEG1	SEG2	SEG3, 4
			Indoor unit: "A"	Indoor unit: "0"	Address(ex: 15)

※ I/U : Indoor unit

Optional: Setting the MCU and Pipe Addresses (for HR Only)

You can set the MCU address, the MCU ports to use, and the address for each MCU port connected to each indoor unit.

It is for 2nd-generation MCU only. (MCU-S*NEK2N, MCU-S4NEK3N, MCU-S1NEK1N, MCU-S8NEK1N, MCU-S12NEK1N)

Setting the MCU address and the MCU ports to use

You can set the MCU address and the MCU ports on the MCU PBA.

1 Set the MCU address switch to a value. If two or more MCUs are installed, be sure to set a unique value for each MCU. For the MCU address, you can set a value from 0 to 15. * When counting the quantity of MCUs, one MCU is one. However, in the case of MCU-S12NEK1N and MCU-S8NEK1N, even one MCU must be counted as two MCUs. 2 For each MCU port that is connected to an indoor unit through piping, set its DIP switch to ON. For other MCU ports, set their DIP switches to OFF. You can find the address (A to F) of an MCU port on the indoor unit piping connection. 3 If two MCU ports are connected to an indoor unit through a Y-joint, set the relevant S/W option DIP switch to the settings given in the following table:

S/W optionDIP switchNo.	ON(Individual connection)	OFF(Shared connection)
1 Each of	ports A and B Both ports A and B
2 Each of	ports C and D Both ports C and D
3 Each of	ports E and F Both ports E and F

• You cannot make a shared connection for the two ports B and C, and D and E at the same time.

4 Set the address of each MCU port that is connected to an indoor unit by taking the procedures in Setting the Pipe Addresses Manually or Setting the Pipe Addresses Automatically. (Auto pipe pairing operation)

CAUTION

- If the following models are connected, set the pipe addresses manually by referring to Setting the Pipe Addresses Manually.

- ERV plus (AM****NKDE*), OAP duct (AM****NEPE*), Hydro Unit (AM****NBDE*, AM****NBF**), AHU kit (MXD-K***AN, MCM-D***N)

- If 1st-generation MCU (MCU-S*NEE*N, MCU-S2NEK1N) is installed, refer to the corresponding install manual.

Setting the Pipe Addresses Manually

You can use the wired or wireless remote control or the S-NET Pro 2 to set the pipe addresses for each indoor unit.

Setting by using the wired or wireless remote control (For how to operate the remote control buttons, see the remote control user manual.)

1 Turn on both the indoor unit and the remote control. 2 Enter the "Option setting mode" on the remote control. 3 Set the address of each MCU port that is connected to an indoor unit by referring to the following table. (You can also set the address of each indoor unit.)

Option	SEG1	SEG2	SEG3	SEG4	SEG5	SEG6
Value	0	A: Address setting mode	0: The address of the indoor unit will not be set.1: The address of the indoor unit will be set.	0 to 9: Hundreds digit of the indoor unit address	0 to 9: Tens digit of the indoor unit address	0 to 9: Units digit of the indoor unit address
Option	SEG7	SEG8	SEG9	SEG10	SEG11	SEG12
Value	1	0	0: The RMC address will not be set.1: The RMC address will be set.	0	0 to F: RMC group channel	0 to F: RMC group address
Option	SEG13	SEG14	SEG15	SEG16	SEG17	SEG18
Value	2	0	0: The MCU address will not be set.1: The MCU address will be set.	0 to 1: Tens digit of the MCU address	0 to 9: Units digit of the MCU address	A to F: MCU port address
Option	SEG19	SEG20	SEG21	SEG22	SEG23	SEG24
Value	3	0	0	0	0	0

Examples> If the indoor unit whose address is not yet set is connected to port A on the MCU 1, set 0A0000-100000-20101A-300000.

If the indoor unit whose address is set to 9 is connected to port B on the MCU 2, set 0A1009-100000-20102B-300000.

Setting by using S-NET Pro 2

- Set the pipe addresses by using Add-on > Change address on S-NET Pro 2. (For more information, see the S-NET Pro 2 Help.)

Optional: Setting the MCU and Pipe Addresses (for HR Only)

Setting the Pipe Addresses Automatically (Auto pipe pairing operation)

You can use the Automatic pipe-address setting operation to automatically set the address of each MCU port that is connected to an indoor unit.

If an MCU port is set incorrectly or a pipe between an MCU and an indoor unit is connected incorrectly, that indoor unit is indicated.

Check items before running the Auto pipe pairing operation

1. Ensure that the service valve of the outdoor unit is open. 2. Ensure that the power cables and communication cables of the indoor and outdoor units are correctly connected. 3. Turn on the indoor and outdoor units 6 hours before running the Automatic pipe-address setting operation to warm up both units sufficiently. 4. Before turning on the power, check whether the voltages and phases are correct by using a voltmeter and a phase tester. - Check for the R, S, T, and N terminals: ensure that 380-415V is read between lines (R-S, S-T, T-R) and 200-240V (R-N, S-N, T-N) between phases. 5. After the power is turned on, set the devices (indoor unit, MCU, and others) that are connected to the outdoor unit, and set the options. Note that, before the MCU port addresses are set, MCU port setting errors (E216, 217, 218) may occur. You can run the Automatic pipe-address setting operation regardless of MCU port setting errors. 6. If the OAP (Outdoor Air Processing) Duct or Hydro unit is connected, set the pipe addresses manually referring to [Setting the Pipe Addresses Manually]. 7. Check the operating temperature for the Automatic pipe-address setting operation: If this operation is run at a temperature out of the operating temperature range, the addresses set automatically may be incorrect. Set the pipe addresses manually by referring to Setting the Pipe Addresses Manually. 8. Auto pipe-pairing operation does not work within 3 minutes after power on and reset due to communication check.

[Operating temperature for the Auto pipe pairing operation]

- Before running the Auto pipe pairing operation, be sure to close the front cabinet. If this operation is run with the front cabinet open, the product may be damaged and the pipe addresses cannot be correctly recognized.

To run the Auto pipe pairing operation, take the following steps:

1. Press the K2 button 13 times on the main PBA of the outdoor unit to start the Auto pipe pairing operation. (Display:

	Outdoor temperature < 24°C (75°F)	24°C (75°F) ≤ Outdoor temperature < 30°C(86°F)	30°C(86°F) ≤ Outdoor temperature
Indoor temperature < 24°C (75°F)	Main heating operation	Main heating operation	Main cooling operation
Indoor temperature ≥ 24°C (75°F)	Main heating operation	Main cooling operation	Main cooling operation

Each step is indicated on the outdoor unit display. (The whole operation takes about 25 to 55 minutes normally, depending on the number of indoor units connected. However, it can be operated for up to 2 hours to protect the compressor.)

- Step 1 (Start Fh01) → Steps 2 to 8 (Setup Fh08) Step 9 (Check Fh56p 10 (Confirmation ) Fh10

2. When the Auto pipe pairing operation finishes, the following data is shown on the outdoor unit display.

Result	Outdoor unit display	Description
Setting completed	End
Setting error	E191 ↔ Indoor unit data (displayed alternately)	Indoor unit data• SEG 1,2 = indoor unit address / SEG 3,4 = error status00: An MCU port is not disabled, or a pipe is not connected.01: Cooling only indoor unit is connected to MCU.02: The shared setting for two ports is incorrect.Example) When the MCU port connected to the indoor unit 12 is disabled, E191 and 1200 are displayed alternately• If two or more indoor units have setting errors, the data about the next indoor unit is displayed each time you press the K2 switch.

CAUTION

- If the MCU ports to use are set incorrectly, the Auto pipe pairing operation may stop due to high-pressure or low-pressure protection control, or the data about the indoor unit that has a MCU port setting error may be incorrect. Ensure that the MCU ports to use are set correctly.

• Depending on the indoor and outdoor temperatures, the Auto pipe pairing operation may stop due to protection control.
• If an error occurs while the Auto pipe pairing operation is running, check the error code and take actions.
• If you cannot finish the Auto pipe pairing operation because of the previous reasons, set the pipe addresses manually by referring to Setting the Pipe Addresses Manually.

Performing final checks and trial operation

1 Before supplying the power, use DC 500V (AM****XV*J*) or DC 600 V (AM****XV*F*) insulation resistance tester to measure the power (3 phase: R, S, T/1 phase: L, N) terminal and the outdoor unit grounding.

- Measurement should be over 30MΩ.

2 Before supplying the power, use a voltmeter and phase tester to check the voltage and the phase.

- R, S, T terminal: Check the 460V (AM****XV*J*) or 230V (AM****XV*F*) or 575V (AM****XV*Q*) between wires (R-S, S-T, T-R)

CAUTION

• Never measure the communication terminal since communication circuit may get damaged.
• Check for short-circuit of the communication terminal with a general circuit tester.

3 Check if the R-410A indoor units are connected. 4 When N phase is not correctly connected to R, S and T phase, over-voltage protection control will be in effect and it will cut-off the power of the PCB. Check the power cable connection of the N phase if the PCB is not turned on. 5 Check the following after the installation is completed.

Installation work	Outdoor unit	Have you checked the external surface and the inside of the outdoor unit?Is there any possibility of short-circuit caused by the heat of an outdoor unit?Is the place well-ventilated and ensures space for service?Is the outdoor unit fixed securely to withstand any external force?
	Indoor unit	Have you checked the external surface and the inside of the indoor unit?Is there enough space for service?Have you checked if the center of the indoor unit is ensured and it is installed horizontally?
Refrigerant pipe work		Have you selected correct pipes?Are the liquid and gas valve open?Is the total number of connected indoor units within the allowable range?Are the length and the height difference between the refrigerant pipes within the allowable range?Are the branch joints properly installed?Did you check the connection of liquid and gas pipes?Have you selected correct insulator for pipes and insulated them correctly?Did you insulate the pipes and connection part correctly?Is the quantity of the additional refrigerant correctly weighed in? (You must record the amount of additional refrigerant on the service record paper placed inside of the outdoor unit.)
Drain pipe work		Have you checked if the drain pipes of the indoor and outdoor unit are connected together?Have you completed the drain test?Is the drain pipe properly insulated?
Electrical wiring work		Are the power cable and communication cable tightened firmly on the terminal board within the range of rated tightening torque?Have you checked for cross-connection of the power and communication cables?Have you performed the earthing work 3 to the outdoor unit?Did you make sure to use 2-core cable (not multi-core cable) for the communication cable?Is the length of the wire within allowed range?Is the wiring route correct?
Setting address		Did you set the address of the indoor and outdoor units properly?Did you set the address of the indoor and outdoor units properly? (When using multiple remote controllers)
Option		If there is a possibility of the outdoor unit from vibrating, check whether the anti-vibration frame is correctly installed.

Performing final checks and trial operation

CAUTION

Precautions before test operation

• When the outdoor temperature is low, turn on the main power 6 hours before beginning the operation.
• If you start the operation immediately after turning on the main power, it may cause serious damage to the parts in the product.
• Do not touch the refrigerant pipe during or right after the operation.
• The refrigerant pipe may be hot or cold during or right after the operation depending on the status of the refrigerant which flows through the refrigerant pipe, compressor, and other parts of the refrigerant cycle.
• Do not operate the product with its panel or protection nets off. – There is risk of personal injury from the rotating parts, heated parts, or high voltage.
• Do not turn off the main power immediately after stopping the operation.
• Wait for at least 5 minutes before turning off the main power. If not, water leakage or other problems may occur.
• Connect all the indoor units and the power supply for the outdoor unit and run auto address setting. Run auto address setting even after changing the indoor unit PCB.

Checklist before auto trial operation

1. Check the power cable and communication cable of the indoor and outdoor unit. 2. Supply power to the outdoor unit 6 hours before trial operation to pre-heat the compressor. 3. Before supplying the power, use a voltmeter and phase tester to check the voltage and the phase.

- R, S, T terminal: check the 460V between wires (R-S, S-T, T-R) (AM****XV*J* Model only) / 230V between wires (R-S, S-T, T-R) (AM****XV*F* Model only) / 575V between wires (R-S, S-T, T-R) (AM****XV*Q* Model only).

4. When the power is supplied, the outdoor unit will execute tracking to check the indoor unit connection and other optional functions. 5. Write down the installation report on the service history report paper attached on the front part of the control box.

CAUTION

• Supply power to the outdoor unit 6 hours before auto trial operation to pre-heat the compressor. 6. Guaranteed range of auto trial operation For precise judgment, you must perform auto trial operation in the below indoor/outdoor temperature condition.

• In Auto trial operation, the product will automatically select either cooling or heating mode and operate in the selected mode.
• In the temperature range marked with a slashed pattern, system protection control may trigger during operation. (If the system protection control is enabled, it can be hard to get a precise judgment after the auto trial operation.)
• When the temperature is outside the guaranteed range, the accuracy of judgment on auto trial operation may decrease near the borderline area.
• If all indoor units are connected with only a hydro unit, it operates in heating mode. If the outdoor temperature is above 35°C (95°F), auto trial operation is skipped and UP mode will be cleared.

Auto trial operation

1. If the Auto Trial Operation is not completed, normal operation will be prohibited.

• When the auto trial operation is not completed, UP (UnPrepared) will appear on the segment after the communication check and restrict the compressor from operating. (UP Mode will be cleared automatically when auto trial mode is completed.)
• Auto trial operation may take 20 minutes to a maximum of 2 hours depending on the operation status. – During auto trial operation, noise can be generated due to valve inspection. (Check the product if abnormal noise occurs continuously.)

2. When an error occurs during auto trial operation, check the error code and take appropriate measures.

- Refer to the next couple of pages when E503, E505, or E506 error occurs.

3. When auto trial operation ends, use S-NET pro or S-CHECKER to issue a result report.

• Refer to the service manual if you have any items with "NG" on the result report.
• After taking appropriate measures for the items with "NG", run the auto trial operation again.

4. Check the following items by running trial operation (cooling/heating).

• Check if cooling/heating operation performs normally.
• Individual indoor unit control: Check for air flow direction and fan speed.
• Check for abnormal operation noise from the indoor and outdoor unit.
• Check for proper draining from the indoor unit during cooling operation.
• Use S-NET pro to check the detail operation status.

5 Explain to the user how to use the air conditioner according to the user's manual. 6 Hand over the installation manual to the customer so they can keep it with them.

CAUTION

- Make sure to close the top and bottom part of the outdoor unit cabinet during operation. If you operate the unit with the front cabinet open, it may cause damage to the product and you may not get the precise data from S-NET pro.

Measure to take when E503 error occurs

※ Symptoms for abnormal operation of the 4way valve

- Abnormal noise during compressor operation, Increase in the suction temperature.

※ Symptoms for abnormal operation of the Main EEV

- It is not possible to control the superheat (SH)

- It is not possible to secure a Discharge superheat(DSH) of higher than 20K

※ For more information, see the troubleshooting in the service manual.

CAUTION

- If service valve (ball valve) check is required, corresponding outdoor unit will display the error.

- If service valve (ball valve) check is required, auto detection mode will be terminated. Check service valve (ball valve) of gas pipe and liquid pipe at the same time when checking service valve (ball valve).

- When 4way valve, Main EEV detection is needed, run heating trial operation for more than 1 hour and analyze the data to check for a problem.

- If there's frost formed in outdoor unit or the outdoor unit is operating in defrost operation, it may be hard to detect problem normally. In this case, perform Trial operation or Forced defrost operation to eliminate the frost, and then perform Auto Trial Operation again.

• If the operation range is not within guaranteed range, error may occur even though the product is normal.

- To replace a component or inspect the PBA, be sure to cut off the power supply first. If inspection must be performed with the power supply on, exercise extra care to prevent electric shock.

Measure to take when E505 or E506 error occurs

※ For more information, see the troubleshooting in the service manual.

CAUTION

• When the auto trial operation for pressure sensor was executed before the pressure of the outdoor unit is equalized (when there's close to no difference between high and low pressure), error may occur even though the product is normal.
• If pressure sensor check is required, error will be displayed on all installed outdoor units.
• If pressure sensor check is required, outdoor units will terminate auto trial operation mode automatically.
• To check for the pressure sensor with the problem, run trial operation for more than 1 hour and analyze the data to check for a problem.
• To replace a component or inspect the PBA, be sure to cut off the power supply first. If inspection must be performed with the power supply on, exercise extra care to prevent electric shock.

Automatic refrigerant amount detection function

This function checks the amount of refrigerant in the system through a refrigerant amount detection operation.

Note: After the refrigerant amount detection is finished, if you see "K9 Ed" on the display and cannot check the refrigerant amount from the S-net pro and S-checker, it means the degree of supercooling is insufficient.

CAUTION

- If the temperature is out of the guaranteed range below, exact results will not be obtained.

- Indoor: 20~32 °C (68~89.6 °F)

- Outdoor: 5~43 °C (41~109.4 °F)

• If the operation cycle is not stable, the refrigerant amount check operation may be forcibly terminated.
• Accuracy of the result may decrease if the product has not been operated for a long period of time or if Heat mode has been operated before running the refrigerant amount check function. Therefore, use the refrigerant amount check function after operating the product in Cool mode for at least 30 minutes.
• The product may trigger system protection operation depending on the installation environment. In this case, the result of the refrigerant amount check may not be accurate.

Actions to take for the check result

• Excessive amount of refrigerant

- Discharge 10% of the total amount of refrigerant and restart the refrigerant amount check.

• Insufficient amount of refrigerant

- Add 10% of the total amount of refrigerant and restart the refrigerant amount check.

• Judgment not available

- Check if the function of refrigerant amount check is executed within the guaranteed temperature range. Run trial operation to check if there are other problems on the system.
