Product Type	Tripod
Model	Vantage Series 3 RCM-439
Brand	Robus
Material	Aluminum alloy
Max Height	175 cm (68.9 in)
Min Height	45 cm (17.7 in)
Folded Length	65 cm (25.6 in)
Weight	2.5 kg (5.5 lbs)
Load Capacity	10 kg (22 lbs)
Leg Sections	3
Leg Lock Type	Twist lock
Head Type	Ball head (included)
Quick Release Plate	Yes, standard Arca-Swiss compatible
Leveling Bubble	Yes
Spiked Feet	Yes, retractable
Power Source	None (manual)
Maintenance	Clean with dry cloth; avoid solvents
Safety	Do not exceed max load; secure all locks before use
Spare Parts Availability	Replacement plates and leg parts available via Robus service
Warranty	5 years limited

Frequently Asked Questions - Vantage Series 3 RCM-439 Robus

How do I attach my camera to the tripod?

Screw the quick release plate onto your camera's tripod socket, then slide the plate into the head and lock it.

What is the maximum load capacity?

The maximum load is 10 kg (22 lbs).

How do I adjust the leg height?

Release the twist locks on each leg section, extend to desired height, then tighten the locks securely.

Can I use this tripod for video?

Yes, the ball head allows smooth panning and tilting, suitable for video.

How do I level the tripod?

Adjust leg lengths individually and use the built-in bubble level to ensure the head is horizontal.

What type of quick release plate does it use?

It uses a standard Arca-Swiss compatible plate.

How do I clean and maintain the tripod?

Wipe with a dry cloth. Avoid harsh chemicals. If legs become stiff, apply a small amount of silicone lubricant.

Is the tripod waterproof?

It is not waterproof, but it can withstand light rain. Dry it thoroughly after use in wet conditions.

What is the folded length for travel?

Folded length is approximately 65 cm (25.6 in).

How do I replace the quick release plate?

Contact Robus support for a replacement plate. The plate is held by a retaining screw.

USER MANUAL Vantage Series 3 RCM-439 Robus

4 & 6 SECTION / CARBON FIBER MONOPODS

VANTAGE SERIES 3

ROBUS

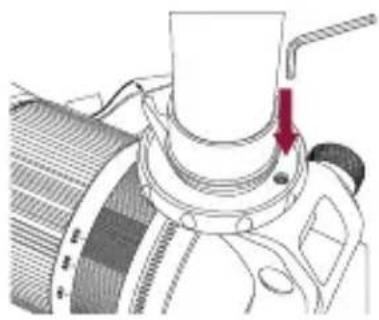

Securing a Camera/Lens or Head

Determine which side of the mounting screw you will need to use for your camera, lens or head and follow the instructions from Reversing the Mounting Screw.

1. Attach your camera, lens, or head to the mounting screw, and make sure it's securely seated and flush with the baseplate.
2. Use the included 2.5 mm hex key to tighten the set screw from the bottom of the baseplate and secure your camera, lens, or head.

Technical diagram of a mechanical assembly with a red arrow indicating a specific component (no text or symbols present)

Extending the Monopod

Turn each twist-lock clockwise and extend each leg section to the desired length. Turn the twist-locks counterclockwise to tighten.

Diagram of a mechanical component with directional arrows indicating motion or rotation (no text or symbols)

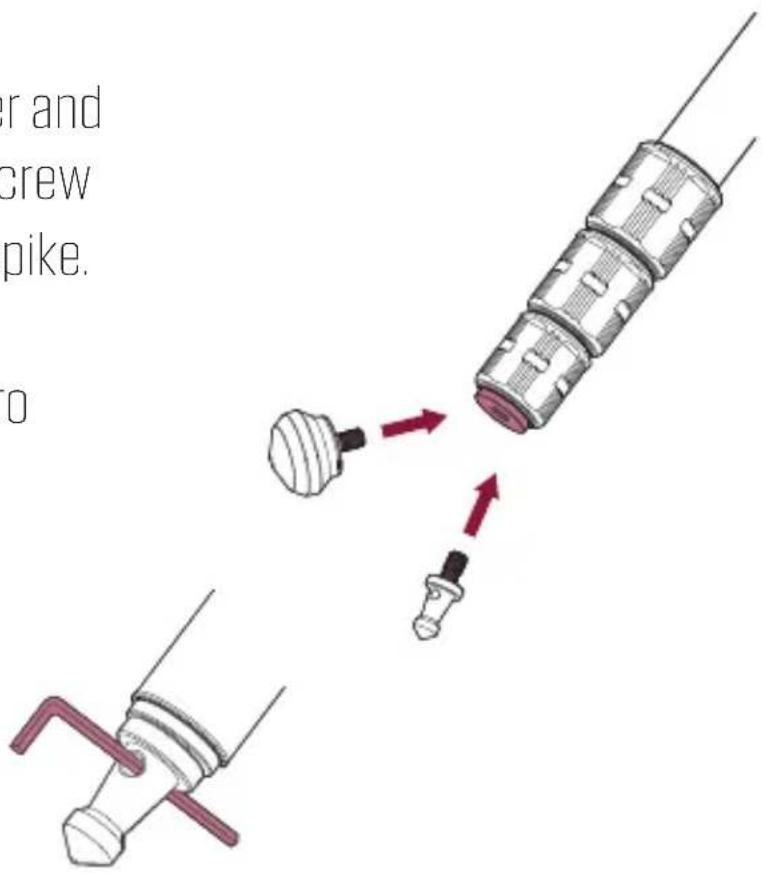

Swapping the Feet

The monopod comes with a rubber and a spike foot. To swap the feet, unscrew the rubber foot, and screw in the spike.

Use one of the included hex keys to tighten or loosen the spike foot.

Wrist Strap and Belt Clip

Use the wrist strap to further stabilize and secure the monopod in your hand.

The integrated belt clip attaches the monopod to your waist for hands-free transport.

Line drawing of a hand holding a cylindrical object with a looped handle (no text or symbols)

Line drawing of a mechanical component with a circular base and handle, no visible text or symbols

Reversing the Mounting Screw

The monopod offers a reversible 3/8-16 and 1/4-20 mounting screw.

1. Loosen the set screw with the included 2 mm hex key.
2. Unscrew the baseplate until you can remove the mounting screw and switch it to the other side.
3. Screw the baseplate back onto the monopod until it's secure, and tighten the set screw from the top.

Specifications

RCM-633 RCM-439

Maximum Load 33 lb. (15 kg) 39 lb. (17.7 kg)

Maximum Height 65 in. (165 cm)

Folded Length 17.2 in. (43.7 cm) 21.1 in. (53.6 cm)

Leg Sections 64

Weight 1.1 lb. (0.5 kg) 1.1 lb. (0.5 kg)

65 in. (165 cm)

Included hex keys: 2 and 2.5 mm

Ten-Year Limited Warranty

This Robus product is warranted to the original purchaser to be free from defects in materials and workmanship under normal consumer use for a period of ten (10) years from the original purchase date or thirty (30) days after replacement, whichever occurs later. The warranty provider's responsibility with respect to this limited warranty shall be limited solely to repair or replacement at the provider's discretion, of any product that fails during normal use of this product in its intended manner and in its intended environment. Inoperability of the product or part(s) shall be determined by the warranty provider. If the product has been discontinued, the warranty provider reserves the right to replace it with a model of equivalent quality and function.

This warranty does not cover damage or defect caused by misuse, neglect accident, alteration, abuse, improper installation or maintenance. EXCEPT AS PROVIDED HEREIN, THE WARRANTY PROVIDER MAKES NEITHER ANY EXPRESS WARRANTIES NOR ANY IMPLIED WARRANTIES. INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. This warranty provides you with specific legal rights, and you may also have additional rights that vary from state to state.

To obtain warranty coverage, contact the Robus Customer Service Department to obtain a return merchandise authorization ("RMA") number, and return the defective product to Robus along with the RMA number and proof of purchase. Shipment of the defective product is at the purchaser's own risk and expense.

For more information or to arrange service, visit www.robussupports.com or call Customer Service at 212-594-2353.

ROBUS™

A Gradus Group Brand

Product warranty provided by the Gradus Group. www.gradusgroup.com

Robus is a registered trademark of the Gradus Group. © 2019 Gradus Group LLC. All Rights Reserved.

Images are for illustrative purposes only.
