Product Type	Baby Walker (convertible to walk-behind)
Model	Graze (model # ZW002)
Brand	Contours
Weight Capacity	15 to 26 lbs
Height Limit	Less than 32 inches
User Requirements	Child can sit up unassisted, support body weight with legs, and cannot stand flat-footed in walker
Materials	Plastic frame, fabric seat pad, removable insert tray (dishwasher safe, top rack)
Cleaning Instructions	Plastic parts: wipe with mild soap and damp cloth. Seat pad: machine wash cold, gentle cycle, air/hang dry. No bleach. Friction strips: clean with damp cloth
Safety Features	Anti-tip design, friction strips for stopping performance, stair hazard warning, adjustable seat height
Assembly Required	Yes, adult assembly required. Includes rear wheels, front casters, seat pad, removable tray
Conversion	Can convert from seated walker to walk-behind walker
Folding	Yes, foldable for storage (push front leg button)
Care & Maintenance	Clean friction strips regularly; check all fasteners periodically; discontinue if damaged
Warranty / Support	Contact Contours: 1-888-226-4469, [e-mail]
Country of Origin	Imported by Contours USA, Chicago, IL

Frequently Asked Questions - Graze Contours

What are the weight and height requirements for using the Contours Graze walker?

The walker is suitable for children weighing between 15 and 26 pounds and with a height less than 32 inches. The child must also be able to sit up unassisted and support their body weight with their legs, but not able to stand flat-footed while in the walker.

How do I adjust the seat height of the walker?

To adjust height, push the button on the height adjustment strap to release the webbing. For smaller babies, extend the strap to lower the seat. As your child grows, tighten the strap to raise the seat. Always remove the child before adjusting.

Can this walker be used on stairs or uneven surfaces?

No. Serious injury or death can occur. Always block stairs and use only on flat, clean surfaces free of objects that could tip the walker. Never use near steps, thresholds, hills, roadways, or pools.

How do I clean the seat pad and tray?

The seat pad is machine washable in cold water on gentle cycle; air or hang dry. Do not use bleach or harsh detergents. The removable insert tray is dishwasher safe (top rack only). Plastic parts can be wiped with mild soap and a damp cloth.

When should I stop using the walker?

Discontinue use when your child can stand unaided, walk unassisted, or lift the walker off the floor. Also discontinue if the walker becomes damaged or broken.

How do I convert the walker to a walk-behind model?

Refer to step 6 of the manual: the walker can be converted to a walk-behind walker. Instructions are provided in the manual. Always ensure child is not in the walker during conversion.

Is the walker easy to fold for storage?

Yes. Push in the front leg button to fold the walker. Follow steps 8-1 to 8-5 in the manual for proper folding.

What should I do if the walker is not stopping correctly?

Clean the friction strips regularly with a damp cloth to maintain stopping performance. If problems persist, check for damage and contact customer service.

Are there any small parts that could be a choking hazard?

Yes, during assembly there are small parts. Keep all hardware and plastic bags away from children under 3 years. Adult assembly required.

How do I contact customer support for Contours?

You can reach Contours at 1-888-226-4469 or email [e-mail]. The company is based in Chicago, IL, USA.

USER MANUAL Graze Contours

Product photo of a baby care stand with a circular cushion and adjustable arm (no text or symbols visible)

Scan for instructional video

Model # ZW002

W039-R1 01/2023

⚠ WARNING

Read all instructions BEFORE assembly and USE of the walker. Failure to follow these warnings and instructions could result in serious injury or death. For your child's safety, read the labels and the instructions before using product. Keep instructions for future use.

IMPORTANT SAFETY INFORMATION:

How to Keep Your Child Safe While Using this Product

• NEVER leave child unattended. Always keep child in view while IN WALKER.
• CHOKING HAZARD-Small parts. ADULT ASSEMBLY REQUIRED.

This package contains small parts which, before assembly, present a choking hazard to children under the age of three. Care should be taken during unpacking and assembly to ensure that all small parts and plastic bags are accounted for and kept out of the reach of children. All fasteners should be fully tightened.

STAIR HAZARD

• Avoid serious injury or death. Block stairs / steps securely before using this walker.
• Use only on flat surfaces free of objects that could cause this walker to tip over. Never use near stairs, steps, thresholds, hills, roadways, or pools.
• To avoid burns, keep child away from hot liquids, stoves, radiators, space heaters, fireplaces, etc.
• Discontinue using this walker should it become damaged or broken.
• Never carry this walker with child in it. Never adjust seat while child is in product.
  • DO NOT lift or carry by tray.
  • DO NOT use this walker until baby can sit up unassisted.
• To reduce the chance of child slipping out of seat, check that both feet of child touch the floor.
• Discontinue use of activity walker (seated stage) when your child can stand unaided, walk unassisted or lift the walker off of the floor.
• To maintain stopping performance, clean friction strips regularly with damp cloth.

Only use this activity walker (seated stage) if your child MEETS ALL of the requirements below:

1. Can support body weight with legs
2. Weight is between 15 and 26 pounds.
3. Height is less than 32 inches and child is not able to stand flat footed while in the walker.

CARE & MAINTENANCE

1. Plastic Parts: Wipe clean with mild soap and a damp cloth. Air dry.
2. Seat Pad: Machine wash in cold water in gentle cycle. Air or hang dry. DO NOT use harsh detergents or bleach. DO NOT dry clean.
3. Removable Insert Tray is dishwasher safe, top rack only.

NOTE: To maintain stopping performance, clean friction strips regularly with damp cloth.

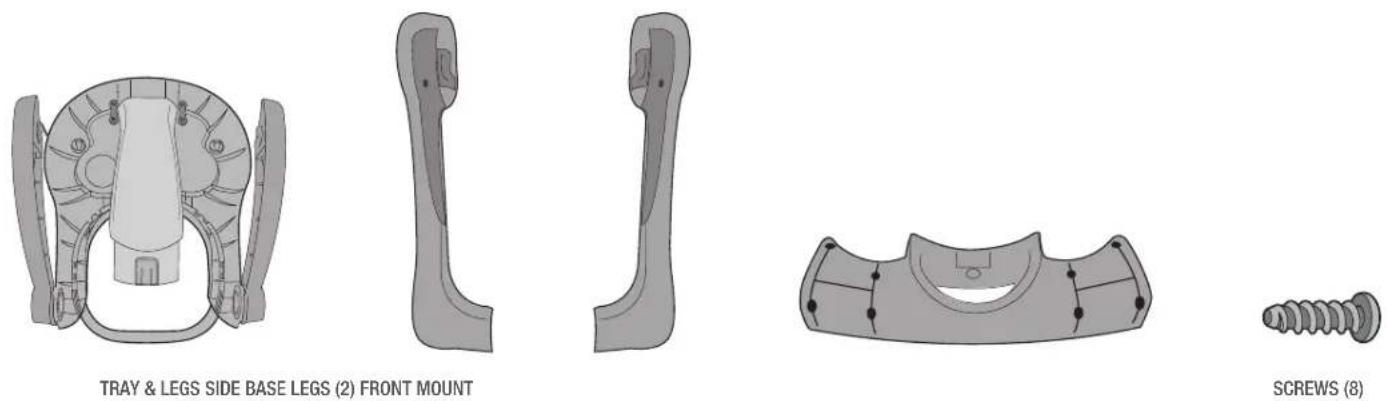

PARTS LIST

Top-down line drawing of a car's front compartment (no text or symbols)

REAR WHEELS (2) AXLES (2)

FRONT CASTERS (2)SEAT PAD

Simple 3D illustration of a rectangular tray with a circular side and a ring on top (no text or symbols)

REMOVABLE INSERT TRAY

ASSEMBLE WALKER FRAME

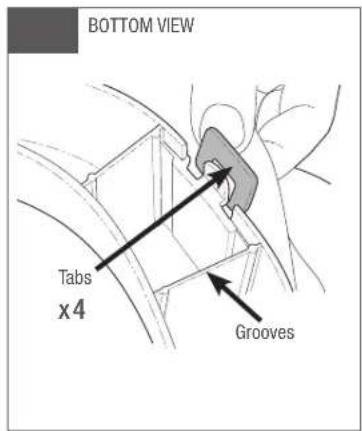

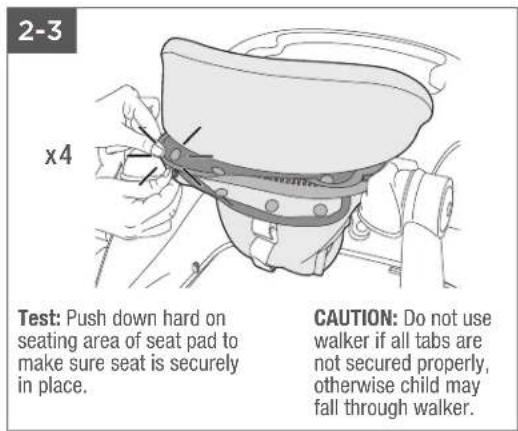

ATTACH SEAT PAD

ATTACH REAR WHEELS

3-1
x2

Flip base over to expose underside.
Note: Plastic tab may need to be pushed to the side to expose axle hole.

ATTACH FRONT CASTERS

4-1
x2

Test: Pull up on caster to make sure it is locked in place.

CAUTION

ATTACH REMOVABLE INSERT TRAY

5-1

Illustration of a baby washing machine with a magnified inset showing internal components (no text or symbols)

To Remove: Lift up on tray tabs.

CONVERT TO WALK-BEHIND WALKER

6-1

Line drawing of a mechanical device with a top component and an arrow indicating upward motion (no text or symbols)

ADJUST SEAT PAD HEIGHT

7-1

⚠ WARNING

DO NOT disassemble or adjust height while baby is sitting in or near product. Always make sure seat pad is adjusted to the correct height position before placing child in product.

Technical line drawing of a mechanical buckle or buckle assembly (no text or symbols)

Note: As your child begins to grow, adjust height of walker via the seat pad so that their feet touch the ground when seated. To determine correct height after assembly, place child in walker and make sure both feet touch the ground.

CAUTION: Child should not be in the walker during adjustment.

Note: To ensure proper operation, you will need to periodically adjust the height adjustment strap to accommodate your child's increased height. For smaller babies, seat pad should be extended to its lowest position. To adjust seat height, push button in on height adjustment strap to release webbing.

As baby grows, raise seat by tightening the height adjustment strap. This helps to prevent the child from placing their feet flat on ground and prevents your child from climbing out.

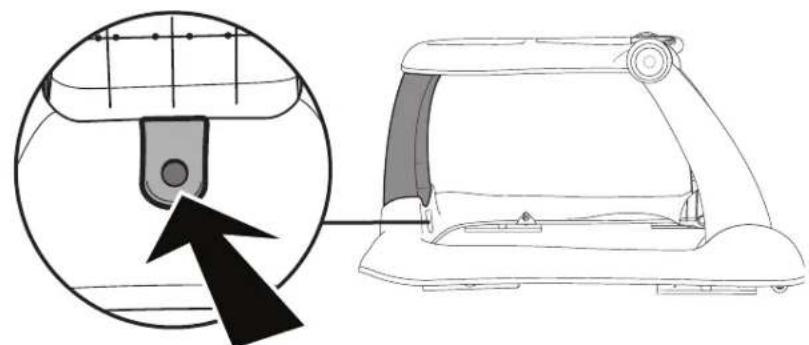

TO FOLD WALKER

8-1 8

Technical line drawing of a car interior with a magnified inset showing a component detail (no text or symbols)

Push In Front Leg Button

Diagram of a mechanical device with an upward arrow indicating motion or force (no text or symbols present)

8-58

Line drawing of a hand operating a device with a curved arrow indicating rotation (no text or symbols)

Diagram of a treadmill with an open lid and arrow indicating rotation (no text or symbols)

3D rendered illustration of a person lying inside a vehicle chassis (no text or symbols visible)

Contours® - United States

1100 W Monroe St

Chicago, IL 60607

1-888-226-4469

[e-mail]
