Quick - Stroller Contours - Free user manual and instructions

Product Type	Stroller
Brand	Contours
Model	Quick
Dimensions (Open)	Approx. 30 x 20 x 40 inches
Dimensions (Folded)	Approx. 12 x 20 x 30 inches
Weight	Approx. 18 lbs
Weight Capacity	Up to 50 lbs (22.7 kg)
Age Range	Birth to 4 years (approx.)
Harness Type	5-point adjustable harness
Brake System	Rear wheel foot brake
Canopy	Adjustable, UPF 50+ sun protection
Recline Positions	Multiple positions (including near-flat)
Storage Basket	Large under-seat basket
Frame Material	Aluminum alloy
Seat Material	Polyester fabric, removable and washable
Wheels	Front swivel wheels with locks, rear fixed wheels
Folding Mechanism	One-hand compact fold
Standing Fold	Yes, folds flat for storage
Cleaning Instructions	Wipe frame with damp cloth; machine wash seat pad on gentle cycle
Safety Standards	Meets ASTM F833 and CPSC safety standards
Warranty	Limited 1-year warranty

Frequently Asked Questions - Quick Contours

What is the weight limit for the Contours Quick stroller?

The maximum weight capacity is 50 lbs (22.7 kg) for the child.

How do I fold the Contours Quick stroller?

To fold, first lock the rear brake, then pull up the folding handle located on the seat back. The stroller should collapse compactly and lock itself.

Is the stroller suitable for newborns?

Yes, the stroller reclines to a near-flat position and is suitable for newborns. However, we recommend using a car seat adapter or bassinet for infants under 6 months.

How do I clean the fabric seat?

The seat pad is removable and machine washable on a gentle cycle. The frame can be wiped clean with a damp cloth and mild soap.

What type of harness does the stroller have?

The stroller features a 5-point adjustable harness with shoulder straps, waist straps, and a crotch strap for maximum security.

Can the canopy be adjusted?

Yes, the canopy is adjustable and provides UPF 50+ protection. It can be extended for additional coverage.

Does the stroller have a storage basket?

Yes, it includes a large under-seat storage basket that can hold diapers, snacks, and other essentials.

How do I lock the front swivel wheels?

On each front wheel, there is a small tab that can be pushed down to lock the wheel in a fixed position for rough terrain.

Is the brake easy to operate?

Yes, the rear wheel foot brake is easy to engage and disengage. Simply step down on the brake pedal to lock the wheels.

Where can I find replacement parts?

Replacement parts, such as canopy, seat pad, and wheels, can be ordered directly from Contours customer service or through their official website.

USER MANUAL Quick Contours

Black and white photo of a baby stroller with a canopy and wheels (no text or symbols visible)

Scan for instructional video

Failure to follow these warnings and the assembly instructions could result in serious injury or death. Avoid serious injury from falling or sliding out. Always use restraint system. Your child's safety depends on you. Proper stroller use cannot be assured unless you follow these instructions. DO NOT USE STROLLER UNTIL YOU READ AND UNDERSTAND THESE INSTRUCTIONS. KEEP INSTRUCTIONS FOR FUTURE USE.

IMPORTANT SAFETY INFORMATION:

How to Keep Your Child Safe While Using this Stroller

• Adult assembly required.
- Never leave your child unattended while in stroller. Accidents can happen quickly while your back is turned. You must always keep your child in view while your child is in the stroller, even when sleeping. Do not use this product as a bed. Your child may become tangled in straps or pads and suffocate.
• Always use restraint system to keep child from standing up or falling out of the stroller.
• Always lock the stroller open before allowing your child in or near the stroller. This prevents injuries caused by stroller collapsing.
- Only use this stroller with children who weigh no more than 50 lb (22.67 kg). Use by larger children may damage the stroller or cause a hazardous, unstable condition to exist.
• Always set the wheel brakes when stroller is not moving, especially on an incline. This prevents the stroller from rolling away.

What to Avoid While Using this Stroller

• Always balance the weight of the stroller evenly. To prevent the stroller from becoming unstable, do not place parcels or accessory items on the stroller canopy, seat, or over the handle. Do not allow children to play with or hang onto the stroller.
• Never use this stroller on stairways or escalators.
• This is not an exercise stroller! Do not use this product while running, jogging, in-line skating, or participating in other athletic activities.
  • Take care when folding and unfolding to prevent finger pinching.
• Make sure children are clear of any moving parts if you adjust the stroller; otherwise, they may be injured.
• DO NOT allow children to climb into stroller unassisted. Stroller may tip over and injure child.
• Only use replacement parts and accessories supplied by the manufacturer.
  • DO NOT put child in basket.
• To prevent the stroller from becoming unstable or tipping, do not put more than 10 lb (4.54 kg) in the basket.
• Product may become unstable if a storage bag other than the one recommended by the manufacturer is used.

⚠ WARNING

How to Use this Stroller with Your infant car seat

• Use only compatible car seats with this stroller. For a list of compatible car seats, please view product information at ContoursBaby.com.
• For correct use with compatible infant car seats, refer to page 10 of instructions.
• If at any time your infant car seat does not secure properly to the stroller, or if you have questions about assembly or use of the stroller, DO NOT use this product. Call Contours at 1-888-226-4469.
• Only transport infants that are within the size and weight limitations of your infant car seat, as described in the instruction manual provided by the infant car seat manufacturer.
• When using this product, to avoid serious injury from falling or sliding out, infant must always be secured in the Infant Car Seat with the Car Seat harness. Refer to Infant Car Seat Instructions for proper adjustment.
• ALWAYS place straps on car seat near leg side of handle. Never place near head side of handle.
• DO NOT place car seat in stroller without using stroller car seat straps.
• When installing and removing the car seat, please keep a hand on the infant car seat carrier arm while adjusting or unbuckling the car seat strap. Car seat may have moved while in use.
• Make sure the stroller seat is fully reclined to ensure infant car seat is secure before placing your infant car seat in stroller.
• ALWAYS place the car seat facing the care giver.
• Remove napper bar/tray from stroller prior to assembling the car seat. Car seats are not intended to be used with the napper bar/tray assembled on the stroller.

PARTS LIST

Mechanical device with articulated arms and a base (no visible text or symbols)

STROLLER FRAME WITH BASKET

Simple curved black bar with rounded ends, no text or symbols present

REAR BASKET TUBE

Diagram of a vehicle showing two large tires with a central hub, no text or symbols present

FRONT WHEELS (2) REAR BRAKE ASSEMBLY

WASHERS (4) COTTER PINS (2) HUB CAPS (2) NAPPER BAR

Illustration of a four-petal wheel with no text or symbols

REAR WHEELS (2)

Illustration of a curved pipe or duct with two notches (no text or symbols)

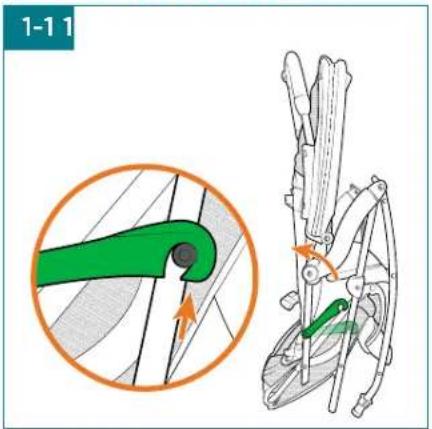

OPEN STROLLER

ATTACH STORAGE BASKET

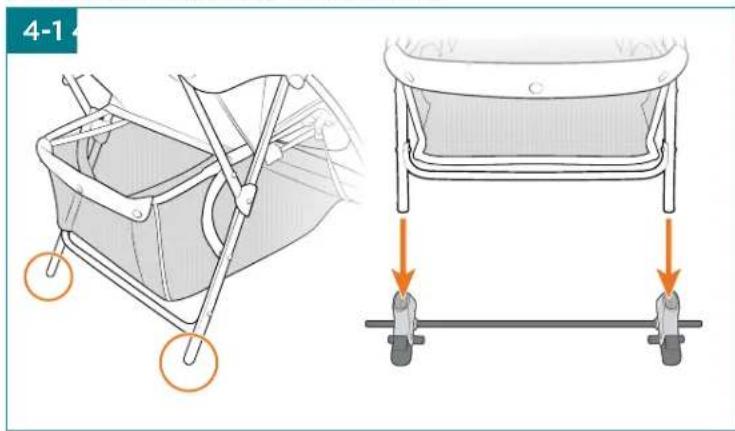

ATTACH FRONT WHEELS

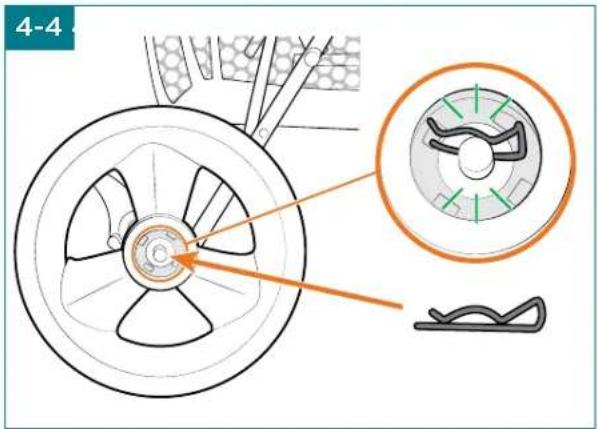

ATTACH REAR WHEELS

Medical illustration showing a car wheel and ear with an inset close-up of the wheel (no text or symbols)

ATTACH CANOPY

ADJUST CANOPY

Illustration of a seatbelt with an arrow indicating rotation (no text or symbols)

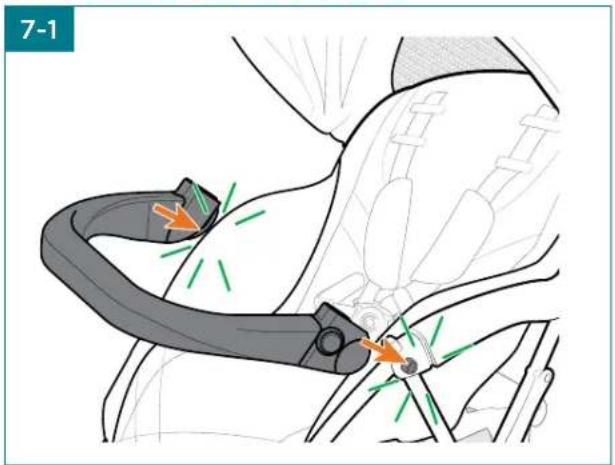

ATTACH NAPPER BAR

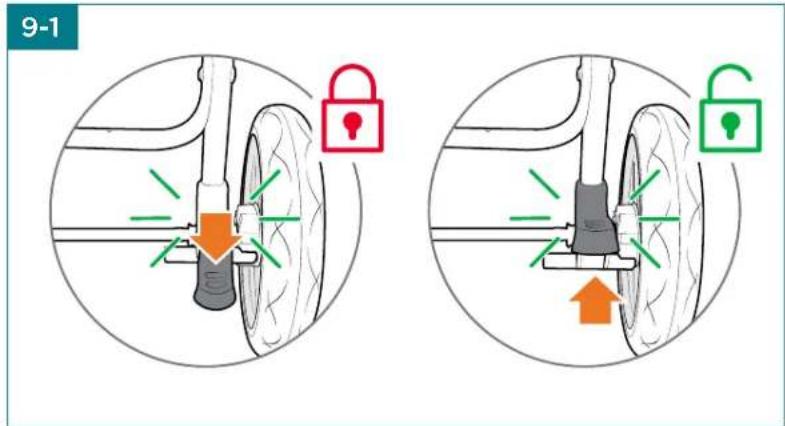

RECLINE SEAT OPERATE BRAKES

SECURE CHILD IN SEAT

ADJUST SHOULDER STRAP HEIGHT

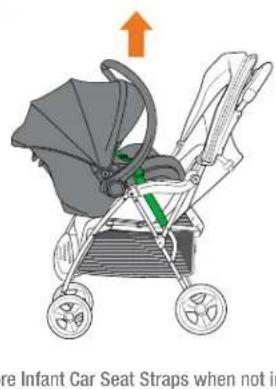

INSTALL INFANT CAR SEAT

12-5

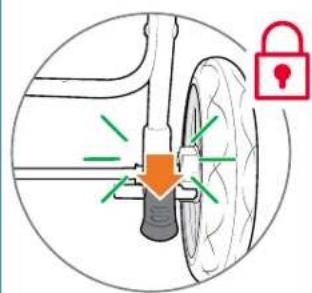

FOLD STROLLER

13-1

Diagram of a tire wheel assembly with a lock icon and green arrows indicating motion (no text or symbols)

13-2

Illustration of a bicycle steering wheel with orange arrows indicating motion direction (no text or symbols)

Green tool interacting with a circular diagram showing intersecting lines and a downward arrow (no text or symbols)

CARE & MAINTENANCE

• Clean plastic and metal parts with damp cloth and wipe dry.
• Spot clean fabric with mild soap and water solution.
• If stroller becomes wet, wipe with a soft cloth to prevent rusting on metal frame.
• When storing stroller, never stack other items on top of or in it; this may damage the stroller.
  • Periodically check for worn parts, loose screws, or torn materials and stitching.
• Replace any damaged parts immediately.

Contours® - United States

1100 W Monroe St

Chicago, IL 60607

1-888-226-4469

[e-mail]
