USER MANUAL DSP15s G2 Audibax

Exterior view of a black audio amplifier box with ventilation grille and two side outlets (no text or symbols visible)

DSP12s / DSP15s / DSP18s

Professional Active Subwoofer Subwoofer Activo Profesional

www.audibax.com

INDEX / ÍNDICE

ENGLISH

WELCOME TO AUDIBAX....1

SAFETY INSTRUCTIONS....1

IMPORTANT INFORMATION....2

PACKAGE CONTENT....3

PRODUCT DESCRIPTION....3

FUNCTIONS....4

DSP OPERATING INSTRUCTIONS....4

DISPOSAL....5

ESPAÑOL

BIENVENIDOS A AUDIBAX....6

Thank you very much for choosing Audibax. We hope you enjoy your new product.

It has been developed and designed paying attention to the smallest details, with quality control with European standards supervised by our great team of professional technicians, who work every day to offer our customers the best quality.

We make sure that every Audibax product is built to last long. All our references are made with long lasting materials and our specialists are dedicated to constantly doing quality controls to guarantee the best result.

Please read carefully this manual in order to use your Audibax product in the best way. Do not hesitate to visit our website for further information: www.audibax.com

SAFETY INSTRUCTIONS

GENERAL INFORMATION

• It is important to read and follow the instructions carefully.
• Keep all information and instructions in a secure location.
• Always follow the instructions provided.
• Take note of all safety warnings and never remove them from the equipment.
• Use the equipment only as intended and for its intended purpose.
• Ensure that the stands and/or mounts used are sufficiently stable and compatible for fixed installations. Wall mounts should be properly installed and secured, and the equipment should be installed securely to prevent falls.
• When installing the equipment, be sure to observe the relevant safety regulations in your country.
• Do not install or operate the equipment near sources of heat, such as radiators, heat registers, or ovens, and ensure that it is always cooled sufficiently and cannot overheat.
• Do not place sources of ignition, such as burning candles, on the equipment.
• Keep ventilation slits unobstructed.
• For equipment designed for indoor use only should not be used near water, flammable materials, fluids, or gases. Special outdoor equipment should be used in accordance with the manufacturer's instructions.
• Ensure that no dripping or splashed water can enter the equipment and do not place containers filled with liquids on the equipment.
• Prevent objects from falling into the equipment.
• Use the equipment only with recommended accessories intended by the manufacturer.
• Do not attempt to open or modify the equipment.
• Check all cables after connecting the equipment to prevent accidents or damage due to tripping hazards.
• During transport, take steps to prevent the equipment from falling and causing damage or injury.
• If the equipment is not functioning properly, fluids or objects have gotten inside, or is otherwise damaged, switch it off immediately and unplug it from the power outlet (if applicable). Only authorized, qualified personnel should repair the equipment.
• Clean the equipment with a dry cloth.
• Comply with all applicable disposal laws and separate plastic and paper/cardboard during packaging disposal.
• Keep plastic bags out of the reach of children.

FOR DEVICES DESIGNED TO BE CONNECTED TO THE MAIN POWER SUPPLY:

• ATTENTION: If your equipment has a power cord with a grounding plug, it must be connected to a wall outlet with a ground connection. Never remove the grounding plug from the power cord.
• If your equipment has been exposed to extreme temperature changes, allow it to reach room temperature before turning it on. Otherwise, moisture and condensation may damage the equipment.
• Before plugging in the equipment, make sure that the voltage and frequency of the power outlet match the specifications of the equipment. If the equipment has a voltage selector, only connect it to the power outlet if the values match. If the power cord or adapter does not fit your outlet, contact an electrician.
• Do not step on the power cord. Make sure it is not pinched at the outlet, adapter, or equipment connection.
• Keep the power cord or adapter within reach and disconnect the equipment from the power supply when not in use or when cleaning it. Always unplug the cord or adapter by pulling the plug or adapter, not the cord. Never touch the cord or adapter with wet hands.
• Avoid frequently turning the equipment on and off, as this can reduce its useful life.
• IMPORTANT: Only replace fuses with those of the same type and rating. If a fuse repeatedly blows, contact an authorized service center.
• To completely disconnect the equipment from the power mains, unplug the power cord or adapter from the outlet.
• If your device has a Volex power connector, the mating Volex connector must be unlocked before it can be removed. Be careful when laying cables, as the equipment can slide or fall if the power cord is pulled.
• Unplug the power cord or adapter before an extended period of disuse or in case of lightning strike risk.
• Only install the equipment when it is disconnected from the power source.
• To prevent damage and overheating, qualified personnel should regularly clean and service the equipment depending on ambient conditions like dust, nicotine, and fog. If the product contains the following symbols, please, read carefully:

CAUTION: To reduce the risk of electric shock, do not remove cover (or back). There are no user serviceable parts inside. Maintenance and repairs should be exclusively carried out by qualified service personnel.

The warning triangle with lightning symbol indicates dangerous uninsulated voltage inside the unit, which may cause an electrical shock.

The warning triangle with exclamation mark indicates important operating and maintenance instructions.

IMPORTANT INFORMATION

CAUTION! HIGH VOLUMES IN AUDIO PRODUCTS!

This equipment is designed for professional purposes and its commercial use must comply with the applicable national rules and regulations for accident prevention. As the manufacturer of this product, Audibax has the responsibility to inform you about the potential health risks associated with its use. One such risk is hearing damage caused by prolonged exposure to high volume.

When this product is in use, it can generate high sound-pressure levels that may cause irreversible hearing damage to performers, employees, and audience members. To prevent this, it is important to avoid exposing yourself or others to volumes exceeding 90 dB for an extended period of time.

PACKAGE CONTENT

1 x DSP12s / DSP15s / DSP18s

2x Power cable

1x User's manual

PRODUCT DESCRIPTION

Model	Audibax DSP12s	Audibax DSP15s	Audibax DSP18s
Type	Active
Woofer Driver	12"	15"	18"
Woofer voice coil	3"	3"	3"
Frequency Response	45Hz-120Hz (-10dB)	40Hz-120Hz (-10dB)	35Hz-120Hz (-10dB)
Maximum SPL (dB)	125dB(peak)	126dB(peak)	129dB(peak)
Sensitivity (Iw/Im)	95dB	96dB	97dB
Impedance Type	4 ohms	4 ohms	8 ohms
Colour	Black
Mount	Stand
Mount Type	Flange 36mm Up pole
Line Inputs	2
Line Inputs connector	XLR/Jack Combi
Line outputs	2
Line outputs connector	XLR
DSP Processor	DSP Preset
Power Amp (RMS)	500W	600W	800W
Power Amp max (Peak)	1000W	1200W	1600W
Enclosure Finish	MDF
Power Supply	AC115V & 230V
Power Consumption	200W	200W	300W
Weight (Kg)	23.6	30.6	38.9
Dimensions (mm) WxDxH	410 x 510 x 510	460 x 550 x 535	510 x 600 x 605

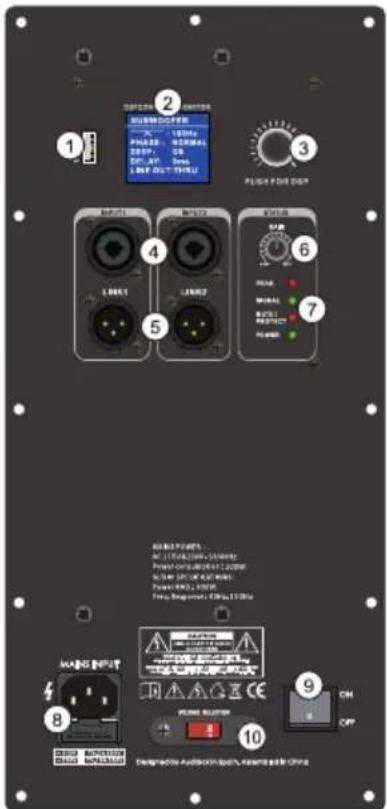

FUNCTIONS

1. USB port for software upgrades.
2. LCD display.
3. Master knob.
4. INPUT 1 and 2: Use XLR or 1/4" Jack connector.
5. LINK 1 and 2: Use XLR connector.
6. Volume control.
7. Status indicator.
8. Power supply input.
9. Power supply switch.
10. Voltage selection.

DSP OPERATING INSTRUCTIONS

1. When the unit is turned on, Audibax will be displayed, indicating the software has loaded, after a few seconds to display the main menu.

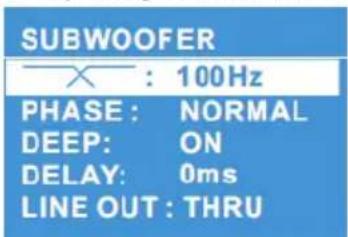

1. Crossover Frequency Selection. 3 frequencies can be selected, default 100Hz

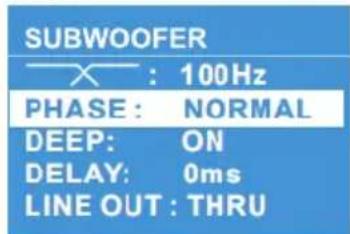

1. Phase selection

1. Improved bass dynamics function.

SUBWOOFER

DYNAMIC BASS

ON

OFF

5.Delay selection.

Select to enter, by rotating the MASTER knob can be adjusted delay, adjustment range 0-10ms, press the MASTER knob to determine

SUBWOOFER

DELAY

1. Line output adjustment.

Selectable THRU or high pass through crossover

SUBWOOFER

LINE OUT

1. To return to the previous menu, press and hold the MASTER knob for 2 seconds.

DISPOSAL

Packaging:

1. The packaging can be recycled using standard disposal methods and reintroduced into the reusable material cycle.
2. Please follow the laws and regulations regarding disposal and recycling of packaging in your country.

Device:

1. This device is subject to the Waste Electrical and Electronic Equipment (WEEE) Directive of the European Union. Used appliances should not be disposed of with household waste. Used device must be disposed of through an approved disposal company or a municipal disposal facility. Please comply with the applicable regulations in your country.
2. Please follow all the disposal laws and regulations in your country.
3. As a customer, you can obtain information on environmentally-friendly disposal options from the product seller or the appropriate regional authorities.
