Product Type	18" Active Subwoofer
Brand	Audibax
Model	DSP18s
Frequency Response	26-800Hz
Amplifier Power (RMS)	600W Class D+DSP
Woofer	18" V.C75, 5mm Magnet, 80oz
Input Connectors	2 x XLR Balanced
Line Input	JACK XLR (6.35mm / XLR combo)
Line Output	2 x XLR Balanced
Power Supply	AC 110V-240V, 50/60Hz with voltage selector
Enclosure Material	18mm MDF
Finish	Black acrylic paint
Package Dimensions	630 x 550 x 680 mm
DSP Modes	4 presets: Music, Club, Live, Voice
Phase Switch	0° / 180° selectable
Frequency Mode Switch	Full range / High pass
Indicator Lights	Power, Signal, Limit
Protection	Limit indicator and automatic protection circuits
Cooling	Fan cooled (not explicitly stated)
Application	Professional audio, live sound, DJ
Cleaning	Use a dry cloth only
Disposal	WEEE compliant, recycle packaging
Safety Features	Grounding plug, voltage selector, fuse protection

Frequently Asked Questions - DSP18s Audibax

What is the power requirement for the Audibax DSP18s?

The DSP18s operates on AC 110V-240V, 50/60Hz. It has a voltage selector switch to match your local mains voltage. Always ensure the voltage matches before connecting.

How do I connect audio sources to the DSP18s?

Use the balanced XLR/6.35mm Jack inputs. The subwoofer has two input channels (Left and Right) and corresponding XLR outputs for daisy-chaining to additional speakers.

What DSP presets are available on the DSP18s?

The subwoofer offers four DSP modes: Music, Club, Live, and Voice. These presets optimize frequency response and dynamics for different applications.

How do I set the phase on the DSP18s?

Use the phase selector switch to choose between 0° and 180° to align the subwoofer with other speakers in your system for coherent sound.

Can I use the DSP18s as a standalone subwoofer?

Yes, it has a full range / high pass switch. In full range mode, it reproduces the full audio signal. In high pass mode, it passes higher frequencies to satellite speakers.

What are the dimensions of the DSP18s?

The package dimensions are 630 x 550 x 680 mm. The exact product dimensions are not specified in the manual, but the subwoofer is designed for professional use.

How should I clean the Audibax DSP18s?

Clean the enclosure with a dry cloth. Avoid using liquids, solvents, or abrasive cleaners. Keep ventilation slits unobstructed to prevent overheating.

What should I do if the DSP18s overheats or shuts down?

The limit indicator lights up when the amplifier is reaching its limits. Reduce volume and ensure proper ventilation. If problems persist, contact qualified service personnel.

Is the Audibax DSP18s compatible with generators?

Yes, due to its universal power supply (110-240V), it can work with generators. However, ensure stable voltage and avoid frequent on/off cycles to prolong life.

How do I dispose of the DSP18s at the end of its life?

Follow local regulations for WEEE (Waste Electrical and Electronic Equipment). Do not dispose of it with household waste. Recycle through approved facilities and recycle packaging materials.

USER MANUAL DSP18s Audibax

DSP12S / DSP15S / DSP18S | AUDIBAX1

USER'S MANUAL MANUAL DE USUARIO

AUDIBAX

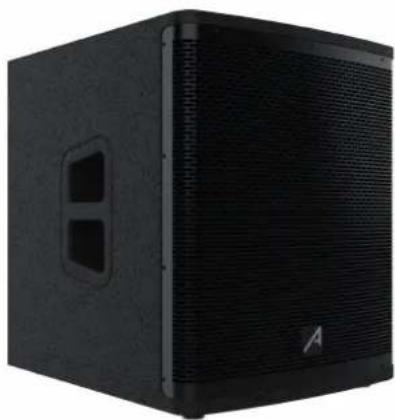

Black audio amplifier box with visible sound grille and side door (no text or symbols)

DSP12s / DSP15s / DSP18s

Professional Active Subwoofer Subwoofer Activo Profesional

www.audibax.comwww.audibax.com

INDEX / ÍNDICE

ENGLISH

WELCOME TO AUDIBAX....1 SAFETY INSTRUCTIONS....1

IMPORTANT INFORMATION......2

PACKAGE CONTENT....3

PRODUCT DESCRIPTION....3

FUNCTIONS....3

DISPOSAL....4

ESPAÑOL

BIENVENIDOS A AUDIBAX....5

DSP12S / DSP15S / DSP18S | AUDIO(3)

DSP12S / DSP15S / DSP18S | Audiobics

Embalaje:

Thank you very much for choosing Audibax. We hope you enjoy your new product.
It has been developed and designed paying attention to the smallest details, with quality control with European standards supervised by our great team of professional technicians, who work every day to offer our customers the best quality.

We make sure that every Audibax product is built to last long. All our references are made with long lasting materials and our specialists are dedicated to constantly doing quality controls to guarantee the best result.

Please read carefully this manual in order to use your Audibax product in the best way. Do not hesitate to visit our website for further information: www.audibax.com

SAFETY INSTRUCTIONS

GENERAL INFORMATION

• It is important to read and follow the instructions carefully.
• Keep all information and instructions in a secure location.
• Always follow the instructions provided.
• Take note of all safety warnings and never remove them from the equipment.
• Use the equipment only as intended and for its intended purpose.
• Ensure that the stands and/or mounts used are sufficiently stable and compatible for fixed installations. Wall mounts should be properly installed and secured, and the equipment should be installed securely to prevent falls.
• When installing the equipment, be sure to observe the relevant safety regulations in your country.
• Do not install or operate the equipment near sources of heat, such as radiators, heat
  registers, or ovens, and ensure that it is always cooled sufficiently and cannot overheat.
• Do not place sources of ignition, such as burning candles, on the equipment.
• Keep ventilation slits unobstructed.
• For equipment designed for indoor use only should not be used near water, flammable materials, fluids, or gases. Special outdoor equipment should be used in accordance with the manufacturer's instructions.
• Ensure that no dripping or splashed water can enter the equipment and do not place containers filled with liquids on the equipment.
• Prevent objects from falling into the equipment.
• Use the equipment only with recommended accessories intended by the manufacturer.
• Do not attempt to open or modify the equipment.
• Check all cables after connecting the equipment to prevent accidents or damage due to tripping hazards.
• During transport, take steps to prevent the equipment from falling and causing damage or injury.
• If the equipment is not functioning properly, fluids or objects have gotten inside, or is otherwise damaged, switch it off immediately and unplug it from the power outlet (if applicable). Only authorized, qualified personnel should repair the equipment.
• Clean the equipment with a dry cloth.
• Comply with all applicable disposal laws and separate plastic and paper/cardboard during packaging disposal.
• Keep plastic bags out of the reach of children.

www.audibax.com

1www.audibax.com

FOR DEVICES DESIGNED TO BE CONNECTED TO THE MAIN POWER SUPPLY:

- ATTENTION: If your equipment has a power cord with a grounding plug, it must be connected to a wall outlet with a ground connection. Never remove the grounding plug from the power cord.

- If your equipment has been exposed to extreme temperature changes, allow it to reach room temperature before turning it on. Otherwise, moisture and condensation may damage the equipment.

- Before plugging in the equipment, make sure that the voltage and frequency of the power outlet match the specifications of the equipment. If the equipment has a voltage selector, only connect it to the power outlet if the values match. If the power cord or adapter does not fit your outlet, contact an electrician.

- Do not step on the power cord. Make sure it is not pinched at the outlet, adapter, or equipment connection.

- Keep the power cord or adapter within reach and disconnect the equipment from the power supply when not in use or when cleaning it. Always unplug the cord or adapter by pulling the plug or adapter, not the cord. Never touch the cord or adapter with wet hands. - Avoid frequently turning the equipment on and off, as this can reduce its useful life.

- IMPORTANT: Only replace fuses with those of the same type and rating. If a fuse repeatedly blows, contact an authorized service center.

- To completely disconnect the equipment from the power mains, unplug the power cord or adapter from the outlet.

- If your device has a Volex power connector, the mating Volex connector must be unlocked before it can be removed. Be careful when laying cables, as the equipment can slide or fall if the power cord is pulled.

- Unplug the power cord or adapter before an extended period of disuse or in case of lightning strike risk.

- Only install the equipment when it is disconnected from the power source.

- To prevent damage and overheating, qualified personnel should regularly clean and service the equipment depending on ambient conditions like dust, nicotine, and fog.

If the product contains the following symbols, please, read carefully:

CAUTION: To reduce the risk of electric shock, do not remove cover (or back). There are no user serviceable parts inside. Maintenance and repairs should be exclusively carried out by qualified service personnel.

The warning triangle with lightning symbol indicates dangerous uninsulated voltage inside the unit, which may cause an electrical shock.

The warning triangle with exclamation mark indicates important operating and maintenance instructions.

IMPORTANT INFORMATION

CAUTION! HIGH VOLUMES IN AUDIO PRODUCTS!

This equipment is designed for professional purposes and its commercial use must comply with the applicable national rules and regulations for accident prevention. As the manufacturer of this product, Audibax has the responsibility to inform you about the potential health risks associated with its use. One such risk is hearing damage caused by prolonged exposure to high volume.

When this product is in use, it can generate high sound-pressure levels that may cause irreversible hearing damage to performers, employees, and audience members. To prevent this, it is important to avoid exposing yourself or others to volumes exceeding 90 dB for an extended period of time.

Model	DSP12s	DSP15s	DSP18s
Type	12" Active Subwoofer speaker	15" Active Subwoofer speaker	18" Active Subwoofer speaker
Frequency	26-800Hz	26-800Hz	26-800Hz
Amplifier Power RMS	400W Class/D+DSP	500W Class/D+DSP	600W Class/D+DSP
Woofer	12" V.C75 5mm Magnet 60oz	15" V.C75 5mm Magnet 70oz	18" V.C75 5mm Magnet 80oz
Connectors input	2 x XLR	2 x XLR	2 x XLR
Line input	JACK XLR	JACK XLR	JACK XLR
Line output	XLR XLR	XLR XLR	XLR XLR
Function	Professional DSP	Professional DSP	Professional DSP
Power supply	AC110V-240V	AC110V-240V	AC110V-240V
Enclosure Material	18mm MDF	18mm MDF	18mm MDF
Finish	Black acrylic	Black acrylic	Black acrylic
Package	480x380x510mm	570x470x570mm	630x550x680mm

FUNCTIONS

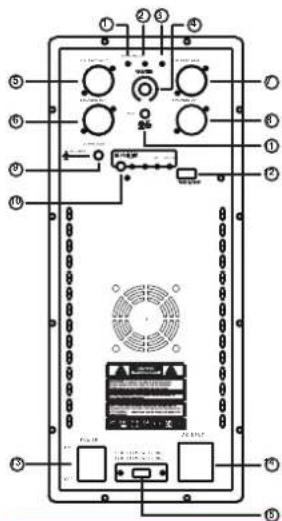

1. Indicator light for power

2. Indicator light for signal

3. Indicator light for limit

4. Control de Volumen

5. Left balanced input: XLR/Jack6.35 audio input

6. Left balanced output: XLR audio output

7. Right balanced input: XLR/Jack6.35 audio input

8. Right balanced output: XLR audio output

9. Botón swith to full range or high pass

10. Switch between four modes: music, club, live,

and voice

1. Fase de trabajo 0° -180°

2. DSP Preset

3. Power Switch

4. Power Connection

5. Phase selector: voltage change switch

www.audibax.com

3www.audibax.com

DISPOSAL

Packaging:

1. The packaging can be recycled using standard disposal methods and reintroduced into the reusable material cycle.
2. Please follow the laws and regulations regarding disposal and recycling of packaging in your country.

Device:

1. This device is subject to the Waste Electrical and Electronic Equipment (WEEE) Directive of the European Union. Used appliances should not be disposed of with household waste. Used device must be disposed of through an approved disposal company or a municipal disposal facility. Please comply with the applicable regulations in your country.
2. Please follow all the disposal laws and regulations in your country.
3. As a customer, you can obtain information on environmentally-friendly disposal options from the product seller or the appropriate regional authorities.

BIENVENIDO A AUDIBAX
