Product Type	Monitor
Brand	Kogan
Model	KAMN24FG6QA
Screen Size	24 inches
Resolution	1920 x 1080 (Full HD)
Refresh Rate	75 Hz
Panel Type	IPS
Aspect Ratio	16:9
Brightness	250 cd/m²
Contrast Ratio	1000:1
Viewing Angles	178°/178°
Response Time	5 ms (GTG)
Connectivity	1x HDMI, 1x VGA, 1x Audio Out
VESA Mount	100 x 100 mm
Dimensions (with stand)	540 x 410 x 180 mm
Weight (with stand)	3.5 kg
Power Consumption	20W (typical), <0.5W (standby)
Power Supply	Internal, 100-240V AC
Maintenance	Clean with soft dry cloth; avoid liquid cleaners
Safety	Do not open casing; risk of electric shock. Keep away from moisture.
Spare Parts / Repairability	Power supply board and panel available via Kogan support

Frequently Asked Questions - KAMN24FG6QA Kogan

How do I connect my Kogan KAMN24FG6QA monitor to a laptop?

Connect via HDMI or VGA cable. Ensure the monitor is set to the correct input source using the menu button.

What is the recommended resolution for this monitor?

The native resolution is 1920 x 1080 (Full HD). Set your device to output at this resolution for best clarity.

Does this monitor support VESA mounting?

Yes, it supports 100 x 100 mm VESA mount. Ensure screws are M4 type and length does not exceed 10 mm.

How can I clean the monitor screen?

Use a soft, dry microfiber cloth. For stubborn marks, slightly dampen with water. Avoid alcohol or chemical cleaners.

Why is there no display when I turn on the monitor?

Check that the power cable is securely connected and the power outlet is working. Verify the input source matches the cable used. Try a different cable or device.

Can I use this monitor with a gaming console?

Yes, connect via HDMI. Supports up to 1080p @ 75Hz. May need to adjust console output settings.

What is the response time?

The monitor has a 5 ms GTG response time, suitable for casual gaming and general use.

How do I adjust brightness and contrast?

Press the menu button on the monitor, navigate to Picture settings, and adjust brightness/contrast using the OSD controls.

Is there a built-in speaker?

No, the monitor does not have built-in speakers. Use the audio out port to connect external speakers or headphones.

What should I do if the monitor flickers?

Ensure the refresh rate is set correctly (60Hz or 75Hz). Check cable connections. If using VGA, try tightening the thumbscrews. Update graphics drivers.

USER MANUAL KAMN24FG6QA Kogan

Front view of a black computer monitor with three legs and a blank screen (no text or symbols visible)

24" FULL HD 165HZ FREESYNC MONITOR

(1920 X 1080)

KAMN24FG6QA

Safety & warnings 3

Components 4

Overview 5

Assembly 7

VESA mount 9

Connectivity 10

Operation 12

Specifications 20

SAFETY & WARNINGS

• Read all instructions before using the appliance and retain for reference.
• Only use the power adapter provided with this product.
• Do not use the power adapter with any other products
  • Unplug the monitor before cleaning it.
  • Use a clean, slightly dampened cloth to wipe the monitor casing.
• To clean the screen, turn the monitor off, unplug it and wait for it to cool completely. Then, wipe it with a dry micro-fibre cloth.
• Do not use cleaning alcohol, ammonia-based liquids or other harsh cleaners.
• Do not cover or block the ventilation holes in the monitor casing.
• Do not insert any object or spray any liquid into the vents.
• Do not place the monitor near heaters, stoves, fireplaces or other sources of heat, as well as in rooms lacking adequate ventilation.
• Do not position the monitor in unsafe locations. If the monitor falls, it may be damaged and may injure nearby people.
  • Unplug the monitor if it is not going to be used for an extended period.
• Do not place heavy objects on the monitor, its power cord or any connected cable.
• Do not open the back panel of the monitor, as it contains a high-voltage current even when not plugged in.
• Only use the power adapter provided with this monitor. Do not use third-party power adapters.
• Do not use the power adapter with other products.

HDMI®

HIGH-DEFINITION MULTIMEDIA INTERFACE

The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI trade dress and HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

COMPONENTS

Blank white rectangle with a thin border (no text or symbols)

Monitor

Technical line drawing of a mechanical component with no visible text or symbols

Stand arm

Arm cover

Stand base

Simple line drawing of a rectangular electronic component with a coiled cable and three pins (no text or symbols)

Power adapter

M6x14mm Screw

M4x14mm Screw (x2)

Line drawing of two USB connectors tied together (no text or symbols)

DP cable

HDMI cable

User guide

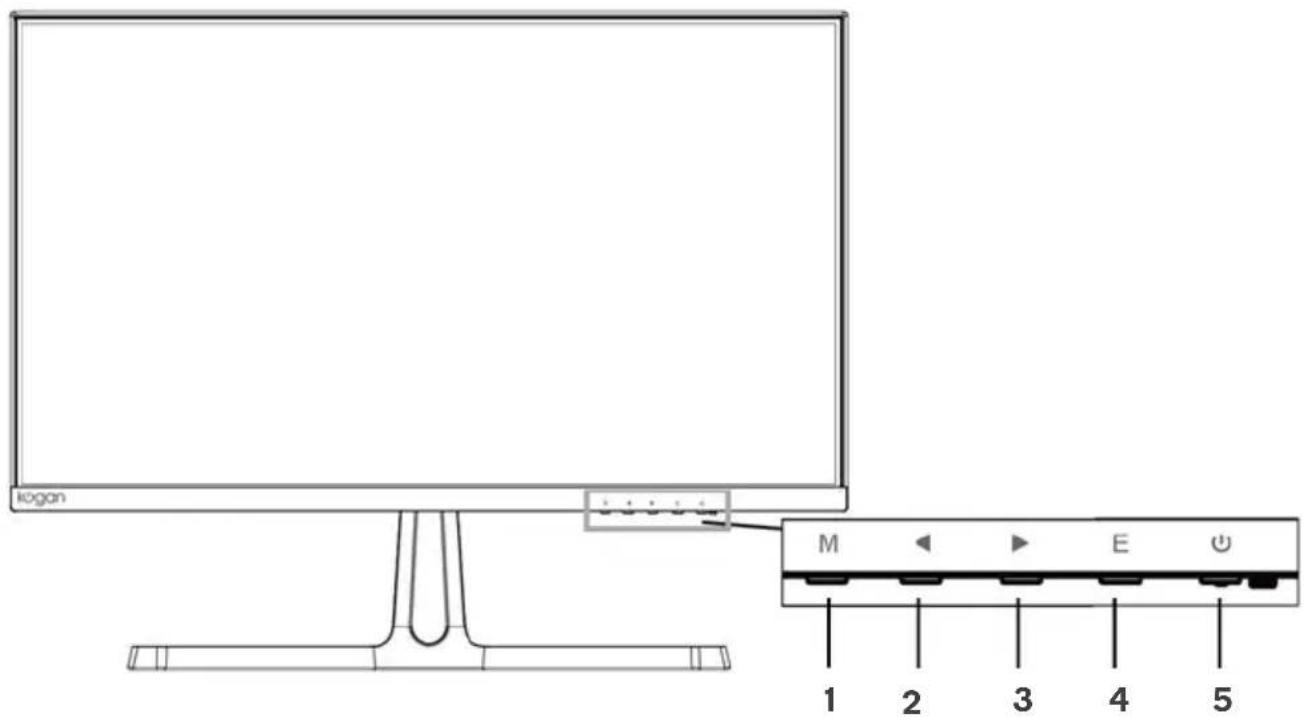

OVERVIEW

	Button	Description
1	MMenu	Opens the menu.Returns to the previous menus.Exits main menu.
2	Left	When the menu is open, decreases the value of the progress barUsed as the specified shortcut mode hot key.
3	[x4xK]Right	When the menu is open, increases the value of the progress barUsed as the specified shortcut mode hot key.
4	EEnter	If the menu is opened, select the highlighted function.When the menu is inactive, press this button to enter the automatic adjustment function. The automatically set the focus and the horizontal and vertical positions (VGA signal only).
5	Power	Turns the monitor On/Off.

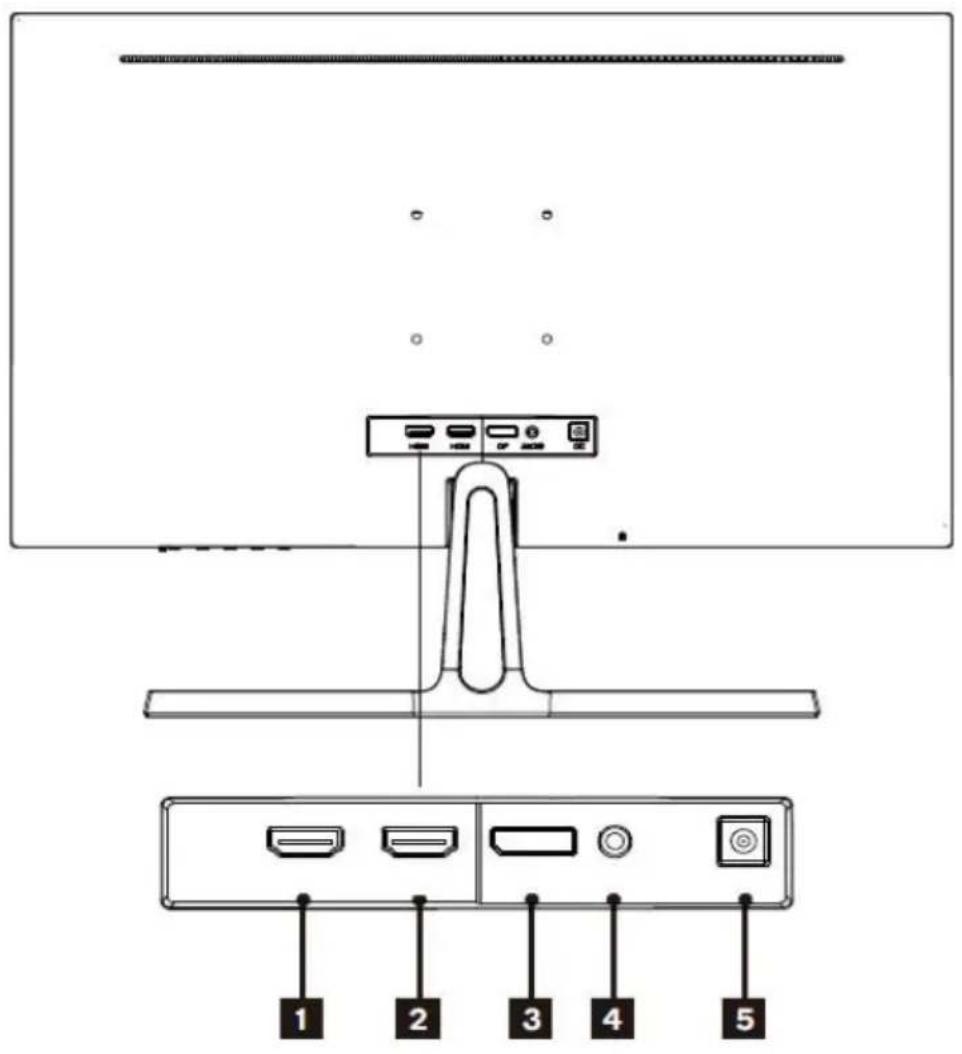

Monitor Ports

1 HDMI1 port
2 HDMI2 port
3 DisplayPort port
4 3.5mm headphone jack
5 Power input port

ASSEMBLY

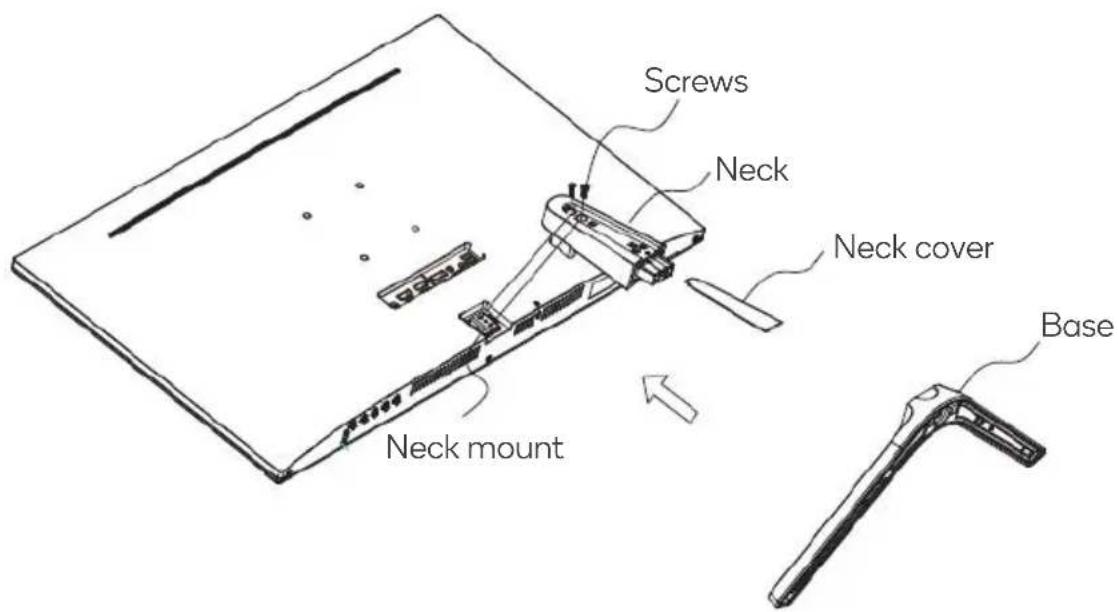

Step 1:

- Attach the neck to the rear of the monitor using the 2 (M4x14mm) screws.

- Slide the neck cover into the groove on the neck.

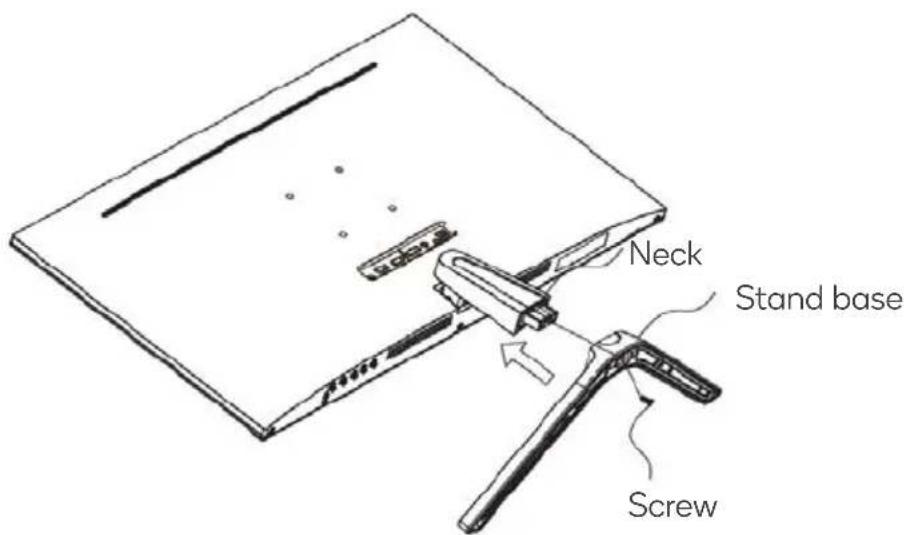

Step 2:

Attach the stand base to the neck and secure it in place using the M6x14mm screw.

Adjusting the Monitor

The angle of the screen can be adjusted forward 5^ or backward 15^ for a comfortable viewing experience.

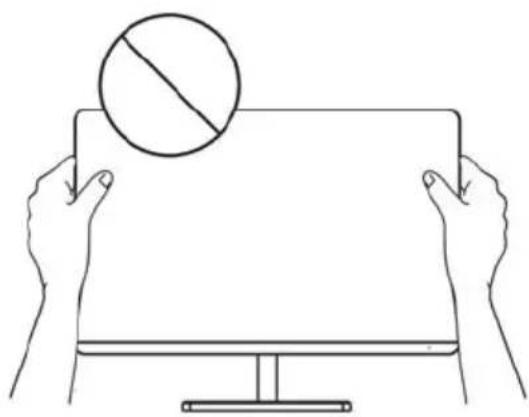

Note: Be careful not to touch or press the screen when adjusting the angle of the monitor.

Side-view line drawing of a computer monitor with a stand (no text or symbols)

Simple line drawing of a vertical stand with a curved top and base (no text or symbols)

Line drawing of two hands holding a blank board with a circular symbol above (no text or symbols present)

VESA MOUNT

Before installing the monitor on the wall, detach the stand from the monitor.

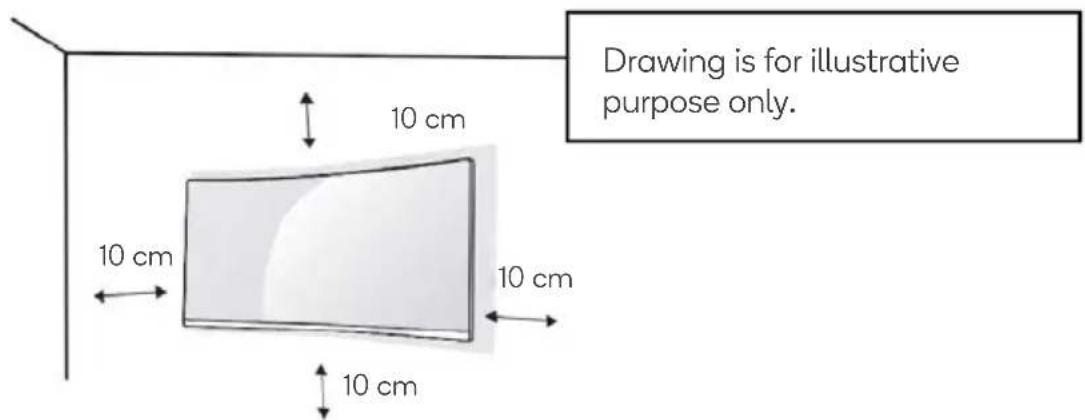

- To ensure sufficient ventilation, install the monitor at least 10 cm away from the wall and leave about 10 cm of space at each side of the monitor.

1. Place a clean, dry and lint-free cloth on a flat, stable surface.
2. Gently lay the monitor on the cloth with the LCD screen facing down.
3. Identify the four wall mounting screw holes on the back of the monitor.
4. Install the wall mounting bracket (not supplied) on the back of the monitor and attach the monitor to the wall according to the mounting bracket's instructions.
5. Ensure that all screws (not supplied) are tightened and secured properly.

Note:

• The mounting hole distance for this monitor is 75 x 75mm.
• VESA mount and mounting accessories are not included.

CONNECTIVITY

Before connecting the monitor to your PC, please shut down the PC and ensure the monitor is switched off.

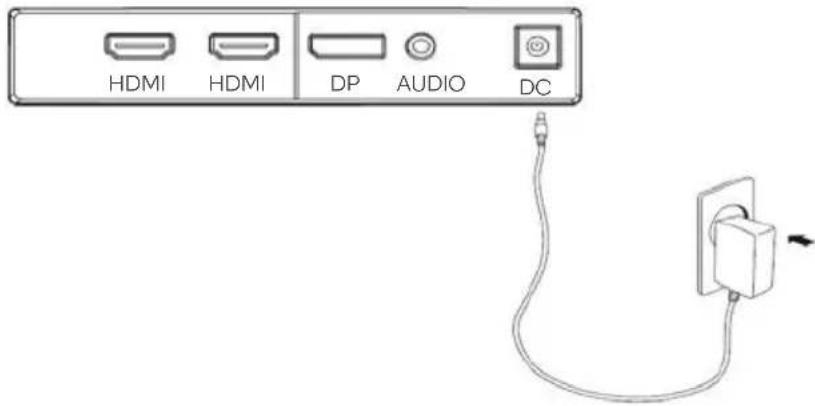

Power Cable

Connect the included power adapter to the monitor power port, then connect the other end to a power outlet.

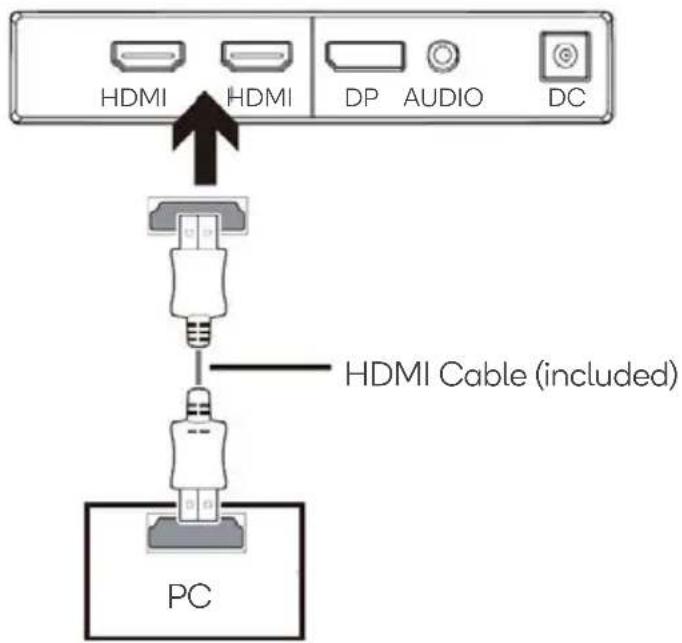

HDMI

Connect the supplied HDMI cable from the computer's HDMI port to one of the monitor's HDMI ports.

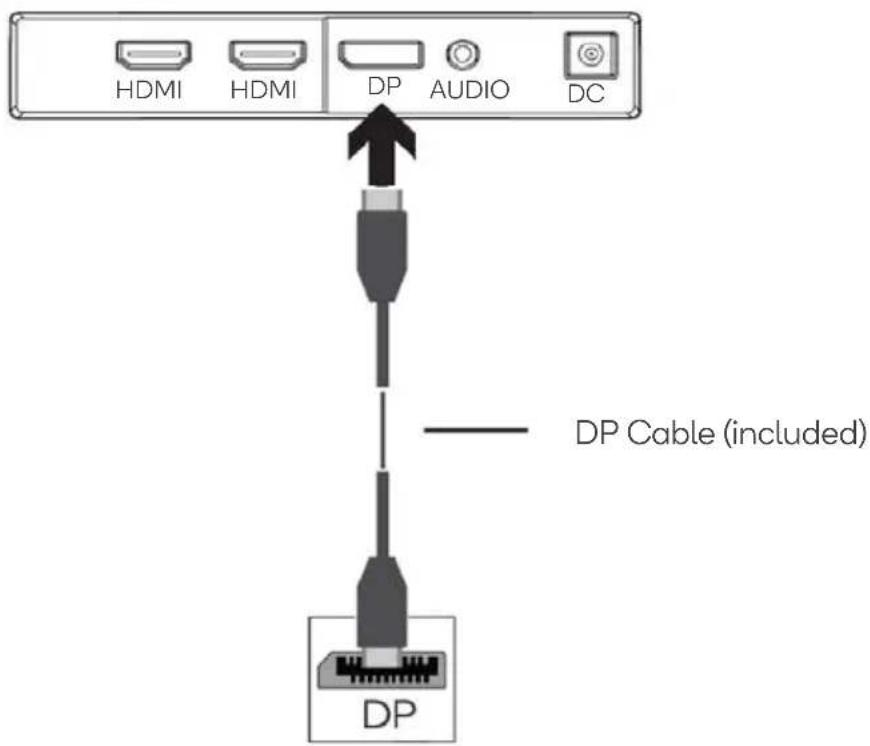

DisplayPort

Connect a DisplayPort cable (included) from the computer's DisplayPort to the monitor's DisplayPort.

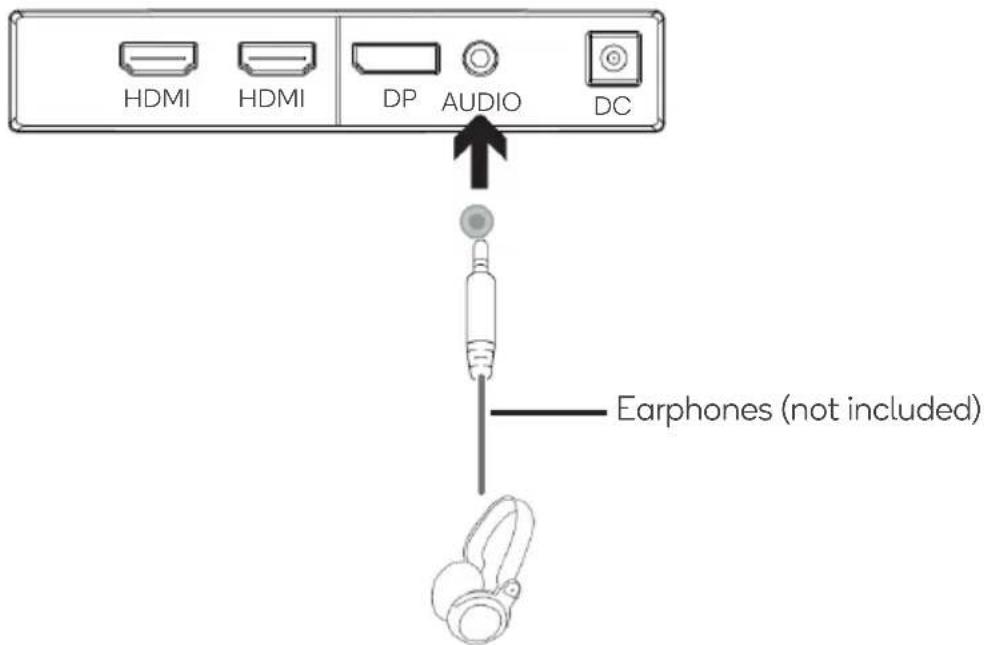

Earphones

Plug in earphones (not supplied) into the 3.5mm headphone jack on the monitor. Note: If audio devices are plugged into the monitor and computer, there will be no sound.

OPERATION

1. Connect the monitor to the input device via HDMI/ DisplayPort.
2. Connect the power adapter to the monitor and then connect the other end directly to a power socket.
3. Use the power button to turn the monitor on.

FreeSync

• Ensure your computer has FreeSync capability and the graphics drivers are fully up to date.
• After connecting, you will receive a prompt to enable FreeSync on your computer. If you do not receive the prompt, you may need to enable FreeSync in your graphics card menu.
• See your graphics card manufacturer's documentation for instructions on how to enable FreeSync.

On Screen Menu(OSD)

1^st level menu	icon	2^nd level menu	icon	3^rd level menu	icon	Description
Display	[YYH]	Brightness		NONE	NONE	Adjust display brightness
		Contrast	[8WBH]	NONE	NONE	Adjust display contrast
		DCR		On	[DASK]	Activate dynamic contrast
				Off		Inactivate dynamic contrast
				Return		Return to the previous menu
				Exit		Exit from the whole menu
		Return		NONE	N E	Return to the previous menu
		Exit		NONE	NONE	Exit from the whole menu
Language		中文, English, Française, Deutsch, Italiano, Español, 日本語, Русский, 繁,Tiếng Việt, Português, Türkçe. (This needs the support of the monitor)
		« »		NONE	NONE	language selection (this needs the support of the monitor)
		Return		NONE	NONE	Return to the previous menu(this needs the support of the monitor)
		Exit		NONE	NONE	Exit from the whole menu
Game		OD		Off		Turn off the OD function(this needs the support of the monitor)
				Norma		General OD functionality(this needs the support of the monitor)
				Extreme		Extreme OD functionality(this needs the support of the monitor)
				Return		Return to the previous menu
				Exit		Exit from the whole menu
		Crosshair		Cross-hair1		Switch the game front sight(this needs the support of the monitor)
				Cross-hair2	[TA07]	Switch the game front sight (this needs the support of the monitor)
				Cross-hair3	[C352]	Switch the game front sight (this needs the support of the monitor)
				Cross-hair4	[0H20]	Switch the game front sight (this needs the support of the monitor)
				Cross-hair5	[WC2A]	Switch the game front sight (this needs the support of the monitor)
				Cross-hair6	[ZDW0]	Switch the game front sight (this needs the support of the monitor)
				Return		Return to the previous menu
				Exit		Exit from the whole menu
		Adaptive sync/ Free sync/ Free sync Premium/ Free sync Premium Pro		On	[S738]	Open Free Sync (this needs the support of the monitor)
				Off	[DSAA]	Close Free Sync (this needs the support of the monitor)
				Return		Return to the previous menu
				Exit		Exit from the whole menu
		MPRT		On	[XDCY]	Open MPRT (this needs the support of the monitor)
				Off		Close MPRT (this needs the support of the monitor)
				Return		Return to the previous menu
				Exit	[TGBZ]	Exit from the whole menu
		Timer	[CTX0]	NONE	30	Open game timing (this needs the support of the monitor)
				NONE	40	Open game timing (this needs the support of the monitor)
				NONE	50	Open game timing (this needs the support of the monitor)
				NONE	60	Open game timing (this needs the support of the monitor)
				NONE	90	Open game timing (this needs the support of the monitor)
				Close	OFF	Close game timing this needs the support of the monitor)
				Return		Return to the previous menu
		HDR	HDR	On		Open HDR (this needs the support of the monitor)
				Off		Close HDR (this needs the support of the monitor)
				Return		Return to the previous menu
				Exit		Exit from the whole menu
		Return		NONE	NONE	Return to the previous menu
		Exit		NONE	NONE	Exit from the whole menu
Mode	[2HH7]	Standard		NONE	NONE	Normal work mode
		Cinema	MOVIE	NONE	NONE	Cinema mode
		FPS		NONE	NONE	FPS game mode (this needs the support of the monitor)
		RTS	RTS	NONE	NONE	RTS game mode (this needs the support of the monitor)
		Eye Saver	[2H7X]	NONE	NONE	Eye protection ray filter application mode (this needs the support of the monitor)
		eBook		NONE	NONE	eBook mode (this needs the support of the monitor)
		Return		NONE	NONE	Return to the previous menu
		Exit		NONE	NONE	Exit from the whole menu
Colour		Cool		NONE	NONE	Set to standard colour temperature (this needs the support of the monitor)
		Standard		NONE	NONE	Set to standard colour temperature (this needs the support of the monitor)
		Warm		NONE	NONE	Set to warm colour temperature (this needs the support of the monitor)
		User		Red	R	Fine tuning of red colour temperature
				Green	G	Fine tuning of green colour temperature
				Blue	B	Fine tuning of blue colour temperature
		DCPI-P3		NONE	NONE	DCI-P3 mode (this needs the support of the monitor)
		sRGB		NONE	NONE	sRGB mode (this needs the support of the monitor)
		Adobe RGB		NONE	NONE	Adobe RGB mode (this needs the support of the monitor)
		Return		NONE	NONE	Return to the previous menu
		Exit		NONE	NONE	Exit from the whole menu
Aspect		Auto		NONE	NONE	Automatically Adjust picture aspect ratio
		21:9		NONE	NONE	Picture in 21:9 mode (this needs the support of the monitor)
		16:9		NONE	NONE	Picture in 16:9 mode (this needs the support of the monitor)
		4:3		NONE	NONE	Picture in 4:3 mode (this needs the support of the monitor)
		Return	[KDBY]	NONE	NONE	Return to the previous menu
		Exit		NONE	NONE	Exit from the whole menu
Input		VGA		NONE	NONE	VGA (Analog)Signal input (this needs the support of the monitor)
		DVI		NONE	NONE	DVI (digital) Signal input(this needs the support ofthe monitor)
		HDMI		NONE	NONE	HDMI (digital) Signal input(this needs the support ofthe monitor)
		DP		NONE	NONE	Display port (digital) Signalinput (this needs the supportof the monitor)
		TYPE-C		NONE	NONE	TYPE-C (digital) Signalinput (this needs the supportof the monitor)
		Return		NONE	NONE	Return to the previous menu
		Exit	[927W]	NONE	NONE	Exit from the whole menu
Other		Power Off		On		Activate the function of timeswitch-off
				Off		Inactivate the function oftime switch-off
				Return		Return to the previous menu
				Exit		Exit from the whole menu
		Gamma		Gammal		Adjust colour tonebrightness grey 1
				Gamma 2		Adjust colour tonebrightness grey 2
				Return		Return to the previous menu
				Exit		Exit from the whole menu
		Volume		On		Resize sound (only themodel with audio out)
				Off		Turn off the sound (only themodel with audio out)
				Return		Return to the previous menu
				Exit		Exit from the whole menu
		AmbientLight		Red	R	Switch the atmosphere lightto static red (this needs thesupport of the monitor)
				Blue	B	Switch the atmosphere light to static blue (this needs the support of the monitor)
				Colourful		Switch the atmosphere light to dynamic mode (this needs the support of the monitor)
				Breathe		Switch the atmosphere light to dynamic mode (this needs the support of the monitor)
				Marquee		Switch the atmosphere light to dynamic mode (this needs the support of the monitor)
				Close		Turn off the atmosphere light (this needs the support of the monitor)
				Return		Return to the previous menu
				Exit		Exit from the whole menu
		Adjust	[IMAGE]	Auto Adjust		Automatically adjust the horizontal vertical location, focusing and dock of pictures (this needs the support of the monitor)
				Auto Colour		Adjust the white balance of pictures (this needs the support of the monitor)
				Clock		[IMAGE]	Adjust the Picture clock to reduce vertical line noise (only for VGA signals)
				Phase		[IMAGE]	Adjust the Picture Phase to reduce horizontal noise (only for VGA signals)
				Return	[TTCS]	Return to the previous menu
				Exit		Exit from the whole menu
		PIP		PIP		Switch the source of picture-in-picture (this needs the support of the monitor)
				PBP		Switch the source of dual split screen (this needs the support of the monitor)
				Reset		Reset to single window display (this needs the support of the monitor)
				Return		Return to the previous menu
				Exit		Exit from the whole menu
		Return		NONE	NONE	Return to the previous menu
		Exit		NONE	NONE	Exit from the whole menu
Reset		YES		NONE	NONE	Reset to factory setup
		NO		NONE	NONE	Exit from this function
		Return		NONE	NONE	Return to the previous menu
		Exit		NONE	NONE	Exit from the whole menu
Exit		NONE	NONE	NONE	NONE	Exit from the whole menu

Note:

The functions may be adjusted due to specific model or the upgrade of so ware version.

SPECIFICATIONS

Screen Size	23.8"
Aspect Ratio	16:9
Backlight	LED
Brightness	250cd/m2
Panel	VA
Resolution	1920 x 1080
Refresh rate	165Hz
Response time	MPRT 1ms
Viewing Angle	≥178°(H) / ≥178°(V)
Contrast Ratio	3000:1
VESA Mounting	75 x 75
Colours	16.78M
Free Sync	Yes
Signal Input	HDMI x 2, DP x 1
Power	12V = 2.5A
Audio
Speakers	No
Audio Out	Yes
Accessories
Adapter	Yes
HDMI Cable	Yes
Additional Functions
Low Blue Light	Yes
Flicker Free	Yes
Physical Dimensions
Dimensions (W/ Stand)	541.93 x 176.34 x 424.24mm
Dimensions (W/ o Stand)	541.93 x 42.85 x 322.26mm
Net weight	3.1kg
Gross weight	4.35kg

NOTES

Need more information?

We hope that this user guide has given you the assistance needed for a simple set-up.

For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com

kogan.com
