FDLM 1030 - Rangefinder Fieldmann - Free user manual and instructions

Product Type	Laser Distance Meter
Model	FDLM 1030
Brand	Fieldmann
Measurement Range	0.2 – 30 m
Measurement Accuracy	± 2 mm
Measurement Units	m / ft (switchable)
Laser Class	Class 2
Laser Type	630 – 670 nm, < 1 mW
Distance Measurement	Single and Continuous
Functions	Distance, Area, Volume; Continuous measurement; Calculation error indication
Power Supply	2 × AAA batteries (1.5 V each)
Battery Life	Approx. 5000 measurements
Auto Laser Off	After 30 seconds of inactivity
Auto Power Off	After 3 minutes of inactivity
Dimensions	100.5 × 38 × 24.5 mm
Weight	59 g (without batteries)
Operating Temperature	0°C to 40°C
Storage Temperature	-10°C to 60°C
Display	Multi-line LCD with backlight
Keys	Soft rubber buttons: ON/Measure, OFF, Lock, Laser ON, Reference point, Summary line, Return/Clear
Accessories Included	Instruction manual, warranty card
Safety Features	Laser Class 2; automatic shutdown; warning against direct eye exposure
Repairability	Only authorized service centers may repair; no user-serviceable parts inside
Disposal	Do not dispose with household waste; recycle as electronic equipment

Frequently Asked Questions - FDLM 1030 Fieldmann

How do I turn the device on and off?

Press and hold the ON/Mesure button for 2 seconds to power on. To turn off, press and hold the same button again. The device will also auto-off after 3 minutes of inactivity.

How do I measure a single distance?

Press ON/Mesure briefly to activate the laser. Press it again to take a measurement. The distance will be displayed on the screen.

Can I measure continuously?

Yes. Long press the ON/Mesure button to start continuous measurement. Move the device and the distance updates in real time. Press ON/Mesure again to stop, or it stops automatically after 5 minutes.

How do I change the measurement unit from meters to feet?

Press the Lock and Return/Clear buttons simultaneously to toggle between m and ft.

What do the error codes mean?

Common codes: 204 = Calculation error, retry; 208 = Excessive current, contact distributor; 220 = Low battery, replace batteries; 252 = Temperature too high, cool down; 255 = Signal too weak, use target plate; 256 = Signal too strong, avoid reflective surfaces; 261 = Out of range; 500 = Hardware error, restart device.

How accurate is the measurement?

The measuring accuracy is ±2 mm under favorable conditions.

Is the laser safe for eyes?

The device uses a Class 2 laser. Never stare directly into the beam or point it at people or animals. Avoid using optical aids to view the beam.

What batteries does it use and how long do they last?

It requires 2 × AAA 1.5V batteries. Battery life is approximately 5000 measurements.

What should I do if the device gets too hot?

If error code 252 appears, the device is too hot. Let it cool down to an operating temperature between 0°C and 40°C before use.

How do I clean and maintain the device?

Use a soft, dry cloth to clean the lens and housing. Do not use solvents or harsh chemicals. Store in a dry place. If problems persist, contact an authorized service center.

USER MANUAL FDLM 1030 Fieldmann

Home & Garden Performance

FDLM 1030

2

English 5

Čeština....19

Slovenčina 33

Magyarul 47

Polski 61

1

Laser Distance Meter INSTRUCTION MANUAL

Thank you for your purchase of the Laser For your personal safety, read and understand the Instruction Manual before using. Keep the Instruction Manual in a safe place for future reference.

CONTENTS

1. GENERAL SAFETY INSTRUCTIONS 6
2. SYMBOLS 9
3. GENERAL DESCRIPTION ..... 10
4. OPERATING INSTRUCTIONS ..... 11
   4a. TROUBLESHOOTING....12
5. TECHNICAL SPECIFICATIONS.... 1. 3
6. DISPOSAL....15
7. DECLARATION OF CONFORMITY ....16

1. GENERAL SAFETY INSTRUCTIONS

WARNING! Carefully read the instruction manual before use.

Important safety warnings

Unpack the product carefully and be sure not to throw away any part of the package before having found all components of the product.
Keep the product in a dry place out of reach of children.
Read all cautions and instructions. The failure to adhere to warning cautions and instructions may result in an accident, fire and/or a serious injury.

Packaging

The product is placed in a package preventing damage during transport. This package is a raw material therefore it can be handed-over for recycling.

Instructions for use

Before beginning to work with the machine, read the following safety rules and instructions for use. Familiarize with operating elements and the proper use of the device. Keep the manual in a safe place for future reference. We recommend keeping the original package including the inner packaging materials, cash voucher and guarantee card for a period of warranty at minimum. For a case of transportation, pack the machine into the original box from the manufacturer, thus ensuring a maximum protection of the product during a possible transport (e.g. moving or sending into a service station)..

Note: If you hand the machine over to next persons, hand it over together with the manual. Adherence to the attached instructions for use is a precondition for the proper use of the machine. The operation manual includes also instructions for operation, maintenance and repairs.

The manufacturer does not take any responsibility for accidents or damages resulting from the failure to adhere to this manual.

Carefully read, remember and keep these safety instructions

WARNING! Never stare at the laser beam directly and never point it at another person or animal. Normally persons protect eyes by blinking reflex or instinctively turn head to another side.

Also never use any other optical equipments to stare directly into the laser beam! Otherwise you may face serious healthy problem with your eyes.

Device Usage

Device is designed for measure the distance and helps in making manual calculation of areas and volumes.
Device cannot be used defined scope of usage
It is prohibited to remove any sticker out of the device which contents safety warning or correct usage of thew device.
Is strictly prohibited to repair the device by unauthorized service.
Device cannot be resized or somehow adjusted.
Device cannot be pointed to the sun directly otherwise can be damaged.
During measuring the distance is necessary to be very careful while operating in the surroundings.

Laser Classification

Distance meter uses for measurement the laser beam which streams from the front part of the device.

8

2. SYMBOLS

The product complies with the applicable standards and regulations.

Read the Instruction Manual attentively prior to use.

Laser Class 2

Never beem laser into person's or pet's eyes, never stare into the laser beem!

Subjected to recycling

3. GENERAL DESCRIPTION

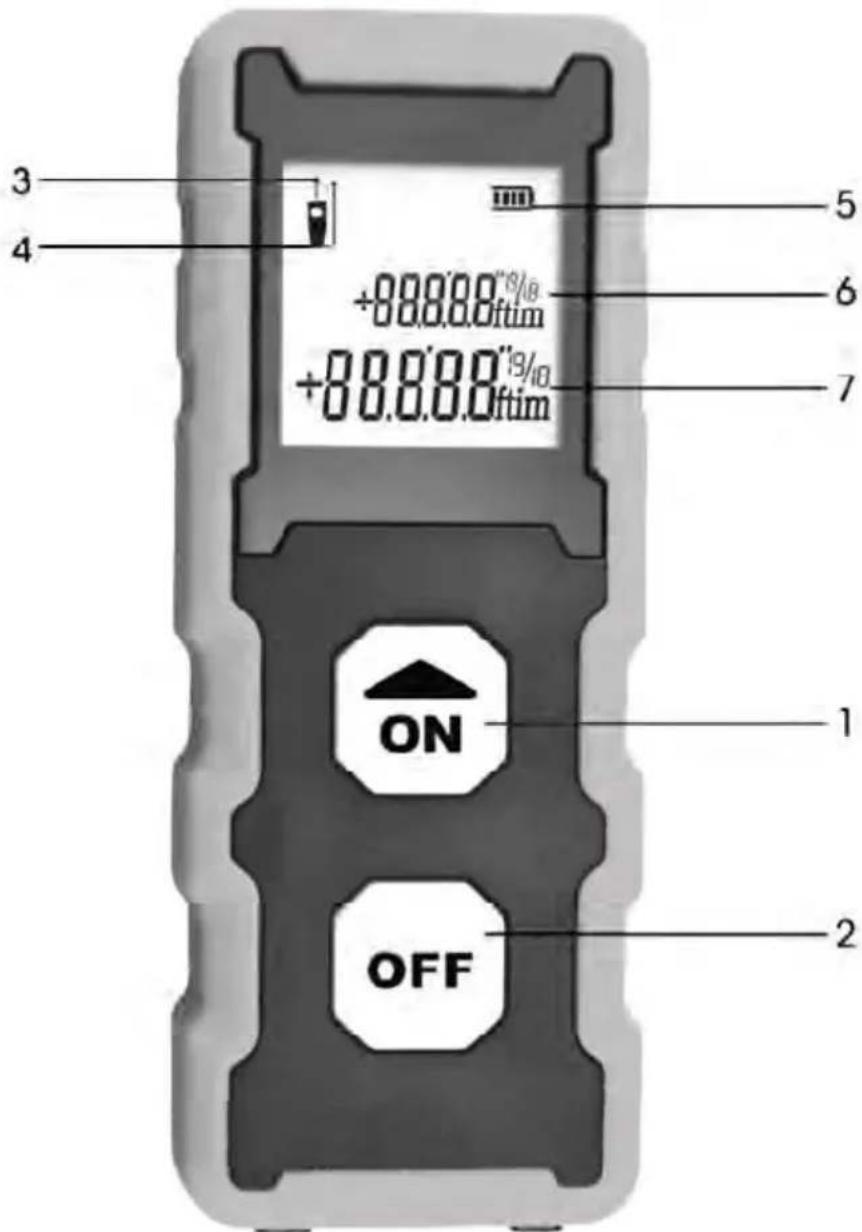

DESCRIPTION AND LOCATION OF MACHINE PARTS

1. Switch ON/ Measure
2. Switch OFF
3. Lock button
4. Laser ON
5. Reference point (rear)

6. Previous value

7. Summary line/ Latest value/ Calculation result

Items Delivered

Remove all contents from the box and inspect to ensure no damage was incurred during shipping, and that the items listed below are included:

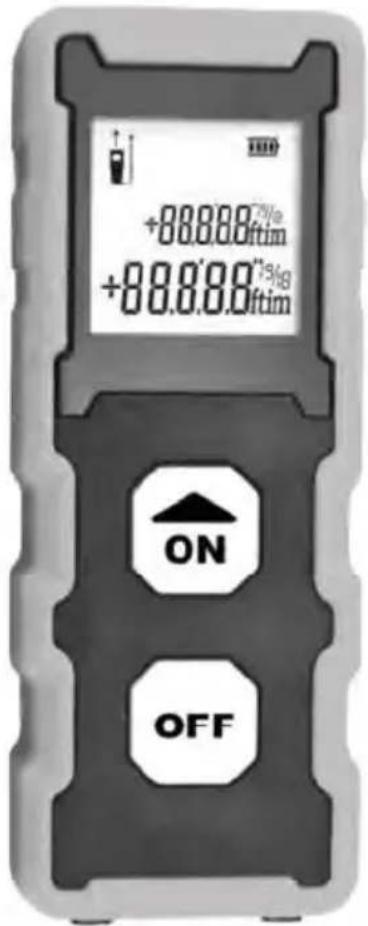

Laser Distance Meter
accessories
Warranty card Instruction
Manual

Should the components be missing or damaged, contact the dealer of the machine.

4. OPERATING INSTRUCTIONS

Power On/ Off

Power ON/OFF (manually)

Open the battery cover on the back, insert 2x AAA batteries.

Long press for power on or for power off the device. It also switch off automatically after 3 minutes of inactivity.

Return/ Clear

When measuring press to undo the last action or clear measured value.

Measurement Unit

The default unit of the measurement unit is meter. Press and simultaneously to change units in between m/ft.

DISTANCE MEASUREMENT

Single Distance Measurement

Press to activate the laser. Press again to trigger the distance measurement. The measured value is displayed immediately.

Continuous Measurement

Long press to activate continuous measurement. The measured values are displayed on screen in the real time when moving the device. The last measured value is displayed in the summary line. User can press ON to stop the function. This function will be stopped automatically after 5 minutes of inactivity.

TROUBLESHOOTING

All errorsoir failures will be shown as codes. The following table explains the meaning of codes and solutions.
Suspected malfunctions are often due to causes the user can fix themselves. Therefore check the product using this section. In most cases the problem can be solved quickly.
WARNING!
Only perform the steps described within these instruction s! All further inspection, maintenance and repair work must be performed by an authorized service centre or a similarly qualified specialist if you cannot solve the problem yourself!

Code Cause Corrective Measure
204 Calculation error	Refer to the user manual, repeat the procedures.
208 Excessive current Please contact your distributor
220 Battery low Replace new batteries
252 Temperature too high	Cool down device within temperature 0 - 40°C
255 Received signal too weak or measurement time too long	Use target plate or change a good reflective surface
256 Received signal too strong	Target too reflective, use target plate or do not aim at strong light objective
261 Outside of the range of measurement	Select the measurement distance within the range of measurement
500 Hredware error	Switch on/off the device several times. If symbol still appears, please contact your distributor

5. TECHNICAL SPECIFICATIONS

Specification FDLM 1030
Maximum measure range (*1)	0.2 - 30m
Measuring Accuracy (*2) +- 2mm
Measuring units m/ft
Laser class Class 2
Laser type 630 - 670nm, <1mW
Single/ continuous Yes
Button Soft rubber
Operating temperature 0 – 40 C	• •
Storage temperature -10 C – 60 C	• •
Battery approx. life 5000 measurement times
Battery type	AAA 2x 1.5V
Auto laser off	30sec.
Dimensions 100.5 x 38 x 24.5mm
Weight	59g

Instructions Manual - language version only.

Amendments to text and technical parameters are reserved.

Changes in the text, design and technical specifications may change without prior notice and we reserve the right to make these changes. keep it from turning as the drill bit rotates.

6. DISPOSAL

INSTRUCTIONS AND INFORMATION ON DISPOSAL OF USED PACKAGING

Put any used package material to the place determined by the municipality for waste disposal.

DISPOSAL OF USED ELECTRIC AND ELECTRONIC EQUIPMENT

This symbol on products or accompanying documents means that used electric or electronic products must not be put to ordinary municipal waste. Hand over such products to determined collection points for proper disposal, restoration and recycling. Alternatively, in some countries of the European Union or other European countries you can return your products to your local dealer when you buy an equivalent new product. By dutiful disposal of this product you can preserve precious natural resources and you help prevent any potential adverse effects on the environment and human health which could be the results of wrong waste disposal. Ask your local authority or the nearest collection point for additional details. In case of improper disposal of this waste kind penalties can be imposed in accordance with national regulations.

FOR COMPANIES IN THE EUROPEAN UNION COUNTRIES

Should you want to dispose of electric and electronic devices, ask your dealer or vendor for necessary information.

DISPOSAL IN OTHER COUNTRIES OUTSIDE THE EUROPEAN UNION

Should you want to dispose of this product, ask your local authorities or your dealer for necessary information about disposal method

This product fulfils all basic requirements of the EU directives that apply to it.

Text, design and technical specifications can change without prior notice and we reserve the right for their change.

7. DECLARATION OF CONFORMITY

Manufacturer:

FAST ČR, a.s.

Černokostelecká 1621, 251 01 Praha, Czech Republic Tax ID: CZ26726548

Product / brand: LASER DISTANCE METER / FIELDMANN

Type / model: FDLM 1030

3V DC, 2x 1.5V DC AAA, CLASS II LASER CLASS 2

The product is inline with directives and regulations listed below:

low voltage electrical equipment 2014/35/EU

Directive for Electromagnetic Compatibility 2014/30/EU

Directive for RoHS 2011/65/EU

and norms:

EN 61326-1:2013

EN 61326-2-2:2013

EN 60825-1:2014

Place of issuance: Prague Name: Ing. Pech

Zdeněk

Chairman of the Board

Date of issuance: 1.8.2017 Signature:
