USER MANUAL FDLM 1040 Fieldmann

Abstract black and white spiral pattern with no text or symbols

FIELDMANN®

Home & Garden Performance

FDLM 1040

English....5
Čeština....19
Slovenčina 33
Magyarul 47
Polski 61

Laser Distance Meter INSTRUCTION MANUAL

Thank you for your purchase of the Laser Distance Meter. For your personal safety, read and understand the Instruction Manual before using. Keep the Instruction Manual in a safe place for future reference.

CONTENTS

1. GENERAL SAFETY INSTRUCTIONS....6
2. SYMBOLS 9
3. GENERAL DESCRIPTION ....10
4. OPERATING INSTRUCTIONS....11
   4a. TROUBLESHOOTING....12
5. TECHNICAL SPECIFICATIONS....13
6. DISPOSAL....15
7. DECLARATION OF CONFORMITY 16

1. GENERAL SAFETY INSTRUCTIONS

⚠ WARNING! Carefully read the instruction manual before use.

Important safety warnings

Unpack the product carefully and be sure not to throw away any part of the package before having found all components of the product.
Keep the product in a dry place out of reach of children.
Read all cautions and instructions. The failure to adhere to warning cautions and instructions may result in an accident, fire and/or a serious injury.

Packaging

The product is placed in a package preventing damage during transport. This package is a raw material therefore it can be handed-over for recycling.

Instructions for use

Before beginning to work with the machine, read the following safety rules and instructions for use. Familiarize with operating elements and the proper use of the device. Keep the manual in a safe place for future reference. We recommend keeping the original package including the inner packaging materials, cash voucher and guarantee card for a period of warranty at minimum. For a case of transportation, pack the machine into the original box from the manufacturer, thus ensuring a maximum protection of the product during a possible transport (e.g. moving or sending into a service station)..

Note: If you hand the machine over to next persons, hand it over together with the manual. Adherence to the attached instructions for use is a precondition for the proper use of the machine. The operation manual includes also instructions for operation, maintenance and repairs.

The manufacturer does not take any responsibility for accidents or damages resulting from the failure to adhere to this manual.

Carefully read, remember and keep these safety instructions

WARNING! Never stare at the laser beam directly and never point it at another person or animal. Normally persons protect eyes by blinking reflex or instinctively turn head to another side.

Also never use any other optical equipments to stare directly into the laser beam! Otherwise you may face serious healthy problem with your eyes.

Device Usage

Device is designed for measure the distance and helps in making manual calculation of areas and volumes.
Device cannot be used defined scope of usage
It is prohibited to remove any sticker out of the device which contents safety warning or correct usage of thew device.
Is strictly prohibited to repair the device by unauthorized service.
Device cannot be resized or somehow adjusted.
Device cannot be pointed to the sun directly otherwise can be damaged.
During measuring the distance is necessary to be very careful while operating in the surroundings.

Laser Classification

Distance meter uses for measurement the laser beam which streams from the front part of the device.

2. SYMBOLS

The product complies with the applicable standards and regulations.

Read the Instruction Manual attentively prior to use.

Laser Class 2

Never beem laser into person's or pet's eyes, never stare into the laser beem!

Simple line drawing of a trash bin with crossed arms and a circular weight, no text or symbols present.

Subjected to recycling

3. GENERAL DESCRIPTION

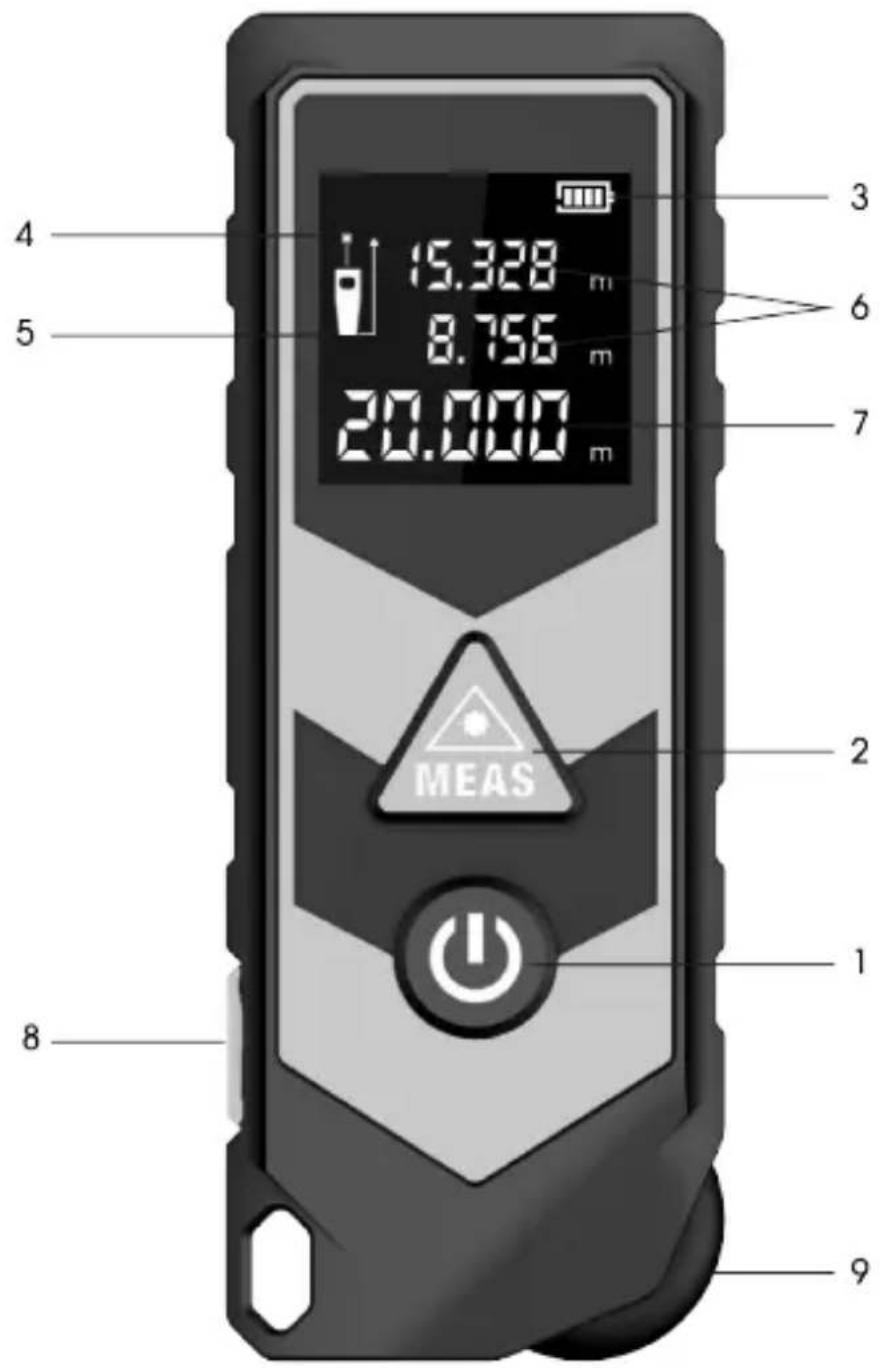

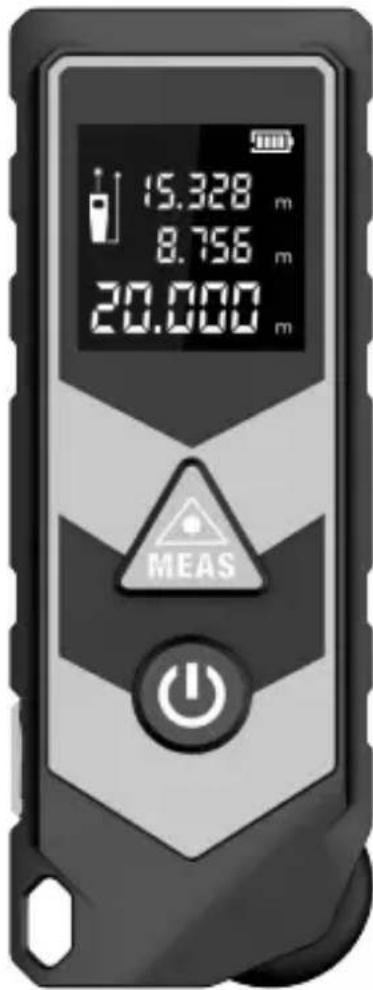

DESCRIPTION AND LOCATION OF MACHINE PARTS

1. Switch ON/ OFF
2. Measure
3. Battery Level
4. Laser ON
5. Reference point (rear)
6. Previous value
7. Summary line/ Latest value/ Calculation result
8. Wheel Measurement ON/OFF
9. Wheel

Items Delivered

Remove all contents from the box and inspect to ensure no damage was incurred during shipping, and that the items listed below are included:

Should the components be missing or damaged, contact the dealer of the machine.

4. OPERATING INSTRUCTIONS

Power On/ Off

Power ON/OFF (manually)

Long press for power on or for power off the device. It also switch off automatically after 3 minutes of inactivity.

Return/ Clear

When measuring press 📋udo the last action or clear measured value.

Measurement Unit

The default unit of the measurement unit is meter. Press simultaneously to change units in between m/ft.

DISTANCE MEASUREMENT

Single Distance Measurement

Press to activate the laser. Press again to trigger the distance measurement. The measured value is displayed immediately.

Continuous Measurement

Long press ⚠️ to activate continuous measurement. The measured values are displayed on screen in the real time when moving the device. The last measured value is displayed in the summary line. User can press ⚠️ to stop the function. This function will be stopped automatically after 5 minutes of inactivity.

Wheel Measurement

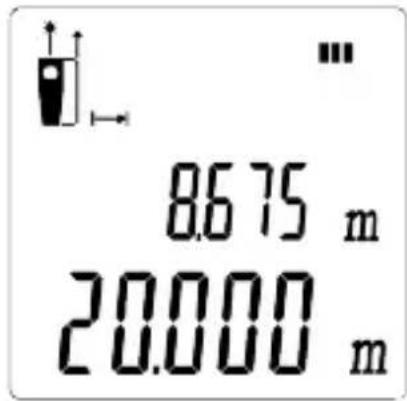

Short press to activate wheel measurement, wheel measurement icon shows and flashes; roll the wheel from the starting point to the end point, short press again to stop the measurement, the current data will be displayed accordingly.

*When when starting the wheel measurement, please note the positive and negative directions, the data measured in the direction of the first roll is positive, and the opposite direction is negative.

*Wheel Wheel measurement cannot be turned on during charging.

Illustration of a mobile phone falling off a surface with a red warning symbol (no text or symbols present)

TROUBLESHOOTING

All errorsoir failures will be shown as codes. The following table explains the meaning of codes and solutions.
Suspected malfunctions are often due to causes the user can fix themselves. Therefore check the product using this section .In most cases the problem can be solved quickly.
WARNING!
Only perform the steps described within these instruction s! All further inspection, maintenance and repair work must be performed by an authorized service centre or a similarly qualified specialist if you cannot solve the problem yourself!

Code Cause Corrective Measure
204 Calculation error		Refer to the user manual, repeat the procedures.
208 Excessive current Please contact your distributor
220 Battery low Replace new batteries
252 Temperature too high		Cool down device within temperature 0 - 40°C
255	Received signal too weak or measurement time too long	Use target plate or change a good reflective surface
256 Received signal too strong		Target too reflective, use target plate or do not aim at strong light objective
261	Outside of the range of measurement	Select the measurement distance within the range of measurement
500 Hredware error		Switch on/off the device several times. If symbol still appears, please contact your distributor

5. TECHNICAL SPECIFICATIONS

Specification FDLM 1040
Maximum measure range (*1)	0.2 - 40m
Measuring Accuracy (*2) +- 3mm
Measuring units m/ft
Laser class Class 2
Laser type 630 - 670nm, <1mW
Single/ continuous Yes
Button Soft rubber
Operating temperature 0° – 40°C
Storage temperature -10°C – 60°C
Battery approx. life 5000 measurement times
Battery type	3.7 V/ 380mAh
Auto laser off 30sec.
Dimensions 100.5 x 38 x 24.5mm
Weight 59g

Instructions Manual - language version only.

Amendments to text and technical parameters are reserved.

Changes in the text, design and technical specifications may change without prior notice and we reserve the right to make these changes. keep it from turning as the drill bit rotates.

6. DISPOSAL

INSTRUCTIONS AND INFORMATION ON DISPOSAL OF USED PACKAGING

Put any used package material to the place determined by the municipality for waste disposal.

DISPOSAL OF USED ELECTRIC AND ELECTRONIC EQUIPMENT

This symbol on products or accompanying documents means that used electric or electronic products must not be put to ordinary municipal waste. Hand over such products to determined collection points for proper disposal, restoration and recycling. Alternatively, in some countries of the European Union or other European countries you can return your products to your local dealer when you buy an equivalent new product. By dutiful disposal of this product you can preserve precious natural resources and you help prevent any potential adverse effects on the environment and human health which could be the results of wrong waste disposal. Ask your local authority or the nearest collection point for additional details. In case of improper disposal of this waste kind penalties can be imposed in accordance with national regulations.

FOR COMPANIES IN THE EUROPEAN UNION COUNTRIES

Should you want to dispose of electric and electronic devices, ask your dealer or vendor for necessary information.

DISPOSAL IN OTHER COUNTRIES OUTSIDE THE EUROPEAN UNION

Should you want to dispose of this product, ask your local authorities or your dealer for necessary information about disposal method

This product fulfils all basic requirements of the EU directives that apply to it.

Text, design and technical specifications can change without prior notice and we reserve the right for their change.

7. DECLARATION OF CONFORMITY

Manufacturer:

FAST ČR, a.s.

Černokostelecká 1621, 251 01 Praha, Czech Republic Tax ID: CZ26726548

Product / brand: LASER DISTANCE METER / FIELDMANN

Type / model: FDLM 1040

3.7V/ 380mAh, CLASS II LASER CLASS 2

The product is inline with directives and regulations listed below:

low voltage electrical equipment 2014/35/EU

Directive for Electromagnetic Compatibility 2014/30/EU

Directive for RoHS 2011/65/EU

and norms:

EN 61326-1:2013

EN 61326-2-2:2013

EN 60825-1:2014

Place of issuance: Prague

Name: Ing. Zdeněk Pech

Chairman of the Board

Date of issuance: 1.8.2017 Signature:

Abstract black-and-white spiral pattern with no text or symbols
