Product Type	Domestic Fan (for residential use only)
Brand	Lasko
Model	2510
Power Source	120V AC, 60Hz
Plug Type	Polarized (wide blade) with Blue Plug™ safety fuse
Controls	Manual controls on top; Remote control (AAA battery not included)
Speeds	3 speeds: High, Medium, Low
Oscillation	Yes, with ON/OFF button
Timer	1 to 7 hours in 1-hour increments; continuous mode
Remote Control Range	Not specified; typical infrared
Safety Features	Polarized plug, safety fuse, overheat protection, no extension cord recommended
Maintenance	Vacuum with brush attachment; wipe body with soft cloth; no solvents
Warranty	1-year limited (original purchaser only)
Customer Service	1-800-233-0268 (Mon-Fri 8AM-5PM EST)
Indoor/Outdoor Use	Indoor only; not for wet or hazardous locations

Frequently Asked Questions - 2510 Lasko

How do I assemble the Lasko 2510 fan?

To assemble, first interlock the two support bases (A and B) using the bosses and holes. Thread the power cord through the center hole. Secure the base assembly to the fan using the four thumb screws. Align the tabs on the base with the slots on the fan bottom, ensuring the cord channel faces the back. Then gently pull excess cord and place it in the wire locating trough.

How do I clean the fan?

Always unplug the fan before cleaning. Use a vacuum with a brush attachment to remove dust and lint from the grills and interior. Wipe the body with a soft cloth. Never use alcohol, solvents, or immerse the fan in water.

How do I set the timer?

Press the Timer button on the fan or remote control. Each press increases the time by 1 hour, up to 7 hours. The timer lights on the front panel indicate the selected duration. Pressing the timer button once more after 7 hours resets to continuous operation.

What type of battery does the remote control use?

The remote requires one AAA battery (not included). Install it according to the polarity markings inside the battery compartment. Do not mix old and new batteries or different types (alkaline, standard, rechargeable).

Why is my fan not turning on?

First, check that the power cord is firmly plugged into a 120V outlet. The fan's Blue Plug contains a non-replaceable safety fuse; if the fan suddenly stops, the fuse may have blown. Try plugging it into a different outlet. If it still doesn't operate, contact Lasko Customer Service at 1-800-233-0268.

Can I use an extension cord with this fan?

No. The manual advises against using extension cords, power strips, or outlet-style air fresheners, as they may overheat and cause a fire hazard. Plug the fan directly into a wall outlet.

Can I use the fan outdoors or in a bathroom?

No. This fan is for indoor residential use only. Do not use it outdoors or near water, such as in a bathroom, pool, or hot tub, as it creates a shock hazard.

How do I activate the oscillation feature?

Press the Oscillation button (marked with a symbol) on the top of the fan or on the remote control. Press once to start oscillation, press again to stop. The fan will oscillate from side to side.

What should I do if I lose the remote control?

You can order a replacement remote by calling Lasko Customer Service at 1-800-233-0268, Monday-Friday 8AM-5PM EST. Have your model number (2510) ready.

What is the warranty coverage for the Lasko 2510?

The fan is covered by a one-year limited warranty from the date of original purchase for the original buyer only. It covers defects in workmanship and materials. Lasko will repair or replace defective parts or the unit at its option. You must return the product with proof of purchase and a Return Authorization (RA) number. The warranty does not cover damage from misuse, unauthorized repairs, or commercial use.

USER MANUAL 2510 Lasko

This Fan is for residential use only.

It is not intended to be used in commercial, industrial or agricultural settings.

READ AND SAVE THESE INSTRUCTIONS

READ CAREFULLY BEFORE ATTEMPTING TO ASSEMBLE, INSTALL, OPERATE OR MAINTAIN THE PRODUCT DESCRIBED. PROTECT YOURSELF AND OTHERS BY OBSERVING ALL SAFETY INFORMATION. FAILURE TO COMPLY WITH INSTRUCTIONS COULD RESULT IN PERSONAL INJURY AND/OR PROPERTY DAMAGE!

Have a Question? Need a Part? Please Do Not Return Product to Store! Contact Lasko Customer Service:

1-800-233-0268 Monday-Friday 8AM - 5PM EST.

⚠ WARNING

IMPORTANT SAFETY INFORMATION

When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electrical shock and injury to persons, including the following:

Read all instructions before using this Fan.

⚠ WARNING

TO REDUCE THE RISK OF FIRE, ELECTRICAL SHOCK OR PERSONAL INJURY, ALWAYS FOLLOW THESE IMPORTANT SAFETY INSTRUCTIONS AND WARNINGS:

DO NOT use this fan to ventilate areas where flammable liquids or vapors are used, stored or are present, including paints, gasoline, varnishes, floor refinishing products or solvents. ALWAYS read and follow all warnings and instructions on the containers for these products!

ALWAYS be sure the plug fits tightly into the outlet. When plugs fit loosely into outlets, they may slip partially out of the outlet and create a poor connection. This may cause outlets to overheat and create a potential fire hazard. Outlets in this condition should be replaced by a qualified electrician.

ALWAYS unplug the power cord when servicing, cleaning or moving the Fan. DO NOT use the ON/OFF switch as the sole means of disconnecting power. NEVER leave children unattended when the Fan is on or plugged in. ALWAYS turn off and unplug the Fan when not in use.

BE CERTAIN that the power source for the Fan is 120V AC. DO NOT plug the Fan into 240V or other power source. The Blue Plug™ on your Lasko fan is a safety feature. It contains a non-replaceable safety device (fuse) that should not be removed or tampered with. To reduce the risk of fire, electric shock and personal injury, DO NOT attempt to remove, replace repair or tamper with the originally supplied plug, if the Fan has stopped functioning, it may be due to the safety device incorporated in this plug.

THIS FAN HAS A POLARIZED PLUG (one blade is wider than the other). This plug is designed to fit into the outlet only one way. Match the wide blade to wide slot in outlet and FULLY INSERT. DO NOT attempt to bypass or defeat this safety feature. If the plug does not fit in the outlet, consult a qualified electrician. The outlet may need to be replaced.

CAUTION

- AVOID the use of extension cords, power strips, power taps, outlet style air fresheners or other cord connected device, as these devices may overheat and cause a fire hazard. - DO NOT route power cord under rugs, carpets, runners or furniture. This may damage the cord or cause it to overheat creating a fire hazard.

- ALWAYS place the Fan on a stable, flat, level surface while in operation to prevent the Fan from overturning. - NEVER insert or allow fingers or objects to enter grill openings while Fan is in operation or injury and/or damage to the Fan may occur. - DO NOT block, cover or obstruct air flow to or from the fan while in operation. - DO NOT use this Fan outdoors or near water or wet locations such as a bath tub, pool or hot tub. Use of this Fan in a wet location may create a shock hazard.

- DO NOT run cord under carpeting. Do not cover cord with throw rugs, runners, or similar coverings. Do not route cord under furniture or appliances. Arrange cord away from traffic area and where it will not be tripped over. - NEVER use a single extension cord to operate more than one Fan or other electrical device.

- DO NOT use this Fan if it has been damaged or is not functioning properly. - Remote controls for other appliances or electronic equipment can sometimes interfere with the operation of this Fan. If this occurs, move the Fan to another location.

- Keep Fan remote control unit away from chairs and your bed where it may be sat or laid upon and inadvertently turn on the Fan. - THIS FAN DOES NOT MEET THE REQUIREMENTS OF NEC ARTICLE 547-7 (2008). This Fan is not suitable for use in agricultural facilities including areas where livestock, poultry or other animals are confined. Please refer to National Electric Code (NEC) Article 547-7 (2008), or applicable state or local codes or standards relating to electrical requirements for agricultural buildings. - This Fan does not meet the REQUIREMENTS OF NEC ARTICLE 500 (2008). This Fan is not suitable for use in hazardous locations. Please refer to National Electric Code (NEC) Article 500 or applicable state or local codes or standards relating to electrical requirements for hazardous locations.

NOTICE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. The user is cautioned that changes and modifications made to the equipment without the approval of manufacturer could void the user's authority to operate this equipment.

MODELO 2510

CONTROL REMOTO (Figura 6)

SAVE THESE INSTRUCTIONS

Rev. G 10/15

2510ES

Rev. G 10/15

11

2510ES

MODELO 2510

FUNCIONAMIENTO

1. Carefully remove the Fan from the plastic bag and the carton. For case of assembly, lay the Fan down so that the front grill and control panel are facing up.
2. Assemble the Support Bases by interlocking the Bosses on Support Base A Into the Boss Holes on Support Base B. Thread the Power Supply Cord through the large hole in the center of the Support Base Assembly. (Figure 1)

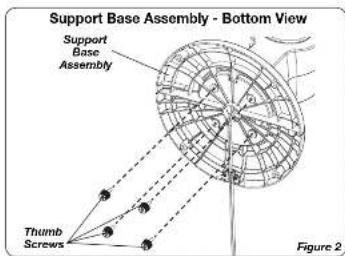

3. Secure the (4) thumb Screws into the four holes in the bottom of the base. (Figure 2)

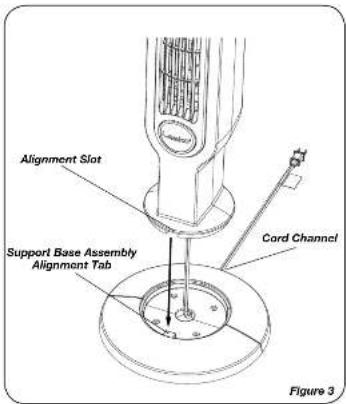

4. Align the Support Base Assembly Alignment Tabs with the alignment slots on the bottom of the fan, noting that the cord channel on the bottom of the support base should be towards the back of the Fan. (Figure 3)

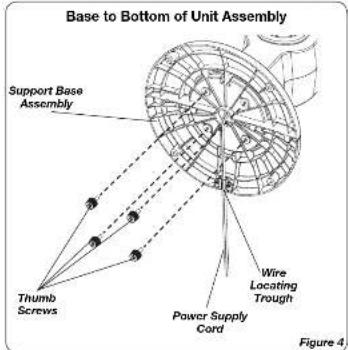

5. Secure the Support Base Assembly to the bottom of the Fan with (4) thumb Screws. Gently pull any excess slack of the Power Supply Cord and place it in the Wire Locating Trough. (Figure 4)

MODEL 2510

OPERATION (Figures 5 and 6)

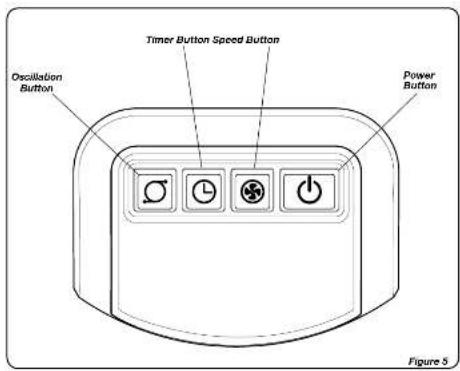

This Fan may be operated by the Manual Controls located on top of the unit (as shown in Figure 5) or by the Remote Control (shown in Figure 6).

1. Place the Fan on a firm and level surface.

CAUTION: Plastic or rubber tabs, like the feet on this unit, may stick to furniture surfaces and/or hardwood floors. The unit may leave a residue that could darken, stain or leave permanent blemishes on the finish of certain furniture surfaces, including wood surfaces, and/or hardwood floors. 2. Plug the cord set into a 120 volt outlet.

△WARNING

Be sure that the plug fits tightly into outlet.

When plugs fit loosely into receptacles, they may slip partially or completely out of the receptacle with only the slight movement of the attached cord. Receptacles in this condition may overheat and pose a serious fire hazard; if covered by a curtain or drape, the fire hazard is even greater.

1. Tum the Fan ON by pressing the Power Button (1).
2. SPEEDS: Press the Fan Speed Button (◆) to desired speed setting. Each time the Fan Speed Button is pressed, the speed will change from High (3), to Medium (2), to Low (1). When the Fan is turned OFF and ON again, the unit will resume the speed at which it was turned OFF.
3. OSCILLATION: Press the Oscillation Button (27) to start and stop the oscillation function.
4. TIMER: The timer function allows the unit to be set to operate for a length of time from 1 hour to 7 hours, in increments of 1 hour. Press the Timer Button () to set the length of time desired. Each time the timer button is pressed, the time is increased by 1 hour. After reaching 7 hours, pressing the timer button once more will reset the Fan to continuous running. The lights on the front of the unit will light up appropriately with the length of time that the Fan is set for.
5. To turn the Fan OFF, press the Power Button (b) and unplug the unit from the electrical outlet.

MODELO 2510

ENSAMBLADO

1. Install batteries (not supplied) as shown in Figure 6. The battery is size "AAA".

2. The Remote Control Power Button is labeled as (C).

3. All the functions performed with the Remote Control work identically to the Manual Controls.

4. Remote control hook is located on back of Fan.

5. Do not mix old and new batteries. Do not mix alkaline, standard (carbon-zinc) or rechargeable (nickel-cadmium) batteries.

6. DO NOT DISPOSE OF BATTERIES IN FIRE. BATTERIES MAY EXPLODE OR LEAK.

If you lose your remote control, please call Customer Service to order a replacement at 1-800-233-0268, Monday through Friday, between the hours of 8:00 a.m. and 5:00 p.m. EST.

CONSERVE ESTAS INSTRUCCIONES

Rev. G 10/15

2510ES

Rev. G 10/15

5

2510ES

MODEL 2510

MAINTENANCE

⚠ WARNING To reduce the risk of electrical shock and fire please observe the following instructions:

- Always unplug the cord before moving, servicing or cleaning.

- NEVER place the Fan in or near water.

- Clean the Fan only with a vacuum equipped with a brush attachment; the vacuum will remove the lint and dirt from inside the Fan.

- NEVER attempt to take apart the Fan.

- Clean the body of the Fan with a soft cloth only.

- NEVER use ALCOHOL or SOLVENTS such as gasoline, benzene, paint thinner, or other harsh cleaners.

SERVICING: For servicing, other than general user maintenance, please contact Customer Service at 800-233-0268, Monday through Friday, from 8am-5pm Eastern.

DISPOSITION: Corrugated packaging materials are recyclable. For environmentally responsible disposal of this product, contact your local waste service provider or visit www.1800recycling.com/\$.

STORAGE: Store the Fan with these instructions, in the original carton in a cool, dry place.

CALIFORNIA RESIDENTS ONLY:

WARNING: This product can expose you to a chemical [or chemicals] known to the State of California to cause cancer.

WARNING: This product can expose you to a chemical [or chemicals] known to the State of California to cause reproductive toxicity.

LASKO PRODUCTS, INC. LIMITED WARRANTY (VALID IN THE USA, ITS TERRITORIES, AND CANADA ONLY)

WHAT THIS WARRANTY COVERS: This product is warranted against defects in workmanship and/or materials. HOW LONG THIS WARRANTY LASTS: This warranty extends only to the original purchaser of the product and lasts for one (1) year from the date of original purchase or until the original purchaser of the product sells or transfers the product, whichever first occurs.

WHAT LASKO WILL DO: Lasko will, at its sole option, repair or replace any part or parts that prove to be defective or replace the whole product with the same or comparable model. For all warranty claims, the product must be returned to Lasko Products, Inc. at customer expense with proof of purchase within the warranty period. Contact the Lasko customer service department to obtain a Return Authorization ("RA"). DO NOT return products without an RA or the warranty claim will not be processed.

WHAT THIS WARRANTY DOES NOT COVER: This warranty does not apply if the product was damaged or failed because of accident, improper handling or operation, shipping damage, abuse, misuse, unauthorized repairs made or attempted, or the use of the product for commercial or nonresidential service. This warranty does not cover shipping costs for the return of products to Lasko for repair or replacement. Lasko will pay return shipping charges from Lasko following warranty repairs or replacement.

ANY AND ALL WARRANTIES, EXPRESSED OR IMPLIED (INCLUDING, WITHOUT LIMITATION, ANY IMPLIED WARRANTY OF MERCHANTABILITY), LAST ONE YEAR FROM THE DATE OF ORIGINAL PURCHASE OR UNTIL THE ORIGINAL PURCHASER OF THE PRODUCT SILLS OR TRANSFERS THE PRODUCT, WHICHEVER FIRST OCCURS AND IN NO EVENT SHALL LASKO'S LIABILITY UNDER ANY EXPRESS OR IMPLIED WARRANTY INCLUDE (I) INCIDENTAL OR CONSEQUENTIAL DAMAGES FROM ANY CAUSE WHATSOEVER, OR (II) REPLACEMENT OR REPAIR OF ANY HOUSE WITHOUT ANY WARRANTY. ANY INFORMATION IS NOT TO BE REPRODUCED ANY OTHERS TO THE CONTRARY, IN NO EVENT SHALL LASKO'S LIABILITY UNDER ANY EXPRESS OR IMPLIED WARRANTY EXCEED THE PURCHASE PRICE OF THE PRODUCT AND ANY SUCH LIABILITY SHALL TERMINATE UPON THE EXPIRATION OF THE WARRANTY PERIOD.

Some states and provinces do not allow limitations on how long an implied warranty lasts, or the exclusion or limitation of incidental or consequential damages, so these exclusions or limitations may not apply to you. This warranty gives you specific legal rights. You may also have other rights which vary from state to state and province to province.

Proof of purchase is required before a warranty claim will be accepted.

CUSTOMER SERVICE:

Toll-Free [phone]. Email: [e-mail]

Our Customer Service team is available to assist you with product and service questions, and replacement parts. They can be reached Monday through Friday, 8am-5pm Eastern. Please have your model number available, as well as the type and style

(located on the underside of your product).

Customer Service Dept., 820 Lincoln Ave., West Chester, PA 19360

(Please do not send product to this location) www.laskoproducts.com

PARTS FOR DISCONTINUED, OBSOLETE AND CERTAIN OTHER PRODUCTSMAY NOT BE AVAILABLE. DUE TO SAFETY REASONS, MANY ELECTRONIC COMPONENTS AND MOST HEATER COMPONENTS ARE NOT AVAILABLE TO CONSUMERS FOR INSTALLATION OR REPLACEMENT.
