Whirlwind A12668 - Household Fan Lasko - Free user manual and instructions

Product Type	Residential Tower Fan
Model	A12668 (also compatible with A12665, A12667, A12669)
Power Supply	120V AC, 60Hz
Fan Speeds	12 speeds (1-12), adjustable via dial or remote
Timer	1-12 hours, programmable on control panel or remote
Oscillation	Swing (horizontal), Tilt (vertical), and Orbital (combined)
Remote Control	Includes remote with Power, Speed +/-, Timer, and Oscillation buttons; uses CR2025 lithium battery
Dark Mode	Display lights auto-off for reduced glare during operation
Motor Type	Permanently lubricated, maintenance-free
Grill Material	Removable front grill for cleaning; secured with screw and twist-lock
Cleaning	Use vacuum with brush attachment for interior; soft cloth for exterior; no alcohol or solvents
Safety Features	Overheat protection? Not specified; do not use near water or flammable materials; keep away from children
Warranty	1 year limited warranty (USA and Canada only); proof of purchase required
Dimensions	Approximately 12 x 12 x 36 inches (estimated based on typical tower fans)
Weight	Approximately 10 lbs (estimated)

Frequently Asked Questions - Whirlwind A12668 Lasko

How do I clean my Lasko Whirlwind A12668 fan?

Always unplug the fan before cleaning. Remove the front grill by taking out the top screw and turning the grill counterclockwise to unlock. Use a vacuum with a brush attachment to remove dust and lint from inside. Clean the body with a soft, damp cloth. Never use alcohol, gasoline, or harsh solvents.

How do I replace the remote control battery?

The remote uses a CR2025 lithium 3V battery. Push in and hold the tab while pulling out the battery tray. Insert the new battery with correct polarity (+ and -), then slide the tray back in until it clicks and locks. Dispose of old batteries properly.

Can I use an extension cord with this fan?

No. Lasko advises against using extension cords, power strips, or cord-connected devices as they may overheat and cause a fire hazard. Plug the fan directly into a properly functioning 120V outlet.

How does the timer function work?

Press the Timer button on the fan or remote to cycle through settings from 1 to 12 hours. The display shows the selected hours. To turn off the timer, press until the LED turns off and display shows '0'. The fan will automatically shut off after the set time.

What does 'Dark Mode' mean?

Dark Mode automatically turns off the control panel display lights after a short period to create a more pleasant sleeping environment. This feature is enabled by default and requires no user action.

Can I use this fan outdoors?

No. The fan is for indoor residential use only. Do not use near water, bathtubs, pools, or wet locations to avoid electric shock hazard.

What should I do if the fan stops working?

First, ensure the fan is plugged into a working outlet. Check that remote batteries are fresh and installed correctly. If it still doesn't work, contact Lasko Customer Service at [phone] Monday-Friday 8am-5pm EST for troubleshooting or warranty service.

How does the orbital oscillation work?

Press both the Swing and Tilt oscillation buttons simultaneously to activate Orbital Oscillation, which moves the fan in multiple directions for wider air circulation. Press either button again to stop.

Is there a warranty on this fan?

Yes, Lasko provides a 1-year limited warranty for the original purchaser in the USA and Canada. It covers defects in workmanship and materials. You must return the product with proof of purchase for service.

Can I use the fan in an agricultural or hazardous location?

No. This fan is not compliant with NEC 547-7 for agricultural buildings or NEC 500 for hazardous locations. It should only be used in typical residential environments.

USER MANUAL Whirlwind A12668 Lasko

Customer Service Dept., 820 Lincoln Ave., West Chester, PA 19380

(Model A12665, A12667, A12668, A12669)

Used for Models:

A12665, A12667

A12668, A12669

Register Your Product Today

www.lasko.com/product-registration/

You will benefit from:

- Efficient and enhanced support

- Future product updates

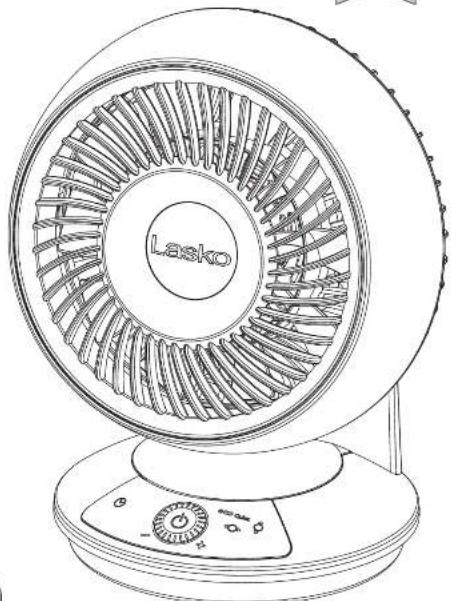

Line drawing of a Lasko air conditioner fan with visible blades and control panel (no text or symbols)

(A12665, A12667

A12668, A12669)

Have a Question? Need a Part?

Please Do Not Return Product to Store!

Contact Lasko Customer Service:

[phone] Monday-Friday 0AM - 5PM EST.

(Valid in the USA, its Territories, and CANADA Only)

READ AND SAVE THESE INSTRUCTIONS

Read carefully before attempting to assemble, install, operate or maintain the product described. Protect yourself and others by observing all safety information. Failure to comply with instructions could result in personal injury and/or property damage!

This Fan is for residential use only. It is not intended to be used in commercial, industrial or agricultural settings.

WARNING

IMPORTANT SAFETY INSTRUCTIONS

When using electrical appliances, these instructions and warnings should always be followed to reduce the risk of fire, electrical shock and injury to persons:

Read all instructions before using this Fan.

WARNING

TO REDUCE THE RISK OF FIRE, ELECTRICAL SHOCK OR PERSONAL INJURY, ALWAYS FOLLOW THESE IMPORTANT SAFETY INSTRUCTIONS AND WARNINGS:

DO NOT use this Fan to ventilate areas where flammable liquids or vapors are used, stored or are present including paints, gasoline, varnishes, floor refinishing products or solvents. ALWAYS read and follow all warnings and instructions on the containers for these products!

ALWAYS be sure the plug fits tightly into the outlet. When plugs fit loosely into outlets, they may slip partially out of the outlet and create a poor connection. This may cause outlets to overheat and create a potential fire hazard. Outlets in this condition should be replaced by a qualified electrician.

ALWAYS unplug the power cord when servicing, cleaning or moving the Fan. DO NOT use the ON/OFF switch as the sole means of disconnecting power. NEVER leave children unattended when the Fan is on or plugged in. ALWAYS turn off and unplug the Fan when not in use.

BE CERTAIN that the power source for the Fan is 120V AC. DO NOT plug the Fan into 240V or other power source. WARNING: Chemical Bum Hazard. Keep batteries away from children.

This product contains a lithium button/coil cell battery. If a new or used lithium button/coin cell battery is swallowed or enters the body, it can cause severe internal burns and can lead to death in as little as 2 hours. Always completely secure the battery compartment. If the battery compartment does not close securely, stop using the product, remove the batteries, and keep it away from children. If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention. The cells should be disposed of property. Including keeping them away from children; even used cells may cause injury.

WARNING: To reduce the risk of fire, electric shock, or injury to persons, do not use replacement parts that have not been recommended by the manufacturer (e.g. parts made at home using a 3D printer).

CAUTION

• AVOID the use of extension cords, power strips, power taps, outlet style air fresheners or other cord connected device, as these devices may overheat and cause a fire hazard.

- DO NOT operate any fan with a damaged cord or plug. Discard fan or return to an authorized service facility for examination and/or repair. - DO NOT route power cord under rugs, carpets, runners or furniture. This may damage the cord or cause it to overheat creating a fire hazard.

- ALWAYS place the Fan on a stable, flat, level surface while in operation to prevent the Fan from overturning

- NEVER insert or allow fingers or objects to enter grill openings while Fan is in operation or injury and/or damage to the Fan may occur. - DO NOT block, cover or obstruct air flow to or from the Fan while in operation.

• DO NOT use this Fan outdoors or near water or wet locations such as a bath tub, pool or hot tub. Use of this Fan in a wet location may create a shock hazard.

- DO NOT run cord under carpeting. Do not cover cord with throw rugs, runners, or similar coverings. Do not route cord under furniture or appliances. Arrange cord away from traffic area and where it will not be tripped over.

- NEVER use a single extension cord to operate more than one Fan or other electrical device.

• DO NOT use this Fan if it has been damaged or is not functioning properly.

• Remote controls for other appliances or electronic equipment can sometimes interfere with the operation of this Fan. If this occurs, move the Fan to another location.

- Keep Fan remote control unit away from chairs and your bed where it may be sat or laid upon and inadvertently turn on the fan.

- THIS FAN DOES NOT MEET THE REQUIREMENTS OF NEC ARTICLE 547-7 (2008). This Fan is not suitable for use in agricultural facilities including areas where livestock, poultry or other animals are confined. Please refer to National Electric Code (NEC) Article 547-7 (2008), or applicable slate or local codes or standards relating to electrical requirements for agricultural buildings.

- THIS FAN DOES NOT MEET THE REQUIREMENTS OF NEC ARTICLE 500 (2008). This Fan is not suitable for use in hazardous locations. Please refer to National Electric Code (NEC) Article 500 or applicable state or local codes or standards relating to electrical requirements for hazardous locations.

SAVE THESE INSTRUCTIONS

Partes Incluidas

Ventilador

Control Remoto

Power Supply with Cord

2

Controls

Power/Speed Button

Press the center of the dial to turn the fan ON/OFF.

Fan Speed can be set from 1 to 12. Rotate dial in clockwise direction to increase speed. Rotate in counter-clockwise direction to decrease speed.

Timer Button

The timer can be set to 1-12 hours. Continue pressing the Timer Button to reach desired time setting. To turn off the timer function, press the Timer Button until the Timer Button indicator LED turns off and the digital display reads "0".

Swing Oscillation

Press the Swing Oscillation Button to

Start and stop the oscillation function

Tilt Oscillation

Press the Tilt Oscillation Button to start and stop the oscillation function.

Orbital Oscillation

Press the Swing and Tilt Oscillation Buttons to turn on Orbital Oscillation.

* LASKO Dark Mode

Please note that this product is Dark Mode enabled. The display lights will automatically turn off to create a more pleasant user experience.

Power Supply Set Up

Remote Control

The remote control has the same functions as the fan control panel.

Power

Press to turn fan on/off

Fan Speed

Press the +/- to change speeds

Timer

Press to set timer from

1 - 12 hours

Oscillation

Press top button for

swing oscillation

Press bottom button

for the discillation

Press the Swing and Tin

Oscillation bombs to on Orbital Oscillation

Battery Replacement (remote control)

If the battery in the remote control needs replacing, replace with CR2025 lithium battery.

To remove battery push in and hold tab (1) while pulling out battery tray (2).

Dispose of old battery properly. Install new battery in battery tray. Then slide battery tray back into remote by pushing tray in until it clicks and locks in place.

This product contains a lithium/coin cell battery. Ensure the batteries are installed correctly with regard to polarity

(+ and -). Always purchase a new CR2025 Lithium Coin Battery (3V) for replacement. Clean the battery contacts and also those of the device prior to battery installation. Remove batteries from equipment that is not to be used for an extended period of time.

WARNING: Keep batteries away from children.

Rev. A 02/23

A12665,A12667,A12668,A12669_ES3

MAINTENANCE

WARNING To reduce the risk of electrical shock and fire please observe the following instructions:

• Always unplug the cord before moving, servicing or cleaning.
• NEVER place the Fan in or near water.
• Remove the front grill for fan cleaning. Locate screw on top of rear grill and remove. Unlock the front grill by turning it counterclockwise to unlocked position. Replace grill after cleaning by turning front grill clockwise to locked position. Reinstall screw.
• Clean the Fan only with a vacuum equipped with a brush attachment; the vacuum will remove the lint and dirt from inside the Fan.
• Clean the body of the Fan with a soft cloth only.
• NEVER use ALCOHOL or SOLVENTS such as gasoline, benzene, paint thinner, or other harsh cleaners.

TROUBLE SHOOTING TIPS

If your Fan fails to operate, see below for a list of probable causes and solutions:

1. Be sure the power cord is plugged into a working electrical outlet.

2. Make certain the batteries in the remote control are new and properly installed.

If you have a problem that can not be resolved by the steps listed above, contact Technical Assistance at [phone].

Monday through Friday, between the hours of 8:00 a.m. and 5:00 p.m. Eastern.

STORAGE: Store the Fan with these instructions, in the original carton in a cool, dry place.

LUBRICATION: Motor is permanently lubricated. No maintenance is required.

DISPOSITION: Corrugated packaging materials are recyclable. For environmentally responsible disposal of this product, contact your local waste service provider or visit www.1800recycling.com ^4 .

LASKO PRODUCTS, LLC LIMITED WARRANTY (Valid in the USA, its Territories, and CANADA Only)

WHAT THIS WARRANTY COVERS: This product is warranted against defects in workmanship and/or materials

HOW LONG THIS WARRANTY LASTS: This warranty extends only to the original purchaser of the product and sets for one (1) year from the date of original purchase or until the original purchaser of the product sells or transfers the product, whichever first occurs.

WHAT LASKO WILL DO: During the warranty period, Lasko will, all its sole option, repair or replace any part or parts that proves to be defective or replace the whole product with the same or comparable model. For all warranty claims, the product must be returned to Lasko Products LLC at customer expense with proof of purchase within the warranty period. Contact the Lasko customer service department to obtain a Return Authorization ("RA") DO NOT return products without an RA or the warranty claim will not be processed.

WHAT THIS WARRANTY DOES NOT COVER: This warranty does not apply if the product was damaged or false because of accident, improper handling or operation, shipping damage, abuse, misuse, unauthorized repairs made or attempted. This warranty does not cover shipping costs for the return of products to Lasko for repair or replacement. Lasko will pay return shipping charges from Lasko following warranty repairs or replacement.

ANY AND ALL WARRANTIES, EXPRESSED OR IMPLIED (INCLUDING, WITHOUT LIMITATION, ANY IMPLIED WARRANTY OF MERCHANTABILITY), LAST TWO YEARS FROM THE DATE OF ORIGINAL PURCHASE OR UNTIL THE ORIGINAL PURCHASER OF THE PRODUCT Sells OR TRANSFERS THE PRODUCT, WHICHEVER FIRST OCCURS AND IN NO EVENT SHALL LASKO'S LIABILITY UNDER ANY EXPRESS OR IMPLIED WARRANTY INCLUDE (II) INCIDENTAL, OR CONSEQUENTIAL DAMAGES FROM ANY CAUSE WHATSOEVER, OR (II) REPLACEMENT OR REPAIR OF ANY HOUSE FUSES, CIRCUIT BREAKERS OR RECEPTACLES, NOTWITHSTANDING ANYTHING TO THE CONTRARY, IN NO EVENT SHALL LASKO'S LIABILITY WITHOUT ANY INFORMATION. ANY INFORMATION IS USED IN THE PREDUCE PRICE OF THE PRODUCT AND ANY SUCH LIABILITY SHALL TERMINATE UPON THE EXPIRATION OF THE WARRANTY PERIOD.

Some states and provinces do not allow limitations on how long an implied warranty basis, or the exclusion or limitation of incidental or consequential damages, so these exclusions or limitations may not apply to you. This warranty gives you specific legal rights. You may also have other rights which vary from state to state and province to province.

Proof of purchase is required before a warranty claim will be accepted

CUSTOMER SERVICE:

Toll-Free [phone]. Email: [e-mail]

Our Customer Service team is available to assist you with product and service questions, and replacement parts.

They can be reached Monday through Friday, 8am-5pm Eastern. Please have your model number available, as well as the type and style (located on the underside of your product).

Customer Service Dept., 820 Lincoln Ave., West Chester, PA 19380

(Please do not send product to this location) www.lasko.com

Manual printed in China
