Product Type	Domestic Floor Fan
Model	Air Flexor 3637
Brand	Lasko
Dimensions (H x W x D)	Approx. 20 x 20 x 15 inches (51 x 51 x 38 cm)
Weight	Approx. 9.5 lbs (4.3 kg)
Power Supply	120V AC, 60Hz, 0.5A
Motor Type	Permanently lubricated, 2-speed
Airflow (CFM)	Up to 2,500 CFM
Speed Settings	3 speeds (Low, Medium, High)
Oscillation	Remote-controlled oscillation with 90° range
Tilt Adjustment	Manual tilt up to 20°
Safety Features	Auto shut-off tip-over switch, overheat protection
Remote Control	Included, battery-operated (requires 2 AAA batteries, not included)
Cleaning	Wipe grille and housing with damp cloth; do not immerse in water
Storage	Store in a cool, dry place; protect from dust
Included Accessories	Remote control, user manual
Warranty	1 year limited manufacturer warranty
Tip-Over Protection	Yes, automatically shuts off if fan tips over
Overheat Protection	Yes, fan shuts off if motor overheats
Repairability	No user-serviceable parts; contact Lasko customer service for repairs

Frequently Asked Questions - Air Flexor 3637 Lasko

How do I assemble the Lasko Air Flexor 3637 fan?

The fan comes fully assembled. Simply remove from the box, attach the base (if applicable) by twisting it onto the fan body, and plug into a standard 120V outlet. No tools required.

How do I use the remote control?

Press the power button to turn the fan on/off. Use the speed button to cycle through Low, Medium, and High. The oscillation button starts/stops side-to-side movement. Ensure the remote has fresh AAA batteries (not included).

Why is my fan not turning on?

First, check that the fan is plugged into a working outlet. If using a power strip, ensure it is switched on. The fan may have tripped the tip-over safety switch – place it upright on a flat surface. Also check for a blown fuse in the plug (if equipped). Contact Lasko if issues persist.

How do I clean the fan?

Unplug the fan. Use a soft, damp cloth to wipe the grille, blades, and housing. Do not use abrasive cleaners or immerse in water. Use a vacuum with brush attachment to remove dust from the motor area.

Can I use the fan in a bathroom or outdoors?

No, this fan is designed for indoor use only. Avoid placing near water. Do not use in high-moisture areas like bathrooms or outdoors, as it may damage the motor and create shock hazards.

Does the fan have an auto shut-off timer?

The Lasko Air Flexor 3637 does not include a timer function. It must be turned off manually using the remote or the control panel on the fan base.

How loud is the fan?

Noise level is moderate. On low speed it is whisper-quiet; on high speed it produces a strong airflow with typical fan hum. Expect 40-55 dB depending on speed and room acoustics.

Is the fan tip-over safe?

Yes, the fan is equipped with a tip-over safety switch that automatically shuts off the fan if it is knocked over. Simply return it to an upright position to reset.

What is the warranty coverage?

Lasko offers a 1-year limited warranty covering defects in materials and workmanship. Register your product online. Proof of purchase required.

Can I replace the power cord if damaged?

No, the power cord is not user-replaceable. If the cord is damaged, stop using the fan and contact Lasko Customer Service for repair or replacement options.

USER MANUAL Air Flexor 3637 Lasko

Customer Service Dept., 820 Lincoln Ave., West Chester, PA 19380

Innovators in Home Comfort

AIR FLEXOR™ REMOTE CONTROL

MODEL 3637

This Fan is for residential use only.

It is not intended to be used in commercial, industrial or agricultural settings.

READ AND SAVE THESE INSTRUCTIONS

READ CAREFULLY BEFORE ATTEMPTING TO ASSEMBLE,

INSTALL, OPERATE OR MAINTAIN THE PRODUCT DESCRIBED.

PROTECT YOURSELF AND OTHERS BY OBSERVING ALL

SAFETY INFORMATION. FAILURE TO COMPLY WITH

INSTRUCTIONS COULD RESULT IN PERSONAL INJURY AND/OR

PROPERTY DAMAGE!

KEEP INSTRUCTIONS FOR FUTURE REFERENCE.

SAVE THESE INSTRUCTIONS

⚠ WARNING

IMPORTANT SAFETY INSTRUCTIONS

When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electrical shock and injury to persons, including the following:

Read all instructions before using this Fan.

1. Make certain the power source conforms to the electrical requirements of the Fan.

2. Make certain that the room is equipped with a working smoke detector.

3. Use this Fan only as described in this manual. Any other use not recommended by the manufacturer may cause fire, electrical shock, or injury to persons.

4. To reduce the risk of personal injury and electric shock, the Fan should not be played with or placed where small children can reach it.

5. Unplug power cord before installing, servicing, or moving the Fan.

DO NOT DEPEND ON THE ON/OFF SWITCH AS THE SOLE MEANS OF DISCONNECTING POWER WHEN SERVICING OR MOVING THE FAN. ALWAYS UNPLUG THE POWER CORD. ALWAYS TURN OFF AND UNPLUG FAN BEFORE LEAVING THE AREA. NEVER LEAVE CHILDREN UNATTENDED WHEN THE FAN IS ON OR PLUGGED IN.

1. This Fan must NOT be used in potentially dangerous locations such as flammable, explosive, chemical-laden or wet atmospheres where gasoline, paint or flammable liquids are used or stored.

2. DO NOT use Fan in or near a window. Rain may create an electrical hazard.

This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit in a polarized outlet only one way. Match wide blade of plug to wide slot. Fully insert. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. DO NOT attempt to defeat this safety feature.

This plug is a safety feature. It contains a safety device (fuse) that should not be removed. Discard product if the attachment plug is damaged. To reduce the risk of fire, electric shock and personal injury, DO NOT remove, replace, repair or tamper with the originally supplied plug. If the Fan does not function properly, it may be due to the safety device incorporated in this plug. Call 800-233-0268, Monday - Friday, between 8:00 a.m. and 5:00 p.m. Eastern. If the plug warning label is missing or damaged, call the toll free number for a replacement label.

1. Where possible, avoid the use of extension cords because the extension cord may overheat and cause a fire. If you must use an extension cord, minimize the risk of overheating by using the shortest cord possible and ensuring that it is UL listed. NEVER use a single extension cord to operate more than one Fan.

2. NEVER operate any Fan with a damaged cord or plug or after the Fan malfunctions, has been dropped or damaged in

3. NEVER insert or allow fingers or foreign objects to enter any ventilation or exhaust opening as it may cause an electric shock or fire, or damage the Fan. To reduce the risk of fire, DO NOT block or tamper with the Fan in any manner while it is in operation.

4. Always place the Fan on a stable, flat, level surface when operating, to avoid the chance of the Fan overturning. Locate the Power Cord so the Fan or other objects are not resting on it. Do not run cord under carpeting. Do not cover cord with throw rugs, runners, or similar coverings. Do not route cord under furniture or appliances. Arrange cord away from traffic area and where it will not be tripped over.

5. This Fan is not intended for use in wet or damp locations. Never locate a Fan where it may fall into a bathtub or other water container. NEVER use Fan where flammable liquids are used or stored.

6. NEVER use Fan outdoors.

7. Remote controls for other appliances or electronic equipment can sometimes interfere with the operation of this Fan. If this occurs, move the Fan to another location.

8. Keep Fan remote control unit away from chairs and your bed where it may be sat or laid upon and inadvertently turn on the Fan.

9. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of

- If equipment is used, netting and tools to recomplex their links to the digital data packet. This part of the FCC has been done by the operator's network. The system is not necessary for any connection to the FCC. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment as a outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an operator is based on the use of TV information and the use of TV information. These modifications made to the equipment without the approval of manufacturer could void the user's authority to operate this equipment.

1. This Fan is not suitable for use in agricultural facilities including areas where livestock, poultry or other animals are confined. Please refer to National Electric Code (NEC) Article 547-7 (2008), or applicable state or local codes or standards relating to electrical requirements for Agricultural Buildings. THIS FAN DOES NOT MEET THE REQUIREMENTS OF NEC ARTICLE 547-7 (2008).

2. This Fan is not suitable for use in hazardous locations. Please refer to National Electric Code (NEC) Article 500 or applicable state or local codes or standards relating to electrical requirements for Hazardous locations. THIS FAN DOES NOT MEET THE REQUIREMENTS OF NEC ARTICLE 500 (2008).

⚠ WARNING

Provided with an integral speed controller. Do not use with an external solid state speed control device.

SAVE THESE INSTRUCTIONS

MODELO 3637

1. Carefully remove the Fan from the carton.
2. Place the Fan on a firm and level surface
   CAUTION: Plastic or rubber tabs, like the feet on this unit, may stick to furniture surfaces and/or hardwood floors. The unit may leave a residue that could darken, stain or leave permanent blemishes on the finish of certain furniture surfaces, including wood surfaces, and/or hardwood floors.
3. Plug the cord set into a 120 volt outlet.

△WARNING

Be sure that the plug fits tightly into outlet. When plugs fit loosely into receptacles, they may slip partially or completely out of the receptacle with only the slight movement of the attached cord. Receptacles in this condition may overheat and pose a serious fire hazard; if covered by a curtain or drape, the fire hazard is even greater.

1. To adjust direction of air, simply tilt the head of the fan.

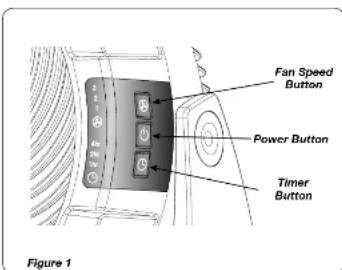

2. Apply power to your fan by pushing the Power Button(1).
3. FAN SPEED: You may now adjust the fan speed to the desired level, (3) High, (2) Medium or (1) Low by pressing the Fan Speed Button (8) on the Fan.
4. TIMER FUNCTION: This fan is equipped with a timer. The timer can be set for 1 hour to 7 hours. Continue pressing the Timer Button (S) to reach the desired time setting. To cancel timer, press Timer Button (C) until lights are extinguished.
5. After turning the Fan off, unplug the unit from the electrical outlet.

REMOTE CONTROL:
All the functions performed with the Remote Control work identically to the manual controls. (Figure 2)
1. Install batteries (not supplied) as shown in Figure 2. The battery is type 'AAA'.
2. Do not mix old and new batteries. Do not mix alkaline, standard (carbon-zinc) or rechargeable (nickel-cadmium) batteries
3. DO NOT DISPOSE OF BATTERIES IN FIRE. BATTERIES MAY EXPLODE OR LEAK.
If you lose your remote control, please call Customer Service to order a replacement at 1-800-233-0268, Monday through Friday, between the hours of 8:00 a.m. and 5:00 p.m. Eastern.

New 8/11

WALLMOUNT:

THIS FAN MUST BE MOUNTED ON A STRUCTurally SOLID FLAT SURFACE.

Suitable mounting anchors must be used to mount the fan to the wall.

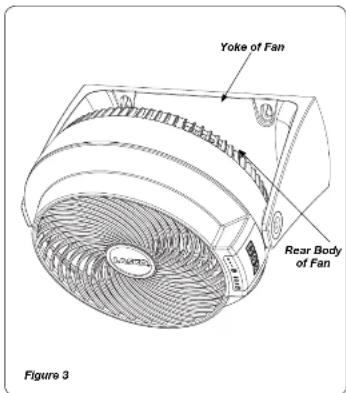

When mounting the Fan to the wall, the cord set MUST BE located in the space between the Rear Body of the Fan and the Yoke of the Fan. (Figure 3)

3

3637E5

MODEL 3637

TROUBLE SHOOTING TIPS

If your Fan fails to operate, see below for a probable cause and solution: 1. Be sure the power cord is plugged into a working electrical outlet.

If you have a problem that can not be resolved by the steps listed above, contact Technical Assistance at 1-800-233-0268, Monday through Friday, between the hours of 8:00 a.m. and 5:00 p.m. Eastern.

MAINTENANCE

WARNING

To reduce the risk of electrical shock and fire please observe the following instructions:

• Always unplug the cord before moving, servicing or cleaning.
• NEVER place the Fan in or near water.
• Clean the Fan only with a vacuum equipped with a brush attachment; the vacuum will remove the lint
  and dirt from inside the Fan.
• Clean the body of the Fan with a soft cloth only.
• NEVER use ALCOHOL or SOLVENTS such as gasoline, benzene, paint thinner, or other harsh cleaners.

SERVICING: For servicing, other than general user maintenance, please contact Customer Service at 800-233-0268, Monday through Friday, from 8am-5pm Eastern.

STORAGE: Store the Fan with these instructions, In the original carton in a cool, dry place.

LASKO PRODUCTS, INC. LIMITED WARRANTY

(VALID IN THE USA, ITS TERRITORIES, AND CANADA ONLY)

WHAT THIS WARRANTY COVERS: This product is warranted against defects in workmanship and/or materials.

HOW LONG THIS WARRANTY LASTS: This warranty extends only to the original purchaser of the product and lasts for one (1) year from the date of original purchase or until the original purchaser of the product sells or transfers the product, whichever first occurs.

WHAT LASKO WILL DO: During the warranty period, Lasko will, at its sole option, repair or replace any part or parts that prove to be defective or replace the whole product with the same or comparable model.

WHAT THIS WARRANTY DOES NOT COVER: This warranty does not apply if the product was damaged or failed because of accident, improper handling or operation, shipping damage, abuse, misuse, unauthorized repairs made or attempted. This warranty does not cover shipping costs for the return of products to Lasko for repair or replacement. Lasko will pay return shipping charges from Lasko following warranty repairs or replacement. ANY AND ALL WARRANTIES, EXPRESSED OR IMPLIED (INCLUDING, WITHOUT LIMITATION, ANY IMPLIED WARRANTY OF MERCHANTABILITY), LAST ONE YEAR FROM THE DATE OF ORIGINAL PURCHASE OR UNTIL THE ORIGINAL PURCHASER OF THE PRODUCT SELL'S OR TRANSFERS THE PRODUCT, WHICHEVER FIRST OCCURS AND IN NO EVENT SHALL LASKO'S LIABILITY UNDER ANY EXPRESS OR IMPLIED WARRANTY INCLUDE (I) INCIDENTAL OR CONSEQUENTIAL DAMAGES FROM ANY CAUSE WHATSOEVER, OR (II) REPLACEMENT OR REPAIR OF ANY HOUSE FUSES, CIRCUIT BREAKERS OR RECEPTACLES. NOTWITHSTANDING ANYTHING TO THE CONTRARY, IN NO EVENT SHALL LASKO'S LIABILITY UNDER ANY EXPRESS OR IMPLIED WARRANTY EXCEED THE PURCHASE PRICE OF THE PRODUCT AND ANY SUCH LIABILITY SHALL TERMINATE UPON THE EXPIRATION OF THE WARRANTY PERIOD.

Some states and provinces do not allow limitations on how long an implied warranty lasts, or the exclusion or limitation of incidental or consequential damages, so these exclusions or limitations may not apply to you. This warranty gives you specific legal rights. You may also have other rights which vary from state to state and province to province.

Proof of purchase is required before a warranty claim will be accepted.

CUSTOMER SERVICE:

Toll-Free [phone]. Email: [e-mail]

Our Customer Service team is available to assist you with product and service questions, and replacement parts. They can be reached Monday through Friday, 8am-5pm Eastern. Please have your model number available, as well as the type and style (located on the underside of your product). Customer Service Dept., 820 Lincoln Ave., West Chester, PA 19380 (Please do not send product to this location) www.laskoproducts.com
