USER MANUAL GVC14X GEMINI

Stick / Handheld Rechargeable Wet & Dry Vacuum Cleaner

MODEL NO.: GVC14X

IMPORTANT POINTS TO NOTE

Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• Read through the instructions carefully before using the appliance for the first time. Safeguard them for future reference.
• This vacuum cleaner requires a certain amount of maintenance if it is to function properly.
• This appliance has been designed for indoors and domestic use only. It must only be used in accordance with these instructions. The manufacturer will not be held responsible for any damage caused by improper or misuse of the appliance.
• Connect it only to the voltage stated on the characteristics plate.
• Never leave the vacuum cleaner unattended while it is running.
• Do not attempt to charge the appliance at temperatures below 0^ or above 40^ .
• The appliance cannot aspirating an aqueous solution that may contain foaming detergent.
• Do not dismantle the vacuum cleaner while the motor is still operating.
• Never use the vacuum cleaner without the filter.
• Always keep the openings clean and prevent dust or dirt from blocking the air passage. Do not put any objects into openings. Do not use with any opening blocked until the obstacles removed.
• Never use the vacuum cleaner to suck up explosive, flammable or combustible liquids nor anything that may be still burning such as cigarette butts or ash/cinders. Never vacuum up toxic materials, organic solvents or acids.
• Never vacuum up solid, sharp or piercing objects that may damage the filter.
• Do not use wet hands to operate the cleaner, plug or unplug the charger.
• Do not leave the plug hanging freely.
• Do not expose the vacuum cleaner to outdoor weather conditions, moisture or heat.
• Do not leave the appliance close to heat sources like ovens or heaters, nor allow the cable to come into contact with hot surfaces.
• Do not clean any parts in a dishwasher.
• Do not use a wet cloth of thinner, benzene or other volatile substance to clean the unit.
• Do not immerse the motor housing, cable or charger in water or any other liquid.
• Do not take the batteries out of their compartment, excluding disposal conditions.
• Do not switch the appliance on if either the cable or plug are damaged, if it can be detected that it is not operating correctly or if it has suffered any type of damage.
• Any type of repair work other than that stated in instruction manual must be done exclusively by an Authorized Technical Service Center.
• The appliance is only to be used with the power supply unit provided with the appliance.
• The appliance must only be supplied at safety extra low voltage corresponding to the marking on the appliance.
• The appliance must be disconnected from the supply mains when removing the battery.

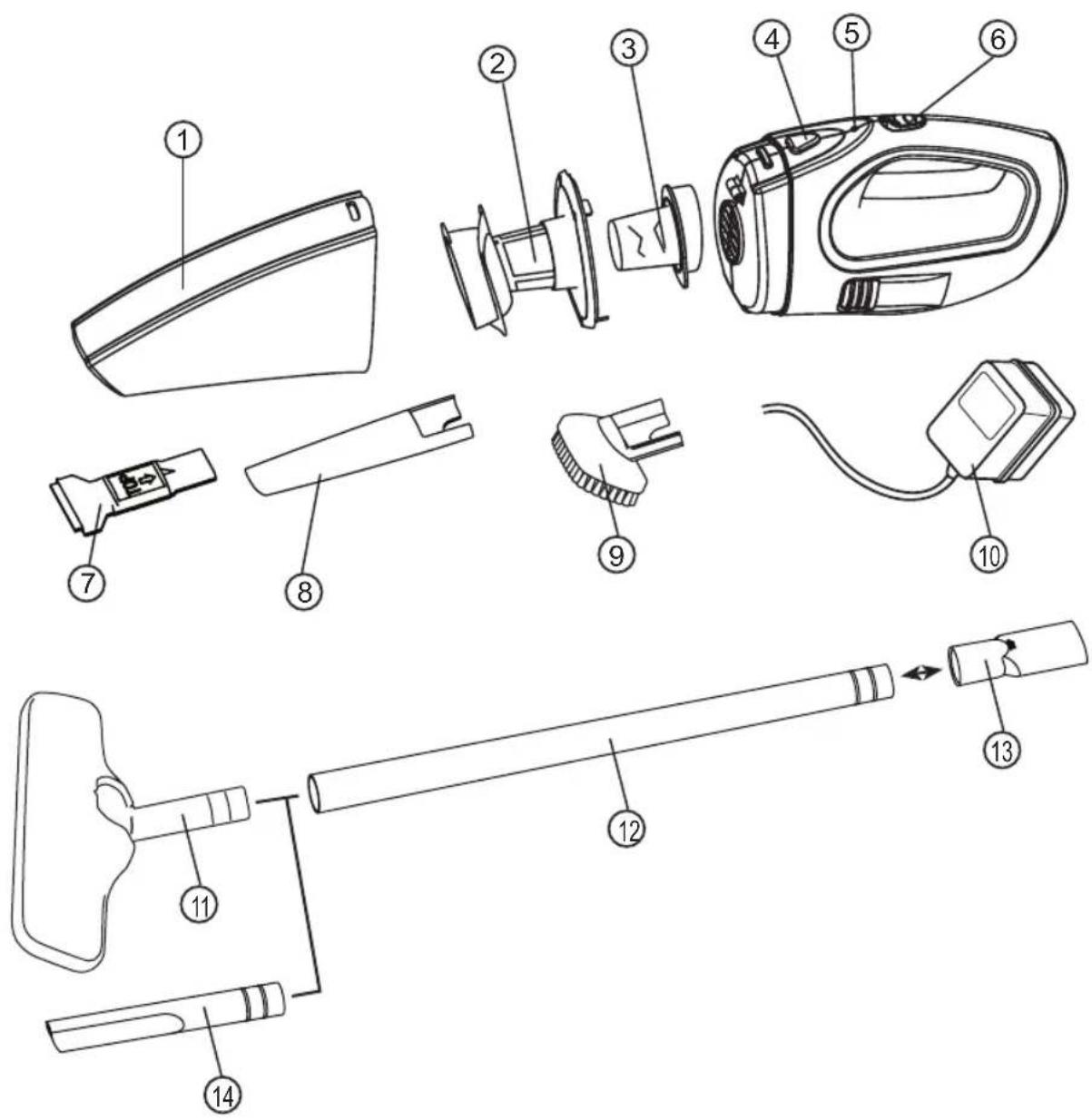

PARTS

1. Dust container
2. Cyclone filter
3. Filter
4. Dust container release button
5. Charging indicator
6. On/Off switch

7. Squeegee

8. Crevice tool (for handheld)

9. Carpet brush
10. Adaptor
11. Floor brush
12. Extension tube
13. Connector
14. Crevice tool (for stickvac)

INSTRUCTION FOR USE

Before using your vacuum cleaner for the first time, allow the battery to charge for approx. 14-16 hours.

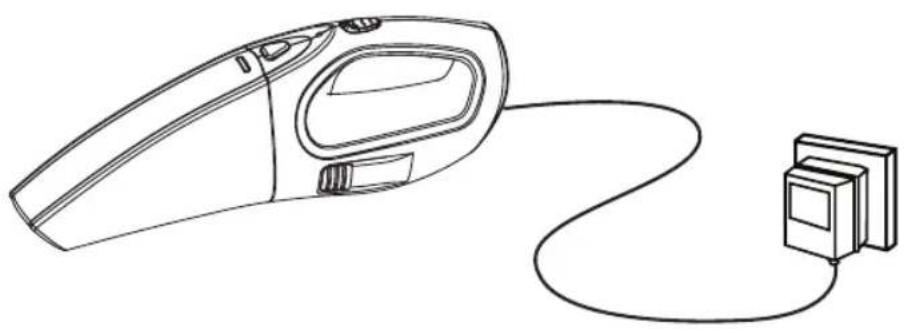

CHARGING

The adaptor should only be connected to a 200-240V\~50/60Hz power supply. Insert the adaptor plug into the vacuum cleaner. The charging indicator will comes on and recharging will start. The charging indicator remains light, even when the battery is fully recharged.

Always keep your vacuum cleaner in charging condition when not in use, in order to ensure full cleaning capacity.

NOTE: Charging should not be carried out when the ambient temperature is below 0^ or above +40^ . The charger will become warm during use. This is perfectly normal.

Line drawing of a handheld vacuum cleaner connected to a power cord (no text or symbols)

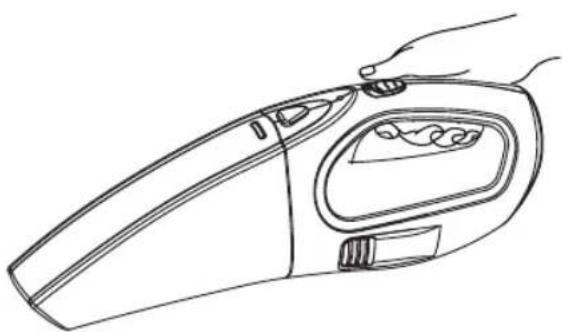

USING THE VACUUM CLEANER

Unplug the adaptor and push the on/off switch to start it. When the switch is released, the vacuum cleaner will stop. Detached the unit from the charging base before operate.

Line drawing of a hand holding a small electronic device with ports and a screen (no text or symbols)

ACCESSORIES

This appliance comes with the following tools:

• Carpet brush - for cleaning delicate surfaces
  • Squeegee - for cleaning liquid
• Crevice tool (for handheld) - for cleaning hard-to-reach places
• Crevice tool (for stickvac) - for cleaning hard-to-reach places

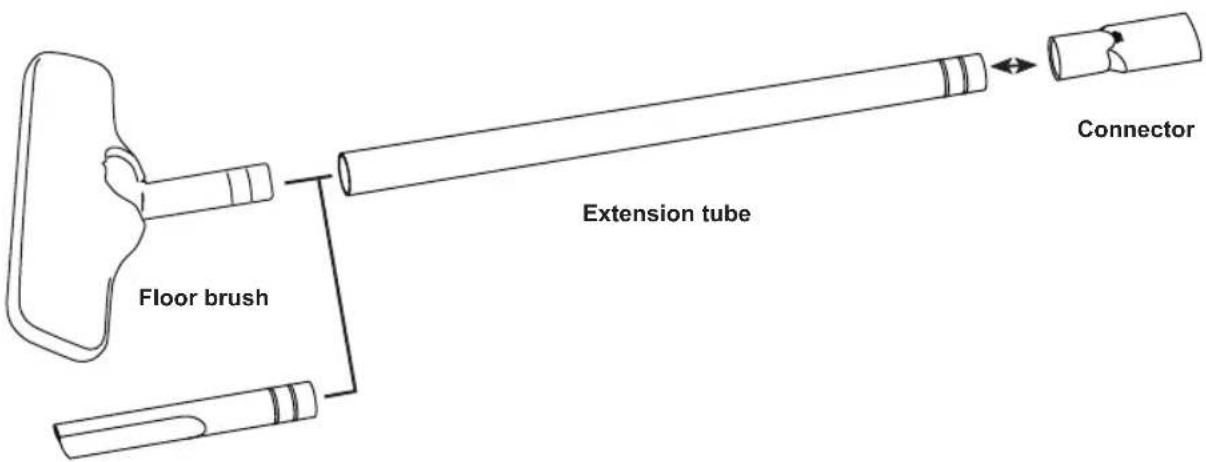

• Extension tube - for extension
  • Floor brush - for cleaning delicate surfaces
• Connector - for connection

Carpet brush Squeegee Crevice tool

(for handheld)

Crevice tool (for stickvac)

WET VACUUM CLEANING

1. Empty the dust container of all dry dust.
2. Ensure the filters assembly installed.
3. Insert the squeegee in front of the dust container.
4. During use, pointing the head of vacuum cleaner to downwards.
5. After use, empty the dust container immediately.

CARE AND MAINTENANCE

The performance of the cleaner is dependent on the condition of the dust container and the filter. The dust container should be emptied and cleaned regularly.

Cleaning the dust filter and dust container:

• Check that the vacuum cleaner is switched off.
• Hold the vacuum cleaner with the nozzle pointing downwards.
• Press the release button, and unfasten the dust container from the motor unit.
• Dismantle the filter and liquid separator from the dust container.
  • Empty the dust container.
• If necessary, wash the filter in lukewarm soapy water, rinsing thoroughly afterwards.
• Make sure that the filter is completely dry before reinserting it in position.

Note: Your vacuum cleaner's plastic part should not be machine washed.

PRODUCT SPECIFICATIONS:

MODEL NO.: GVC14X

VOLTAGE : 14.4V DC

BATTERY TYPE : 14.4V Rechargeable Battery

CHARGER RATING : 200-240V\~50/60Hz

22V, 200mA DC

CHARGING TIME : 14 - 16 hours

Line drawing of a hand washing machine connected to a power cord (no text or symbols)

使用吸塵機

Line drawing of a hand holding a small electronic device with ports and buttons (no text or symbols)

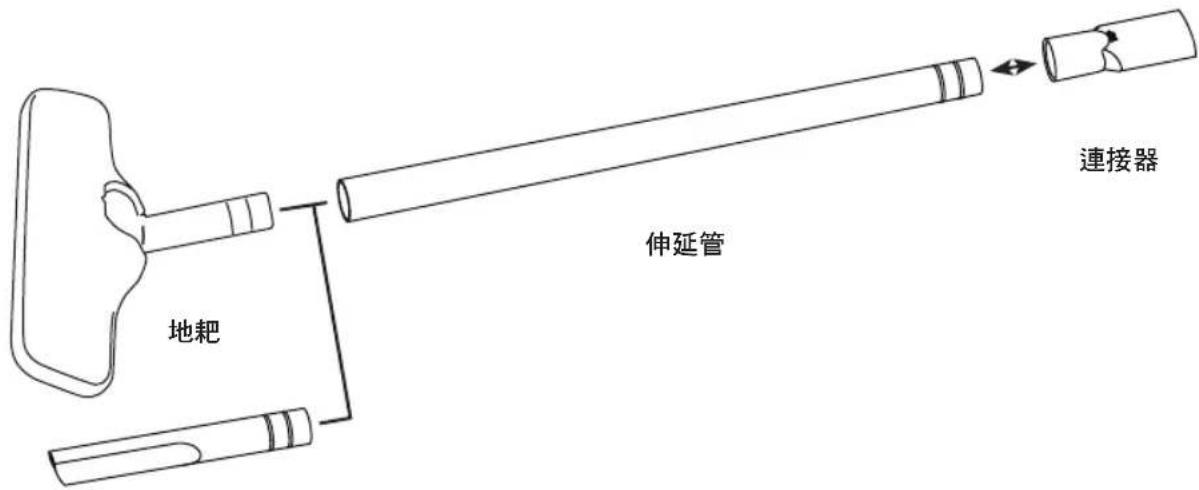

配件

本產品附有以下工具：

地毯塵刷 - 用於清潔細微表面。

水刮 - 用於清潔液體。

Simple line drawing of a rectangular object with a small square cutout on top (no text or symbols)

地毯塵刷 縫隙吸咀 (手提式適用)
