SL159R - Vacuum Cleaner VOX - Free user manual and instructions

Product Type	Vacuum Cleaner
Brand	VOX
Model	SL159R
Dimensions (L x W x H)	300 x 250 x 200 mm
Weight	4.5 kg
Power Cord Length	5 m
Dust Capacity	1.5 L
Power Consumption	1200 W
Suction Power	250 AW
Filter Type	HEPA
Noise Level	78 dB
Functions	Dry vacuuming, crevice and brush tools
Maintenance	Empty dust container, clean filters regularly
Safety Features	Overheat protection, automatic shut-off
Spare Parts	Replacement filters, brush roll, hose
Energy Class	A
Bagless Design	Yes
Warranty	2 years
Included Accessories	Crevice tool, brush tool

Frequently Asked Questions - SL159R VOX

How do I clean the filter?

Turn off and unplug the vacuum. Remove the dust container, then take out the HEPA filter. Tap it gently to remove dust, or rinse it with water if washable. Let it dry completely before reinstalling.

What should I do if suction power is low?

Check if the dust container is full and empty it. Also inspect the filter for clogs and clean or replace it. Ensure the hose and brush roll are not blocked.

How often should I empty the dust container?

Empty the dust container after each use or when it reaches the MAX fill line. Regular emptying maintains optimal suction performance.

Can I vacuum liquids with this vacuum?

No, this vacuum is designed for dry vacuuming only. Using it on liquids can damage the motor and void the warranty.

How do I replace the brush roll?

Unplug the vacuum. Remove the brush roll cover (usually with a screwdriver). Lift out the old brush roll and remove any tangled hair. Insert the new brush roll and secure the cover.

Why does the vacuum overheat and shut off?

This is a safety feature to prevent damage. Common causes: clogged filters, full dust container, or blocked hose. Clean the affected parts and let the vacuum cool for 30 minutes before restarting.

Where can I find the model number?

The model number is located on the rating label on the back or bottom of the vacuum. It is labeled as SL159R.

How do I reset the overheating protection?

After the vacuum cools down, simply switch it off and then switch it back on. The protection will reset automatically. If it continues to trip, inspect for blockages.

What type of filter does the SL159R use?

The vacuum uses a HEPA filter that traps fine dust and allergens. It is washable and should be cleaned every 3 months. Replace it once a year or if damaged.

Is the VOX SL159R bagless?

Yes, it is a bagless vacuum with a transparent dust container for easy emptying. No need to buy replacement bags.

USER MANUAL SL159R VOX

SL-159

OPERATING INSTRUCTIONS VACUUM CLEANER MANUALE DI ISTRUZIONI ASPIRAPOLVERE BEDIENUNGSANLEITUNG STAUBSAUGER ИНСТРУКЦИЯ ПО ЭКСПЛУАТАЦИИ ПЫЛЕСОС UPUTSTVO ZA UPOTREBU USISIVAČ MANUAL DE USUARIO ASPIRADORA MANUAL DO USUÁRIO ASPIRADOR ΕΓΧΕΙΡΙΔΙΟ ΧΡΗΣΤΗ ΗΛΕΚΤΡΙΚΗ ΣΚΟΥΠΑ NAVODILA ZA UPORABO SESALNIK UPUTE ZA UPORABU USISAVAČ

INSTRUCTION MANUAL

VACUUM CLEANER

SL-159

Line drawing of a vacuum cleaner device with no text or symbols

Please save and read this instruction manual carefully before use.

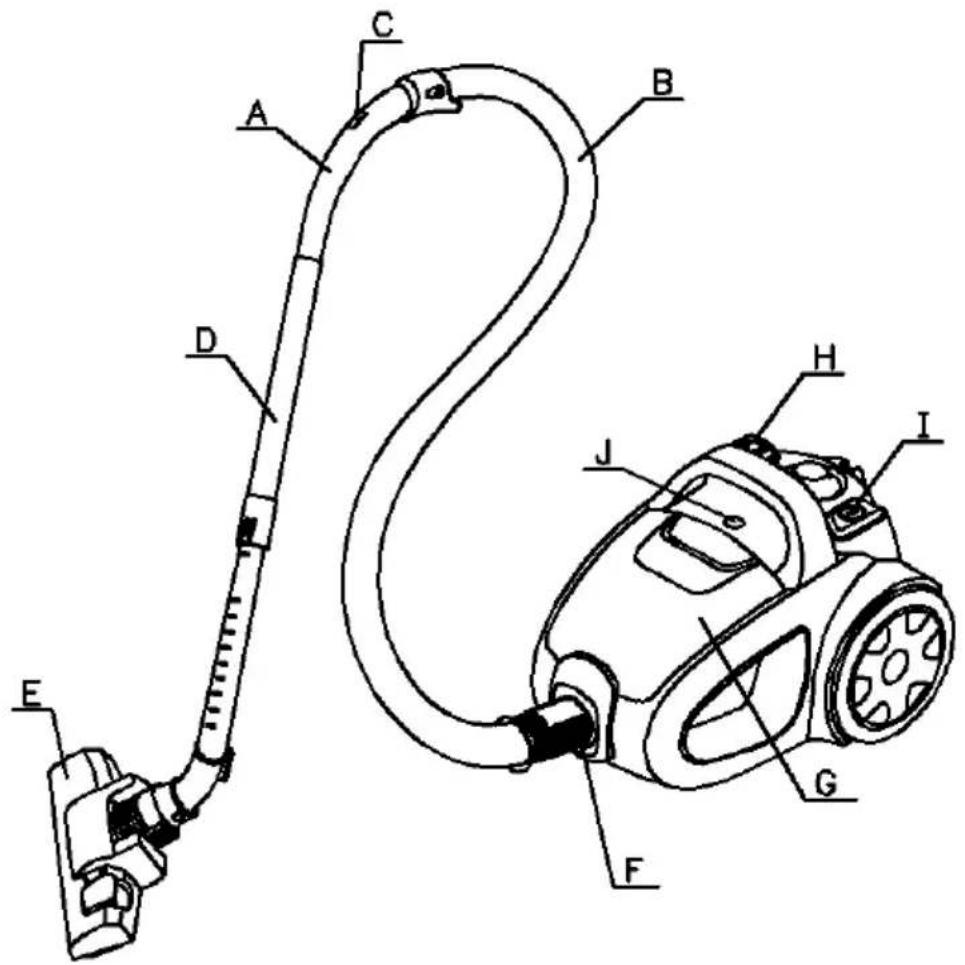

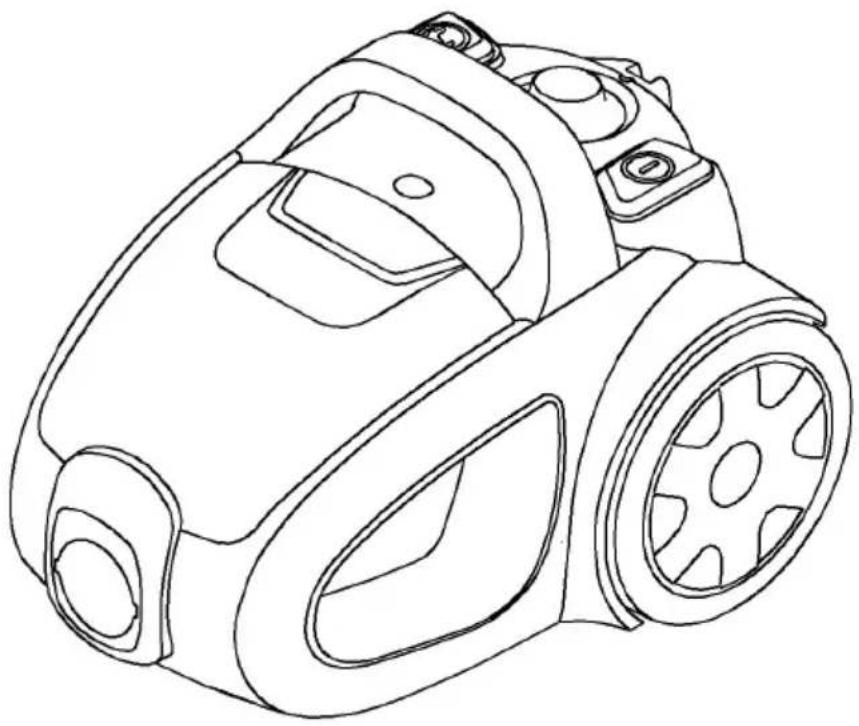

DESCRIPTION

A. Handle
B. Hose
C. Wind-force adjuster
D. Tube
E. Floor brush

F. Hose connector
G. Dustbin
H. Power switch
I. Cord rewind button
J. Light indicator

IMPORTANT

1. Read this instruction booklet carefully.
2. Before using the appliance, check if the mains power voltage corresponds to the voltage shown on the rating plate.
3. The appliance should be connected to a correctly-earthed 10A power socket.
4. Always remove the plug from the power socket when the appliance is not in use and before cleaning or maintenance.
5. Always remove the plug from the power socket before opening the appliance.
6. Never use methylated spirits or other solvents for cleaning the appliance.
7. Do not use the appliance to vacuum liquids.
8. Never leave the appliance unattended when it is switched on. Keep the appliance out of the reach of children or infirm.
9. This appliance is only for household use. Use as described in this instruction booklet.
10. Do not switch the appliance on if it appears to be faulty in any way.
11. For repairing or accessories, contact your dealer or an authorized Service Center.
12. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
13. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
14. Keep the appliance and its cord out of reach of children younger than 8 years.
15. Do not remove the plug from the socket by pulling the cable or the appliance itself.
16. Do not use the appliance to vacuum lighted matches, cigarette ends and hot ash.

Do not remove the plug from the socket by pulling the cable or the appliance itself

Do not run the appliance over the power cable

Do not use the appliance to vacuum lighted matches, cigarette ends or hot ash.

Line drawing of a vacuum cleaner with a cross mark and a box, no text or symbols present

Top-down schematic of a vehicle head with no visible text or symbols

Simple line drawing of a cigarette emitting smoke with a crossed X mark (no text or symbols)

Do not use the appliance on wet surfaces.

Do not obstruct the air intake or outlet vent.

Do not use the appliance to vacuum needles, drawing pins or strings.

Simple line drawing of a person sitting on a surface with a cross mark, no text or symbols present

Simple line drawing of a medical device with a cross mark and a tool, no text or symbols present.

Abstract line drawing with intersecting lines and symbols (no readable text or labels)

ASSEMBLING THE VACUUM CLEANER

Removing the flexible tube

Remove the plug from the power socket. To release the flexible Tube, press the button on the end of the tube and pull the tube firmly from the air intake duct.

Line drawing of a hand inserting a plug into a vacuum cleaner (no text or symbols)

Fitting the extension tubes and accessories

Fitting the extension tube to the handle

Fitting the extension tubes

Fitting the accessories to the extension tube

Illustration of a hand holding a tool with a curved arrow indicating motion (no text or symbols)

Line drawing of a hand holding a tool, no text or symbols present

Line drawing of a hand holding a small object near a smartphone (no text or symbols)

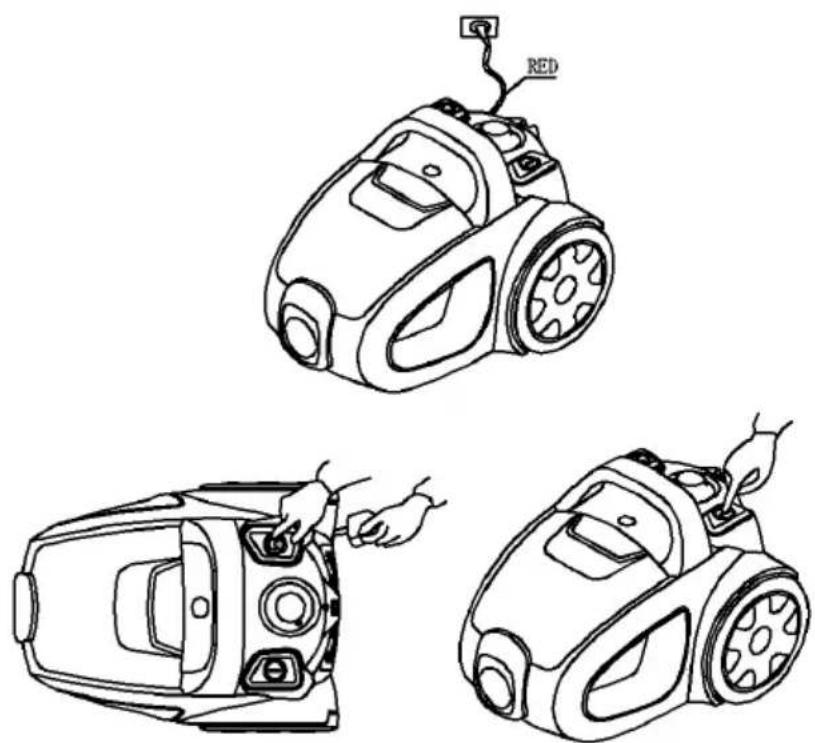

INSTRUCTION FOR USE

1. Before using the appliance, unwind length of cable and insert the plug into the power socket. Do not extend the cable beyond the RED mark.

To rewind the power cable, press the rewind button with one hand and guide the other hand to ensure that it does not whip causing damage

1. Press the ON/OFF button to switch the appliance on.

Line drawings of three different vacuum cleaner designs with one being adjusted for assembly (no text or symbols present)

Using the cleaning accessories

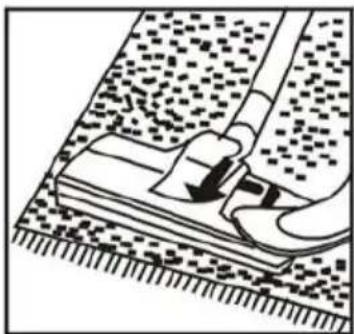

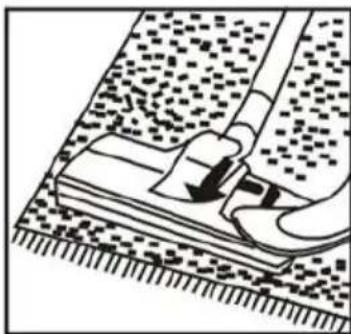

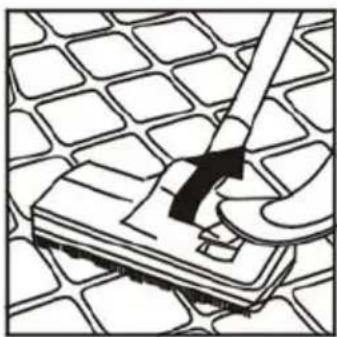

. Dual-position carpet / floor brush.

Pos. 1: bristles extended for hard floors

Pos. 2: bristles retracted for carpets

Diagram of a hand using a tool to press or install a component on a grid-patterned surface (no text or symbols)

Illustration of a person using a tool on a tiled floor, no text or symbols present

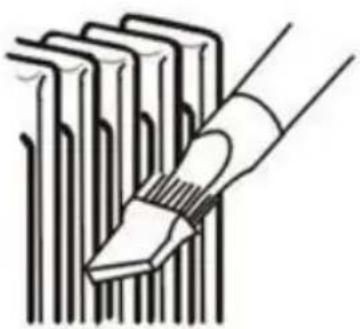

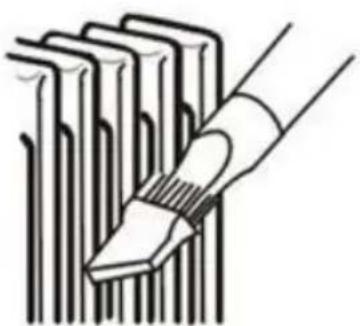

Narrow nozzle

for cleaning radiators: corners, edges, drawers etc.

Illustration of a tool interacting with stacked rectangular objects (no text or symbols)

Small brush

for cleaning curtains, shelves, books, inlaid furniture, lamps and other delicate objects.

Simple line drawing of a hand holding a device with a handle, no text or symbols present

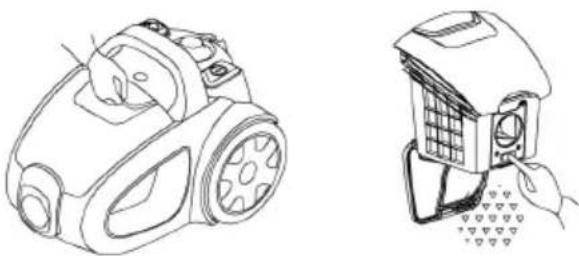

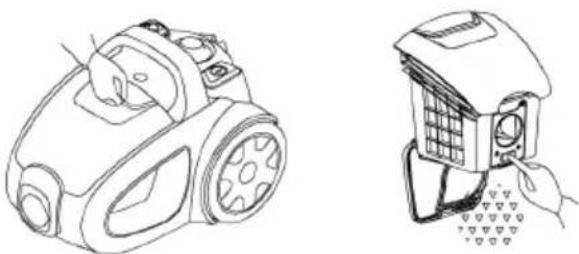

Clean the dust

1. Lift the front cover and take out the dust cup.
2. Take out the foam from the dust cup.
3. Clean off the dust inside the dust cup.

Line drawings of two different vacuum cleaner designs, one with handle and gear, the other with hand cleaning and spray (no text or symbols)

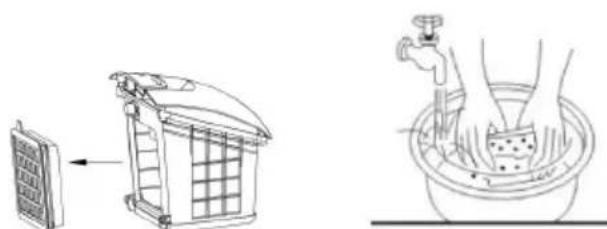

Clean the foam

1. Take out the foam when it gets dirty.
2. Clean it in water and dry naturally before next use.

Illustration showing a hand washing a cup with a water tap, alongside a device with a grid panel (no text or symbols)

DISPOSAL

Environmental Protection

Waste electrical production should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice.

MANUALE DI ISTRUZIONI ASPIRAPOLVERE

SL-159

Line drawing of a vacuum cleaner device with no text or symbols

DESCRIZIONE

A. Maniglia

B. Tubo flessibile

Line drawing of a vacuum cleaner with a cross symbol and a flame inside, next to a box (no text or symbols)

Top-down schematic of a vehicle head with no visible text or symbols

Simple line drawing of a cigarette emitting smoke with a crossed-out arrow (no text or symbols)

Simple line drawing of a person sitting on a surface with a cross mark, no text or symbols present

Simple line drawing of a medical device with a cross mark and a tool, no text or symbols present.

Abstract line drawing with intersecting lines and symbols (no readable text or labels)

MONTAGGIO

Line drawing of a hand inserting a small component into a vacuum cleaner (no text or symbols)

Illustration of a hand holding a tool with an arrow indicating motion (no text or symbols)

Line drawing of a hand holding a tool, no text or symbols present

Line drawing of a hand holding a small object near a device (no text or symbols)

ISTRUZIONI PER L'USO

Line drawings of three different vacuum cleaner designs with one being adjusted for assembly (no text or symbols present)

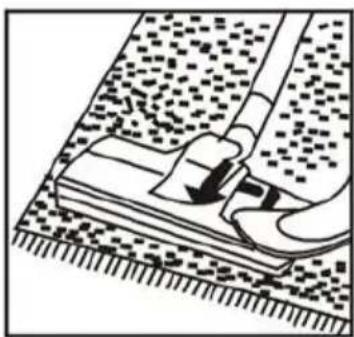

Uso degli accessori

Diagram of a hand using a tool to press or install a component on a grid-patterned surface (no text or symbols)

Illustration of a person using a tool on a tiled floor, no text or symbols present

Ugello stretto

Illustration of a hand holding a tool over a stack of vertical bars (no text or symbols)

Simple line drawing of a hand holding a device with a handle, no text or symbols present

Pulire la polvere

Line drawings of two different vacuum cleaner designs, one with a handle and circular vent, the other with a handle and spout (no text or symbols)

Pulire la schiuma

Illustration showing a hand washing a cup with a water tap, alongside a device with a grid panel (no text or symbols)

SMALTIMENTO

Line drawing of a vacuum cleaner device with no text or symbols

Simple line drawing of a vacuum cleaner with a cross mark and a box, no text or symbols present.

Simple line drawing of a vehicle head with no text or symbols

Simple line drawing of a cigarette emitting smoke with a crossed-out arrow (no text or symbols)

Simple line drawing of a person sitting on a surface with a cross mark, no text or symbols present

Simple line drawing of a medical device with a cross mark and a tool, no text or symbols present.

Abstract line drawing with intersecting lines and symbols (no readable text or labels)

Line drawing of a hand inserting a plug into a vacuum cleaner (no text or symbols)

Illustration of a hand holding a tool with an arrow indicating motion (no text or symbols)

Line drawing of a hand holding a pen or tool, no text or symbols present

Line drawing of a hand holding a small object next to a device (no text or symbols)

BENUTZEN SIE DAS GERÄT

Line drawings of three different vacuum cleaner designs with one being adjusted for assembly (no text or symbols present)

ZUBEHÖR

Diagram of a mechanical component being inserted into a grid-patterned surface (no text or symbols)

Illustration of a person using a tool on a tiled floor, no text or symbols present

Illustration of a hand holding a tool interacting with stacked rectangular objects (no text or symbols visible)

Simple line drawing of a person holding a handheld device with a handle, no text or symbols present

Line drawings of a vacuum cleaner and its internal component (no text or symbols)

Illustration showing a hand washing a cup with a water tap, alongside a device with a grid panel (no text or symbols)

ENTSORGUNG

Line drawing of a vacuum cleaner device with no text or symbols

ОПИСАНИЕ

Simple line drawing of a vacuum cleaner with a cross mark and a box, no text or symbols present.

Top-down schematic of a vehicle head with a cross mark and power outlet (no text or symbols)

Simple line drawing of a cigarette emitting smoke with a crossed-out arrow (no text or symbols)

Simple line drawing of a person sitting on a surface with a cross mark, no text or symbols present

Illustration of a hand holding a syringe and a device with a crossed-out black X mark (no text or symbols)

Abstract line drawing with intersecting lines and symbols (no readable text or labels)

СБОРКА УСТРОЙСТВА

Снятие гибкой трубы

Line drawing of a hand inserting a small component into a vacuum cleaner (no text or symbols)

Illustration of a hand holding a tool with an arrow indicating motion (no text or symbols)

Line drawing of a hand holding a tool, no text or symbols present

Line drawing of a hand using a tool to interact with a device (no text or symbols present)

Line drawings of three different vacuum cleaner designs with one being adjusted for assembly (no text or symbols present)

ПРИНАДЛЕЖНОСТИ

Diagram of a hand using a tool to press or install a component on a grid-patterned surface (no text or symbols)

Illustration of a person using a tool on a tiled floor, no text or symbols present

Illustration of a tool interacting with stacked rectangular objects (no text or symbols)

Simple line drawing of a hand holding a device with a handle, no text or symbols present

Line drawings of two different vacuum cleaner designs, one with a handle and circular vent, the other with a handle and spout (no text or symbols)

Illustration showing a hand washing a basin with a water tap, alongside a device with a grid panel (no text or symbols)

УТИЛИЗАЦИЯ

Line drawing of a vacuum cleaner device with no text or symbols

OPIS

A. Ručka

B. Crevo

C. Regulator snage vazduha

D. Cev

E. Četka za čišćenje poda

F. Crevo za povezivanje

G. Rezervoar za prašinu

H. Prekidač

I. Prekidač za vraćanje kabla u kućište

J. Svetlosni indikator

VAŽNE INFORMACIJE

Line drawing of a vacuum cleaner with a cross mark and a battery (no text or symbols)

Top-down line drawing of a car's front panel with no text or symbols

Simple line drawing of a cigarette emitting smoke with a 'X' mark (no text or symbols)

Nemojte koristiti uređaj na mokrim površinama.

Ne sprečavajte slobodan protok vazduha kroz usisivač.

Nemojte usisavati igle, eksere i druge oštre predmete.

Simple line drawing of a container with a cross mark, no text or symbols present

Simple line drawing of a mechanical device with a cross mark and a tool, no text or symbols present.

Abstract line drawing with intersecting lines and symbols (no readable text or labels)

SASTAVLJANJE USISIVAČA

Line drawing of a hand inserting a component into a vacuum cleaner (no text or symbols)

Illustration of a hand holding an object with an arrow indicating motion (no text or symbols)

Line drawing of a hand holding a wrist with a wristpin (no text or symbols)

Line drawing of a hand holding a small electronic device with a probe inserted (no text or symbols)

UPUTSTVO ZA UPOTREBU

Line drawings of three different vacuum cleaner designs with one being adjusted for assembly (no text or symbols present)

Upotreba dodataka za čišćenje

. Dva položaja četke tepih/pod.

Diagram of a tool interacting with a grid-patterned surface (no text or symbols)

Illustration of a person using a tool on a tiled floor, no text or symbols present

Uzani usisni dodatak

Za čišćenje radijatora, ćoškova, ivica, fioka itd. lampi i drugih osetljivih predmeta.

Mala četka

Illustration of a hand holding a tool over stacked rectangular objects (no text or symbols)

Simple line drawing of a hand holding a tool, no text or symbols present

Čišćenje usisane prašine

1. Podignite poklopac i uklonite rezervoar za prašinu
2. Uklonite mekani penasti dodatak sa poklopca.
3. Uklonite prašinu unutar rezervoara.

Line drawings of two different vacuum cleaner designs, one with a handle and circular components, the other with a handle and spout (no text or symbols)

Čišćenje penastog filtera

Illustration showing a hand washing a cup with a water tap, alongside a simple diagram of a trash bin and a hand washing a container (no text or symbols present)

ODLAGANJE

Line drawing of a vacuum cleaner device with no text or symbols

DESCRIPCIÓN

A. Mango

B. Manguera

Line drawing of a vacuum cleaner with a cross mark and a box nearby (no text or symbols)

Top-down schematic of a vehicle head with no visible text or symbols

Simple line drawing of a cigarette emitting smoke with a crossed X mark (no text or symbols)

Simple line drawing of a bucket with a cross mark on the surface (no text or symbols)

Simple line drawing of a medical device with a cross mark and a tool (no text or symbols)

Abstract line drawing with intersecting lines and symbols (no readable text or labels)

MONTAJE

Line drawing of a hand inserting a plug into a vacuum cleaner (no text or symbols)

Illustration of a hand holding a pen or tool with a curved arrow indicating motion (no text or symbols)

Line drawing of a hand holding a tool, no text or symbols present

Line drawing of a hand holding a small object near a device (no text or symbols)

INSTRUCCIONES DE USO

Line drawings of three different vacuum cleaner designs with labeled parts (no text or symbols present)

Accesorios

Diagram of a mechanical component being inserted into a grid-patterned surface (no text or symbols)

Illustration of a person using a tool to lift a shoe on a textured surface (no text or symbols)

Illustration of a hand holding a tool interacting with stacked rectangular objects (no text or symbols visible)

Simple line drawing of a person holding a handheld device with a handle, no text or symbols present

Limpiar el polvo

Line drawings of two different vacuum cleaner designs, one with a handle and circular vent, the other with a handle and spout (no text or symbols)

Limpiar la espuma

Illustration showing a hand washing a cup with a water tap, alongside a device with a grid panel (no text or symbols)

ELIMINACIÓN

Line drawing of a vacuum cleaner device with no text or symbols

DESCRIÇÃO

Line drawing of a vacuum cleaner with a cross mark and smokestack emitting vapor (no text or symbols)

Top-down line drawing of a vehicle head with a cross mark and battery (no text or symbols)

Simple line drawing of a cigarette emitting smoke with a crossed X mark (no text or symbols)

Simple line drawing of a bucket with a cross mark on the surface (no text or symbols)

Simple line drawing of a device with a cross mark and a syringe, no text or symbols present.

Abstract line drawing with intersecting lines and symbols (no readable text or labels)

MONTAGEM

Line drawing of a hand inserting a small component into a vacuum cleaner (no text or symbols)

Illustration of a hand holding a tool with an arrow indicating motion (no text or symbols)

Line drawing of a hand holding a small object with a handle, no text or symbols present

Line drawing of a hand holding a small object near a smartphone (no text or symbols)

INSTRUÇÕES DE USO

Line drawings of three different vacuum cleaner designs with labeled parts (no text or symbols beyond 'RED' label)

ACCESSÓRIOS

Diagram of a mechanical component pressing into a grid-patterned surface (no text or symbols)

Illustration of a person using a tool on a tiled floor, no text or symbols present

Bocal estreito (limpeza de radiadores, esquinas, bordas, gavetas etc)

Illustration of a hand holding a tool interacting with stacked rectangular objects (no text or symbols visible)

Simple line drawing of a hand holding a device with a handle, no text or symbols present

Limpe o pó

Line drawings of two different vacuum cleaner designs, one with a handle and circular vent, the other with a handle and spout (no text or symbols)

Limpe a espuma

Illustration showing a hand washing a basin with a water tap, alongside a device with a grid panel (no text or symbols)

ELIMINAÇÃO

Line drawing of a vacuum cleaner device with no text or symbols

ПЕРИГРАФН

Simple line drawing of a vacuum cleaner with a cross mark and a box, no text or symbols present.

Top-down line drawing of a vehicle head with a black X mark and cable, no text or symbols present

Simple line drawing of a cigarette emitting smoke with a crossed X mark (no text or symbols)

Simple line drawing of a person sitting on a surface with a cross mark, no text or symbols present

Simple line drawing of a mechanical device with a cross mark and a tool, no text or symbols present.

Abstract line drawing with intersecting lines and symbols (no readable text or labels)

ΣΥΝΑΡΜΟΛΟΓΗΣΗ

Line drawing of a hand inserting a small component into a vacuum cleaner (no text or symbols)

Illustration of a hand holding a tool with an arrow indicating motion (no text or symbols)

Line drawing of a hand holding a tool, no text or symbols present

Line drawing of a hand holding a small object near a device (no text or symbols)

ΟΔΗΓΙΕΣ ΧΡΗΣΗΣ

Line drawings of three different vacuum cleaner designs with one being adjusted for assembly (no text or symbols present)

ΑΞΕΣΟΥΑΡ

Diagram of a mechanical component being inserted into a grid-patterned surface (no text or symbols)

Illustration of a person using a tool on a tiled floor, no text or symbols present

Illustration of a hand holding a tool interacting with stacked rectangular objects (no text or symbols visible)

Simple line drawing of a person holding a handheld device with a handle, no text or symbols present

Line drawings of two different vacuum cleaner designs, one with a handle and circular vent, the other with a handle and spout (no text or symbols)

Illustration showing a hand washing a cup with a water tap, alongside a device with a grid panel (no text or symbols)

ΔΙΑΘΕΣΗ

POMEMBNO

Line drawings of three different types of household appliances, showing front, side, and top views with no text or symbols.

Illustration of a hand using a tool to clean or repair a tiled surface (no text or symbols visible)

Diagram of a mechanical or architectural component with textured ground and no visible text or symbols

Majhna kitača

Illustration of a hand holding a pen over stacked rectangular objects (no text or symbols visible)

Odstranjevanje praha

1. Dvignite sprednji pokrov in odstranite posodo za prah.
2. Odstranite penast vložek iz posode za prah.
3. Odstranite prah iz posode.

Čiščenje pene

1. Kadar se penasti vložek umaže, ga odstranite.
2. Očistite ga z vodo in pustite, da se naravno osuši pred ponovno uporabo.

UPUTE ZA UPORABU

USISAVAČ

SL-159

Line drawing of a vacuum cleaner device with no text or symbols

OPIS

A. Drška
B. Crijevo
C. Regulator snage zraka
D. Cijev
E. Podni čistač

Line drawing of a vacuum cleaner with a cross mark and a battery (no text or symbols)

Top-down line drawing of a car's front panel with no text or symbols

Simple line drawing of a cigarette emitting smoke with a crossed X mark (no text or symbols)

Nemojte koristiti uređaj na mokrim površinama.

Simple line drawing of a person wearing a bucket and holding an object, with a cross mark on the hand (no text or symbols)

Simple line drawing of a device with a cross mark and a tool, no text or symbols present.

Abstract line drawing with intersecting lines and symbols (no readable text or labels)

SASTAVLJANJE USISAVAČA

Line drawing of a hand inserting a component into a vacuum cleaner (no text or symbols)

Illustration of a hand gripping a tool with an arrow indicating motion (no text or symbols)

Line drawing of a hand holding a pen or stylus, no text or symbols present

Line drawing of a hand holding a small object next to a device (no text or symbols)

UPUTE ZA UPORABU

1. Prije uporabe uređaja, odmotajte kabel i uključite utikač u zidnu utičnicu. Nemojte izvlačiti kabel preko CRVENE oznake na njemu.

Da biste izvukli naponski kabel, pritisnite gumb za odmotavanje jednom rukom, a drugom izvlačite kabel kako biste izbjegli uVRTanje.

1. Pritisnite gumb ON/OFF da biste pustili uređaj u rad.

Line drawings of three different vacuum cleaner designs with one being adjusted for installation (no text or symbols present)

Uporaba dodataka za čišćenje

. Dva položaja četke tepih/pod.

Diagram of a tool interacting with a grid-patterned surface, no text or symbols present

Illustration of a person using a foot pushpin on a textured surface (no text or symbols)

Uzani usisni dodatak

Illustration of a hand using a tool to clean or store items (no text or symbols visible)

Simple line drawing of a hand holding a tool, no text or symbols present

Čišćenje usisane prašine

1. Podignite poklopac i uklonite spremnik za prašinu
2. Uklonite mekani pjenasti dodatak sa poklopca.
3. Uklonite prašinu unutar spremnika.

Line drawings of two different vacuum cleaner designs, one with a handle and circular components, the other with a handle and spray bubble (no text or symbols)

Illustration showing a hand washing a cup with a water tap, alongside a simple diagram of a trash bin and a hand washing a container (no text or symbols present)

ODLAGANJE
