OH45F11 - Heating VOX - Free user manual and instructions

Product Type	Fan Heater
Brand	VOX
Model	OH45F11
Dimensions (W x H x D)	20.0 x 25.0 x 15.0 cm
Weight	1.5 kg
Power Supply	220-240 V ~ 50/60 Hz
Power Consumption	2000 W
Heat Settings	2 (Low / High)
Fan Only Mode	Yes
Thermostat	Adjustable
Overheat Protection	Yes
Tip-Over Switch	Yes
Housing Material	Plastic
Color	White / Black
Control Type	Rotary knob
Noise Level	~45 dB
Room Coverage	Up to 20 m²
Maintenance	Clean air inlet/outlet grille with soft cloth
Storage	Store in a cool, dry place
Accessories Included	None

Frequently Asked Questions - OH45F11 VOX

How do I turn on the VOX OH45F11 heater?

Plug the heater into a suitable power outlet, then rotate the control knob to the desired heat setting (Low or High). The fan will start immediately.

What is the maximum power consumption?

The heater consumes a maximum of 2000 W on the high setting.

Can I use the heater in a bathroom?

No, the heater is not designed for humid environments. Use it only in dry indoor areas.

Does the heater have an automatic shut-off?

Yes, it features overheat protection and a tip-over switch that will turn off the heater automatically if it gets too hot or is knocked over.

How do I clean the heater?

Unplug the heater and wait until it cools down. Use a soft cloth to gently clean the air inlet and outlet grilles. Do not use water or chemicals.

Is the heater suitable for overnight use?

While the heater has safety features, it is recommended to not leave it unattended for long periods, especially while sleeping.

What should I do if the heater stops working?

First, check the power supply and ensure the thermostat is set above room temperature. If it still doesn't work, contact VOX customer support.

Can I use an extension cord?

It is advised to plug the heater directly into a wall outlet. If an extension cord is necessary, use a heavy-duty cord rated for at least 2000 W.

How long does the warranty last?

The standard warranty period for VOX heaters is typically 2 years. Check your purchase receipt for details.

Where can I find spare parts?

Spare parts are not commonly available for this model. For repairs, contact authorized VOX service centers.

USER MANUAL OH45F11 VOX

UPUTSTVO ZA UPOTREBU ULJANI RADIJATOR

VOX

ELECTRONICS

OH-45F11

OPERATING INSTRUCTIONS OIL RADIATOR

Usage:

1. There are two indicator light switches; you can adjust them on your requirement.
2. Please make sure that the rated voltage is suitable and the rated electric current is not lower than 10A.
3. When using, turn the temperature switch deasil to the max position and the room temperature will rise higher and higher.
4. If the room temperature is too high during use and you want to lower it, adjust the switch to "middle" or "low" position.
5. During use, the radiator will keep the required temperature, when the room temperature gets to the require temperature, the radiator will stop automatically. When the room temperature is lower than the required, the radiator will start working automatically.
6. Turn off the two power switches at the same time, the indicator light will be off.

Technical parameters:

Model Rated voltage	Rated frequency	Rated power	Fan power	Specification	Protection against electricity category
C45-7 F	230V	50Hz	1500W	300W	7pieces
C45-9F	230V	50Hz	2000W	300W	9pieces
C45-11 F	230V	50Hz	2500W	300W	11pieces

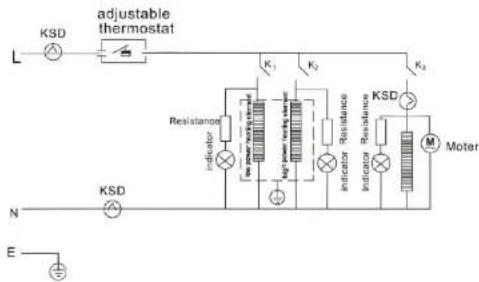

Electric Drawing

-4-

Oil Radiator Instruction Manual

• Please read this manual carefully before using your oil radiator, so that you can use it correctly.
• Please keep this manual handy for future reference.

Brief Introduction of the Product

The Oil Radiators adopt the electron thermal-tube as heating element to heat the oil sealed in. This series of product has the features as high quality and long using life. It is suitable for family and office.

Feature:

1. High quality and long using life.
2. High efficiency heating oil sealed in, quick heating, without any peculiar smell, without noise.
3. There are two switches and change into three different power.
4. There is temperature fuse to prevent overheating.
5. Convenient for use and easy to collect.
6. Truckled design, easy to move.

Notes:

1. The radiator should be placed on flat ground. You must not place it precipitately or tipsily.
2. Please do not use the radiator in the place full of combustible or explosive gas, bathroom or a shower or a swimming pool.
3. For your safety, do not put your hand or stick into the hole or slot of the radiator. (Especially for children).
4. When in use, the distance between the radiator and the wall and any other objects should be above 20cm. Within 1m above its top there should not be

Warning: The radiator must not be located immediately below a socket-outlet.

-1-

any other thing for the gas convection.

1. Please do not use the same electrical outlet with any other appliance.
2. In order to avoid overheating, do not cover the heater.
3. If you want to clean the radiator, please unplug it first.
4. This radiator is filled with a precise quantity of special oil. Repairs requiring opening of the oil container are only to be made by the manufacturer or a service agent who should be contacted if there is an oil leakage.
5. Regulations concerning the disposal of oil when scrapping the appliance have to be followed.
6. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid hazard.
7. If nobody is in, please unplug the appliance.
8. While the radiator is in use, please do not open the door or window continually otherwise it will influence the heating effect.
9. The appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have previously been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must not play with the appliance. Cleaning and user maintenance shall not be done by children without supervision.
10. Children of less than 3 years should be kept away unless continuously supervised.

CAUTION — Some parts of this product can become very hot and cause burns. Particular attention has to be paid when children and vulnerable people are present.

WARNING: This heater is not equipped with a device to control the room temperature. Do not use this heater in small rooms when they are occupied by persons not capable of leaving the room on their own, unless constant supervision is provided.

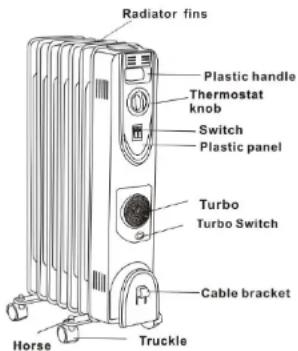

Components:

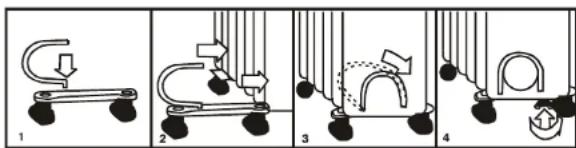

Assembly instructions:

The heater is packaged with the feet unattached. You must attach them before operating the heater.

WARNING: Do not operate without feet attached. Do operate the heater only in upright position (feet on the bottom, controls on the top); any other position could create a hazardous situation.

• Place the radiator body upside-down on a scratch-free location, make sure it is stable and cannot fall.
• Do not store the appliance while it is still hot.
• To attach the castor mounting plate to the radiator body, you should insert the threaded ends of the U bolt in the holes on the castor mounting plate.
• Screw the wing nuts back to the U bolt and fasten the wing nut properly.

VOX

ELECTRONICS

OH-45F11

UPUTSTVO ZA UPOTREBU ULJANI RADIJATOR

Upotreba:

• Postavite telo radijatora naglavačke na podlogu od npr. kartona, provcrite da je stabilna i da radijator neće pasti.
• Ne skladištite radijator dok se ne ohladi.
• Za montiranje točkića namestite fiksirnu ploču na telo radijatora, ubacite krajeve sa navojima spone u obliku slova u otvore na fiksirnoj ploči za točkiće.
• Navijte navrtnje sa krilcima nazad na sponu u obliku slova U i dobro ih zategnite.

www.voxelectronics.com
