| Product Type | Fan Heater |
| Brand | VOX |
| Model | FH-59 |
| Power | 2000 W |
| Heating Type | Ceramic / Fan-Forced |
| Dimensions (H x W x D) | 25 x 20 x 15 cm |
| Weight | 1.2 kg |
| Power Supply | 220-240 V ~ 50 Hz |
| Functions | Thermostat, Fan Only, Oscillation, Overheat Protection |
| Safety Features | Overheat Auto Shut-Off, Tip-Over Switch |
| Cleaning and Maintenance | Unplug and wipe with a dry cloth; clean air inlet grille regularly |
| Spare Parts and Repairability | Contact VOX customer service for spare parts; user-replaceable fuse |
| Energy Efficiency Class | Class A |
Frequently Asked Questions - FH-59 VOX
User questions about FH-59 VOX
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Heating in PDF format for free! Find your manual FH-59 - VOX and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. FH-59 by VOX.
USER MANUAL FH-59 VOX
-
This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must not play with the appliance. Cleaning and user maintenance shall not be done by children without supervision.
-
Children of less than 3 years should be kept away unless continuously supervised.
-
Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided it has been placed or installed in its intended normal operating position and they have previously been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years must not plug in, regulate and clean the appliance or perform user maintenance.
CAUTION — Some parts of this product can become very hot and cause burns. Particular attention has to be paid when children and vulnerable people are present.
Maintenance:
- Please make sure the heater is unplugged before cleaning it.
- Do not use water to wash the radiator, it can be cleaned by a piece of soft damp cloth with a little of neutral detergent. Please do not use other solvent like gasoline.
- The fan heater can be used or stored after being cooled and dried completely.
- If the heater is not in use, please unplug it from the socket and store it in a dry place with a rust-proof poly bag, original packing is favored.
- Heater should be placed flatly or upright, otherwise the filament in the halogen tube can break when it is placed vertically.
Packing List:
| NO | NAME | QUANTITY |
| 1 | BODY OF HEATER | 1 PC |
| 3 | INSTRUCTION | 1 PC |
Fan Heater Instruction Manual
- Please read this manual carefully before using your fan heater, so that you can use it correctly.
- Please keep this manual handy for future reference.
Brief Introduction of the Product:
The fan heater of these series adopts heating technology of resistance wire, it has a high heating efficiency, centralized heat and extensive usage.

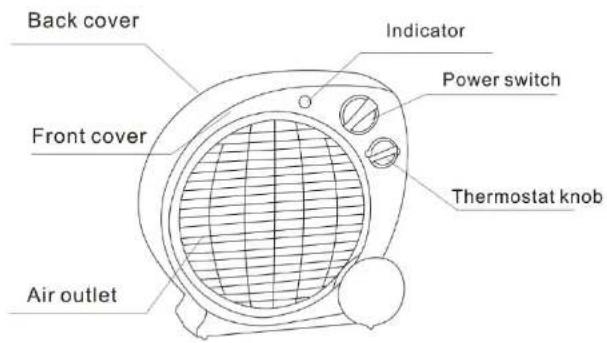

The Components:
Technical parameters:
| Model | Rated Power | Rated Voltage | Frequency | Heating Element |
| N59 | 2000W | 230V~ | 50Hz | Resistance wire |
Usage:
- Please check before you use:
A: The heating wire and electric wire must not be broken.
B: To prevent any accident, please do not use the socket lower than 10A. - If you want to use the fan heater, you must first put the plug-in, and then press the one switch, the power is 1000W, as soon as the indicator is red, the fan heater starts working. Add another power switch to the full power of 2000W.
- When in use, you can adjust the thermostat knob to the right position and the temperature will rise higher and higher.
- If the fan heater is not in use, turn the two power switch to its original position and then unplug it.
- If moving the fan heater use the handle on the back of the heater after you have turned off the power switch and unplugged the appliance.

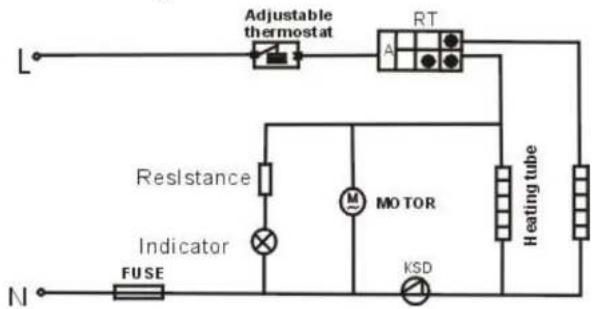

Electric Drawing:
-2-
Notes:
When using any electrical appliance the basic precautions should be followed. Please read the following instructions as they are for your benefit and safety:
- Do not use the heater near the combustibles such as curtains etc., explosive objects, and things easy to be deformed or deteriorate, and where full of dust.
- Do not use the heater in where it can be easily shocked or toppled.
- Do not stem small holes on the heater and insert anything into the appliance. Do not allow children or infirm persons without supervision.
- Do not use this fan heater in the immediate surroundings of a bath, a shower or a swimming pool.
- Do not use the radiator when it is covered.
- Do not plug-in or out instead of turning on or off the power switch.
- Do not use the same socket-outlet with any other big power appliance.
- Please unplug when nobody is nearby.
- There is slight sound when turned on or off, which is normal due to the material expanding when heated and contract when cooled, so do not be worried.
- In case of any malfunction of the heater, please turn off the appliance, unplug it and send immediately to an authorized service agent.
- The used heating wire should be treated in a special way, it has a long using life, please do not use any other heating wire instead of it.
- Do not locate the fan heater immediately below a socket-outlet.
- In order to avoid overheating, do not cover the heater.
- If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similar qualified person in order to avoid a hazard
-3-
VOX
ELECTRONICS
FH-59
UPUTSTVO ZA UPOTREBU GREJALICA
Brand : VOX
Model : FH-59
Category : Heating
