Brand	Heinner
Model	HOH-S13WH
Product Type	Fan Heater
Power Consumption	2000 W
Voltage	220-240 V
Frequency	50 Hz
Heat Settings	2 (low and high)
Thermostat	Adjustable thermostat
Overheat Protection	Yes
Tip-Over Switch	Yes
Dimensions (H x W x D)	50 x 20 x 25 cm
Weight	2.5 kg
Cable Length	1.5 m
Controls	Rotary dial
Color	White
Material	Plastic housing, metal grille
Noise Level	≤ 45 dB
Suitable Room Size	Up to 25 m²
Energy Efficiency Class	A
Warranty	2 years
Includes Manual	Yes

Frequently Asked Questions - HOH-S13WH Heinner

What type of heater is the Heinner HOH-S13WH?

It is a fan heater designed for quick and efficient heating of medium-sized rooms.

How to clean the Heinner HOH-S13WH?

Unplug the heater and let it cool. Use a soft, dry cloth to wipe the exterior. Do not use water or cleaning agents. Vacuum the air intake and outlet grilles gently.

Does it have overheat protection?

Yes, the heater is equipped with automatic overheat protection that shuts it off if the internal temperature exceeds safe limits.

Is there a tip-over switch?

Yes, the unit includes a tip-over safety switch. It will automatically turn off if the heater is accidentally knocked over.

What is the power consumption and heat output?

The maximum power consumption is 2000 W, providing sufficient heat for rooms up to 25 m². It offers two heat settings (low and high).

Can I leave the heater unattended?

It is recommended to never leave the heater unattended while in use. Always unplug it when leaving the room or going to sleep.

How can I adjust the temperature?

The heater has an adjustable thermostat dial. Turn the dial to set the desired room temperature; the heater will cycle on and off to maintain it.

What is the noise level?

The fan operates at a noise level of approximately ≤ 45 dB, which is comparable to a quiet conversation.

How to store the heater when not in use?

Allow the heater to cool completely. Wrap the cord around the cord storage (if available) or loosely coil it. Store in a dry, dust-free place.

Is the thermostat accurate?

The thermostat provides a general room temperature control and may have slight variations. For precise temperature, consider using an external thermostat.

USER MANUAL HOH-S13WH Heinner

White portable electric heater with honeycomb-patterned insulation, no visible text or symbols

Three-panel diagram showing mechanical components with no visible text or symbols

INSTRUCTIUNI DE UTILIZARE

White portable electric heater with honeycomb-patterned insulation, no visible text or symbols

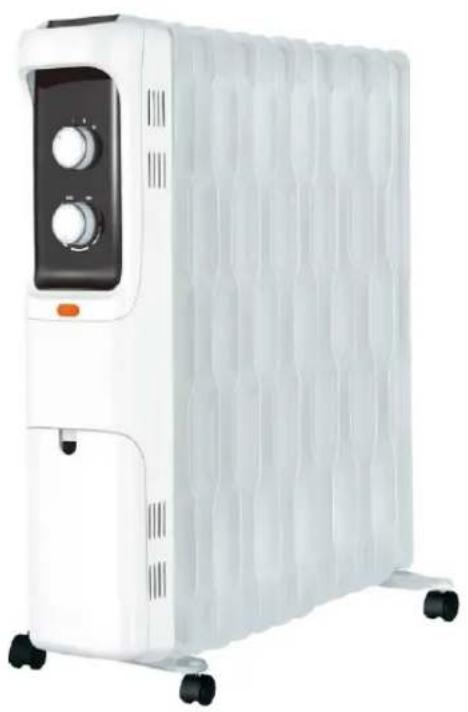

• Oil filled radiator
• Rated Frequency: 220-240 V\~, 50/60Hz
• Power: 2500W

Thank you for purchasing this product!

I. INTRODUCTION

Before using the appliance, please read carefully this instruction manual and keep it for future reference.

This instruction manual is designed to provide you with all required instructions related to the installation, use and maintenance of the appliance.

In order to operate the unit correctly and safety, please read this instruction manual carefully before installation and usage.

II. YOUR PACKAGE CONTAINS

➢ Oil Filled Radiator
User manual
Warranty card

III. SAFETY MEASURES

This product is only suitable for well insulated spaces or occasional use.

READ ALL INSTRUCTIONS BEFORE USING

WARNING: To reduce the risk of fire, electrical shock, or injury to person:

1. The product is for household use only.

2. Connect the appliance to single phase AC supply of the voltage specified on the rating plate.

3. The meaning of figure in marking is "DO NOT COVER".

4. In order to avoid overheating, do not cover the heater.

5. Never leave the heater unattended while it is in use. Always turn the product to the OFF position and unplug it from the electrical outlet when not in use.

6. Extreme caution is necessary when any heater is used by or near children, invalids or elderly person and whenever the heater is left operating and unattended.

7. The heater must not be located immediately below an electrical socket-outlet.

8. Do not run cord under carpeting and do not cover cord with throw rugs, runners or the like. Arrange cord away from traffic area and where it will not be tripped over.

9. Do not operate the heater with a damaged cord or plug, or after the heater malfunctions, has been dropped, or damaged in any manner.

10. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person to avoid a hazard.

11. Avoid the use of an extension cord as this may overheat and cause a risk of fire.

12. Use the heater in a well-ventilated area. Do not insert or allow objects to enter any ventilation or exhaust opening. To prevent a possible fire, do not block air intakes or exhaust openings in any manner. Do not use on soft surfaces, like a bed, where openings may become blocked. Use the heater on flat, dry surfaces only.

13. Do not place this heater near flammable materials, surfaces or substances, as there may be a risk of fire. Keep the above flammable materials, surfaces or substances at least 1m from the front of the product and keep them away from the sides and rear.

14. Do not use the heater in any areas where petrol, paint or other flammable liquids are stored e.g. Garages or workshops as a hot, arcing or sparking parts inside the heater.

15. Don't use this heater in the immediate surroundings of a bath, a shower or a swimming pool. Never locate the heater where it may fall into bathtub or other water container.

16. This heater is hot when in use. To avoid burns and personal injury, do not let bare skin touch hot surfaces. If provided, use handles when moving the product.

17. Be sure that no other appliances are in use on the same electrical circuit as your product as an overload can occur.

18. This heater is filled with a precise quantity of special oil.
19. Repair requiring opening of the oil container are only to be made by the manufacturer or his service agent who should be contacted if there is an oil leakage.
20. Regulations concerning the disposal of oil when scrapping the appliance have to be followed.
21. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
22. Children of less than 3 years should be kept away unless continuously supervised.
23. Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.

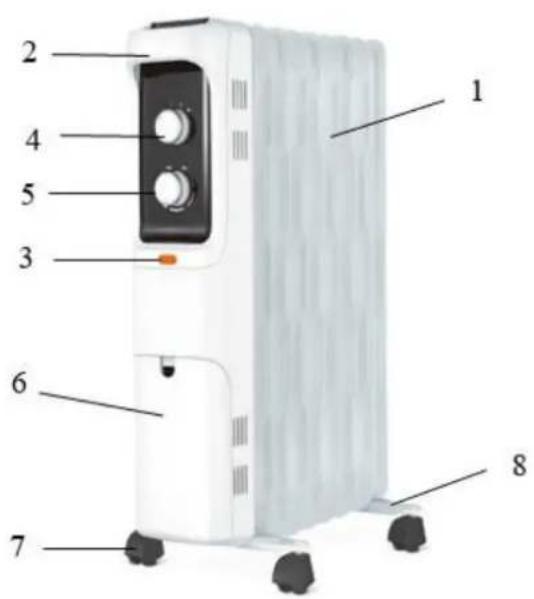

V. PRODUCT DESCRIPTION

1. Radiator fins
2. Carry handle
3. Power indicator light
4. Power switch knob
5. Thermostat knob
6. Box for power cord hidden
7. Castor
8. Castor mounting plate

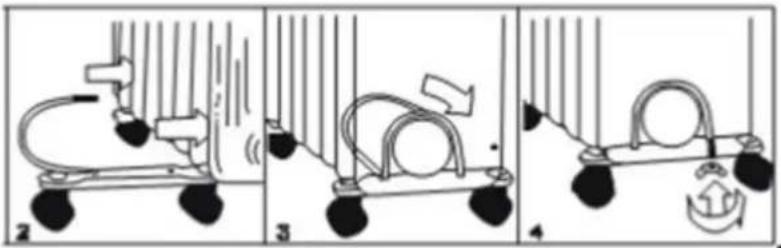

VI. ASSEMBLY

The heater is packaged with the caster wheels unattached. You must attach them before operating the heater.

WARNING: Do not operate without caster wheels attached. Only operate the heater in upright position (wheels on the bottom, controls on the top), any other position could create a hazardous situation.

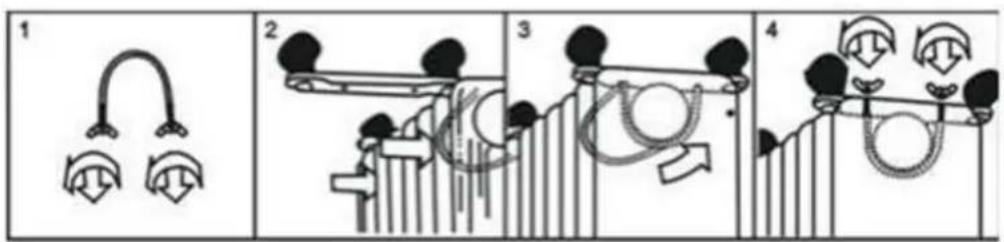

There are two straight castor-mounting plates in the box.

1. Place the radiator body upside-down on a scratch-free location, make sure it is stable and will not fall.
2. Back castor: Screw off the wing nuts from the U-shaped bolt provided, attach the U-shaped bolt to the U-facing flange between last two fins. To attach the castor mounting plate to the radiator body, you should insert the threaded ends of the U bolt in the holes on the castor mounting plate.
3. Front Castor: Put the castor on the front cover against screws.
4. Screw the wing nuts back to the U bolt and fasten the wing nut properly.
   Note: do not over tighten, which may cause the damage of radiator flange.
5. Repeat 2, 3, and 4 on the rear of radiator for mounting of the rear Castors.
   Note: the rear castors must be mounted between the end two fins.

Three-panel diagram showing mechanical components with no visible text or symbols

INSTRUCTIONS FOR USE

1. Before using the heater, make sure that it is on a flat and stable surface. Damage may occur if it is placed on an incline or decline.
2. Set all the controls to OFF position and insert the plug into a socket-outlet with well grounded. Be sure that plug fits firmly.
3. Rotate the thermostat knob clockwise to MAX position and switch the heater on as follow: switch position I for low heat, switch position II for medium heat and III for high heat.
4. When your room reaches the desired temperature, now slowly rotate the thermostat knob counter clockwise until the pilot light goes out. The thermostat can now be left at this setting. As soon as the room temperature has dropped below the set temperature, the unit will switch itself on automatically until the set temperature has been reached again. In this way the room temperature remains constant with the most economical use of electricity.
5. If you want to change the room temperature setting, rotate the thermostat knob clockwise to raise the temperature, or counter clockwise to lower it.
6. This heater includes an overheat protection system that shuts off the heater when parts of the heater are getting excessively hot.
7. To completely shut the heater off, turn all the controls to OFF, and remove plug from the socket-outlet.

VI. MAINTENANCE

1. Always remove the plug from the socket-outlet and allow the radiator to cool down before clean the heater.
2. Wipe radiator with a soft damp (not wet) cloth.

WARNING:

Do not immerse the heater in water.

Do not use any cleaning chemicals such as detergents and abrasives.

Do not allow the interior to get wet as this could create a hazard.

1. To store away the heater, wind the cable round bobbin and store the heater in a clean dry place.
2. In case of malfunction or doubt, do not try to repair the radiator yourself, it may result in a fire hazard or electric shock.

VII. TECHNICAL DATA

Model identifier(s): HOH-S13WH
Item	Symbol	Value	Unit	Item	Unit
Heat output				Type of heat input, for electric storage local space heaters only (select one)
Nominal heat output	P_nom	2.5	kW	manual heat charge control, with integrated thermostat	[no]
Minimum heat output (indicative)	P_min	1.0	kW	manual heat charge control with room and/or outdoor temperature feedback	[no]
Maximum continuous heat output	P_max,c	2.5	kW	electronic heat charge control with room and/or outdoor temperature feedback	[no]
Auxiliary electricity consumption				fan assisted heat output	[no]
At nominal heat output	el_max	N/A	kW	Type of heat output/room temperature control (select one)
At minimum heat output	el_min	N/A	kW	single stage heat output and no room temperature control	[no]
In standby mode	el_SB	0	kW	Two or more manual stages, no room temperature control	[no]
				with mechanic thermostat room temperature control	[yes]
				with electronic room temperature control	[no]
				electronic room temperature control plus day timer	[no]
				electronic room temperature control plus week timer	[no]
				Other control options (multiple selections possible)
				room temperature control, with presence detection	[no]
				room temperature control, with open window detection	[no]
				with distance control option	[no]
				with adaptive start control	[no]
				with working time limitation	[no]
				with black bulb sensor	[no]

Environment friendly disposal

You can help protect the environment!

Please remember to respect the local regulations: hand in the non-working electrical equipment's to an appropriate waste disposal center.

HEINNER is a registered trademark of Network One Distribution SRL. Other brands and product names are trademarks or registered trademarks of their respective holders.

No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from NETWORK ONE DISTRIBUTION..

Copyright © 2013 Network One Distribution. All rights reserved.

http://www.heinner.com, http://www.nod.ro

CE

This product is in conformity with norms and standards of European Community.

Importer: Network One Distribution

Marcel Iancu Street, 3-5, Bucharest, Romania

Tel: [phone], www.heinner.ro, www.nod.ro

HEINNER

МАСЛЕН РАДИАТОР

Модел: HOH-S13WH

White portable electric heater with honeycomb-patterned insulation, no visible text or symbols

• Маслен радиатор
  • Номинална честота: 220-240V\~, 50/60Hz
• Мощност: 2500 W

White portable solar water heater with coiled glass panels and control panel (no visible text or symbols)

Three-panel diagram showing mechanical components with no visible text or symbols

HASZNÁLATI UTASÍTÁSOK
