KA3LDGAFRYA - Deep fryer Kogan - Free user manual and instructions

Product Type	Deep Fryer
Brand	Kogan
Model	KA3LDGAFRYA
Dimensions	Approx. 30 x 25 x 20 cm
Weight	Approx. 2.5 kg
Power	1500 W
Oil Capacity	2.0 L
Temperature Range	150°C – 190°C
Timer	0–30 minutes with bell
Indicator Lights	Power and ready lights
Handle	Cool-touch handle
Bowl Material	Non-stick coated
Safety Features	Overheat protection, auto-shutoff
Removable Parts	Oil container and basket
Dishwasher Safe Parts	Basket and oil container
Filter	Odor-reducing charcoal filter
Cable Length	1.0 m
Warranty	1 year

Frequently Asked Questions - KA3LDGAFRYA Kogan

What type of oil should I use?

Use high smoke point oils like canola, peanut, or vegetable oil.

How much oil does the fryer need?

The fryer has a maximum oil capacity of 2.0 liters. Do not exceed the max fill line.

Can I fry frozen food directly?

Yes, but shake off excess ice to avoid oil splatter. Reduce frying time slightly.

How do I clean the deep fryer?

Unplug and let cool. Remove oil container and basket; they are dishwasher safe. Wipe the interior with a damp cloth.

Does it have an auto-shutoff feature?

Yes, the fryer includes auto-shutoff and overheat protection for safety.

What is the temperature range?

The adjustable thermostat ranges from 150°C to 190°C (300°F to 375°F).

How long does it take to heat up?

Typically 5–7 minutes to reach the set temperature, indicated by the ready light.

Is the handle cool to touch?

Yes, the handle is designed with cool-touch material for safe handling.

Can I use the fryer without oil?

No, this is a traditional deep fryer requiring oil. Do not operate empty.

Where can I find replacement parts?

Contact Kogan support or check the product page for spare baskets and filters.

USER MANUAL KA3LDGAFRYA Kogan

Black Kugon air fryer with digital display and control panel (no visible text or symbols)

4.2L DIGITAL LOW FAT 1400W AIR FRYER

KA3LDGAFRYA

SAFETY & WARNINGS

Please handle this product with care and inspect it regularly to ensure it is in good working order.

If the product, power supply cord or plug shows any signs of damage: stop use, unplug and contact Kogan.com support.

• Read all instructions before using the appliance and retain this guide for reference.
• Be sure to use on a heat resistant and even surface, such as a heatproof mat. Do not place directly on a benchtop. Keep the appliance at least 20cm away from the wall, furniture, or other flammables.
• Do not touch hot surfaces. The temperature of the outer surface can get very hot while the appliance is in operation. Always use oven gloves when handling hot materials and allow metal parts to cool before cleaning. Allow the appliance to cool thoroughly before removing parts. Always use the handles when moving the appliance.
• Do not use the appliance for other than its intended indoor household use.
• To protect against the risk of electric shock, do not immerse this appliance, cord set or plug in water or any other liquid.
• The appliance is not intended to be operated by means of an external timer or any type of separate remote-control system.
• The use of accessories which are not recommended or supplied by Kogan may cause fire, electric shock, or injury.
• Do not use an extension cord unless completely necessary with this product. If an extension cord is used please ensure that it has a rating equal or exceeding the rating of this appliance.
• Do not pull or carry by cord, use cord as a handle, close a door on the cord or pull cord around sharp edges or comers. Keep cord from heated surfaces.
• Do not bend or damage the power cord.
• Always unplug the appliance when not in use. To disconnect from the power supply, grip the plug and pull from wall outlet. Never pull by the cord. The plug must be removed from wall outlet before cleaning, servicing, maintenance or moving the appliance.
• Never force the plug into an outlet.
• Do not place the appliance near a hot gas or electric burner.
• Do not cover the appliance while in use. If it is covered, there is a risk of fire.

• Improper installation may result in the risk of fire, electric shock, or injury to persons.
  • If the power cord or plug is damaged, do not use the appliance.

• The appliance has no user-serviceable parts contained within. Do not attempt to repair, disassemble, or modify the appliance.

• Always operate on a dry level surface. Operating on sinks or uneven surfaces must be avoided.
• Do not clean with metal scouring pads.
• Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
• Do not move or lift the appliance while the power cord is still connected to wall outlet.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

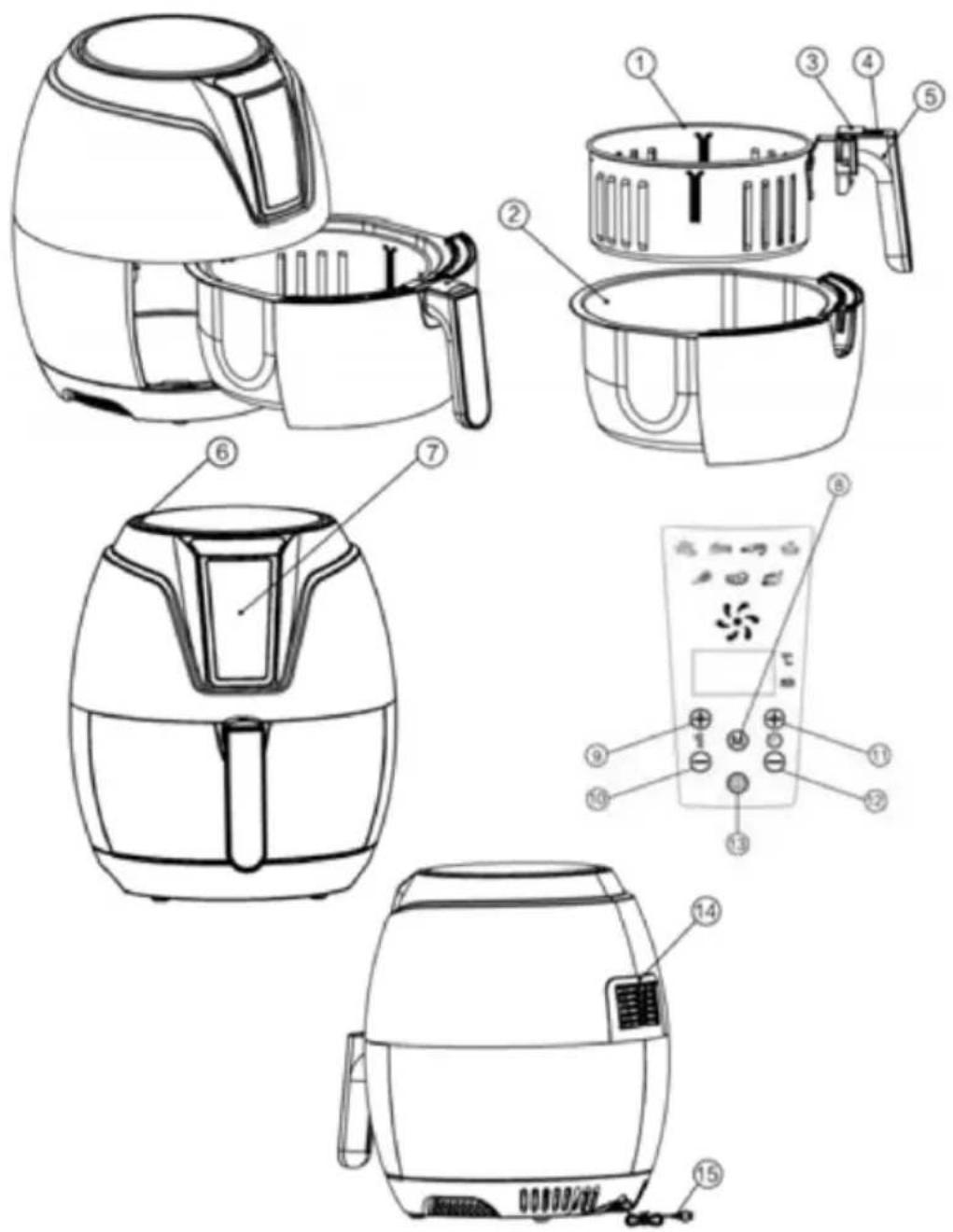

1 Fryer basket

6 Air inlet

11 Time increase button

2 Fryer drawer

7 Control panel

12 Time decrease button

3 Protective cover

8 Mode selection button

13 On / Off button

4 Push-release button

9 Temperature increase button

14 Air outlet

5 Handle bar 10

Temperature decrease button

15 Power cable

OPERATION

1. Insert power cable into the earthed power socket.
2. Pull the fryer basket out from the appliance.
3. Place food ingredients into the fryer basket (do not exceed the maximum line or maximum weight).
4. Push the fryer basket back into the appliance.
5. Click the On/Off button (8).
6. Click the relevant function button to choose appropriate cooking mode, time and temperature.
7. Click the On/Off button (8) once more to start cooking.
8. When the appliance beeps 5 times, cooking is completed, and the food is ready to serve. Remove the basket, place on a heat-resistant surface and serve.

Note:

For better cooking results, turn over the ingredients by shaking the basket in the middle of cooking process.

Food Preparation Time Temperature
Default	15 minutes	180°C
Fries	20 minutes 200 °C
Ribs	15 minutes 180 °C
Shrimp	20 minutes 160 °C
Cake	40 minutes 160 °C
Drumstick	25 minutes 180 °C
Meat	20 minutes 160 °C
Fish	20 minutes 180 °C

CLEANING & CARE

Cleaning

Unplug the power cord and allow appliance to cool before cleaning.

The fryer drawer and basket can be cleaned with a sponge and detergent. Do not use abrasive surfaces such as steel wool to avoid damaging the surface.

The surface of the fryer should be cleaned after every use. Use a wet towel to wipe. Do not use corrosive liquids for cleaning.

Take care that the main appliance and its power cord are not exposed to water.

Storage

If the air fryer will not be used for a long time, it should be cleaned thoroughly, then put it into the box for storage in a cool and dry place.

TROUBLESHOOTING

Problem	Possible Cause	Steps to Resolve
Does not work	Power cord has not been inserted correctly	Remove power cord, check outlet and reinsert
	Cooking mode has not been set	Press model selection button (13) and turn on
	On / Off button (8) has not been pressed	Press On / Off button
Food is undercooked	Too much food in basket	Fry food in sets
	Temperature is set too low Set to a higher temperature
	Cooking time is short Cook for longer
Food is not fried evenly	Food is covered by other food	Check in the middle of cooking
Food is not crisp	Some oil may be required (depending on food)	Add a thin layer of oil
Drawer cannot be smoothly inserted	Too heavy	Ensure max line is not exceeded
	Basket is not placed correctly	Align correctly and insert firmly
	Handle bar stuck Place in horizontal position
Appliance is smoking	Frying oily food This is normal behaviour
	Oil remains from previous use	Clean drawer and basket after each use

SPECIFICATIONS

Rated Voltage: 240V

Rated frequency: 50Hz

Rated power: 1400W

Basket capacity: 3.2L

Full pot capacity: 4.2L

Net weight: 4.7KGS

Product Size: 34 x 29 x 33.5cm

NOTES

Need more information?

We hope that this user guide has given you the assistance needed for a simple set-up.

For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com

kogan.com
