USER MANUAL SYNCMASTER S19B420M SAMSUNG

The color and the appearance may differ depending on the product, and the specifications are subject to change without prior notice to improve the performance. BN46-00232A-02

Copyright Icons used in this manual Symbols for safety precautions Cleaning Cleaning Securing the Installation Space Precautions for storage Safety Precautions Electricity and Safety Installation and Safety Operation and Safety Correct posture to use the product Checking the Contents Removing the Packaging Checking the Components Parts Frontal Buttons Reverse Side Installation Attaching the Stand Adijusting the Product Tilt and Height Rotating the Monitor Installing a Wall-mount Kit or Desktop Stand Anti-theft Lock Before Connecting Pre-connection Checkpoints Connecting the Power

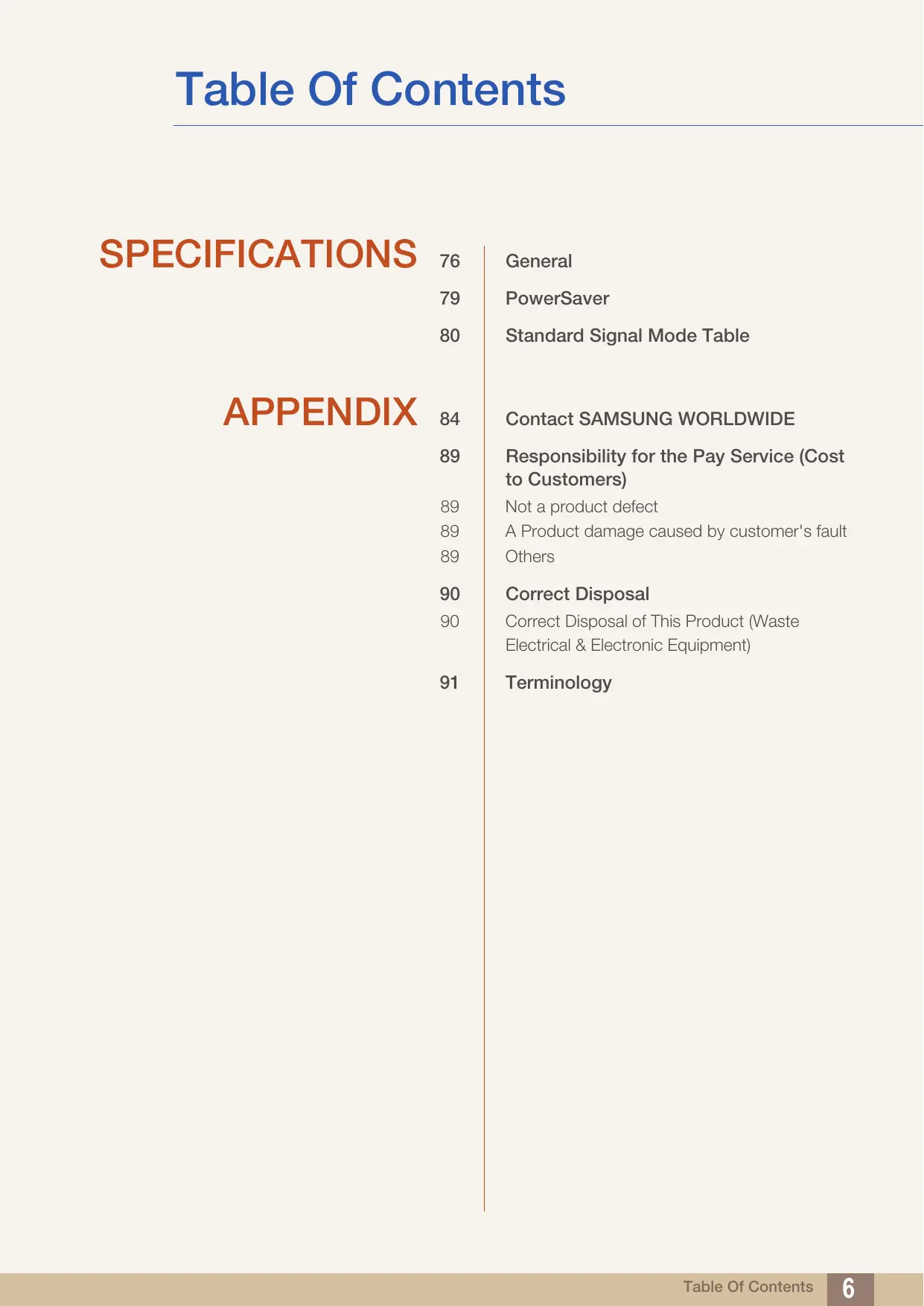

APPENDKX & General PowerSaver Standard Signal Mode Table Contact SAMSUNG WORLDWIDE Responsibility for the Pay Service (Cost to Customers) Not a product defect A Product damage caused by customer's fault Others Correct Disposal Correct Disposal of This Product (Waste Electrical & Electronic Equipment) Terminology

Before Using the Product Copyright The contents of this manual are subject to change without notice to improve quality. © 2012 Samsung Electronics Samsung Electronics owns the copyright for this manual. Use or reproduction of this manual in parts or entirety without the authorization of Samsung Electronics is prohibited. The SAMSUNG and SyncMaster logos are registered trademarks of Samsung Electronics. Microsoft, Windows and Windows NT are registered trademarks of Microsoft Corporation. VESA, DPM and DDC are registered trademarks of the Video Electronics Standards Association...< An administration fee may be charged if either o a) an engineer is called out at your request and there is no defect in the product i.e. where you have failed to read this user manual). (b) you bring the unit to a repair center and there is no defect in the product i.e. where you have failed to read this user manual). The amount of such administration charge will be advised to you before any work or home visit is carried out. Icons used in this manual The following images are for reference only. Real-life situations may differ from what is shown in the images. Symbols for safety precautions À Warning A serious or fatal injury may result if instructions are not followed. î Personal injury or damage to properties may result if instructions are Gaution not followed. © Activities marked by this symbol are prohibited. O Instructions marked by this symbol must be followed.

Before Using the Product Cleaning Cleaning Exercise care when cleaning as the panel and exterior of advanced LCDs are easily scratched. Take the following steps when cleaning. & 1. Power off the monitor and computer. | 2. Disconnect the power cord from the monitor. Hold the power cable by the plug and do not touch the cable with wet hands. Otherwise, an electric shock may result. 4 8. Wipe the monitor screen using a clean, soft and dry cloth. .< Do not apply a cleaning agent that contains alcohol, solvent, or surfactant to the monitor. + Do not spray water or detergent directly on the product.

4. Wet a soft and dry cloth in water and wring thoroughly to clean the

exterior of the monitor.

5. Connect the power cord to the product after cleaning the product.

6. Power on the monitor and computer.

Before Using the Product Securing the Installation Space .< _ Ensure some space around the product for ventilation. An internal temperature rise may cause fire and damage the product. Be sure to allow the amount of space as shown below or greater when installing the product. F4 The exterior may differ depending on the product. EE f10 cm(3.83 inches) ï ! ! 1 oem | 110 em ï es ! 16 i inches)! inches) 1 => 1 10 cm(3.93 inches)

Precautions for storage Be sure to contact Samsung Customer Service Center (page 84) if the inside of the monitor needs cleaning. (Service fee will be charged.)

Before Using the Product Safety Precautions Electricity and Safety The following images are for reference only. Real-life situations may differ from what is shown in the images: À Warning Do not use a damaged power cord or plug, or a loose power socket. . Anelectric shock or fire may result. Do not plug many products into the same power socket. + Otherwise, the socket may overheat and cause a fire. Do not touch the power plug with wet hands. .< Otherwise, an electric shock may result. Insert the power plug all the way in so it is not loose. es *< An unstable connection may cause a fire. Ensure you connect the power plug to a grounded power socket. (type 1 insulated devices only). CP . Anelectric shock or injury may result. Do not bend or pull the power cord with force. Do not weigh the power cord 4 a down with a heavy object. & . À damaged power cord may cause an electric shock or fire. Do not place the power cord or product near heat sources. . Anelectric shock or fire may result. Remove foreign substances such as dust around the plug pins and power socket with a dry cloth. + Otherwise, a fire may result.

Before Using the Product À Caution Do not unplug the power cord when the product is in use. .< The product may become damaged by an electric shock. Do not use the power cord for products other than authorized products supplied by Samsung. . Anelectric shock or fire may result. Keep the power socket where the power cord is connected unobstructed. . __lfany problem occurs in the product, unplug the power cable to completely cut the power to the product. Power to the product cannot be completely cut off with the power button. Hold the plug when disconnecting the power cord from the power socket. . Anelectric shock or fire may result. Installation and Safety À Warning DO NOT PLACE CANDLES, INSECT REPELLANTS OR CIGARETTES ON TOP OF THE PRODUCT. DO NOT INSTALL THE PRODUCT NEAR HEAT SOURCES. + Otherwise, a fire may result. Avoid installing the product in a narrow space with bad ventilation, such as a bookshelf or wall closet. + Otherwise, a fire may result due to an increased internal temperature. Keep the plastic packaging bag for the product in a place that cannot be reached by children. + Children may suffocate.

Before Using the Product Do not install the product on an unstable or vibrating surface (insecure shelf, sloped surface, etc.). .< The product may fall and break or cause a personal injury.

• Using the product in an area with excess vibration may damage the product or cause a fire. Do not install the product in a vehicle or a place exposed to dust, moisture (water drips, etc.) oil, or smoke. . Anelectric shock or fire may result. Do not expose the product to direct sunlight, heat, or a hot object such as a stove. .< Otherwise, the product lifespan may be reduced, or a fire may result. Do not install the product within the reach of young children. .< The product may fall and injure children. Edible oil, such as soybean oil, can damage or deform the product. Do not install the product in a kitchen or near a Kitchen counter. Take care not to drop the product when moving it. + Otherwise, product failure or personal injury may result. Do not set down the product on its front. .< The screen may become damaged. When installing the product on a cabinet or shelf, make sure that the bottom edge of the front of the product is not protruding. .< The product may fall and break or cause a personal injury. . Install the product only on cabinets or shelves of the right size.

Before Using the Product Put down the product carefully. .< The product may fall and break or cause a personal injury. Installing the product in an unusual place (a place exposed to a lot of fine particles, chemical substances or extreme temperatures, or an airport or train station where the product should operate continuously for an extended period of time) may seriously affect its performance. . Be sure to consult Samsung Customer Service Center (page 84) before installation if you want to install the product at such a place. Operation and Safety

Warning À 2 Led D = High voltage runs through the product. Do not attempt to disassemble, repair, or modify the product on your own. . Anelectric shock or fire may result. + Contact Samsung Customer Service Center (page 84) for repair. Before you move the product, be sure to turn off the power switch and remove all the cables connected to the product, including the power cord and the antenna cable. + Otherwise, the power cord may be damaged and a fire or electric shock may result. If the product generates a strange noise, a burning smell, or smoke, remove the power cord immediately and contact Samsung Customer Service Center (page 84). . Anelectric shock or fire may result. Do not let children hang from the product or climb on top of it. -< The product may fall, and your child may become injured or seriously harmed. If the product falls or the exterior is damaged, power off the product, remove the power cord, and contact Samsung Customer Service Center (page 84). + Otherwise, an electric shock or fire may result.

Before Using the Product Do not put a heavy object, toy, or sweets on top of the product. -< The product or heavy objects may fall as children try to reach for the toy or sweets resulting in a serious injury. During a lightning or thunderstorm, remove the power cord and do not touch the antenna cable. . Anelectric shock or fire may result. Do not drop objects on the product or apply impact. . Anelectric shock or fire may result. Do not move the product by pulling the power cord or any cable. + Otherwise, the cable may be damaged and product failure, an electric shock or fire may result. If a gas leakage is found, do not touch the product or power plug. Also, ventilate the area immediately. + Sparks can cause an explosion or fire. < During a lightning or thunderstorm, do not touch the power cord or antenna cable. Do not lift or move the product by pulling the power cord or any cable. + Otherwise, the cable may be damaged and product failure, an electric shock or fire may result. Do not use or keep combustible spray or an inflammable substance near the product. -< An explosion or fire may result. Ensure the vents are not blocked by tablecloths or curtains. .< Otherwise, a fire may result from an increased internal temperature.

Before Using the Product 22Z

Do not insert a metallic object (a chopstick, coin, hair pin, etc.) or inflammable object (paper, match, etc.) into the vent or ports of the product. . If water or any foreign substance enters the product, be sure to power off the product, remove the power cord, and contact Samsung Customer Service Center (page 84). -< Product failure, an electric shock or fire may result. Do not place objects containing liquid (vases, pots, bottles, etc) or metallic objects on top of the product. . If water or any foreign substance enters the product, be sure to power off the product, remove the power cord, and contact Samsung Customer Service Center (page 84). -< Product failure, an electric shock or fire may result. Leaving the screen fixed on a stationary image for an extended period of time may cause afterimage burn-in or defective pixels. . If you are not going to use the product for an extended period of time, activate power-saving mode or a moving-picture screen saver. Disconnect the power cord from the power socket if you do not plan on using the product for an extended period of time (vacation, etc.). + Otherwise, a fire may result from accumulated dust, overheating, an electric shock, or electric leakage. Use the product at the recommended resolution and frequency. + Your eyesight may deteriorate. Looking at the screen too close for an extended period of time can deteriorate your eyesight. Do not hold the monitor upside-down or move it by holding the stand. .< The product may fall and break or cause a personal injury. Do not use humidifiers or stoves around the product. . Anelectric shock or fire may result.

Before Using the Product Rest your eyes for more than 5 minutes for every 1 hour of product use. . Eye fatigue will be relieved. Do not touch the screen when the product has been turned on for an extended period of time as it will become hot. Store the small accessories used with the product out of reach of children. Exercise caution when adjusting the product angle or stand height. + Otherwise, children's fingers or hands may become stuck and injured. + Tilting the product excessively may cause it to fall and result in personal injury. Do not place heavy objects on the product. + Product failure or personal injure may result. Correct posture to use the product Use the product in the correct posture as follows. + Straighten your back. + Allow a distance of 45 to 50cm between your eye and the screen, and look slightly downward at the screen. Keep your eyes directly in front of the screen. . Adjust the angle so light does not reflect on the screen. + Keep your forearms perpendicular to your upper arms and level with the back of your hands. + Keep your elbows at about a right angle. . Adjust the height of the product so you can keep your knees bent at 90 degrees or more, your heels attached to the floor, and your arms lower than your heart.

1.1.1 Removing the Packaging

Open the packaging box. Be careful not to damage the product when you open the packaging with a sharp instrument.

2 Remove the styrofoam from the product.

3 Check the components and remove the styrofoam and plastic bag. FE This image is for reference only. Store the box in a dry area so that it can be used when moving the product in the future.

E + Contact the dealer from whom you purchased the product if any item is missing. + The appearance of the components and items sold separately may differ from the image shown. Components EF = GG Warranty card k setl id U ( Quick setup guide (Not available in some locations) Ser manua Power cable D-SUB cable (optional) DVI cable (optional) à % Stand Stereo Cable (optional) E Components may vary depending on the country.

The color and shape of parts may differ from what is shown. Specifications are subject to change without notice to improve quality. Key Guide

Icons Description + Open or close the onscreen display (DSD) menu, or return to the parent menu. + OSD control lock: Maintain the current settings, or lock the OSD control to prevent unintended changes to settings. Enable: To lock the OSD control, press the [MENU] button for 10 seconds. Disable: To unlock the locked OSD control, press the [MENU] button for more than 10 seconds. MENU the OSD control is locked, + Brightness and Contrast can be adjusted, and INFORMATION can be viewed + The Customized Key function can be used by pressing the [[4]] button. (The Customized Key function specified before the OSD control was locked is available even when the OSD control is locked.) Configure Customized Key and press [[4J]. The following options will be enabled. Œ MaAgicAngle - agieBright - Eco Saving - Image Size To configure Customized Key, go to SETUP&RESET — Customized Key and select the mode you want. 1 Preparations ET

Preparations Icons Description Move to the upper or lower menu or adjust the value for an option on the OSD menu. Adijust the screen brightness. F4 Volume can be adjusted if a cable is connected to the [AUDIO IN] port.

Confirm a menu selection. Pressing the [Q/C&] button when the OSD menu is not displayed will change the input source (Analog/DVI). If you power on the product or change the input source by pressing the [@7/Cæ1] button, a message that shows the changed input source will appear at the top left corner of the screen. AUTO Press the [AUTO] button to automatically adjust the screen settings. + Changing the resolution in Display Properties will activate the Auto Adjustment function + This function is only available in Analog mode. Turn the screen on or off. Key Guide When a control button on the product is pressed, the Key Guide will be displayed before the onscreen menu opens. (The guide shows the function of the button pressedi.) To access the onscreen menu when the guide is displayed, press the corresponding button again. The Key Guide may vary depending on the function or product model. Refer to the actual product.

The color and shape of parts may differ from what is shown. Specifications are subject to change without notice to improve quality. Port Ports Connect the power cord for your monitor to the POWER port on the back of the product. Connect to a PC using the DVI cable. Connect to a PC using the D-SUB cable. AUDIO Connect to an audio-input source using an audio cable. © KE Applicable to the models that have speakers only. auDIO OUT Connect to an audio output device such as headphones. Applicable to the models that have speakers only.

Insert the stand base into the stand in the direction of the arrow. Place a protective cloth or cushion on a flat surface. Next, place the product with the face down on top of the cloth or cushion. Do not remove the fixing pin until you are finished attaching the stand. Fasten the screw tightly (using a After installing the stand, place screwdriver or coin) into the the product upright. bottom of the stand base. - Caution Do not hold the product upside down only by the stand. Disassembly is the reverse order of assembly. + The color and shape of parts may differ from what is shown. Specifications are subject to change without notice to improve quality. You can remove the fixing pin and adjust the stand now.

1.3.2 Adjusting the Product Tilt and Height

The color and shape of parts may differ from what is shown. Specifications are subject to change without notice to improve quality. lan. “e2)-22 (22)

+ To adjust the height, remove the fixing pin. Sms) = 95mm(s2mm) + The monitor tit and height can be adjustedi + Hold the top center of the product and adjust the height carefully.

1.3.3 Rotating the Monitor

You can rotate your monitor as shown below. Be sure to fully extend the stand before rotating the monitor.

• If you rotate the monitor without fully extending the stand, the corner of the monitor may hit the floor and get damaged. + Do not rotate the monitor counterclockwise. The monitor may get damagedl.

Before Installation E Power the product off and remove the power cable from the power socket. Place a protective cloth or Unfasten the screw from the Lift and detach the stand. cushion on a flat surface. Next, back of the product. place the product with the face down on top of the cloth or cushion. Installing a Wall-mount Kit or Desktop Stand

e à L 7 _ l'A] Attach the wall-mount Kit or desktop stand here CB] Bracket (sold separately) Align the grooves and tightly fasten the screws on the bracket on the product with the corresponding parts on the wall-mount kit or desktop stand you want to attach.

Preparations Notes Using a screw longer than the standard length can damage the internal components of the product. The length of screws required for a wall mount that does not comply with the VESA standards may vary depending on the specifications. Do not use screws that do not comply with the VESA standards. Do not attach the wall-mount kit or desktop stand using excessive force. The product may get damaged or fall and cause personal injury. Samsung shall not be held liable for any damage or injury caused by using improper screws or attaching the wall-mount kit or desktop stand using excessive force. Samsung shall not be held liable for any product damage or personal injury caused by using a wall- mount kit other than the one specified or from an attempt to install the wall-mount kit on your own. To mount the product on a wall, ensure you purchase a wall-mount kit that can be installed 10cm or farther away from the wall. Be sure to use a wall-mount kit that complies with the standards. To install the monitor using a wall mount, disconnect the stand base from the monitor.

1.3.5 Anti-theft Lock

An anti-theft lock allows you to use the product securely even in public places. The locking device shape and locking method depend on the manufacturer. Refer to the user guide provided with your anti-theft locking device for details. The lock device is sold separately. The color and shape of parts may differ from what is shown. Specifications are subject to change without notice to improve quality. To lock an anti-theft locking device:

+ © ND Fix the cable of your anti-theft locking device to a heavy object such as a desk. Put one end of the cable through the loop on the other end. Insert the locking device into the anti-theft lock slot at the back of the product. Lock the locking device. An anti-theft locking device can be purchased separately. Refer to the user guide provided with your anti-theft locking device for details. Anti-theft locking devices can be purchased at electronics retailers or online.

Connecting and Using a Source Device

2.1 Before Connecting

2.1.1 Pre-connection Checkpoints

. Before connecting a source device, read the user manual provided with it. The number and locations of ports on source devices may differ from device to device. . Do not connect the power cable until all connections are completed. Connecting the power cable during connection may damage the product. + Check the types of ports at the back of the product you want to connect.

2.2 Connecting the Power

. To use the product, connect the power cable to a power outlet and the [POWER] port on the product.(The input voltage is switched automatically.)

Connecting and Using a Source Device Connecting and Using a PC

2.3.1 Connecting to a PC

Select a connection method suitable for your PC. Connecting parts may differ in different products. Connection Using the D-SUB Cable (Analog Type) Do not connect the power cable before connecting all other cables. Ensure you connect a source device first before connecting the power cable. RGB IN 1 Connect the D-SUB cable to the [RGB IN] port on the back of the product and the RGB port on the PC. 2 Press [t2/cæ] to change the input source to Analog. Connection Using the DVI Cable Do not connect the power cable before connecting all other cables. Ensure you connect a source device first before connecting the power cable. DVIIN 1 Connect the DVI cable to the [DVI IN] port on the back of the product and the DVI port on the PC. 2 Press [R/cæ] to change the input source to Digital.

Connecting and Using a Source Device Connecting to Headphones or Speakers Do not connect the power cable before connecting all other cables. Ensure you connect a source device first before connecting the power cable.

© -4 e -( 1 Connect an audio output device such as headphones or speakers to [AuDio ouTA] on the product. Æ Applicable to the models that have speakers only.

Connecting and Using a Source Device Changing the sound settings on Windows Control Panel — Audio — Speaker — Speaker Setup

Connecting and Using a Source Device

2.3.2 Driver Installation

You can set the optimum resolution and frequency for this product by installing the corresponding drivers. + Aninstallation driver is contained on the CD supplied with the product. + lfthe file provided is faulty, visit the Samsung homepage (http:/Avww.samsung.com) and download the file. Insert the user manual CD provided with the product into the CD-ROM drive. Click "Windows Driver. Follow the instructions given on the screen to proceed with installation. + © ND Select your product model from the list of models. Selecthe display saprar on which you went ital ên manoe Salecithe montortich you went inst 5 Go to Display Properties and check that the resolution and refresh rate are appropriate. Refer to your Windows OS manual for further details.

Connecting and Using a Source Device

2.3.3 Setting Optimum Resolution

An information message about setting optimum resolution will appear if you power on the product for the first time after purchase. Select a language and change the resolution to the optimum value. ‘The optimal r 1 Press [A /w] to move to the language you want and press [H/C2] 2 To hide the information message, press [MENU]. EX + lfthe optimum resolution is not selected, the message will appear up to three times for a specified time even when the product is turned off and on again + The optimum resolution can also be selected in Control Panel on your PC. 2 Connecting and Using a Source Device EU

Connecting and Using a Source Device

2.3.4 Changing the Resolution Using a PC

Adjust the resolution and refresh rate in Control Panel on your PC to obtain optimum picture quality. The picture quality of TFT-LCDs may degrade if the optimum resolution is not selected. Changing the Resolution on Windows XP Go to Control Panel — Display — Settings and change the resolution. mrragan D Sot Program Access and Deiauke Qcrer , ED pts mdr OC) Heb and Support

Connecting and Using a Source Device Changing the Resolution on Windows Vista Go to Control Panel — Personalization — Display Settings and change the resolution. Ptort Scareh

Connecting and Using a Source Device Changing the Resolution on Windows 7 Go to Control Panel — Display — Screen Resolution and change the resolution.

Screen Setup Configure the screen settings such as brightness. Brightness You can adjust the general brightness of the picture. (Range: 0-100) A higher value will make the picture appear brighter. + This menu is not available when fX@iéBright is set to Dynamic Contrast mode. + Not available if Eco Saving is set to On.

3.1.1 Configuring Brightness

1 Press any button on the front of the product to display the Key Guide. Next, press [MENU] to display the corresponding menu screen. 2 Press [A/w]to move to Picture and press [t3/cæ] on the product. 3 Press [A/W] to move to Brightness and press [t31/cæ] on the product. The following screen will appear. 4 Adjust the Brightness using the [A / #] buttons. 3 Screen Setup ES

Screen Setup Contrast Adijust the contrast between the objects and background. (Range: 0-100) A higher value will increase the contrast to make the object appear clearer. E + This menu is not available when X@iéBright is in Cinema or Dynamic Contrast mode.

+ This menu is not available when ÿX@éColor is in Full or Intelligent mode.

3.2.1 Configuring Contrast

1 Press any button on the front of the product to display the Key Guide. Next, press [MENU] to display the corresponding menu screen. 2 Press [A/w]to move to Picture and press [t3/cæ] on the product. 3 Press [A/W] to move to Contrast and press [1/c&] on the product. The following screen will appear. Æ Adjust the Contrast using the [A / W] buttons. 3 Screen Setup ES

Screen Setup Sharpness Make the outline of objects more clear or blurry. (Range: 0-100) A higher value will make the outline of objects clearer. E + This menu is not available when X@iéBright is in Cinema or Dynamic Contrast mode.

+ This menu is not available when ÿX@éColor is in Full or Intelligent mode.

3.3.1 Configuring Sharpness

1 Press any button on the front of the product to display the Key Guide. Next, press [MENU] to display the corresponding menu screen. 2 Press [A/w]to move to Picture and press [t3/cæ] on the product. 3 Press [A/W] to move to Sharpness and press [3/7] on the product. The following screen will appear. 4 Adjust the Sharpness using the [A / W] buttons. 3 Screen Setup

Screen Setup SAMSUNG MAGIC Bright This menu provides an optimum picture quality suitable for the environment where the product will be used. + Not available if Eco Saving is set to On. + This menu is not available when XSigAngle is enabled You can customize the brightness to suit your preferences.

3.4.1 Configuring SAMSUNG MAGIC Bright

1 Press any button on the front of the product to display the Key Guide. Next, press [MENU] to display the corresponding menu screen. 2 Press [A/w]to move to Picture and press [t3/cæ] on the product. 3 Press [A/w] to move to ff SBright and press [t/cæ] on the product. The following screen will appear. Custom Standard Game Cinema Dynamic Contrast + Custom: Customize the contrast and brightness as required. + Standard: Obtain a picture quality suitable for editing documents or using Internet. + Game: Obtain a picture quality suitable for playing games that involve many graphic effects and dynamic movements. + Cinema: Obtain the brightness and sharpness of TVSs suitable for enjoying video and DVD content. + Dynamic Contrast: Obtain balanced brightness through automatic contrast adjustment. Æ Press [A/w] to move to the option you want and press [n/cæ]. 5 The selected option will be applied.

Screen Setup SAMSUNG MAGIC Angle MAgICAngle allows you to configure the settings to obtain the optimum picture quality according to your viewing angle. E + This menu is not available when X@iéBright is in Cinema or Dynamic Contrast mode. + This menu is not available when FX@éColor is enabled. You can customize the angle to suit your preferences.

3.5.1 Configuring SAMSUNG MAGIC Angle

1 Press any button on the front of the product to display the Key Guide. Next, press [MENU] to display the corresponding menu screen. 2 Press [A/w]to move to Picture and press [t3/cæ] on the product. 3 Press [A/w] to move to fflSAngle and press [t/cæ] on the product. The following screen will appear.

Lean Back Mode 1 Lean Back Mode 2 Standing Mode Side Mode Group View . Off (D): Select this option to view directly in front of the product. . Lean Back Mode 1 (2): Select this option to view from a place slightly lower than the product. «Lean Back Mode 2 (8): Select this option to view from a place lower than Lean Back Mode 1. + Standing Mode @: Select this option to view from a place higher than the product. + Side Mode &): Select this option to view from either side of the product. + Group View: Select this option for more than one viewer to view from places ©, @), and ®. + Custom: Lean Back Mode 1 will be applied by default if Custom is selected. Press [A/w] to move to the option you want and press [t2/c&]. 5 The selected option will be applied. 3 Screen Setup EX

Adijust the screen frequency. EX This menu is available in Analog mode only.

3.6.1 Adjusting Coarse

1 Press any button on the front of the product to display the Key Guide. Next, press [MENU] to display the corresponding menu screen 2 Press [A/w]to move to Picture and press [t/cæ] on the product 3 Press [A/w]to move to Coarse and press [t/cæ] on the product. The following screen will appear. 4 Adjust the Coarse using the [A / W] buttons. 3 Screen Setup [40 |

Screen Setup Fine Fine-adjust the screen to obtain a vivid picture. EX This menu is available in Analog mode only.

3.7.1 Adjusting Fine

1 Press any button on the front of the product to display the Key Guide. Next, press [MENU] to display the corresponding menu screen. 2 Press [A/w]to move to Picture and press [t3/cæ] on the product. 3 Press [A/w]to move to Fine and press [H/cæ] on the product. The following screen will appear. 4 Adjust the Fine using the [A / W] buttons. 3 Screen Setup A1 |

Configuring Tint Adjust the tint of the screen. This menu is not available when FX éiéBright is set to Cinema or Dynamic Contrast mode. SAMSUNG MAGIC Color MAgIeColor is a new picture-quality improvement technology developed independentiy by Samsung, which delivers vivid natural colors without picture quality degradation. This menu is not available when ff X@igAngle is enabled

4.1.1 Configuring SAMSUNG MAGIC Color

1 Press any button on the front of the product to display the Key Guide. Next, press [MENU] to display the corresponding menu screen. 2 Press [A/w]to move to COLOR and press [t3/cæ] on the product. 3 Press [A/w] to move to ff NSColor and press [t2/cæ] on the product. The following screen will appear.

Demo Full Intelligent .__ Off: Disable FAGicColor. + Demo: Compare normal screen mode with ÿXSieColor mode. -< Full: Obtain a vivid picture quality for all areas including the flesh colors in the picture. + Intelligent: Improve the chroma for all areas except the flesh colors in the picture. Press [A/W] to move to the option you want and press [t2/cæ]. 5 The selected option will be applied. 4 Configuring Tint FA

Configuring Tint Red Adijust the value of the color red in the picture. (Range: 0-100) A higher value will increase the intensity of the color. This menu is not available when FX @réColor is in Full or Intelligent mode.

4.2.1 Configuring Red

1 Press any button on the front of the product to display the Key Guide. Next, press [MENU] to display the corresponding menu screen 2 Press [A/w]to move to COLOR and press [t3/cæ] on the product 3 Press [A/w]to move to Red and press [t3/cæ] on the product. The following screen will appear. 4 Adjust the Red using the [A / W] buttons. 4 Configuring Tint ES

Configuring Tint Green Adijust the value of the color green in the picture. (Range: 0-100) A higher value will increase the intensity of the color. This menu is not available when FX @réColor is in Full or Intelligent mode.

4.3.1 Configuring Green

1 Press any button on the front of the product to display the Key Guide. Next, press [MENU] to display the corresponding menu screen 2 Press [A/w]to move to COLOR and press [t3/cæ] on the product 3 Press [A / w] to move to Green and press [t3/cæ] on the product. The following screen will appear. 4 Adjust the Green using the [A / W] buttons. 4 Configuring Tint [44 |

Configuring Tint Blue Adijust the value of the color blue in the picture. (Range: 0-100) A higher value will increase the intensity of the color. This menu is not available when FX @réColor is in Full or Intelligent mode.

44.1 Configuring Blue

1 Press any button on the front of the product to display the Key Guide. Next, press [MENU] to display the corresponding menu screen 2 Press [A/w]to move to COLOR and press [t3/cæ] on the product 3 Press [A/w]to move to Blue and press [n/cæ] on the product. The following screen will appear. 4 Adjust the Blue using the [A / W] buttons 4 Configuring Tint EG

Configuring Tint Color Tone Adijust the general color tone of the picture. + This menus not available when fXAColor is in Full or Intelligent mode. + This menu is not available when fXSigAngle is enabled

4.5.1 Configuring the Color Tone Settings

1 Press any button on the front of the product to display the Key Guide. Next, press [MENU] to display the corresponding menu screen. 2 Press [A/w]to move to COLOR and press [t3/cæ] on the product. 3 Press [A/W] to move to Color Tone and press [t3/cæ] on the product. The following screen will appear. + Cool 2: Set the color temperature to be cooler than Cool 1. + Cool 1: Set the color temperature to be cooler than Normal mode. + __ Normal: Display the standard color tone. + __ Warm1: Set the color temperature to be warmer than Normal mode. + __ Warm2: Set the color temperature to be warmer than Warm 1. + Custom: Customize the color tone. Æ Press [A /w] to move to the option you want and press [3/1]. 5 The selected option will be applied. 4 Configuring Tint ET

Adijust the mid-range brightness (Gamma) of the picture. EX This menu is not available when FfX@igAngle is enabled

4.6.1 Configuring Gamma

1 Press any button on the front of the product to display the Key Guide. Next, press [MENU] to display the corresponding menu screen. 2 Press [A/w]to move to COLOR and press [t/cæ] on the product. 3 Press [A/w]to move to Gamma and press [t3/cæ] on the product. The following screen will appear. Mode1 Press [A/w] to move to the option you want and press [t2/cæ&]. 5 The selected option will be applied. 4 Configuring Tint F4

Resizing or Relocating the Screen H-Position & V-Position H-Position: Move the screen to the left or right. V-Position: Move the screen up or down: + Available only when Image Size is set to Screen Fit. + This menuis available in Analog mode only. + When a 720P or 1080P signal is input in AV mode ,select Screen Fit to adjust horizontal position in 0-6 levels.

5.1.1 Configuring H-Position & V-Position

1 Press any button on the front of the product to display the Key Guide. Next, press [MENU] to display the corresponding menu screen 2 Press [A/w]to move to SIZE&POSITION and press [t3/cæ] on the product. 3 Press [A/w]to move to H-Position or V-Position, and press [t2/cæ]. The following screen will appear SIZE8POSITION AO © eo © © x ob 4 Press [A/W] to configure H-Position or V-Position 5 Resizing or Relocating the Screen [48 |

Resizing or Relocating the Screen Image Size Change the picture size.

5.2.1 Changing the Image Size

1 Press any button on the front of the product to display the Key Guide. Next, press [MENU] to display the corresponding menu screen 2 Press [A/w]to move to SIZE&POSITION and press [t3/cæ] on the product. 3 Press [A/W] to move to Image Size and press [t/cæ] on the product. The following screen will appear . Auto: Display the picture according to the aspect ratio of the input source. + Wide: Display the picture in full screen regardiess of the aspect ratio of the input source. . _4:3: Display the picture with an aspect ratio of 4:8. Suitable for videos and standard broadcasts. + 16:9: Sets the picture to 16:9 wide mode. *< Screen Fit: Display the picture with the original aspect ratio without cutting off. AO à 5 Resizing or Relocating the Screen 49 |

Resizing or Relocating the Screen . _4:3: Display the picture with an aspect ratio of 4:8. Suitable for videos and standard broadcasts. + Wide: Display the picture in full screen regardless of the aspect ratio of the input source. -<__ Screen Fit: Display the picture with the original aspect ratio without cutting off. Changing the screen size is available when the following conditions are satisfied. + A digital output device is connected using the DVI cable. -< The input signal is 480p, 576p, 720p, or 1080p. - This can only be set when the external input is connected through DVI and PC/AV Mode is set to AV. Press [A /w] to move to the option you want and press [t2/c&]. 5 The selected option will be applied.

1 Press any button on the front of the product to display the Key Guide. Next, press [MENU] to display the corresponding menu screen 2 Press [A/w]to move to SIZE&POSITION and press [t2/cæ] on the product. 3 Press [A/w]to move to Menu H-Position or Menu V-Position, and press [t3/cæ]. The following screen will appear. 4 Press [A/w] to configure Menu H-Position or Menu V-Position. 5 Resizing or Relocating the Screen [51 |

Setup and Reset Reset Return all the settings for the product to the default factory settings.

6.1.1 Initializing Settings (Reset)

1 Press any button on the front of the product to display the Key Guide. Next, press [MENU] to display the corresponding menu screen 2 Press [A/w]to move to SETUP&RESET and press [t3/cæ] on the product 3 Press [A/W] to move to Reset and press [t/cæ] on the product. The following screen will appear. epeat Time all settings? Æ Press [A/w] to move to the option you want and press [t2/c&] 5 The selected option will be applied.

Setup and Reset Language Set the menu language. + A change to the language setting will only be applied to the onscreen menu display It will not be applied to other functions on your PC.

6.2.1 Changing the Language

1 Press any button on the front of the product to display the Key Guide. Next, press [MENU] to display the corresponding menu screen. 2 Press [A/w]to move to SETUP&RESET and press [t3/cæ] on the product. 3 Press [A/W] to move to Language and press [t3/Cæ] on the product. The following screen will appear. Deutsch °° Press [A/w] to move to the language you want and press [n/cæ&]. 5 The selected option will be applied.

Setup and Reset Eco Saving The Eco Saving function reduces power consumption by controlling the electric current used by the monitor panel. This menu is not available when K@iéBright is in Dynamic Contrast mode.

6.3.1 Configuring Eco Saving

1 Press any button on the front of the product to display the Key Guide. Next, press [MENU] to display the corresponding menu screen. 2 Press [A/W]to move to SETUP&RESET and press [t3/cæ] on the product. 3 Press [A/w]to move to Eco Saving and press [t3/cæ] on the product. The following screen will appear. + 75% : Change the monitor power consumption to 75% of the default level. + 50% : Change the monitor power consumption to 50% of the default level. . Off: Deactivate the Eco Saving function. Æ Press [A/W] to move to the option you want and press [t2/c&]. 5 The selected option will be applied. 6 Setup and Reset [54 |

Setup and Reset Off Timer On/Off You can set the product to automatically turn off.

Press any button on the front of the product to display the Key Guide. Next, press [MENU] to display the corresponding menu screen. Press [A / w] to move to SETUP&RESET and press [2/0] on the product. Press [A / W]to move to Off Timer On/Off and press [Q/cæ1] on the product. The following screen will appear. © On " © am 6 . Off: Deactivate the off timer so that the product does not power off automatically.

• On: Activate the off timer so that the product powers off automatically. Press [A / w] to move to the option you want and press [7/1]. The selected option will be applied. 6 Setup and Reset E3

Setup and Reset Off Timer Setting The off timer can be set within a range of 1 to 23 hours. The product will automatically power off after the specified number of hours. This menu is available only when Off Timer On/Off is set to On.

6.5.1 Configuring Off Timer Setting

1 Press any button on the front of the product to display the Key Guide. Next, press [MENU] to display the corresponding menu screen 2 Press [A/W]to move to SETUP&RESET and press [3/7] on the product 3 Press [A /w] to move to Off Timer Setting and press [t2/cæ] on the product. The following screen will appear. 4° Press [A/W] to configure Off Timer Setting 6 Setup and Reset [56 |

Setup and Reset PC/AV Mode Set PC/AV Mode to AV. The picture size will be enlarged. This option is useful when you view a movie. EX + This function does not support Analog mode. + Supplied for the wide models only such as 16:9 or 16:10. + Ifthe monitor (when set to DV!) is in power saving mode or is displaying the message Check Signal Cable, press the MENU button to display the On Screen Display (OSD). You can select PC or AV.

6.6.1 Configuring PC/AV Mode

1 Press any button on the front of the product to display the Key Guide. Next, press [MENU] to display the corresponding menu screen 2 Press [A/w]to move to SETUP&RESET and press [t3/cæ] on the product

Press [A / w]to move to PC/AV Mode and press [t/cæ1] on the product. The following screen will appear SETUPSRESET Reset Language ing PCI/AV Mode eat Time 5 The selected option will be applied.

Setup and Reset Key Repeat Time Control the response rate of a button when the button is pressed.

6.7.1 Configuring Key Repeat Time

1 Press any button on the front of the product to display the Key Guide. Next, press [MENU] to display the corresponding menu screen. 2 Press [A/w]to move to SETUP&RESET and press [t3/cæ] on the product. 3 Press [A/ W]to move to Key Repeat Time and press [E2/Cæ] on the product. The following screen will appear. . Acceleration, 1 sec, or 2 sec can be selected. lf No Repeat is selected, a command responds only once when a button is pressed. 4° Press [A/W] to move to the option you want and press [t1/æ1]. 5 The selected option will be applied. 6 Setup and Reset [58 |

Setup and Reset Customized Key You can customize Customized Key as follows.

6.8.1 Configuring Customized Key

1 Press any button on the front of the product to display the Key Guide. Next, press [MENU] to display the corresponding menu screen. 2 Press [A/w]to move to SETUP&RESET and press [t/cæ] on the product. 3 Press [A / w] to move to Customized Key and press [E/Cæ] on the product. The following screen will appear. sausuNe 16 Angle Bright Eco Saving Image Size -_ macieangle - ÿagicBright - Eco Saving - Image Size °° Press [A /w] to move to the option you want and press [1/1]. 5 The selected option will be applied. 6 Setup and Reset [59 |

Setup and Reset Auto Source You can activate Auto Source.

Press any button on the front of the product to display the Key Guide. Next, press [MENU] to display the corresponding menu screen Press [A / w] to move to SETUP&RESET and press [Q/c&] on the product. Press [A / W] to move to Auto Source and press [Q/cæ] on the product. The following screen will appear. Auto Manual - Auto: The input source is automatically recognized + Manual: Manually select an input source Press [A / W] to move to the option you want and press [/c&] The selected option will be applied. 6 Setup and Reset 60 |

Set the on-screen display (OSD) menu to automatically disappear if the menu is not used for a specified period of time. Display Time can be used to specify the time after which you want the OSD menu to disappear.

6.10.1 Configuring Display Time

1 Press any button on the front of the product to display the Key Guide. Next, press [MENU] to display the corresponding menu screen. 2 Press [A/W]to move to SETUP&RESET and press [t3/Cæ] on the product. 3 Press [A/W] to move to Display Time and press [H/cæ] on the product. The following screen will appear. Press [A/W] to move to the option you want and press [2/1]. 5 The selected option will be applied. 6 Setup and Reset 61 |

1 Press any button on the front of the product to display the Key Guide. Next, press [MENU] to display the corresponding menu screen 2 Press [A/w]to move to SETUP&RESET and press [t3/cæ] on the product 3 Press [A/W]to move to Menu Transparency and press [t3/Cæ] on the product. The following screen will appear. 4° Press [A/W] to move to the option you want and press [

5 The selected option will be applied. 6 Setup and Reset 62 |

INFORMATION Menu and Others INFORMATION View the current input source, frequency and resolution

71.4 Displaying INFORMATION

1 Press any button on the front of the product to display the Key Guide. Next, press [MENU] to display the corresponding menu screen 2 Press [A/w]to move to INFORMATION. The current input source, frequency and resolution will appear. The displayed menu items may vary depending on the model. 7 INFORMATION Menu and Others 63 |

8.1.1 What is MagicTune?

MagicTune” MagicTune is a software program that helps with monitor adjustments by providing comprehensive descriptions of monitor functions and easy-to-understand guidelines. You can adjust the product with the mouse and the keyboard without using the operating buttons of the product.

8.1.2 Installing the Software

1 Insert the installation CD into the CD-ROM drive. 2 Select the MagicTune setup program. If the pop-up screen for the software installation does not appear on the main screen, find and double-click the MagicTune setup file on the CD-ROM. 3 Select the installation language and click [Next]. Æ Complete the remaining software installation steps according to the instructions displayed on the screen. E + The software may not work properly if you do not restart the computer after the installation. + The MagicTune icon may not appear depending on the computer system and the product specifications. + Ifthe shortout icon does not appear, press the F5 key Restrictions and Problems with the Installation (MagicTuneT") The installation of MagicTuneMmay be affected by the graphics card, motherboard and the networking environment. System Requirements

You can only remove MagicTuneTM through [Add or Remove Programs] in Windows. To remove MagicTuneT", complete the following steps.

OO Où À CO N Click [Start] select [Settings], and select [Control Panel] from the menu. For Windows XP, click [Start], and select [Control Panel] from the menu. Double-click the [Add or Remove Programs] icon in the Control Panel. In the [Add/Remove] window, find and select MagicTune'TMso that it is highlighted. Click [Change or Remove Programs] to remove the software. Select [Yes] to start removing MagicTuneTM. Wait until a message box appears informing you that the software has been removed completely. For technical support, the FAQ (frequently asked questions) or information about the software upgrade for MagicTuneT", please visit our website(http:/vmw.samsung.com/us/consumer/ learningresources/monitor/magetune/pop_intro.html).

1 Insert the installation CD into the [CD-ROM drive]. 2 Select the "MultiScreen" setup program. If the pop-up screen for the software installation does not appear on the main screen, find and double-click the "MultiScreen" setup file on the [CD-ROM]. 3 When the Installation Wizard appears, click [Next]. Æ Follow the instructions given on the screen to proceed with installation. .< The software may not work properly if you do not restart the computer after the installation -< The "MultiScreen" icon may not appear depending on the computer system and the product specifications. + ___lfthe shortout icon does not appear, press the "F5" key. Restrictions and Problems with the Installation (MultiScreen) The "MultiScreen' installation may be affected by the [Graphics card], [Motherboard] and the [Networking environment]. Operating System "OS" + "Windows 2000" + "Windows XP Home Edition" + "Windows XP Professional" + "Windows Vista 32bit" + "Windows 7 32bit" For "MultiScreen", the operating systems "Windows 2000" or later is recommended. "Hardware" .< Atleast 32MB of memory .< Atleast 60MB of free space on the hard disk drive

Click [Start], select [Settings]/[Control Panel], and then double-click [Add or Remove Programs]. Select "MultiScreen" from the program list and click the [Add/Delete] button.

Installing the Software MagicRotation ©) MagicRotation The MagicRotation Software from Samsung Electronics, Inc. provides the user with a rotation feature (0, 90, 180, 270 orientation) that facilitates the optimum utilization of computer display screen, better viewing and improved user productivity.

8.3.1 Installing the Software

1 Insert the installation CD into the [CD-ROM drive]. 2 Select the "MagicRotation" setup program. If the pop-up screen for the software installation does not appear on the main screen, find and double-click the "MagicRotation" setup file on the [CD-ROM]. 3 Select the installation language and click [Next]. Æ Complete the remaining software installation steps according to the instructions displayed on the screen. .< The software may not work properly if you do not restart the computer after the installation -< The "MagicRotation" icon may not appear depending on the computer system and the product specifications. + ___lfthe shortout icon does not appear, press the "F5" key. Restrictions and Problems with the Installation (MagicRotation) The installation of "MagicRotation" may be affected by the [Graphics card], [Motherboard] and the [Networking environment]. Limitation 1 The "Display Driver" should be properly loaded for the MagicRotation to work properly. The installed "Display Driver" should be the latest driver supplied by the vendor. 2 some applications like Windows Media Player, Real Player, etc. are not displaying movie files properly in 90, 180 and 270 orientations then do the following : + Close the application. . Select the Orientation (90, 180, 270) you want to view the application.

• Relaunch the application. In most cases this should fix the problem.

Installing the Software User Applications using OpenGL and DirectDraw (3D drawing) will not function as per the orientation mode selected (90, 180, 270). e.g. 8D games DOS based applications in Full Screen Mode will not function as per the orientation mode selected (0, 180, 270). Dual is not supported in WindowsTM 98, ME, NT 4.0. MagicRotation does not provide support for 24 bits per pixel (Bit depth/Color Quality). If you are changing your Graphic Card it is recommended that you uninstall the MagicRotation Software before doing so. System Requirements OS" "WindowsTM 98 SE " “WindowsT" Me " “WindowsTM NT 4.0 " “WindowsTM 2000 " “Windows XP Home Edition “Windows XP Professional " “Windows Vista 82Bit " “Windows 7 32Bit" E For MagicRotation, Windows 2000 or later is recommended. "Hardware" At least 128MB of memory(recommended) At least 25MB of free space on the hard disk drive "Service Packs" Itis recommended that your System has the latest Service Pack installed. For WindowsT" NT 4.0, it is recommended to install Internet Explorer 5.0 and above with Active Desktop component. E + For more information, refer to the website{http://mww.samsung.com/us/consumer/ learningresources/monitor/magicrotation/pop_download.htmil). + Windows®" is registered trademark of Microsoft Corporation,Inc.

You can only remove MagicRotation through [Add or Remove Programs] in Windows. To remove "MagicRotation", complete the following steps.

OO Où À CO N Click [Start] select [Settings], and select [Control Panel] from the menu. For Windows XP, click [Start], and select [Control Panel] from the menu. Double-click the [Add or Remove Programs] icon in the Control Panel. In the [Add/Remove] window, find and select MagicRotation so that it is highlighted. Click [Change or Remove Programs] to remove the software. Select [Yes] to start removing MagicRotation. Wait until a message box appears informing you that the software has been removed completely. For technical support, the FAQ (frequently asked questions) or information about the software upgrade for MagicRotation, please visit our website(http:/Avww.samsung.com/us/consumer/learningresources/ monitor/magicrotation/pop_download.html).

Before calling Samsung Customer Service Center, test your product as follows. If the problem persists, contact Samsung Customer Service Center. Check if your product is operating normally by using the product test function. If the screen is turned off and the power indicator blinks even though the product is properly connected to a PC, perform a self-diagnosis test. Power off both the PC and product. Disconnect the cables from the product. Power on the product. & © ND Ifthe message "Check Signal Cable" appears, the product is working normally. If the screen remains blank, check the PC system, video controller and cable.

9.1.2 Checking the Resolution and Frequency

For a mode that exceeds the supported resolution (refer to "10.3 Standard Signal Mode Table"), the message "Not Optimum Mode" will appear for a short time.

9.1.3 Check the following.

Installation issue (PC mode) The screen keeps switching on and off. Check the cable connection between the product and PC, and ensure the connectors are locked. (Refer to "2.3 Connecting and Using a PC") Screen issue The power LED is off. The screen will not switch Check that the power cable is connected on. properly. (Refer to "2.8 Connecting and Using a PC") The message "Check Signal Cable" appears. Check that the cable is properly connected to the product. (Refer to "2.8 Connecting and Using a PC") Check that the device connected to the product is powered on.

Troubleshooting Guide Screen issue "Not Optimum Mode" is displayed. This message appears if the signal from the graphics card exceeds the maximum resolution or frequency for the product. Change the maximum resolution and frequency to suit the product performance, referring to Standard Signal Mode Table (page 80). The images on the screen look distorted. Check the cable connection to the product (Refer to "2.3 Connecting and Using a PC") The screen is not clear. The screen is blurry. Adjust Coarse (page 40) and Fine (page 41). Remove any accessories (video extension cable, etc.) and try again. Set the resolution and frequency to the recommended level. (Refer to "10.1 General") The screen appears unstable and shaky. There are shadows or ghost images left on the screen. Check that the resolution and frequency for the PC are within the range of resolution and frequency compatible with the product. Next, if required, change the settings, referring to Standard Signal Mode Table (page 80) in this manual and the INFORMATION menu on the product. The screen is too bright. The screen is too dark. Adjust Brightness (page 35) and Contrast (page 36). Screen color is inconsistent. Change the COLOR settings. (Refer to " Configuring Tint") The colors on the screen have a shadow and are distorted. Change the COLOR settings. (Refer to " Configuring Tint") White does not really look white. Change the COLOR settings. (Refer to " Configuring Tint") There is no image on the screen and the power LED blinks every 0.5 to 1 second. The product is operating in power-saving mode. Press any key on the keyboard or move the mouse to return to normal operating mode. Sound issue There is no sound. Check the connection of the audio cable or adjust the volume. Check the volume.

Troubleshooting Guide Sound issue The volume is too low. Adijust the volume. If the volume is still low after turning it up to the maximum level, adjust the volume on your PC sound card or software program. Source device issue A beeping sound is heard when my PC is booting. | If a beeping sound is heard when your PC is booting, have your PC serviced.

Troubleshooting Guide Q&A Question Answer How can | change the frequency? Set the frequency on your graphics card. Windows XP: Go to Control Panel — Appearance and Themes — Display — Settings — Advanced — Monitor, and adjust Refresh rate under Monitor settings. Windows ME/2000: Go to Control Panel — Display — Settings — Advanced — Monitor, and adjust Refresh rate under Monitor settings. Windows Vista: Go to Control Panel — Appearance and Personalization — Personalization — Display Settings — Advanced Settings — Monitor, and adjust Refresh rate under Monitor settings. Windows 7: Go to Control Panel — Appearance and Personalization — Display — Screen Resolution — Advanced settings — Monitor, and adjust Refresh rate under Monitor settings.

Troubleshooting Guide Question Answer How can | change the resolution? Windows XP: Go to Control Panel — Appearance and Themes — Display — Settings, and adjust the resolution. Windows ME/2000: Go to Control Panel — Display — Settings, and adjust the resolution. Windows Vista: Go to Control Panel — Appearance and Personalization — Personalize — Display Settings, and adjust the resolution. Windows 7: Go to Control Panel — Appearance and Personalization — Display — Adjust Resolution, and adjust the resolution. How do | set power-saving mode? Windows XP: Set power-saving mode in Control Panel — Appearance and Themes — Display — Screen Saver Settings or BIOS SETUP on the PC. Windows ME/2000: Set power-saving mode in Control Panel — Display — Screen Saver Settings or BIOS SETUP on the PC. Windows Vista: Set power-saving mode in Control Panel — Appearance and Personalization — Personalize — Screen Saver Settings or BIOS SETUP on the PC. Windows 7: Set power-saving mode in Control Panel — Appearance and Personalization — Personalize — Screen Saver Settings or BIOS SETUP on the PC. E Refer to the user manual for your PC or graphics card for further instructions on adjustment.

(For use with Specialty(Arm) Mounting hardware.)

ÿ Specifications Model Name S19B420BW S19B420B S19B420M Operatin, Temperature : 50°F — 104°F (10°C - 40°C) Environmental ? 9 Humidity : 10 % — 80 %, non-condensing considerations | Temperature : -4°F — 113°F (-20°C - 45°C) 9 Humidity : 5 % — 95 %, non-condensing This monitor can be installed and used with any Plug-and-Play compatible systems. Two-way data exchange between the monitor Plug-and-Play and PC system optimizes the monitor settings. Monitor installation takes place automatically. However, you can customize the installation settings if desired. Panel Dots (Pixels) Due to the nature of the manufacturing of this product, approximately 1 pixel per million (1ppm) may be brighter or darker on the LCD panel. This does not affect product performance. Model Name S22B420BW S24B420BW Size 22.0 inches (55 cm) 24.0 inches (61 cm) Panel Display area | 473.76 mm (H) x 296.1 mm (V) 518.40 mm (H) x 324.0 mm (V) Horizontal 30 - 81 kHz Frequency Synchronization : Vertical 56 - 75 Hz 56 - 63 Hz Frequency Display Color 16.7M OPHNUM | 4680x1050860Hz 1920x1200@60Hz Resolution Resolution Maximum 1680x1050@60Hz 1920x1200@60Hz Resolution Maximum Pixel Clock 146MHZ (Analog, Digital) 165MHZ (Analog,Digital) Power Supply This product uses 100 to 240V. Refer to the label at the back of the product as the standard voltage can vary in different countries. Signal connectors 15pin-to-15pin D-sub cable, Detachable DVI-D to DVI-D connector, Detachable

(For use with Specialty(Arm) Mounting hardware.) Temperature : 50°F — 104°F (10°C - 40°C) Environmental Operating Humidity : 10 % — 80 %, non-condensing considerations Temperature : -4°F — 118°F (-20°C - 45°C) Storage Humidity : 5 % — 95 %, non-condensing This monitor can be installed and used with any Plug-and-Play compatible systems. Two-way data exchange between the monitor Plug-and-Play and PC system optimizes the monitor settings. Monitor installation takes place automatically. However, you can customize the installation settings if desired. Panel Dots (Pixels) Due to the nature of the manufacturing of this product, approximately 1 pixel per million (1ppm) may be brighter or darker on the LCD panel. This does not affect product performance. E This device is a Class B digital apparatus. (USA only) Dispose unwanted electronics through an approved recycler. To find the nearest recycling location, go to our website: www.samsung.com/recyclingdirect or call, (877) 278 - 0799 The above specifications are subject to change without notice to improve quality.

PowerSaver The power-saving function of this product reduces power consumption by switching off the screen and changing the color of the power LED if the product is not used for a specified period of time. The power is not turned off in power-saving mode. To switch the screen back on, press any key on the keyboard or move the mouse. Power-saving mode functions only when the product is connected to a PC that has a power-saving function. PowerSaver Normal operation Power saving mode Power off mode (Power button) Power Indicator On Blinking Off Power Consumption Typical Typical 20 watts (519B420BW) 0.3 watts 0.3 watts Power Consumption Typical Typical 20 watts (819B420B) 0.3 watts 0.3 watts Power Consumption Typical Typical 20 watts (519B420M) 0.3 watts 0.3 watts Power Consumption Typical Typical 25 watts (S22B420BW) 0.3 watts 0.3 watts Power Consumption Typical Typical 80 watts (S24B420BW) 0.3 watts 0.3 watts changed. The power consumption level can vary in different operating conditions or when settings are + To reduce the power consumption to O watts, turn off the power switch on the back of the product or disconnect the power cable. Be sure to disconnect the power cable when you will not be using the product for an extended period of time. To reduce the power consumption to 0 watts when the power switch is not available, disconnect the power cable.

+ This product can be set to only one resolution for each screen size to obtain the optimum picture quality due to the nature of the panel. Therefore, a resolution other than the specified resolution may degrade the picture quality. To avoid this, it is recommended that you select the optimum resolution specified for the screen size of your product. + Check the frequency when you exchange a CDT monitor (connected to a PC) for an LCD monitor. If the LCD monitor does not support 85Hz, change the vertical frequency to 60Hz using the CDT monitor before you exchange it with the LCD monitor. If a signal that belongs to the following standard signal modes is transmitted from your PC, the screen will automatically be adjusted. If the signal transmitted from the PC does not belong to the standard signal modes, the screen may be blank even though the power LED turns on. In such a case, change the settings according to the following table by referring to the graphics card user manual. S19B420BW Resolution Freaueney Frequency Le un (kHz) (Hz) IBM, 720 x 400 31.469 70.087 28.322 + MAC, 640 x 480 35.000 66.667 80.240 /- MAC, 832 x 624 49.726 74.551 57.284 /- MAC, 1152 x 870 68.681 75.062 100.000 /- VESA, 640 x 480 31.469 59.940 25.175 /- VESA, 640 x 480 37.861 72.809 81.500 /- VESA, 640 x 480 37.500 75.000 81.500 /- VESA, 800 x 600 35.156 56.250 86.000 +/+ VESA, 800 x 600 37.879 60.317 40.000 +/+ VESA, 800 x 600 48.077 72.188 50.000 +/+ VESA, 800 x 600 46.875 75.000 49.500 +/+ VESA, 1024 x 768 48.363 60.004 65.000 /- VESA, 1024 x 768 56.476 70.069 75.000 /- VESA, 1024 x 768 60.023 75.029 78.750 +/+ VESA, 1152 x 864 67.500 75.000 108.000 +/+ VESA, 1280 x 720 45.000 60.000 74.250 +/+ VESA, 1280 x 800 49.702 59.810 83.500 +

Appendix Responsibility for the Pay Service (Cost to Customers) When the service is requested, in spite of in warranty, we may charge you for a visit from a service technician in the following cases. Not a product defect Cleaning of the product, Adjustment, Explanation, Re-installation and etc. If a service technician gives instructions on how to use TV or simply adjusts options without disassembling product. If a defect is caused by external environmental factors (Internet, Antenna, Wired Signal, etc.) If a product is reinstalled or devices are connected additionally after installing the purchased product for the first time. If a product is reinstalled to move to a different spot or to move to a different house. lf customer requests instructions on how to use because of another company's product. lf customer requests instructions on how to use the network or another company's program. lf customer requests software installation and setup for the product. If a service technician removes/cleans dusts or foreign materials inside of the product. lf customer requests an installation additionally after purchasing a product through home-shopping or online. A Product damage caused by customer's fault Product damage caused by customer's mishandling or wrong repair. If a product damage is caused by; external impact or drop . use of supplies or separatly sold product unspecified by Samsung. repair from a person besides an engineer of outsourcing service company or partner of Samsung Electronics Co., Lid. remodeling or repairing the product by customer. using it with incorrect voltage or non-authorised electrical connections. not following the "cautions" in User Manual. Others lf product fails by natural disaster (lightning, fire, earthquake, flood damage, etc) . If consumable components are all used up (Battery, Toner, Fluorescent lights, Head, Vibrator, Lamp, Filter, Ribbon, etc.) If customer requests a service in case the product has no defect, service fee may be charged. So please read User Manual first.

Appendix Correct Disposal Correct Disposal of This Product (Waste Electrical & Electronic Equipment)

(Applicable in the European Union and other European countries with separate collection systems) This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of With other household waste at the end of their working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take these items for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal.

Appendix Terminology OSD(On Screen Display) On screen display (0OSD) allows you to configure on-screen settings to optimize the picture quality as required. It allows you to change the screen brightness, tint, size and many other settings using menus displayed on the screen. Gamma The Gamma menu adjusts the grey scale that represents middle tones on the screen. Adjusting the brightness brightens the whole screen, but adjusting Gamma only brightens the medium brightness. Grey scale Scale refers to levels of color intensity that show variations of color change from darker areas to brighter areas on the screen. Changes to the screen brightness are expressed with black and white variation, and grey scale refers to the medium area between black and white. Changing the grey scale through Gamma adjustment will change the medium brightness on the screen. Scanning rate Scanning rate, or refresh rate, refers to the frequency of screen refreshes. Screen data is transmitted as it refreshes to display an image, although the refreshing is invisible to the naked eye. The number of screen refreshes is called scanning rate and is measured in Hz. À scanning rate of 60Hz means that the screen refreshes 60 times per second. The screen scanning rate depends on the performance of the graphics cards in your PC and monitor. Horizontal Frequency Characters or images displayed on the monitor screen consist of numerous dots (pixels). Pixels are transmitted in horizontal lines, which are then arranged vertically to create an image. The horizontal frequency is measured in KHz and represents how many times horizontal lines per second are transmitted and displayed on the monitor screen. À horizontal frequency of 85 means that the horizontal lines that make up an image are transmitted 85 000 times per second, and the horizontal frequency is indicated in 85kHz. Vertical Frequency One image is made of numerous horizontal lines. The vertical frequency is measured in Hz and represents how many images can be created per second by those horizontal lines. À vertical frequency of 60 means that an image is transmitted 60 times per second. The vertical frequency is also called ‘refresh rate" and affects screen flicker.

Appendix Resolution Resolution is the number of horizontal pixels and vertical pixels that form a screen. It represents the level of display detail. A higher resolution displays a greater amount of information on the screen and is suitable for performing multiple tasks at the same time. E.g. A resolution of 1920 x 1080 consists of 1,920 horizontal pixels (horizontal frequency) and 1,080 vertical lines (vertical resolution). Plug & Play The Plug & Play feature allows the automatic exchange of information between a monitor and PC to produce an optimum display environment. The monitor uses VESA DDC (international standard) to execute Plug & Play.

Index Responsibility for the Pay Service (Cost to Customers) 89
