USER MANUAL SYNCMASTER 932GW SAMSUNG

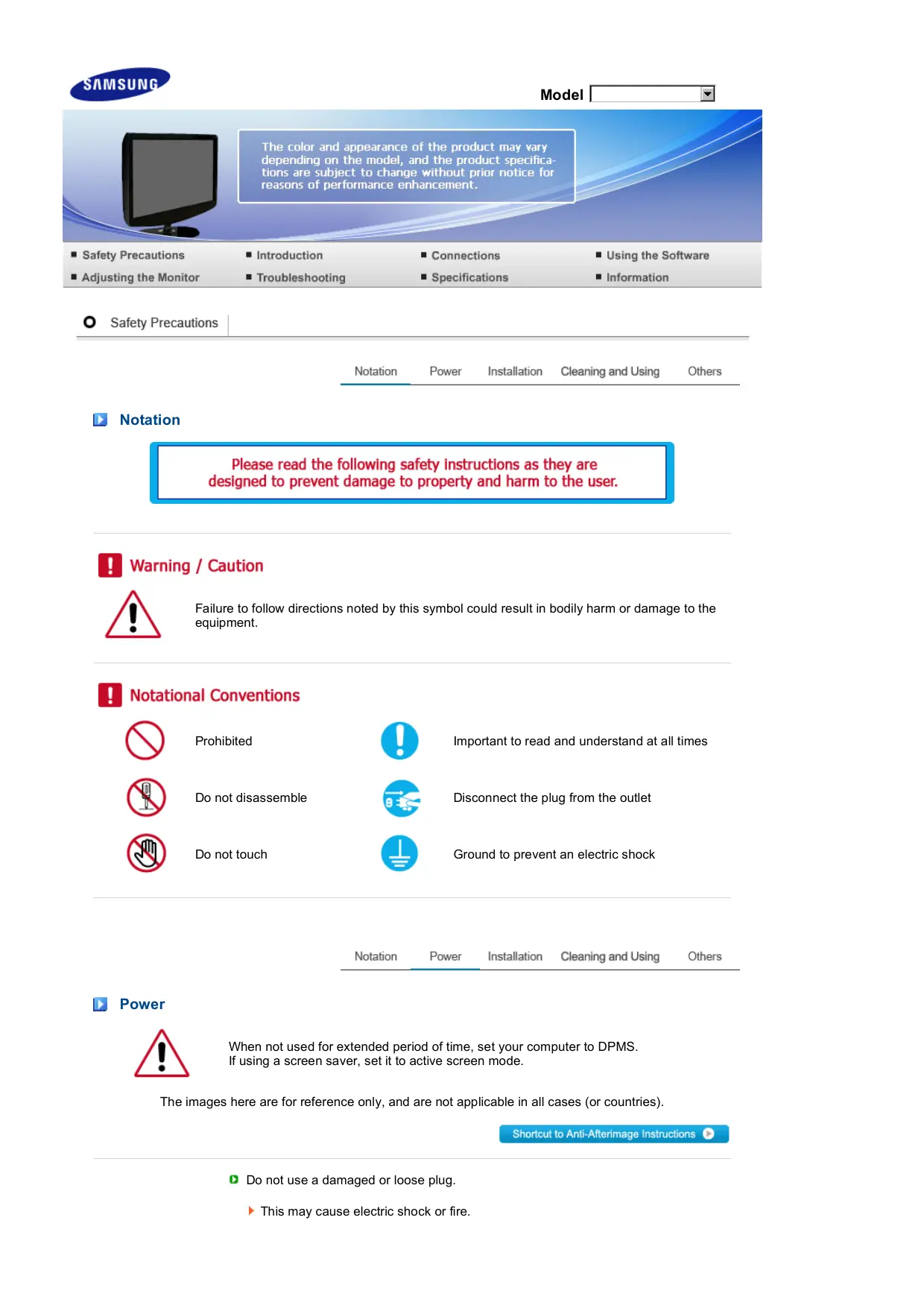

PSimsuncd Model FE] The color and appearance of the product may vary depending on the model, and the product specifica- tions are subject to change without prior notice for reasons of performance enhancement : # Safety Precautions # Introduction " Connections " Using the Software = Adjusting the Monitor = Troubleshooting = Specifications = information © Safety Precautions Notation Power Installation CleaningandUsing Others 3 Notation Please read the following safety instructions as they are designed to prevent damage to property and harm to the user. E Warning / Caution Failure to follow directions noted by this symbol could result in bodily harm or damage to the equipment. ÆB notational Conventions O Prohibited O0 Important to read and understand at all times Q Do not disassemble Fe Disconnect the plug from the outlet © Do not touch [L] Ground to prevent an electric shock Notation Power Installation CleaningandUsing Others ED Power When not used for extended period of time, set your computer to DPMS. If using a screen saver, set it to active screen mode. The images here are for reference only, and are not applicable in all cases (or countries). © Do not use a damaged or loose plug. + This may cause electric shock or fire.

© Do not pull the plug out by the wire nor touch the plug with wet hands. + This may cause electric shock or fire. © Use only a properly grounded plug and receptacle. + An improper ground may cause electric shock or equipment damage. © Insert the power plug firmly so that it does not come loose.

+ A bad connection may cause fire. Do not bend the plug excessively and wire nor place heavy objects upon them, which could cause damage. + This may cause electric shock or fire. Do not connect too many extension cords or plugs to one outlet. + This may cause fire. Do not disconnect the power cord while using the monitor. » A surge may be caused by the separation and may damage the monitor. Do not use the power cord when the connector or plug is dusty. + Ifthe connector or plug of the power cord is dusty, clean it with a dry cloth. » Using the power cord with a dusty plug or connector may cause electric shock or fire.

Æ Installation Notation Power Installation CleaningandUsing Others Be sure to contact an authorized Service Center, when installing your monitor in a location with heavy dust, high or low temperatures, high humidity, and exposed to chemical substances and where it operates for 24 hours such as at airports, train stations etc. Failure to do so may cause serious damage to your monitor. Place your monitor in a location with low humidity and a minimum of dust. + Failure to do so may cause electric shock or fire inside the monitor. Do not drop the monitor when moving it. » This may cause damage to the product or the person carrying it. Install the monitor base in a showcase or shelf so that the end of the base does not protrude from the showcase or shelf. » Dropping the product may cause damage to the product or the person carrying it. Do not place the product on an unstable or small surface area. » Place the product on an even and stable surface, as the product may fall and cause harm to someone walking by, specifically children. Do not place the product on the floor. » Take care, as someone, specifically children may trip over it. Keep any flammable objects such as candles, insecticides or cigarettes away from the product. + Otherwise, this may cause fire. Keep any heating devices away from the power cable. + A melted coating may cause electric shock or fire.

© Do not install the product in places with poor ventilation, for instance, a bookshelf, closet, etc. » Any increase in the internal temperature may cause fire. © Put down the monitor carefully.

• Failing to do so may damage the monitor. © Do not place the monitor face down. » This may damage the TFT-LCD surface. © Theinstallation of the bracket must be done by a qualified professional.

• Installing the bracket by unqualified personnel may result in injury. Always use the mounting device specified in the owner's manual. © When installing the product, make sure to keep it away from the wall (more than 10 cm/4 inches) for ventilation purposes. » Poor ventilation may cause an increase in the internal temperature of the product, resulting in a shortened component life and degraded performance. © Do not disconnect the power cord while using the monitor. » A surge may be caused by the separation and may damage the monitor. © Keep the plastic packaging (bag) out of children's reach. » The plastic packaging (bag) may cause suffocation if children play with it. Notation Power Installation CleaningandUsing Others I Cleaning and Using When cleaning the monitor case or the surface of the TFT-LCD screen, wipe with a slightly moistened, soft fabric.

© Do not spray water or detergent directly onto the monitor. » This may cause damage, electric shock or fire. © Use the recommended detergent with a smooth cloth. © Ifthe connector between the plug and the pin is dusty or dirty, clean it properly using a dry cloth. » A dirty connector may cause electric shock or fire. © Make sure to unplug the power cord before cleaning the product. + Otherwise, this may cause electric shock or fire. © Unplug the power cord from the power outlet and wipe the product using a soft, dry cloth. > Do not use any chemicals such as wax, benzene, alcohol, thinners, insecticide, air freshener, lubricant or detergent. D Contact the SAMSUNG customer care center or Customer Center for interior \ 1Z cleaning once a year. » Keep the product‘ interior clean. Dust which has accumulated in the interior over an extended period of time may cause a malfunction or fire. Notation Power Installation CleaningandUsing Others © Do not remove the cover (or back). » This may cause electric shock or fire. Refer to a qualified servicing company.

If your monitor does not operate normally - in particular, if there is any unusual sound or smell coming from the monitor - unplug it immediately and the Service Center. + This may cause electric shock or fire. Keep the product away from places exposed to oil, smoke or moisture; do not install inside a vehicle. » This may cause a malfunction, electric shock or fire. In particular, avoid operating the monitor near water or outdoors where the monitor could be exposed to snow or rain. If the monitor is dropped or the casing is damaged, turn the monitor off and unplug the power cord. Then contact the Service Center. + The monitor may malfunction, causing electric shock or fire. Disconnect the plug from the outlet during storms or lightning or if it is not used for a long period of time. + Failure to do so may cause electric shock or fire. © Do not try to move the monitor by pulling only the wire or the signal cable. ? + This may cause a breakdown, electric shock or fire due to damage to the cable. © Do not move the monitor right or left by pulling only the wire or the signal cable. + This may cause a breakdown, electric shock or fire due to damage to the cable. © Do not cover the vents on the monitor cabinet. + Bad ventilation may cause a breakdown or fire. | © Do not place water containers, chemical products or small metal objects on the \e à monitor. N & ad sv + This may cause a malfunction, electric shock or fire. If a foreign substance enters the monitor, unplug the power cord and contact the Service Center. © Keep the product away from combustible chemical sprays or inflammable substances.

» This may cause an explosion or fire. Never insert anything metallic into the monitor openings. + This may cause electric shock, fire or injury. Do not insert metal objects such as chopsticks, wire and tools or inflammable objects such as paper or matches into the vent, headphone port or AV ports or etc. + This may cause electric shock or fire. If an alien substances or water enters the product, turn the product off, unplug the power connector from the wall outlet and contact the Service Center. When viewing a fixed screen for an extended period of time, residual image or blurriness may appear.

• Change the mode to energy saving mode or set a screensaver to a changing picture when away from the monitor for an extended period of time. Adjust the resolution and frequency to the level appropriate for the model. + An inappropriate resolution may cause undesirable picture quality. 19 inch Wide (48 cm) - 1440 X 900 Viewing the monitor continuously at a too close angle may result in damage to your eyesight. To ease eye strain, take at least a five-minute break after every hour of using the monitor. Do not install the product on an unstable, uneven surface or a location prone to vibrations. » Dropping the product may cause damage to the product or the person carrying it. Using the product in a location prone to vibrations may shorten the lifetime of the product or may cause the product to catch fire. When moving the monitor, turn off and unplug the power cord. Make sure that all cables, including the antenna cable and cables connected to other devices, are disconnected before moving the monitor.

Place the product out of children's reach, as they could damage by hanging onto it. » A falling product may cause injury to the person or even fatality. When not using the product for an extended period of time, keep the product unplugged. + Otherwise, this may cause heat emission from the accumulated dirt or degraded insulation, causing electric shock or fire. Do not place your children's favorite toys or any other objects of interest on the product. + Children may try to climb on the product to retrieve an object. The product could fall, causing injury or even fatality. When lifting up or moving the monitor, do not lift the monitor upside down while holding only the stand. » This may cause your monitor to fall, and become damaged or cause personal injury. » Try to maintain a good posture when using the monitor. + Keep your back straight. Keep a distance of about 45 - 50 cm between your eyes and the monitor screen. Look at the screen from slightiy above it, and have the monitor directly in front of you. Tiltthe monitor upwards by 10 -20 degrees. Adjust the monitor height so that the top of the monitor is slightly below eye level. Adjust the monitor angle so that there is no reflected light on the screen.Try to maintain your arms perpendicular to your armpits. Keep your arms level with the back of your hands. Keep the angle of the elbow perpendicular. Keep the angle of the knees at more than 90 degree. Do not let your feet fall up from the floor. Adjust the arm position so that it is below the heart. Correct Disposal of This Product (Waste Electrical & Electronic Equipment) - Europe only {Applicable in the European Union and other European countries with separate collection systems)

This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local govemment office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal.

PRODUCT INFORMATION (Image Retention Free) LCD Monitors and TVs may have an image retention when switching from one image to another especially after displaying a stationary image for a long time. This guide is to demonstrate a correct usage of LCD products in order to protect them from Image retention. 9 Warranty Warranty does not cover any damage caused by image retention. Burn-in is not covered by the warranty. 9 Whatis Image retention ? During normal operation of a LCD panel, pixel image retention doesn't occur. However, if the same image is displayed for a long time, a slight difference in electric charge accumulates between the two electrodes which encase the liquid crystal. This may cause the liquid crystal to build up in a certain areas of the display. Thus, the previous image is retained when switching to a new video image. All display products, including LCD,are subject to image retention. This is not a product defect. Please follow the suggestions below to protect your LCD from image retention Q Power Off, Screen Saver, or Power Save Mode Ex) < Turn the power off when using a stationary pattern. - Turn the power off for 4 hours after 20 hours in use - Turn the power off for 2 hours after 12 hours in use . Use a Screen saver if possible - Screen saver in one color or a moving image is recommended. + Set the Monitor to power off with the PC Display Properties Power Scheme. Q Suggestions for specific applications Ex) Airports, Transit Stations, Stock Markets, Banks, and Controlling Systems We recommend that you follow set up of your display system program as below: Q Display Information together with Logo or Moving image cycle. Ex) Cycle : Display Information for 1 hour followed by a Display Logo or moving image for 1 minute. 9 Change the Color Information periodically (Use 2 different colors). Ex) Rotate the Color Information with 2 colors every 30 minutes. Type 1 Type 1

FLGHT TIME FLGHT TIME

07348 20:30 27 07348 20:30 UA102 21:10 UA102 21:10 Avoid using a combination of characters and background color with large difference in luminance. Avoid using Grey colors, which can cause Image retention easily. *_ Avoid: Colors with big difference in luminance (Black & White, Grey) Ex)

+ Recommended settings: Bright colors with little difference in luminance - Change the characters color and background color every 30 minutes Ex) SYSTEM : 245 SYSTEM : 245

STATUS : OK STATUS : OK

- Every 30 minutes, change the characters with movement.

FAAUUUZ —TUU KA1710 12:00 KA1710 12-00 UA0110 13:30 Aer AR 1140110 12:20 AA0002 14:00 FA7777 14:15 Q The best way to protect your monitor from Image retention is to set your PC or System to operate a Screen Saver program when you are not using it. Image retention may not occur when a LCD panel is operated under normal conditions. Normal conditions are defined as continuously changing video patterns. When the LCD panel is operated for a long time with a fixed pattern (-over 12 hours-), there may be slight difference in voltage between electrodes that work the liquid crystal (LC) in a pixel. The voltage difference between electrodes increases with time, forcing the liquid crystal to lean. When this occurs, the previous image may be seen when the pattern is changed. To prevent this, the accumulated voltage difference must be decreased. TFT Pixel Electrode _ Storage Capacitor Bus-Line (TO) (cs)

© Our LCD Monitor satisfies IS013406-2 Pixel fault Class Il

PSimsuncd Model FE] The color and appearance of the product may vary depending on the model, and the product specifica- tions are subject to change without prior notice for reasons of performance enhancement : # Safety Precautions # Introduction # Connections # Using the Software # Adjusting the Monitor = Troubleshooting # Specifications = Information © introduction Features Package Contents Your Monitor [3 Features © RTA Monitor © RTA (Response Time Accelerator) A function that accelerates the response speed of the panel so as to provide a sharper and more natural video display. » RTAOn Activates the RTA function so that the panel operates at a higher response speed than its original speed. » RTAOFF Deactivates the RTA function so that the panel operates at its original response speed. Features Package Contents Your Monitor 3 Package Contents Please make sure the following items are included with your monitor. If any items are missing, contact your dealer. Contact a local dealer to buy optional items. O Unpacking Monitor & Simple stand D Manual

>, {7 © Warranty Card User's Guide, Monitor Driver, Quick Setup Guide {Not available in all Natural Color software, locations) MagicTune" software D Cable Power Cord D-sub Cable D Others Cleaning Cloth *Will be applied to black and high gloss models only. 0 Sold separately DVI Cable Features Package Contents Your Monitor Æ Your Monitor 0 Front

MENU button [II] MagicBright"" button [aa] Brightness button [Q] Opens the on-screen menu and exits from the menu. MagicBright” is a new feature providing optimum viewing environment depending on the contents of the image you are watching. Currently seven different modes are available: Custom, Text, Internet, Game, Sport, Movie and Dynamic Contrast. Each mode has its own pre-configured brightness value. You can easily select one of seven settings by simply pressing MagicBright” control button.

Although the values are carefully chosen by our engineers, the pre-configured values may not be comfortable to your eyes depending on your taste. Ifthis is the case, adjust the brightness and contrast by using the OSD menu.

For documentations or works involving heavy text.

For working with a mixture of images such as texts and graphics.

For watching motion pictures such as a game.

For watching motion pictures such as a sport.

For watching motion pictures such as a DVD or Video CD.

Dynamic Contrast is to automatically detect distribution of inputted visual signal and adjust to create optimum contrast. >> Click here to see an animation clip When OSD is not on the screen, push the button to adjust brightness. >> Click here to see an animation clip

• Not available in MagicBright mode of Dynamic Contrast.

Adjust buttons Adjust items in the menu. © Enter button [@]/ Activates a highlighted menu item. / SOURCE button Push the 'SOURCE', then selects the video signal while the OSD is off. (When the SOURCE button is pressed to change the input mode, a message appears in the upper left of the screen displaying the current mode — analog or digital input signal.) X* If you select the digital mode, you must connect your monitor to the graphic card's DVI IN port using the DVI cable. © AUTO button Use this button for auto adjustment. >> Click here to see an animation clip © Power button [o] Use this button for turning the monitor on and off. Power indicator This light glows blue during normal operation, and blinking blue once as the monitor saves your adjustments. X See PowerSaver described in the manual for further information regarding power saving functions. For energy conservation, turn your monitor OFF when it is not needed, or when leaving it unattended for long periods. D Rear X The configuration at the back of the monitor may vary from product to product. © POWER port Connect the power cord for your monitor to the power port on the back of the @ DVIIN port Connect the DVI Cable to the DVI IN port on the back of your monitor. © RGB IN port Connect the signal cable to the 15-pin, D-sub port on the back of your @ Kensington Lock he Kensington lock is a device used to physically fix the system when using it in a public place. *° The locking device has to be purchased separately. For using a locking device, contact where you purchase it.

• See Connecting Cables for further information regarding cable connections:

PSimsuncd Model FE] The color and appearance of the product may vary depending on the model, and the product specifica- tions are subject to change without prior notice for reasons of performance enhancement : # Safety Precautions # Introduction " Connections " Using the Software = Adjusting the Monitor = Troubleshooting = Specifications = information © Connections Connecting Cables Using the Stand 3 Connecting Cables © Rear of Computer @ Rear of Monitor © Macintosh © Connect the power cord for your monitor to the power port on the back of the monitor. Plug the power cord for the monitor into a nearby outlet. @ Use appropriate connection for your computer. Using the D-sub (Analog) connector on the video card. - Connect the signal cable to the 15-pin, D-sub port on the back of your monitor.

Using the DVI (Digital) connector on the video card. - Connect the DVI Cable to the DVI IN Port on the back of your Monitor. [DVI IN] Connected to a Macintosh. - Connect the monitor to the Macintosh computer using the D-sub connection cable. X°_ Tu on your computer and monitor. If your monitor displays an image, installation is completed. Connecting Cables Using the Stand Using the Stand D Folding the base

X You can tilt the monitor upwards at an angle of 0° to18°.

PSnmsund Model [A The color and appearance of the product may vary depending on the model, and the product specifica- tions are subject to change without prior notice for reasons of performance enhancement : # Safety Precautions # Introduction " Connections " Using the Software = Adjusting the Monitor = Troubleshooting = Specifications = information © Using the Software Monitor Driver Natural Color MagicTune" Æ Monitor Driver When prompted by the operating system for the monitor driver, insert the CD-ROM included with this monitor. Driver installation is slightly different from one operating system to another. Follow the directions appropriate for the operating system you have. Prepare a blank disk and download the driver program file at the Internet web site shown below. Intemet web site :http://vww.samsung.com/ (Worldwide) http/hAwww.samsung.com/monitor (U.S.A) http:/www.sec.co.kr/monitor (Korea) http/Awww.samsungmonitor.com.cn/ (China) 0 Installing the Monitor Driver (Automatic) © Insert the CD into the CD-ROM drive. © Ciick "Window: © Choose Fe monitor model in the model list, then click the "OK" button. Select ipiay adapter on wtich you martine monioe Select monitor which you wants

• This monitor driver is under certifying MS logo, and this installation doesn't damage your system. The certified driver will be posted on Samsung Monitor homepage http:/Awww.samsung.com/ © Monitor driver installation is completed. 0 Installing the Monitor Driver (Manual) Windows Vista | Windows XP | Windows 2000 | Windows ME | Windows NT | Linux © Microsoft® Windows Vista" Operating System © Insert your Manual CD into your CD-ROM drive. @ Click ÉXStart) and "Control Panel". Then, double-click on "Appearance and Personalization”. © Click "Advanced Settings…". © Click "Properties" in the "Monitor" tab. If the "Properties" button is deactivated, it means the configuration for your monitor is completed. The monitor can be used as is. Ifthe message ‘Windows needs." is displayed, as shown in the figure below, click "Continue".

• This monitor driver is under certifying MS logo, and this installation doesn't damage your system. The certified driver will be posted on Samsung Monitor homepage htip/www.samsung.com/ in the "Driver" tab. mm) ve los) À Ag comen © Click "Update Driver. Donne ot Onda Lau Dnertn 0001008 Dog monts CE Les) @ Check the "Browse my computer for driver software" checkbox and click "Let me pick from a list of device drivers on my computer". on pu mat des + sn names sé © Click "Have Disk..." and select the folder (for example, D:\Drive) where the driver setup file is located, and click "OK". meta éé mit CE] ont mano A ne EP ao de sm Sie dev dres ju or te had

CS y maroc es ton = 7 Coms) D memrners = Éertterteress] Select the model that matches your monitor from the list of monitor models on the screen, and click "Next".

Dern ® Click "Close" "Close" —> "OK" —> "OK" on the following screens displayed in sequence. don ha ce ui pa de one ne mate

Install From D Anse manulachae rotalaion dk, and ten make se halle conec dive is selected belom St re ot rs Copy manches les honc © if you can see following "Message" window, then click the "Continue Anyway" button. Then click the "OK" button dwai AN The scie pou ae instal fo ès hard: smnro me srcommenah, imstalation Contact the hardware vendor lor softmare that has pasred Windows Logo testing. Coma ] CaroPiasen J

• This monitor driver is under certifying MS logo, and this installation doesn't damage your system. The certified driver will be posted on Samsung Monitor homepage http:/Awww.samsung.com/ © Click the "Close" button then click the "OK" button continually. Completing the Hardware Update Wizard D som Te nt dre ane nan tonnes CRE Cunome Sara Dose Mu dgta mes PESTE To em ta bus en To oder tc Gi ET Le Te Frais ce et CEE | rouvutate de drren [es] Ces ® Monitor driver installation is completed. © Microsoft® Windows® 2000 Operating System de #% When you can see "Digital Signature Not Found" on your monitor, follow these steps. © Choose the "OK" button on the "Insert disk" window. @ Click the "Browse" button on the "File Needed” window. © Choose A:(D:\Driver) then click the "Open" button and then click the "OK" button.

How to install © Click "Start," "Setting,” and then "Control Panel." @ Double click the "Display" icon. © Select the "Settings" tab and click the "Advanced Properties" button. © Choose "Monitor." Case1 : Ifthe "Properties" button is inactive, it means your monitor is properly configured. Please stop installation Case2 : Ifthe "Properties" button is active, click the "Properties" button then follow next steps continually. © Click "Driver" and then click "Update Driver." then click the "Next" button. © Choose "Display a list of the known drivers for this device so that | can choose a specific driver" then click "Next" and then click "Have disk". © Click the "Browse" button then choose A:(D:\Driver). © Click the "Open" button, then click the "OK" button. © Choose your monitor model and click the "Next" button then click "Next" button. ® Click the "Finish" button then the "Close" button. If you can see the "Digital Signature Not Found" window then click the "Yes" button. And click the "Finish" button then the "Close" button. 9 Microsoft® Windows® Millennium Operating System © Click "Start," "Setting," and then “Control Panel." © Double click the "Display" icon. © Select the "Settings" tab and click the "Advanced Properties" button. © Select the “Monitor” tab. © Click the "Change" button in the "Monitor Type" area. © Choose "Specify the location of the driver." © Choose "Display a list of all the driver in a specific location." then click the "Next" button. © Click the "Have Disk” button. © Specify A:\(D:\driver) then click the "OK" button. ® Select "Show all devices" and choose the monitor that corresponds to the one you connected to your computer and click "OK". ® Continue choosing "Close" button and "OK" button until you close the Display Properties dialogue box. © Microsoft® Windows® NT Operating System dd © Click "Start," "Settings," "Control Panel," and then double-click "Display" icon. @ in the Display Registration Information window, click the Settings tab and then click "All Display Modes”. © Select a mode that you wish to use (Resolution, Number of colors and Vertical frequency) and then click "OK". © Click the "Apply" button if you see the screen working normally after clicking "Test". If the screen is not normal, change to a different mode (lower mode of resolution, colors, or frequency). X Ifthere is no Mode at AIl Display Modes, select the level of resolution and vertical frequency by referring to the Preset Timing Modes in the user guide. © Linux Operating System a To execute X-Window, you need to make the X86Config file, which is a type of system setting file. © Press "Enter at the first and the second screen after executing the X86Config file. © The third screen is for setting your mouse. © Set a mouse for your computer. © The next screen is for selecting a keyboard. © Set a Keyboard for your computer. © The next screen is for setting your monitor. © First of all, set a horizontal frequency for your monitor. (You can enter the frequency directly.) © Set a vertical frequency for your monitor. (You can enter the frequency directly.) © "Enter" the model name of your monitor. This information will not affect the actual execution of X- Window. @® You have finished setting up your monitor. Execute X-Window after setting other requested hardware.

Monitor Driver Natural Color MagicTune" Æ Natural Color D Natural Color Natural Color Pro color management sys Monitor Color Cal. & Profiling Preference ‘ Coprrign® 2003 Samsung Electronics Ce. LA One of the recent problems in using a computer is that the color of the images printed out by a printer or other images scanned by a scanner or a digital camera are not the same as those shown on the monitor. the Natural Color S/W is the very solution for this problem. It is a color administration system developed by Samsung Electronics in association with Korea Electronics & Telecommunications Research Institute (ETRI). This is only available for Samsung monitors and ensures that the color of the images on the monitor are the same as the printed or scanned images. For more information, refer to Help (F1) in the software program. 0 Installing the Natural Color Software Insert the CD included with the Samsung monitor into the CD-ROM Drive. The initial Natural Color screen will appear. Click on Natural Color in the startup window to install the Natural Color software. To install the program manually, insert the CD included with the Samsung monitor into the CD-ROM Drive, click the Windows [Start] button, select [Run...] . Enter D:\ColonNCProSetup.exe and then press the <Enter> key. {if the drive where the CD is inserted is not D'\, enter the applicable drive.) © Uninstalling the Natural Color Software Program Select "Settings" / "Control Panel” from the "Start" menu and then double-click "Add/Delete a program" Select Natural Color from the list and then click the "Add/Delete" button. Monitor Driver Natural Color MagicTune" MagicTune" - Installation Insert the installation CD into the CD-ROM drive. Click the Magic Tune" installation file. Select installation Language, Click "Next". When the Installation Shield Wizard window appears, click "Next." Select "I agree to the terms of the license agreement" to accept the terms of use. Choose a folder to install the MagicTune" program. Click "Install." The "Installation Status" window appears. DNDABWN =

10. When the installation is complete, the MagicTune ” executable icon appears on your desktop.

Double-click the icon to start the program.

• MagicTune” execution icon may not appear depending on specification of computer system or monitor. If that happens, press F5 Key. @ installation Problems (MagicTune The installation of MagicTune'" can be affected by such factors as the video card, motherboard and the network environment. ® System Requirements

Windows 2000 Windows XP Home Edition Windows XP Professional Windows Vista TM It is recommended using MagicTune’" in Windows '" 2000 eg or later. Hardware + 32MB Memory above + 60MB Hard disk space above

• For more information, visit the MagicTune"" website. Uninstall The MagicTune” program can be removed only by using the ‘Add or Remove Programs” option of the Windows Control Panel. Perform the following steps remove Magic Tune".

1. Go to [Task Tray] ' [Start] [Settings] and select [Control Panel] in the menu. Ifthe program runs on

Windows XP, go to [Control Panel] in the [Start] menu.

2. Click the "Add or Remove Programs" icon in Control Panel.

3. In the "Add or Remove Programs" screen, scroll down to find "MagicTune""". Click on it to highlight it.

4. Click the "Change/Remove" button to remove the program.

5. Click "Yes" to begin the uninstall process.

6. Wait until the "Uninstall Complete" dialog box appears.

Visit the MagicTune" website for technical support for MagicTune", FAQs (questions and answers) and software upgrades.

PSnmsund Model FE] The color and appearance of the product may vary depending on the model, and the product specifica- tions are subject to change without prior notice for reasons of performance enhancement. # Safety Precautions = introduction = Connections = Using the Software = Adjusting the Monitor = Troubleshooting = Specifications = information © Adjusting the Monitor Control Buttons Direct Functions OSD Function E Control Buttons

LL D 1! opens the OSD menu. Also use to exit the OSD menu or return to the previous menu. @ ra) These buttons allow you to adjust items in the menu. © æ@ Press this button to activate a highlighted menu item. © AUTO] When the ‘AUTO button is pressed, the Auto Adjustment screen appears as shown in the animated screen on the center. Control Buttons Direct Functions OSD Function [3 Direct Functions D AUTO

Menu Description When the AUTO" button is pressed, the Auto Adjustment screen appears as shown in the animated screen on the center. Auto adjustment allows the monitor to self-adjust to the incoming Analog signal. The values of fine, coarse and position are adjusted automatically. (Available in Analog mode only) AUTO To make the automatic adjustment function sharper, execute the "AUTO" function while the AUTO PATTERN is on. » if auto adjustment does not work properly, press AUTO" button again to adjust picture with more accuracy. » if you change resolution in the control panel, auto function will be executed automatically. D OSD Locked & Unlock © In case of pushing AUTO button after locking OSD

Menu OSD Locked & Unlock D MagicBright"" Description This is the function that locks the OSD in order to keep the current states of settings or prevent others from adjusting the current settings. Locked : Hold down the menu button for more than five seconds to activate the OSD adjustment lock function. Unlock : Hold down the menu button for more than five seconds to deactivate the OSD adjustment lock function.

• Though the OSD adjustment lock function is activated, you can still adjust the brightness and contrast, and adjust MagicBright (#*) using the Direct button.

Menu Description Push the MagicBright"" button to circle through available preconfigured modes. [@a] MagicBright - Seven different modes: Custom, Text, Internet, Game, Sport, Movie and Dynamic Contrast. O Brightness Menu Description Brightness When OSD is not on the screen, push the button to adjust brightness.

D SOURCE Menu Description SOURCE Selects the Video signal while the OSD is off. (Analog/Digital) Control Buttons Direct Functions OSD Function OSD Function EN Picture Brightness Contrast I Color MagicColor Color Tone Color Control Gamma EI Image Coarse Fine Sharpness H-Position V-Position M oso Language H-Position V-Position Transparency Display Time IE Setup Auto Source Image Reset Color Reset RTA EI information © I Picture : Not available in MagicBright"" mode of Dynamic Contrast. ds

Menu Brightness Contrast Description Play/Stop You can use the on-screen menus to change the brightness according to personal preference. @ Q@ av Menu You can use the on-screen menus to change the contrast according to personal preference. (Not available in MagicColor mode of Full and Intelligent. ) @ Q@ MENU — (Day (D air MENU © II Color : Not available in MagicBright"" mode of Dynamic Contrast. Menu Description Play/Stop

MagicColor Color Tone Color Control Gamma 0 EN image Menu MagicColor is a new technology that Samsung has exclusively developed to improve digital image and to display natural color more clearly without disturbing image quality. © of Returns to the original mode. @ Demo The screen before applying MagicColor appears on the right and the screen after applying MagicColor appears on the left. © Full Displays not only vivid natural color but also more realistic natural skin color with cleamess. © intelligent Displays vivid natural color with cleamess. MENU — av (2) (2 av MENU The tone of the color can be changed and one of four modes can be selected -Cool, Normal, Warm and Custom. (Not available in MagicColor mode of Full and Intelligent. } MENU — av (av (av MENU Adjusts individual Red, Green, Blue color balance. -Red, Green, Blue (Not available in MagicColor mode of Full and Intelligent. } MENU — à, pay ay- (ay MENU Gamma correction changes the luminance of the colors with intermediate luminance. - Mode 1 - Mode 2 - Mode 3 MENU — 4, (av (2) ar MENU Description Removes noise such as vertical stripes. Coarse adjustment may move the screen image area. You

Coarse Fine Sharpness H-Position V-Position 0 Fi os Menu Language may relocate it to the center using the horizontal control @ Q@ menu. (Available in analog mode only) MENU — ap (2) (2 av MENU Removes noise such as horizontal stripes. Ifthe noise persists even after fine tuning, repeat it after adjusting the frequency (clock speed). @ Q@ (Available in analog mode only) MENU — a pay (air MENU Changes the clearance of image. (Not available in MagicColor mode of Full and Intelligent. ) 6] @ MENU ay) av av MENU Changes the horizontal position of the monitor's entire display. (Available in analog mode only) 6] @ MENU — a pay (air MENU Changes the vertical position of the monitor's entire display. (Available in analog mode only) 6] @ MENU — a pay (air MENU Description Play/Stop You can choose one of nine languages. + English, Deutsch, Español, Français, Italiano, Svenska, Pycexmñ , Português , Türkçe X The language chosen affects only the language of the OSD. It 2 @ has no effect on any software running on he computer. MENU av (2 (2) av MENU

H-Position V-Position Transparency Display Time 0 HE Setup Menu Auto Source Image Reset Color Reset You can change the horizontal position where the OSD menu appears on your monitor. MENU A, av (av MENU You can change the vertical position where the OSD menu appears on your monitor. MENU —a,v— (av (av MENU Change the transparency of the background of the OSD. MENU av (D av (av MENU The menu will be automatically turned off if no adjustments are made for a certain time period. You can set the amount of time the menu will wait before it is turned off. - 5 sec, 10 sec, 20 sec, 200 sec MENU —a,v— (av (av MENU Description Select Auto Source for the monitor to automatically select the signal source. MENU — 4, v (2) (2 — à7 > MENU Image parameters are replaced with the factory default values. MENU — a var MENU Color parameters are replaced with the factory default values. MENU a vf av (av MENU RTA (Response Time Accelerator) A function that accelerates the response speed of the panel so as to provide a sharper and more natural video display.

RTA On : Activates the RTA function so that the panel operates 2 @ at a higher response speed than its original speed. RTA RTA Off_: Deactivates the RTA function so that the panel operates at its original response speed. MENU — a var MENU © II information Menu Description Shows a video source, display mode on the OSD screen. Information

PSimsuncd Model FE] The color and appearance of the product may vary depending on the model, and the product specifica- tions are subject to change without prior notice for reasons of performance enhancement : # Safety Precautions # Introduction " Connections " Using the Software = Adjusting the Monitor = Troubleshooting = Specifications = information © Troubleshooting Check List Q&A Self-Test I Check List Before calling for assistance, check the information in this section to see if you can remedy any problems yourself. If you do need assistance, please call the phone number on the Information section or contact your dealer. Symptom Check List Solutions No images on the Is the power cord Check the power cord connection and supply. screen. connected 1 cannot turn on properly? the monitor. Can you see (Connected using the D-sub cable) "Check Signal Check the signal cable connection. Cable" on the screen? (Connected using the DVI cable) If you still see an error message on the screen when the monitor is connected properly, check to see if the monitor status is set to analog. Press SOURCE/® button to have the monitor double- check the input signal source. If the power is on, If the initial screen (the login screen) appears, boot the reboot the computer computer in the applicable mode (the safe mode for to see the initial Windows ME/XP/2000) and then change the frequency of screen(the login the video card. screen), which can (Refer to the Preset Timing Modes) be seen. If the initial screen (the login screen) does not appear, contact the Service Center or your dealer. Can you see "Not You can see this message when the signal from the Optimum Mode”, video card exceeds the maximum resolution and "Recommended frequency that the monitor can handle properly. Mode 1440 x 900 60 Hz" on the Adjust the maximum resolution and frequency that the screen? monitor can handle properly. If the display exceeds SXGA or 75 Hz, a "Not Optimum Mode", "Recommended Mode 1440 x 900 60 Hz" message is displayed. If the display exceeds 85 Hz, the display will work properly but the "Not Optimum Mode”, "Recommended Mode 1440 x 900 60 Hz" message appears for one minute and then disappears. Please change to the recommended mode during this one-minute period. (The message is displayed again if the system is rebooted.) There is no image The monitor is in PowerSaver mode. on the screen. Is the power Press a key on the keyboard to activate the monitor and

1 cannot see the On Screen Display. The screen shows strange colors or just black and white. The screen suddenly has become unbalanced. The screen is out of focus or OSD cannot be adjusted. LED is blinking but no images on the screen. There are only 16 colors shown on the screen. The screen colors have changed after changing the video card. There is a message that indicator on the monitor blinking at 1 second intervals? Connected using the DVI cable? Have you locked the On Screen Display (OSD) Menu to prevent changes? Is the screen displaying only one color as if looking at the screen through a cellophane paper? Have the screen colors become strange after running a program or due to a crash between applications? Has the video card been set properly? Have you changed the video card or the driver? Have you adjusted the resolution or frequency to the monitor? restore the image on the screen. If there is still no image, press the 'SOURCE/@' button. Then press any key on the keyboard again to activate the monitor and restore the image on the screen. You may get a blank screen if you boot the system before you connect the DVI cable, or disconnect and then reconnect the DVI cable while the system is running as certain types of graphic cards do not send out video signals. Connect the DVI cable and then reboot the system. Unlock the OSD by pressing the [MENU / [I] button for at least 5 seconds. Check the signal cable connection. Make sure the video card is fully inserted in it's slot. Reboot the computer. Set the video card by referring to the video card manual. Adjust screen image position and size using the OSD. Adjust the resolution and frequency at the video card. {Refer to the Preset Timing Modes). The screen can be unbalanced due to the cycle of the video card signals. Readjust Position by referring to the OSD. Have you adjusted the resolution or frequency on the monitor? Is the frequency properly adjusted when checking the Display Timing on the menu? Have the Windows colors been set properly? Has the video card been set properly? Have you installed the monitor driver? Adjust the resolution and frequency of the video card. {Refer to the Preset Timing Modes). Adjust the frequency properly by referring to the video card manual and the Preset Timing Modes. (The maximum frequency per resolution may differ from product to product.) Windows XP : Set the resolution in the Control Panel — Appearance and Themes —> Display —» Settings. Windows ME/2000 : Set the resolution in the Control Panel > Display — Settings. Set the video card by referring to the video card manual. Install the monitor driver according to the Driver Installation Instructions.

reads See the video card Install the monitor driver according to the Driver "Unrecognized manual to see ifthe Installation Instructions. monitor, Plug & Plug & Play (VESA Play (VESA DDC) DDC) function can monitor found". be supported. Check when Magic Tune ” * To check whether your PC is available for MagicTune MagicTune"" does feature is found only feature, follow the steps below (When Windows is XP): not function on PC (VGA) with properly. Window OS that Control Panel — Performance and Maintenance — supports Plug and System -> Hardware -> Device Manager -> Monitors -> Play. After deleting Plug and Play monitor, find ‘Plug and Play monitor by searching new Hardware. MagicTune is an additional software for the monitor. Some graphic cards may not support your monitor. When you have à problem with the graphic card, visit our website to check the compatible graphic card list provided. http}/www.samsung.com/monitor/magictune Magic Tune Have you changed Download the latest program. The program can be doesn't work your PC or video downloaded http:/www.samsung.com/monitor/magictune properly. graphic card? Did you install the Reboot the computer after installing the program for the program? first time. If a copy of the program is already installed, remove it, reboot the computer, and then install the program again. You need to reboot the computer for it to operate normally after installing or removing the program.

• Visit the MagicTune "” website and download the installation software for MagicTune"" MAC. D Check the following items if there is trouble with the monitor. © Checkif the power cord and the video cables are properly connected to the computer. © Check if the computer beeps more than 3 times when booting. (If it does, ask the service center to check the main board of the computer.) © ifyou installed a new video card or if you assembled the PC, check if the installed the adapter(video) driver and the monitor driver. © Check if the scanning ratio ofthe video screen is set to between 56 Hz - 75 Hz. {Do not exceed 75 Hz when using the maximum resolution.) © if you have problems in installing the adapter (video) driver, boot the computer in Safe Mode, remove the Display Adapter at the "Control Panel —> System —> Device Administrator" and then reboot the computer to reinstall the adapter (video) driver.
• _ Ifproblems repeatedly occur, contact an authorized service center. CheckList Q&A SelfTest D a8&A Question Answer How can 1 change the frequency? The frequency can be changed by reconfiguring the video card. Note that video card support can vary, depending on the version of the driver used. {Refer to the computer or the video card manual for details.) How can I adjust the resolution? Windows XP : Set the resolution in the Control Panel — Appearance and Themes — Display —> Settings.

Windows ME/2000 : Set the resolution in the Control Panel —> Display —> Settings.

• Contact the video card manufacturer for details. How can 1 set the Power Saving function? Windows XP : Set the resolution in the Control Panel — Appearance and Themes — Display —> Screen Saver. Set the function in the BIOS-SETUP of the computer. Windows ME/2000 : Set the resolution in the Control Panel — Display — Screen Saver. Set the function in the BIOS-SETUP of the computer.

• Refer to the Windows / Computer Manual How can I clean the outer case/LCD Panel? Disconnect the power cord and then clean the monitor with a soft cloth, using either a cleaning solution or plain water. Do not leave any detergent or scratches on the case. Do not let any water enter the monitor. Check List Q&A Self-Test Self-Test Self-Test Feature Check | Warning Messages | Environment | Useful Tips Your monitor provides a self test feature that allows you to check whether your monitor is functioning properly. D Self-Test Feature Check © Turn off both your computer and the monitor. © Unplug the video cable from the back of the computer. © Turn on the monitor. If the monitor is functioning properly, you will see a box in the illustration below. Check Signal Cable This box appears during normal operation if the video cable becomes disconnected or damaged. © Tum off your monitor and reconnect the video cable; then turn on both your computer and the monitor. If your monitor screen remains blank after using the previous procedure, check your video controller and computer system: your monitor is functioning property. D Warning Messages there is something wrong with the input signal, a message appears on the screen or the screen goes blank although the power indicator LED is still on. The message may indicate that the monitor is out of scan range or that you need to check the signal cable.

Not Optimum Mode Recommended Mode : 1440 x 900 60Hz D Environment a O The location and the position of the monitor may influence the quality and other features of the monitor. » Ifthere are any sub woofer speakers near the monitor, unplug and relocate the woofer to another room. Remove all electronic devices such as radios, fans, clocks and telephones that are within 3 feet {one meter) of the monitor. D Useful Tips D A monitor recreates visual signals received from the computer. Therefore, if there is a problem with the computer or the video card, this can cause the monitor to become blank, have poor coloring, become noisy, and video mode not supported, etc. In this case, first check the source of the problem, and then contact the Service Center or your dealer. © Judging the monitor's working condition If there is no image on the screen or a "Not Optimum Mode", "Recommended Mode 1440 x 900 60 Hz" message comes up, disconnect the cable from the computer while the monitor is still powered on. + Ifthere is a message coming up on the screen or if the screen goes white, this means the monitor is in working condition. + In this case, check the computer for trouble.

PSimsuncd Model FE] The color and appearance of the product may vary depending on the model, and the product specifica- tions are subject to change without prior notice for reasons of performance enhancement. # Safety Precautions # Introduction " Connections " Using the Software = Adjusting the Monitor = Troubleshooting = Specifications = information © Specifications Specifications PowerSaver … Preset Timing Modes B Specifications General Model Name SyncMaster 932GW LCD Panel Size 19" Wide Diagonal (48 cm) Display area 408.24 mm (H) x 255.15 mm (V) Pixel Pitch 0.2835 mm (H) x 0.2835 mm (V) Synchronization Horizontal 30-81 kHz Vertical 56-75 Hz Display Color 8 bit color (16.7M) Resolution Optimum resolution 1440 x 900@60 Hz Maximum resolution 1440 x 900@75 Hz Input Signal, Terminated RGB Analog, DVI(Digital Visual Interface) Compliant Digital RGB

Maximum Pixel Clock 137 MHz (Analog, Digital) Power Supply AC 100 - 240 V- (#/- 10 %), 50/60 Hz Signal Cable

15pin to 15pin D-sub cable, Detachable DVI-D to DVI-D connector, Detachable (Option) Dimensions (W x H x D) / Weight 449 x 374 x 199 mm / 17.7 x 14.7 x 7.8 inch / 4.1 kg / 9.0 Ibs Environmental considerations Operating Temperature : 50 °F — 104 °F (10 °C - 40 °C) Humidity : 10 % — 80 %, non-condensing Storage Temperature : -4°F -113°F (-20 °C - 45 °C) Humidity : 5 % -— 95 %, non-condensing Plug and Play Capability This monitor can be installed on any Plug & Play compatible system. The interaction of the monitor and the computer systems will provide the best operating conditions and monitor settings. In most cases, the monitor installation will proceed automatically, unless the user wishes to select alternate settings. Dot Acceptable TFT LCD panels manufactured by using advanced semiconductor technology with precision of 1ppm {one millionth) above are used for this product. But the pixels of RED, GREEN, BLUE and WHITE color appear to be bright sometimes or some black pixels may be seen. This is not from bad quality and you can use it without any problelms. For example, the number of TFT LCD sub pixels contained in this product are 3,888,000.

• Design and specifications are subject to change without prior notice. D Class B Equipment (Information Communication equipment for residential use) D This product complies with the Electromagnetic Compatibility Directives for residential use and can be used in all areas including common residential areas. (Class B equipment emits less electromagnetic waves than Class À equipment.) Specifications PowerSaver Preset Timing Modes E PowerSaver © This monitor has a built-in power management system called PowerSaver. This system saves energy by switching your monitor to low-power mode when it has not been used for a certain amount of time. The monitor automatically returns to normal operation when you press a key on the keyboard. For energy conservation, turn your monitor OFF when it is not needed, or when leaving it unattended for long periods. The PowerSaver system operates with a VESA DPMS compliant video card installed in your computer. Use the software utility installed on your computer to set up this feature. State Normal Operation Power saving mode EP NU 2000 Power Indicator Blue Blue, Blinking of Power Consumption Less than 42 W Less than 1 W Less than 1 W This monitor is EPA ENERGY STAR® compliant and ENERGY2000 compliant when used with a computer equipped with VESA DPMS functionality. As an ENERGY STAR® Partner, SAMSUNG has determined that this ENERGY STAR product meets the ENERGY STAR® guidelines for energy efficiency.

Preset Timing Modes Specifications PowerSaver Preset Timing Modes If the signal transferred from the computer is the same as the following Preset Timing Modes, the screen will be adjusted automatically. However, if the signal differs, the screen may go blank while the power LED is on. Refer to the video card manual and adjust the screen as follows. Display Mode MAC, 640 x 480 MAC, 832 x 624 MAC, 1152 x 870 IBM, 640 x 350 IBM, 640 x 480 IBM, 720 x 400 VESA, 640 x 480 VESA, 640 x 480 VESA, 800 x 600 VESA, 800 x 600 VESA, 800 x 600 VESA, 800 x 600 VESA, 1024 x 768 VESA, 1024 x 768 VESA, 1024 x 768 VESA, 1152 x 864 VESA 1280 x 960 VESA, 1280 x 1024 VESA, 1280 x 1024 VESA, 1440 x 900 VESA, 1440 x 900 2e 7

Sync Polarity (HN) The time to scan one line connecting the right edge to the left edge of the screen horizontally is called the Horizontal Cycle and the inverse number of the Horizontal Cycle is called the Horizontal Frequency.Unit : kHz Vertical Frequency Like a fluorescent lamp, the screen has to repeat the same image many times per second to display an image to the user. The frequency of this

repetition is called the Vertical Frequency or Refresh Rate. Unit : Hz
