Product Type	Tumble Dryer
Brand	Campomatic
Model	CD907I
Capacity	7 kg
Dimensions (H x W x D)	85 x 60 x 58 cm
Weight	45 kg
Energy Class	C
Power Consumption	2.5 kWh per cycle
Drying System	Condenser
Drying Programs	Cotton, Synthetics, Delicates, Mix, Quick 40', Eco
Noise Level	65 dB
Anti-Crease Function	Yes
Delayed Start	Up to 24 hours
Child Lock	Yes
Overheat Protection	Yes
Filter Type	Lint filter
Drum Material	Stainless steel
Drum Reversing	Yes
Maintenance	Clean filter after each use; empty water container
Spare Parts Availability	Drum belt, heating element, capacitor, door hinge
Reparability	User-replaceable filter and drain hose; professional for electronics
Control Type	Electronic dial and buttons
Display	LED indicator lights
Power Source	230 V / 50 Hz

Frequently Asked Questions - CD907I Campomatic

What is the capacity of the Campomatic CD907I tumble dryer?

The Campomatic CD907I has a capacity of 7 kg, suitable for medium-sized households.

How do I install the CD907I tumble dryer?

Place the dryer on a level, stable surface with at least 10 cm clearance on all sides. Ensure the ventilation openings are not obstructed. For condenser models, no external venting is needed; just connect to a power outlet.

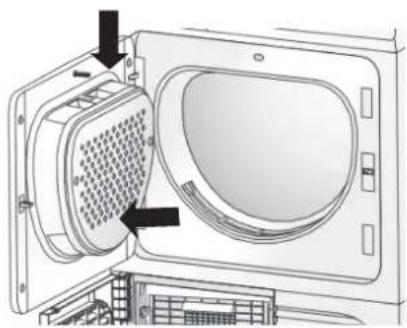

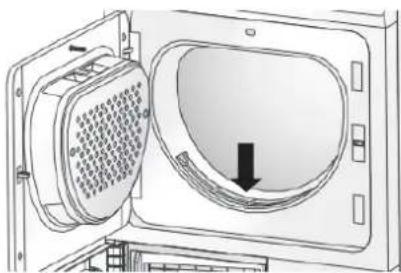

How do I clean the lint filter on the CD907I?

Open the door and pull out the lint filter located at the front bottom. Remove lint by hand or with a soft brush. Rinse under running water if necessary, then dry and reinsert before each cycle.

What is the energy consumption of this dryer?

The energy consumption is approximately 2.5 kWh per full load cycle, placing it in energy class C.

Can I dry all types of fabrics in the CD907I?

Use the appropriate program: cotton, synthetics, and delicates are supported. Air-dry items labeled 'do not tumble dry' as they may be damaged.

What should I do if the dryer stops mid-cycle?

Check for a power outage, blown fuse, or tripped circuit breaker. Also ensure the door is fully closed and the start button was pressed. If the problem persists, consult the troubleshooting section of the manual.

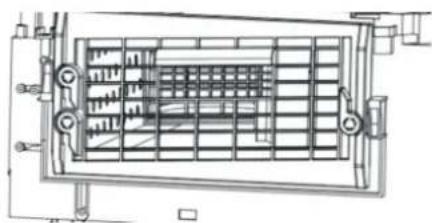

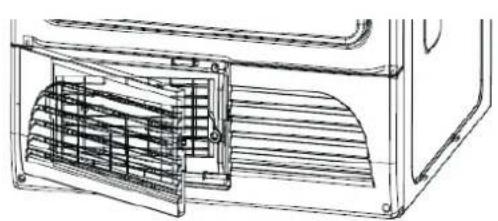

How often should I clean the condenser unit?

Clean the condenser unit every 30 cycles or once a month, depending on usage. Remove it from the bottom front compartment and rinse with water to remove fluff buildup.

Is the CD907I suitable for built-in installation?

The CD907I is a free-standing model and should not be installed behind a closed cabinet door unless adequate ventilation is provided. Built-in installations require proper air circulation.

What does the error code E01 mean?

Error code E01 indicates a door lock malfunction. Ensure the door is fully closed and the lock engages. If the error persists, inspect the door switch and latch for damage.

Where can I purchase replacement parts for the CD907I?

Replacement parts such as drum belts, heating elements, and filters are available through authorized Campomatic service centers or online spare parts retailers. Always use genuine parts.

USER MANUAL CD907I Campomatic

Line drawing of a kitchen oven with control panel and side door (no text or symbols)

Safety Information

Before Use

WARNING

Read and understand thoroughly this safety instructions before use. The items indicated here are very important safety precautions, which must be followed. Any failure and losses caused by ignoring the above mentioned items and cautions mentioned in the operation and installation instruction are not covered by our warranty and any liability.

Illustration of a person pointing upward with one finger (no text or symbols)

The appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not paly with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

Possible electric shocks

• Disassembly, reparation or modification cannot be carried out by people other than professional maintenance staffs.
  ●The household electrical supply system (the current, the voltage, the cable) such as a fuse with suitable specifications should be provided. should meet requirements of the dryer under normal load, and safety devices.
• The power plug must be connected to a three-core socket with an earth wire and is grounded properly and reliably.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• Do not disconnect the power plug by pulling the supply cord. Hold the power plug with your hand.
• Do not use the supply cord when connection of the power plug and the supply cord is loose.
• Do not touch the power plug with wet hands. Wipe dust or water drops over the power plug off with dry cloth.
• Do not over-bend the supply cord or put it under heavy weight.
• Do not use the supply cord / socket / power plug if it is damaged or broken.

Possible Explosions

• Do not put combustible liquid such as gasoline, petrol and alcohol into the appliance or nearby. Don't put clothes with that liquid into the appliance.
• Do not connect / disconnect the power plug when leakage of gas or other combustible gas occurs.

Safety Information

Before Use

Fire accidents / short circuit or electric leakage may occur

• Do not install the appliance close to fire sources or heat sources.
• Do not rest any burning candles or cigarettes on the appliance.
• Do not install the appliance in places with dampness or suffering from rainfalls, lest igniting damages or other accidents occur easily due to gathered water drops on electrical components.

- Do not install the dryer in places under direct sunshine, lest the plastic components and rubber components become aged.

- Do not use water shooting at the appliance when cleaning it.

- In order to avoid danger of fires caused by excessive drying, do not use the appliance to dry the following items: Cushions, quilts and the like (these items accumulate heat).

- Items that have been spotted or soaked with vegetable or cooking oil constitute a fire hazard and should not be placed in the tumble dryer.

- If you have washed your laundry with stain remover, you must execute an extra rinse cycle before loading your tumble dryer.

- Please make sure that no gas lighters or matches have accidentally been left in pockets of garments to be loaded into appliance

Warning

Never stop a tumble dry before the end of the drying cycle unless all items are quickly removed and spread out so that the heat is dissipated.

Personal injury may occur

● This machine is not intended for use by young children or infirm persons without supervision.
● The package materials may be dangerous to children. Put all package materials (e.g. the plastic bag) to places unreachable to children.
- Do not touch laundries in the drying drum till the dryer stops working completely.
- Do not keep children or pets nearby when the dryer is working, for they may be trapped into the dryer. Please check carefully the drum before closing the door.

Safety Information

Before Use

Other instructions

• This appliance is designed for domestic use. It must not be used for purposes other than those for which it was designed.
• Only wash fabrics which are designed to be machine dried. Follow the instructions on each garment label.
• Any electrical work required to install this appliance should be carried out by a qualified electrician or competent person.
• If the machine is situated on a carpeted floor, please adjust the feet in order to allow air to circulate freely under the appliance.
• Do not climb onto the dryer or rest heavy objects / heating devices or items with water or liquid leakage on the dryer, lest deformation of the face panel and the plastic component occur.
• Any objects such as coins, safety pins, nails, screws, stones or any other hard, sharp material can cause extensive damage and must not be placed into the machine.
• After having installed the appliance, check that it is not pressing or standing on its electrical supply cable, or vent hose.
• Items such as foam rubber (latex foam), shower caps, waterproof textiles, rubber backed articles and clothes or pillows fitted with foam rubber pads should not be dried in the tumble dryer.
  ● Always unplug the appliance after use, clean and maintenance.
• Do not overload the appliance. See the relevant section in the user manual.
• Clothes which are dripping wet should not be placed in the dryer.
• Garments which have been in contact with volatile petroleum products should not be machine dried. If volatile cleaning fluids are used, care should be taken to ensure that the fluid is removed from the garment before placing in the machine.
• Never use the tumble dryer if the power supply cable, the control panel, the working surface or the base are damaged so that the inside of the tumble dryer is accessible.
• The tumble dryer is not to be used if industrial chemicals have been used for cleaning.
• The lint must not to be allowed to accumulate around the tumble dryer.
• Do not dry unwashed items in the tumble dryer.
• Fabric softeners or similar products should be used as specified by the fabric softener instructions.
• The final part of a tumble dryer cycle occurs without heat (cool down cycle) to ensure that the items are left at a temperature that ensures that the items will not be damaged.
• That exhaust air must not be discharged into a flue which is used for exhausting fumes from appliances burning gas or other fuels.
• That the appliance must not be installed behind a lockable door, a sliding door or a door with a hinge on the opposite side to hat of the tumble dryer, in such a way that a full opening of the tumble dryer door is restricted.

Safety Information

Before Use

• The lint trap has to be cleaned frequently.
• Adequate ventilation has to be provided to avoid the back flow of gases into the room from appliances burning other fuels, including open fires.
• Items that have been soiled with substances such as cooking oil, acetone, alcohol, petrol, kerosene, spot removers, turpentine, waxes and wax removers should be washed in hot water with an extra amount of detergent before being dried in the tumble dryer.
• Remove all objects from pockets such as lighters and matches.
• Oil-affected items can ignite spontaneously, especially when exposed to heat sources such as in a tumble dryer. The items become warm, causing an oxidation reaction in the oil.
  Oxidation creates heat. If the heat cannot escape, the items can become hot enough to catch fire. Piling, tacking or storing oil affected items can prevent heat from escaping and so create a fire hazard.
• If it is unavoidable that fabrics that contain vegetable or cooking oil or have been contaminated by hair care products be placed in a tumble dryer they should first be washed in hot water with extra detergent - this will reduce, but not eliminate, the hazard.

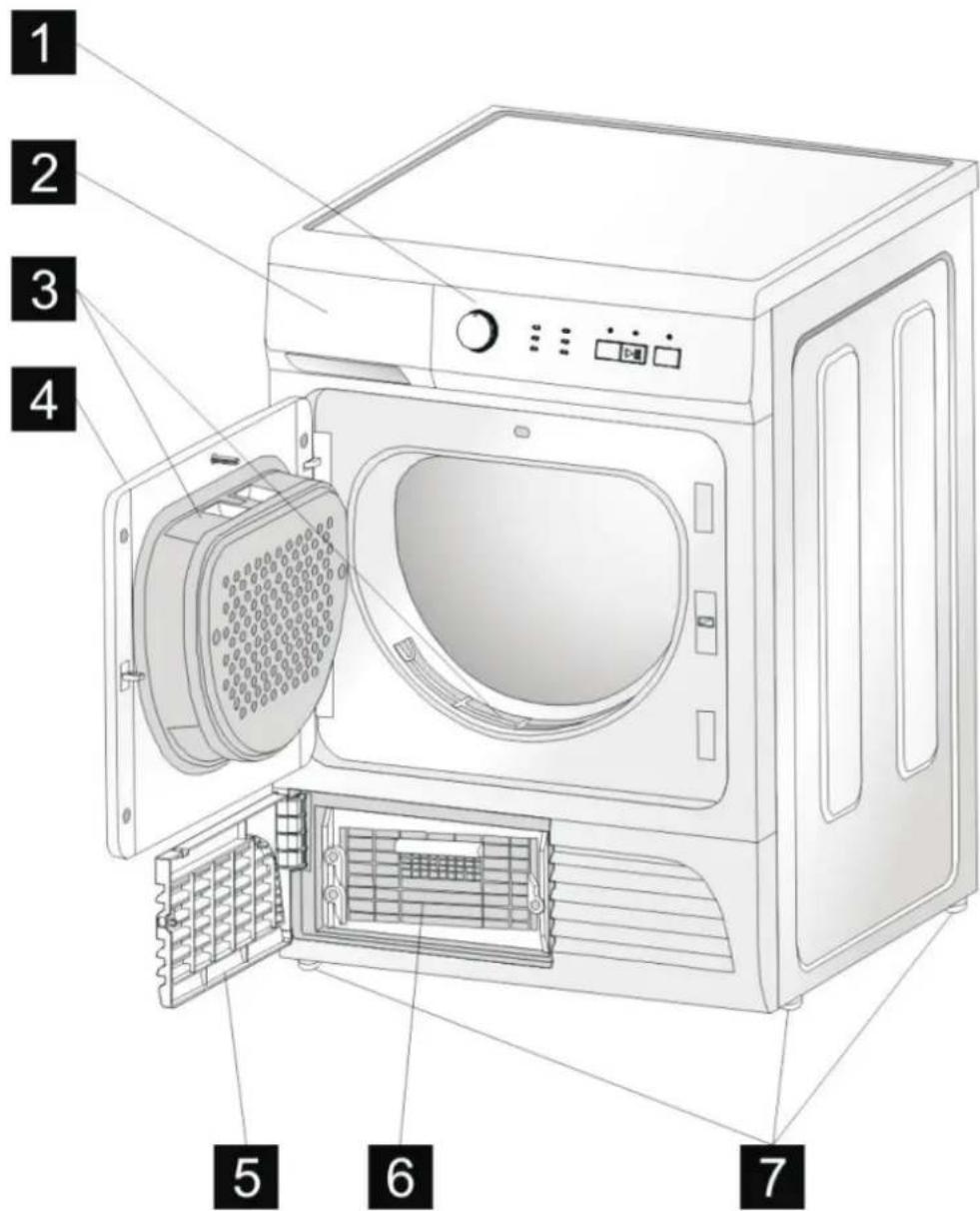

Product description

Before Use

1. Control Panel

2. Drainage container

3. Fluff filter

4. Door

5. Condenser cover

6. Condenser

7. Adjustment leg

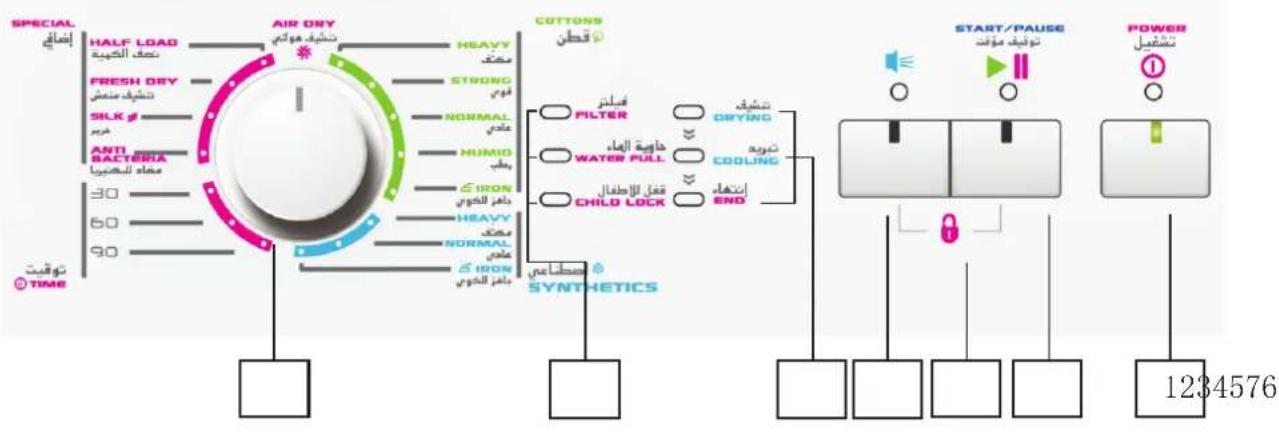

Control panel

Use Process

Control panel

    subgraph Air_Dry
        F1["HALF LOAD"] --> G1["BEAT THEKHEE"]
        G1 --> H1["FRESH DRY"]
        H1 --> I1["SILK \(\phi\)"]
        I1 --> J1["ANTI BACTERIA"]
        J1 --> K1["MEHA LEHBIY"]
        K1 --> L1["TIME"]
    end

    subgraph Cottoning
        M1["PILTER"] --> N1["WATER FULL"]
        N1 --> O1["CHILD LOCK"]
        O1 --> P1["SWITCH"]
        P1 --> Q1["DRYING"]
        Q1 --> R1["COOLING"]
        R1 --> S1["INTCLOS"]
        S1 --> T1["END"]
    end

    subgraph Power
        U["START/PAUSE"] --> V["TOBAWIC MEAT"]
        V --> W["POWER"]
    end

    X["TOQUET"] --> Y["TIME"]
    Z["SPECIAL"] --> AA["AIR DRY"]
    AA --> AB["SOFT"]
    AB --> AC["COTTONS"]
    AC --> AD["START/PAUSE"]
    AD --> AE["POWER"]

1.Power
2.Start/Pause
5. Indicator Lights

Drying

Cooling

End

1. Child Lock
   4.Buzzer
2. Indicator Lights

Filter

Overflow

Child Lock

1. Programme selector dial

Use

Use Process

First Use

• Ensure that the electrical connections comply with the installation instructions.

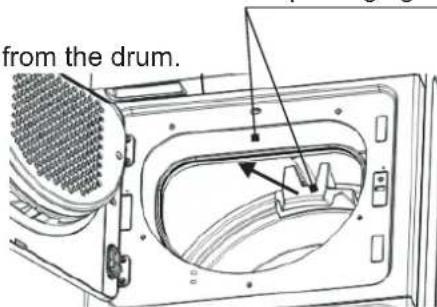

• Remove the polystryrene block and any material from the drum.
• Before using your tumble dryer for the first time, we recommend that you place a few damp cloths inside the appliance and dry for 30 minutes. There may be dust inside a brand new tumble dryer.

Daily Use

Connect the appliance

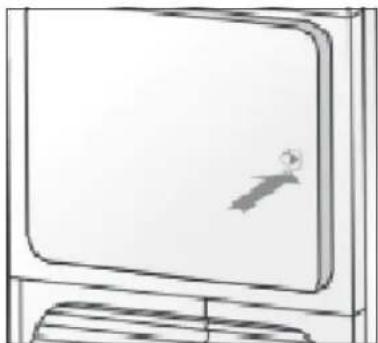

• Open the door (see picture).

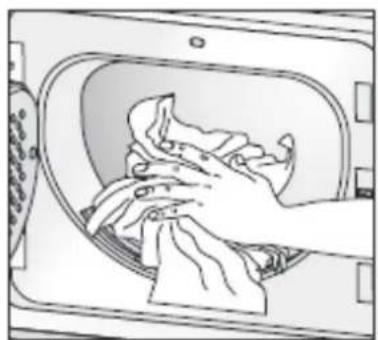

• Place the laundry in the drum, one item at a time, shaking them out as much as possible.
• Close the door. Please check the laundry does not get caught between the door and filter.

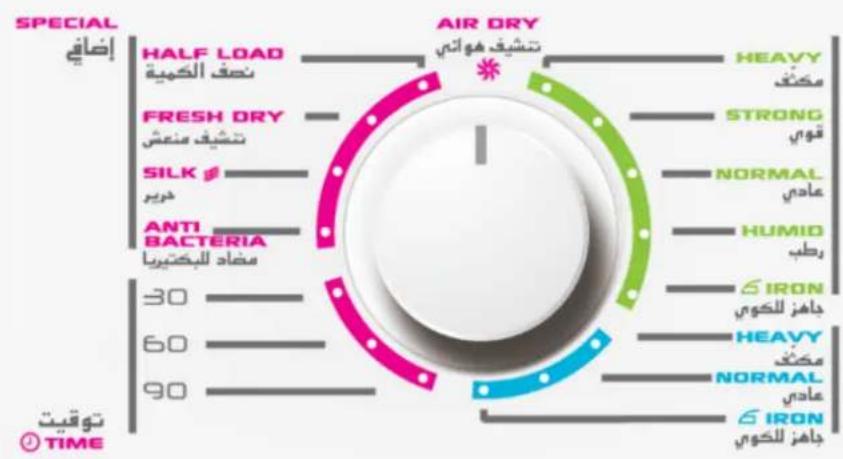

Select the required programme

- Turn the programme selector dial to the required programme. The Start/Pause light starts to flash. The programme will be switched off if you have not pressed any button for 10 minutes.

Line drawing of a computer monitor with a small icon on the screen (no text or symbols)

Illustration of a hand washing clothes inside a washing machine (no text or symbols)

The selector dial is divided into following sections:

• Cottons
• Synthetics
  • Time
• Special

Note:

The “Standard cotton programme” is suitable to dry normal wet cotton laundry and it is the most efficient programme in terms of energy consumption for drying wet cotton laundry.

Use

Use Process

Automatic controlled drying

- You can choose different programme base on your different clothes materials. The device has the function with sensor the moisture in order to automatically adjust the drying time for optimal drying. This drying system is fit for cottons, synthetics sections and Anti-Bacterial, silk programme.

Time controlled drying

- Select the 90 or 60 minute programme for cottons or the 30 minute programme for synthetics. To stop a programme, press the switch button. Please take out the clothes after the compete drying process and then press the Power button to turn off the machine.

Programme Option buttons

- Depending on the programme, different functions can be combined. These must be select after choosing the desired programme and before depressing the Start/Pause button. When these buttons are pressed, the corresponding pilot lights come on. When they are pressed again, the pilot lights go out.

Select the Buzzer

After turning on the appliance, the buzzer is off if you do none operation. The buzzer can be turned on or be turned off during the process. By pressing "Buzzer" button, the buzzer goes off and the corresponding pilot light comes on. When the buzzer is on, the signal will sound in the following cases:

• When depressing any button.
• Open the door during operation.
  • Take out the condenser during operation.
• When the water container is full.
• At the end of program after cooling phase.

When the buzzer is on, if you press the "buzzer" button once more, the buzzer will be switched off.

Select the Start/Pause

Press this button to start the dryer after having selected the programme and the options. If the door of the appliance is opened while the programme is runing, this button must be pressed again after closing the door in order to restart the programme from the point at which it was interrupted. In this cases the light of the Start/Pause button flashes to remind you that the start button needs to be pressed again.

Use

Use Process

Select the Power

- Press the Power button to turn on the machine.

Indicator Lights

• Drying "Drying Light"

This light indicated the appliance is in the drying phase.

Cooling "Cooling Light"

This light indicates that the appliance is in the cooling phase. At the end of drying, there is a 10 minutes cooling phase to cool the laundry.

End "End Light"

This light is on during the anti-creasing phase after the cooling phase.

• Overflow "Overflow Light"

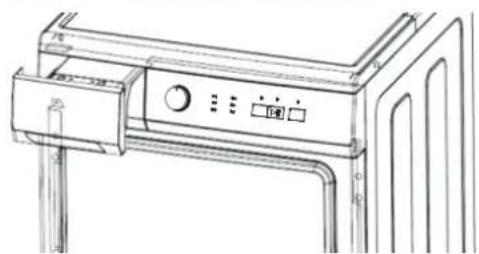

It comes on when the water container is full, which remind you to empty the water container. Note! Empty the water container after each load to avoid the alarm when use in next time.

Filter "Filter Light"

It comes on after each load to remind you to clean the filter. If not clean the filter, the machine perform well for the next use, but the drying efficiency will be influenced if not clean the filter for many times.

Child Lock "Child Lock Light"

This light indicated the appliance is locked.

"Child Lock"Functions

When the machine is on, press meantime "Start/Pause" and "Buzzer" button for several seconds, the system will lock all the buttons. Then, all buttons are invalid. If you want to make the appliance to return to the normal state, then press "Start/Pause" and "Buzzer" button and button

for several seconds meantime again.

The function will be released in the following cases:

• Open the door during operation
  • Take out condenser during operation
  • Water tank full

You can set again the "Child Lock" function when you restart the machine.

Use

Use Process

At the end of the programme

All drying programs end with 10 minutes cooling phase. If the laundry is not removed at the end of the cycle, the dryer performs an anti-creasing phase(duration:30 minutes maximum). If you do not remove the laundry, the machine will remain in the standby status, after the anti-creasing phase. The display shows "End" and the buzzer sounds for 15 seconds if you have selected the buzzer. Press the Power, all the signal light will close.

After each use

Clean the filter.

Important

If the drying programme has to be stopped before it reaches the end, we recommend that you turn the programme selector dial to position "Air Dry" and wait until the end of this cooling phase before removing the laundry. This will avoid a build-up of heat inside the appliance. To do this first turn the on-off switch and then turn to "Air Dry" and press the "Start" button.

Modifying the programm

Turn off the machine to restart a programme.

Drying Hints

Use Process

i Drying Hints

Before loading the laundry

Never tumble dry the following: Particularly delicate items such as net curtains, woollen, silk, fabrics with metal trim, nylon tights, bulky materials such as anoraks, blankets, eiderdowns, sleeping bags, feather quilts and any items containing rubber foam or materials similar to rubber foam.

● Always follow the instructions on garment labels:

may be tumble dried

normal drying (high temperature)

delicate drying (low temperature)

do not tumble dry

• Close pillowcases and covers with fasteners to prevent small laundry items getting tangled inside them. Close press studs, zips and hooks and tie belts and apron strings. Sort laundry according to type and degree of drying required.
• Do not over-dry laundry, this avoids creasing and saves energy.
• Avoid drying dark clothes with light coloured fluffy items such as towels as they could attract the fluff.
  ● The laundry must be thoroughly spun before tumble drying.
• Easy-care items, too, e.g. shirts, should be briefly pre-spun before drying.
• Knitted textiles (knitted underwear) may shrink a little during drying. Please do not overdry items of this type. It is advisable to allow for shrinkage when choosing the size of new purchases.
• You can also put starched items into your dryer. However, to achieve the desired starched effect, choose the programme "Iron dry". To remove any starch residues, wipe out the internal drum after drying with a moist cloth and then rub it dry.
• To avoid a static charge when drying is completed, use either a fabric softener when you are washing the laundry or a fabric conditioner specifically for tumble dryers.
• Remove the laundry when the dryer has finished drying.
• If individual items are still damp after drying, set a brief post-drying time, but at least 30 minutes. This will be necessary particularly for multilayered items (e.g. collars, pockets, etc.).

Drying Hints

Use Process

Make sure that no metal objects are left in the laundry (e.g. hair clips, safety pins, pins)

Button up pillowcases, close zip fasteners, hooks and poppers. Tie any belts or long tapes.

To avoid laundry becoming tangled:

Close zips, button up duvet covers and tie loose ties or ribbons(e.g.of aprons).

Turn items with double-layered fabrics inside out(e.g.with cottonlined anoraks,the cotton layer should be outermost).These fabrics will then dry better.

Maximum loads

Recommended loads are indicated in the programme charts:

General rules:

• Cotton,linen: recommended loads are not too tightly packed;
  • Synthetics: drum no more than half full;
• Delicate fabrics and woollens: drum no more than quarter full.

Kind Notice: Try to load the maximum capacity of the machine as small loads are uneconomical. For easy-wrinkle clothes, slightly reduce the laundry.

Laundry weights

The following weights are indicative:

Bathrobe	1600g	night dress	265g
napkin	130g	ladies' briefs	130g
quilt cover	930g	men's work shirt	800g
sheet	665g	men's shirt	265g
pillow case	266g	men's pyjamas	130g
tablecloth	330g	blouse	665g
towelling towel	265g	men's underpants	130g
tea cloth	130g

Drying programmes

Use Process

Drying programmes

Section	Course	Max load	Description of programme
Cottons	Heavy	9kg	Jeans,work clothes and so on.
	Strong	9kg	Jeans,work clothes and so on.
	Standard cotton	9kg	Drying shirt, T-shirt, cotton trousers
	Damp	9kg	Drying knitted items, cotton shirt.
	Iron	9kg	Drying sheet, bed linen, table linen, starched laundry
Synthetics	Extra	4kg	For sheet, tablecloth, synthetics items.
	Cupboard	4kg	For synthetics items
	Iron	4kg	For knitted items, shirt
Time	30',60',90'	9kg	Drying thick or multi-layered textiles, e.g.terry towelling items.For drying individual items of laundry or for small volumes.
Specials	Anti-Bacterial	4kg	For men's underpants, pantywaist, winter clothing
	Silk	2kg	For silk items
	Freshen-up	4kg	For men's underpants, shirt .
	Delicate	4kg	Pressing this button allows drying to be performed at a lower temperature.
	Air Dry	9kg	For men's underpants, shirt, T-shirt, cotton trousers, etc.

Kind Notice: for drying bathrobe and toweling towel, the max load don't exceed 6kg.

Care and cleaning

Use Process

Care and cleaning

You must DISCONNECT the appliance from the electricity supply, before you can carry out any cleaning or maintenance work.

External cleaning

Use only soap and water and then dry thoroughly. Important: do not use methylated spirit, diluents or similar products.

Cleaning the door

Clean periodically the interior part of the door to remove any fluff. Accurate cleaning ensures correct drying.

Diagram of a washing machine interior showing vent and door components (no text or symbols)

Cleaning the filter

• Your dryer will only function well if the filter is cleaned.
• The filter collects all the fluff which accumulates during drying, for your unit to operate at optimum efficiency.
• “Filter” indicator lights remind you, they must therefore be cleaned.
  ● The filter must be removed for cleaning
• When drying, all the fibre clothing are unhairing, dryer through the filter collects all the fluff.
• When this phenomenon happened, please use the brush and Dipped warm water to clean filter. Open the door, remove filter. (See picture)

Diagram of a microwave oven with a vent and internal structure, showing no text or symbols

Do not use the appliance without filter.

Care and cleaning

Use Process

Water receiver emptied

Water receiver collects all of the water from condenser. Water receiver need to emptied every time after used. Otherwise will be caused reduce drying performance. If water fulled of water receiver, the light of "emptying the remaining water" in the process of dryer running, and buzzer sounds. Under this situation, water receiver must be emptied water within one hour.

1. Pull out water receiver


Technical line drawing of a mechanical device with no visible text or symbols

1. Push the water receiver in dryer

2. Tip water into pool


Technical line drawing of a metal bracket pouring liquid into a rectangular tank (no text or symbols)

1. press the Start/Pause button

Cleaning the condenser

Condenser is one of the very important assembly to realize effective drying, therefore need special attention. Suggest you clean the condenser three or four times every year. (Notice: when the condenser is not assembled in proper position, the alarm will ring).

1.Open condenser cover 2.Move two pieces of lock rod, pull out the condenser

Technical line drawing of a refrigerator internal structure (no text or symbols)

Technical line drawing of a mechanical or electrical enclosure with internal grid structure (no text or symbols)

1. Put the condenser under the tap to make water through completely by clean condenser.

Technical line drawing of a mechanical housing or enclosure with mounting brackets and internal grid pattern (no text or symbols)

1. Install the condenser with the reverse direction.

Care and cleaning

Use Process

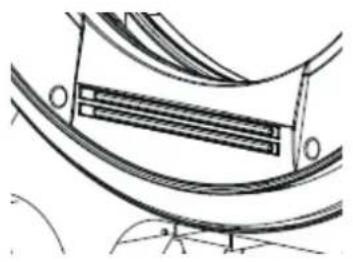

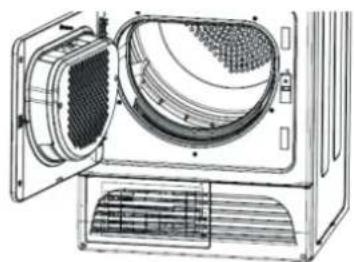

Humidity sensor

In the movement process, this device is used for induction clothing humidity, it means that it must be carried on cleaning. Major cause of clean is must scour out the calcium oxide boiler which on the sensor surface up. Clean the sensor in the tumble (See picture).

Technical line drawing of a mechanical component with curved surfaces and mounting holes (no text or symbols)

Technical line drawing of a microwave oven with internal components (no text or symbols)

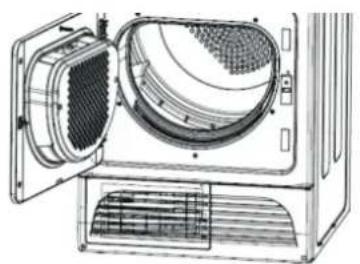

Lamp replace (option)

1. Open the door, put your hand into the drum of the dryer, use screw driver unscrew two pieces of screw, and take out the lamp cover.

Technical line drawing of a microwave oven with internal components and ventilation duct (no text or symbols)

Pure technical diagram of a curved mechanical component with mounting holes and circular features (no text or symbols)

1. Remove the lamp by turning counter clockwise. Be carefully, do not let the lamp fall off. Then install the new lamp and lamp cover with the reverse direction.

Technical line drawing of a curved mechanical component with mounting holes and a central circular feature (no text or symbols)

Something not working

Use Process

Something not working

• Certain problems are due to lack of simple maintenance or oversights, which can be solved easily without calling out an engineer. Before contacting your local Service Centre, please carry out the checks listed below.
• During machine operation it is possible that the Start/Pause pilot light flashes to indicate that the machine is not working. Once the problem has been eliminated, press the Start/Pause button to restart the programme. If after all checks, the problem persists, contact your local Service Centre.

Malfunction	Possible cause	Solution
Dryer does not work	Mains plug is not plugged in. Loading door is open. Have you pressed the ▷Button?	Plug in at mains socket. Close loading door. Press the ▷button again.
Drying results unsatisfactory	Wrong programme selected. Filter clogged. Incorrect volume of laundry. The sediment on humidity sensor	Select a different programme the next time you dry(see “Drying programmes”section). Clean lint filter. Observe recommended loading volumes. Washed humidity sensor surface
Drum light does not work (option)	Light bulb is defective.	Replace light bulb.
Drying cycle ends shortly after programme starts. “End” light illuminated.	Not enough washing loaded or washing loaded is too dry for selected programme.	Select higher drying level (e.g. Heavy instead of Strong).
Drying cycle lasts an unusually long time.	Load volume is too big.	Reduce load volume.

If you are unable to identify or solve the problem, contact our service centre. Before telephoning, make a note of the model, serial number and purchase date of your machine: the Service Centre will require this information.

Technical data

Appendix

IMPORTANT:

If you call out an engineer to a fault listed below, or to repair a fault caused by incorrect use or installation, a charge will be made even if the appliance is under guarantee.

Technical data

Dryer Model	CD9071
Dryer Capacity(kg)	9.0
(AC V/Hz)	220-230/50
Rated power (W)	2500
Weight(kg)	40.5
Power(left-on mode)(W)	0.68
Power(off mode)(W)	0
Energy consumption at full load(kWh)	4.79
Programme time at full load(min)	157.7
Dimensions(W*D*H)(mm)	595X630X850

It is dangerous to alter the specifications or attempt to modify this product in any way.

Care must be taken to ensure that the appliance does not stand on the electrical supply cable.

Any electrical work required to install this appliance should be carried out by a qualified electrician or competent person.

IMPORTANT: The appliance must not built-in.

- Unpacking

All packing must be removed before using the appliance.

- Check accessory

Open the accessory bag and check the accessories.

Accessory	Name	Quantity
	drainpipe	1
	manual	1

Should the appliance be moved, it must be transported vertically.

Installation

Appendix

Earth note:

This appliance must be earthed. In case of failure or damage, earth can provide a minimum resistance to reduce the possibility of electric shock. The power cord has grounding wire with device and power cord with plug. Plug must be inserted into a properly installed and grounded socket (in accordance with all local rules and standards).

Procedure:

A separate earth is required by some local rules. In that case, you need buy grounding wire, clips and screws.

Water discharge

It's not necessary to discharge the condensed water to the tank, it can be drained out directly.

Change drainpipe

Pull out the water pipe by means of the arrow direction, Then install the drainpipe.

Such as the pilers can be used if it is difficult to do.

Close-up of a blue plastic bottle with a black arrow indicating rotation (no text or symbols)

Close-up of a white pipe with black arrows indicating flow direction (no text or symbols)

Removing trans port safety packaging foam

Caution!

Before use the machine, the packaging foam must be removed from the drum.

1.Open the loading door.
2. Remove the two packaging foam from the drum.

Level adjustment

1. Adjust the level to avoid vibration and noise.

Machine must be placed in a clean place, no water, ice and combustible materials there. To keep vibration and noise to a minimum when the dryer is in use, it should be placed on a firm, level surface.

1. If the tumble dryer is not completely leveled, need to adjust the front feet up:to lower the dryer by turning anti-clockwise and to ascend it by turning clockwise till the appliance will not shake.

two packaging foam

Installation

Appendix

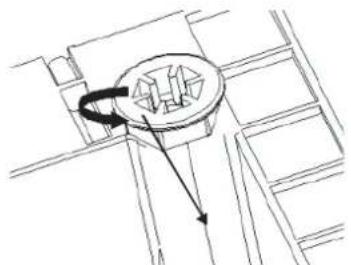

Check across the corner

When press on the edge, the machine should not shake up and down. (please check two direction) when press on the top frame(across the corner), the dryer shakes, need to re-adjust the adjustable feet.

Do not put stacks of blanket or a rope on the floor, which could generate some heat and affect the machine running.

Pure technical line drawing of a mechanical component with no text or symbols

Adjustable screw

IMPORTANT:

The hot air emitted by the tumble dryer can reach temperature of up to 60^ C. The appliance must therefore not be installed on floors which are not resistant to high temperatures.

Door reversal

To make it easier to load or unload the laundry the door can be reversed. This operation must be carried out by qualified personnel. Please contact the nearest our Service Centre.

Electrical connection

Any electrical work required to install this appliance should be carried out by a qualified electrician or competent person.

Warning

THIS APPLIANCE MUST BE EARTHED.

The manufacturer declines any liability should this safety measure not be observed.

Before switching on, make sure the electricity supply voltage is the same as that indicated on the appliance's rating plate.

Should the plug need to be replaced for any reason, proceed as described below.

The wires in the mains lead are coloured in accordance with the following code:

• Green and Yellow-Earth
- Blue-Neutral
- Brown-Live

The wire coloured green and yellow must be connected to the terminal marked with the letter or by the earth symbol or coloured green and yellow.

Environment concerns

Appendix

Warning

• A cut off plug inserted into a socket is a serious safety (shock) hazard.
• Ensure that the cut off plug is disposed of safely.
  • Permanent connection

In the case of permanent connection it is necessary that you install a double pole switch.

The switch must not break the yellow and green earth cable at any point.

Packaging materials

- The materials marked with the symbol 📋 are recyclable.

PE<=polyethylene
PS<=polystyrene
PP<=polypropylene

This means that they can be recycled by disposing of them properly in appropriate collection containers.

Old machine

Use authorized disposal sites for your old appliance. Help to keep your country tidy!

- The symbol 📁 on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council, your household waste disposal service or the shop where you purchased the product.

Ecological hints

To save energy and to help protect the environment, we recommend that you follow these hints:

Try to load the maximum capacity of the machine as small loads are uneconomical.

• Do not over-dry laundry, this avoids creasing and saves energy.
• Select the drying programme according to the type of laundry and the required degree of dryness.
• Clean the filters regularly to avoid excessive drying times and high electricity consumption.
• Ventilate the room well.

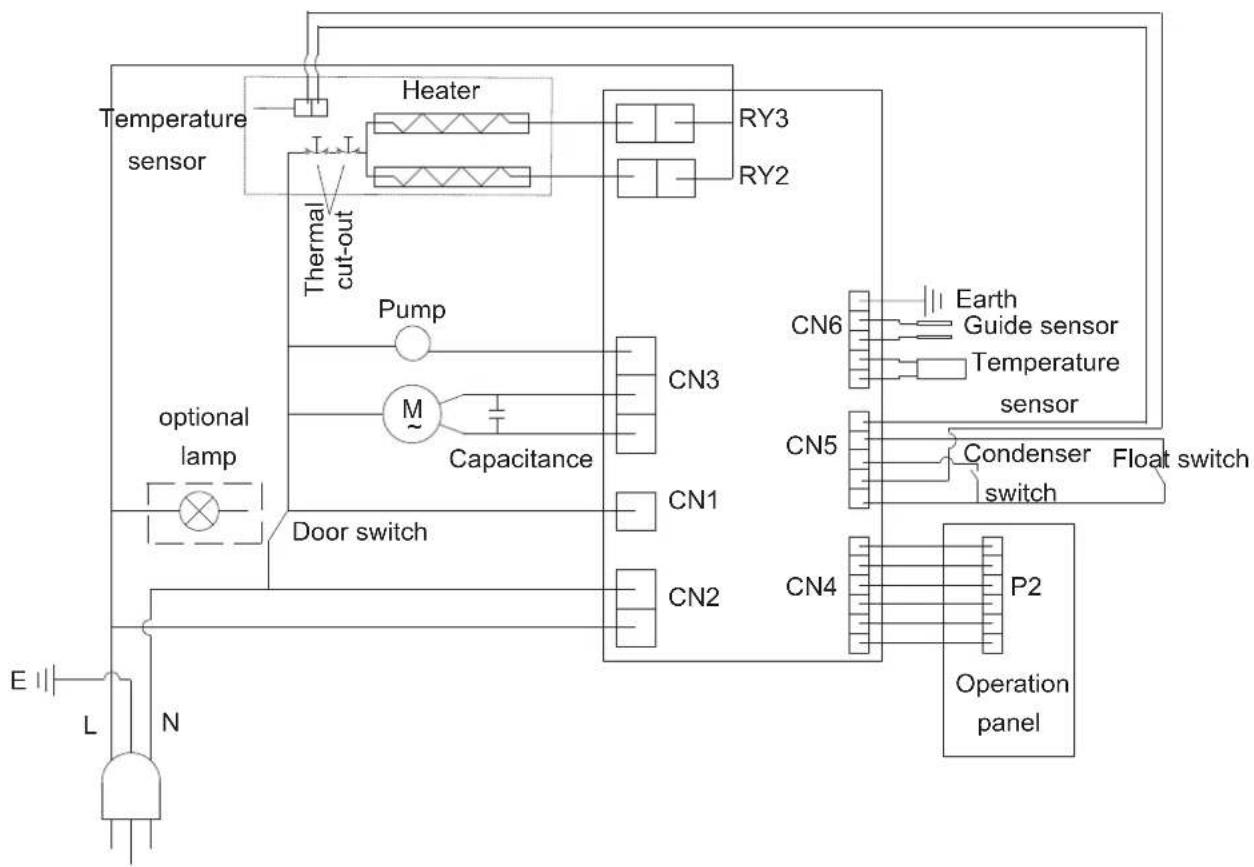

Electric diagram

Appendix
