Sprinter - Folding Caravan RACLET - Free user manual and instructions

Brand	Raclet
Model	Sprinter
Product Type	Folding Caravan
Length (folded)	Approx. 4.0 m
Width (folded)	Approx. 2.0 m
Height (folded)	Approx. 1.5 m
Unfolded Length	Approx. 6.0 m
Unfolded Width	Approx. 2.5 m
Unfolded Height	Approx. 2.2 m
Weight (unladen)	Approx. 900 kg
Power Supply	12V battery; 230V hookup compatible
Gas System	Propane gas for cooking and heating
Folding Mechanism	Manual crank system for roof and sides
Sleeping Capacity	Up to 4 persons (2 double beds)
Cooking Facility	2-burner gas hob
Water System	Fresh water tank (20 L) and grey water tank (20 L)
Heating	Gas-fired heater
Stabilizer Jacks	4 corner screw jacks
Towing Hitch	50 mm ball coupling
Maintenance	Clean canvas with mild soap; lubricate hinges annually
Spare Parts	Available from authorized Raclet dealers

Frequently Asked Questions - Sprinter RACLET

How do I set up the Raclet Sprinter folding caravan?

To set up, first ensure the caravan is on level ground and stabilized with jacks. Then manually crank the roof up until it locks. Pull out the side extensions and secure the canvas. Refer to the manual for detailed steps.

What is the towing weight of the Sprinter?

The unladen weight is approximately 900 kg. Check your vehicle's towing capacity before towing. Always adhere to weight limits.

Can I use a standard car to tow the Sprinter?

Yes, if your car has a towing capacity of at least 1000 kg and a 50 mm ball hitch. Ensure the car's towing capacity is not exceeded.

How do I maintain the canvas and frame?

Clean the canvas with mild soap and water. Do not use harsh chemicals. Lubricate the folding mechanism hinges annually with a silicone lubricant.

What type of gas does the caravan use?

The Sprinter uses propane gas for the cooker and heater. Always use a regulated gas supply and check for leaks before use.

Is electrical hookup mandatory?

No, the caravan runs on a 12V battery for lighting and basic functions. However, a 230V hookup is available for powering appliances.

How many people can sleep in the caravan?

The Sprinter can accommodate up to 4 people in two double beds. One bed is typically in the front and one in the rear.

What safety equipment is included?

The caravan comes with a smoke detector, carbon monoxide alarm, and fire extinguisher. Always test these before each trip.

How do I winterize the caravan?

Drain all water tanks and lines. Store the caravan in a dry place. Cover the canvas to protect from moisture. Remove the battery and store it in a warm area.

Where can I find spare parts or service?

Contact an authorized Raclet dealer or visit the official Raclet website. Many parts are available online through specialized caravan stores.

USER MANUAL Sprinter RACLET

Chassis sans frein

Chassis avec frein

Caisse

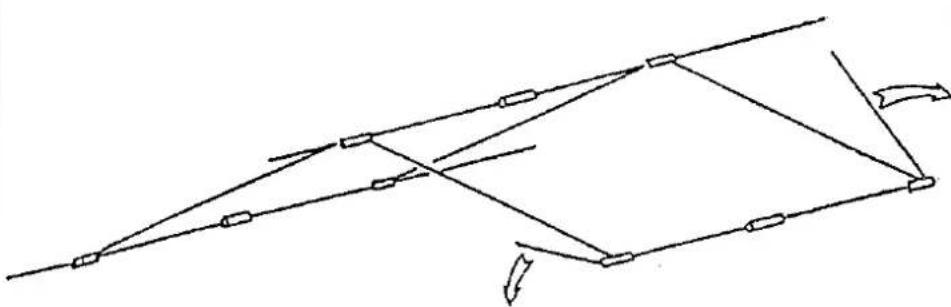

Plateau et armature

Pure mechanical linkage diagram with arrows indicating direction (no text or symbols)

2

Simple line drawing of a rectangular frame with directional arrows indicating rotation or movement (no text or symbols)

ATTENTION :

VERROUILLAGE DE LA FAITIERE PAR CLIQUET.

3

Pure mechanical linkage diagram without any text, numbers, or symbols

4

ATTENTION :

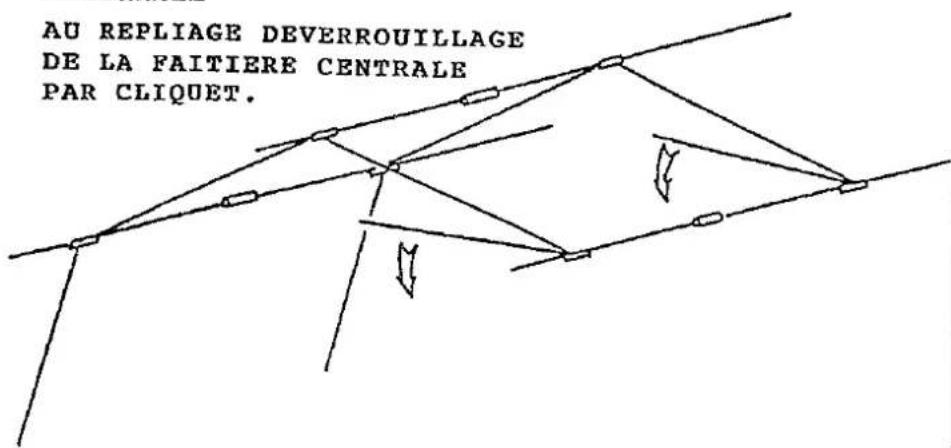

AU REPLIAGE DEVERROUILLAGE DE LA FAITIERE CENTRALE PAR CLIQUET.

You have just become the owner of a RACLET trailer tent. This model has been strictly controlled at every stage of manufacturing. In order to ensure you full satisfaction and many pleasant moments of relaxation, we advise you to read carefully the following instructions.

BEFORE TAKING THE ROAD

CHECK

• Tyre pressure (correct pressure is indicated on the trailer body.
• That wheel mounting nuts are tight (the tightening torque shall be verified after 25 to 40 km, after 100 km and then periodically).
• That all lighting and signalling equipment functions properly.
• Loading (the maximum authorized weight under load must not be exceeded). See that load is properly distributed (a bearing pressure of approximately 20 kg on auto coupling gear).
• That caravan coupling head is firmly secured to the coupling sphere of your auto.

ON THE HIGHWAY

• MAINTAIN a sufficient DISTANCE from the vehicle in front of you.
• When OVERTAKING do not forget when pulling back into your lane that the length of your vehicle is increased by that of the caravan.

And HAVE A GOOD TRIP!

TO ERECT

1 - Detach and bring trailer into position.
2 - Using the crank, lower stabilizer legs making sure that trailer is horizontal. If ground is soft place extra pads under the stabilizer shoes.
3 - Remove cover ; spread underneath one of the platforms (it will provide a means of waterproof storage).
4 - Open out the sleeping platforms.

First swing out the left platform, then the right. Both platforms are supported by adjustable telescopic bars to ensure a horizontal sleeping surfaces. The canvas is firmly attached to the two platforms and opens out with its framework.

5 - Enter the center part of the caravan and force the roof bar upwards; it will automatically lock into position. The sliding parts (black spherical heads) provide a rapid means of adjustment, 6 - Close door in tenting and stake latter to ground. The bedding is ready for an overnight stop!

TO ERECT AWNING

• "AUTOMATIC" ALUMINIUM AWNING FRAME
- Unfold the framework according to the notes on the reverse of the plan.
- Position the sliding metal pieces along the ridge poles, over the folding joints. (Adjust the uprights (legs) to their minimum position).
• Take the awning canvas out of the bag and lay it on the ground. Position the main zips towards the trailer cabin. Slide the awning canvas over the frame. Connect the awning zips to the trailer cabin zips. (To assist you, attach the centre awning frame hook into the cabin frame). Raise the uprights (legs) to a higher position.
- Use the tie-tapes to fasten the canvas to the frame. Adjust the tension using the ridge pole adjustments. (Ensure the framework is centrally positioned with respect to the roof canvas reinforcing). Finally adjust the uprights to achieve a suitable « set » of the canvas.

• STEEL AWNING FRAME
- Lay out the different framework elements on the ground (see diagram attached).
- Remove canvas from bag, spread out on ground with junction slide enclosures facing caravan. Attach awning ridge elements to main caravan ridge bar. Tie cloth retainers and adjust the tension of the tenting by means of sliding framework elements. Adjust the height of the feet.
• Completely close awning and stake tending to ground.

IMPORTANT: A protective flap is provided to shelter the zippers; make sure it is correctly positioned. • If your caravan is equipped with a ceiling lining, attach it starting from the center and stake side drops to the ground.

HAVE A PLEASANT STAY!

TO DISMANTLE

• The caravan canvas must never be detached from the platforms or the framework elements.
  1 - Dismount awning either fold it back over the roof of the trailer or detach and place inside.
  2 - Unlock the two sliding elements of the framework.
  3 - Swing the right platform onto the summit of the trailer body, and then the left.
  4 - Close the door and install the cover.
  5 - Raise stabilizer legs.
  If the canvas was wet when folded it must be aired and dried as soon as possible (within 24 hours at least).

MAINTENANCE

CHANGING A WHEEL

• Lower the two stabilizer legs opposite the wheel to be changed.
• Loosen wheel mounting bolts.
• Lift the trailer by means of your car jack by placing it underneath the axle or chassis longeron.

CAUTION : NEVER PLACE JACK UNDERNEATH FLOORING.
• Before removing wheel lower the other two stabilizer legs.
- Change wheel, replace and tighten bolts; check tightness after several kilometers.

TRAITER BODY

- In sheetsteel zinc-plated by electrolysis and coated with polyester. It should receive the same care as your car body.

CANVAS

• Must not remain folded while wet more than 24 hours.
  • RACLET cotton cloth is treated against mildew. Never use detergents or solvents.
• Never allow the canvas to come in contact with insecticide spray.

STORAGE

• RACLET trailer tents take up little space.
- If your trailer must be stored in the open, it is advisable that all canvas be removed.

OPTIONS & ACCESSOIRES

B CH E F

I NL GB

RACLET

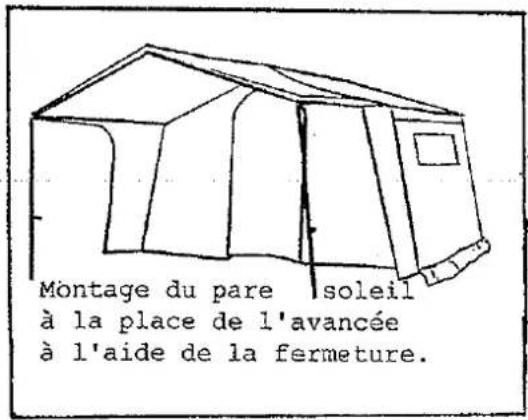

PARE - SOLEIL

Line drawing of a simple camping tent with arched windows and curtains (no text or symbols)

Simple line drawing of a mechanical device inside a circular frame (no text or symbols)

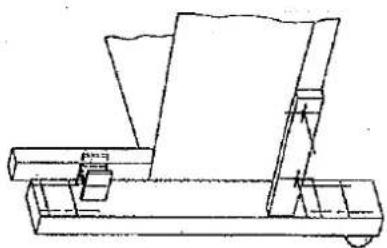

REPLIAGE

FIG.1

FIG.2

Pure technical line drawing of a mechanical assembly without any text, numbers, or symbols

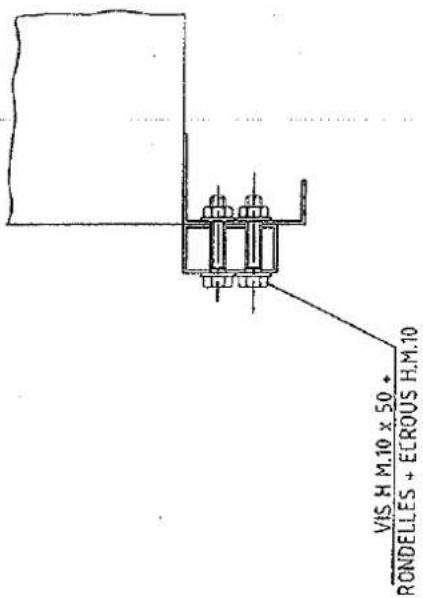

DÉTAIL FIXATION BERCÉAU

PROCÉDER DE LA MEME FAÇON POUR L'AUTRE BERCÉAU DE RANGEMENT

HAUT ECLAIR 72600 NAMERS

Tel: [phone] FAX : [phone]

RACLET

NOTICE D'UTILISATION.

C
B
A
INDICE	NATURE DES MODIFICATIONS				FAIT PAR	DATE
SOUDURE OU MONTAGE VOIR PLAN:				NOTA:
MATIERE:				TRAITEMENT:
RACLET HAUT ECLAIR 72600 NAMERS Tél: [phone]		ECHELLE:	N° ETUDE:		N° PLAN: 17484 A
		TOLERANCE: ±0.5
		DATE: 18.03.03	MEUBLE DE CUISINE 2 FEUX
		CREE PAR: M.L.
Ce document est la propriété exclusive de RACLET. Il est interdit d'en faire usage sans autorisation.
EMIS LE:

RACLET

1

[Unreadable]

[Non-Text]

-

[Non-Text]

Cuisine 2 feux

_ This unit. is light kitchen material, therefore:

_ Do not allow children to push or lean on the kitchen unit. (especially when is use)

_ The risk of domestic accident are increased when camping: always control children.

ATTENTION:

Warning:
-This unit. is light kitchen material, therefore:
-Do not allow children to push or lean on the kitchen unit(especially when in use).
-The risk of domestic accident are increased when camping: Always control children
Instructions:
-The door must always be open when using the grill.
-After the grill has been on for a certain period of time, one must wait 10mns before re-lighting.
-When using the kitchen unit, make sure that the gas-cook cover is locked in an upright position.
