Product Type	Folding tent trailer
Brand	Raclet
Model	Java
Overall Length (open)	4.2 m
Overall Width	1.9 m
Overall Height (open)	1.4 m
Folded Length	2.1 m
Folded Width	1.6 m
Folded Height	0.35 m
Unladen Weight	350 kg
Maximum Load	450 kg
Number of Sleeping Berths	4
Canvas Material	Polyester with PVC coating
Frame Material	Galvanized steel
Tire Size	165/70 R13
Electrical System	12V DC with battery charger
Lighting	LED interior lights
Water Supply	20 L fresh water tank
Maintenance	Annual waterproofing treatment for canvas
Safety Equipment	Breakaway cable, side marker lights
Spare Parts Availability	Canvas, frame parts, wheel set
Warranty	2 years

Frequently Asked Questions - Java RACLET

How do I set up the Raclet Java folding tent trailer?

To set up the Java, first ensure the parking brake is engaged. Unfold the roof and pull up the side panels until they lock. Secure the canvas with the attached clips. Refer to the manual for detailed step-by-step instructions.

What is the maximum towing speed for this trailer?

The recommended maximum towing speed for the Raclet Java is 80 km/h (50 mph). Always check local regulations and adjust speed based on road conditions.

How do I clean the canvas?

Clean the canvas with mild soap and water using a soft brush. Avoid harsh detergents. Rinse thoroughly and allow to dry completely before folding to prevent mildew.

What type of battery does the trailer use?

The trailer uses a 12V deep-cycle battery (not included). It powers the interior lights and the water pump. The built-in charger can recharge the battery when connected to mains.

Can I fit a bike rack on the rear?

A bike rack can be installed on the rear frame if it is rated for the load. Maximum recommended load on the rear is 30 kg. Always check compatibility with your specific model.

How do I fold the trailer for storage?

Ensure the trailer is clean and dry. Lower the roof, fold the side panels inward, and secure the canvas. Collapse the roof mechanism carefully, then lock the folded structure. Store in a dry place.

Is the trailer suitable for off-road use?

The Raclet Java is designed for paved roads and well-maintained gravel tracks. Extreme off-road use may damage the frame and canvas. modifications are not recommended.

How often should I waterproof the canvas?

It is recommended to apply a waterproofing spray suitable for polyester canvas at least once a year, or after prolonged exposure to sunlight. This maintains the fabric's resistance to rain.

What is the warranty period?

The Raclet Java comes with a 2-year warranty covering manufacturing defects. Ordinary wear and tear, canvas, and tires are not covered. Please register your product online.

Can I add a solar panel to the trailer?

Yes, you can add a 12V solar panel to trickle charge the battery. Use a charge controller to prevent overcharging. Mount the panel on the roof or use a portable panel.

USER MANUAL Java RACLET

Abstract geometric shape resembling a stylized letter 'R' with no text or symbols

RACLET

SANS FREIN

01 02 03 04 05 06 07 08 09 10 11 12 13 14 15 16 17 18 19 20 21 REP. N 1 * B1 2 * A0 3 * S0 4 * L0 5 * 1/4 6 * R0 7 * C0 8 * T0 9 * K0 10 * C0 11 * P1

REP. N

REF.

PL16150

Technical diagram of a mechanical assembly with numbered components for identification

Technical diagram of a mechanical assembly with numbered components for identification

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating motion or force vectors.

ATTENTION
MELIIBLE C'LIIISINE

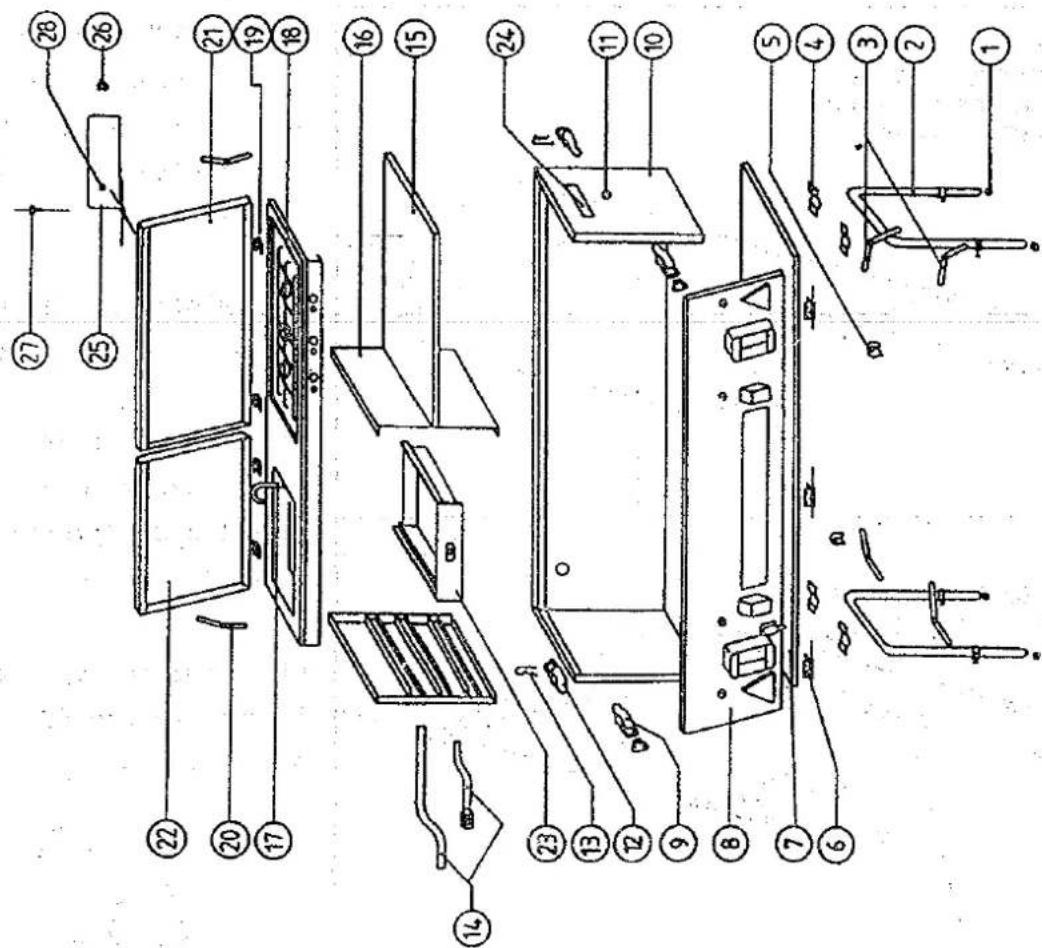

Exploded view diagram of a household appliance with numbered parts for identification

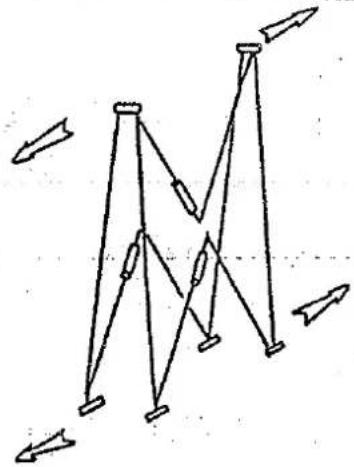

1

Abstract line drawing of intersecting rods and arrows without any text or symbols

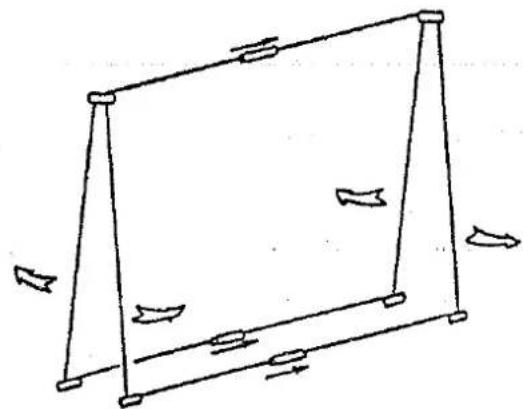

2

Simple line drawing of a rectangular frame with supports and directional arrows, no text or symbols present.

ATTENTION :

VERROUILLAGE DE LA FAITIERE PAR CLIQUET.

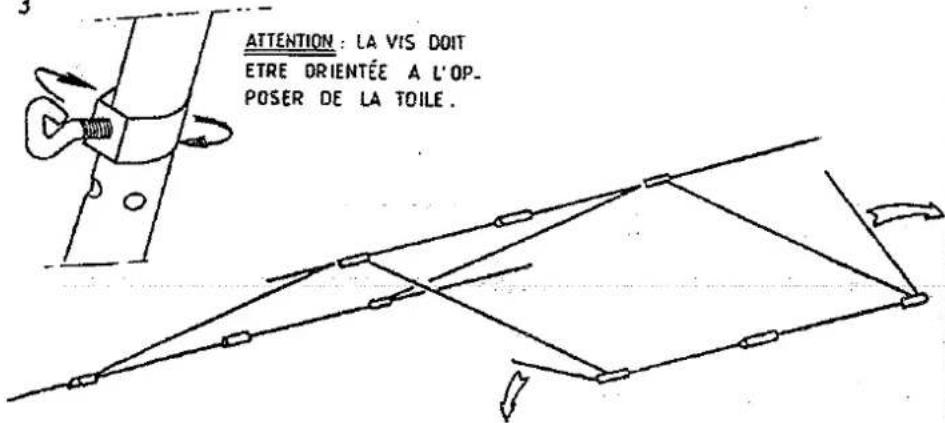

3

ATTENTION : LA VIS DOIT ETRE ORIENTÉE A L'OP- POSER DE LA TOILE.

4

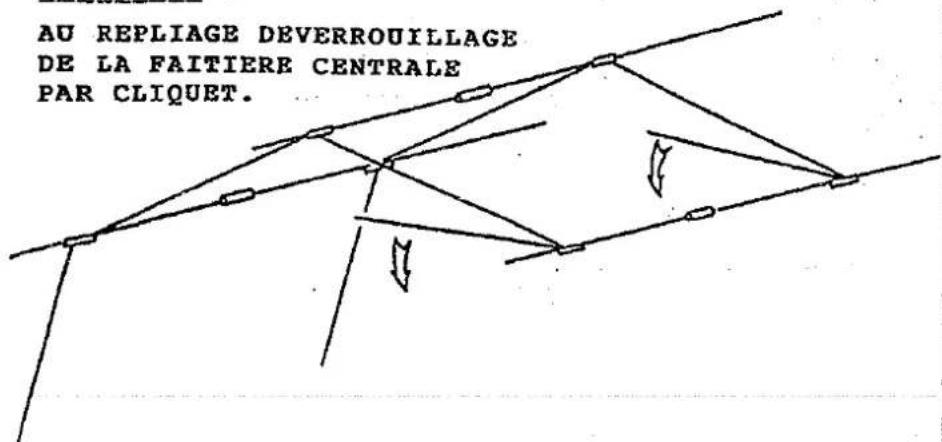

ATTENTION :

AU REPLIAGE DEVERROUILLAGE DE LA FAITIERE CENTRALE PAR CLIQUET.

AU REPLIAGE DEVERROUILLAGE DE LA FAITIERE CENTRALE PAR CLIQUET.

MP 609.1A 2800 Reqable PAC 40.52-18 DAC 560.1700 1050 1720 Reqable 1730 Reqable PL6612 PL1656W3W3W3W3W3W3W3W3W3W3W3W3W3W3W3W3W3W3W3W3W3W3W3W3W3W3W3W3W3W3W3W3W3W3W3W3W3W3W3W3W3W3W3W3W3W3W3W3W3W3W AL16N90 AL20N45R1 AL25N45M1 AL27N45 AL29N45 AL32N45M1 AL35N45M1 AL37N45M1 AL41N45M1 AL42N45M1 AL45N45M1 AL47N45M1 AL51N45M1 AL52N45M1 AL55N45M1 AL57N45M1 AL60N45M1 AL62N45M1 AL65N45M1 AL67N45M1 AL70N45M1 AL72N45M1 AL75N45M1 AL77N45M1 AL80N45M1 AL82N45M1 AL85N45M1 AL87N45M1 AL90N45M1 AL92N45M1 AL95N45M1 AL97N45M1 AL100N45M1 AL102N45M1 AL105N45M1 AL107N45M1 AL170N45M1 AL172N45M1 AL175N45M1 AL177N45M1 AL180N45M1 AL182N45M1 AL185N45M1 AL187N45M1 AL200N45M1 AL202N45M1 AL205N45M1 AL207N45M1 AL210N45M1 AL212N45M1 AL215N45M1 AL217N45M1 AL220N45M1 AL222N45M1 AL225N45M1 AL227N45M1 AL230 NCHSINL AL232NCHSINL AL235NCHSINL AL237NCHSINL AL240NCHSINL AL242NCHSINL AL245NCHSINL AL247NCHSINL AL250NCHSINL AL252NCHSINL AL255NCHSINL AL257NCHSINL AL260NCHSINL AL262NCHSINL AL265NCHSINL AL267NCHSINL AL270NCHSINL AL272NCHSINL AL275NCHSINL AL277NCHSINL AL280NCHSINL AL282NCHSINL AL285NCHSINL AL287NCHSINL AL289NCHSINL AL300C GOLABLE

You have just become the owner of a RACLET trailer tent. This model has been strictly controlled at every stage of manufacturing. In order to ensure you full satisfaction and many pleasant moments of relaxation, we advise you to read carefully the following instructions.

BEFORE TAKING THE ROAD

CHECK

• Tyre pressure (correct pressure is indicated on the trailer body.
• That wheel mounting nuts are tight (the tightening torque shell
  Be verified after 25 to 40 km, after 100 km and then periodically).
• That all lighting and signalling equipment functions properly.
• Loading (the maximum authorized weight under load must not be exceeded). See that load is properly distributed (a bearing pressure of approximately 20 kg on auto coupling gear).
• That caravan coupling head is firmly secured to the coupling sphere of your auto.

ON THE HIGHWAY

• MAINTAIN a sufficient DISTANCE from the vehicle in front of you.
• When OVERTAKING do not forget when pulling back into your lane that the length of your vehicle is increased by that of the caravan.

And HAVE A GOOD TRIP I

TO ERECT

1 - Detach and bring trailer into position.
2 - Using the crank, lower stabilizer legs making sure that trailer is horizontal. If ground is soft place extra pads under the stabilizer shoes.
3 - Remove cover; spread underneath one of the platforms (it will provide a means of waterproof storage).
4 - Open out the sleeping platforms.

Automatic Fold-out

First swing out the left platform, then the right. Both platforms are supported by adjustable telescopic bars to ensure a horizontal sleeping surfaces. The canvas is firmly attached to the two platforms and opens out with its framework. 5 - Enter the center part of the caravan and force the roof bar upwards; it will automatically lock into position. The sliding parts (black spherical heads) provide a rapid means of adjustment. 6 - Close door in tenting and stake latter to ground. The bedding is ready for an overnight stop!

TO ERECT AWNING

• "AUTOMATIC" ALUMINIUM AWNING FRAME
- Unfold the framework according to the notes on the reverse of the plan.
- Position the sliding metal pieces along the ridge poles, over the folding joints. (Adjust the uprights (legs) to their minimum position).
• Take the awning canvas out of the bag and lay it on the ground. Position the main zips towards the trailer cabin. Slide the awning canvas over the frame. Connect the awning zips to the trailer cabin zips. (To assist you, attach the centre awning frame hook into the cabin frame). Raise the uprights (legs) to a higher position.
- Use the tie-tapes to fasten the canvas to the frame. Adjust the tension using the ridge pole adjustments. (Ensure the framework is centrally positioned with respect to the roof canvas reinforcing). Finally adjust the uprights to achieve a suitable « set » of the canvas.

• STEEL AWNING FRAME

• Lay out the different framework elements on the ground (see diagram attached).
• Remove canvas from bag, spread out on ground with junction slide enclosures facing caravan. Attach awning ridge elements to main caravan ridge bar. Tie cloth retainers and adjust the tension of the tenting by means of sliding framework elements. Adjust the height of the feet.
  • Completely close awning and stake tending to ground.

IMPORTANT: A protective flap is provided to shelter the zippers; make sure it is correctly positioned.

- If your caravan is equipped with a ceiling lining, attach it starting from the center and stake side drops to the ground.

HAVE A PLEASANT STAY!

TO DISMANTLE

• The caravan canvas must never be detached from the platforms or the framework elements.
  1 - Dismount awning either fold it back over the roof of the trailer or detach and place inside.
  2 - Unlock the two sliding elements of the framework.
  3 - Swing the right platform onto the summit of the trailer body, and then the left.
  4 - Close the door and install the cover.
  5 - Raise stabilizer legs.
  If the canvas was wet when folded it must be aired and dried as soon as possible (within 24 hours at least).

MAINTENANCE

CHANGING A WHEEL

• Lower the two stabilizer legs opposite the wheel to be changed.
• Loosen wheel mounting bolts.
• Lift the trailer by means of your car jack by placing it underneath the axle or chassis longeron.

CAUTION : NEVER PLACE JACK UNDERNEATH FLOORING

• Before removing wheel lower the other two stabilizer legs.

- Change wheel, replace and tighten bolts; check tightness after several kilometers.

TRAITER BODY

- In sheetsteel zinc-plated by electrolysis and coated with polyester. It should receive the same care as your car body.

CANVAS

• Must not remain folded while wet more than 24 hours.
• RACLET cotton cloth is treated against mildew. Never use detergenis or solvents.
• Never allow the canvas to come in contact with insecticide spray.

STORAGE

• RACLET trailer tents take up little space.
- If your trailer must be stored in the open, it is advisable that all canvas be removed.
