Product Type	Portable Bluetooth Speaker
Brand	Karma
Model	BM 108TX
Dimensions (W x H x D)	Approx. 200 x 70 x 70 mm
Weight	Approx. 450 g
Power Supply	Built-in rechargeable lithium-ion battery (3.7V, 1200mAh)
Charging Time	Approx. 2-3 hours
Playback Time	Up to 8 hours (at 50% volume)
Bluetooth Version	Bluetooth 5.0
Wireless Range	Up to 10 meters (30 feet)
Speaker Type	Full-range mono speaker
Output Power	5W RMS
Frequency Response	100 Hz – 18 kHz
Controls	Power, Volume +/-, Play/Pause, Bluetooth pairing, Mode, Answer/End call
Indicators	LED for power, Bluetooth pairing, battery status
Audio Inputs	3.5mm AUX, Micro SD card slot, USB (for playback)
Built-in Microphone	Yes, for hands-free calling
Material	ABS plastic with fabric grille
Color Options	Black, White, Blue, Red
Included Accessories	Micro USB charging cable, AUX cable, User manual
Care and Cleaning	Wipe with dry cloth; do not use liquid cleaners
Safety Features	Overcharge protection, short-circuit protection, built-in battery protection
Spare Parts Availability	Battery, charging port, speaker membrane available from authorized service centers
Warranty	1 year limited warranty

Frequently Asked Questions - BM 108TX Karma

How do I pair the BM 108TX with my phone?

Turn on the speaker. The LED will flash blue. On your phone, enable Bluetooth and search for devices. Select 'Karma BM 108TX' from the list. If prompted for a PIN, enter 0000. Once connected, the LED will stay solid blue.

Can I use the speaker while it is charging?

Yes, you can use the speaker while charging. However, charging time may be longer if the battery is low.

How do I know when the battery is low?

When the battery is low, the LED will flash red and the speaker may emit a warning tone. You should charge it soon.

What is the maximum Bluetooth range?

The wireless range is up to 10 meters (30 feet) in open space. Walls and obstacles may reduce the range.

Can I connect non-Bluetooth devices?

Yes, you can use the 3.5mm AUX input or insert a Micro SD card or USB drive with MP3 files. Just select the appropriate mode.

How do I answer a call?

When a call comes in, the music will pause. Press the Play/Pause button to answer. To end the call, press the same button again. The built-in microphone allows hands-free conversation.

How do I reset the speaker if it stops responding?

Press and hold the Power button for about 10 seconds until the speaker turns off. Then turn it back on. If the issue persists, charge the battery or consult the manual.

What does the blinking red LED mean?

A blinking red LED indicates that the battery is charging. A solid red LED indicates the battery is fully charged. Red blinking while in use means low battery.

Can I connect two BM 108TX speakers for stereo sound?

No, the BM 108TX does not support True Wireless Stereo pairing. It is a single mono speaker. For stereo, use a wired connection to a stereo system.

How to clean the speaker?

Wipe the exterior with a soft, dry cloth. Do not use any liquids, sprays, or abrasive cleaners. Avoid getting moisture into the speaker ports.

USER MANUAL BM 108TX Karma

Transmitter/Receiver Speakers

Thank you for choosing KARMA brand

The KARMA product you have purchased is the result of careful planning by specialized engineers. High quality materials were used for its construction, to ensure its functioning over time. The product is manufactured in compliance with the strict regulations imposed by the European Union, a guarantee of reliability and safety. Please read this manual carefully before starting using the device in order to exploit its full potential.

Hoping that you will be satisfied of your purchase, we thank you again for your trust in our brand and we invite you to visit our website

www.karmaitaliana.it

where you will find the whole range of KARMA products, along with useful information and updates.

Cautions and warnings

• Always check that frequency and voltage of the power source correspond to those set on the item.
• Disconnect the unit from power when it is not used
• Wait for the product to cool before cleaning or maintenance.
• Make sure the adaptor's power cord is not damaged.
• Never disconnect the adaptor from the power outlet by pulling on the cord

Shipment and complaints

After buying or receiving the product, open the box and carefully check the content, to make sure that all parts are included and in good condition. Immediately notify the seller of any transport damage suffered by the device.

In case of return for servicing it is important to ship the product complete with the original packaging: we therefore suggest you to keep it.

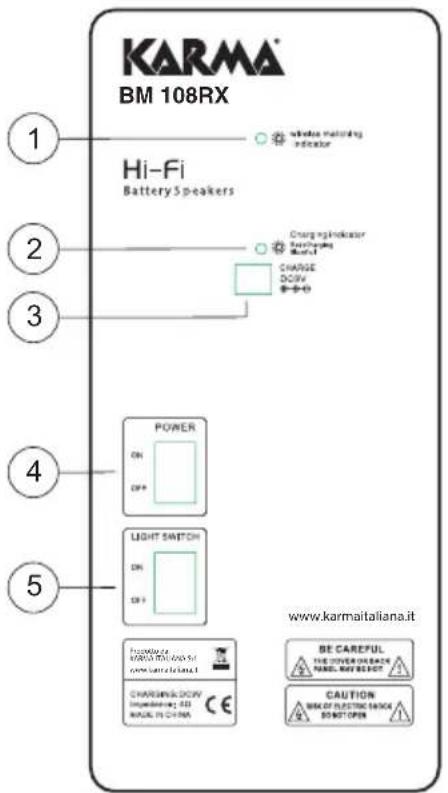

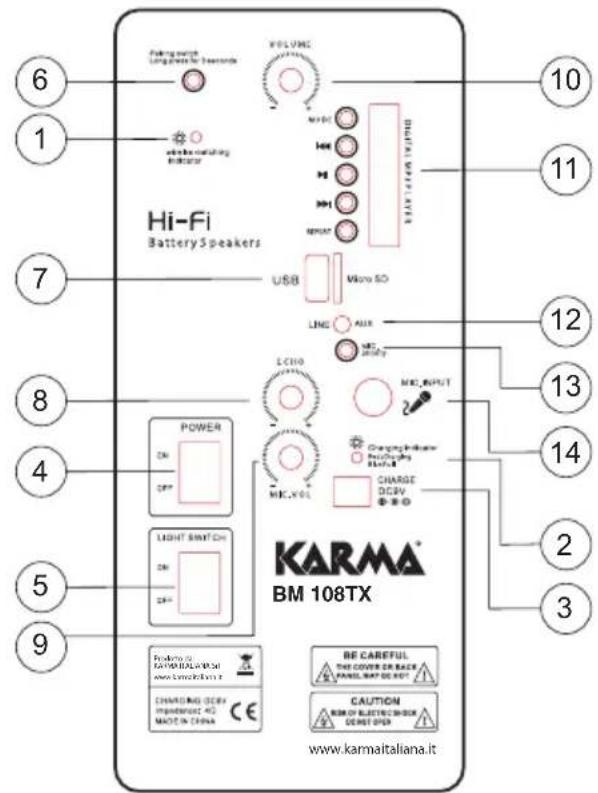

BM 108RX - BM 108TX

Pannello posteriore / Rear panel

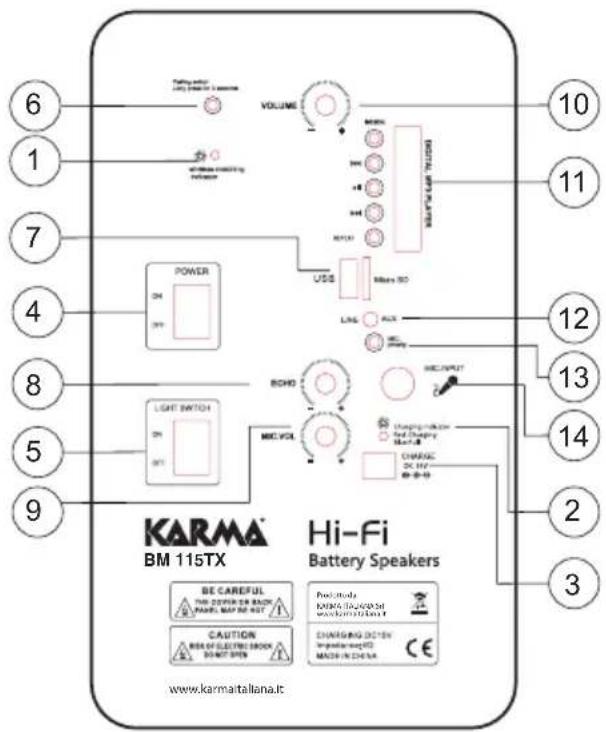

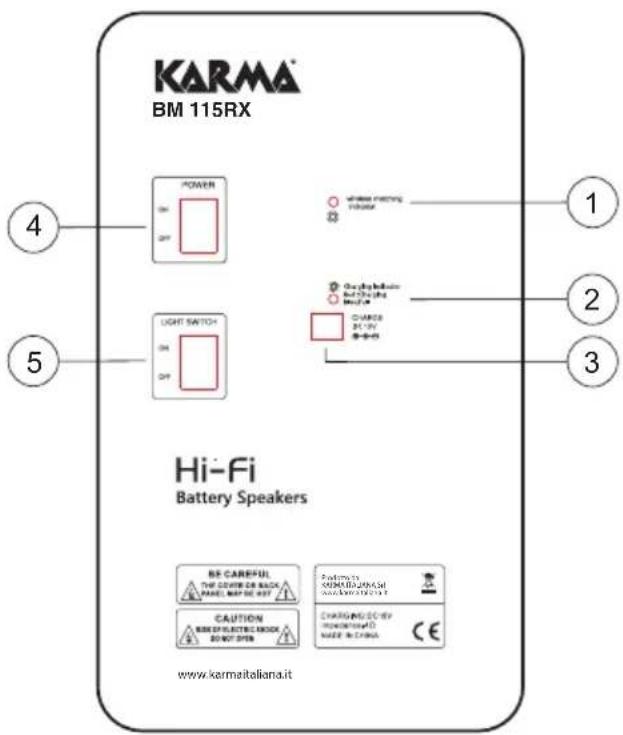

BM 115RX - BM 115TX

Pannello posteriore / Rear panel

Funzioni Functions

1. INDICATORE A LED WIRELESS

5. TASTO ACCENSIONE LED WOOFER

1. WIRELESS LED INDICATOR

This led indicator lights on once the pairing with the wireless device is completed

2. RECHARGE LED INDICATOR

This led indicator lights on while recharging the battery.

Red: Battery is recharging

Blue : recharge completed

3. DC 15V/ DC 9V RECHARGE SOCKET

Input for DC 15V (on series BM 115) or DC 9V (on series BM 108) power adaptor.

4. ON / OFF BUTTON

Use it to switch on the product

5. WOOFER LEDS' SWITCH

Put the switch on ON position to activate the LED effect.

6. PAIRING BUTTON

Turn on TX and RX speakers. Press pairing button for about 3 seconds until the LED flashes. Release the button and press it again to pair RX speaker.

7. USB/ TF CARD SOCKET

Use it to insert a USB key or a TF CARD to play MP3 songs.

8. ECHO FUNCTION

Adjust the incidence of the echo effect of the microphone inputs.

9. MIC VOLUME CONTROL

Use it to adjust the microphone's volume

10. MASTER CONTROL

General volume control for the whole mixing

11. DISPLAY

It will allow you to view the selected functions or the Mp3 tracks played.

12. AUX IN

It will allow you to connect external line devices (CD players, PC....)

13. PRIORITY FUNCTION

Press the button to activate the priority function. It will allow you to reduce the signal of the line sources each time you use the microphone.

14. MICROPHONE INPUT

It allows to connect a wired microphone with mono 6,3mm jack

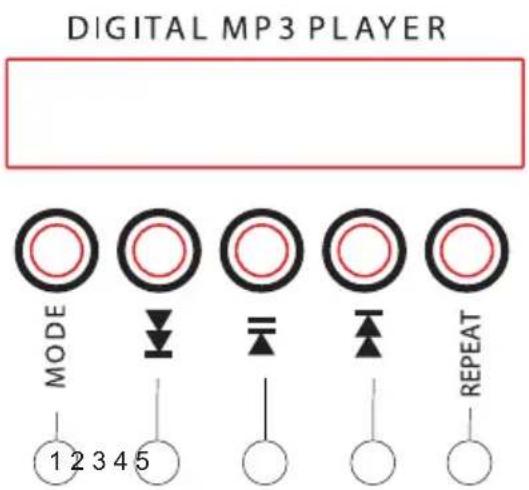

Display (Mod. BM 108TX / 115TX)

Display (Mod. BM 108TX/115TX)

1. TASTO MODE

Press this button to choose the desired mode (FM, bluetooth, MP3).

2. FAST BACKWARD

PREVIOUS TRACK

Press this button to choose the previous track or run quickly the track backwards

3. TASTO PLAY/PAUSA

Use it to start or pause playing. In FM mode use it for auto scan of the available radio stations.

4. FAST FORWARD

FOLLOWING TRACK

Press this button to choose the following track or run quickly the track forward.

5. REPEAT BUTTON

Press it to activate the repetition of a single MP3 song or of the whole folder

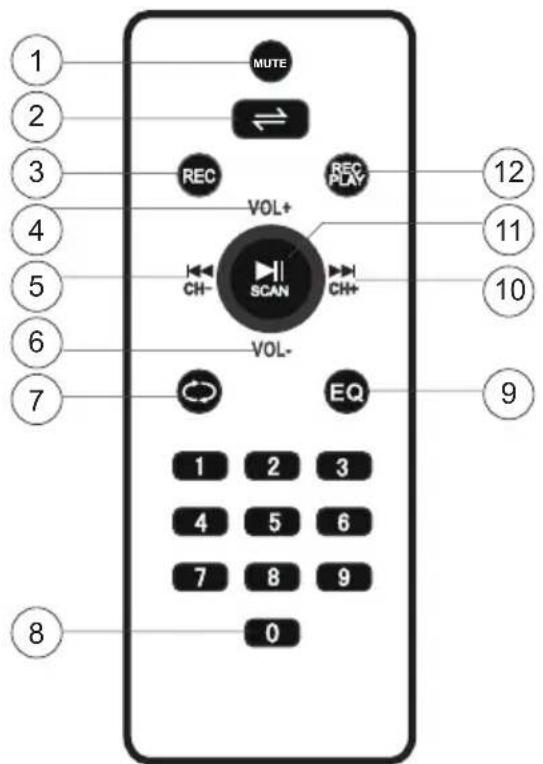

Telecomado / Remote Control (Mod. BM 108TX / 115TX)

1. TASTO MUTE / MUTE BUTTON
2. TASTO MODE / MODE BUTTON
3. TASTO REC / REC BUTTON
4. VOL +
5. TRACCIA PRECEDENTE / PREVIOUS TRACK (Stazione radio FM precedente / Previous FM radio station)
6. VOL -
7. TASTO REPEAT / REPEAT BUTTON
8. TASTIERINO NUMERICO / DIGITAL SELECTION
9. TASTO EQUALIZZATORE / EQUALIZER BUTTON
10. TRACCIA SUCCESSIVA / NEXT TRACK (Stazione radio FM successiva / Next FM radio station)
11. TASTO PLAY/PAUSA / PLAY/PAUSE BUTTON (Ricerca automatica stazioni radio FM/ Auto search radio FM station)
12. TASTO PLAY REC / PLAY/REC BUTTON

This symbol alerts you of the presence of important operating and maintenance instructions, in the manual or in the documentation accompanying the product

This symbol indicates a risk of electric shock in case of wrong use or alteration of the product.

To prevent possible hearing damage, do not listen at high volume levels for long periods.

The CE mark indicates that this product complies with the applicable European directives and their related standards. Compliance documentation in complete form is available at the company Karma Italiana Srl

Directive 2012/19/UE regarding electric and electronic equipment waste (WEEE).

The symbol of the crossed-out dustbin indicates that the product at the end of its life must be collected separately from other waste. The user must, therefore, confer the fixture complete with all the essential components to an authorized disposal center for collection of electronic and electrical waste, or return it to the dealer when buying new equipment of equivalent type, at a rate of one to one, or one to zero if external dimension is less than 25cm. Appropriate separate collection to send the decommissioned equipment to recycling, treatment and environmentally compatible disposal helps to prevent negative impact on the environment and human health and promotes recycling of the materials making up the product. In Italy illegal dumping of the product by the user entails the application of administrative sanctions pursuant to Legislative Decree n. 49 (14/03/2014).

Hereby, KARMA ITALIANA SRL declares that the radio equipment type wi-fi / bluetooth speaker series BM 108 / BM 115 is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.karmaitaliana.it.

Karma Italiana Srl

Karma Italiana srl, in order to improve its products, reserves the right to modify the characteristics whether technical or aesthetic, at any time and without notice.

The product is covered by warranty according to current national and European regulations.

For detailed warranty conditions and RMA requests please refer to our website:

www.karmaitaliana.it

• The warranty covers manufacturing defects and faults occurred in the first 2 years from the date of purchase. In case of purchase with invoice, the warranty is limited to 1 year
• Damages caused by negligence or wrong use of the device are not covered by warranty.
• The warranty is no longer effective if the item is modified or disassembled by not authorized people.
• This warranty doesn't necessarily envisage the product's replacement.
• External components, batteries, knobs, switches and any removable or subject to wear and tear parts are excluded from warranty.
• Shipment for the return of faulty items is at expense and risk of the owner.
• For all intents and porpuses the warranty is effective only upon exhibition of the invoice or of the purchase receipt.

We also suggest to register your product on our website www.karmaitaliana.it, after signing in to access the private area. In this way you will have the possibility to keep track of the warranty validity and to receive updates on our items.

BM 108TX BM 108RX BM 115TX BM 115RX

Alimentazione(tramite alimentatore)Batteria ricaricablie:

AC100-240VDC 9V 1,5ALi 7,4V 2A

AC100-240VDC 9V 1,5ALi 7,4V 2A

AC100-240VDC 15V 2APb acido 12V 4.5A

AC100-240VDC 15V 2APb acido 12V 4.5A
