Product Type	Rechargeable amplified speaker
Brand	KARMA
Model	Infinity
Power Supply	5V ⎓ 1A (USB cable)
Battery Type	1500mAh 3.7V Li-ion
Battery Life	Up to 4 hours
Charging Time	Approximately 2 hours
Max Power Output	20W
Woofer Size	4"
Sensitivity	>85 dB
Audio Inputs	MIC, TF (microSD), USB, AUX (3.5mm)
Bluetooth	5.0 with TWS (True Wireless Stereo)
Special Features	LED light effects, Echo effect for microphone, 6 EQ presets, MP3 playback from USB/microSD
Dimensions (W x H x D)	148 x 223 x 138 mm
Weight	0.91 kg
Safety Warnings	Do not open or disassemble; avoid temperatures above 40°C, vibration, impacts, rain, or humidity; turn off before cleaning; use only included charger
Cleaning	Turn off product before cleaning; use a dry cloth
Disposal	Dispose of at end of life according to local WEEE regulations; battery must be disposed separately

Frequently Asked Questions - Infinity Karma

How do I pair my smartphone with the Infinity speaker via Bluetooth?

First, press the Mode button (8) to select Bluetooth mode. On your smartphone, scan for available devices and select "INFINITY". Confirm pairing if prompted. Once paired, the speaker will automatically reconnect when turned on in Bluetooth mode.

Can I use two Infinity speakers together for stereo sound?

Yes, the speaker supports TWS (True Wireless Stereo). Turn on both speakers and activate Bluetooth mode on each. On one speaker, press and hold the Play button until you hear a beep. The two speakers will connect to each other. Then pair your phone to that speaker to play music on both.

How do I play music from a USB stick or microSD card?

Insert a USB stick (FAT32 format) into the USB socket or a microSD card (FAT32 format) into the TF slot. The speaker will automatically switch to MP3 mode and start playing tracks. Use the control buttons to navigate.

How can I adjust the LED light effects?

Press the LED button (7) repeatedly to cycle through 3 light effects. To turn off the LEDs completely, press and hold the same button for a few seconds.

How do I use the microphone with echo effect?

Connect the included microphone to the MIC socket (5). Select a source (Bluetooth, USB, or microSD) to play background music. Your voice will be amplified with an echo effect, ideal for karaoke.

What should I do if the speaker doesn't turn on?

Ensure the battery is charged by connecting the USB cable to the charging port (6). If the LED (6a) is off, charging is complete. If the speaker still doesn't turn on, try a different USB cable and power source. If the problem persists, contact authorized service.

How long does it take to fully charge the battery?

The battery takes approximately 2 hours to fully charge using a 5V/1A USB charger. The charging LED will turn off when complete.

Can I use the speaker while it is charging?

Yes, you can use the speaker while it is plugged in, but for optimal battery health, avoid keeping it on charge when not in use for long periods.

How do I clean the speaker?

Turn off the speaker before cleaning. Use a soft, dry cloth to wipe the exterior. Do not use any liquids or chemicals. Avoid getting moisture into any openings.

What does the EQ button do?

The EQ button (14) allows you to select one of six preset equalizer modes to enhance bass or other frequencies according to your music preference.

USER MANUAL Infinity Karma

Rechargeable amplified speaker

KARMA®

Thank you for choosing KARMA!

The KARMA product you have purchased is the result of careful planning by specialized engineers. High quality materials were used for its construction, to ensure its functioning over time. The product is manufactured in compliance with the strict regulations imposed by the European Union, a guarantee of reliability and safety. Please read this manual carefully before starting using the device in order to take advantage of its full potent Hoping that you will be satisfied of your purchase, we thank you again for your trust in our brand and we invite you to visit our website www.karmaitaliana.it where you will find the whole range of KARMA products, along with useful information and updates.

Cautions and warnings

• Read and follow strictly the instructions contained in this manual.
• Keep this manual for future reference and include it if you give the product to another user.
• Do not open or take apart the device and don't make changes to it.
• Do not remove, open or alter the batteries.
• Avoid using the unit:
• in places with temperatures above 40^ - in places subject to vibrations and / or possible impacts.
• in places exposed to rain or humidity.
• Do not allow flammable liquid, water or metal objects to enter the product.
• In the event of a serious operating problem, stop using the product immediately. Never try to repair it by yourself, but contact the authorized technical service center. Repairs carried out by unskilled persons could lead to serious damages both to the fixture and to people.
• Do not keep the fixture on charge when it is not used for long periods
• Turn off the product before cleaning or maintenance.

We also suggest to register your product on our website www.karmaitaliana.it, after signing in to access the private area.

In this way you will have the possibility to keep track of the warranty validity and to receive updates on our items.

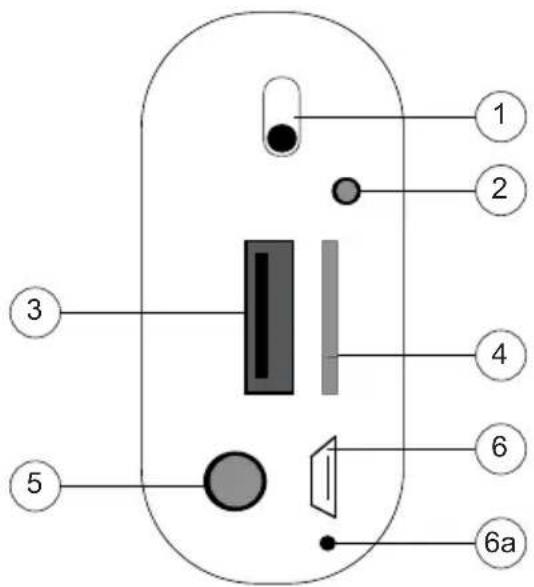

Parte traseira / Back side

1. BOTÃO DE ON/OFF

2. ENTRADA AUX

You can connect here an external source through 3,5mm jack stereo connector.

USB SOCKET

Connect here a USB stick with Mp3 tracks. It must be in FAT32 format.

TF SOCKET

Insert into this slot a microSD card with MP3 tracks. It must be in FAT 32 format.

MIC SOCKET

Connect the inclued microphone to the socket (5). You can now amplify your voice or sing over a song played via USB / micro SD / Bluetooth, using the echo effect that will enhance your performance.

CHARGING PORT

Connect the included USB cable to the fixture's micro USB charging port and wait for the led (6a) to turn off. During operation, if the charge is not sufficient, the speaker will emit a warning note, before automatically turning off to save the integrity of the battery.

1. LED

Press it repeatedly to select on of the 3 light effects. With a long press you will disable the leds.

Painel Multifunções / Multifunction panel

8. BOTÃO DE MODO

Press this button to choose the desired mode (Bluetooth, MP3, Aux). The mode changes automatically, depending on whether you insert a memory device (USB / MICRO SD) or a source connected to the Aux 3,5mm jack stereo socket.

9. RECUAR

Press this button to select the previous track

11. BOTÃO PLAY/PAUSA

Press to reduce the volume (if the leds are activated they will show the volume's level).

12. AVANÇAR

Use it to start playing and/or pause the track.

13. VOLUME +

Press the button to select the next track

13. VOLUME+

Press to increase the volume (if the leds are activated they will show the volume's level).

14. BOTÃO EQ

Use it to select one of the six preset eq modes to enhance in different ways the bass tones.

Função Bluetooth

This speaker includes a latest generation bluetooth receiver. To use it, simply press the Mode key (8) to select this function. The songs on the smartphone can be played by the speaker and the function keys (9-11-12) can control the choice of songs and their playback.

Pairing

The first time it is necessary to match smartphone and speaker, so that they can recognize each other. This operation is defined as “pairing”.

From your smartphone, scan for the "INFINITY" speaker on the bluetooth screen. It might be necessary to confirm the pairing. Once connected, the audio will be played from the speaker. Each time the speaker is turned on again, the phone will be automatically reconnected (if the speaker is in bluetooth mode).

This speaker features the innovative TWS function, offering the possibility to play music from smartphone on 2 speakers simultaneously via bluetooth. To set this mode, turn on the 2 speakers and activate the bluetooth mode on both. On one speaker, press and hold the PLAY button until you hear a beep. At this point the two speakers will connect to each other. Pair the phone with the detected speaker to transmit music to both the speakers.

ALTERNATIVE FIRMWARE

There might be some software updates allowing you to activate additional functions or disable other unwanted ones.

Register the product on the website www.karmaitaliana.it and check the product sheet for updates. Read the notes carefully before installing any firmware.

SPECIFICATIONS

Power Supply	5V---1A (USB cable)
Battery	1500mAh 3,7V Li-ion
Max Power / Woofer	20W / 4"
Battery Life	4 h
Battery Charging time	2 h
Sensitivity	>85 dB
Inputs MIC / TF / USB / AUX
Bluetooth	5.0 with TWS 2.4Ghz
Dimensions	148 x 223 x 138 mm
Weight	0,91 Kg

This symbol indicates a risk of electric shock in case of wrong use or alteration of the product.

This symbol alerts you to the presence of important operating and maintenance instructions, in the manual or in the documentation accompanying the product.

To prevent possible hearing damage, do not listen at high volume levels for long periods.

The CE mark indicates that this product complies with the applicable European directives and their related standards. Compliance documentation in complete form is available at the company Karma Italiana Srl.

Directive 2012/19/UE regarding electric and electronic equipment waste (WEEE).

The symbol of the crossed-out dustbin indicates that the product at the end of its life must be collected separately from other waste. The user must, therefore, confer the fixture complete with all the essen components to an authorized disposal center for collection of electronic and electrical waste, or return it the dealer when buying new equipment of equivalent type, at a rate of one to one, or one to zero if dimension is less than 25cm. Appropriate separate collection to send the decommissioned equipment to recycling, treatment and environmentally compatible disposal helps to prevent negative impact on the environment and human health and promotes recycling of the materials making up the product. In Italy illegal dumping of the product by the user entails the application of administrative sanctions pursuant to Legislative Decree n. 49 (14/03/2014).

The product's remote control contains a battery, which according to the European Directive 2013/56/EU, cannot be disposed of with normal household waste. Please inquire about the local regulations regarding the separate collection of batteries: a correct disposal allows to avoid negative consequences for the environment and health.

CE

DECALARAÇÃO DE CONFORMIDADE EU COMPLIANCE DECLARATION

Hereby, KARMA ITALIANA SRL declares that the radio equipment type speaker with bluetooth TIGER series is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.karmaitaliana.it.

Karma Italiana Srl Karma Italiana Srl

The manufacturer, in order to improve its products, reserves the right to modify their characteristics whether technical or aesthetic, at any time and without notice.

167 - Made in China ver. 21.1
