HAMMER - Loudspeaker Karma - Free user manual and instructions

Product Type	Portable PA Speaker with Wireless Microphone
Brand	Karma
Model	HAMMER
Dimensions (W x H x D)	295 x 625 x 315 mm
Weight	8 kg
Power Supply	110/240V AC ~ 50/60Hz
Rechargeable Battery	Lithium 7.4V, 3600 mAh
Max Power / PMPO	80W / 400W
Playback Time	Approx. 4 hours
Charging Time	Approx. 2 hours
Woofer / Tweeter	2 x 8" / 2"
Sensitivity	>80 dB
Bluetooth Version	5.0 with TWS
Wireless Microphone	UHF 694.00 MHz, handheld
Wired Microphone	Dynamic with 3 m cable
Remote Control	IR, range 5 m
Inputs	Line IN, MicroSD/USB, MIC, Guitar IN
Functions	Echo, Bass/Treble, Equalizer, Mega Bass, FM Radio, Recording, Light Effects
Display	LED for functions, battery, volume
Accessories Included	Remote control, wired mic, wireless mic, charging cable, manual
Cleaning Instruction	Use damp cloth, no solvents
Warranty	2 years (1 year for business)

Frequently Asked Questions - HAMMER Karma

How do I pair my smartphone via Bluetooth?

Press the MODE button until you reach Bluetooth mode, or press the BLUE button directly. On your smartphone, search for 'KARMA HAMMER' and select it. The speaker will emit a confirmation sound.

How to use the TWS function to connect two speakers?

Turn on both speakers and set them to Bluetooth mode. On the second speaker, press and hold the PLAY button for about 3 seconds until 'SLAU' appears. The second speaker will connect to the first automatically. Then pair your phone to the first speaker.

How do I charge the speaker and how long does it take?

Connect the included charging cable to the speaker's power input and plug into a mains socket. The battery charges fully in about 2 hours. A full charge provides up to 4 hours of playback.

How to use the wireless microphone?

Unscrew the cap at the base of the handle and insert 2 x AA batteries. Turn on the microphone with the switch. Ensure the speaker is on; the wireless mic will automatically connect via UHF. Use the MIC VOL knob to adjust volume.

How do I record audio?

Insert a USB drive into the USB port. Press the REC button to start recording from the microphones. Press again to stop and play the recorded file. Use BACK/FORWARD to select files.

How to set up FM radio?

Press MODE to select FM radio. To scan stations, press BACK or FORWARD. For automatic scan and save, press and hold PLAY. Then use BACK/FORWARD to switch saved stations.

Can I clean the speaker with water?

No, avoid water and solvents. Clean the exterior with a damp cloth only. Ensure the speaker is unplugged and dry before use.

How to replace batteries in the remote control?

Open the battery compartment on the back of the remote. Insert 2 x AAA batteries with correct polarity. The remote works up to 5 meters away.

What should I do if the speaker doesn't turn on?

First, check if the battery is charged by connecting the power cable. If still no response, ensure the POWER button is pressed. If the problem persists, contact authorized service center.

What is the warranty period and how to claim?

The product has a 2-year warranty for consumers (1 year with invoice for business). It covers manufacturing defects. To claim, contact the seller with proof of purchase. For details, visit www.karmaitaliana.it.

USER MANUAL HAMMER Karma

Black and green sound streaming device with two large circular cutouts, connected to a black audio jack and two external microphone (no visible text or symbols)

Icon of a speaker with two speakers and concentric circles, no text or symbols present.

DIFFUSORE
Speaker

Two black silhouette icons of video recording devices (no text or symbols)

MIC E RADIOMIC
Wired & wireless Mics

Simple line drawing of a remote control with no text or symbols

TELECOMANDO
Remote control

Simple electrical plug icon symbol (no text or labels)

CAVO DI
RICARICA
Charging cable

Icon of an open book with a gear symbol, representing software or data management (no text or symbols present)

MANUALE
Manual

HAMMER

SPECIFICHE TECNICHE - TECHNICAL SPECIFICATIONS

Alimentazione	110/240V AC ~ - 50/60Hz
Batteria ricaricabile	Litio 7,4V - 3600 mAh
Potenza Max/ PMPO	80W / 400W
Autonomia	4 ore circa
Tempo di ricarica	2 ore circa
Woofer / Tweeter 2 x 8" / 2"
Sensibilità	>80 dB
Accessori Telecomando a infrarossi
Ingressi	Line IN - MicroSD/USB - MIC - Guitar IN
Funzioni	Eco, regolazione toni alti/bassi, Equalizzatore, Mega Bass
Bluetooth Versione 5.0 2.4 Ghz con TWS
Radiomicrofono	UHF freq. 694,00 Mhz
Microfono a filo	Dinamico con cavo da 3mt
Batterie telecomando	2 x AAA (non incluse)
Batterie radiomicrofono	2 x AA (non incluse)
Foro per treppiede No
Dimensioni	295 x 625 x 315 mm
Peso	8 Kg
Power supply	110/240V AC~ - 50/60Hz
Rechargeable battery Lithium 7,4V - 3600 mAh
Max power/ PMPO 80W / 400W
Autonomy Around 4 hours
Charging time Around 2 hours
Woofer / Tweeter 2 x 8" / 2"
Sensitivity >80 dB
Accessories IR remote control
Inputs Line IN- MicroSD/USB - MIC - Guitar IN
Functions Echo, Bass/treble adjustment, Equalizer, Mega Bass
Bluetooth 5.0 version 2.4 Ghz with TWS
Wireless microphone UHF freq. 694,00 Mhz
Wired microphone Dynamic with 3m cable
Remote control batteries 2 x AAA (not included)
Wireless mic batteries	2 x AA (not included)
Stand mounting hole	NO
Dimensions 295 x 625 x 315 mm
Weight	8 Kg

IT

The manufacturer, in order to improve its products, reserves the right to modify their characteristics whether technical or aesthetic, at any time and without notice.

GRAZIE PER IL VOSTRO ACQUISTO

The product you have purchased is the result of careful planning by specialized engineers. High quality materials were used for its construction, to ensure its functioning over time. The product is manufactured in compliance with the strict regulations imposed by the European Union, a guarantee of reliability and safety. Please read this manual carefully before starting using the device in order to take advantage of its full potential. Hoping that you will be satisfied of your purchase, we thank you again for your trust in our brand and we invite you to visit our website www.karmaitaliana.it where you will find the whole range of our products, along with useful information and updates.

CAUTIONS AND WARNINGS

• Read and follow strictly the instructions contained in this manual.
• Keep this manual for future reference and include it if you give the product to another user.
  This device works with dangerous 230V mains power. Do not open, do not disassemble and don't try to operate inside. In case of wrong use an electric shock may occur.
  • All the connections must be made with the appliance turned off.
• The product is not suitable for outdoor use. To avoid the risk of shortcircuits don't expose it to high temperatures (above 40^ ), rain or humidity.
• Do not allow flammable liquid, water or metal objects to enter the product.
• Don't touch the product with wet hands.
  • Install the product in a stable and ventilated position, far from heat sources and don't obstruct the air vents.
  • Use the fixture and its controls with due accuracy, avoiding falls, vibrations or impacts.
  • In the event of a serious operating problem, stop using the product immediately. Never try to repair it by yourself, but contact the authorized technical service center. Repairs carried out by unskilled persons could lead to serious damages both to the fixture and to people.
• Disconnect the unit from power when it is not used.
• Wait for the product to cool before cleaning or maintenance.
• Do not turn the product on and off at short intervals, it may reduce the life of the device.
• Never disconnect the product from the power source by pulling on the cord. Do not cut, kink, otherwise damage nor modify the power supply cord and periodically check that it is in good condition.
  • To clean the product, use only a damp cloth, avoiding solvents or detergents of any kind.
• Keep away from children's reach unless supervised

BATTERY SAFETY WARNINGS

The product is powered by a rechargeable lithium battery. Do not remove, open or modify the battery. To avoid the risk of fire or explosion, do not short-circuit the charging terminal, do not expose the battery to flames, heat, humidity and avoid shocks. Do not maintain the product on charge when not in use. For charging, use only the original cable or one with the same features. In the event of battery leaking, do not use the device and do not allow the liquid to come into contact with the skin or eyes. In case of contact, wash the affected area with copious water and consult a doctor if necessary. Battery removal or replacement should be performed only by a qualified person.

WARRANTY CONDITIONS

The product is covered by warranty according to current national and European regulations.

For detailed warranty conditions and RMA requests please refer to our website: www.karmaitaliana.it

• The warranty covers manufacturing defects and faults occurred in the first 2 years from the date of purchase. In case of purchase with invoice, the warranty is limited to 1 year.
• Damages caused by negligence or wrong use of the device are not covered by warranty.
• The warranty is no longer effective if the item is modified or disassembled by not authorized people.
- This warranty doesn't necessarily envisage the product's replacement.
• External components, batteries, knobs, switches and any removable or subject to wear and tear parts are excluded from warranty.
- Shipment for the return of faulty items is at expense and risk of the owner.
• For all intents and porpuses the warranty is effective only upon exhibition of the invoice or of the purchase receipt.

We also suggest to register your product on our website www.karmaitaliana.it, after signing in to access the reserved area. In this way you will have the possibility to keep track of the warranty validity and to receive updates on our items.

CAUTION: RISK OF ELECTRIC SHOCK, DO NOT OPEN

WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER. NO USER SERVICEABLE PARTS INSIDE. TURN TO QUALIFIED PERSONNEL

This symbol alerts you of the presence of important operating and maintenance instructions, in the manual or in the documentation accompanying the product

This symbol alerts you to the presence of uninsulated dangerous voltage within the product's enclosure that might be of sufficient magnitude to constitute a risk of electric shock. Do not open the product's case.

To prevent possible hearing damage, do not listen at high volume levels for long periods.

The CE mark indicates that this product complies with the applicable European directives and their related standards. Compliance documentation in complete form is available at the company Karma Italiana Srl

Directive 2012/19/UE regarding electric and electronic equipment waste (WEEE).

The symbol of the crossed-out dustbin indicates that the product at the end of its life must be collected separately from other waste. The user must, therefore, confer the fixture complete with all the essential components to an authorized disposal center for collection of electronic and electrical waste, or return it to the dealer when buying new equipment of equivalent type, at a rate of one to one, or one to zero if external dimension is less than 25cm. Appropriate separate collection to send the decommissioned equipment to recycling, treatment and environmentally compatible disposal helps to prevent negative impact on the environment and human health and promotes recycling of the materials making up the product. In Italy illegal dumping of the product by the user entails the application of administrative sanctions pursuant to Legislative Decree n. 49 (14/03/2014).

This device is powered by batteries subject to European Directive 2013/56/EU, which cannot be disposed of with normal domestic waste. Find out about the local regulations regarding the separate collection of batteries: a correct disposal allows to avoid negative consequences for environment and health. The built-in battery, to be disposed of at the end of the useful life of the product, cannot be removed by the user. We strongly advise you to take your product to an official collection point to have a professional remove of the rechargeable battery.

Hereby, KARMA ITALIANA SRL declares that the radio equipment type speaker with wireless microphone/ bluetooth HAMMER is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.karmaitaliana.it.

Karma Italiana Srl

WARNING: In the countries indicated in the below chart the operating frequencies of this product might be not authorized, be subject to local restrictions or limitations of use, require a general authorization or an individual license for use. Please contact your telecommunications authority for detailed information about authorized frequencies and ERP power levels in your country or your region for wireless microphones.

AT

BE

BG

CH

CY

DE

CZ

DK

EE

EL

ES

FI

FR

HR

HU

IE

IS

IT

LI

LT

LU

LV

MT

NL

NO PL

PT RO S

SE SI SK

TR

UK(NI)

SHIPMENT AND COMPLAINTS

When purchasing or receiving the product, open the box and carefully check the content, to make sure that all parts are present and in good condition. Report any transport damage suffered by the device to the seller immediately. If you send the product for repair, it must be shipped with complete original packaging: we therefore recommend to keep it, along with the invoice or the purchase receipt.

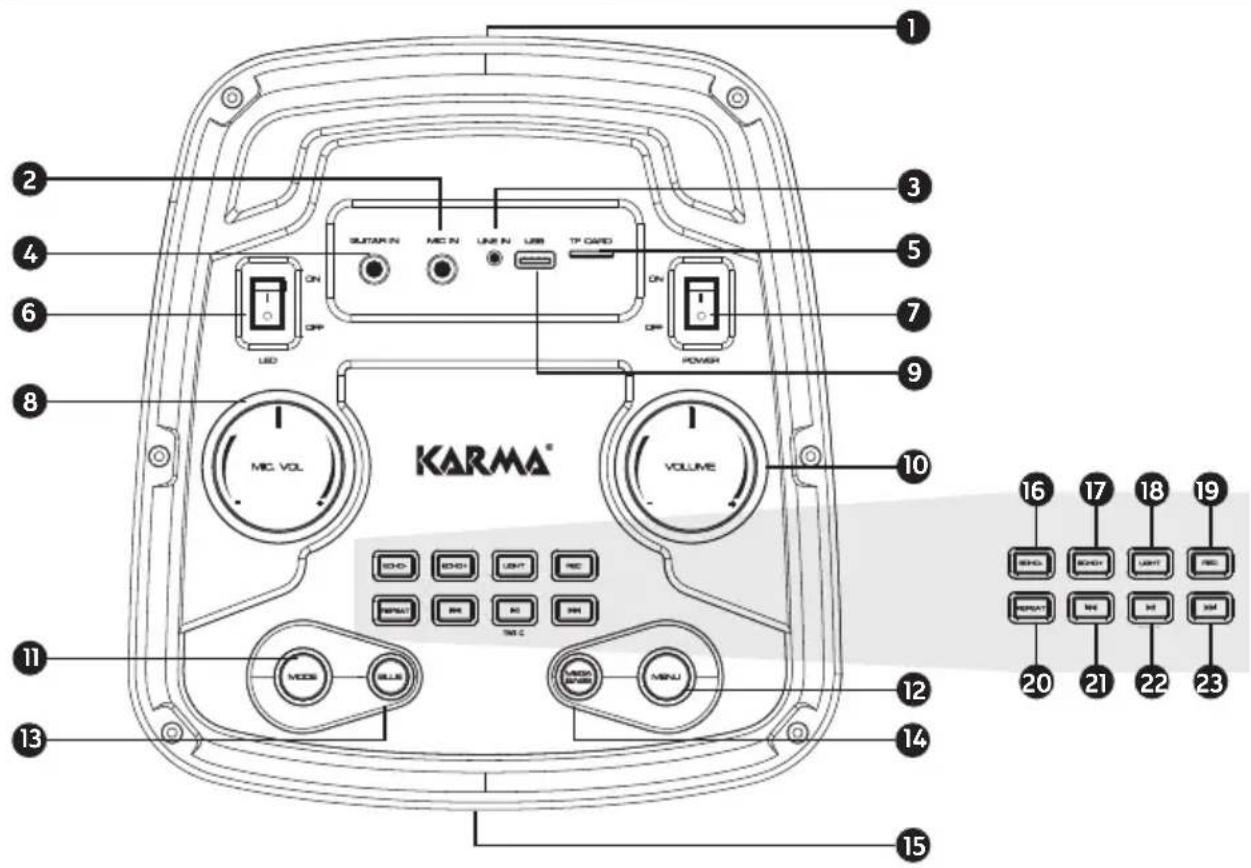

1. HANDLE

Use it to carry easily the product.

2. MIC IN

To connect the wired microphone to the 6.3mm jack socket.

3. LINE IN

It accepts an external audio signal via 3,5mm stereo jack. Mind that the input signal is not already amplified as it could damage the amplifier. In case of distorted signal lower the source fixture's volume and use only the speaker's controls.

4. GUITAR IN

This socket is intended to connect a musical instrument.

5. TF CARD

It accepts cards with Mp3 tracks that will be played by the speaker. The card must be in FAT 32 format.

6. LED ON/OFF

To turn on/off the light effects.

7. POWER

On/off button.

8. MIC VOL

To adjust the microphones' volume.

9. USB PORT

It accepts USB sticks with Mp3 tracks that will be played by the speaker. The card must be in FAT 32 format.

10. VOLUME

It adjusts the master volume and can be used also to change the settings showed when pressing the MENU button (12).

11. MODE

Press this button to select the desired mode (Bluetooth, FM, Line In, USB/MicroSD). If pressed and held it acivates or disables the voice guide.

12. MENU

Press repeatedly to adjust bass and trebles via the master volume's control (10). t = treble b = bass

13. BLUE

To enter directly the Bluetooth mode.

14. MEGA BASS

It activates the bass booster

15. DISPLAY

It shows the current functions, such as battery cherge, the tracks' playback time, the levels of volume, bass & trebles, echo and mic volume while adjusting them.

16. ECHO -

It reduces the eco effect up to "0"

17. ECO +

It increases the echo effect up to "10"

18. LIGHT

Press and hold to select one of the 3 available light effects. It is possible to change the colour of two of the effects with a short press of this key.

19. REC

Press to record the microphones' audio on the USB memory device. If pressed again it stops recording and offers the possibility to play the recorded audio. By means of the back/ forward keys (21-23) you can select the recorded files you wish to play. Press MODE (11) to exit the REC mode.

20. REPEAT

Press more than once to activate the repetition of one ore more tracks. With a long press it is possible to play the following directory.

21. BACK

Press to select the previous track. By pressing and holding it while playing Mp3 tracks it is possible to quickly search the desired point.

22. PLAY

To play or pause a track. In bluetooth mode with a long press it activates the TWS function.

23. FORWARD

Press this key to skip to the next track. By pressing and holding it while playing Mp3 tracks it is possible to quickly search the desired point.

FM RADIO

Once entered the FM mode by means of the MODE (11) button, you can scan for a radio station by pressing the keys (21 or 23). It is also possible to scan and save automatically the radio stations: to do that press and hold the PLAY (22) button. Scanning will start. Wait for the end of the process and then skip from a saved station to another by pressing the keys (21 or 23).

TWS FUNCTION

Thanks to this function it is possible to connect to each other 2 speakers and send via bluetooth from your smartphone the music to be played on both speakers. Turn on the two speakers and set them in bluetooth mode. On the second speaker press and hold for about 3 seconds the "PLAY" button until it shows "SLAU". The second speaker should automatically connect to the first one. Now you just have to pair your smartphone to the first speaker and then both speakers will play the audio transmitted by your device. To stop the TWS function press and hold for about 3 seconds the "PLAY" button on the second speaker.

REMOTE CONTROL

Thanks to the included remote control it is possible to manage the main functions also from a distance. Make sure to add 2 x AAA batteries to operate within a range of up to 5m.

WIRELESS MICROPHONE

The speaker comes with a UHF receiver allowing to use the included handheld wireless mic within an operating range of 15m. Before use insert 2 x AA batteries by unscrewing the cap at the base of the handle. To turn the microphone on and off, use the specific switch. The display on the microphone shows use information. The volume of the wired microphone and of the wireless microphone can be adjusted by means of the MIC VOL rotary control (8).

RECHARGEABLE BATTERY

The speaker incorporates a rechargeable lithium battery that guarantees hours of use. We suggest recharging the speaker before each prolonged use to take advantage of maximum autonomy. We recommend to disconnect the power cable once the recharge is completed. The battery can last many charge cycles. If it is necessary to replace it, please don't disassemble the fixture but turn to our specialized service center. For further information turn to our offices or visit the website: www.karmaitaliana.it

KARMA

Prodotto da/ produced by:

KARMA ITALIANA SRL

Via Gozzano 38 bis

21052, Busto Arsizio (VA) - Italy

ver. 22.1

188 - Made in China
