USB2001EXTV - USB Hub StarTech.com - Free user manual and instructions

Product Type	Industrial USB 2.0 Hub
Brand	StarTech.com
Model	USB2001EXTV
Color	Black
Interface	USB 2.0 (upstream & downstream)
Number of Downstream Ports	1
Data Transfer Rate	480 Mbps
Power Source	Bus-powered or external 5V DC via screw terminal
Operating Temperature	-40°C to 85°C (-40°F to 185°F)
Dimensions (L x W x H)	2.5 x 1.5 x 0.8 in (63.5 x 38.1 x 20.3 mm)
Weight	0.1 lb (45 g)
Enclosure Type	Metal, industrial-grade
Connector Type	USB Type-A (female) with screw-lock
LED Indicators	1 green LED for power/link
Mounting Options	DIN-rail mountable (bracket included)
Included Accessories	USB cable (1m), external power adapter, DIN-rail clip
Warranty	2 years
Certifications	CE, FCC, RoHS, UL
Compatibility	Windows, macOS, Linux (driverless)
Special Features	Extended temperature range, screw-lock connector, industrial ruggedness

Frequently Asked Questions - USB2001EXTV StarTech.com

What is the operating system compatibility of the USB2001EXTV?

The hub is driverless and compatible with Windows, macOS, and Linux.

Can the hub be powered via USB bus only?

Yes, it can be bus-powered, but for reliable operation in industrial environments, an external 5V DC power supply (included) is recommended.

What is the maximum operating temperature?

The hub supports an extended temperature range of -40°C to 85°C (-40°F to 185°F), suitable for harsh environments.

Does the hub support USB 3.0 devices?

No, it is a USB 2.0 hub with 480 Mbps speed. USB 3.0 devices will work at USB 2.0 speeds.

How do I mount the hub on a DIN rail?

The hub comes with a DIN-rail mounting bracket. Attach the bracket to the hub and clip it onto the DIN rail.

What does the green LED indicate?

The green LED indicates power and link status. It will be solid when the hub is powered and connected to a host.

Is the hub hot-swappable?

Yes, the hub supports hot-swapping of USB devices and can be plugged/unplugged while the system is running.

What is the screw-lock connector for?

The screw-lock USB Type-A connector ensures a secure connection to the host computer, preventing accidental disconnection in vibration-prone environments.

Can I use a longer USB cable than the one included?

For best performance, use a high-quality USB 2.0 cable up to 5 meters. Longer cables may cause signal degradation.

Does the hub require driver installation?

No, it is plug-and-play and works with the built-in USB drivers of the operating system.

USER MANUAL USB2001EXTV StarTech.com

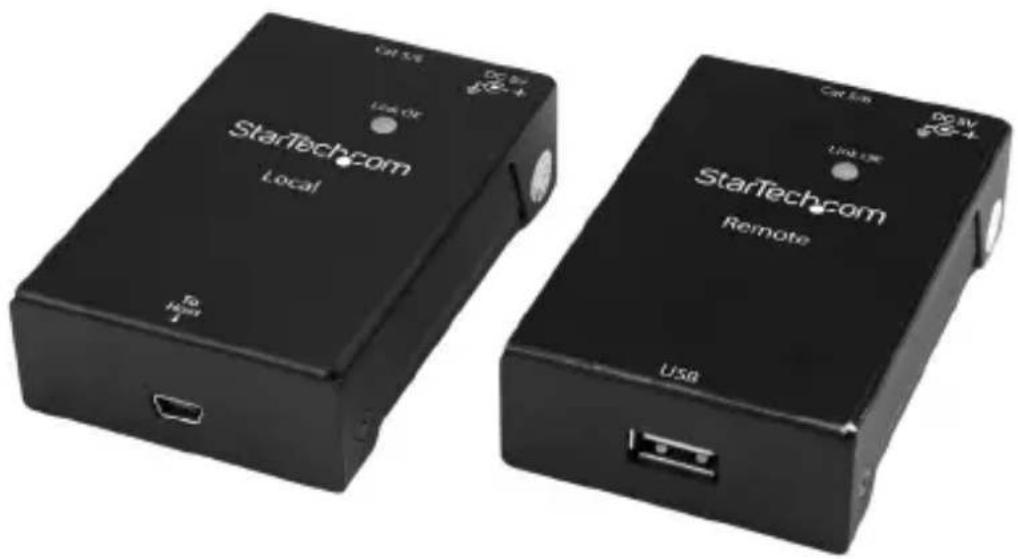

1-Port USB 2.0-Over-Cat5-or-Cat6 Extender Kit

USB2001EXTV

*actual product may vary from photos

For the latest information, technical specifications, and support for this product, please visit www.startech.com/USB2001EXTV.

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Changes or modifications not expressly approved by StarTech.com could void the user's authority to operate the equipment.

Industry Canada Statement

This Class B digital apparatus complies with Canadian ICES-003.

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-party companies not related in any way to StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby acknowledges that all trademarks, registered trademarks, service marks, and other protected names and/or symbols contained in this manual and related documents are the property of their respective holders.

Table of Contents

Introduction......1

Packaging contents....1

System requirements....1

Product diagram ......2

Front view 2

Rear view....2

Installing the extender....3

Install the extender....3

Technical support....4

Warranty information....4

Introduction

This 1-port USB 2.0 extender lets you connect a USB peripheral device up to 50 m (165 ft.) away from your host computer. Now you can place your USB 2.0 device exactly where you need it, and you can overcome the 16 ft. USB cable length limitation to create a more flexible and efficient workspace.

Packaging contents

• 1 x USB 2.0 extender local unit
• 1 x USB 2.0 extender remote unit
• 1 x USB 2.0 cable
• 1 x RJ45 cable
• 8 x rubber feet
  • 1 x universal power adapter (NA/JP, UK, EU, ANZ)
• 1 x quick-start guide

System requirements

• A host computer with an available USB-A port (USB Type-A)
  • An AC electrical outlet
• Terminated RJ45 Cat5e or better Ethernet cable

Operating system requirements are subject to change. For the latest requirements, please visit www.startech.com/USB2001EXTV.

Product diagram

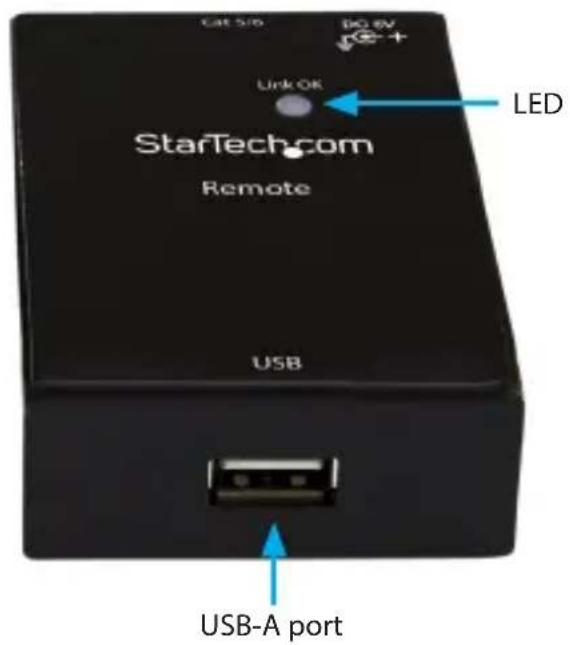

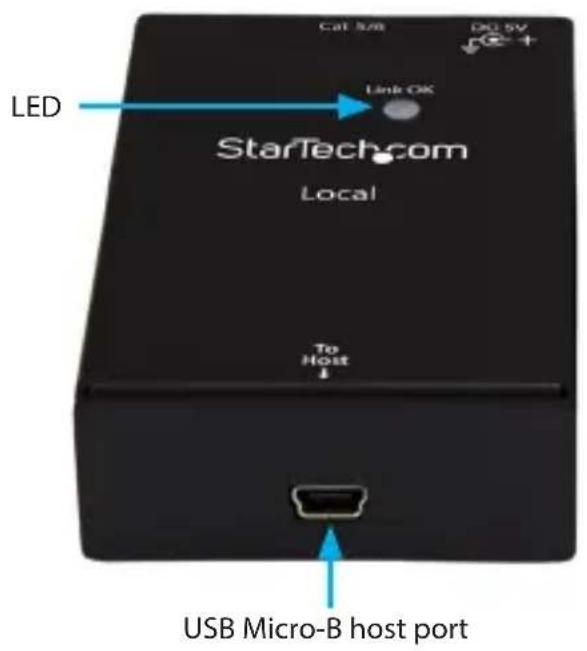

Front view

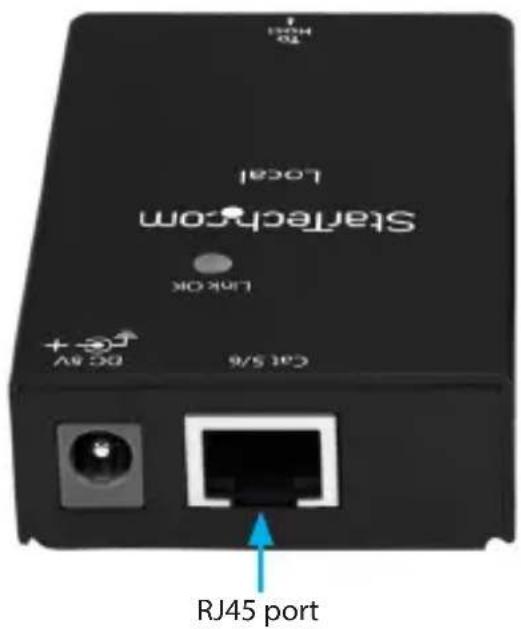

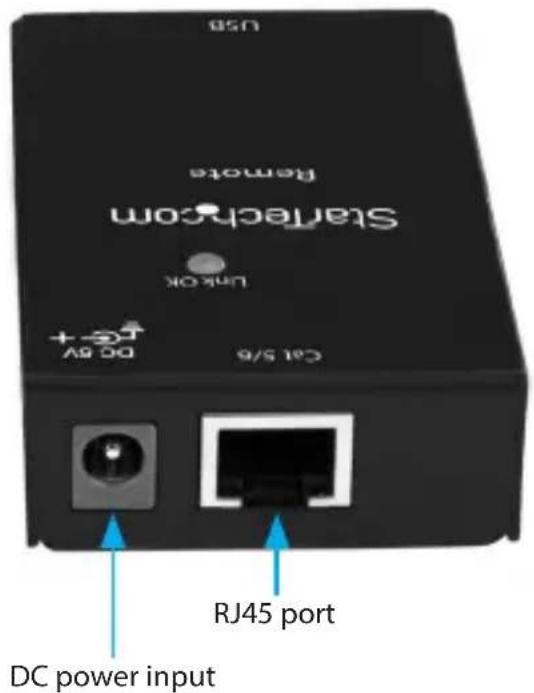

Rear view

Installing the extender

The USB2001EXTV features both a local and a remote extender unit. The local extender connects to your host computer system, while the remote extender connects with your remote USB device. Both devices are then connected together using standard Cat5e cable.

The provided power adapter must be connected to the remote unit in order for the extender to function properly. Follow the instructions below to install the extender.

Install the extender

1. Connect the USB 2.0 cable (included) to the local unit's host port and to the host computer's USB-A port.
2. Connect a Cat5e Ethernet cable to the local unit's RJ45 port and to the remote unit's RJ45 port.
3. Connect your USB peripheral device to the remote unit's USB-A port.
4. Select the appropriate power cord for your region (NA/JP, UK, EU, or ANZ) and connect it to the power adapter.
5. Connect the power adapter to an AC electrical outlet and to the remote unit's DC power input port.

Notes:

• Do not route the Ethernet cable through any networking equipment (for example, a router, or a switch).
• Ensure that your Ethernet cable is long enough to connect the local unit to the remote unit (maximum extension distance is 50 m, or 165 ft.).
• If your host computer enters Sleep, Standby, Hibernate, or Power Save mode, the USB extension functionality may fail upon wake up. To ensure proper operation, don't allow your host computer to enter these modes. Consult your computer's documentation to ensure these modes are not enabled, and for instructions on how to disable any enabled modes.

Technical support

StarTech.com's lifetime technical support is an integral part of our commitment to provide industry-leading solutions. If you ever need help with your product, visit www.startech.com/support and access our comprehensive selection of online tools, documentation, and downloads.

For the latest drivers/software, please visit www.startech.com/downloads

Warranty information

This product is backed by a two-year warranty.

StarTech.com warrants its products against defects in materials and workmanship for the periods noted, following the initial date of purchase. During this period, the products may be returned for repair, or replacement with equivalent products at our discretion. The warranty covers parts and labor costs only. StarTech.com does not warrant its products from defects or damages arising from misuse, abuse, alteration, or normal wear and tear.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. Some states do not allow the exclusion or limitation of incidental or consequential damages. If such laws apply, the limitations or exclusions contained in this statement may not apply to you.
