USER MANUAL HB20A4AME StarTech.com

4-Port USB 2.0 Hub - Industrial-Grade - ESD and Surge Protection

HB20A4AME

FR: Guide de l'utilisateur - fr.startech.com
DE: Bedienungsanleitung - de.startech.com
ES: Guía del usuario - es.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
IT: Guida per l'uso - it.startech.com
JP: 取扱説明書 - jp.startech.com

Package contents

• 1 x USB 2.0 hub
• 1 x USB-A to USB-B cable
• 1 x DIN rail kit
  • 1 x instruction manual

Requirements

• A USB equipped computer
- Up to four peripheral devices with cabling
- A Phillips type screwdriver (optional for DIN mounting)

Operating system requirements are subject to change. For the latest requirements, please visit www.startech.com/HB20A4AME.

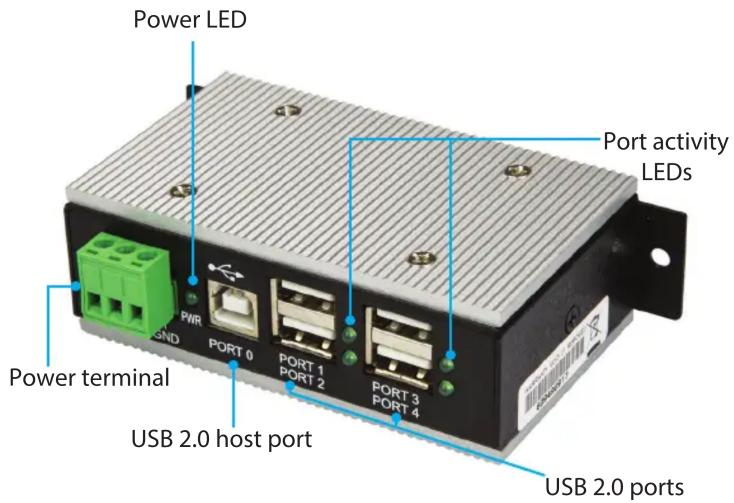

Product diagram

*actual product may vary from photos

Front view

Back view

Mounting the USB hub

1. Attach the DIN rail clips to the USB hub, using the DIN rail screws (provided) and a Phillips type screwdriver (sold separately).

Close-up of two metallic mechanical components with four circular blue markings on their surfaces (no text or symbols visible)

1. Slide the DIN rail clips into the DIN rail on your rack.

Installation

1. Connect the USB 2.0 host port (PORT 0) on the hub to a USB port on your computer, using the included USB-A to USB-B cable.
2. Connect your USB peripherals to the USB 2.0 ports on the USB hub.
3. (Recommended) If you're using an external power source, connect the positive and negative power pins on your power source cabling to the corresponding sockets on the power terminal, along with the grounding wire.

Power requirements

Minimum voltage 7 V

Maximum voltage 48 V

Minimum recommended amperage 2 A (at the minimum 7 V)

Minimum recommended wattage 14 W

StarTech.com

Hard-to-find made easy®

About the LED indicators

The USB hub features LEDs that indicate the hub's operating status:

LED indicator Behavior Significance

Power LED Illuminated The USB hub is powered on.

Port activity LEDs Illuminated A USB device is connected to the port.

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by StarTech.com could void the user's authority to operate the equipment.

Industry Canada Statement

This Class B digital apparatus complies with Canadian ICES-003.

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby acknowledges that all trademarks, registered trademarks, service marks, and other protected names and/or symbols contained in this manual and related documents are the property of their respective holders. Phillips is a trademark of Phillips Screw Company.

Technical Support

StarTech.com's lifetime technical support is an integral part of our commitment to provide industry-leading solutions. If you ever need help with your product, visit www.startech.com/support and access our comprehensive selection of online tools, documentation, and downloads.

For the latest drivers/software, please visit www.startech.com/downloads

Warranty Information

This product is backed by a two-year warranty.

StarTech.com warrants its products against defects in materials and workmanship for the periods noted, following the initial date of purchase. During this period, the products may be returned for repair, or replacement with equivalent products at our discretion. The warranty covers parts and labor costs only. StarTech.com does not warrant its products from defects or damages arising from misuse, abuse, alteration, or normal wear and tear.
