USER MANUAL Acqua BLS 100 IMETEC

Instructions for use

Sparkling water system

Simple line drawing of a curved arrow emerging from a vertical surface, no text or symbols present

TYPE H2501

CE IMETEC

III

Line drawing of a hand pressing down on a mechanical component (no text or symbols)

Line drawing of a hand holding a small object, labeled [H] in the top-left corner (no other text or symbols)

Line drawing of a hand holding a small object to press or install a bottle (no text or symbols)

Line drawing of a hand gripping a tool or device (no text or symbols)

Line drawing of a hand holding a cylindrical object with a handle, no text or symbols present

Line drawing of a hand holding a curved object, possibly a wrist or knee joint (no text or symbols present)

IT

MANUALE DI ISTRUZIONI PER L'USO DEL SISTEMA PER ACQUA FRIZZANTE

Tel. +39.035.688.111 Fax +39.035.320.149

0610

685000IN

GB

USE INSTRUCTIONS MANUAL FOR THE SPARKLING WATER SYSTEM

Dear customer, IMETEC thanks you for having purchased this product. We are certain you will appreciate the quality and reliability of this appliance, designed and produced with client satisfaction in mind. This instructions manual has been drawn up in compliance with the European Standard EN 62079.

ATTENTION!

Instructions and warnings for a safe use

Before using this appliance, carefully read the use instructions, in particular the safety warnings and comply with them. Keep this manual and illustrative guide with the appliance for future consultation. In case you pass the appliance on to another user, make sure to also include this documentation.

INDEX

Safety warnings 5-6

Description of the appliance and accessories 6

Assembly 7

Use....7

Useful advice....7

Maintenance....8

Disposal 8

Service and warranty 8

SAFETY WARNINGS

• After having removed the appliance from its packaging, check the integrity of the supply based on the drawing and eventual presence of transport damages. If in doubt, do not use the appliance and contact the authorised after-sales assistance.
- The packaging material is not a game for children! Keep the plastic bag away from the reach of children; danger of suffocating!
- This appliance must be used only for the purpose for which it was designed, meaning as sparkling water system for home use. Any other use is considered not compliant and therefore dangerous.
- This appliance can be used children older than 12 years, by persons with reduced physical, sensorial or mental abilities or by inexperienced persons only if previously trained on the safe use and only if informed on the dangers linked to the same product.
• Children cannot play with the appliance. The appliance cannot be cleaned and maintained by children without the supervision of an adult.
- DO NOT expose the device to humidity or atmospheric agents (rain, sun).
• In case of fault or malfunctioning of the appliance do not tamper with it. For any repairs, contact an authorised after-sales technical assistance centre only.
- IMPORTANT: return the sparkling water system for any repairs without the CO 2 cylinder inside it.
- Use only CO 2 E290 IMETEC code 7730 – 7731 cylinders
- Never place the sparkling water system or the CO _2 cylinder on top of or near hot surfaces, naked flames or similar. Maximum ambient temperature 50°C.
- NEVER transport the sparkling water system with the CO 2 cylinder assembled. The sparkling

GB

water system and the CO _2 cylinder must always be transported separately.

• Use only CO 2 cylinders at ambient temperature.
• NEVER gas an empty PET bottle or without having inserted the bottle filled with water at the level indicated inside the sparkling water system.
• NEVER use deformed, faded or broken bottles.
• NEVER use bottles after the expiry date indicated on the back of the same bottle.
• CO _2 is pressurised inside the cylinder. Keep it in a cool place. Never expose it to direct sun light or heat sources. Maximum temperature 50°C.
• NEVER freeze the CO 2 cylinder.
  • NEVER freeze the water bottles.
• DO NOT shake the bottle after gassing. In case of pressure increase inside the bottle, slowly open the same to decrease pressure.
  • Use only PET IMETEC code 7729 bottles
  • DO NOT tamper with the CO 2 cylinder
• Implement gassing only when the appliance is upright
• Never remove the bottle during gassing

ATTENTION!:

Keep the cap of the CO _2 cylinder in case of replacement or returning of the same.

DESCRIPTION OF THE APPLIANCE AND ACCESSORIES

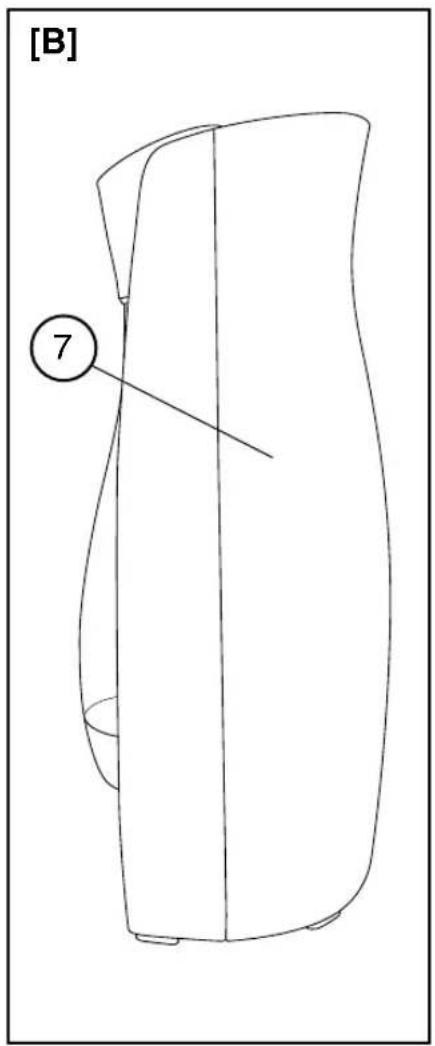

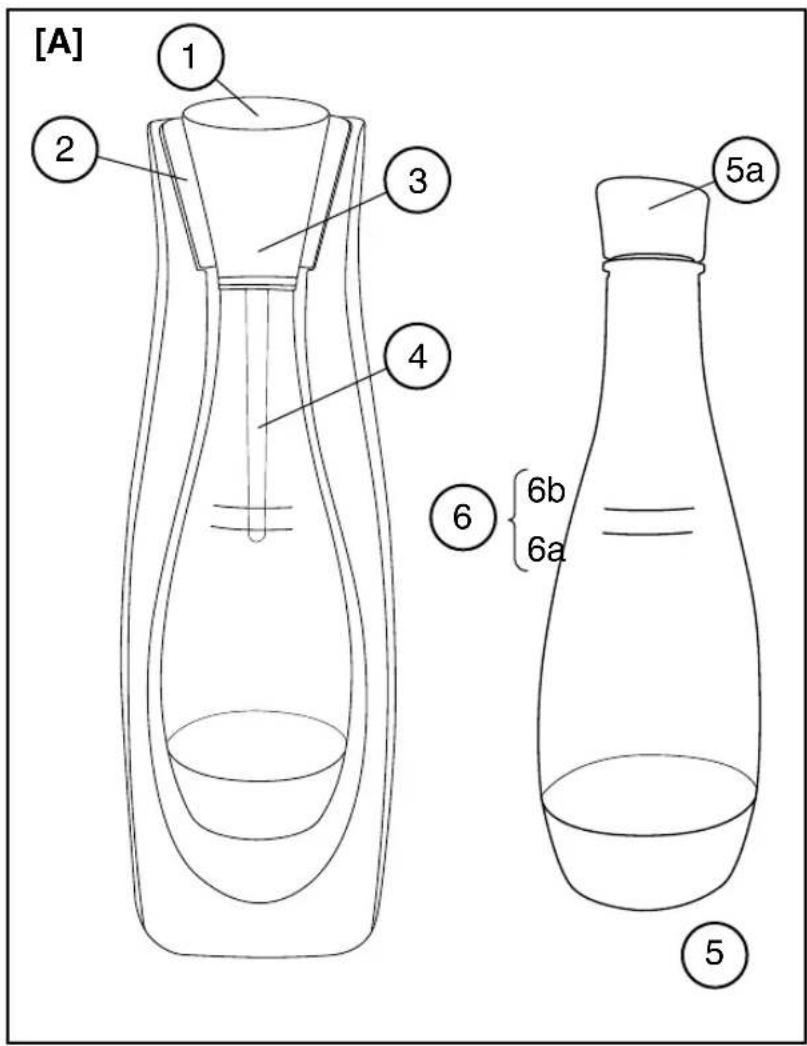

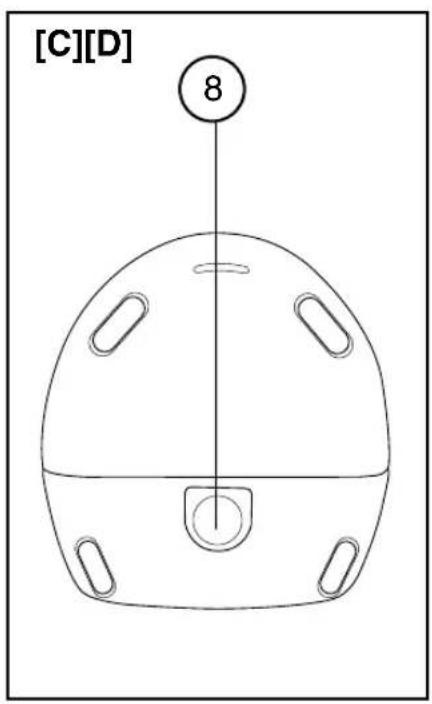

Consult the figures [Fig A-B-C-D-E] in the illustrations section to verify the packaging content.

All illustrations are in the cover pages:

1. Removable cover for cleaning of the bottle support
2. PUSH key
3. Support for PET bottle
4. Tube for gassing
5. PET bottle
   a. Cap

6. Filling level
   a. MIN level
   b. MAX level

7. Rear cover

8. Release key

9. Connector

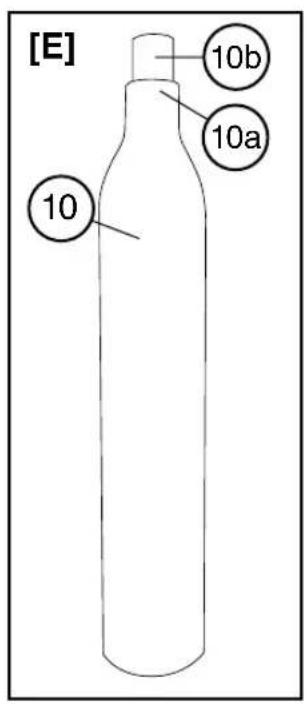

10. CO 2 cylinder

a. Seal

b. Cap

1. Connection hooks of the rear cover

2. Guide for CO 2 cylinder

ASSEMBLY:

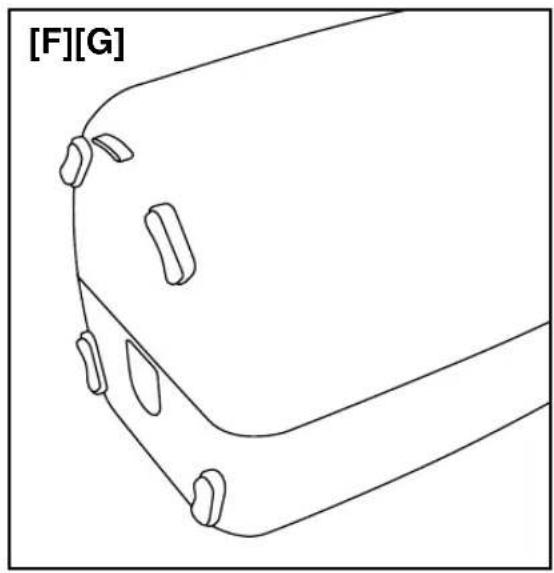

• Position the sparkling water system on flat and rigid surface [Fig. F]

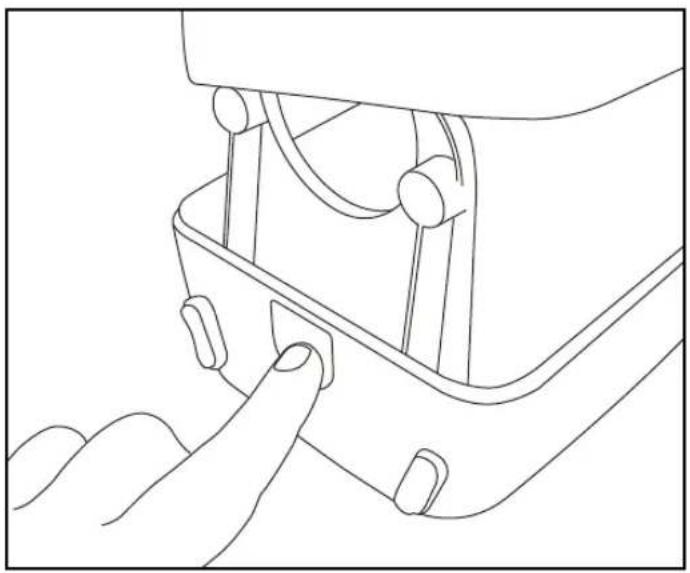

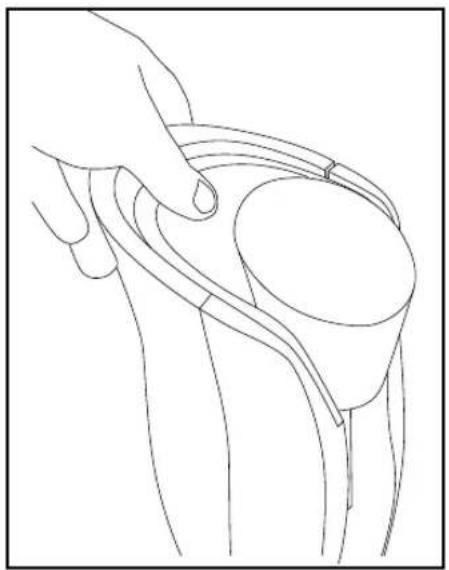

• Remove the rear cover (7) by pressing the release key (8) [Fig. G]

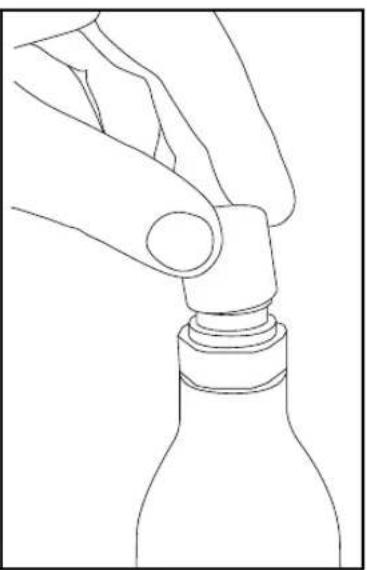

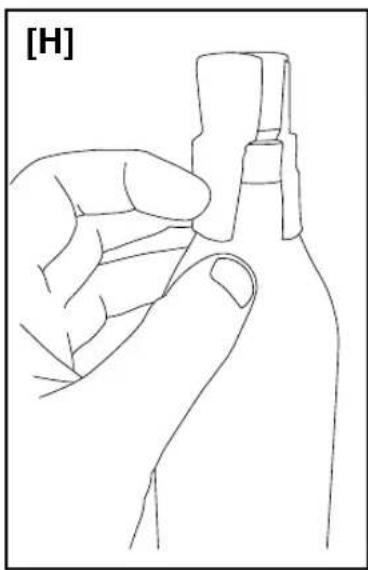

• Remove the seal (10a) and the cap (10b) present on the CO 2 cylinder (10) [Fig. H]

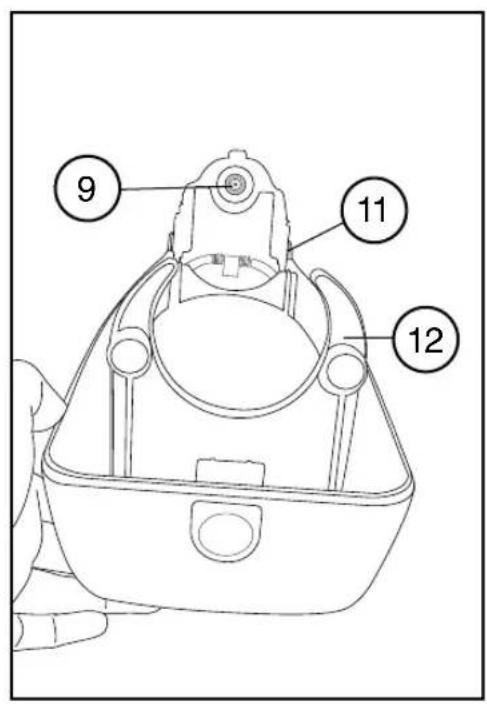

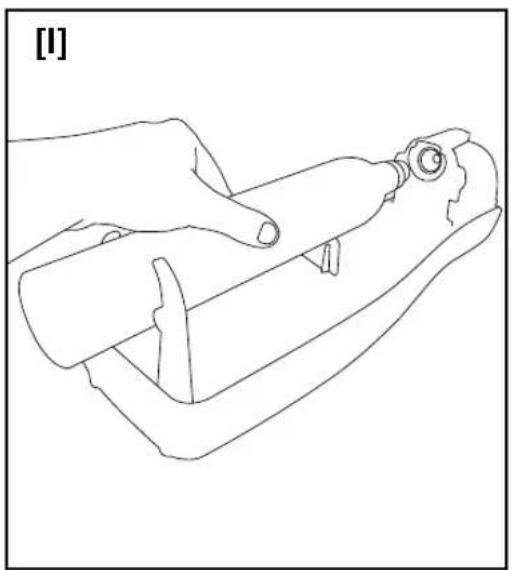

• Slide the CO 2 cylinder (10) through the guide (12) [Fig I]
• Tighten the CO 2 cylinder (10) to the connector (9) turning it clockwise
• Ensure that the CO 2 cylinder (10) is fully tightened

Note: never excessively tighten the cylinder to the sparkling water system as this may damage the same system.

• Close the rear cover (7) [Fig. G]
  • Before use, wash the PET bottle (5) using running water, without exceeding the temperature of 40^ C.
• Fill the PET bottle (5) with cold water up to the MAX level (6b).
• Do not exceed the MAX level (6b), never drop below the MIN level (6a).

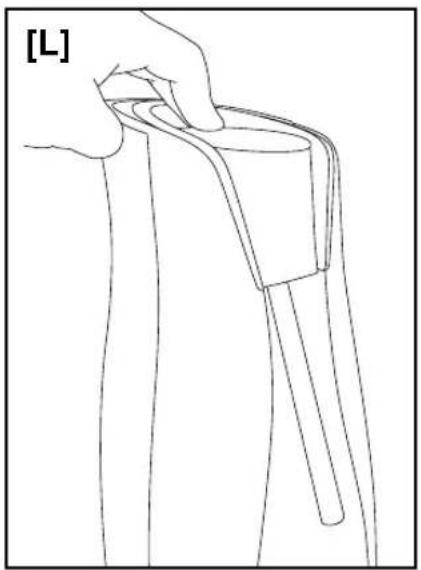

• Tilt the support for PET bottle (3) [Fig. L]

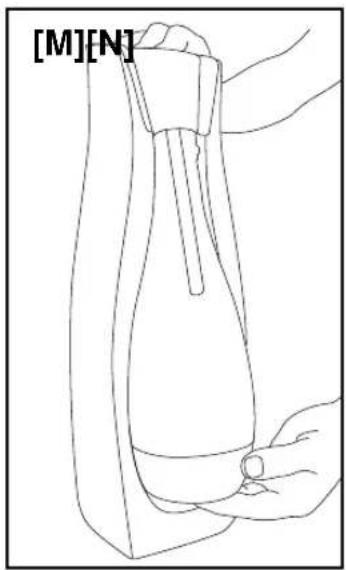

• Insert the PET bottle (5) tightening it clockwise until completely fastened [Fig. M]
• The point of the gassing tube (4) must always be immersed in the water.

USE

• Press the PUSH key (2) for about 2 seconds, slowly releasing it [Fig. N]
- To adjust the amount of CO 2 immersed in the water, repeatedly press the PUSH key (2).
- Tilt the support for PET bottle (3) [Fig. L]
- Remove the PET bottle (5), by loosening it anti-clockwise [Fig. M].

USEFUL ADVICE

• To obtain a greater amount of bubbles use cold water, vice-versa, the warmer it is the less amount of bubbles will be obtained.
  • To maintain the flavour of the sparkling water unvaried, close the PET bottle using the cap (5a).
• The PET bottle (5) can be kept in the refrigerator.

REPLACEMENT OF THE CO 2 CYLINDER

Proceed with the replacement of the CO _2 cylinder (10) when, by pressing the PUSH key (2), the water coming out is no longer sparkling

• Position the sparkling water system on flat and rigid surface [Fig. F]
• Remove the rear cover (7) by pressing the release key (8) [Fig. G]
• Loosen the CO 2 cylinder (10) from the connector (9) turning it anti-clockwise
• Extract the CO 2 cylinder (10) through the guide (12) [Fig I]
• Tighten the cap (10b) on the CO 2 cylinder (10) [Fig. H]
  • To insert the new CO 2 cylinder, refer to the chapter ASSEMBLY

GB

MAINTENANCE

CLEANING

Clean the sparkling water system using a damp cloth. Do not use solvents or other aggressive or abrasive detergents. On the contrary, the surface may be damaged.

Wash the PET bottle (5) using running water, without exceeding the temperature of 40^ C.

Do not wash the PET bottle (5) and the cap (5a) in the dishwasher.

DISPOSAL

The product packaging consists of recyclable materials. Dispose of these in an environmentally appropriate manner.

The product must be disposed of properly, in accordance with the provisions of European standard 2002/96/EC. The device is made of recyclable materials that can be re-used to avoid environmental pollution. For more information, contact your local disposal company or the store where you purchased the appliance.

SERVICE AND WARRANTY

To request repairs or purchase spare parts, please contact IMETEC's customer assistance service by calling the free-phone number below (only in Italy) or consulting the website.

A manufacturer warranty is provided for the appliance. The warranty does not cover any parts that are defective due to negligence or misuse, non-compliance with the operation instructions, incorrect installation, maintenance carried out by unauthorised personnel, use of cylinders that differ from IMETEC cylinders or filled by personnel who are not authorised by IMETEC, damage caused during transport or circumstances that in either case cannot be attributed to manufacturing defects. Moreover, the warranty is not applicable in case of improper use of the appliance and if used for professional purposes. Details can be found on the enclosed warranty sheet.

The non-compliance with the instructions contained in this use, care and maintenance manual of the product void the right to the manufacturer warranty.
